SLITHER SL
TRANSOM MOUNT ELECTRIC MOTOR
OWNERS MANUAL
Watersnake
2
WATERSNAKE ELECTRIC MOTORS
Congratulations and welcome to a world of silent motoring.
Powerful yet silent, the Watersnake electric motors are built to suit all angling
conditions. High quality materials, superior design and precision engineering
make these motors longwearing and reliable.
Please read manual completely before starting installation.
ATTACHING THE MOTOR TO YOUR BOAT
Attach the motor to the stern of the boat and tighten both mounting bolts
securely while taking care not to over-tighten. (A)
To adjust the angle of the motor after attachment, hold the motor head with
one hand and depress the positioning pin at the top of the mounting bracket
with your other hand. Press and hold the positioning pin until the desired
angle has been reached, next release the pin and ensure the mechanism locks
securely. (B)
(A) (B)
TIGHTEN BOTH BOLTS SECURELY
DEPRESS THE POSITIONING PIN
TO AJUST TILT OF THE BRACKET
www.watersnake.com.au 3
SLITHER SL
Multi adjustable
depth collar
Heavy Duty
Alloy Bracket
Control Box
Digital voltage meter
Extendable control handle
featuring 5 forward
and 3 reverse speeds
Quick tilt device
Composite shaft
Weedless
propeller Motor assembly
unit
Watersnake
4
DEPTH ADJUSTMENT
Hold the motor shaft with one hand, loosen the depth collar adjustment screw
and set the motor to the desired depth, then retighten the adjusting screw on
the depth collar securely.
STEERING
To adjust steering counter-force, simply loosen or tighten the counterforce
bolt. The ideal setting is one where the counterforce bolt is just tight enough
so that the boat will steer in the direction you are aiming without need for
continual correction.
Depth collar adjustment
Steering counter
force adjustment
www.watersnake.com.au 5
HEAD UNIT & SPEED CONTROL
The tiller control is telescopic and can be extended. Simply pull the grip
out away from the head unit to set your desired length. Rotate the handle
clockwise for forward speed and anti-clockwise for reverse There are five
forward and three reverse speeds.
SPEED CONTROLDIGITAL VOLTAGE METER
EXTENDABLE HANDLE
SLITHER SL
Shows the voltage going
into the motor unit from the
battery. This should always be
around 12 Volts. A much
lower reading of 12 Volts will
inhibit the performance of
your motor.
5 Forward and 3 reverse speed
settings.
Watersnake
6
ATTACHING THE PROPELLER
Before doing anything with the propeller, ensure the cables to
the battery are disconnected.
1: Place shear pin in shaft as shown.
2: Align the propeller against the shear pin on the shaft
(there is a groove on the back of the propeller which the shear
pin needs to slot into) and then tighten the propeller nut securely.
1
2
Shear pin
Propeller shaft
Propeller
Propeller
nut
Please note the Slither SLW34/30 motor comes with a 2 bladed propeller.
www.watersnake.com.au 7
DEEP CYCLE BATTERIES
Deep Cycle batteries are
constructed using thicker battery
plates and a denser active
material to withstand repeated
charge and recharge cycles.
Rather than providing high bursts
of power for short periods of
time they are specially designed
to deliver sustained power with
low current draw over extended
periods of time.
(1)
SLITHER SL
ELECTRICAL CONNECTIONS
Before connecting the motor’s
cables to the battery terminals,
ensure all switches are in the
OFF position and stand clear of
the propeller.
Connect the red cable to the
positive (+) terminal and the black
cable to the negative (-) terminal,
making sure the terminals are
clean before doing so. A clean
connection will minimise power
wastage and give you maximum
power from the battery.
Please Note: for best performance
please keep battery terminals and
connections clean.
It is recommended to use an
inline fuse to protect the circuit
of the motor, this is a connection
that joins the motor battery cable
to the battery and shuts the
motor off if the connection over
heats. As shown on diagram (1)
We recommend using a deep
cycle marine battery for
optimum performance.
*In line fuse kits available separately
See page 16 for more details.
*
50 amp
circuit
breaker
Watersnake
8
MODEL SPECIFICATIONS
CODE MOTOR DESCRIPTION THRUST VOLT/AMPS WATTS RPM SHAFT COLOUR BRACKET STEERING SPEEDS PROP
55245 Slither SLW 34/30 34lb 12v / 7.5-34 90-410 1300 30" White Alloy Transom Extend Hand Tiller 5 /3 2-Blade
55246 Slither SLW 44/36 44lb 12v / 11-44 132-528 1300 36" White Alloy Transom Extend Hand Tiller 5 /3 3-Blade
55247 Slither SLW 54/42 54lb 12v / 13-54 156-640 1370 42" White Alloy Transom Extend Hand Tiller 5 /3 3-Blade
Model range and specifications are correct at time of printing.
For new models not listed here find specifications at: www.jarvismarine.com.au
www.watersnake.com.au 9
SLITHER SL

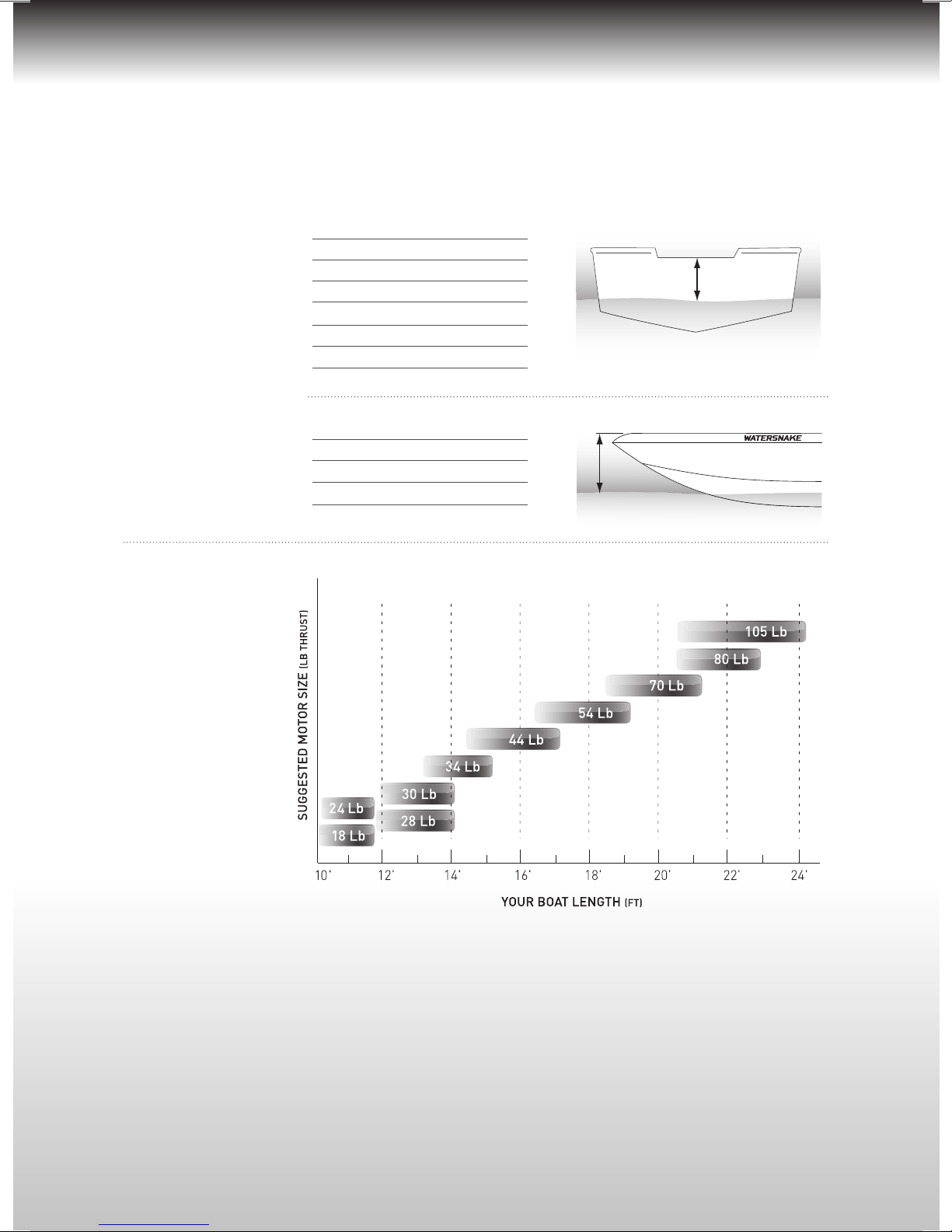

MOTOR SELECTION GUIDE
Suggested
Shaft Length
42”
48”
54”
60”
Bow Mount to
Water Level
14” to 20”
20” to 26”
26” to 32”
32” to 36”
WATERSNAKE
SHAFT LENGTH
GUIDE
WATERSNAKE
MOTOR SIZE
GUIDE
Transom Mount Measurement
Bow Mount Measurement
With your boat in the
water, measure the
distance from the
mounting surface of
the transom or bow
to the water level.
The guide shown on
the right will assist
you in finding the
shaft length that best
suits your boat.
The graph
shown right is
a general guide
only. Always
speak with
your dealer
regarding the
size of motor
that is most
appropriate for
your boat.
Transom Mount
to Water Level
Up to 8”
Up to 10”
Up to 12”
10” to 14”
14” to 20”
20” to 22”
22” to 24”
Suggested
Shaft Length
24”
26”
30”
36”
42”
48”
54”
Watersnake
10
TROUBLESHOOTING QUICK REFERENCE GUIDE
1. REDUCED OR NO POWER
Possible cause(s)/Solution(s):
• Weed or fishing line may be caught behind propeller. Remove propeller and
remove the debris.
• Check battery connections and ensure terminals are clean.
• Check battery voltage to ensure sufficient voltage. Recharge battery and
check for bad cell.
• Incorrect wire gauge used from battery to trolling motor or connection plug.
• Possible faulty connection in boat wiring or trolling motor wiring.
• Speed control armature magnet cracked or dislodged. Grinding noise will
come from motor. (CONTACT REPAIR AGENT)
• Water intrusion in motor housing which will show water or oily residue inside
head cover. (CONTACT REPAIR AGENT)
• Check the propeller pin is in place. (SEE PAGE 6 OF THIS MANUAL)
2. NOISE OR VIBRATION COMING FROM MOTOR
Possible cause(s)/Solution(s):
• Weed or debris may be caught in propeller.
• Check to see if propeller is securely tightened and shear pin is in place.
• Remove prop and look for a wobble on prop shaft to see if bent.
• Speed control brushes may be worn and may need to be cleaned and
or replaced. (CONTACT REPAIR AGENT)
