Wave Point 01019 Bedienungsanleitung

8.5in x 11in

• READ AND FOLLOW THE GUIDELINES TO ENSURE THE PROPER USE AND APPLICATION.

FAILURE TO FOLLOW THESE GUIDELINES MAY RESULT IN RETROFIT KIT DAMAGE, ELECTRICAL

SHOCK, FIRE AND/OR INJURY.

• WARNING! LAMPS CAN BE HOT. HANDLE WITH CARE.

• NEVER TOUCH THE LAMP WHILE OPERATING. BEFORE WORKING ON THE RETROFIT KIT AND/

OR AQUARIUM, THE RETROFIT KIT MUST BE DISCONNECTED FROM THE POWER SUPPLY.

T5 4 Lamp Retrot Kit (4 Row Lamp Conguration)

• 14X LIGHT AMPLIFYING PARADYNAMIC REFLECTOR

• Water Resistant Endcaps

• Premium UL Listed GFCI Plug

• Ultra-Silent, No Fan Needed and Energy Efcient Ballast

• On/Off Switch

• Includes: 2 Sun Wave® and 2 SuperBlue 460®Lamps

Canopy Mounting Bracket (10in) and Hanging Kit

WARNING! Buyer/user assumes all responsibility

for safety and proper use not in accordance with the

directions and safety labels.

PAGE 2 PAGE 3

Min.

2in

Lock

Unlock

F G H

B C

Adjust

Height

Press

Down

Adjust

Height

Drip Loop

GFCI

ONLY

Electronic ballast

Hangers

Lock Nut

GFCI Plug

Paradynamic

Reflector

ON/OFF

Switch

8.5in x 11in 8.5in x 11in

WAVE POINT® T5 4 Lamp Retrot Kit

(4 Row Lamp Conguration)

Includes: 2 Sun Wave® and 2 Superblue 460®lamps

MODEL # DESCRIPTION DIMENSION (W x H x L) (Approx.)

01019 96 watt 24in T5 4 Lamp Retrot Kit 8.125in x 2.25in x 23.8125in

01020 156 watt 36in T5 4 Lamp Retrot Kit 8.125in x 2.25in x 34.675in

01021 216 watt 48in T5 4 Lamp Retrot Kit 8.125in x 2.25in x 46.50in

PART LIST

1. 14X light amplifying paradynamic reector

2. GFCI plug

3. 2 Sun Wave®and 2 Superblue 460®HO T5 lamps

4. ON/OFF switch

5. Lock nut

6. Hanger

7. Electronic ballast

Read and follow the guidelines to ensure the proper

use and application. Failure to follow these guidelines

may result in Retrot Kit damage, electrical shock,

re and/or injury.

1. Use this product for its intended use only.

2. Never yank or pull the cord from the electrical outlet.

3. Do not place the Retrot Kit directly on top of the aquarium.

4. Do not operate if the plug or wire is damaged.

5. The Retrot Kit is not to come in contact with water.

6. The Retrot Kit must be turned off/disconnected from the power

supply before any maintenance is done to either the Retrot Kit or

the aquarium.

7. Verify that hands are dry prior to disconnecting the power.

8. To reduce the risk of electrocution keep all connections dry.

9. If the Retrokit Kit falls or comes in contact with water/excess

moisture, unplug the Retrot Kit from the power supply immediately

before removing. Failure to do so may cause electrical shock or

injury.

10. The Retrot Kit and connections need to be free of water, moisture

and salt build up at all times. Failure to do so will cause electrical

arching resulting in possible re or electrical shock.

11. Do not place above an open top aquarium.

INSTRUCTIONS FOR INSTALLATION

NOTE:

• Only place in well ventilated canopy. This Retrot Kit is intended to be above the aquarium. Do not place directly on

top of any aquarium without using hangers or canopy mounting bracket. Do not place above the aquarium without a

glass top.

• Use and/or consult a professional electrician or general contractor for installation

INSTALL TO THE CEILINGER

Additional hardware and tools required:

Anchors, drill and a screwdriver.

1. Undo lock nut. (A)

2. Locate a wood beam in the ceiling. Using the mounting

brackets drill 2 pilot holes in the intended locations.

Secure directly to the wood beam. (B)

NOTE: If using anchors to secure in the mounting

brackets and light Retrot Kit. Use and follow the

directions provided with the anchors. If there are

any questions or concerns consult a professional

electrician or general contractor.

3. Adjust the length of the cable. Cut off or hide

excess cable. Secure the end of the cable with the

cable stop. (C)

4. Lock the lock nut. (D)

5. Slide mounting bracket onto the track (E). Position

them equal distance from the edge. Slide bracket in a

minimum of 2in from the edge of the track. (F)

Note: Unit must be disconnected from the power.

6. To level the Retrot Kit adjust hanging wire to the

desired height by pressing the wire outlet in and

sliding cable in and out. (G)

7. Connect power supply cord to the Retrot Kit.

8. Plug directly to a GFCI outlet.

IMPORTANT WARNING AND SAFEGUARDS

This product may contain chemicals known to the state

of California to cause cancer and or birth defects or other

reproductive harm. Wash your hand after handling this

product.

It is your sole responsibilities to verify that the plug and the

receptacle are clean and free of moisture and salt build up at

all times. The receptacle must be free of water, salt, calcium,

magnesium and dust. Failure to do so can cause fire, damage

to property, permanent damage to the product and personal

injury not limited to loss of life.

Do not plug into extension cord/power strip.

Hg lamp contains Mercury

Manage in accordance with disposal laws

See: www.lamprecycle.org

A drip loop must be used when

plugging all electrical aquarium

devices. A drip loop is that part of the

cord hanging below the receptacle.

The national code requires that a

GFCI (Ground fault circuit interrupter)

be used in the branch circuit

supplying all power to water pumps

and electrical aquarium equipment.

If you do not have a GFCI, have

an electrician install one prior to

operating any aquarium component.

PAGE 4 PAGE 5

Min. 2in

C D

A B

C D

E F

8.5in x 11in 8.5in x 11in

MAINTENANCE

BULB REPLACEMENT:

Replace with genuine

Tools required: Hex driver and a small Philips screwdriver.

1. Verify the unit is unplugged. (A & B)

2. Remove the screw and nuts securing the rubber endcap

to the xture. Endcaps only need to be removed from one

side of the Retrot Kit. (C)

3. Slide the endcap directly off the bulb.

Avoid any twisting motion. (D)

4. Slide the old bulb out of the other endcap. (E)

5. Replace bulb: Align the pins on the bulb with the holes

in the end cap and press directly into endcap. Avoid any

twisting motion. Note: Endcap must match: endcap #1

on the right side of the Retrot Kit must be plugged into

endcap #1 on the left side of the Retrot Kit. (F)

6. Replace screws and nuts

7. Reinstall Retrot Kit

8. Plug directly into a GFCI outlet

INSTRUCTIONS FOR INSTALLATION (CONTINUE)

INSTALL ON THE CANOPY

Additional hardware and tools required:

4 screws and a screwdriver.

1. Slide canopy mounting brackets (10in) onto the track.

Position them equal distance from the edge of the Retrot

Kit. Slide bracket in a minimum of 2” from the edge of the

track. (A)

2. Verify the screws purchased do not penetrate all the way

through the canopy.

3. Screw Retrot Kit into canopy. (B & C)

4. Verify that the Retrot Kit is securely attached

to the canopy.

5. Verify that all wiring is secured to canopy and all

connections are free from moisture and or salt build up.

6. Connect power supply cord to the Retrot Kit.

7. Plug directly to a GFCI outlet.

PAGE 6 PAGE 7

B C

8.5in x 11in 8.5in x 11in

TROUBLESHOOTING

PROBLEM: All lamps will not light.

SOLUTION: Lamps in shipping have moved and are not making a proper connection. See Lamp replacement procedure for proper lamp installation.

FOR QUESTIONS AND ANSWERS, VISIT OUR WEBSITE: www.wave-point.com

REPLACEMENT LAMPS

COLOR MODEL # DESCRIPTION

COLOR WAVE®

Optimum Color Enhancer

01004 24 watt COLOR WAVE®Optimum Color Enhancer HO T5 Lamp 21in

01005 39 watt COLOR WAVE®Optimum Color Enhancer HO T5 Lamp 33in

01006 54 watt COLOR WAVE®Optimum Color Enhancer HO T5 Lamp 45in

TROPICAL WAVE®

Full Spectrum Daylight 6,500k

01007 24 watt TROPICAL WAVE®Full Spectrum Daylight 6,500k HO T5 Lamp 21in

01008 39 watt TROPICAL WAVE®Full Spectrum Daylight 6,500k HO T5 Lamp 33in

01009 54 watt TROPICAL WAVE Full Spectrum Daylight 6,500k HO T5 Lamp 45in

SUN WAVE®

Super Daylight 12,000k

01010 24 watt SUN WAVE®Super Daylight 12,000k HO T5 Lamp 21in

01011 39 watt SUN WAVE®Super Daylight 12,000k HO T5 Lamp 33in

01012 54 watt SUN WAVE®Super Daylight 12,000k HO T5 Lamp 45in

SUPERBLUE 460®

Super Blue Actinic 460

01013 24 watt SUPERBLUE 460®Super Blue Actinic 460 HO T5 Lamp 21in

01014 39 watt SUPERBLUE 460®Super Blue Actinic 460 HO T5 Lamp 33in

01015 54 watt SUPERBLUE 460®Super Blue Actinic 460 HO T5 Lamp 45in

REEF WAVE®

Super Violet O3 Actinic 420

01016 24 watt REEF WAVE®Super Violet O3 Actinic 420 HO T5 Lamp 21in

01017 39 watt REEF WAVE®Super Violet O3 Actinic 420 HO T5 Lamp 33in

01018 54 watt REEF WAVE®Super Violet O3 Actinic 420 HO T5 Lamp 45in

CORAL WAVE®

Coral Growth Accelerator

01022 24 watt CORAL WAVE®Coral Growth Accelerator HO T5 Lamp 21in

01023 39 watt CORAL WAVE®Coral Growth Accelerator HO T5 Lamp 33in

01024 54 watt CORAL WAVE®Coral Growth Accelerator HO T5 Lamp 45in

ULTRA GROWTH WAVE®

Plant and Reef Accelerator

01082 24 watt ULTRA GROWTH WAVE®Plant and Reef Accelerator HO T5 Lamp 21in

01083 39 watt ULTRA GROWTH WAVE®Plant and Reef Accelerator HO T5 Lamp 33in

01084 54 watt ULTRA GROWTH WAVE®Plant and Reef Accelerator HO T5 Lamp 45in

MAINTENANCE (CONTINUE)

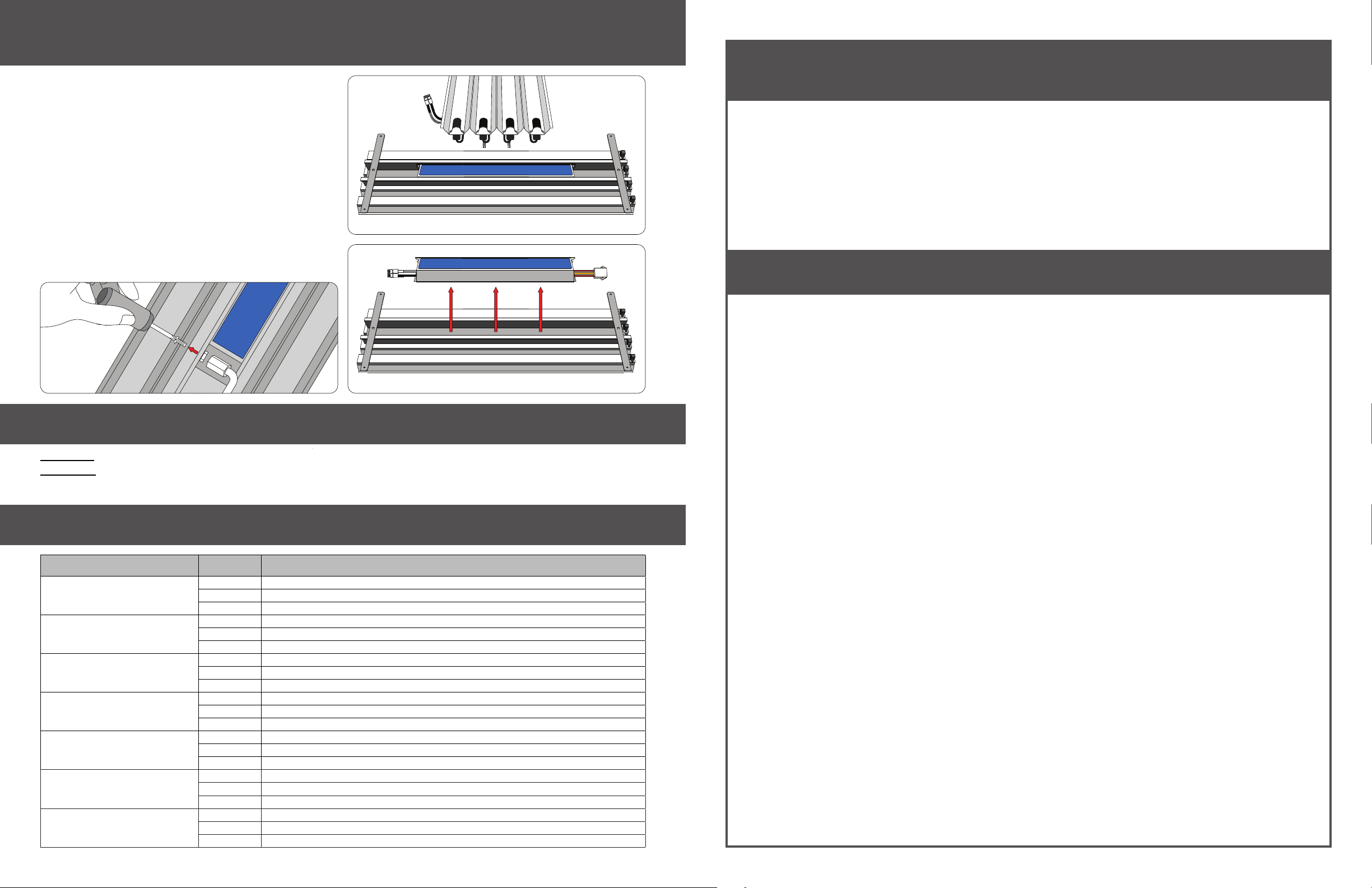

BALLAST REPLACEMENT:

Tools required: Phillips screwdriver and 7mm hex driver

1. Unplug the unit from the receptacle.

2. Take out all lamp on the Retrot Kit to avoid

damaging the lamp and position the Retrot Kit so that the

ballast facing up. (A)

3. Disconnect the power supply.

4. Use 7mm hex driver to loosen both nuts and

remove the ballast. (B)

5. Replace new ballast and reinstall lamps (C)

6. Verify the ballast and lamps are properly installed and

are securely in place before reinstalling the Retrot Kit.

30 DAY PRODUCT GUARANTEE

• If within 30 days of purchase you experience any problems with this Wave Point® Technology

product, return it to the retailer where purchased for replacement. Product must be returned in its

original box, with all original parts and must be accompanied by the original receipt as proof of purchase.

• Products beyond the 30 days of purchase that experience problems should NOT be returned

to the retailer, supplier, or distributor.These Wave Point® products fall under the auspices of the

Wave Point® Technology 1 year limited direct manufacturer warranty. All such problems must be addressed

directly with Wave Point® by the warranty holder (see below).

1 YEAR DIRECT MANUFACTURER LIMITED WARRANTY

• Wave Point® Technology Inc. products are warranted to all registered warranty product owners to be free of

defect in materials and workmanship for one (1) year from date of purchase.

• URGENT: Fill out the warranty registration card included in this box to activate registration

in the Wave Point® limited warranty program. Warranty card must be completed and returned to Wave Point®

Technology within thirty (30) days of purchase (see Warranty Card in page 11 ).

• Under this program, Wave Point® Technology will, at its election, repair, replace or make appropriate

adjustment where inspection by the Wave Point® company discloses any such defects occurring in normal

usage within one (1) year after consumer purchase.

• Only properly registered Wave Point® products are eligible for this warranty service.

• After the 30 ( thirty ) day guarantee has expired, contact Wave Point® Technology directly for warranty

product repair. Do NOT return such Wave Point® products to the retailer, distributor or supplier for repair or

replacement.

• Wave Point® Technology is not responsible for any removal, installation or shipping costs incurred in the

warranty process.

• Lamps are not covered under the 1 Year limited warranty.

• Warranty is void if the failure of Wave Point® product or system or any part, sealant or component thereof

is found to be caused by misuse, tampering, negligence, abuse, misapplication, failure to properly maintain

the product, failure to keep dry (not to come in contact with water), salt build up, or use without Ground Fault

Circuit Interrupter.

• This warranty is non-transferable.

• This warranty is limited to possible parts replacement and labor connected therewith. Wave Point® Technology

is not liable for any incidental or consequential damages including but not limited to loss of life, personal

injury, property damage, damage to equipment, or lost wages, income, prots or savings.

Note: some US states do not allow liability limitations or exclusions on incidental or consequential

damages to the extent listed in the above disclaimer. Check your local state regulations for details on

regulations specic to your state.

NOTE: WAVE POINT® TECHNOLOGY’S WARRANTY POLICY IS SUBJECT TO CHANGE WITHOUT NOTICE.

PAGE 9

8.5in x 11in8.5in x 11in

OPTIONAL 3 YEAR PREMIUM EXTENDED WARRANTY

is available for purchase online at www.wave-point.com/extendedwarranty.html

• Wave Point® Technology product owners may purchase our 3 Year Premium Extended Warranty online on our

web site within 30 days of purchase prior to the expiration of the 30 Day Product Guarantee. This warranty

covers all major parts and labor for 3 years from date of purchase.

• Costs are based on the equipment being placed under extended warranty. The costs for all extended warranty

plans are available online on the web site.

• Lamps are not covered under 3 year extended warranty.

• For complete details and enrollment go to www.wave-point.com/extendedwarranty.html

NOTE: WAVE POINT® TECHNOLOGY’S WARRANTY POLICY IS SUBJECT TO CHANGE WITHOUT NOTICE.

RETURNING PRODUCTS FOR WARRANTY REPAIR

Contact Wave Point® Customer Support at www.wave-point.com/helpdesk.html for all trouble shooting, warranty

verication and return authorization numbers.

NOTE: Products returned without Return Authorization Numbers will be refused.

Procedures:

I HAVE A COPY OF MY ORIGINAL COMPLETED WARRANTY CARD:

Wave Point® product owners seeking warranty resolution should return their Wave Point® product directly to the

manufacturer along with:

1. Return Authorization Number clearly written on outside of box

2. Copy of warranty card with attached copy of original receipt as proof of purchase

3. Warranty holder’s address, phone number and email address if different than listed on warranty card

4. Written explanation of problem

I DO NOT HAVE A COPY OF MY ORIGINAL COMPLETED WARRANTY CARD:

In the event you do NOT have a copy of your original completed Warranty Card you may choose instead to

forward your full customer contact information and proof of purchase as listed below:

1. Return Authorization Number clearly written on outside of box

2. Copy of original receipt as proof of purchase

3. Warranty holder’s name, address, phone number and email address

4. The Wave Point® serial number as listed on the product being returned

5. Written explanation of the problem

SEND TO:

Wave Point® Technology *Email us at [email protected] for the updated address

Warranty Repair Desk

300 South Lewis Rd. Unit J

Camarillo, CA 93012

In the event Wave Point® products are returned for warranty work and are found to be outside the parameters of

the warranty or otherwise caused by other than normal usage, the warranty holder will be contacted by phone

or email and offered the option of (a) repair and return at the owner’s expense, (b) return of the product to the

owner “as is” at the owner’s expense, or (c) disposal of the product.

Only prepaid freight returns will be accepted. All freight is the responsibility of the warranty holder.

NOTE: WAVE POINT® TECHNOLOGY’S WARRANTY POLICY IS SUBJECT TO CHANGE WITHOUT NOTICE.

RETURNING PRODUCTS FOR OUT-OF-WARRANTY REPAIR

Wave Point® owners experiencing problems with a Wave Point® product no longer under warranty may send

their Wave Point® product to Wave Point® Technology for repair.

For help with, or repair of, products no longer under warranty, contact Wave Point® Customer Support at

www.wave-point.com/helpdesk.html for trouble shooting tips and/or return authorization numbers. Products

returned without a return authorization number will be refused.

Procedures:

Wave Point® product owners seeking product repair should return their Wave Point® product directly to the

manufacturer along with:

1. Return Authorization Number clearly written on outside of box

2. Owner’s name, address, phone number and email address

3. The Wave Point® serial number as listed on the product being returned

4. Written explanation of problem

SEND TO:

Wave Point® Technology *Email us at [email protected] for the updated address

Repair Desk

300 South Lewis Rd. Unit J

Camarillo, CA 93012

All repair and shipping costs are the responsibility of the owner. Depending on the problem and/or cost,

products are not always repairable. In such instances all shipping costs remain the responsibility of the owner.

If a Wave Point® product returned for repair is found to be either non-repairable or beyond a reasonable cost to

repair, the owner will be contacted by Wave Point® and offered the option of either disposal of the product or

return to the owner at the owner’s expense.

PAGE 10

8.5in x 11in8.5in x 11in

1 YEAR LIMITED WARANTEE OWNER REGISTRATION CARD

T5 4 Lamp Retrot Kit

• Wave Point® product owners MUST register their purchase with Wave Point® Technology Inc. for their warranty

benets to be in effect. Unregistered products are not eligible for warranty.

• This warranty card must be completed and submitted within 30 days of product purchase.

• Send this completed form along with a copy of the original retail receipt as proof of purchase to:

Wave Point® Technology *Email us at [email protected] for the updated address

Warranty Submissions Desk

300 South Lewis Rd. Unit J

Camarillo, CA 93012

OWNER INFORMATION

Date

Name:

Address:

City: State/Province: Postal Code:

Country

Email: Cell Phone:

Work Phone: Home PHone:

PRODUCT INFORMATION

Product Serial Number: Model No.

(NOTE: This is the digit number located on the PIN tag afxed to the unit)

Date of Purchase:

Seller (Retail Outlet):

Seller’s Location: Seller’s Phone Number:

*Afx a copy of your original purchase receipt here

IMPORTANT: Please make a copy of this warranty card and retain it for your records.

Wave Point® Technology

www.wave-point.com

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

8.5in x 11in

Wave Point® Technology

www.wave-point.com

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wave Point Aquarium Handbücher

Wave Point

Wave Point BlueStar 01046 Bedienungsanleitung

Beliebte Aquarium Handbücher anderer Marken

AquaLighter

AquaLighter Aquascape Bedienungsanleitung

EHEIM

EHEIM 600 T Bedienungsanleitung

Red Sea

Red Sea REEFER XL300 Bedienungsanleitung

AutoAqua

AutoAqua Smart Stir SS-100 Bedienungsanleitung

eKoral

eKoral eKoral Pro Bedienungsanleitung

fish mate

fish mate F14 Bedienungsanleitung

JBL

JBL PRO SILENT S-100 Bedienungsanleitung

Amtra

Amtra VEGA Bedienungsanleitung

JBL

JBL CRISTALPROFI i60 greenline Bedienungsanleitung

Aquatlantis

Aquatlantis Tecatlantis EASY LED UNIVERSAL 2.0 Bedienungsanleitung

Innovative Marine

Innovative Marine MightyJet 8500 Mini Betriebsanleitung

SuperFish

SuperFish Planty 25 Installationsanleitung

Royal Exclusiv

Royal Exclusiv Bubble King DeLuxe 300 Bedienungsanleitung

Sera

Sera Marin Precision Biotop LED Cube 130 Bedienungsanleitung

Commodity Axis

Commodity Axis ViaAqua Titanium Heater Bedienungsanleitung

Sander

Sander Ozonizer P 2000 Bedienungsanleitung

Hagen

Hagen HALF MOON Bedienungsanleitung

CPR

CPR CS150 Bedienungsanleitung
