Wavefactory Trackspacer 2.0 Bedienungsanleitung

TRACKSPACER*2.0*|*USER’S*MANUAL*|*©*WAVESFACTORY*2013!

Table of Contents

What is TrackSpacer? ...................................................................................................... 3

What’s new in version 2.0? ........................................................................................... 3

Previous updates ............................................................................................................. 3

Installation ......................................................................................................................... 4

Entering your serial number............................................................................ 4

Demo limitations ............................................................................................................. 5

About Sidechaining ........................................................................................................ 5

Setting up ........................................................................................................................... 5

GUI overview ..................................................................................................................... 6

Advanced Panel ................................................................................................... 7

Basic Usage ........................................................................................................................ 7

FAQ ....................................................................................................................................... 8

Legal Agreement ............................................................................................................. 9

Thank You .......................................................................................................................... 10

What's TrackSpacer?

TrackSpacer is an audio plug-in (available in VST, VST3, AU, RTAS and AAX formats) that

creates space in the mix for an instrument, voice, or other audio by performing

automatic, multiband equalization on a channel based on the spectrum of another

channel. In real-time it analyzes the audio frequency content via sidechain, and applies

an intelligent 32-band EQ to subtract those frequencies from the track where

TrackSpacer is inserted.

TrackSpacer is versatile and can be used in many different situations. But for illustration

let's look at two common examples where i can solve complex EQ problems.

•If the kick and the bass are competing for space, insert TrackSpacer in the bass

channel and have it listen to the kick. Then you can easily fine-tune it so that it

only subtracts from the bass signal the frequencies that help define the core

sound of the kick. The result is that both are heard more clearly.

•If you need to create room for the vocal in a busy and dense mix, route all the

competing instruments to a bus, insert TrackSpacer, and have it listen to the

vocal. As the performer talks or sings TrackSpacer selectively subtracts the

vocal's audio frequency energy from the bus signal. This gives the vocal a lift

without a reduction in the overall volume level of the instruments.

What's New in version 2.0?

1. AAX Support.

New standard plugin format for Avid Pro Tools.

2. Mid/Side processing.

Subtract frequencies in the mid channel, in the sides or anything in between.

3. Sidechain.

Now you can listen to the sidechain with filters to better fine tune the plugin.

4. Attack-Release.

Full control over the attack and release of the effect.

5. Pan.

In stereo mode (L-R) now you can subtract frequencies in the left channel, in the

right channel or anything in between.

6. GUI.

New EQ lines with antialiasing algorithm, cleaner white background without

skratches, brigther knobs, led light on the freeze button that lights up when it’s

enabled and a new advanced panel.

Previous Updates

We also did some updates before from version 1.0 to version 1.4.

•Minor bug fixes.

•CPU fixes.

•VST3 support.

•Mono -> Mono option.

TRACKSPACER*2.0*|*USER’S*MANUAL*|*©*WAVESFACTORY*2013!

Installation

Windows

Run the TrackSpacer install program to install TrackSpacer to your computer.

1. Start the install program to display the TrackSpacer Setup Wizard.

2. Click Next to continue.

3. Review the license agreement.

4. Click the radio button beside “I accept the agreement”.

5. Click Next to continue.

6. Select the folder where you wish TrackSpacer to be installed.

7. Click Next to continue.

8. Confirm that the installation destination folders are correct.

9. Click Install to install TrackSpacer.

Macintosh

Run the DMG file downloaded from our website to install TrackSpacer to your

computer.

1. Start the install program by doble click on TrackSpacer.mpkg

2. Review the license agreement.

3. Click Next to continue.

4. Click Agree to continue.

5. In this point you can choose what version of the plugin you want to install

(VST2.4, VST3, AU, RTAS or AAX), you have to click Personalize.

6. Click Install.

Entering your serial number

When you purchase TrackSpacer, the serial number, along with the installers, are sent to

you by e-mail.

You will be prompted to enter a serial number the first time you insert TrackSpacer into

a channel.

1. Copy and paste the serial number into the text field, then press the Enter/Return

key.

2. Close TrackSpacer.

3. Relaunch TrackSpacer.

Demo Version Limitations

Please note that the demo version has the following limitations:

•MIDI automation of controls disabled.

•Control settings are not saved, meaning that when you open a project where

you used TrackSpacer all controls will not be recalled.

•Audio watermark sounds every X minutes, depending on the number of

instances on your project.

About Sidechaining

Sidechaining within a DAW refers to using the audio signal in one channel (the send) to

trigger or control a virtual effect (VST, AU, etc) that modifies the audio in a different

channel (the receive).

Two examples of sidechaining that you may be familiar. Both involve the use of a

compressor:

•Ducking →using the presence of one signal to trigger a volume reduction of

another signal. A classic ducking setup involves using a compressor on a synth

pad, with the compression triggered by the presence of a kick drum. This causes

the synth pad to duck out of the way of the kick.

•Gating →using the presence of one signal to trigger a gate on another signal. A

common dance and electronic music technique is to use the audio from a kick

drum to open the gate on a bass track. This tightens up the mix by making he

kick drum and bass attacks perfectly in sync.

Of course, you can also use sidechain techniques with stem mixes so that an entire

group of tracks can be ducked, gated, equalized, or otherwise affected in response to

another signal.

Setting Up TrackSpacer

This section provides the steps for inserting TrackSpacer and setting up the sidechain.

1. Decide on two tracks or channels that you want TrackSpacer to analyze. The

channel containing the audio to be equalized is called the affected signal. The

channel that TrackSpacer uses for comparison is called the control signal.

2. Insert TrackSpacer as an effect on the channel you wish to EQ – the affected

signal.

3. Setup the sidechain. Each DAW requires a different procedure. Cubase users had

problems with VST2.4, so we updated the plugin to VST3, so now it’s very simple

to set up. Ableton Live users also had some problems for routing the sidechain,

so we made a video tutorial on how to do it:

http://www.youtube.com/watch?v=TuzoZh1YWi0

TRACKSPACER*2.0*|*USER’S*MANUAL*|*©*WAVESFACTORY*2013!

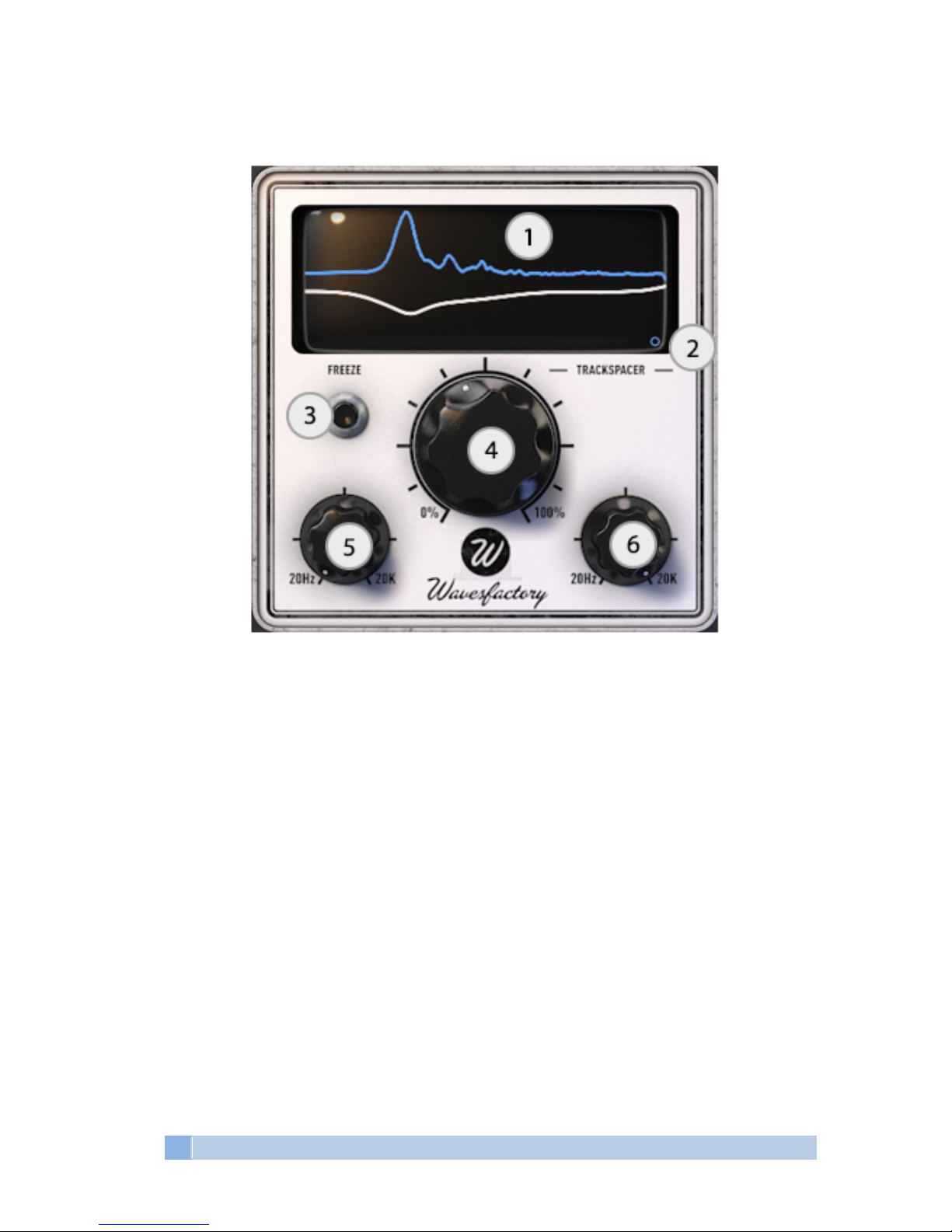

GUI Overview

1. EQ display: The EQ Display shows the traces of the control signal spectral

content (upper trace – blue) and the spectral content of the frequencies

subtracted (EQ applied) to the affected signal (lower trace – white). TrackSpacer

analyzes and subtracts frequencies in real time so the traces animate based on

the audio signals.The area below the audio signals indicates the name and value

of any control that is being changed (or has the mouse cursor hovering over it).

2. Advanced Panel button: when clicking this button you go to the advanced

panel.

3. Freeze button. Freezes the EQ at the current level based on the EQ Ratio, Low

Pass, and High Pass settings.

4. Ratio: sets the amount (ratio) that TrackSpacer subtracts.

5. Low Pass: sets the low pass frequency.

6. High Pass: sets the high pass frequency.

1. Pan: This knob has two different behaviours depending on what mode you’re

working on. When L/R is selected, the pan knob pans the effect to the left

channel when turned to the left or the right channel when turning to the right.

That means that TrackSpacer 2.0 can reduce frequencies where you want.

When M/S is selected the pan knob controls the mid and sides channels. When

turned to the left it subtracts frequencies only in the mid channel, and when

turned to the right the frequencies are only reduced in the sides.

2. Mode selector: L/R means “left/right” and it’s the default value, working in

stereo. M/S means “mid/sides”, working in mid-side mode.

3. Attack/Release: Set the amount of time you want TrackSpacer to react and to

relax. Expressed in ms.

4. Sidechain: When this button is selected you are only hearing the sidechain

input. This is useful to better fine tune the filters to find posible masking issues.

Basic Usage

Basic usage involves adjusting TrackSpacer’s controls and most importantly, listening

carefully to the mix. The steps below are designed to get you started.

1. Ensure that the sidechain is setup correctly.

2. 2. Start audio playback in the DAW. When you first insert TrackSpacer the audio

controls will be at their default settings:

•EQ Ratio – 25%

•Low Pass Frequency – 20 Hz

•High Pass Frequency – 20,000 Hz

3. Listen to the audio of the affected signal and watch the EQ Display.

4. Increase the EQ Ratio to get a better perspective of the range of frequencies

being subtracted from the affected signal. At this point you may only be able to hear

the affected signal very faintly.

TRACKSPACER*2.0*|*USER’S*MANUAL*|*©*WAVESFACTORY*2013!

5. Adjust the Low Pass Frequency and High Pass Frequency controls until you

can hear (and see) that TrackSpacer is subtracting enough of the affected signal

to make room for the audio of the control signal.

Note: Although there are many ways to use TrackSpacer, one effective method is

to create a notch that subtracts only those frequencies that seem to be blurring

or muddying the mix.

6. Fine tune TrackSpacer’s controls using the advanced panel until you find the

sweet spot where both tracks are sitting nicely in the mix.

FAQ (Frequently Asked Questions)

1. Will it work in my DAW?

Yes, it is available in all major formats: VST, VST3, AAX, RTAS and AU (Audio Units)

both for Mac and PC.

2. Is it 64 bit?

Yes, it is.

3. Is TrackSpacer an EQ or a multiband compressor?

We could say that TrackSpacer is the best of both worlds. It is not a multiband

compressor, it is not a traditional EQ, it is not a dynamic EQ, it’s a completely new

approach. I’ll explain why:

A sidechained compressor reduces the “volume” of a track based on the volume

of another track. TrackSpacer reduces the frequencies of a track based on the

frequencies of another track.

A multiband compressor lets you control the volume of the track splitted in a

number of bands, but only the straight volume.

TrackSpacer is a 32 band EQ that creates automatic EQ curves based on the

spectral content of another track to make more room for this track.

4. Is it a miracle plugin?

Of course not, we don’t want it to be. TrackSpacer helps you to get better mixes

more quickly and easily. It can solve specific problems like “I need this acoustic

guitar to pop out because it gets blurried in the middle of the distorted guitars,

synths and piano, but I can’t give it too much volume”, then you would insert

TrackSpacer to fix that.

But it can also be used to mix a whole song, do to its analysis you can get precise

equalisation and subtract only the frequencies that are needed between all

tracks to sit well with each other.

5. The effect is too noticeable.

As we said, it’s not a miracle plugin that you just plug in and it just works. You

still have to use your ears and your music creative perception to fine tune it.

Legal Agreement

Wavesfactory TrackSpacer - LICENSE AGREEMENT

Grant of License:

In consideration of payment of the Licensee fee, which is a portion of the price you paid,

Wavesfactory, as Licensor, grants to you, the Licensee, a nonexclusive right to use this

copy of the TrackSpacer program (hereinafter the "SOFTWARE") on a single computer.

All rights not expressly granted to Licensee are reserved to Wavesfactory.

Software Ownership:

As the Licensee you own the disks on which the SOFTWARE is recorded or fixed.

Wavesfactory shall retain full and complete title to the SOFTWARE recorded on the

enclosed disks and all subsequent copies of the SOFTWARE, regardless of the media or

form on or in which the original disks or copies may exist. This License is not a sale of the

original SOFTWARE.

This SOFTWARE and the accompanying printed or written materials are copyrighted.

Unauthorized copying of the SOFTWARE, including those instances where the

SOFTWARE has been modified, merged, or included with other Software, or of the

printed or written materials, for any reason, is expressly forbidden. Licensee may be

held liable for copyright infringement which results from such unauthorized copying.

Restrictions on Use:

Licensee may physically transfer the SOFTWARE from one computer to another,

provided that the SOFTWARE is used on only one computer at any one time. Licensee

may not electronically transfer the SOFTWARE to multiple computers over a network

system. Licensee may not distribute copies of the SOFTWARE or accompanying

materials to others. Licensee may not modify, adapt, translate, reverse engineer,

decompile, disassemble, or create derivative works based on the SOFTWARE or it's

accompanying printed or written materials.

Transfer Restrictions:

Licensee shall not assign, rent, lease, sell, sublicense or otherwise transfer the

SOFTWARE to another party without prior written consent of Wavesfactory. Any party

authorized by Wavesfactory to receive the SOFTWARE must agree to be bound by the

terms and conditions of this Agreement.

Thank you

I want to thank your support. TrackSpacer has been our first plugin and we never

expected such a good reaction from engineers and musicians. I hope you enjoy this

plugin as much as we did when developing, as we do when mixing and it becomes a

must in each one of your sessions.

If you have any questions, we are always here to help:

[email protected]

All the best,

Jesús Ginard

Founder and CEO

Wavesfactory.com

Inhaltsverzeichnis

Andere Wavefactory Software Handbücher

Wavefactory

Wavefactory TrackSpacer Bedienungsanleitung

Beliebte Software Handbücher anderer Marken

COMPRO

COMPRO COMPROFM Bedienungsanleitung

Muratec

Muratec OFFICEBRIDGE ONLINE Bedienungsanleitung

Oracle

Oracle Contact Center Anywhere 8.1 Bedienungsanleitung

Adobe

Adobe 65007312 - Photoshop Lightroom Handbuch

Avaya

Avaya NULL One-X for RIM Blackberry Bedienungsanleitung

HP ProLiant BL420c Bedienungsanleitung

PS Audio

PS Audio PowerPlay Betriebsanleitung

Brady

Brady LOCKOUT PRO 3.0 Service-Handbuch

Avaya

Avaya Interaction Center Bedienungsanleitung

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Handbuch

Novell

Novell GROUPWISE 8 - INTERNET AGENT Bedienungsanleitung

Oracle

Oracle Application 9i Bedienungsanleitung

Acer

Acer RDM Bedienungsanleitung

Canon

Canon Vixia HF21 Bedienungsanleitung

Canon

Canon ZR950 Bedienungsanleitung

Samsung

Samsung Auto Backup Bedienungsanleitung

Polycom

Polycom Vortex EF2201 Montage- und Bedienungsanleitung

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Bedienungsanleitung
