Chapter 1 – Introduction

1.1 Welcome

Thank you for choosing Waves! In order to get the most out of your new Waves plugin, please take a

moment to read this user guide.

To install software and manage your licenses, you need to have a free Waves account. Sign up at

www.waves.com. With a Waves account you can keep track of your products, renew your Waves

Update Plan, participate in bonus programs, and keep up to date with important information.

We suggest that you become familiar with the Waves Support pages: www.waves.com/support. There

are technical articles about installation, troubleshooting, specifications, and more. Plus, you’ll find

company contact information and Waves Support news.

Waves API 560 User Manual

- 3 -

1.2 Product Overview

Modeled on the API classic from 1967, the API 560 is a 10-Band equalizer which is divided into intuitive

one-octave increments. It features precision filtering and high headroom, ideal for signal enhancement

and room tuning. The 560’s curve shaping potential is unmatched, while API's unique "Proportional Q"

design intuitively widens the filter bandwidth at lower boost/cut levels and narrows it at higher settings.

And since boost and cut characteristics are identical, previous actions can be easily undone.

Waves API 560 User Manual

- 4 -

1.3 Components

WaveShell technology enables us to split Waves processors into smaller plug-ins, which we call

components. Having a choice of components for a particular processor gives you the flexibility to

choose the configuration best suited to your material.

The API 560 has two component processors:

API 560 Stereo - A stereo graphic equalizer

API 560 Mono – A mono graphic equalizer

Waves API 560 User Manual

- 5 -

Chapter 2 – Quickstart Guide

Approach the Waves API 560 as you would any conventional graphic EQ. Since the API 560 features

“Proportional Q,” which intuitively widens the filter bandwidth at lower settings and narrows it at higher

settings, feel free to push the API 560 harder than you normally would other equalizers. The API 560

will deliver smooth, natural, and musical sound even at extreme settings.

Waves API 560 User Manual

- 6 -

Chapter 3 – Controls and Interface

Waves API 560 User Manual

- 7 -

3.1 EQ section

Cutoff Points

31Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz

Range +/-12dB per band

In/Out Switches EQ on and off while retaining Analog modeling.

Waves API 560 User Manual

- 8 -

3.2 Output Section

Pol (Polarity)

Shifts the phase by 180 degrees.

Range

0deg-180deg

Default

0deg

Analog

Turns the Analog modeling on and off.

Range

On/Off

Default

Waves API 560 User Manual

- 9 -

Output

Controls the output level.

Range

-18dB to +18dB (in 0.1dB steps)

Default

0dB

Trim

Displays the maximum peak level of the output signal and its distance from nominal gain (-0.1dBfs).

Range

-inf to 0dB

Default

-inf

Meters

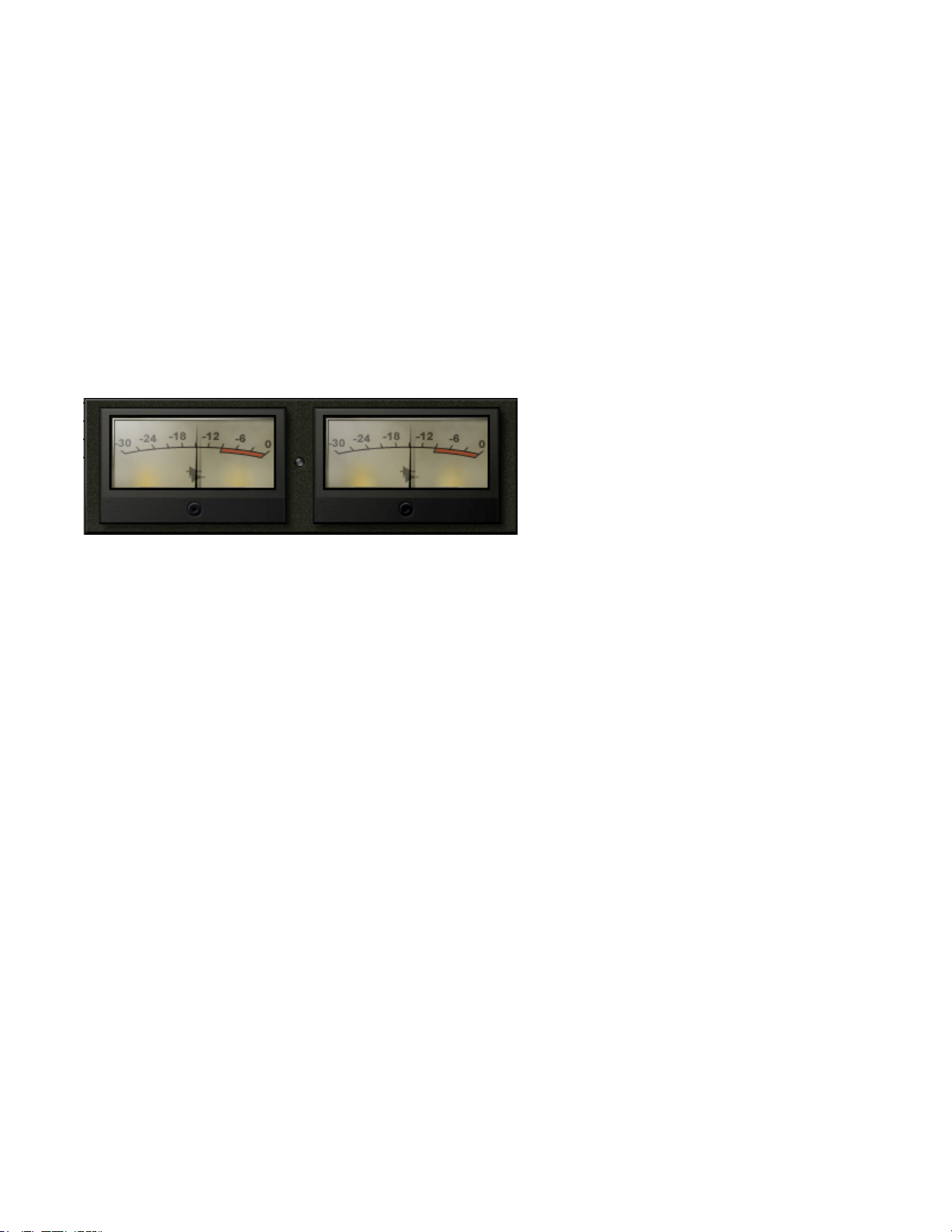

The API 560’s meters display output level in dBFS. The Clip LED, located between the two meters,

lights up when output signal exceeds 0dBFS.

3.3WaveSystem Toolbar

Use the bar at the top of the plugin to save and load presets, compare settings, undo and redo

steps, and resize the plugin. To learn more, click the icon at the upper-right corner of the window

and open the WaveSystem Guide.

Waves API 560 User Manual

-10 -
