Wavetek Meterman DM2 Bedienungsanleitung

Digital Multimeter/Multi Tester

Operator’s Manual

Model DM2

Digital Multimeter

• Manual de Instrucciones

DM2.Man.08.00 11/29/00 8:28 PM Page 2

– 1 –

WARRANTY

The DM2 Multimeter is warranted against any defects of material or

workmanshipwithinaperiodofone(1)yearfollowingthedateofpur-

chase of the multimeter by the original purchaser or original user.

Any multimeter claimed to be defective during the warranty period

should be returned with proof of purchase to an authorized Wavetek

Meterman Service Center or to the local Wavetek Meterman dealer or

distributor where your multimeter was purchased. See maintenance

section for details. Any implied warranties arising out of the sale of a

Wavetek Meterman multimeter, including but not limited to implied

warranties of merchantability and fitness for a particular purpose, are

limited in duration to the above stated on (1) year period. Wavetek

Metermanshallnot be liable forlossofuse of the multimeterorother

incidental or consequential damages, expenses, or economical loss

or for any claim or claims for such damage, expenses or economical

loss.

Some states do not allow limitations on how long implied warranties

last or the exclusion or limitation of incidental or consequential dam-

ages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state.

CONTENTS

Warning and Precautions 2

Unpacking and Inspection 3

Operation 3

Specifications 7

Maintenance 8

Repair 9

DM2.Man.08.00 11/29/00 8:28 PM Page 1

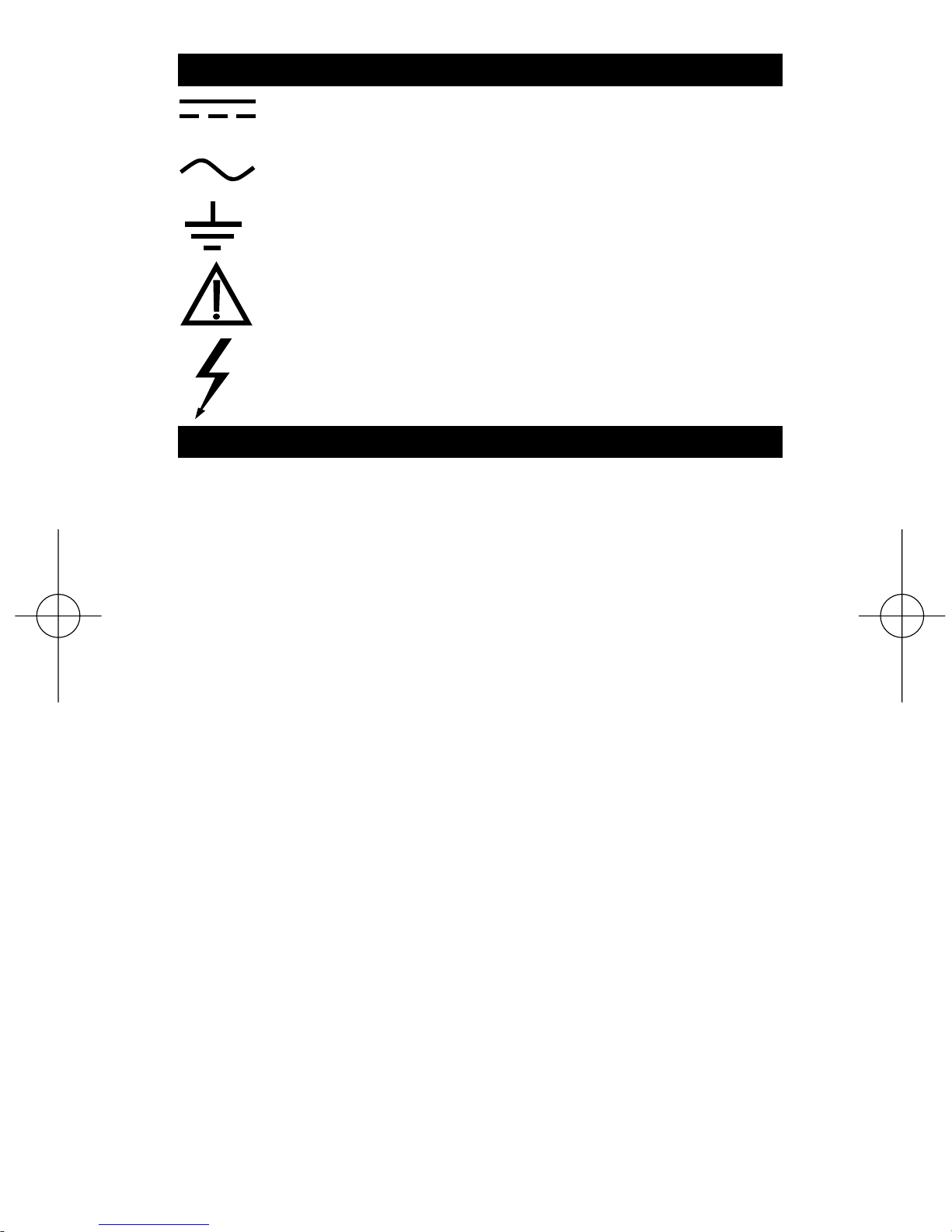

SYMBOLS

Direct current

Alternating current

Ground connection

Attention! Refer to Operating Instructions

Dangerous voltage may be present at terminals

WARNING AND PRECAUTIONS

The DM2 is not recommended for high voltage industrial use appli-

cations, but for use with low energy circuits to 500VAC or 1000VDC,

orhighenergy circuitsonlyto 250VACor VDC.■Donot exceedthe

maximum overload limits per function (see specifications) nor the

limits marked on the instrument itself. ■Exercise extreme caution

when: measuring voltage >20 V / / current >10mA / / AC power line

withinductive loads // ACpowerline duringelectrical storms// cur-

rent, when the fuse blows in a circuit with open circuit voltage > 600

V / / servicing CRT equipment. ■Inspect DMM, test leads and

accessories before every use. Do not use any damaged part. ■Never

ground yourself when taking measurements. Do not touch exposed

circuit elements or probe tips. ■Always measure current in series

with the load – NEVER ACROSS a voltage source. Check fuse first.

■Never replace a fuse with one of a different rating. ■Do not oper-

ate instrument in an explosive atmosphere.

– 2 –

DM2.Man.08.00 11/29/00 8:28 PM Page 2

– 3 –

ACCESSORIES

VC12 Vinyl Carring Case

RTL25 Replacement Test Leads

UNPACKING AND INSPECTION

Upon removing your new digital multimeter (DM2) from its packag-

ing, you should have the following items:

1. DM2 Digital Multimeter

2. Test Lead Set (1 black, 1 red)

3. 9 Volt Battery (in meter)

4. Warranty Card

5. Operator’s Manual

6. One Spare Fuse (0.8A/250V)

If any of the above items are missing or are received in a damaged

condition, please contact the distributor from whom you purchased

the unit.

Familiarization (Fig.1)

1. Function/Range Switch: Selects the Function and Range desired.

2. COM Input Terminal: Ground input connector. 500V (DC + AC

Peak) Maximum voltage between COM and earth ground.

3. V ΩInput Terminal: Positive input connector for voltage, resistance,

and diode test. Maximum input rating is 1000VDC, 500VAC.

4. 200mA Input Terminal: Positive input connector for up to 200mA

current. Fused.

5. Lo Bat: Indicates batter is low.

OPERATING INSTRUCTIONS

Range Selection

If magnitude to be measured is unknown, always start with the high-

est range.

PRECAUTION!

Overload Condition: Range overload is indicated by a "1." Or by a "-

1." In the display with all other digits blanked. This is normal in the

ohmsrangewhentheleadsarenotconnectedtoanything. Inallother

situations,theuser musttakeimmediate steps toremovethe causeof

DM2.Man.08.00 11/29/00 8:28 PM Page 3

– 4 –

the overload condition from the meter. Select the next higher range

until a value is displayed. If overload condition still exists in the

highest range, remove test leads from the measurement setup as it is

beyond the range of the meter.

1000

200

20m

200

2000

500

OFF

200

20k

200k

FUSED 200mA

MAX

500V

1000V

COM

DM2

Model DM2

Fig.1

DM2.Man.08.00 11/29/00 8:28 PM Page 4

– 5 –

VOLTAGE MEASUREMENT

1.Turn off power to the device under test and discharge all capacitors.

2.Set the Function/Range switch to the desired voltage type (AC or DC)

range.

3.Plug the black test lead into the COM jack on the DMM and connect

the test lead point to a grounded point (the reference point for mea-

surement of voltage).

4.Plug the red test lead into the V jack on the DMM and connect the test

lead point to the circuit where a voltage measurement is required.

Voltage is always measured in parallel across a test point.

5.Turn on power to the circuit/device to be measured and make the volt-

age measurement. Reduce the range setting if set too high until a sat-

isfactory reading is obtained.

6.After completing the measurement, turn off power to the circuit /

device under test, discharge all capacitors and disconnect the DMM

test leads.

CURRENT MEASUREMENT

1.Turn off power to the device under test and discharge all capacitors.

2.Set the Function/Range switch to the desired current range.

3.Plug the black test lead into the COM jack on the DMM and connect

the test return branch for the current to be measured.

4.Plug the red test lead into the 200mA current jack of the DM2.

Current measurements are always made with the meter in series with

the test branch. The circuit must be broken and the meter put in series

by placing the red test lead point to the test node for current.

5.Turn on power to the circuit/device under test and make the current

measurement. Reduce the range setting if set too high until a satisfac-

tory reading is obtained.

6.After completing the measurement, turn off power to the circuit/device

under test, discharge all capacitors, disconnect the DMM test leads

and re-connect the circuit branch.

Note: The current jack has a protective fuse installed to protect the

meter from damage and the user from harm if a current larger

than specified is applied at the input. If the quick acting fuse

blows, replace with a like fuse.

DM2.Man.08.00 11/29/00 8:28 PM Page 5

– 6 –

RESISTANCE MEASUREMENTS

1.Turn off any power to the resistance to be measured. Discharge any

capacitors. Any voltage present during a resistance measurement will

cause inaccurate readings and could damage the meter if exceeding

the overload protection of 500VDC or AC.

2.Set the Function/Range switch to the desired resistance range.

3.Plug the black test lead into the COM jack on the DMM and connect

the test lead point to one end of the resistor,

4.Plug the red test lead into the Ωjack on the DMM and connect the

test lead point to the other end of the resistor.

5.Adjust the Function/Range switch to the resistance range that gives the

most accurate measurement reading.

Note: Test lead resistance can interfere when making low resistance

measurements and should be subtracted from resistance readings

for accuracy. Select 200Ωrange and make a firm contact

between the two test lead points (short them together). The dis-

play value is the test lead resistance to be subtracted from resis-

tance reading. Open circuits will be displayed as an overload

condition.

DIODE TEST

Diode Test checks the forward bias of diode function.

1.Turn off power to the device under test and discharge all capacitors.

2.Set the Function/Range switch to

3.Plug the black test into the COM jack on the DMM and connect the

test lead point to the cathode of the diode.

4.Plug the red test lead into the V Ωjack on the DMM and connect the

test lead point to the anode of the diode. The meter’s display indicates

the forward voltage drop (approximately 0.7V for silicone diode or

0.4V for germanium diode). Meter will display overload condition for

an open diode

5. Reverse the test lead connections to the diode to perform a reverse

bias test of the diode junction. A "1" (over-range) indicates a good

diode because a good diode junction has practically infinite resistance.

Notes: Overload conditions for both reverse and forward bias tests indi-

cate an open diode. A low voltage reading for both bias tests indicates

a shorted diode. If the diode is shunted by a resistor of 1000 ohms or

less, it must be removed from the circuit before taking the measure-

ment.

DM2.Man.08.00 11/29/00 8:28 PM Page 6

– 7 –

Bipolar transistor junctions may be tested in the same manner described

above as emitter-base and base-collector junctions are diode junc-

tions.

SPECIFICATIONS

General Specifications*

Display: 3 1/2 digit LCD, 1999 count.

Polarity: Automatic, positive implied, negative

indicated.

Zero: Automatic

Over-range: (1) or (-1) is displayed.

Low Battery: is displayed in the LCD when the battery

voltage drops below accurate operating

level.

Display Update: 3 per second, nominal.

Operating Temp: 0˚C to 50˚C, 0 to 70% Relative Humidity

Storage Temp: -20˚C to 60˚C, 0 to 80% R.H. with bat-

tery removed from meter.

Accuracy: Stated accuracy at 23˚C 5˚C, <75% R.H.

Power: Stated 9 volt battery NEDA1604, JIS

006P, IBC 6F22.

Battery Life: 200 hrs (Alkaline), 150 hours (Carbon-

Zinc)

Dimensions: (H x W x D) 4.7 x 2.7 x 1.1 inches (11.9 x

639 x 2.8 cm)

Weight: 5.5 ounces (156 grams)

Accessories: One pair test leads, one spare fuse, bat

tery, and Operator’s Manual.

*Specifications subject to change without notice

ELECTRICAL SPECIFICATIONS

DC Volts

Ranges: 200mV, 2V, 20V, 200V, 1000V

Accuracy: 0.8% RDG + 1 Digit

Input Impedance: 1MΩ

Resolution: 100mv

OL Protection:

200mV Range: 350VAC RMS/500VDC for 15 seconds

Other Ranges: 500VAC RMS/1000VDC for 60 seconds

DM2.Man.08.00 11/29/00 8:28 PM Page 7

– 8 –

AC Volts

Ranges: 200V, 500V

Accuracy: 1.2% RDG + 10 Digits

OL Protection: 500VAC RMS/500VDC

DC Current

Ranges: 200 A, 2mA, 20mA, 200mA

Resolution: 100nA

Accuracy: 1.2% RDG + 1 Digit

Voltage Burden: 350mV max

OL Protection: .8A/250V fuse

Resistance

Ranges: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ

Accuracy: 200ΩRange:

1/8% RDG + 4 Digits

Other Ranges: 1.2% RDG + 2 Digits

OL Protection: 500VAC/VDC all ranges

Diode Test

Test Current: 1.0 0.6mA

Test Voltage: 3.2VDC max

MAINTENANCE

WARNING!

To prevent electrical shock hazard, turn off the multimeter and any device

or circuit under test and disconnect the test leads before removing the

battery hatch to the rear cover.

Troubleshooting

If there appears to be a malfunction during the operation of the meter, the

following steps should be performed in order to isolate the cause of

the problem:

1. Check the battery.

2. Review the operating instructions for possible mistakes in operating

procedure.

3. Inspect and test the test probes for a broken or intermittent connec-

tion.

DM2.Man.08.00 11/29/00 8:28 PM Page 8

– 9 –

4. Inspect and test the fuse. If it is necessary to replace the fuse, be sure

to install on of the proper current value. (See fuse replacement

below).

Battery Replacement

1. Remove the battery cover by gently sliding it toward the bottom of the

meter.

2. Remove and disconnect the old battery from the meter and replace

with a new NEDA type 1604 9 volt battery. Wind the excess lead

length once around the battery clip. Install the battery and replace the

battery cover.

Fuse Replacement

1. Remove the battery cover by gently sliding it towards the bottom of the

meter.

2. Remove the old fuse and replace with a new fuse of the proper rating.

The DM2 requires a 0.8A/250V quick-acting fuse, 5 x 20 mm.

WARNING!

To prevent fire, use a replacement fuse of the proper rating as shown

above.

Cleaning the Meter

Use only mild detergent and warm water to clean the meter. Do not use

aromatic hydrocarbons or chlorinated solvents.

REPAIR

Read the warranty located at the front of this manual before request-

ing warranty or non-warranty repairs. For warranty repairs, any mul-

timeter claimed to be defective can be returned to any Wavetek

Meterman authorized distributor or to a Wavetek Meterman Service

Center for an over-the-counter exchange for the same or like product.

Non-warranty repairs should be sent to a Wavetek Meterman Service

Center. Please call Wavetek Meterman or enquire at your point of

purchase for the nearest location and current repair rates. All multi-

meters returned for warranty of non-warranty repair or for calibration

should be accompanied by the following information or items: com-

pany name, customer’s name, address, telephone number, proof of

DM2.Man.08.00 11/29/00 8:28 PM Page 9

Inhaltsverzeichnis

Sprachen:

Andere Wavetek Multimeter Handbücher

Wavetek

Wavetek Meterman AM8 Bedienungsanleitung

Wavetek

Wavetek METERMAN 23XT Bedienungsanleitung

Wavetek

Wavetek Meterman AM8 Bedienungsanleitung

Wavetek

Wavetek Meterman 85XT Bedienungsanleitung

Wavetek

Wavetek Meterman AC68 Bedienungsanleitung

Wavetek

Wavetek AC60 Bedienungsanleitung

Wavetek

Wavetek Meterman 85XT Bedienungsanleitung

Wavetek

Wavetek Meterman DM78A Bedienungsanleitung

Wavetek

Wavetek XP Series Bedienungsanleitung

Wavetek

Wavetek DM7 Bedienungsanleitung

Wavetek

Wavetek AD40A Bedienungsanleitung

Wavetek

Wavetek Meterman DM78A Bedienungsanleitung

Wavetek

Wavetek Meterman 220 Bedienungsanleitung

Wavetek

Wavetek Meterman LP10A Bedienungsanleitung

Wavetek

Wavetek Meterman RMS225A Bedienungsanleitung

Wavetek

Wavetek Meterman AD105 Bedienungsanleitung

Wavetek

Wavetek Meterman DM9 Bedienungsanleitung

Wavetek

Wavetek Meterman DM9 Bedienungsanleitung

Wavetek

Wavetek Meterman CR 50 Bedienungsanleitung

Wavetek

Wavetek HD110B Bedienungsanleitung

Beliebte Multimeter Handbücher anderer Marken

Agilent Technologies

Agilent Technologies 34420A Bedienungsanleitung

Fluke

Fluke 83 Bedienungsanleitung

Hameg

Hameg HM 8012 Bedienungsanleitung

Mastech

Mastech MY70 Bedienungsanleitung

Steren

Steren MUL-300 Bedienungsanleitung

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Bedienungsanleitung

PeakTech

PeakTech 4000 Gebrauchs- und Pflegehandbuch

YOKOGAWA

YOKOGAWA 90050B Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Bedienungsanleitung

Fluke

Fluke 8846A Bedienungs- und Wartungshandbuch

Tempo Communications

Tempo Communications MM200 Bedienungsanleitung

Elenco Electronics

Elenco Electronics CM-1555 Bedienungsanleitung

Mastech

Mastech MS8238C Bedienungsanleitung

SDAR

SDAR 830A, 830B, 830D, 830C Bedienungsanleitung

RS PRO

RS PRO RS-9519BT Bedienungsanleitung

BGS technic

BGS technic 8890 Bedienungsanleitung

Amprobe

Amprobe Hexagon 60 Bedienungsanleitung
