Operating and

Maintenance Manual

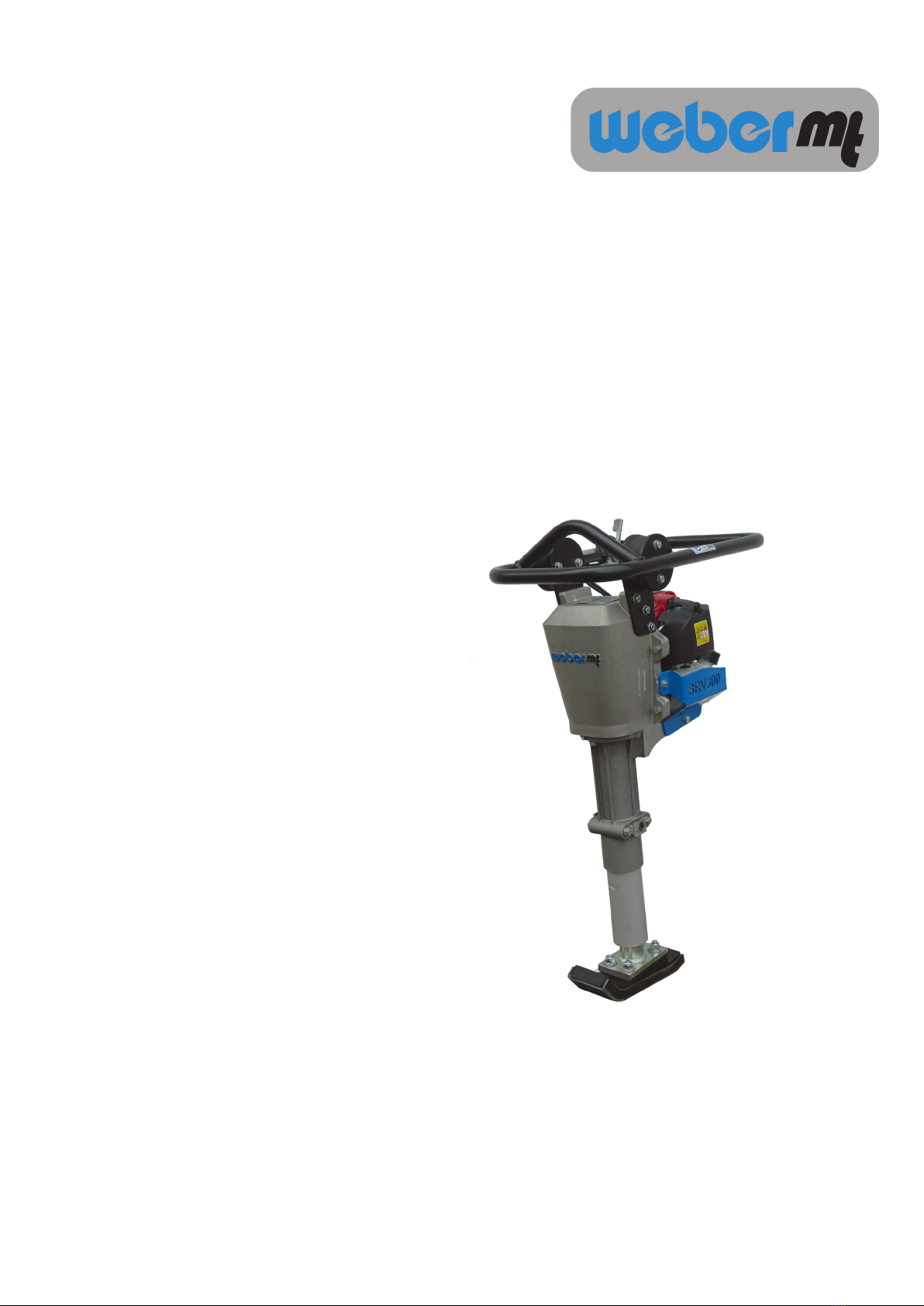

SRV 300

0170051

1 Description 2 Type

.................................................... ...................................................

3 Serial no. 4 Year of construction

.................................................... ....................................................

5 Weight 6 Rated power kW

................................................... .....................................................

3 4

Note down the information given on the type plate so that you can recreate the rating plate should the

plate be lost.

Contents

1. Introduction..................................................................................................................... 4

2. Description...................................................................................................................... 5

3. Technical data................................................................................................................. 6

4. Safety............................................................................................................................... 7

4.1. Information and safety stickers ........................................................................... 12

5. Operation....................................................................................................................... 13

6. Transport ....................................................................................................................... 18

7. Storage .......................................................................................................................... 18

8. Maintenance.................................................................................................................. 19

8.1. Maintenance overview .............................................................................................. 20

8.2. Description of the maintenance operations............................................................ 21

8.2.1. Check the engine oil level ................................................................................ 21

8.2.2. Change the engine oil ...................................................................................... 21

8.2.3. Change the fuel lter........................................................................................ 22

8.2.4. Clean / change air lter .................................................................................... 22

8.2.5. Adjust / replace the spark plug......................................................................... 23

8.2.6. Lubrication ....................................................................................................... 23

8.2.7. Change the tamping foot.................................................................................. 24

8.3. Operating uids and ll levels ................................................................................. 24

1. Introduction

This operating and maintenance manual is designed to help

you become familiar with your soil compactor and enable you

to maintain it and use it for its intended purpose.

The safety and maintenance instructions provided in this

manual will help avoid hazards, reduce repair and downtime

costs and will increase the reliability and operational readiness

of your machine. Follow these instructions precisely.

This operating and maintenance manual must always be kept

at the implementation site of the machine and be available to

the machine operator.

Enclosed with this manual is a valid declaration of conformity

and a spare parts lists for orders of spare parts. Store these

documents carefully.

If you require any additional information, turn to your

Weber MT dealer.

Found on the last page of this manual is a QR code. Scan

it to acquire the current contact addresses of all Weber MT

branches.

You can obtain information on the assembled Honda gasoline

engine and the associated operating and maintenance

manual as well as the spare parts list by logging on to

www.honda-engines-eu.com.

2. Description

The machine is a hand-guided vibrating tamper.

An air-cooled Honda gasoline engine makes the tamping

system vibrate via a centrifugal clutch.

Start the gasoline engine by hand using the attached reversing

starter.

The engine speed is adjusted between idle speed and full-

throttle speed via a gas lever.

3. Technical data

SRV 300

Weight

Operating weight CECE (in kg) 32

Dimensions

Overall length (in mm) 585

Overall width (in mm) 315

Height (in mm) 950

Tamping foot width (in mm) 140

Impact rate (/min) 790

Stroke (in mm) 45

Drive

Engine manufacturer Honda

Type GX 35

Performance at operating speed in

accordance with ISO 3046-1 (kW) 1.0

Combustion process 4-stroke gasoline

Operating speed (m/min) 6,900

Fuel Unleaded gasoline

SRV 300

Noise emissions in accordance

with 2000/14/EC

Sound pressure level LPA

ascertained in accordance with

EN 500, in dB (A)

Sound pressure level LWA

ascertained in accordance with

EN ISO 3744 and EN 500, in dB (A)

105

Vibration values

Root-mean-square acceleration value

for hand-arm vibration ascertained in

accordance with EN 500 in m/s²

7.4

In accordance with directive

2006/42/EC, complying with the

vibration values is the owner's

responsibility.

4. Safety

General All safety instructions must be read and complied with, as non-

compliance will result in

- Danger to life and limb of the user,

- Impairments to the machine or other property.

In addition to the operating manual, the accident-prevention

regulations in the country where the appliance is used must be

complied with.

Intended use The machine should only be used in technically faultless

condition, as intended, in a safety-conscious and hazard-

conscious manner, and in compliance with the instructions in

the operating manual.

Malfunctions that may impair safety require that you stop

working with the machine immediately. These types of damage

must be reported and corrected without delay.

The machine is designed exclusively for compacting:

- Sand,

- Gravel,

- Crushed rock,

- Semi-cohesive mixed material.

The operator's work position is behind the machine. The

operator must guide the machine safely with both hands on the

handle.

Non-intended use Unless used as intended, the machine involves a risk of

personal injury and property damage. The machine is

expressly not suitable for:

- compacting frozen subsurfaces,

- compacting hard soils that cannot be compacted

further,

- compacting non-bearing material,

- compacting highly cohesive soils,

- compacting (ramming) that exerts point loads on

the base plate,

- crushing and compacting individual rocks.

The responsibility for any damage arising from non-intended

use falls on the owner / operator rather than the manufacturer.

Damage that can be attributed to non-intended use of the

machine will void any warranty claims.

Residual risk There is always an increased risk of accidents in the

immediate danger area around the machine if the operator

fails to notice persons in the vicinity of the machine.

Make anyone close to the machine aware of this risk. The

operator must not put the machine into operation unless

everyone in the vicinity of the machine is aware of this risk.

Personal protective

equipment

Personal protective equipment must be worn during operation

and while performing maintenance on the machine.

It consists of:

- protective goggles,

- hearing protection,

- work shoes or boots with toe guard.

Danger areas The immediate danger area is the direct perimeter around the

machine. This area is o󰀨-limits to third parties.

Spare parts, changes and

conversions

Changes and conversions are prohibited unless made with

original Weber MT spare parts. If the machine is modied

with other accessories without the approval of Weber MT, the

manufacturer will not assume liability for any resulting personal

injury or property damage.

All maintenance and repairs must be carried out with original

Weber MT spare parts. Untested spare parts may a󰀨ect the

reliability and safety of the machine.

Before starting the

machine

After horizontal transport, the oil may have spread inside the

engine. To prevent damage to the engine, the machine must

be brought to the vertical position for several minutes until the

oil has collected in the lower area of the crankcase.

There is danger of material damage if the machine is

started before necessary maintenance or repairs have been

completed. Make sure every time before starting the machine

that all work on the machine has been completed.

To avoid injuries, the machine must not be started unless the

operator wears the required personal protective equipment.

Objects placed on top of the machine may fall or be ung o󰀨

during operation or when the machine is started. Therefore,

remove all loose objects or tools before starting the machine.

If the gas cap is open, fuel may escape and ignite on the

engine when the machine is started or while it is operating.

There is a risk of burns. Therefore, do not start the machine

unless the gas cap is closed.

Requirements on the operator This soil compactor may only be operated by suitable

operators who are 18 years or older. They must be instructed

on how to operate the machine by the owner or by the owner's

assigned personnel. The operator must comply with tra󰀩c

regulations.

The machine must not be operated by children.

Start-up procedure Do not disperse any sprays or other agents into the air intake

while the machine is starting up. They may lead to overheating

in the combustion chamber and result in damage to the

engine.

There is danger of su󰀨ocation if the operator starts up the

machine in closed rooms or in deep and tight trenches.

Operating the machine in closed rooms is prohibited. Provide

for an adequate supply of air before starting the machine.

During operation There is a crushing hazard under the tamping foot during

operation.

The personal protective equipment will protect the toes, but not

the entire foot. Do not step under the tamping foot.

Monitor the surroundings to avoid injury to third parties or

material damage.

Suspend operation and shut down the machine if detecting

damage on the machine during operation.

Parking the machine Always park the machine on a level subsurface with su󰀩cient

bearing capacity.

Parked machines presenting an obstacle must be secured in

accordance with statutory regulations, particularly in the area

of public tra󰀩c surfaces.

Engine and exhaust heat up during operation and can cause

burns on contact. Therefore, do not touch these components

during operation or shortly after the engine was switched o󰀨.

Fueling the machine Spilled fuel may ignite and has a negative impact on the

environment. Therefore, wipe up spilled fuel and make sure

the gas cap is rmly tightened after fueling.

Fuel vapors are easily ammable. Do not smoke and keep

away from open re while refueling the machine.

The machine must not be fueled unless the engine is switched

o󰀨.

When coming into contact with fuels, the rubber-bonded metal

bu󰀨ers of the machine may become damaged or ine󰀨ective.

Therefore, wipe spilled fuel carefully o󰀨 the rubber-bonded

metal bu󰀨ers.

The machine must be inspected in accordance with the

corresponding implementation conditions and operating

conditions to ensure its operationally safe status. This

inspection should be performed as needed by an expert

- however, no less than once a year. The ndings of the

inspection must be stored in writing until the time of the next

inspection.

Inspection

Cleaning work Use clear water for cleaning. Do not use ammable solvents.

The vapors of the solvents may ignite upon contact with hot

components or other sparks.

Perform cleaning tasks only in rooms that are suitable and

have been approved for that purpose. Residual oil and

lubricants that may have been rinsed o󰀨 have a negative

impact on the environment and must be collected by suitable

means (e.g. oil separator).

Safe handling of combustion

engines

Combustion engines pose a particular risk during operation.

Their exhaust emissions contain carbon monoxide, a colorless

and odorless gas that is extremely hazardous, which, if inhaled

even briey, can cause unconsciousness and death.

Therefore, never inhale the exhaust gas.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Weber mt Vibrationsstampfer und -verdichter Handbücher

Weber mt

Weber mt CR 3-II Betriebsanleitung

Weber mt

Weber mt SRV 660 Betriebsanleitung

Weber mt

Weber mt CF 2 Bedienungs- und Montageanleitung

Weber mt

Weber mt SRV 660 Betriebsanleitung

Weber mt

Weber mt SRV 650 Betriebsanleitung

Weber mt

Weber mt CR 9-II MDM Betriebsanleitung

Weber mt

Weber mt CR 3-II Hd Betriebsanleitung

Weber mt

Weber mt CR 2 R Betriebsanleitung

Weber mt

Weber mt CR 9-II CCD 2.0 Betriebsanleitung

Weber mt

Weber mt CR 5 E Betriebsanleitung

Weber mt

Weber mt CR 2 Betriebsanleitung

Weber mt

Weber mt SRV 590-II Betriebsanleitung

Weber mt

Weber mt CR 2 Hd Betriebsanleitung

Weber mt

Weber mt SRE 590 DC Betriebsanleitung

Weber mt

Weber mt SRV Black Edition III Betriebsanleitung

Weber mt

Weber mt CF 1-II Hd Betriebsanleitung

Weber mt

Weber mt SRV 300-II Betriebsanleitung

Weber mt

Weber mt SRV 660-II Betriebsanleitung

Weber mt

Weber mt SRV 620-II Betriebsanleitung

Weber mt

Weber mt 0116140 Betriebsanleitung

Weber mt

Weber mt CR 3-II E Betriebsanleitung

Weber mt

Weber mt SRV 590-II Betriebsanleitung

Weber mt

Weber mt CF 1 HD Betriebsanleitung

Weber mt

Weber mt CF 1 R Betriebsanleitung

Beliebte Vibrationsstampfer und -verdichter Handbücher anderer Marken

MULTIQUIP

MULTIQUIP Mikasa Series Bedienungsanleitung

Fayat

Fayat Bomag BP 20/50 Bedienungsanleitung

Altrad

Altrad BELLE RTX Bedienungsanleitung

TMG

TMG TMG-PC160K Bedienungsanleitung

swepac

swepac FB 430 Bedienungsanleitung

Makita

Makita VR001G Bedienungsanleitung

Euro Shatal

Euro Shatal TC63 Bedienungsanleitung

ADENDORFF

ADENDORFF TRE-85 Bedienungsanleitung

Husqvarna

Husqvarna EP 121B Bedienungsanleitung

Technoflex

Technoflex Kangaroo Kn-18GH Leitfaden

MQ Multiquip

MQ Multiquip Mikasa MTR-40HS Leitfaden

MULTIQUIP

MULTIQUIP Mikasa Series Bedienungsanleitung

Masalta

Masalta MDR65 Series Bedienungsanleitung

SPERO

SPERO SP1400 Bedienungsanleitung

MULTIQUIP

MULTIQUIP Mikasa MTX70HDR Leitfaden

Flextool

Flextool TUFFTRUK EB500 Bedienungsanleitung

Dynapac

Dynapac Svedala Demag EB 34 Series Fehlerbehebungshandbuch

Makita

Makita VR251D Bedienungsanleitung
