WeBoost Basic Home Bedienungsanleitung

Home Studio / Home Studio Lite

Cell Signal Booster

ENGLISH FRANÇAIS

Installation Guide

A WILSON ELECTRONICS BRAND

Index

Package Contents ............................................................1

STEP 1 Attach Booster Antenna to Booster & Place in Desired Location..............2

STEP 2 Mount & Point Outside Antenna Toward Nearest Cell Tower.................2

STEP 3 Route & Connect Outside Antenna To Booster ............................4

STEP 4 Power Up The Booster & Optimize The System ...........................4

Status Light Patterns ..........................................................6

Troubleshooting ..............................................................8

Safety Guidelines ........................................................... .10

Speciﬁcations ...............................................................12

Warranty....................................................................14

ENGLISH

Package Contents

Home Studio/Home

Studio Lite Booster

& Booster Antenna

Outside Antenna &

L-Bracket Antenna

Mount

Power

Supply

(2) 9 meter

Cables and

Cable Connector

2ENGLISH

STEP 1 Attach Booster

Antenna to Booster & Place In

Desired Location

Attach the Booster Antenna to Home

Studio/Home Studio Lite Booster and

place in room where stronger cell

signal is needed.

Pole mounting is preferred because it will

be easier to adjust to the direction of the

cell tower. Use the U-Bolts to attach the

Antenna to a pole or exhaust pipe on roof.

STEP 2 Mount & Point

Outside Antenna Toward

Nearest Cell Tower

Booster

Antenna

Home Studio/Home

Studio Lite Booster

Outside Antenna

attach L-Bracket

to antenna

attach L-Bracket

to U-Bolts

drip holes

ENGLISH

(STEP 2 cont.)

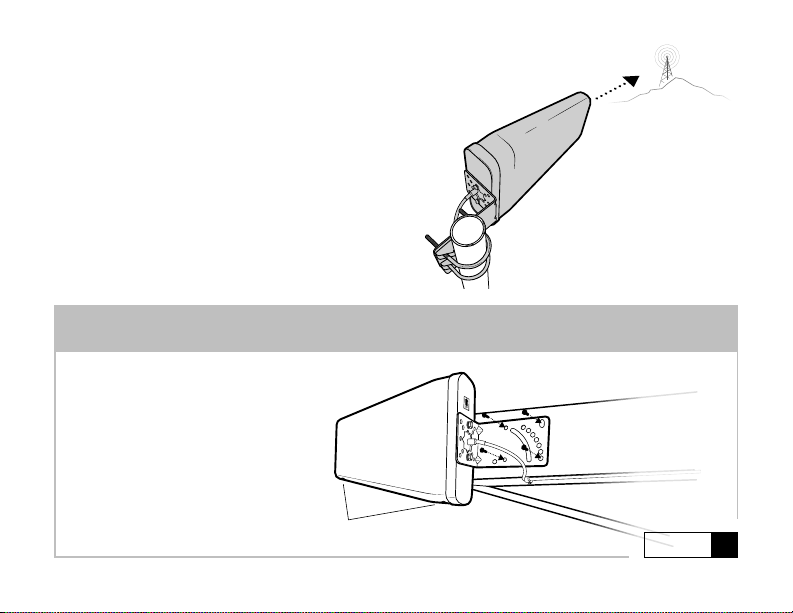

Point the Outside Antenna toward the

nearest cell phone tower. To ﬁnd the

nearest tower, use an app such as

‘Open Signal’. This is the most critical

step of the installation process because

it will determine the overall performance

of the Booster system.

Side mounting is a option if you

can still obtain strong signal.

Note: Drip holes should be

pointed down towards ground.

Side Mounting

drip holes

4ENGLISH

STEP 3 Route & Connect

Outside Antenna To Booster

Connect the white RG-6 Cable to

Outside Antenna and route and

connect cable to Home Studio/Home

Studio Lite Booster. All connections

should be ﬁnger tightened only.

Connect Power Supply into end of Booster

then plug Power Supply into wall outlet.

NOTE: We strongly recommend using a

power strip with surge protection.

STEP 4 Power Up The Booster

& Optimize The System Status Lights will

appear at the top

ENGLISH

(STEP 4 cont.)

After powering up your system, check to

see how your talk, text, and data rates

have improved. If more is desired, you can

optimize your system.

Rotate the Outside Antenna in 1/8 turn

increments, after each turn, unplug and

reconnect the Booster to power while

observing the signal level on your cell

phone from the Inside Antenna’s projected

area. When you have determined a direction

that gives you the strongest signal, secure

the Outside Antenna in place. Below gives

you an idea of how much boosted cell signal

coverage this system will bring indoors

based on how strong the outside signal is.

After each rotation, observe

signal level on your cell phone

from the Inside Antenna’s

projected area.

If the cell signal

outside your home is:

Your boosted cell

signal will cover:

Strong Good Weak None

Large

Room

Medium

Room

Small

Room None

6ENGLISH

GREEN

This indicates that your Home Studio or Home

Studio Lite is functioning properly and there

are no issues with installation.

SOLID RED

Band has shuto. This is due to a feedback

loop condition called oscillation. This is a built

in safety feature that causes a band to shut

o to prevent harmful interference with a

nearby cell tower. Refer to Troubleshooting

section.

BLINKING GREEN, RED

This indicates that the Booster is operating

at a reduced gain to prevent oscillation

(feedback). This is a built in safety

feature to prevent harmful interference

with a nearby cell tower. If you are

Status Light Patterns

Band 2

Band 4

Band 5

Band 12

Band 13

Band 12

Band 13

Band 2

Band 4

Band 5

Band 12

Band 13

Band 12

Band 13

Home Studio Booster Lights

Home Studio Lite Booster Lights

ENGLISH

(Status Light Patterns cont.)

already experiencing the desired signal boost, then no further adjustments are

necessary. If you are not experiencing the desired boost in coverage then refer to the

Troubleshooting section.

BLINKING GREEN, YELLOW

This indicates that one or more of the Booster bands has reduced gain due to overload

from nearby cell tower. This is a built in safety feature to prevent harmful interference

with a nearby cell tower. If you are already experiencing the desired signal boost, then

no further adjustments are necessary. If you are not experiencing the desired boost in

coverage then refer to the Troubleshooting section.

SOLID YELLOW

Band has shuto due to overload from nearby cell tower. Outside Antenna must be

adjusted. Refer to Troubleshooting section.

LIGHTS OFF

If the Signal Booster’s light is o, verify your Power Supply has power.

8ENGLISH

FIXING RED LIGHT ISSUES

This involves Solid Red & Blinking Green/Red lights.

■ Tighten all cable connections (be sure to handtighten only, do NOT use tools).

You may want to undo and redo the connection completely. Unplug and replug

in Power Supply at the wall outlet.

■ Increase the distance (horizontally or vertically) between the Outside and Inside

Antenna. Add included cable if needed. Unplug and replug in Power Supply.

■ Booster should be 5 cm vertically separated and 30.5 cm horizontally separated

from any metal.

FIXING ANY YELLOW LIGHT ISSUES

This involves Solid Yellow & Blinking Green/Yellow lights.

■ Outside Antenna must be adjusted. Disconnect and reconnect power between

adjustments. Wait at least 10 seconds between adjustments for the lights to reset.

Pole Mount Option: Rotate the Outside Antenna away from the strongest cell

phone signal in small increments (1/8 turn) until the light turns green. Unplug and

Troubleshooting
