WeBoost Office 100 Bedienungsanleitung

ENGLISH

FRANÇAIS

Installation Guide

Cell Signal Booster

Oce 100

Oce 100

A WILSON ELECTRONICS BRAND

NEED HELP? weboost.ca 866.294.1660

Package Contents 1

Preparation 2

STEP 1: Inside Antenna & Booster Placement 4

STEP 2: Mount Outside Antenna 5

STEP 3: Route & Connect Outside Antenna To Booster 6

STEP 4: Route & Connect Inside Antenna To Booster 7

STEP 5: Power Up The Booster 8

Measuring Booster Performance 9

Light Patterns 11

Troubleshooting 12

Safety Guidelines 13

Speciﬁcations 15

Warranty 16

______

Index

OFFICE 100 CELL PHONE SIGNAL BOOSTER

ENGLISH

______

Package

Contents

Office 100

Booster

Office 100

Booster

Power

Supply

(850030)

Power

Supply

(850030)

Lightning Surge

Protector

(859902)

Lightning Surge

Protector

(859992)

Cable Mounting

Clips

Cable Mounting

Clips

Inside

Antenna

(304412)

Inside

Antenna

(304419)

Outside

Antenna

(314422)

Outside

Antenna

(314423)

23 m & 18 m

Wilson 400 Cables

(952360 & 952375)

23 m & 18 m

RG-11 Cables

(951160 & 951175)

.5 m Wilson

400 Cable

(952302)

.5 m RG-11

Cable

(951127)

Oce 100 50 Ohm Kit

Oce 100 75 Ohm Kit

2CELL PHONE SIGNAL BOOSTER OFFICE 100

ENGLISH

______

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your installation.

o Ladder

o Drill

o 2.5 - 5 cm diameter existing pole for mounting

Outside Antenna (#901117 Pole Mount can be

purchased separately if needed)

o Recommended: Power Strip with surge protection

1 to 2 hours

OFFICE 100 CELL PHONE SIGNAL BOOSTER

ENGLISH

______

Installation Diagram

Outside

Antenna

Booster

23 m Coax Cable

Troubleshooting section recommends increasing distance

further if needed.

18 m Coax Cable

to power

Lightning Surge

Protector

Inside

Antenna

18 METER HORIZONTAL OR 7.5 METER VERTICAL DISTANCE

4CELL PHONE SIGNAL BOOSTER OFFICE 100

ENGLISH

AT LEAST 60 cm APART

fastened

nut snug

ceiling

19 mm drilled hole

NOTE: Do not connect booster to power until the system is fully installed.

______

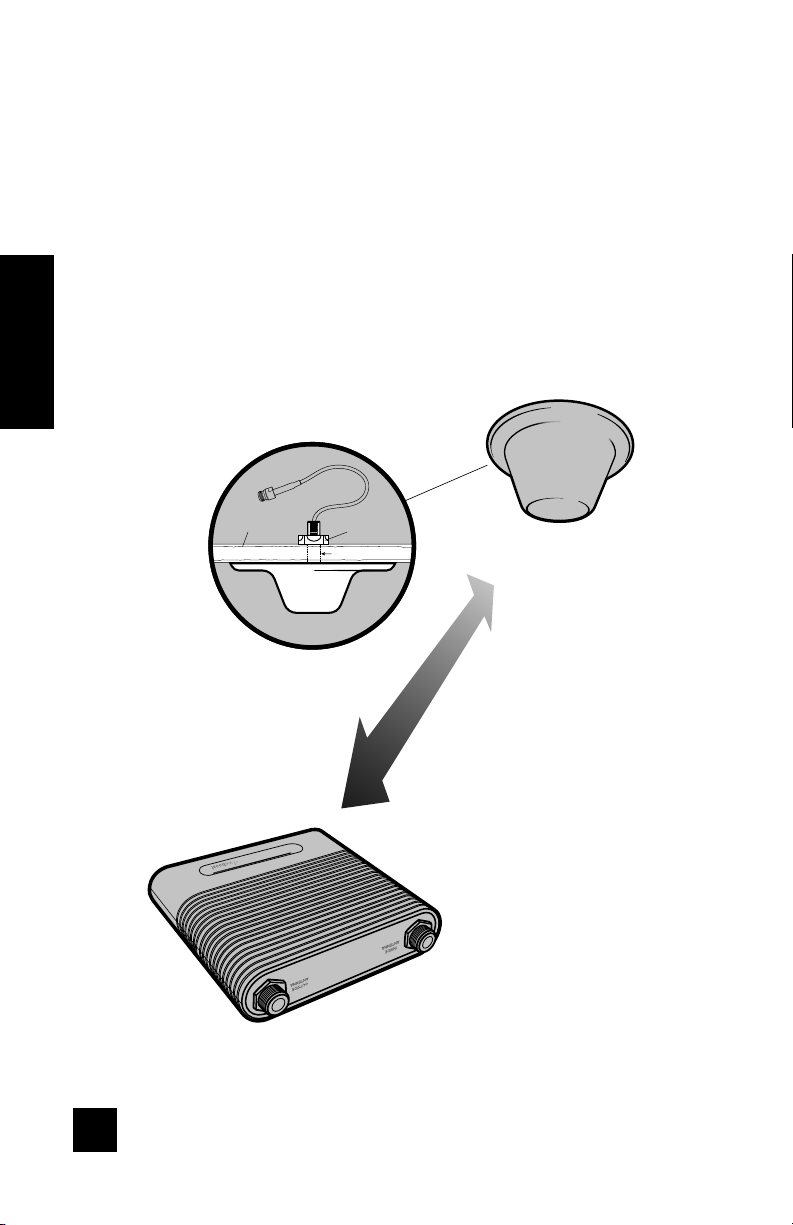

Step 1: Inside Antenna &

Booster Placement

Place the inside antenna in the ceiling over where you need the greatest signal

boost and place booster in your desired location at least 60 cm away from

inside antenna.

OFFICE 100 CELL PHONE SIGNAL BOOSTER

ENGLISH

______

Step 2: Mount Outside Antenna

NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch

out for power lines.

Pole mounting and wall mounting options are included.

Attach the mount to the outside antenna and use the bracket clamp to attach

the antenna to a pole or exhaust pipe.

Outside

Antenna

U-Bolt

existing

pole

Pole

Bracket

6CELL PHONE SIGNAL BOOSTER OFFICE 100

ENGLISH

______

Step 3: Route & Connect

Outside Antenna To Booster

Route cable to the Oce 100 booster and connect to the port labeled

‘OUTSIDE ANTENNA’.

Outside

Antenna

23 m Coax Cable .5 m Coax Cable

Outside

Antenna

Lightning Surge

Protector

Booster

Cable Mounting Clips

provided

Lightning Surge

Protector

Connect .5 m coax cable to outside antenna, attach the lightning surge

protector, then connect the black 23 m coax cable and route into building.

OFFICE 100 CELL PHONE SIGNAL BOOSTER

ENGLISH

______

Step 4: Route & Connect

Inside Antenna To Booster

Inside

Antenna

18 m Coax Cable

Booster

Connect the black 18 m coax cable to inside antenna and route to the Oce

100 booster and connect to the port labeled ‘INSIDE ANTENNA’.

Outside

Antenna

Booster

Cable Mounting Clips

provided

Inside

Antenna

8CELL PHONE SIGNAL BOOSTER OFFICE 100

ENGLISH

______

Step 5: Power Up The Booster

Plug the power supply into wall outlet then connect to end of booster

labeled “ ” and enjoy your boosted signal.

Booster

to power

NOTE: We strongly recommend using a power strip with surge protection.

Inside

Antenna

Outside

Antenna

Troubleshooting section recommends increasing distance

further if needed.

18 METER HORIZONTAL OR 7.5 METER VERTICAL DISTANCE
