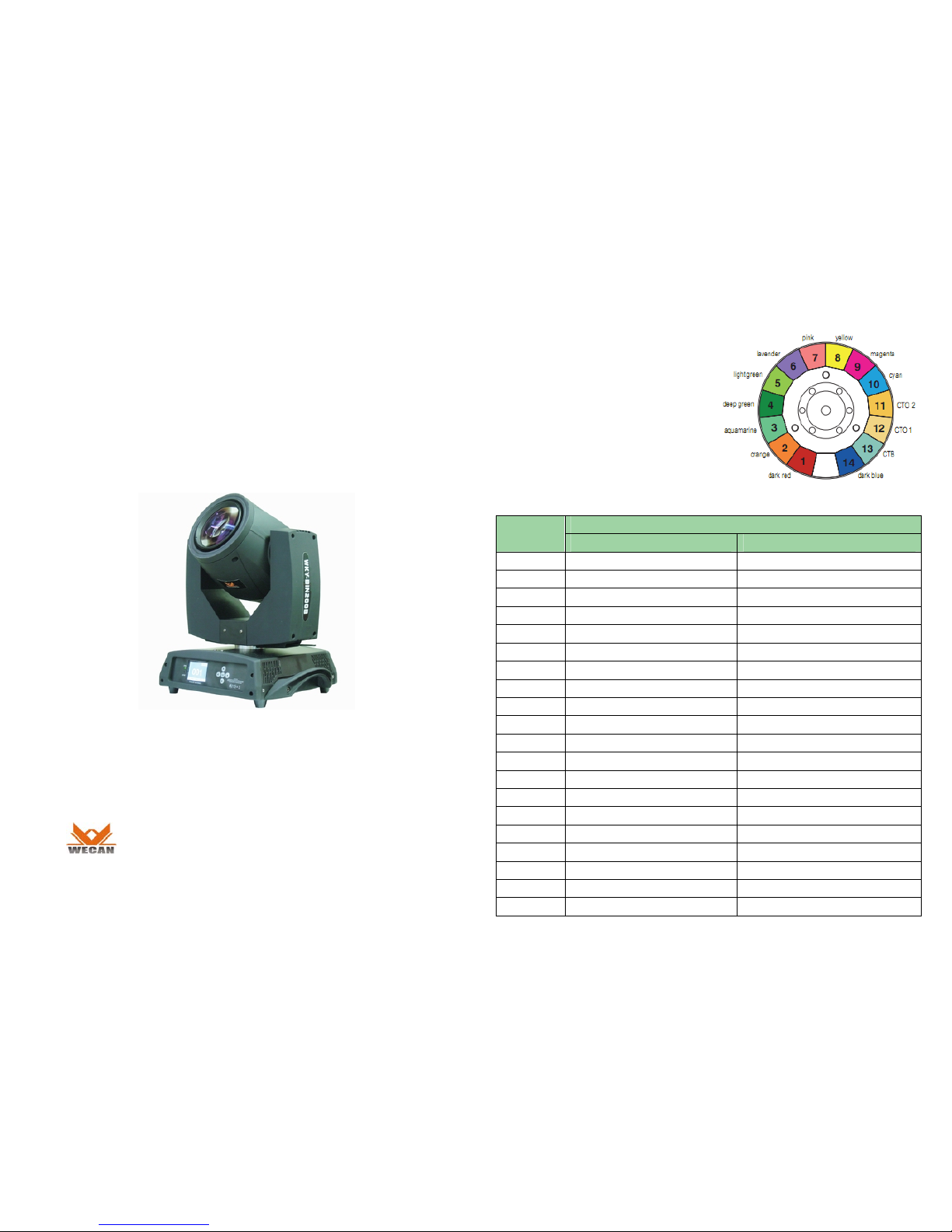

Wecan WKY-BEAM200B Montageanleitung
Use Manual of Moving Beam
Model: WKY-BEAM200B
Wecan Technology and Lighting Co., Ltd
www.wecanlight.com
Technical reference:
Power: AC 110-240v, 50/60Hz 350w
Lamp: Philips MSD Platinum 5R 189
Color: 14 colors + white
Gobo: 17 gobos + white
Channel: 16 CH / 20CH
Movement range: Pan 450° / Tilt 270°
Display: LCD Touch screen
Carton Size: 45*43*56cm
N.W.: 16.5kg G.W.: 19.0kg
CHANNEL MODE
CHANNEL 16CH 20CH
1 COLOUR WHEEL COLOUR WHEEL
2 STOP/STROBE STOP/STROBE
3 DIMMER DIMMER
4 STATIC GOBO CHANGE STATIC GOBO CHANGE
5 PRISM INSERTION PRISM INSERTION
6 PRISM ROTATION PRISM ROTATION
7 EFFECTS MOVEMENT EFFECTS MOVEMENT
8 FROST FROST
9 FOCUS FOCUS
10 PAN PAN
11 PAN FINE PAN FINE
12 TILT TILT
13 TILT FINE TILT FINE
14 PAN/TILT SPEED PAN/TILT MOVE BLACK
15 RESET RESET
16 LAMP CONTROL LAMP CONTROL
17 PAN-TILT TIME
18 COLOUR TIME
19 DIMMER-PRISM-FROST TIME
20 GOBO TIME
COLOUR WHEEL - channel 1
BIT EFFECT 效果 备注
255 FAST ROTATION 快速旋转
…… …… ……
150 SLOW ROTATION 慢速旋转
145 BLUE + WHITE 深蓝 + 白光
140 BLUE 深蓝
135 CTB 8000 + BLUE CTB 8000 + 深蓝
130 CTB 8000 CTB 8000
125 CTO 190 + CTB 8000 CTO 190 + CTB 8000
120 CTO 190 CTO 190
115 CTO 260 + CTO 190 CTO 260 + CTO 190
110 CTO 260 CTO 260
105 CYAN + CTO 260 青色 + CTO 260
100 CYAN 青色
95 MAGENTA + CYAN 品红 + 青色
90 MAGENTA 品红
85 YELLOW + MAGENTA
黄色 + 品红
80 YELLOW 黄色
75 PINK + YELLOW 粉红 + 黄色
70 PINK 粉红
65 LAVENDER + PINK 淡紫 + 粉红
60 LAVENDER 淡紫
55 LIGHT GREEN + LAVENDER 浅绿 + 淡紫
50 LIGHT GREEN 浅绿
45 GREEN + LIGHT GREEN 深绿 + 浅绿
40 GREEN 深绿
35 AQUAMARINE + GREEN 碧绿 + 深绿
30 AQUAMARINE 碧绿
25 ORANGE + AQUAMARINE 橙色 + 碧绿
20 ORANGE 橙色
15 RED + ORANGE 深红 + 橙色
10 RED 深红
5 WHITE + RED 白色 + 深红
0 WHITE 白色
STOP/STOBE - channel 2
BIT EFFECT 效果 备注
252-255 OPEN 光闸打开 由调光通道控制
239-251 RANDOM FAST STROBE 随机快速频闪
226-238 RANDOM MEDIUM STROBE 随机中速频闪
213-225 RANDOM SLOW STROBE 随机慢速频闪
208-212 OPEN 光闸打开 由调光通道控制
207 FAST PULSATION 脉冲频闪
…… …… ……
108 SLOW PULSATION 脉冲频闪
104-107 OPEN 光闸打开 由调光通道控制
103 FAST STROBE 频闪
…… …… ……
4 SLOW STROBE 频闪
0-3 CLOSED 光闸关闭

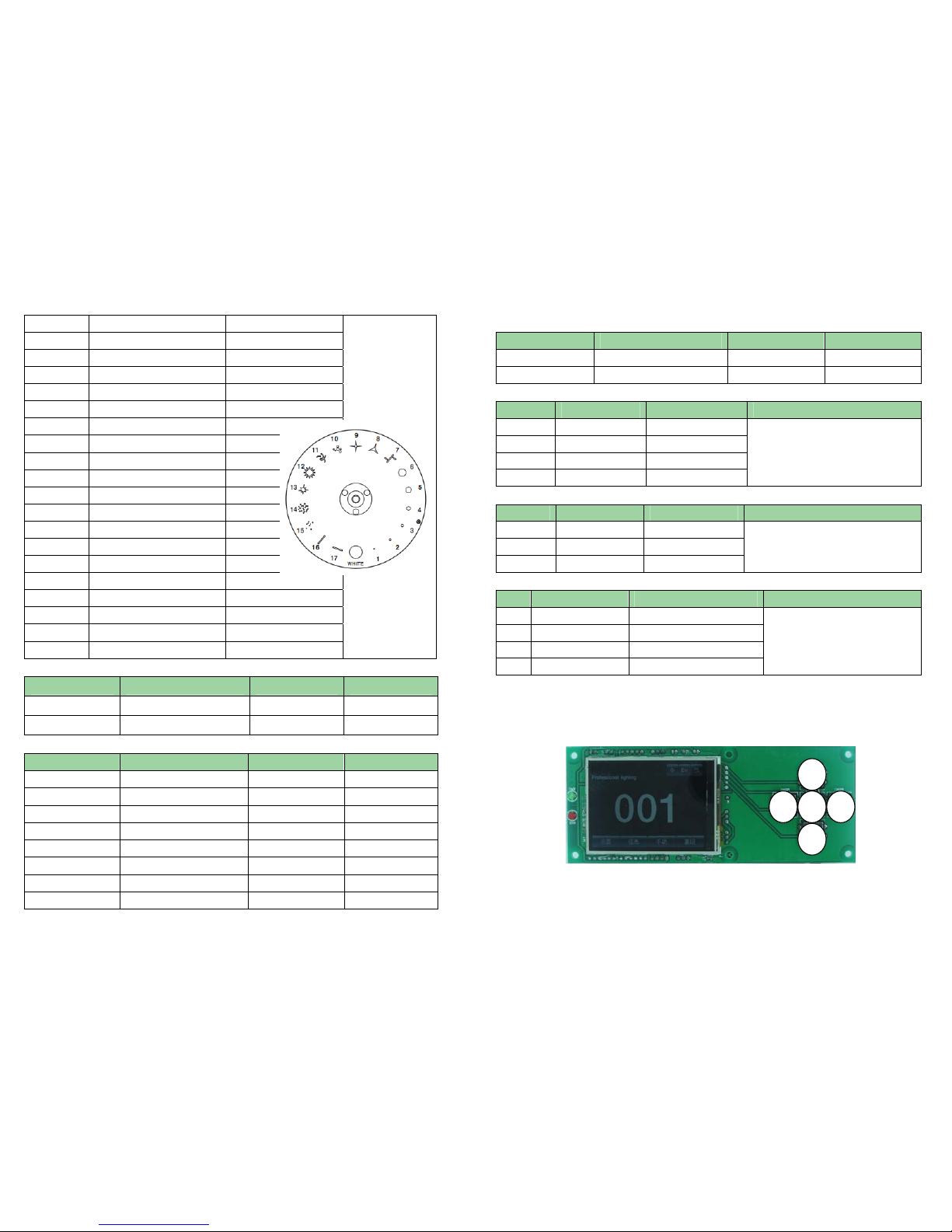

STATIC GOBO CHANGE - channel 4
BIT EFFECT 效果 备注
255 GOBO 17 SHAKE,
图案 17 快速抖动
…… …… ……
251 GOBO 17 SHAKE,
图案 17 慢速抖动
250 GOBO 16 SHAKE,
图案 16 快速抖动
…… …… ……
246 GOBO 16 SHAKE,
图案 16 慢速抖动
…… …… ……（图案 3到图案
180 GOBO 2 SHAKE, FAST 图案 2快速抖动
…… …… ……
176 GOBO 2 SHAKE, SLOW 图案 2慢速抖动
175 GOBO 1 SHAKE, FAST 图案 1快速抖动
…… …… ……
171 GOBO 1 SHAKE, SLOW 图案 1慢速抖动
170 FAST ROTATION 快速旋转（正向）
…… …… ……
135 SLOW ROTATION
慢速旋转（正向）
130-134 STOP 停止（白色）
129 SLOW ROTATION
慢速旋转（反向）
…… …… ……
90 FAST ROTATION
快速旋转（反向）
85 GOBO 17 图案 17
80 GOBO 16 图案 16
75 GOBO 15 图案 15
70 GOBO 14 图案 14
65 GOBO 13 图案 13
60 GOBO 12 图案 12
55 GOBO 11 图案 11
50 GOBO 10 图案 10
45 GOBO 9 图案 9
40 GOBO 8 图案 8
35 GOBO 7 图案 7
30 GOBO 6 图案 6
25 GOBO 5 图案 5
20 GOBO 4 图案 4
15 GOBO 3 图案 3
10 GOBO 2 图案 2
5 GOBO 1 图案 1
0 WHITE 白色
PRISM INSERTION - channel 5
BIT EFFECT 效果 备注
128-255 PRISM INSERTED
插入棱镜
0-127 PRISM EXCLUDED
移开棱镜
PRISM ROTATION - channel 6
BIT EFFECT 效果 备注
255 FAST ROTATION
快速旋转（正向）
…… …… ……
193 SLOW ROTATION
慢速旋转（正向）
191-192 STOP 停止
190 SLOW ROTATION
慢速旋转（反向）
…… …… ……
128 FAST ROTATION
快速旋转（反向）
0-127 POSITION 棱镜角度调节
FROST - channel 8
BIT EFFECT 效果 备注
128-255 FROST INSERTED
雾化
0-127 FROST EXCLUDED
无雾化
RESET - channel 15
BIT EFFECT 效果 备注
128-255 COMPLETE 全部电机复位
77-127 PAN/TILT 大电机（XY 轴）
26-76 EFFECTS 小电机复位
0-25 UNUSED 无效区域
在相应区域停留 5秒之后开始复
位。
Reset is activated passing
through the unused range and
sta
y
in
g
5 seconds.
LAMP CONTROL- channel 16
BIT EFFECT 效果 备注
101-255 LAMP ON 点亮灯泡
10-100 LAMP OFF 熄灭灯泡
0-9 UNUSED
无效区域
在相应区域停留 5秒之后开始开
关灯泡。
Lamp switch passing through the
unused range and staying 5
TIMING CHANNELS
Timing Channel Channel function Remark
17 Pan-Tilt time Pan-Tilt-(Pan fine-Tilt
18 Colour time Colour wheel
19 Beam time Dimmer-Prism -Frost
20 Gobo time Static Gobo
255 SLOW SPEED
…… ……
0 FAST SPEED
Control on display panel
一． Buttons functions
“Left” and “right”: Back to previous interface
“Up” & “Down”: To select and to edit
“OK”: To operate function, start / exit to edit.
上
确
左 右
下
The following shows how to modify the DMX address:
1. If this is not main interface and wants to back to main interface, just press button
“left” in one or several times to back to the main interface.
2. Press “Up” or “Down” to select “Setting”.
3. Press “OK” to enter into submenu of “Setting”.
4. Press “Up” or “Down” to select “DMX address”.
5. Press “OK” enter into the edit status.
6. Press “Up” or “down” to modify the DMX address.
7. Press “OK” to out of the edit status.
Operation by TFT touch screen will be more convenient, the operating method is
same as above mentioned.
Interface
-There are 3 buttons in the top right corner of touch screen, which are separately
use for changing languages mode, inversing touch screen.
-There are 4 buttons in the bottom of touch screen, which are “Setting”,
“Information”, “Manual control” and “Advanced”.
A. Setting
Option Specification
DMX Slave status: Received DMX Signal from Control &
master
Running mode Auto Master status: Automatically operation and send out
DMX signal to slaves
DMX address 1~512 Pressing “OK” enter into edit status.
16 From 17CH to 20CH invalid
Channel mode 20 From 17CH to 20CH valid
No
X inverse Yes
No
Y inverse Yes
No
XY inverse Yes Exchange function of X & Y (fine adjustment include)
Yes Rectify location by optical couple
XY decoder No No rectification
maintain Keep running by original status
No DMX signal Zero
clearing Motors reset
Yes Delayingly close after in seconds
Screen saver No Constantly open
Boot & Lamp
on No Power on reset, lamp off（the lamp need to be turned
on by controller and menu）
Yes When fixture power on, the lamp on, and the fixture
will be reset after lamp on completely
Default Settings Pressing “OK” enter into dialog box, and press “OK”
again to default settings.
B. Information
Option Specification
Software version Present version
Total service time Accumulate service time（accurate to minute）
Present service time Accumulate present service time（accurate to minute）
DMX value Display DMX value on screen
System error records If indicator light on，which means the fixtures must be error.
Enter into submenu, check it out and emptying error
records
C. Manual control
This interface is use for control present fixture，which there is no signal send in
or send out.
Option Specification
Reset Resetting all of motors
Color wheel 0~255
…… 0~255
Speed of gobo wheel 0~255
Pressing “OK” enter into edit status, pressing “Up”
or “Down” to set the DMX value.
OnLamp control Off
D. Advance
The password is “up”, “down”, “up”, “down”. For example: Pressing “up” once, it
shows first “*” on screen; Pressing “down”, it shows second “*”; Pressing “up” again,
it shows third “*”; Pressing “down” again, it shows fourth “*”, and finally press “OK” to
password verification.
Option Specification
Touch screen
rectification Touching corresponding place according to cross cursor points out,
If there are 4 places received right data, please confirm and save it.
Reset
rectification Can be adjusted location of motors resetting for filling in gaps of
hardware installation.
This reset rectification has to be rectify step by step according to 1
as the unit.
Attention: don’t make rectification in motor running status.
