Well AMUSE Bedienungsanleitung
USER MANUAL
Model: AMUSE
(Digital video Broadcasting)
Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
Reorder No: REC-DVBT2-AMUSE-WL
1. Control Elements
Front Panel
POWER Standby button
CH Channel up and down
USB USB Port
Rear Panel
ANT IN
ANT OUT
COAXIAL
HD-OUT
SCART
DC IN

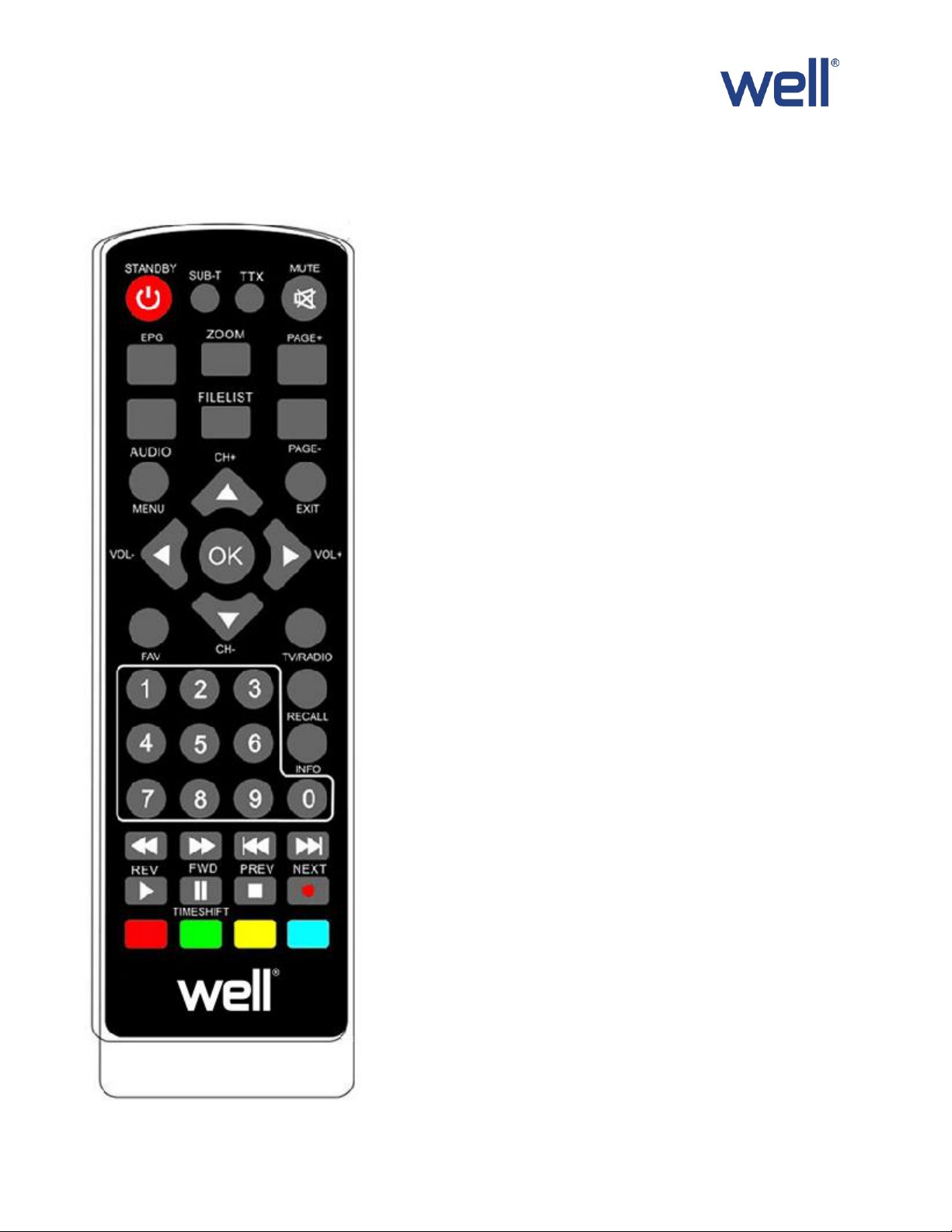

2. Remote Control
1. STANDBY: Switch the Standby Mode
2. EPG: Electronic Program Guide
3. INFO: Show The Current Program Information
4. AUDIO: Choose Audio language or Audio Mode
5. FAV: Enter Favorite List
6. MENU: Enter the Main Menu
7. CH+: Change Channel +
8. V+/-: Change Volume
9. CH-: Change Channel-
10. P+: Page Up
11. Number (0-9): Select Channel or Setting
12. REV: Return
13. FWD: Forward
14. Play/Pause
15: MUTE: Mute ord Restore Audio Output
16. PVR: Personal Video Recording
17. SUBTITLE: Select Subtitle Language
18: EXIT: Exit the Current Menu
19. OK
20. P-: Page Down
21. RECALL: Return to Last Playing Program or Last Operation
22. Go To
23. Next
24. PRVE: Return to Last Page
25. REC: Record Program
26. Stop
27.28.29.30. Multi-Function Key
3. Basic Functions
3.1 First Installation
First installation shall setup some important configures. It contains several options shown as figures
below:
User can select Region, Language, Display Mode, Aspect Mode from this menu, when it is complete, user
can use “OK” to search channels as shown in the figure below:
3.2 Display Information Of Programs
Press key “INFO” to show the information of current programs when it is in normal playing state.
4. Installation
There are two kinds of installation mode as follow:
1. DVB-T2 channel Scan
2. DVB-T2 Auto Scan
You can press “Right ”button to enter into this menu, then press “up/down/ right/left” to choose and
change below functions:
DVB-T2 channel Scan DVB-T2 Auto Scan LCN- to be on or off
5. System Setup
System setup menu can provide convenient system setup, as shown below:
Press “Right” button to enter this menu and press up/down to choose and do the edit as you want.
Language
TV System
Display Setting
Local Time Setting
Local Code Setting
Timer Setting
Parental Lock
OSD Setting
6. Software Update
Upgrade by USB
Please make sure don't shut down the power in the upgrade process; When upgrade finish, system will
automatic restart with the new firmware
Waste electrical and electronic equipment are a special waste category,
collection, storage, transport, treatment and recycling are important because
they can avoid environmental pollution and are harmful to health. Submitting
waste electrical and electronic equipment to special collection centers makes
the waste to be recycled properly and protecting the environment. Do not
forget! Each electric appliance that arrives at the landfill, the field, pollutes the
environment!
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. 0264-438401*
