Well SPKR-BT-BLAST-WL Bedienungsanleitung

INSTRUCTION MANUAL

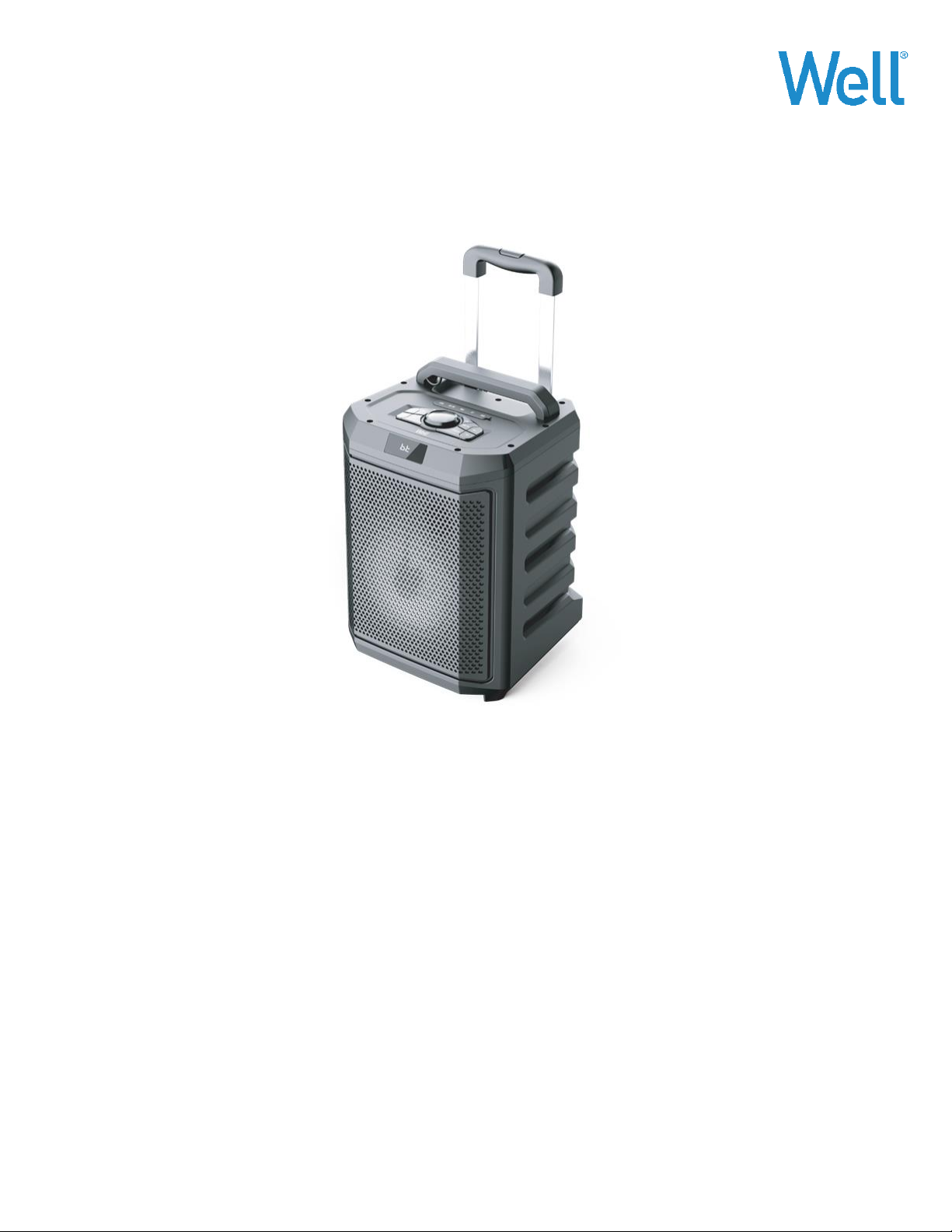

BLUETOOTH SPEAKER

Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.

Reorder No: SPKR-BT-BLAST-WL

Content

Packing List

Technical Specifications

Safety Precautions

Panel Operation Instructions

System Connection

Operation

BT Operation

MIC Operation

Packing List

1. Speaker

2. Signal Cable

3. FM Antenna Cable

4. User Manual

5. Warranty Card

Technical Specifications

Output Power (PMPO): 250W

Output Power (RMS): 50W

Driver units: 8"

Frequency response: 40Hz - 20kHz

S/N: ≥ 71dB

Distorsion: ≤ 0.7% (1W)

Bluetooth function

Support USB flash drive

Line-in function

FM radio

Wired microphone

TWS function

Colorful LED light

Input power supply: AC 100-240V 50-60Hz 0.40A

Battery: 7.4V 2000mAh

With wheels

Size (WxLxD): W300*H421*D270MM

Safety Precaution

1. Power:

When working / recharging under AC

power, please operate only under

power indicated in the instruction or

marked on device.

2. Caution for Electrical Shock:

To avoid electrical shock please don’t use

wet hands to plug in or out the power plug.

Do not place in rain or near water! Vases

or other vessels containing water cannot be

placed on the main unit.

3. This device cannot bear heavy load:

Avoid sunray hitting directly, and keep

away from various heating sources such as

stove, radiator and so on.

Don’t place close to the environments with

much dust, high temperature, strong light

and strong magnetic field etc.

4. Power line protection:

Prevent power line from being stepped on

or pinched by heavy objects. Special

attention should be paid to plug of power

cord, outlets on backboard and sockets on

the wall. Never pull or drag power line.

Panel Operating Instructions

1.1）USB : Playback via USB disk.

1.2）DC 9V : Battery power charge with one DC 9V 1A adapter

1.3）MIC : Wired MIC jack input.

1.4）GT : Guitar jack input.

1.5）AUX : Playback via AUX mode.

1.6）M: Short press this button to turn to below modes and rotate its volume accordingly:

T: Treble Adjustment; B: Bass Adjustment; GT: Guitar Volume Adjustment; NI: Microphone Volume

Adjustment; EC: Microphone Echo Adjustment;

1.7）LED ：Colorful LED Lighting Mode: Press to turn to below lighting modes:

Dynamic Lighting Mode; Breathing Lighting Mode (Default mode is Dynamic lighting mode).

1.8）TWS function : (Note: This function applicable for Bluetooth mode only and works with two units together.

First step make sure both two units are all turn to BT mode, short press

TWS button from any of them, the pressed unit LED display will show with "BT A" and at the same time, the other

unit will turn to "BT B" on its LED display, Note: these two units will connect automatically after above steps.

Second step, Bluetooth pairing by mobile phone, then turn to playing status.

1.9）: Press to turn to repeat mode (One ALL OFF), Note: It works under USB Mode only.

1.10） : Press to turn to next Track (Note: AUX mode not workable)

1.11）: Press to turn to previous track(Note: Aux mode not workable)

1.12）MIC.PRI : This function applicable for Microphone working status only, the background music will fade when

vocals sound comes from microphone after turn on this button.

1.13）INPUT : Press to turn to BT/FM/USB/AUX mode. Note: USB disk should inserted

1.14）: Press to play/pause the sound, in FM mode, long press for automatic channel search.

5. Do not dismantle the casing:

Serious electric shock may occur if

touching internal parts carelessly.

Prevent the inside of the device from

opening.

6. For safety:

Switch off the main power when not in use

and unplug the main cord from socket

when not using it for prolonged period of

time.

1.15）: Long press to turn on the unit, short press to turn off the unit.

1.16) VOL : Master Volume Adjustment.

1.17) LCD Display

Operation

1. Turn on the unit, connect to sound sources and play.

2. Insert USB to read MP3 tracks; press SOURCE key to select USB, BT input or FM radio, FM programs scan &

save automatically.

3. When using the KARAOKE, please plug your wired microphone cable and adjust the MIC volume.

BT Operation

1. Turning on the power, press the "INPUT" key, switch the speaker to Bluetooth mode. Then turn on the Bluetooth

function of device.

2. Search the Bluetooth device list and select the Bluetooth name " WELL BLAST"

The speaker will sound notification tone when the connection is successful.

3. Play the music on your device by music player. The music will be transferred via Bluetooth, and sound comes out

through the speaker.

4. To disconnect the Bluetooth device, the user can turn off Bluetooth function on the device, or press the "INPUT"

key on the speaker panel to change the playing mode.

MIC Operation

To use wired MIC, plugin at MIC 1 or MIC 2 sockets and adjust the MIC volume to desired level. You can set MIC

priority by pressing MIC priority button on the panel.

Waste electrical and electronic equipment are a special waste category, collection,

storage, transport, treatment and recycling are important because they can avoid

environmental pollution and are harmful to health. Submitting waste electrical and

electronic equipment to special collection centers makes the waste to be recycled

properly and protecting the environment. Do not forget! Each electric appliance that

arrives at the landfill, the field, pollutes the environment!

Importer & distributor:

SC VITACOM ELECTRONICS SRL

CIF: RO 214527

Tel. 0264-438401*

[email protected], www.vitacom.ro
