MINI HDMIAmplifier Switcher 3x1
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Phase
keep this manual for future reference1.0 Introduction
1.0 Introduction

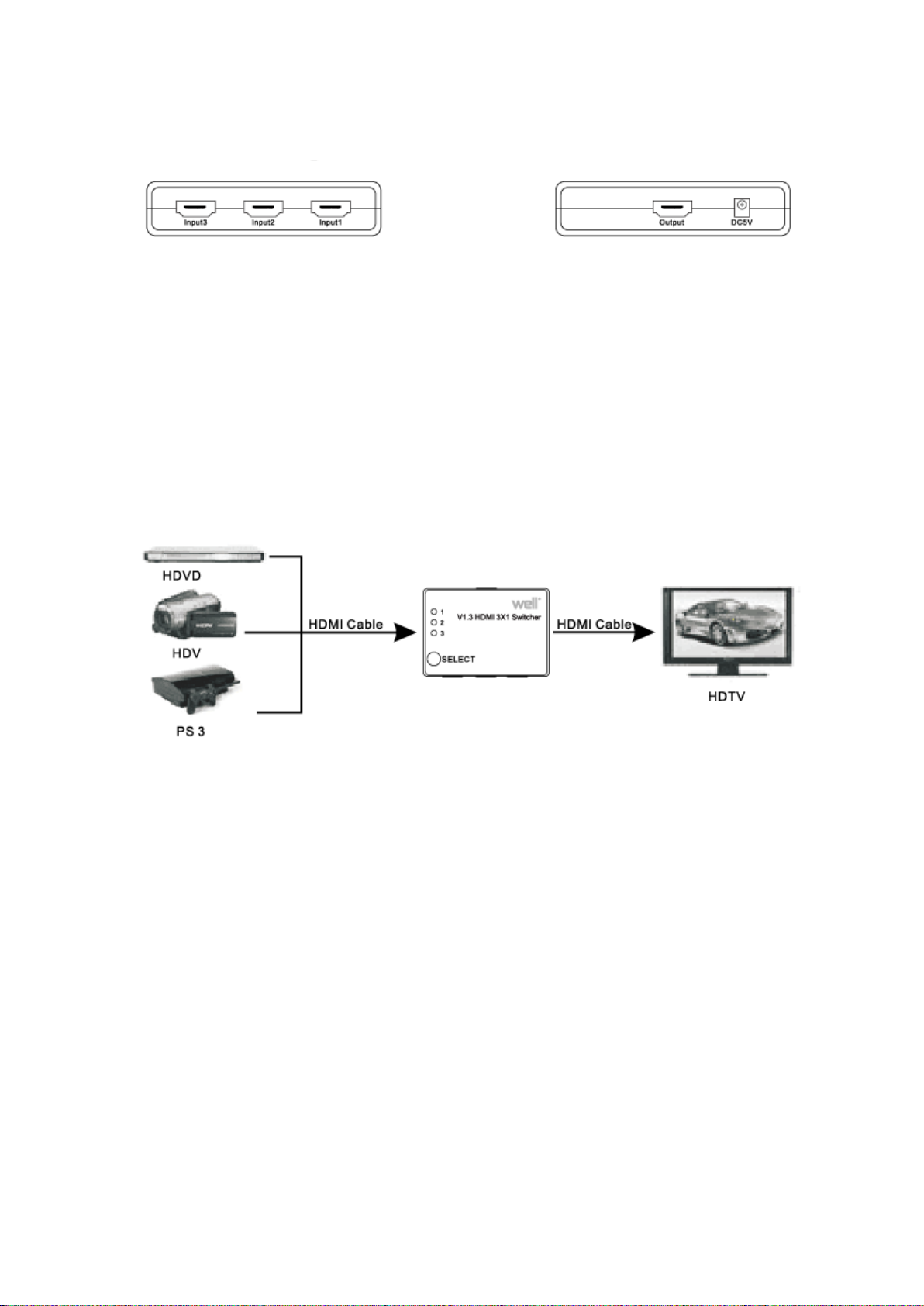

The 3x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and
digital audio from any one of the three sources to display unit. Three inputs accommodate the
simultaneous connection of up to five high definition video sources, such as satellite systems
and HD DVD players
The output sends the high definition audio/video signals to a high definition display. This kind
of the HDMIAmplifier Switcher not only has the key-press-switching function, but also has the
IR remote control and intelligent function.
1.1 Intelligent Function
1) When supplied with power, this switcher will select the power-on source device depending on
the sequence automatically (input1>input2>input3)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switches
will automatically select this source
3) Once the source device is turned off or plugged out, the switches will automatically select the
next power-on source depending on the sequence automatically (input 1>input2>input3)
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off,
Otherwise this switches can not meet intelligent function
2) When plugged in or out, this switches is completely intelligent
2.0 Features
* Multifunctional on switching; intelligent or mechanical
* Support HDMI1.3b HDCP pass-through
* Support high Definition resolution 1080p
* High performance up to 2.5Gbps.
* CEC Pass-through
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
（including DTS-HD and Dolby True HD）
