WELLTECH WellGate 3512 Bedienungsanleitung

WellGate 3512 Quick Guide EN-V1.00

Welltech

Wi-Fi VoIP Gateway

(WellGate 3512)

Quick Guide

Revision information

Version Date Description

EN-V1.00 July-20-2007 1st English version

WellGate 3512 Quick Guide EN-V1.00

Table of Content

I. INSTALLATION ___________________________________________ 2

Step 1. Power on the WG3512 _______________________________________________ 2

Step 2. Check the LEDs ____________________________________________________ 2

Step 3. Connect PC with one of LAN port______________________________________ 2

Step 4. Browse the Default IP Address of WG3512 and enter the web interface main

screen___________________________________________________________________ 2

II. SETTING TO WORK _______________________________________ 3

Step 1. Enter Setup Wizard to configure basic network settings ___________________ 3

Step 2. Enter VoIP Settings to configure Phone1 and Phone2 _____________________ 9

WellGate 3512 Quick Guide EN-V1.00

I. Installation

Power Adapter

PC LAN

IP address: DHCP

PC WLAN

IP address: DHCP

ESSID: WiFi_AP

Channel: 11

Encryption: disabled

WG 3512

WAN default IP address: DHCP

LAN default IP address: 192.168.123.123

SSID: WiFi_AP

Channel: 11

Encryption: disabled

SOHO Router Internet

ADSL/ Cable

Modem

LAN

WAN

Step 1. Power on the WG3512

Step 2. Check the LEDs

After power on, the [Power] and [PSTN] LEDs should be on; [WLAN] LED should be blinking.

Step 3. Connect PC with one of LAN port

Please connect PC with one of the LAN port on WG3512 and set PC as DHCP mode. PC will

get one dynamic IP from WG3512, such as 192.168.123.1.

Step 4. Browse the Default IP Address of WG3512 and enter the web

interface main screen

Please enter IP address of WG3512 in web browser. The default IP address of WG3512 is

192.168.123.123. Login username and password of default is root and root, and the user can

see web interface main screen as below.

WellGate 3512 Quick Guide EN-V1.00

II. Setting to work

After enter web management interface, user can see 8 main items.

1. Setup Wizard: User can follow steps in wizard to make first-time initial configuration.

2. Operation Mode: User can setup different modes to LAN and WLAN interface for NAT

and bridging function.

3. Wireless: User can set all wireless related parameters here.

4. TCP/IP: User can set LAN and WAN related configurations here.

5. Firewall: User can set firewall function of WG3512 here.

6. VoIP Setting: User can set VoIP related parameters here.

7. Management: User can check information or manage WG3512 here.

8. System Reboot: User can remote reboot WG3512 here.

Button Definition:

1. Apply Changes: After change or input any parameter, press this button will save data into

WG3512.

2. Reset: Press this button will clean data input by user and restore to original data.

Step 1. Enter Setup Wizard to configure basic network settings

The setup wizard will guide you to configure access point for first time. Please follow the setup

wizard step by step.

Press Cancel will return to the first page of Setup Wizard.

Press Next>> to next step.

Press <<Back will return to last step of Setup Wizard.

Press Finished will save all configurations and WG3512 will reboot.

WellGate 3512 Quick Guide EN-V1.00

¾Operation Mode: You can setup different modes to LAN and WLAN interface for

NAT and bridging function. WG3512 provide all 3 primary modes and 4 extended

modes. Here you can find 3 primary modes, including: 1) Gateway mode, 2) Bridge

mode, 3) Wireless ISP. Another 4 extended modes are changes from these 3 mainly

modes and plus some application, including: 1) Client mode, 2) WDS Repeater

Mode, 3) Universal Repeater mode, 4) WISP + Universal Repeater mode. Here we

will guide you how to setup WG3512 with Gateway mode.

In Gateway mode, the device is supposed to connect to internet via ADSL/Cable

Modem. The NAT is enabled and PCs in four LAN ports share the same IP to ISP

through WAN port. The connection type can be setup in WAN page by using PPPOE,

DHCP client or static IP.

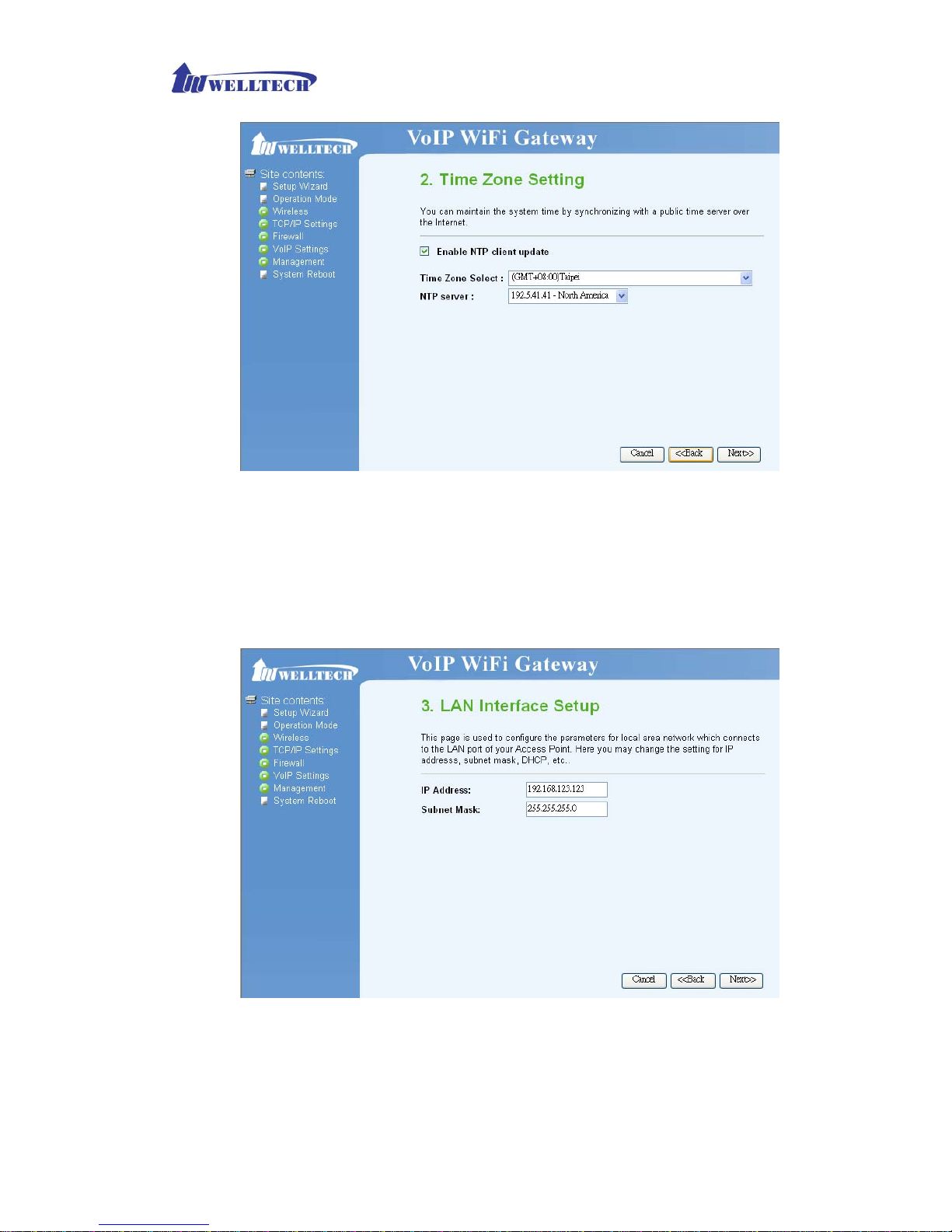

¾Time Zone Setting: You can maintain the system time by synchronizing with a

public time server over the Internet.

1. Enable NTP client update: User can update time of WG3512 from NTP server if

this function is enabled.

2. Time Zone Select: Select the time zone according to location.

3. NTP server: User may select one NTP server for WG3512 to update current

time.

WellGate 3512 Quick Guide EN-V1.00

¾LAN Interface Setup: This page is used to configure the parameters for local area

network which connects to the LAN port of your Access Point. Here you may change

the setting for IP address, subnet mask, DHCP, etc…

1. IP Address: Set IP address of LAN interface. Default is 192.168.123.123.

2. Subnet Mask: Set subnet mask of LAN interface. Default is 255.255.255.0.

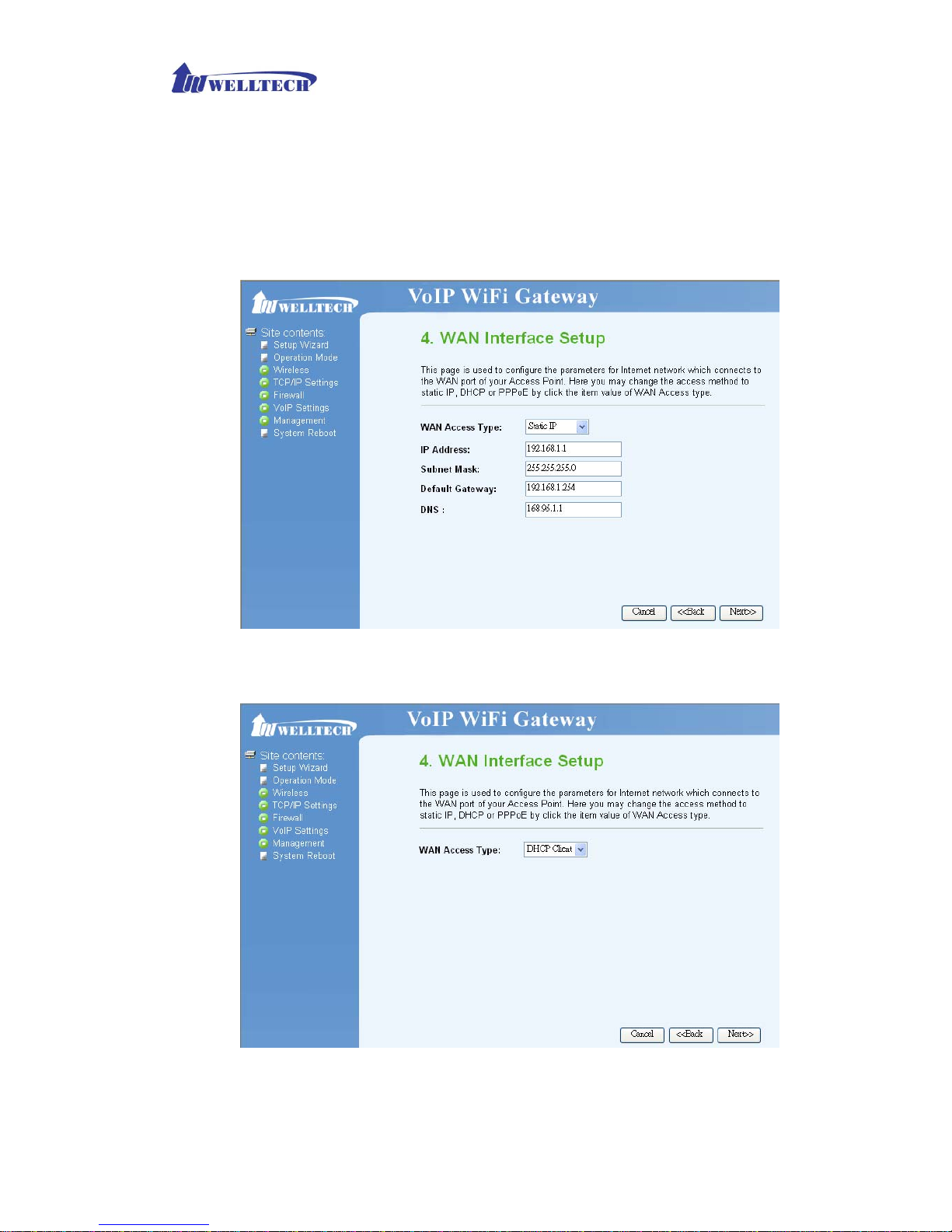

¾WAN Interface Setup: This page is used to configure the parameters for Internet

network which connects to the WAN port of your Access Point. Here you may

change the WAN network type to Static IP, DHCP Client, PPPoE by click the item

WellGate 3512 Quick Guide EN-V1.00

value of WAN Access type. Default is DHCP Client.

1. Static IP: Set WAN interface as Static IP mode.

•IPAddress: set IP address of WAN interface.

•Subnet Mask: set subnet mask of WAN interface.

•Default Gateway: set default gateway of WAN interface.

•DNS: set Domain Name Server for WAN interface.

2. DHCP Client: Set WAN interface as DHCP mode.

3. PPPoE: Set WAN interface as PPPoE mode.

WellGate 3512 Quick Guide EN-V1.00

•User Name: Set user name of PPPoE connection.

•Password: Set password of PPPoE connection.

¾Wireless Basic Settings: This page is used to configure the parameters for

wireless LAN clients, which may connect to your Access Point.

1. Band: Select wireless band as 802.11b, 802.11g, or 802.11b+g.

2. Mode: Select wireless mode. User could find 4 different modes here, including

AP, Client, WDS, AP+WDS. AP mode enables WG3512 as wireless access

point and allows other devices to connect wirelessly to a wired Ethernet

network. Client mode enables WG3512 to perform as a wireless client card and

other devices can connect with Ethernet cable to WG3512. WDS mode is to

extend the wireless coverage of another wireless AP. AP+WDS enables

WG3512 to perform as an AP and a WDS repeater. Here we will guide you how

to setup it with AP mode.

3. Network Type: Only when wireless mode set as client, user can select network

type as infrastructure or Ad hoc. Infrastructure represents a wireless network

centered about an access point. Ad hoc represents a wireless network

composed only of stations within mutual communication range of each other.

4. SSID: specify to the WG3512 an SSID (Service Set Identifier), which is a

unique identifier attached to packets over WLAN. The SSID is up to 32 ASCII

characters that differentiate the WG3512 from other WiFi AP, and it is also

referred to as the ESSID (Extended Service Set Identifier). You may use the

default SSID unless there more than one WG3512 in the same area. In this

WellGate 3512 Quick Guide EN-V1.00

case, you should specify different SSID for each WG3512.

5. Channel Number: Set channel for wireless connection. You can set channel for

radio communication manually. If you set it as Auto, the WG3512 will select a

clear channel during boot up.

¾Wireless Security Setup: This page allows you setup the wireless security. Turn on

WEP or WPA by using Encryption Keys could prevent any unauthorized access to

your wireless network. If you chose None, there will be no encryption.

WellGate 3512 Quick Guide EN-V1.00

Step 2. Enter VoIP Settings to configure Phone1 and Phone2

Here is to set VoIP Phone1 and Phone2 related configurations.

¾SIPAccount

1. Display Name: set WiFi Phone display name for caller ID information.

2. Number: set registering Phone number.

3. Login ID: If Proxy server needs registration authentication please input

4. Password: If Proxy server needs registration authentication please input

password here.

¾SIP Proxy

1. Proxy: check to enable Proxy mode.

2. Proxy Addr: If user enable Proxy mode, please input Proxy address.

3. Proxy Port: If user enable Proxy mode, please input Proxy port.

4. SIP Domain: Set SIP domain name for SIP signaling.

5. Register Status: here will display SIP account register status.
