WePresent WP-820 Bedienungsanleitung
wePresent
Quick Installation Guide
(Model Name : WP-820)
Version: 2.0
Date: Nov 07, 2008
WP-820 Quick Installation Guide Awind Inc
- -
2
1.Package Contents
zwePresent Box
zwePresent USB Token
zPower Adapter (DC +5V, 2.5A)
zAntenna
zQuick Installation Guide
zWarranty Card
2.Physical Details
zFront Panel
POWER LED
zRear Panel
Antenna
RJ-45
AUDIO
VGA Connector
Power Jack
Power Switch
Reset to Default button
WP-820 Quick Installation Guide Awind Inc
- -
3
3.Installation

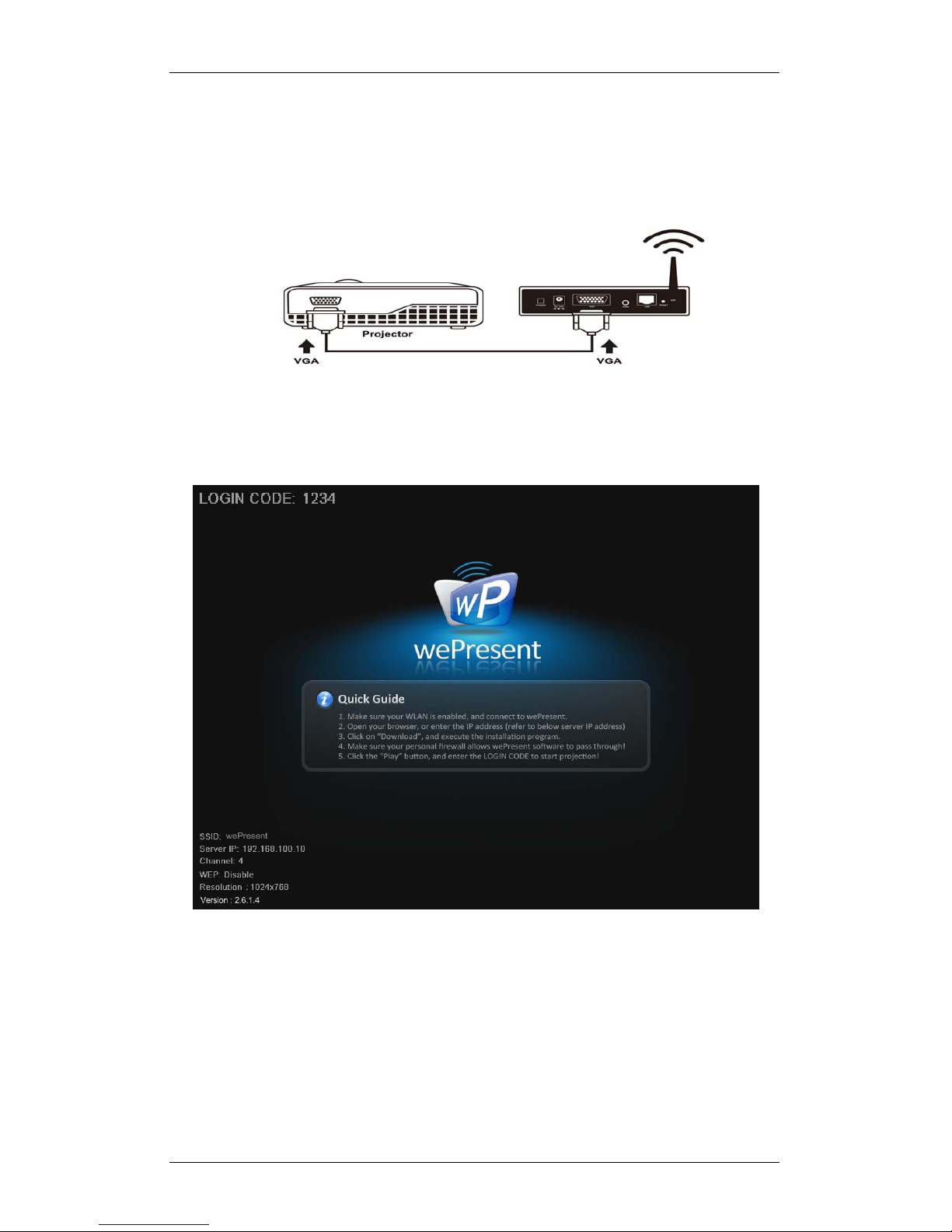

1) Connect projector VGA cable to wePresent box VGA connector and turn on
projector power.
2) Turn on wePresent box.
♦When Projector shows the default menu on the screen as below, it
indicates the wePresent box is ready now.
WP-820 Quick Installation Guide Awind Inc
- -
4
zWindows

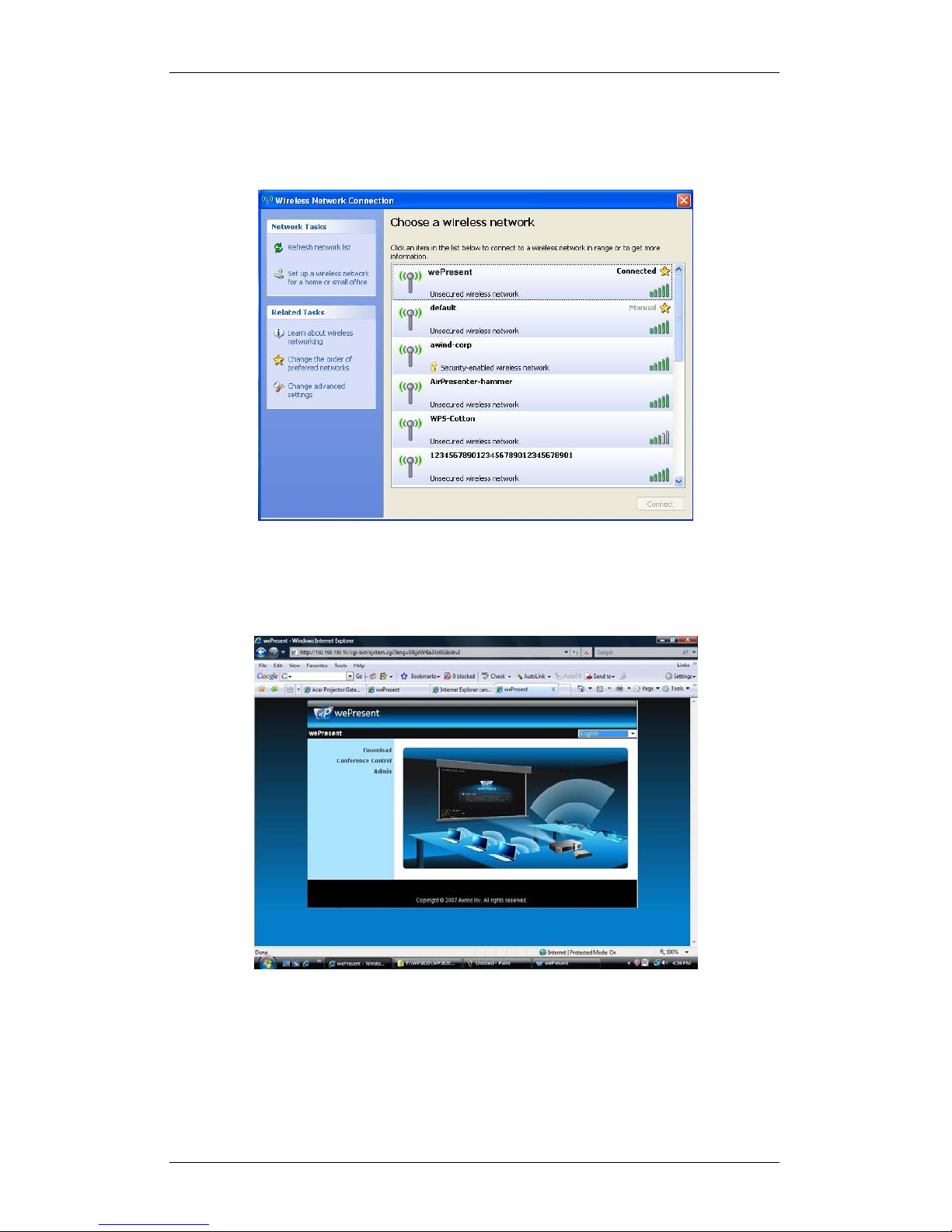

1) Make sure your PC WLAN is enabled already, and connect your PC with
wePresent box.
2) Open your browser and it will redirect to wePresent main page automatically,
or you can enter the IP address to access the WPS web home page.
♦The default IP address of wePresent is 192.168.100.10 or refers to
the IP address shown on the left corner of projector screen.
WP-820 Quick Installation Guide Awind Inc
- -
5

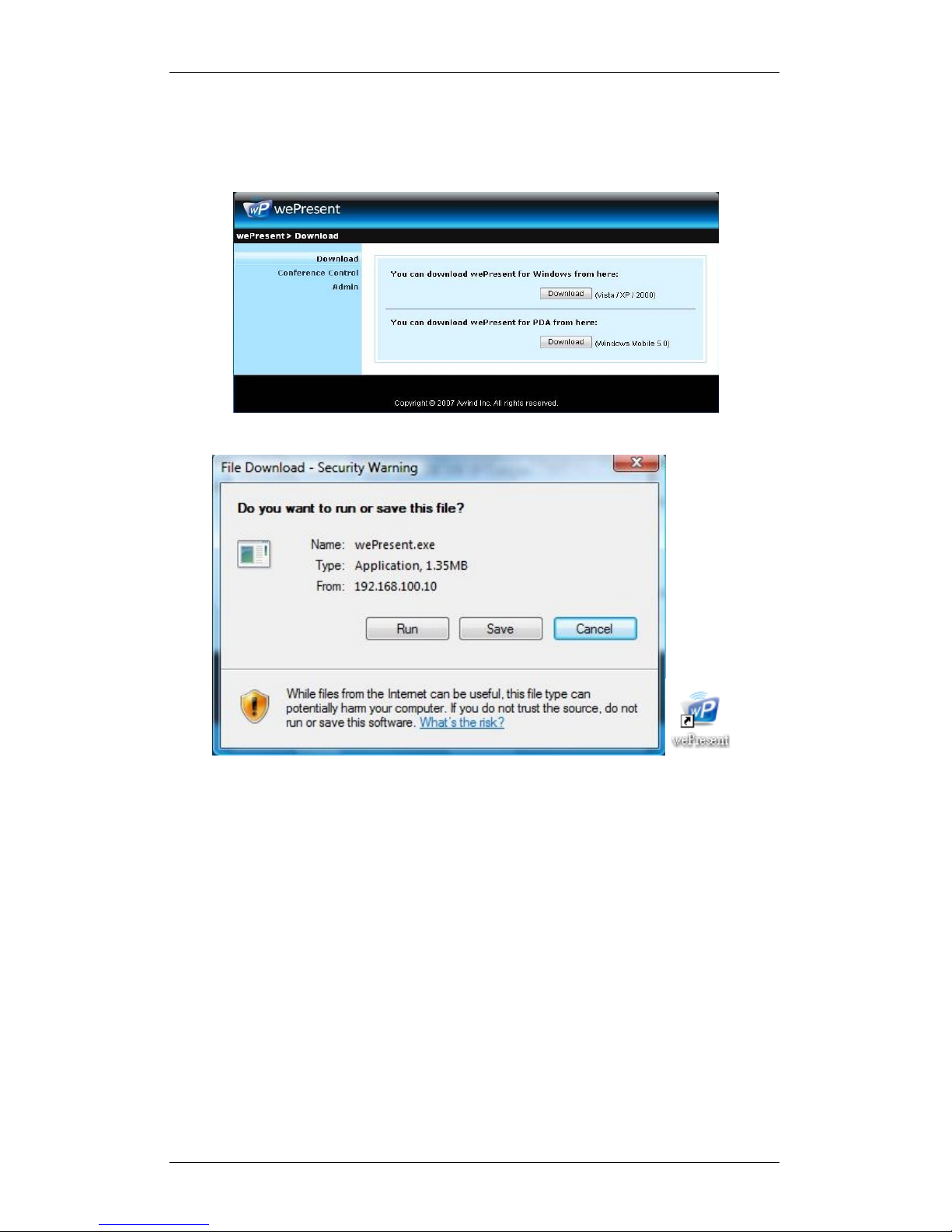

3) Download the client software. Please select the”Windows Vista / XP / 2000”
or ”Windows Mobile 5.0” and execute the installation program.
♦After install the program, wePresent shortcut will come out on the PC
screen.
4) Make sure your personal firewall allows wePresent software to pass
through.
WP-820 Quick Installation Guide Awind Inc
- -
6

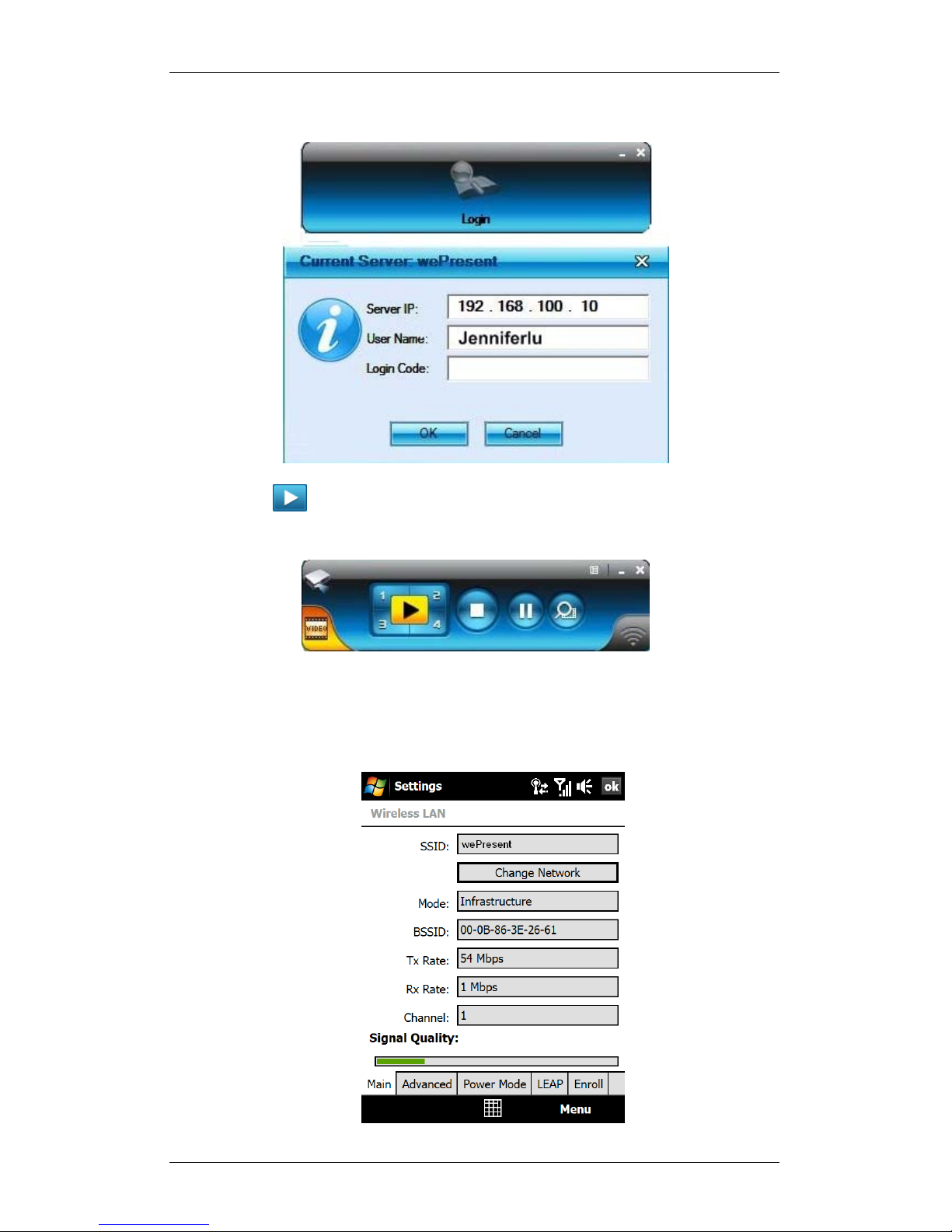

5) Enter the LOGIN CODE and
♦You can see the login code on the projector screen
6) Click the button to start projection, or choose one of the numbers (1
to 4) to project to the split screen.
zWindows Mobile 5/6
1) Enable your WiFi and connect to wePresent
WP-820 Quick Installation Guide Awind Inc
- -
7

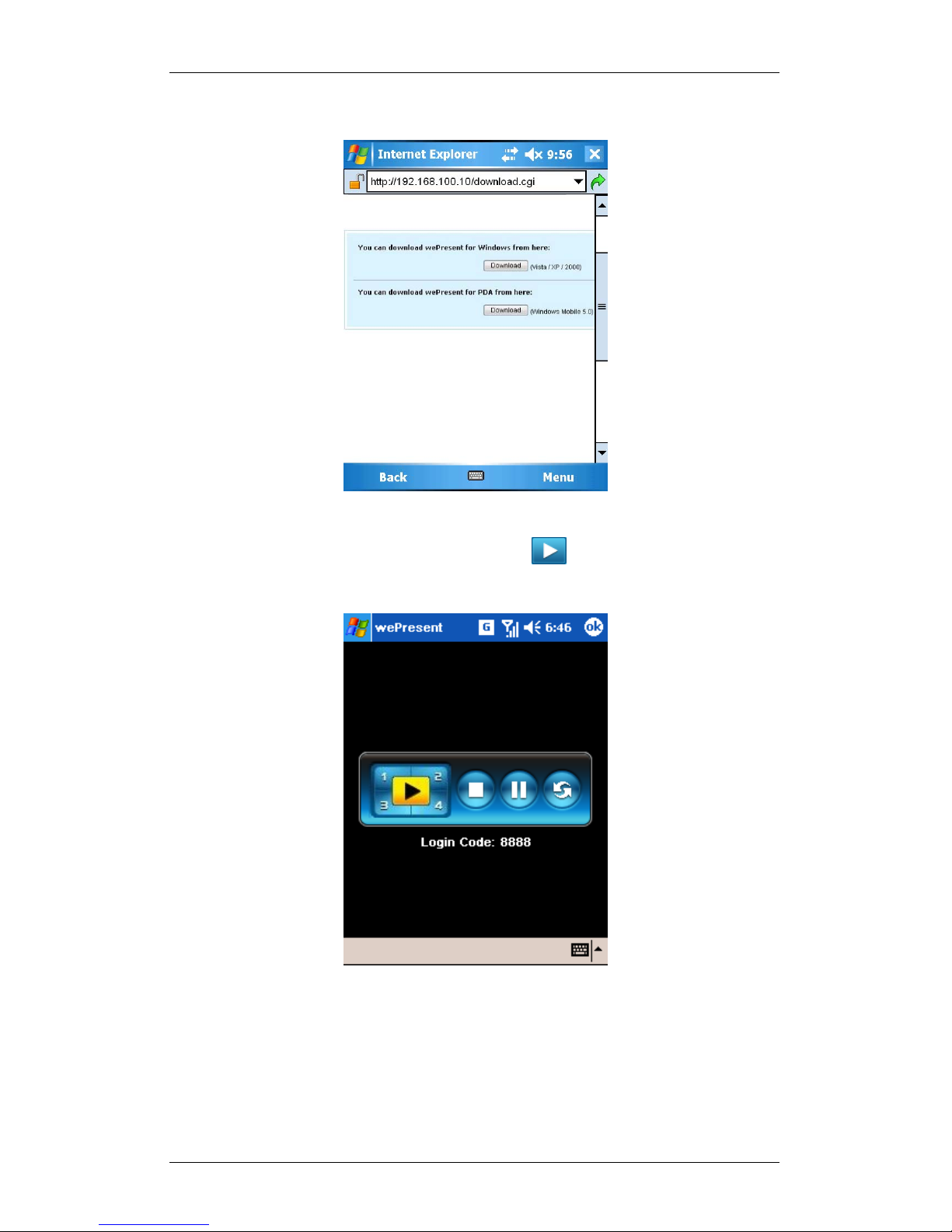

2) Open the browser and enter Server IP address to download wePresent
client software for PDA version.
3) Install wePresent client software.
4) Launch wePresent software and click the button to start projection.
WP-820 Quick Installation Guide Awind Inc
- -
8

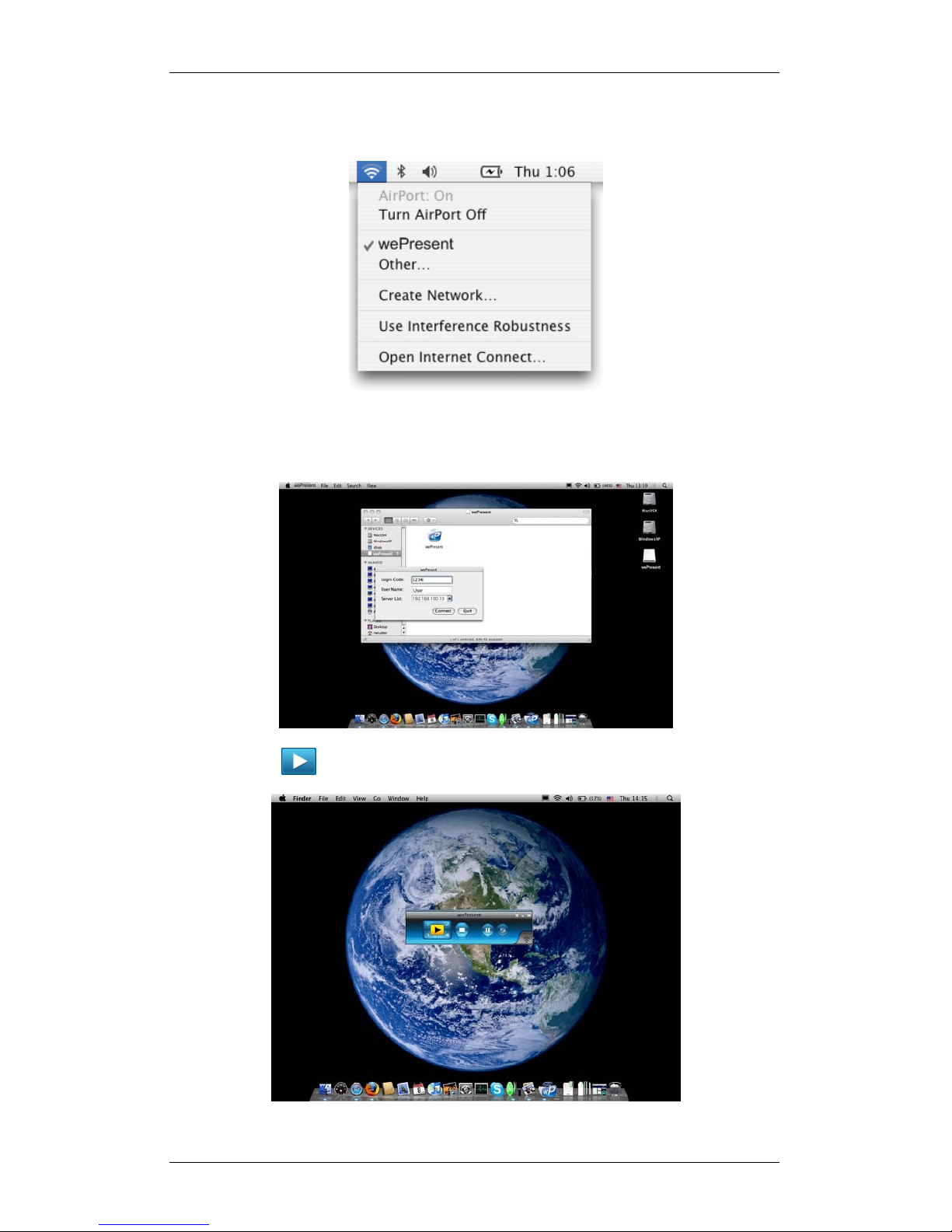

zMac
1) Enable your WiFi and connect to wePresnet device.
2) Execute wePresent client software for Mac. (You can find it in wePresent
USB Token)
3) Launch wePresent software and enter the login code.
4) Click the button to start projection.
