JUICE EXTRACTOR

(WITH OPTIONAL BLENDER ATTACHMENT)

Instruction Manual

www.focuselectrics.com

Important Safeguards ..............................................................................................2

Operating Precautions ............................................................................................. 3

Assembling Your Juice Extractor ............................................................................. 4

Using Your Juice Extractor.......................................................................................8

Juicing Guidelines ................................................................................................... 9

Assembling Your Blender Attachment (if included) ............................................... 10

Using Your Blender Attachment (if included) ......................................................... 10

Cleaning Your Juice Extractor ............................................................................... 12

Cleaning Your Blender Attachment (if included) ....................................................12

Troubleshooting .................................................................................................... 13

Warranty ................................................................................................................ 15

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

www.focuselectrics.com

IMPORTANT SAFEGUARDS

To prevent personal injury or property damage, read and follow all instructions

and warnings.

When using electrical appliances, basic safety precautions should always be

followed including the following:

•Read all instructions, including these important safeguards and the care and use

instructions in this manual.

•To protect against risk of electrical shock, do not immerse cord, plugs, or other

electric parts in water or other liquids.

•Close supervision is always necessary when any appliance is used by or near

children.

•Unplug the appliance from outlet when not in use, before putting on or taking off

parts and before cleaning.

•Avoid contacting moving parts.

•Do not operate this appliance with a damaged cord or plug, after the appliance

malfunctions or if the appliance is dropped or damaged in any manner. If you

experience any problems with your appliance, unplug it immediately from the

electrical outlet. For service information see warranty page.

•The use of attachments, including canning jars, not recommended or sold by

Focus Electrics may cause fire, electric shock or injury.

•Do not use this appliance outdoors.

•Do not allow cord to hang over edge of table or counter.

•Do not let cord contact hot surface, including the stove.

•Always make sure juicer cover is clamped securely in place before motor is

turned on. Do not unfasten clamps while juicer is in operation.

•Be sure to turn switch to “OFF” position after each use of your juicer. Make sure

the motor stops completely before disassembling.

•Do not put your fingers or other objects into the juicer opening while it is in

operation. If food becomes lodged in opening, use a food pusher or another

piece of fruit or vegetable to push it down. When this method is not possible,

turn the motor off and disassemble juicer to remove the remaining food.

•Do not use the appliance if the rotating sieve is damaged.

•Keep hands and utensils out of the blending jar while blending to reduce the risk

of severe injury to persons or damage to the blender. A scraper may be used

but must be used only when the blender is unplugged and not in operation.

•Blades are sharp; handle carefully.

•To reduce the risk of injury, never place cutting assembly blades on motor base

without blending jar properly attached.

•Always operate blender with lid in place.

•When blending hot liquids, remove centerpiece of two-piece cover.

•This appliance has a polarized plug (one blade is wider than the other). To

reduce the risk of electric shock, this plug is intended to fit into a polarized outlet

only one way. If the plug does not fit fully into the outlet, reverse the plug. If it

still does not fit, contact a qualified electrician. Do not attempt to modify the plug

in any way.

•To ensure continued protection against risk of electric shock, connect to

properly grounded outlets only.

•For household use only.

To prevent personal injuries, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

•All parts provided with this appliance are designed for use with this appliance

only. Do not use any parts provided for any other appliance or application.

•Do not place any parts on a hot surface or in a heated oven.

•Do not use if any part is cracked, chipped, loose, weakened, or damaged in any

manner.

•Do not clean any part with cleansers, steel wool pads, or other abrasive

materials.

•Always make sure the motor has stopped completely before disassembling.

•Always hold the blending jar while processing for stability.

•Do not leave the appliance unattended while it is operating.

•Do not disassemble or remove any parts from the base until the motor has

stopped completely.

•A short power-supply cord is provided to reduce risks resulting from becoming

entangled in or tripping over a longer cord.

•Longer, detachable power-supply cords or extension cords are available and

may be used if care is exercised in their use. While use of an extension cord is

not recommended, if you must use one, the marked electrical rating of the

detachable power-supply cord or extension cord should be at least as great as

the electrical rating of the appliance. If the appliance is of the grounded type,

the extension cord should be a grounding-type 3-wire cord. The cord should be

arranged so that it will not hang over the counter top or tabletop where it can be

pulled by children or tripped over.

•Do not use an outlet or extension cord if the plug fits loosely or if the outlet or

extension cord feels hot.

•Do not attempt to repair this appliance yourself.

•Do not use this appliance for other than intended use.

SAVE THESE INSTRUCTIONS

ASSEMBLING YOUR JUICE EXTRACTOR

Before assembling your juice extractor, wash all loose parts, except the motor base

in warm, soapy water, rinse thoroughly and dry. All parts except for the motor

base can be washed in the top rack of the dishwasher. The motor base can be

wiped clean with a damp cloth.

Juice Extractor Optional Blender Attachment

Note: When assembling, do not force any of the parts into place. When the parts

are properly aligned they will easily snap into place. Using excessive force could

damage the parts.

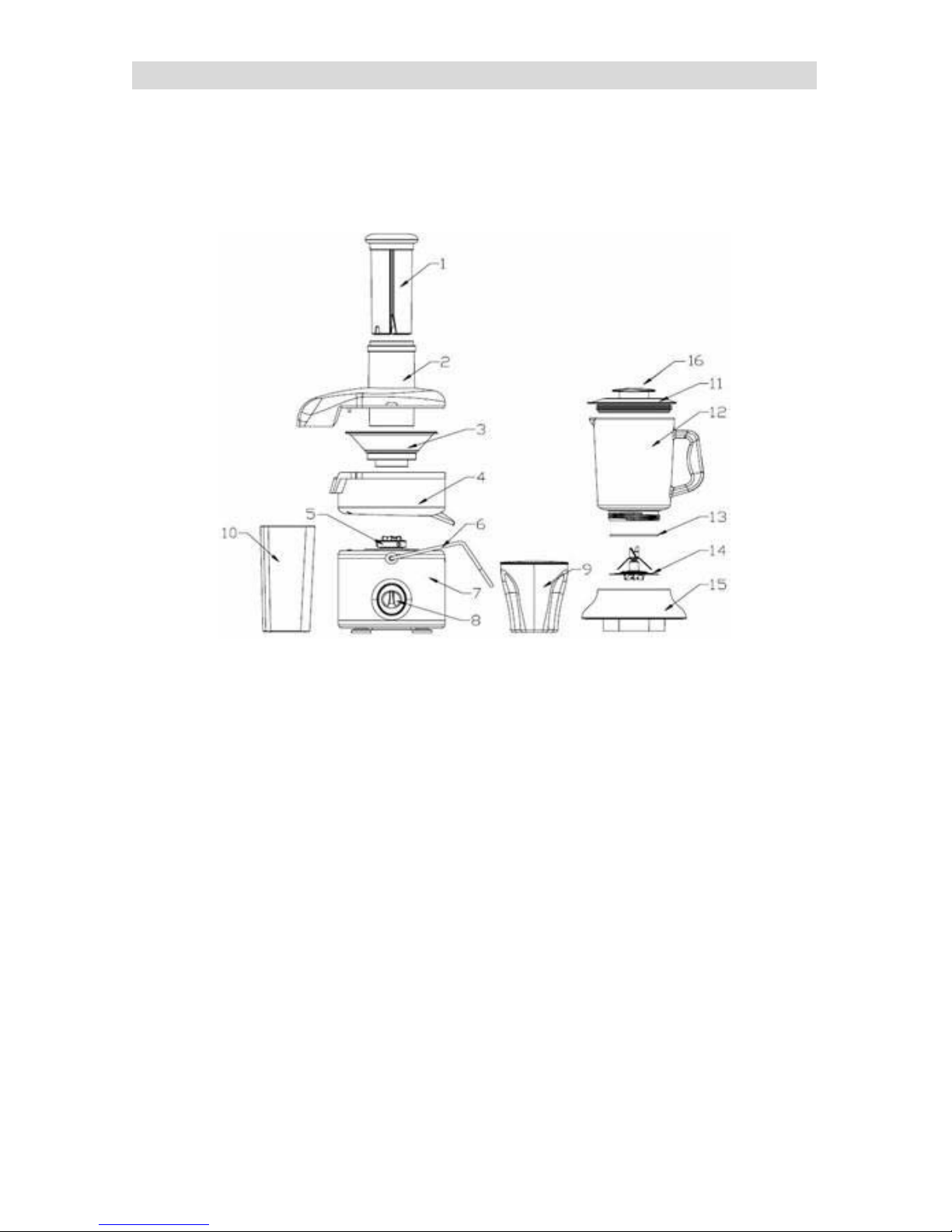

Juice Extractor Optional Blender Attachment

1 Food Pusher 11 Lid

2 Juicer Cover 12 Blending Jar

3 Juicer Blade 13 Sealing Ring

4 Filter Bowl 14 Blade Assembly

5 Motor Drive 15 Blade Base

6 Cover Locking Arm 16 Lid Cap

7 Motor Base

8 Power/Speed Switch

9 Juice Container

10 Pulp Container

1. Place the filter bowl over the motor base aligning the juice outlet spout over the

notch in the motor base. Press down with a slight twisting motion until it sits flat.

Step 1

2. Place the juicer blade into the filter bowl. Rotate if necessary to align with the

motor drive and press down firmly until the juicer blade is tight and even with the

top of the filter bowl. CAUTION: There are many small sharp blades for

processing the fruits and vegetables. Use care when handling the juicer blade

to reduce the risk of injury.

Step 2

3. Center the juicer cover over the filter bowl and carefully align the juicer cover so

the pulp outlet chute sits within the edges of the filter bowl.

Step 3 Step 3A

4. Swing the cover locking arm up over the juicer cover and snap into place. Make

sure the cover locking arm is locked securely into place on both sides of the

juicer.

Step 4 Step 4A Step 4B

5. Slide the pulp container into place under the pulp outlet chute of the juicer cover.

Step 5

6. Align and slide the food pusher down into the juicer cover.

Step 6

7. Your juice extractor is now ready to use.

8. Place the appliance on a dry, level, heat-resistant surface, away from any edge.

9. Plug cord into a 120 volt AC electric outlet only.

10. Turn the juice extractor on for a few seconds using the pulse, “P” switch position

to ensure everything is functioning and all safety switches have been activated.

If the juicer will not turn on, unplug from electrical outlet, disassemble, and

check the alignment of all the parts to ensure they are properly positioned.

Note: Do not run the juicer dry for more than a few seconds as extended

periods of dry operation could cause damage to the juicer.

Step 10

USING YOUR JUICE EXTRACTOR

1. Place the appliance on a dry, level, heat-resistant surface, away from any edge.

Note: Do not operate this appliance where dust or flour can be suctioned up into

the vent openings, as this will cause damage to the appliance.

2. Assemble the juice extractor according to the “Assembling Your Juice Extractor”

instructions.

3. Prepare your fruit and vegetables by washing, and if necessary, cutting down to

a size which will fit into the feed chute of the juicer cover.

4. Plug the cord into a 120 volt AC electric outlet only.

5. Place the provided juice container or another container under the juice outlet

spout. Make sure the juice outlet spout is open by pushing down. Down is

open, up is closed.

Juice Outlet Spout in Closed Position Juice Outlet Spout in Open Position

6. Turn the juicer on by selecting a speed; “1” (low) or “2” (high). Refer to the

“Juicing Guidelines” section of this manual for recommended speed selection.

7. While the motor is running, remove the food pusher and begin to place food into

the food chute. When the chute is about ¾ full, align and slide the food pusher

down into the food chute, slowly pushing the food down into the blade. Note:

For maximum extraction, use a slow, steady, downward pressure on the food

pusher. CAUTION: To reduce the risk of injury, never use your fingers or any

item other than the food pusher to push the food down into the blades.

Juice should begin to flow out of the juice outlet spout. If the juice does not start

flowing as expected, make sure the juice outlet spout is open. Note: If the

motor base appears to be laboring try one of the following:

a. Increase the motor speed.

b. Reduce the amount of pressure and speed on the food pusher.

c. Turn juicer to “0” (OFF), unplug and clean any obstructions.

Continue to add more food until the desired amount of juice has been extracted.more food until the desired amount of juice has been extracted.

Note: The juicer should not be operated continuously for an extended period of

time; never more than five (5) minutes. For the best juice extraction and to help

extend the life of the juicer, turn the juicer “0” (OFF) after approximately one to

two minutes of continuous juicing. Clean the juicer cover and juicer blade and

empty the pulp container if necessary before resuming.

8. When all food in the filter bowl has been processed and juice is no longer

flowing from the juice outlet spout, turn the juicer “0” (OFF). Note: Close the

juice outlet spout for drip free removal of the juice container.

9. Add sugar, salt, or other ingredients to the juice as desired and enjoy!

10. Unplug the juicer, disassemble and clean all parts according to the instructions

provided in the “Cleaning Your Juice Extractor” section of this manual. Note:

For easier clean-up, rinse all the parts immediately after juicing to keep juice

residue from drying on parts.

JUICING GUIDELINES

•Always wash all foods, fruits, and vegetables before juicing.

•Perishable items must be refrigerated prior to juicing. Refrigeration is

recommended for other fruits and vegetables prior to juicing.

•Fresh juice is a product of fresh foods and contains no preservatives. To

maintain freshness and greatest vitamin content, consume as soon as possible

after juicing. All juice should be refrigerated immediately if not consumed.

•Certain foods should have the skin removed (peeled) before juicing if the skins

are too tough or not palatable. Examples include; citrus fruits, bananas, melons,

and pineapples.

•Always pit foods with hard seeds, pits, or stones. Examples include; cherries,

peaches, and plums.

•Soft textured foods should be juiced at the lower speed “1” and firmer foods

should be juiced at the higher speed “2”.

•Soft or over-ripe fruit can clog the juicer. If this happens, turn the motor base “0”

(OFF), unplug from electrical outlet, disassemble, and clean the parts.

•Loose or leafy vegetables should be bundled together or combined with more

substantial type food for best results.

•Running the juicer continuously for an extended period of time can cause

overheating. If this happens, the motor base will shut down automatically, reset,

and be ready to operate after approximately 10 – 15 minutes of rest.

ASSEMBLING YOUR BLENDER ATTACHMENT (if included)

Before assembling your blender attachment, wash all loose parts, except the motor

base in warm, soapy water, rinse thoroughly and dry. All parts except the motor

base can be washed in the top rack of the dishwasher. The motor base can be

wiped clean with a damp cloth.

1. Place the blending jar upside down on the table or counter with the bottom

facing up. Note: Do not place the glass blending jar directly on a very hard

surface such as ceramic or granite. The glass may become chipped or

damaged.

2. Center and place the sealing ring on the rim of the blending jar.

3. Place the blade assembly on top of the sealing ring. Thread and secure the

blade base onto the bottom of the blending jar by turning clockwise.

4. Place the blending jar assembly on the motor base.

5. Place the lid on to the blending jar by pressing it in to place making sure that it is

properly lined up to cover the pour spout and seal the blending jar.

6. Place the lid cap on to the lid by lining up the flanges over the flange openings.

Make a ¼ turn clockwise to secure it in place.

USING YOUR BLENDER ATTACHMENT (if included)

1. Place appliance on a dry, level, heat-resistant surface, away from any edge.

Note: Do not operate this appliance where dust or flour can be suctioned up into

the vent openings, as this will cause damage to the appliance.

2. Place assembled blending jar on to the motor base.

3. Plug cord into a 120 volt AC electric outlet only.

4. Put liquids into the blending jar first unless the recipe calls for an alternate

processing sequence.

5. Prepare ingredients for blending by cutting all solid ingredients (fruits,

vegetables, etc.) into uniform pieces, ½ to 1-inch cubes.

6. Place the lid on the blending jar.

7. Place the lid cap into position on the lid. Note: Always place a hand on the

blending jar or lid to steady the blender while it is operating.

8. Blend foods according to the recipe or until the desired results are achieved.

Note: If scraping or stirring of contents is required, turn blender to “0” (OFF) and

unplug from electrical the outlet. Do not use metal utensils to stir as they may

scratch the blending jar.

9. The lid cap may be removed while blending to add ingredients. CAUTION: To

prevent the risk of injury, do not remove the lid while blending. Be sure the

blades have stopped rotating before removing the lid.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere West Bend Küchengerät Handbücher

West Bend

West Bend Popcorn on Demand 82700 Bedienungsanleitung

West Bend

West Bend Cocoa Grande Bedienungsanleitung

West Bend

West Bend L5786 Bedienungsanleitung

West Bend

West Bend L5929 Bedienungsanleitung

West Bend

West Bend 6-QUART ELECTRONIC CROCKERYTM COOKER Bedienungsanleitung

West Bend

West Bend L5571D Bedienungsanleitung

West Bend

West Bend 65041 Bedienungsanleitung

West Bend

West Bend THEATER CRAZY PCWBTCBK13 Bedienungsanleitung

West Bend

West Bend STIR CRAZY 82505 Bedienungsanleitung

West Bend

West Bend STIR CRAZY 2.5 OZ. THEATER-STYLE POPPER Bedienungsanleitung

West Bend

West Bend STOVE-TOP POPCORN POPPER Bedienungsanleitung

West Bend

West Bend polyperk 54009 Bedienungsanleitung

West Bend

West Bend Air Crazy 82416 Bedienungsanleitung

West Bend

West Bend STIR CRAZY DELUXE CORN POPPER Bedienungsanleitung

West Bend

West Bend 82306 Bedienungsanleitung

West Bend

West Bend IT500 Bedienungsanleitung

West Bend

West Bend STIR CRAZY 2.5 OZ. THEATER-STYLE POPPER Bedienungsanleitung

West Bend

West Bend Sandwich Maker Bedienungsanleitung

West Bend

West Bend L5787 Bedienungsanleitung

West Bend

West Bend 79586R Bedienungsanleitung

West Bend

West Bend ICED TEA MAKER Bedienungsanleitung

West Bend

West Bend CROQUADE La Chocolatiere Bedienungsanleitung

West Bend

West Bend 79101 Handbuch

West Bend

West Bend Air Crazy Mini Hot Air Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
