Westcott L60-B Bedienungsanleitung

L60-B Bicolor COB

User Manual

v 1.0.0

9/15/2022

Contents

Contents 1

Important things to know… 2

Included Components 2

Firmware Updates 2

L60-B COB: Warnings 2

L60-B COB: Overview 3

L60-B COB: LCD Display 4

L60-B COB: Getting Started 5

AC Power Operation 5

DC Power Operation 5

L60-B DC Battery Mount 5

D-Tap Battery 5

L60-B COB: Mounting 5

Mounting to a Light Stand 5

Yoke Positioning 5

L60-B COB: Attaching & Removing Modifiers 6

Connecting a Modifier 6

Removing a Modifier 6

L60-B COB: Controls 6

Adjusting the Light Output 6

Adjusting the Color Temperature (Kelvin) 6

Enabling and Adjusting the Visual FX 6

FX Options 7

Enabling Bluetooth® 7

L60-B COB: Wireless Control 7

Connecting a Light 7

Connecting Multiple Lights 8

Removing a Light 8

Renaming a Light 8

L60-B COB: Firmware Updates 8

Installing the Firmware 8

Important Firmware Details 9

L60-B COB: Technical Specifications 9

Warranty Information 10

Legal Information 11

Important things to know…

Included Components

● L60-B COB

● 45º Ultra Reflector

● AC Power Adapter & Cord

● Protective COB Cover

● Travel Case

NOTE

: Components and accessories may vary depending on the kit purchased.

Firmware Updates

The L60-B COB is designed to allow for firmware updates over-the-air (OTA) via the free Westcott

StudioLink mobile app. The app is available via the Apple App Store and Google Play Store. Future

firmware updates may result in performance enhancements, modified menu options, or improved menu

layouts.

Please review the steps in the “

Installing the Firmware

” section of this manual for additional details.

L60-B COB: Warnings

Caution

● IMPORTANT: The physical surface temperatures of the COB LED and select components will

increase during use. Please use caution and avoid direct skin contact with the COB LED,

surrounding metal components, and accessories after immediate use to avoid serious injury.

● Use only with the Westcott L60-B AC Power Adapter and Cord, NP-F970/750/550 L-Series

Batteries & NPF Battery Grip, or 14.4/14.8V D-tap Batteries.

● Never leave unsecured and unattended equipment around children and/or pets.

● Keep away from fire, water, and moisture.

● Do not submerge in water.

● Avoid drastic temperature changes before, during, or after use.

● Do not overtighten the yoke or tilter bracket tension knobs.

● Ensure the L60-B is securely mounted before use.

● Only use compatible modifiers and accessories.

● Do not attempt to modify any Westcott products. Contact Westcott for any assistance.

● The operating temperature range is 14-104°F(-10-40°C).

L60-B COB: Overview

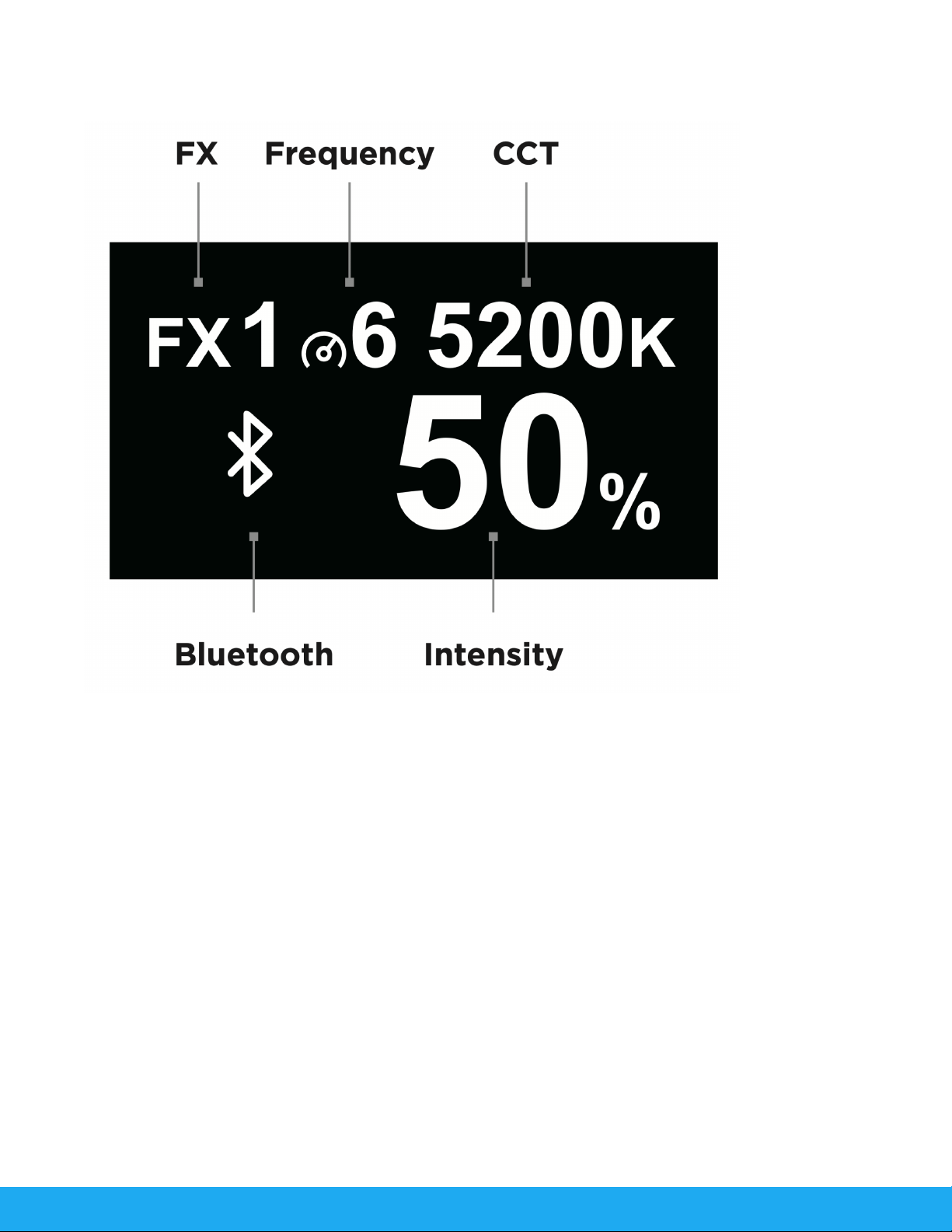

L60-B COB: LCD Display

L60-B COB: Getting Started

AC Power Operation

1. Connect the AC cable to the AC power adapter.

2. Plug the two-prong connector of the cable into a wall outlet.

3. Locate the barrel plug on the AC cable and plug it into the L60-B power port.

4. Ensure that the clear protective cover has been removed from the front of the L60-B by sliding

the modifier release toward the rear of the unit and turn the cover counterclockwise.

5. Turn the COB

by pressing and holding the Power button.

DC Power Operation

L60-B DC Battery Mount

1. Completely charge two compatible NPF batteries (NP-F970/750/550).

2. Insert both batteries into the battery mount.

3. Loosen the L60-B light stand tension knob.

4. Insert the battery mount silver spigot into the yoke receptacle.

5. Tighten the light stand tension knob.

6. Turn the COB

by pressing and holding the Power button until the start-up screen

appears.

D-Tap Battery

1. Ensure the D-Tap battery has been fully charged.

2. Plug the L60-B D-Tap to Barrel Cable into the battery’s D-Tap port.

3. Plug the barrel plug end of the cable into the L60-B power port.

4. Turn the COB

by pressing and holding the Power button until the start-up screen

appears.

NOTE: The L60-B DC Battery Mount, NP-F batteries, and D-Tap batteries are sold separately.

L60-B COB: Mounting

Mounting to a Light Stand

1. Rotate the L60-B yoke’s light stand tension knob counterclockwise to loosen. Do not completely

remove.

2. Insert the light stand spigot into the L60-B’s 5/8"-16 mm yoke receiver.

3. Tighten the tension knob to secure the COB to the light stand.

Yoke Positioning

1. The L60-B allows horizontal adjustments for yoke positioning.

2. When mounting heavier modifiers, we recommend positioning the yoke in the middle of the

oval mounting bracket. This will allow for the most secure positioning.

NOTE: The L60-B was designed for compatibility with various modifiers. However, the yoke’s

positioning, the modifier’s depth, the modifier’s weight & the location of the weight on the modifier

could cause the yoke to be unable to maintain the desired position.

L60-B COB: Attaching & Removing Modifiers

Connecting a Modifier

1. Ensure that the clear protective cover has been removed from the front of the L60-B by sliding

the modifier release toward the rear of the unit and turn the cover counterclockwise.

2. Ensure the COB is turned OFF and has cooled for five minutes.

3. Grasp the modifier and align the four square mounting blocks with the adapter openings located

on the face of the COB.

4. Insert the modifier and gently turn clockwise until it locks into place.

Removing a Modifier

1. Ensure the COB is turned OFF and has cooled for five minutes.

2. Securely grasp the modifier.

3. Slide the COB’s modifier release away from the modifier.

4. Rotate the modifier counterclockwise until the four square mounting blocks align with the

openings. Pull the modifier away from the COB to remove.

5. Reinstall the clear protective cover to protect the COB during storage and transport.

NOTE: Use caution when removing modifiers to avoid damaging the COB. Never force entry or removal

of modifiers.

L60-B COB: Controls

Adjusting the Light Output

1. Ensure that the L60-B is

2. Rotate the Dim•Bluetooth control knob to adjust the intensity.

Adjusting the Color Temperature (Kelvin)

1. Ensure that the L60-B is

2. Rotate the CCT•FX control knob to adjust the color temperature.

Enabling and Adjusting the Visual FX

1. Ensure that the L60-B is

2. Quick press the CCT•FX control knob to enable the FX functionality.

3. Rotate the CCT•FX control knob to select the desired FX.

4. Quick press the CCT•FX control knob again to change the frequency of the FX.

5. Rotate the CCT•FX control knob to select the desired frequency.

6. Exit FX Mode by pressing the CCT•FX and rotate the knob counterclockwise until

FX[]

displayed.

FX Options

● FX0 [

Constant Brightness

]

● FX1 [

]

● FX2 [

Faulty Bulb

]

● FX3 [

Lightning

]

● FX4 [

Fire

]

● FX5 [

Pulse

]

● FX6 [

Paparazzi

]

● FX7 [

Headlight

]

● FX8 [

SOS

]

● FX9 [

Emergency

]

Enabling Bluetooth®

1. Ensure that the L60-B is

2. Quick press the Dim•Bluetooth control knob to turn Bluetooth®

L60-B COB: Wireless Control

NOTE: App available Winter 2022.

Connecting a Light

1. Download the Westcott StudioLink app via the Apple App Store or Google Play Store.

2. Ensure that the L60-B is

3. Open the Westcott StudioLink mobile app.

4. Select the

LED Controls

icon.

5. Quick press the Dim•Bluetooth control knob to turn Bluetooth® on and the symbol will

appear on the back of the L60-B.

6. Long-press the DIM•Bluetooth control knob until the Bluetooth® logo appears to blink on the

L60-B screen; this will make the L60-B discoverable via the Westcott StudioLink app.

7. Select

Add a Light or Group.

8. Tap on the

Add a Light

option.

9. Find your device listed in the

Unpaired Devices

section.

10. Tap on the L60-B device you want to connect.

11. Once connected, the app will redirect you to the My Scene menu.

Connecting Multiple Lights

1. Follow the same steps found in the

Connecting a Light

section

2. When multiple lights are displayed in the Pairing Menu, select them one at a time to connect.

3. When there are no longer any lights in the Unpaired Devices section, return to the My Scene

menu.

4. All connected lights will be displayed, and you will have full control over your L60-B lights.

Removing a Light

1. Option #1:

a. To remove a light from the Westcott StudioLink App, swipe left on the light you would

like to remove.

b. A red

trash can

icon will appear to the right of the selected light.

c. Tap the

trash can

icon, and a message will appear asking, “Are you sure you want to

delete?”

d. Select

Delete

. The light is now removed from the Westcott StudioLink App.

2. Option #2:

a. Tap the corresponding three white dots on the right side of the screen.

b. A drop-down menu will appear, select

Delete Light

c. A message will appear asking “Are you sure you want to delete?”

d. Tap

Delete.

The light will then be removed from the Westcott StudioLink App.

Renaming a Light

1. To rename a light, tap on the corresponding three white dots on the right side of the screen.

2. Select

Light Controls

3. Once in the Light Controls Menu, press and hold down on the L60-B title at the top of the Light

Controls Menu.

4. Rename your light.

5. Return to the My Scene Menu, and the new light name will be displayed.

L60-B COB: Firmware Updates

Installing the Firmware

1. Download the Westcott StudioLink app via the Apple Appstore or Google Play Store.

2. Ensure that the L60-B is powered on.

3. Open the Westcott StudioLink mobile app.

4. Select the

LED Controls

icon.

5. Quick press the Dim•Bluetooth control knob to turn Bluetooth® on and the symbol will

appear on the L60-B display.

6. Long-press the DIM•Bluetooth Control Knob until the Bluetooth® logo blinks on the L60-B

screen. This will make the L60-B discoverable via the Westcott StudioLink App.

7. Select the

Add a Light or Group

icon.

8. Tap on the

Add a Light

option.

9. Find your device listed in the

Unpaired Devices

section.

10. Tap on the L60-B you would like to connect to.

11. Once connected, the app will redirect you to the My Scene menu.

12. Long-press the CCT/FX button on the L60-B for 10 seconds. After the allotted time has passed,

the L60-B will display the current firmware version number and the message “

Initiate Update

from Mobile App

.”

13. Select

Firmware Update

at the bottom of the My Scene menu.

14. In the

Firmware Update

menu, select the L60-B that is connected.

15. The next menu will display SELECT FIRMWARE.

16. Select the newest firmware version number.

17. Select Update from the next pop-up screen.

18. The firmware installation process will begin.

19. Once the L60-B firmware installation process is completed, the COB will display, “Installation

Complete, L60-B Restarting, DO NOT UNPLUG.” The L60-B will restart automatically.

20. Press

in the Westcott StudioLink App to complete the firmware update.

21. Reconnect your L60-B COB via Bluetooth® after it restarts, utilizing the steps in the section

“Connecting a Light.”

Important Firmware Details

● It’s recommended that the firmware update installation process be completed only when the

connected mobile device’s power level is ≥ 50% and the L60-B is operating via AC power. Loss

of power of any type during this process could render the L60-B inoperable and require

professional repair.

● If your device should freeze or the firmware does not load correctly, unplug the L60-B from the

power supply. Plug the power supply back into your L60-B again and start the firmware update

process again.

L60-B COB: Technical Specifications

L60-B: COB

Maximum Power Consumption (Watts)

Up to 90W

Intensity Range

0 - 100%

Color Temperature Range

2700 - 6500K

CRI

Up to 97

TLCI

Up to 98

SSI

Up to 88

L60-B: AC Power Input

Andere Handbücher für L60-B

Inhaltsverzeichnis

Andere Westcott Beleuchtungsausrüstung Handbücher

Westcott

Westcott Eyelighter 3 Bedienungsanleitung

Westcott

Westcott U60-B Bi-color LED Bedienungsanleitung

Westcott

Westcott IceLight PowerPack Bedienungsanleitung

Westcott

Westcott U60-B Bi-color LED Bedienungsanleitung

Westcott

Westcott FJ80 II Bedienungsanleitung

Westcott

Westcott 4896 Handbuch

Westcott

Westcott Lunagrip Bedienungsanleitung

Westcott

Westcott RING LIGHT KIT Bedienungsanleitung

Westcott

Westcott FJ80 II Bedienungsanleitung

Westcott

Westcott RAPID BOX Bedienungsanleitung

Westcott

Westcott L60-B Bedienungsanleitung

Westcott

Westcott 4898 Handbuch

Westcott

Westcott 4899 Handbuch

Westcott

Westcott Stripbank Bedienungsanleitung

Westcott

Westcott 4820 Handbuch

Westcott

Westcott Basics D5 Bedienungsanleitung

Westcott

Westcott Photo Basics 242 Handbuch

Westcott

Westcott Zeppelin Para-35 Bedienungsanleitung

Westcott

Westcott 4892 Handbuch

Westcott

Westcott Micro Apollo Bedienungsanleitung

Westcott

Westcott uLite Bedienungsanleitung

Westcott

Westcott FJ80 Bedienungsanleitung

Westcott

Westcott 4893 Handbuch

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
