GETTING STARTED - 1

WD DUAL-OPTION EXTERNAL USB HARD DRIVE

USER MANUAL

Getting Started

Thank you for purchasing the WD Dual-option backup external USB hard drive. Hi-speed

storage, conveniently placed buttons and easy-to-use backup features make this external drive

an ideal solution for that much-needed additional storage and a perfect place to back up your

valuable data, music, photos, and movies. This user manual provides step-by-step installation

instructions and other important information regarding your WD product. For the latest

Western Digital product information and news, visit our Web site at www.westerndigital.com.

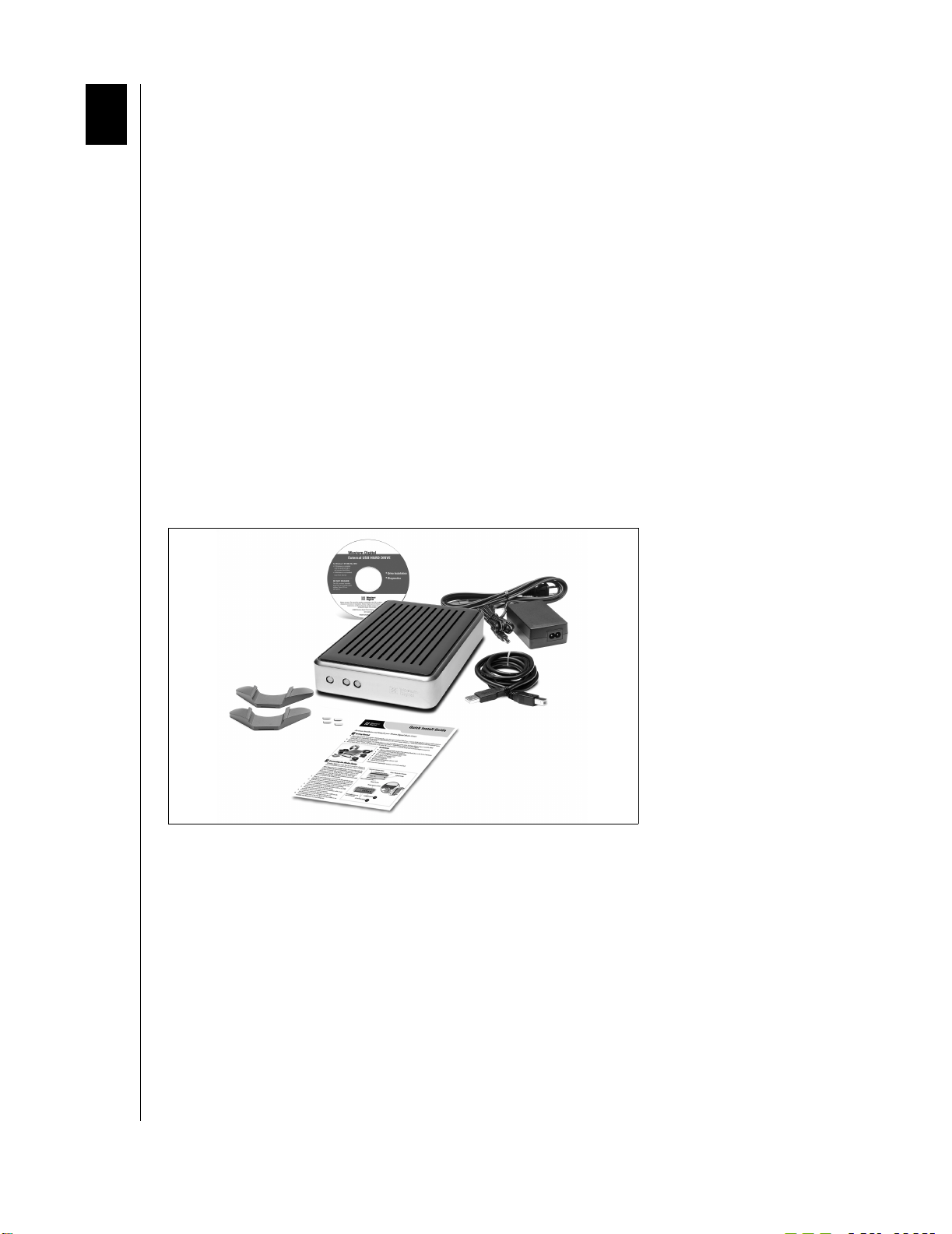

Kit Contents

!WD Dual-option Backup external USB 2.0 hard drive

!6 ft. (1.8m) USB 2.0 certified cable

!Installation CD with Dantz®Retrospect®Express backup software and detailed user

manuals

!AC adapter with power cord

!Quick Install Guide

!Vertical stands

!Feet for horizontal placement

System Requirements

Note: It is recommended that you install the latest service pack (SP) and updates to obtain the

highest performance and reliability. See page 2 for direct links.

Windows®

!Available USB 2.0 or 1.1 port*

!Windows 98SE/Me/2000/XP

*USB 2.0 host required for Hi-Speed USB 2.0 performance. USB 2.0 is highly recommended because of the

significant reduction in filetransfertimecompared to USB 1.1.

Note: To determine whether your system supports USB 2.0, see "USB Information" on page 20.

Macintosh®

!Available USB 2.0 or 1.1 port*

!Mac®OS v9.2.2 or Mac OS X v10.2.8+

GETTING STARTED - 2

WD DUAL-OPTION EXTERNAL USB HARD DRIVE

USER MANUAL

Updating Your Operating System

Windows

Updating your operating system using Windows Update

(Start > Windows Update) or go to windowsupdate.microsoft.com. The following are direct

links:

!Windows XP Service Pack 1

http://www.microsoft.com/WindowsXP/pro/downloads/servicepacks/sp1/express.asp

!Availability of Windows Service Pack 1 USB 1.1 and 2.0 Update

http://support.microsoft.com/?kbid=822603

!Windows 2000 Service Pack 4

http://www.microsoft.com/windows2000/downloads/servicepacks/sp4/default.asp

Macintosh

Go to the Apple menu and select Software Update. For more information regarding updating

your system, visit http://www.apple.com/macosx.

Recording Your Drive Information

In the table that follows, enter the serial number, model number, and purchase date for your

new Western Digital product. The complete serial number and model number are on the

large label located on the back panel of the unit. You will need this information for setup and

technical support.

IMPORTANT: Do not remove, tear, or damage the tape seal or any labels from the drive;

these actions will void the warranty.

Serial Number:

Model Number: Purchase Date:

GETTING STARTED - 3

WD DUAL-OPTION EXTERNAL USB HARD DRIVE

USER MANUAL

Registering Your Product

Handling Precautions

Western Digital products are precision instruments and should be handled with care during

unpacking and installation. These drives may be damaged by rough handling, shock, or

vibration. Be aware of the following precautions when unpacking and installing your external

hard drive:

!Do not unpack the unit until you are ready to install it.

!Do not drop or jolt the drive.

!The unit should not be moved during drive activity.

!The unit is not intended as a portable device.

!Do not attempt to open the drive and service it yourself. Removing the cover may expose

you to harmful electrical voltages and will void the warranty.

!Do not open the external hard drive case or your warranty is void.

!To allow proper ventilation, do not block the air slots on the underside, top, or rear of the

enclosure. Do not stack any objects on top of the drive that may block ventilation.

IMPORTANT:This product contains no user-serviceable parts. Refer servicing to

authorized WD personnel or an authorized WD service center only.

SETTING UP - 4

WD DUAL-OPTION EXTERNAL USB HARD DRIVE

USER MANUAL

Setting Up

The installation CD contains the Retrospect Express backup software as well as important

drivers for your WD Dual-option backup external USB drive. Carefully follow the

appropriate procedure for your operating system.

Windows 98SE/Me/2000/XP

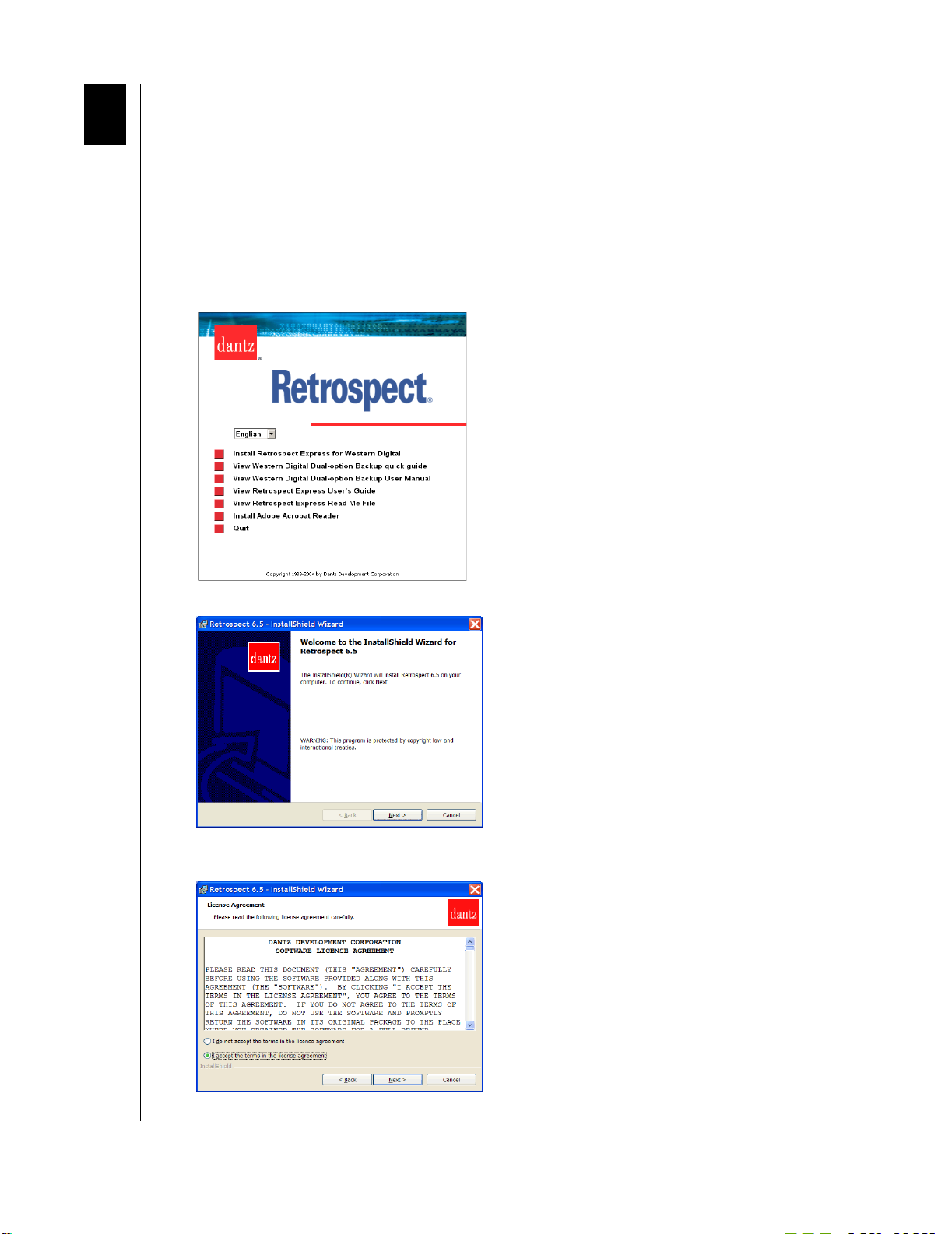

1. Insert the installation CD into your CD-ROM drive. The program will autorun and

display a setup menu. Select the option to Install Retrospect Express for Western Digital.

2. Retrospect Express Installer launches and displays the following window:

3. The license agreement screen will display. To proceed, select I accept the terms in the

license agreement and click Next.

SETTING UP - 5

WD DUAL-OPTION EXTERNAL USB HARD DRIVE

USER MANUAL

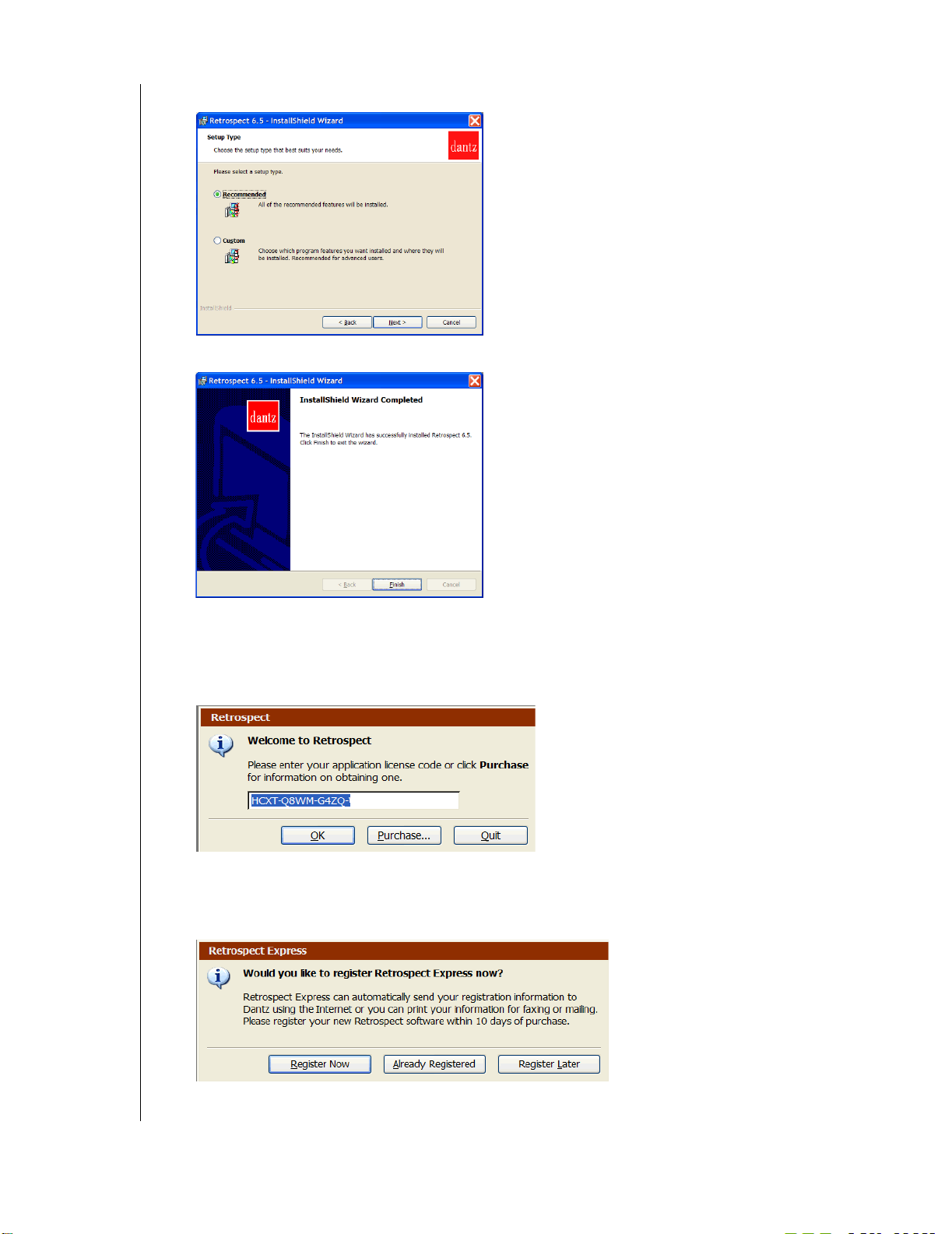

4. In the next screen, select the Recommended installation option and click Next.

5. After installation is complete, click Finish.

6. Launch Retrospect Express from the Start menu. Go to Start > Program Files >

Retrospect > Retrospect 6.5. The software immediately asks you for a license code. Since

your Western Digital edition has already been licensed, the license code field is

automatically filled in. Click OK.

7. In the next screen, you will be prompted to register Retrospect Express. Select Register

Now to complete the registration information and click either the option to e-mail, or

print and fax the information.

8. Proceed to "Connecting the Unit" on page 8.

SETTING UP - 6

WD DUAL-OPTION EXTERNAL USB HARD DRIVE

USER MANUAL

Macintosh OS v9.2.2

1. To format or reinitialize the drive, select Control Panel > Extensions Manager from the

Apple menu.

2. Disable File Exchange from the extensions list by clearing the adjacent check box and

click Restart.

3. After restart, a message appears asking you to initialize the drive. Enter a name, select

Mac OS Extended from the menu, and click Initialize.

4. Click Continue to confirm drive initialization. A hard drive icon with the name you

assigned will appear on the desktop after the formatting process is completed. To

re-enable File Exchange, select the check box in Extensions Manager and click Restart.

5. After restart, insert the installation CD into your CD-ROM drive.

6. A Retrospect Express CD icon will appear on the desktop screen. Double-click on the CD

icon to access its contents. Double-click on the Retrospect Express Installer icon to begin

setup.

7. Click the button to accept the license agreement in the next window and follow the

on-screen instructions to complete the install. After the installation is complete, go to the

Applications folder and launch Retrospect Express.

8. Retrospect Express will ask you to personalize your software copy. Complete the fields for

your name and organization, accept the included license code, and click OK.

9. In the next screen, you will be prompted to register Retrospect Express. Select

e-mail, or print and fax the information.

10. Proceed to "Setting Up the Backup Software" on page 10.

IMPORTANT - Macintosh users only: You must reinitialize the Western Digital drive to

HFS Extended format (or other Mac OS drive formats) prior to using the installation CD.

Skip to page 8 to connect the unit; then follow the steps below to format and set up the

drive.

Inhaltsverzeichnis

Andere Western Digital Lagerung Handbücher

Western Digital

Western Digital WD800AAJB - Caviar 80 GB Hard Drive Bedienungsanleitung

Western Digital

Western Digital WDBGLG0010HBK Bedienungsanleitung

Western Digital

Western Digital My Passport WDBAAB3200ACH Bedienungsanleitung

Western Digital

Western Digital Scorpio Blue WD1200BEVE Bedienungsanleitung

Western Digital

Western Digital WDBAAP0000NBK - TV Live Media Player Montageanleitung

Western Digital

Western Digital OpenFlex Data24 DCS0010 Bedienungsanleitung

Western Digital

Western Digital My Book Studio Bedienungsanleitung

Western Digital

Western Digital WDBAAH0015HCH - My Book Elite Bedienungsanleitung

Western Digital

Western Digital WDBAAJ0010HSL - My Book Studio Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung

Western Digital

Western Digital OpenFlex F3 Series Bedienungsanleitung

Western Digital

Western Digital My Passport Ultra Bedienungsanleitung

Western Digital

Western Digital WDA4NC20000 - ShareSpace NAS 2TB HD 1TB x 2... Bedienungsanleitung

Western Digital

Western Digital Caviar Series Bedienungs- und Wartungsanleitung

Western Digital

Western Digital My Book Velociraptor Duo Bedienungsanleitung

Western Digital

Western Digital SiliconEdge Blue Series Bedienungsanleitung

Western Digital

Western Digital My Passport Ultra Bedienungsanleitung

Western Digital

Western Digital WDG2NC10000 - My Book World Edition II Bedienungsanleitung

Western Digital

Western Digital WDE4360 Produkthandbuch

Western Digital

Western Digital WDG2TP10000N - My Book Pro Edition II Hard Drive... Bedienungsanleitung

Western Digital

Western Digital WDG1T2500N - My Book Pro Edition 250 GB External Hard... Montageanleitung

Western Digital

Western Digital WDBAAF0010HBK - My Book Essential 1 TB External Hard... Bedienungsanleitung

Western Digital

Western Digital WD Caviar Bedienungsanleitung

Western Digital

Western Digital My Book Studio Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Dell

Dell PowerVault MD3600f Series Bedienungsanleitung
