Western Digital WDH1Q10000 - Studio Edition Bedienungsanleitung

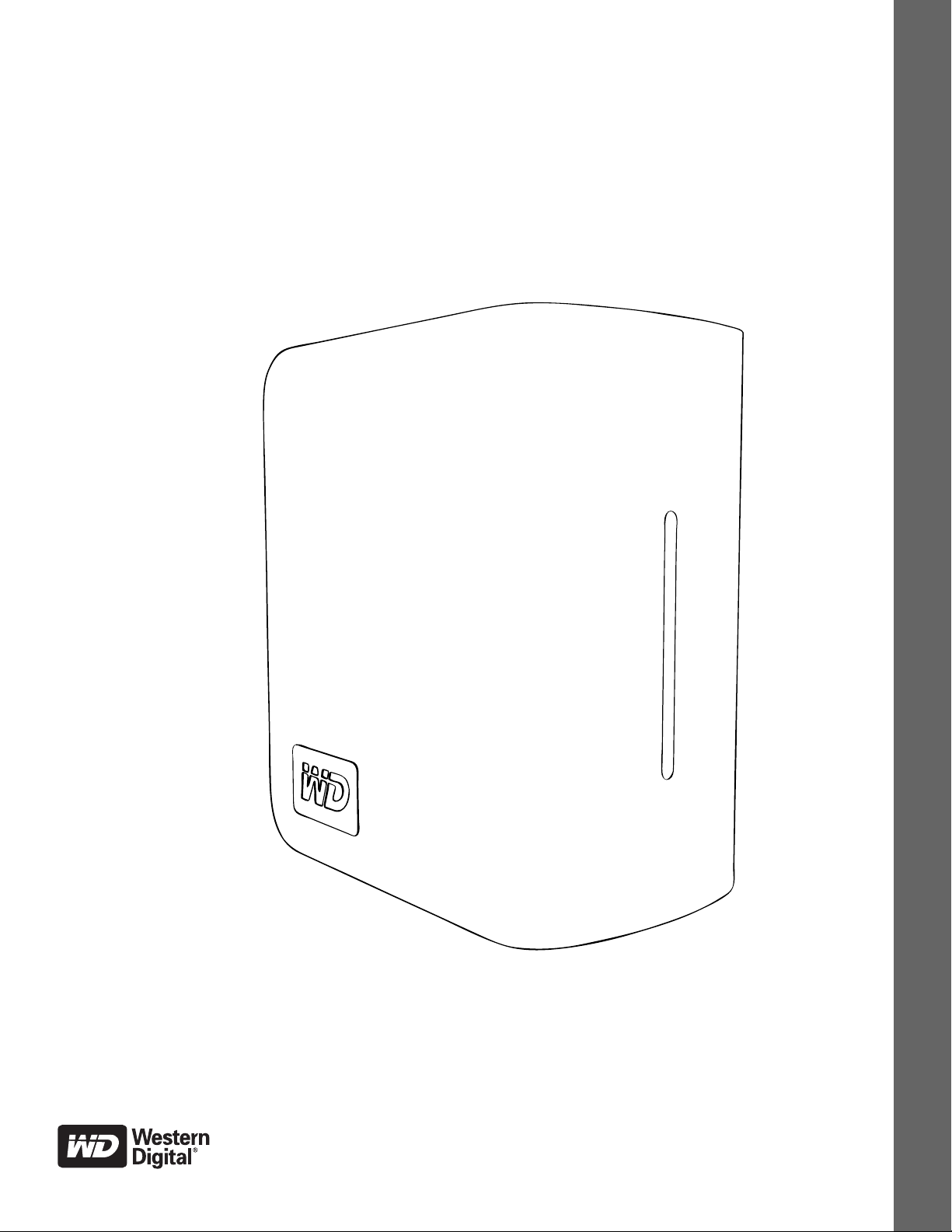

External Desktop

My Book

Studio Edition™II

User Manual

TABLE OF CONTENTS – i

Table of Contents

1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Recording Your WD Product Information . . . . . . . . . . . . . . . . . . . . . . . 2

Registering Your WD Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 About Your WD Drive . . . . . . . . . . . . . . . . . . . . . . . . . .4

Format and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

LED Indicators (Lights) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power/Activity LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Capacity Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Macintosh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4 WD Drive Manager Status . . . . . . . . . . . . . . . . . . . . .15

WD Drive Manager Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . 15

5 WD RAID Manager for Mac . . . . . . . . . . . . . . . . . . . .16

Configuring RAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RAID Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6 WD RAID Manager for Windows. . . . . . . . . . . . . . . .21

Configuring RAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

RAID Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7 Turning Off/Disconnecting the Device . . . . . . . . . .25

Auto-off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Safe Shutdown™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

TABLE OF CONTENTS – ii

Safe Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Unplugging the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8 Replacing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

10 Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

WD Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

MY BOOK STUDIO EDITION II

USER MANUAL

GETTING STARTED – 1

Getting Started

Thank you for purchasing My Book®Studio Edition™II, the storage solution of choice

for creative professionals, workgroups, small offices, and anyone looking for extra

assurance of data safety. This user manual provides step-by-step installation

instructions and other important information regarding your WD product. For the

latest WD product information and news, visit our website at

www.westerndigital.com.

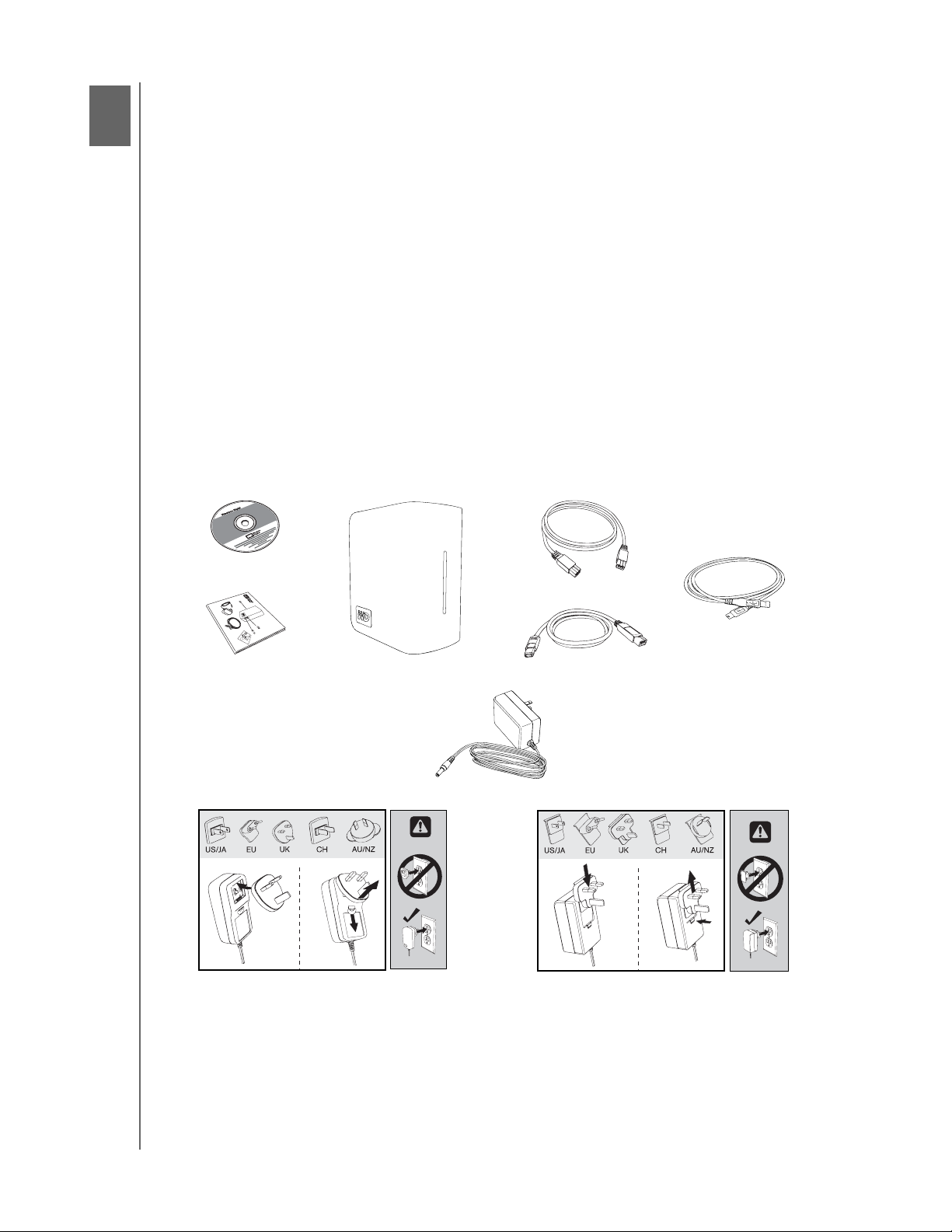

Kit Contents

• Dual-drive storage system

•USBcable

•FireWire

®800 cable (9-pin to 9-pin)

• FireWire 800 to 400 cable (9-pin to 6-pin)

• AC adapter*

• Quick Install Guide

•SoftwareCD

*This product may ship with a different AC adapter configuration, depending on your region.

Optional Accessories

For more information on optional accessories for this product, visit

store.westerndigital.com (U.S. only). Outside the U.S., visit support.wdc.com.

My Book Studio Edition II

AC adapter (U.S.-only)*

Quick Install Guide

USB cable

FireWire 800 to 400 cable

FireWire 800 cable

Software CD

Global AC adapter configurations*

MY BOOK STUDIO EDITION II

USER MANUAL

GETTING STARTED – 2

Compatibility

Note: Compatibility may vary depending on user’s hardware configuration and operating system.

* For a list of compatible eSATA cards, search our knowledge base at support.wdc.com for

answer ID# 1524.

Recording Your WD Product Information

In the following table, write the serial number and model number of your new WD

product found on the label on the bottom of the device. Also, write the purchase date

and other notes such as your operating system and version. This information is

necessary for setup and technical support.

Registering Your WD Product

Your WD product includes 30 days of free technical support during the applicable

warranty period for your product. The 30-day period commences on the date of your

first telephone contact with WD technical support. Register online at

Macintosh Windows ®

• Any of the following: • Any of the following:

– USB port – USB port

– FireWire 800 or 400 port – FireWire 800 or 400 port

– eSATA port or eSATA adapter card* – eSATA port or eSATA adapter card*

•Mac

®OS X 10.4.10+ • Windows 2000/XP/Vista

• Mac OS X 10.5.2+

Important: For highest performance and reliability, it is recommended that you

install the latest updates and service pack (SP). For Macintosh, go to the Apple

menu and select Software Update. For Windows, go to the Start menu and select

Windows Update.

Serial Number:

Model Number:

Purchase Date:

System and Software Notes:

MY BOOK STUDIO EDITION II

USER MANUAL

GETTING STARTED – 3

Precautions

WD products are precision instruments and must be handled with care during

unpacking and installation. Drives may be damaged by rough handling, shock, or

vibration. Be aware of the following precautions when unpacking and installing your

external storage product:

• Do not operate this device outside the temperature range of 5°C–35°C

(41°F–95°F)

• Do not drop or jolt the device.

• Do not move the device during activity.

• Do not use My Book as a portable device.

• To avoid overheating, do not block air slots on the underside, top, or rear of the

enclosure. Do not stack any objects on top of the device that may block

ventilation.

MY BOOK STUDIO EDITION II

USER MANUAL

ABOUT YOUR WD DRIVE – 4

About Your WD Drive

Format and Configuration

This WD device is preformatted to HFS+ (Journaled) for compatibility with Macintosh

operating systems and is pre-configured for RAID 0 (Striped) mode for maximum

capacity and accelerated performance.

This product also supports RAID 1 (Mirrored) mode for extra data protection with

instantaneous and automatic data updates. If one drive fails the system will still run

and your data will be preserved. You can replace the failed drive and restore the

system. For more information, including instructions on changing the RAID

configuration or drive format, see “WD RAID Manager for Mac” on page 16 or “WD

RAID Manager for Windows” on page 21.

LED Indicators (Lights)

The Power/Activity and Capacity Gauge indicators are represented by a single bar of

six LEDs (lights) on the front panel of the drive.

Power/Activity LED Behavior

* If this condition occurs, read/write activity will stop and the drive will spin down. Disconnect and

power down My Book. Allow it to cool down for 1-2 hours then reconnect and power up the device.

Capacity Gauge

When the device is turned on, the Capacity Gauge indicates space used on the drive

by illuminating six sections in an upward vertical direction. Each section represents

approximately 17 percent of drive capacity. Because this drive is preformatted, the

first section is illuminated upon installation.

USB and FireWire Mode

The Capacity Gauge is enabled only through installation of WD Drive Manager, which

must be installed on each system to which My Book is connected. The Capacity

Gauge is updated automatically as the drive is used.

eSATA Mode

Capacity Gauge is not available in eSATA mode.

Appearance Drive State

Steady Power-on state or power-save mode

Slow flashing (every four seconds) System standby

Moving up and down Drive in use

Alternating checkerboard pattern Transitioning from one state to another

Alternate flashing between top and bottom LEDs RAID degraded mode

Cycling from bottom to top RAID rebuild mode

Fast flashing (every second) Over-temperature condition*

MY BOOK STUDIO EDITION II

USER MANUAL

ABOUT YOUR WD DRIVE – 5

Interfaces

FireWire – This device is equipped with two FireWire 800 interfaces.

FireWire 800 has a maximum data transfer rate of 800 Mb/s and is backward-

compatible with FireWire 400 using a special adapter such as the FireWire 800 to

400 cable included in this kit. Connection to a FireWire 400 device transfers data at

FireWire 400 speed (up to 400 Mb/s).

USB – The industry standard interface for most Windows-based computers.

Hi-Speed USB (USB 2.0) supports data transfer rates up to 480 Mb/s. USB 2.0 is

backward-compatible with USB 1.1. Connection to a USB 1.1 device transfers data

at USB 1.1 speed (up to 1.5 Mb/s).

eSATA - Up to 3 Gb/s data transfers. To use this interface, an eSATA PCI card or

eSATA motherboard port must be present on the host computer.

Kensington Security Slot

For drive security, this device is equipped with a Kensington Security Slot, which

supports a standard Kensington security cable (sold separately). For more

information on the Kensington Security Slot and available products, visit

www.kensington.com.

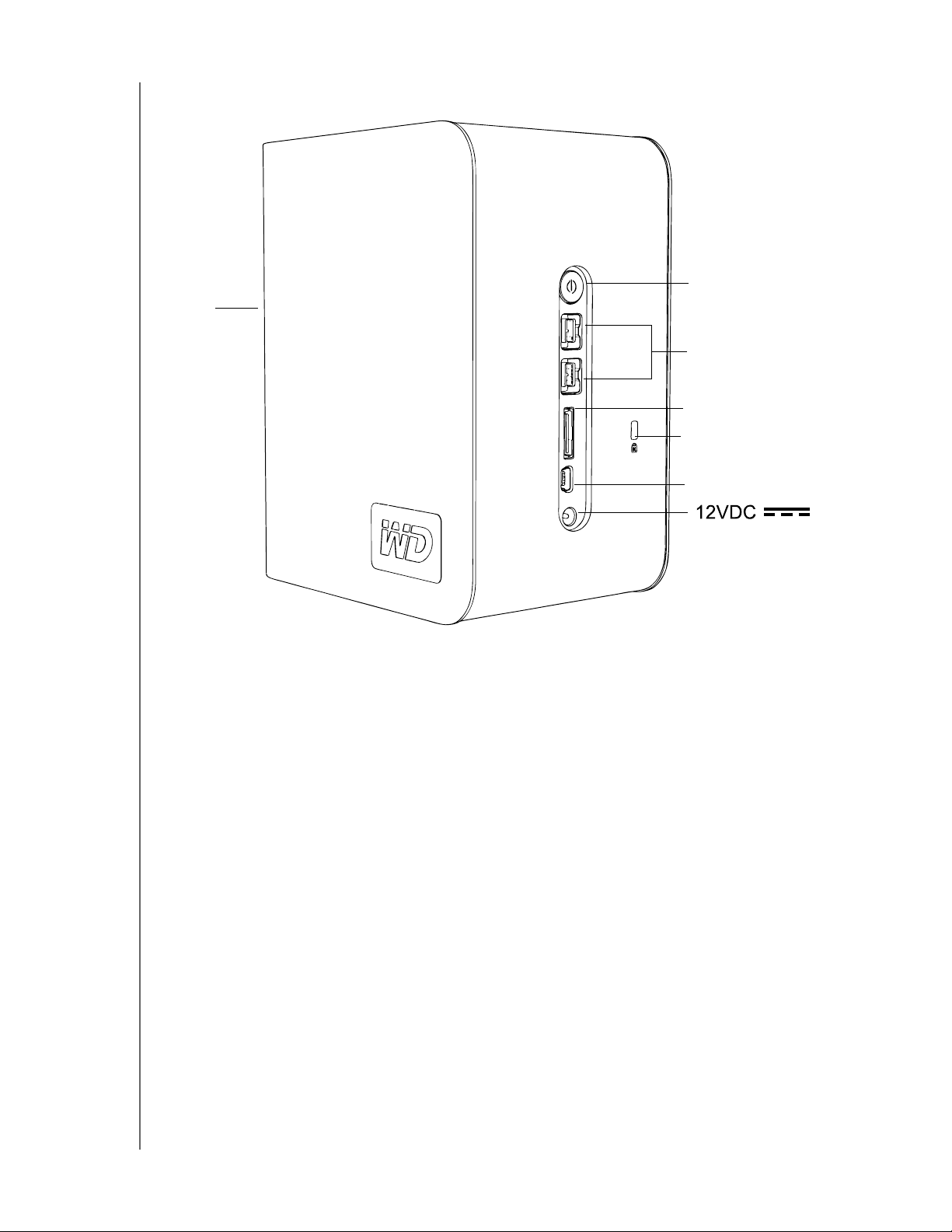

LED

Power button

FireWire

eSATA

USB

Kensington®

Security Slot

MY BOOK STUDIO EDITION II

USER MANUAL

ABOUT YOUR WD DRIVE – 6

Software

In addition to WD Drive Manager, this WD product is shipped with the following

bonus software.

WD Anywhere Backup™(Mac and Windows) is an intuitive and robust backup

and recovery application that provides around-the-clock data protection. It features

automatic backup to multiple destinations and synchronization of working files to

keep them current. A user guide and online help are included with this application.

Google™software (Windows only) allows you to search your drive, manage your

photos, and simplify Web searches with included Google software

Copy Application Software allows you to back up the software included with this

device.

MY BOOK STUDIO EDITION II

USER MANUAL

SETTING UP – 7

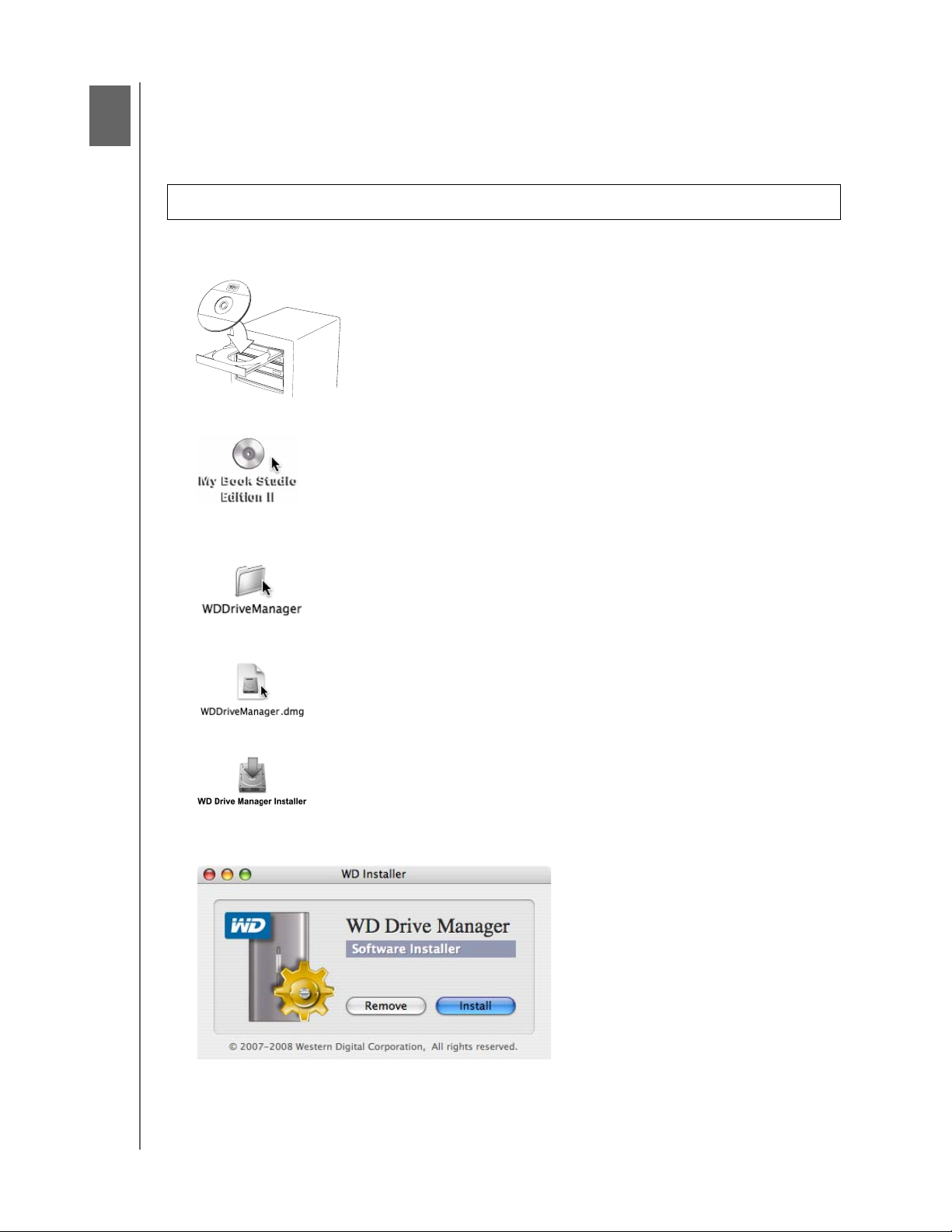

Setting Up

Macintosh

FireWire or USB®

1. Turn on your computer and wait for the operating system to load.

2. Insert the software CD into the CD-ROM drive.

3. Double-click the CD-ROM drive icon.

4. Double-click the WD Drive Manager folder, which contains the software for this

device

5. Double-click the WDDriveManager.dmg icon.

6. Double-click the WD Drive Manager Installer icon.

7. Click Install. WD Drive Manager enables the capacity gauge and

Safe Shutdown™and also installs WD RAID Manager.

Important: Follow the steps below to safely connect the device.

Andere Handbücher für WDH1Q10000 - Studio Edition

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Western Digital Lagerung Handbücher

Western Digital

Western Digital WDH1Q10000 - Studio Edition Bedienungsanleitung

Western Digital

Western Digital WD Caviar WD800BB Bedienungsanleitung

Western Digital

Western Digital My Passport Ultra Bedienungsanleitung

Western Digital

Western Digital HDD-WD101PURZ Bedienungsanleitung

Western Digital

Western Digital Caviar Green WD10EACS Bedienungsanleitung

Western Digital

Western Digital WDBAAF0010HBK - My Book Essential 1 TB External Hard... Bedienungsanleitung

Western Digital

Western Digital WD Dual-option Bedienungsanleitung

Western Digital

Western Digital WDG2NC10000 - My Book World Edition II Bedienungsanleitung

Western Digital

Western Digital Passport Slim WDBGMT0010BAL Bedienungsanleitung

Western Digital

Western Digital WD1500ADFD - Raptor 150 GB Hard Drive Montageanleitung

Western Digital

Western Digital WDG1S10000 - My DVR Expander Bedienungsanleitung

Western Digital

Western Digital My Book Studio Bedienungsanleitung

Western Digital

Western Digital WDXU1200BBRNN - USB 2.0 120 GB External Hard... Bedienungsanleitung

Western Digital

Western Digital WDG2TP10000N - My Book Pro Edition II Hard Drive... Bedienungsanleitung

Western Digital

Western Digital My Book WDH1U10000 Bedienungsanleitung

Western Digital

Western Digital OpenFlex Data24 3200 Bedienungsanleitung

Western Digital

Western Digital My Passport WDME1600 Bedienungsanleitung

Western Digital

Western Digital MY PASSPORT AIR Bedienungsanleitung

Western Digital

Western Digital My Book WDBACW0030H Bedienungsanleitung

Western Digital

Western Digital Purple PR1200M Produkthandbuch

Western Digital

Western Digital My Book Home Edition Bedienungsanleitung

Western Digital

Western Digital ActiveScale P100 Montageanleitung

Western Digital

Western Digital WDH1S5000 - My DVR Expander 500 GB External Hard... Bedienungsanleitung

Western Digital

Western Digital Scorpio Blue WD1200BEVE Montageanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Dell

Dell PowerVault MD3600f Series Bedienungsanleitung
