USER MANUAL

Dishwasher

WSF6606

Important safety instructions . . . . . . . . . . . . . 3

Recycling . . . . . . . . . . . . . . . . . . .3

Safety information . . . . . . . . . . . . . . . 3

Recommendations . . . . . . . . . . . . . . . 4

Items not suitable for dishwashing . . . . . . . . 4

Description of your appliance . . . . . . . . . . . . 5

Technical speciﬁcations . . . . . . . . . . . . . . . 5

Conformity with the standards and Test data . . . . 5

Quick Start Guide . . . . . . . . . . . . . . . . .7

Installing the machine . . . . . . . . . . . . . . . 8

Positioning the machine . . . . . . . . . . . . . 8

Water connections . . . . . . . . . . . . . . .8

Water inlet hose . . . . . . . . . . . . . . . .8

Water outlet hose . . . . . . . . . . . . . . . 8

Electrical connection . . . . . . . . . . . . . . 8

Fitting the machine undercounter . . . . . . . . .9

Preparing the machine for use . . . . . . . . . . . 11

Prior to using the machine . . . . . . . . . . . 11

Detergent usage . . . . . . . . . . . . . . . 11

Filling the detergent compartment . . . . . . . . 11

Combined detergent . . . . . . . . . . . . . 12

Filling with rinse aid and making the setting . . . 12

Loading your dishwasher . . . . . . . . . . . . . 13

Alternative basket loads . . . . . . . . . . . . 17

Standard loading and Test data . . . . . . . . 18

Program descriptions . . . . . . . . . . . . . . . 19

Program items . . . . . . . . . . . . . . . . 19

Switching on the machine and selecting a program . 20

Switching on the machine . . . . . . . . . . . 20

Program follow-up . . . . . . . . . . . . . . 20

Changing a program . . . . . . . . . . . . . 20

Changing a program with resetting . . . . . . . 21

Switching the machine off . . . . . . . . . . . 21

Maintenance and Cleaning . . . . . . . . . . . . 22

Filters . . . . . . . . . . . . . . . . . . . . 22

Spray arms . . . . . . . . . . . . . . . . . 23

Hose ﬁlter . . . . . . . . . . . . . . . . . . 23

Failure codes and what to do in case of failure . . . 24

Practical and useful information . . . . . . . . . . 25

Notes . . . . . . . . . . . . . . . . . . . . . 26

Warranty . . . . . . . . . . . . . . . . . . . . 27

ENVIRONMENTAL TIPS

Information on disposal for users

• Most of the packaging materials are recyclable.

Please dispose of those materials through your local

recycling depot or by placing them in appropriate

collection containers.

• If you wish to discard this product, please contact

your local authorities and ask for the correct method

of disposal.

Congratulations and thank you for choosing our product.

We are sure you will find your new appliance a pleasure

to use and a great asset to your cooking. Before you

use the appliance, we recommend you read through the

whole user manual which provides a description of the

product and its functions.

To make the best use of your new appliance, it is

important that the appliance is installed correctly and that

you read the safety instructions carefully to avoid misuse

and hazards. We recommend that you keep this instruction

booklet for future reference and pass it on to any future

owners. This appliance complies with the requirements of

Australian Standard AS/NZ 60335.2.5.

Conditions of use

This appliance is intended to be used in household and

similar applications such as:

• Staff kitchen areas in shops, offices and other

working environments

• Farm houses

• By clients in hotels, motels and other residential

type environments

• Bed and breakfast type environments.

Record model and serial number here:

Model: ...................................................................................

Serial number: .......................................................................

TIPS & INFORMATION

TIPS AND INFORMATION

Important –check for any damage or marks.

If you find the dishwasher is damaged or marked, you

must report it within 7 days if you wish to claim for

damage/ marks under the manufacturers warranty. This

does not affect your statutory rights.

CONTENTSCONGRATULATIONS

CONTENTS

3SAFETY

IMPORTANT SAFETY INSTRUCTIONS

These warnings have been provided in the interest of safety.

You MUST read them carefully before installing or using

the appliance.

The symbols you will see in this booklet have these meanings:

WARNING

This symbol indicates information concerning your personal

safety

TIPS & INFORMATION

TIPS AND INFORMATION

This symbol indicates tips and information about use of the

appliance

ENVIRONMENTAL TIPS

This symbol indicates tips and information about

economical and ecological use of the appliance

Recycling

• Certain components and the packaging of your machine

have been produced from recyclable materials.

• Plastic parts are marked with international

abbreviations: (>PE< , >PS< , >POM<, >PP<, ....)

• Cardboard parts have been produced from recycled

paper and they should be disposed of into waste

paper collection containers for recycling.

• These materials should not be disposed of into

garbage bins. They should be delivered to recycling

centres instead.

• Contact relevant centres in order to obtain information

on methods and points of disposal.

Safety Information

When you take delivery of your machine

• Check for any damage to your machine or to its

packaging. Never start a damaged machine, make

sure to contact an authorised technician.

• Unwrap the packaging materials as indicated and

dispose of them in accordance with the rules.

The points to pay attention during machine installation

• Choose a suitable, safe and level location to install

your machine.

• Carry out the installation and connection of your

machine by following the instructions.

• This machine should be installed and repaired by an

authorised technician only.

• Only original spare parts should be used with the

machine.

• Before commencing the dishwasher installation, be

sure that the machine is unplugged.

• Check whether the indoor electrical fuse system is

connected according to the regulations.

• Pay special attention and make sure that the machine

does crush the power cord.

• Never use an extension cord or a multiple socket

to make a connection. The plug should be easily

accessible after the machine has been installed.

• After installing the machine, run it unloaded for the

first time.

In daily use

• Do not stand, sit or place a load on the open door of

the dishwasher, it may fall over.

• Only use detergents and rinse aids which are

produced specifically for dishwashers. Otherwise

Electrolux does not take any responsibility for damage

that might occur to your machine.

WARNING

The water in the machine’s washing section is not

drinking water, do not drink it.

• Due to danger of explosion, do not put into the

machine’s washing section any chemical agents

such as solvents.

• Check whether plastic items are heat-resistant before

washing them in the machine.

• Do not put into your machine those items which

are not suitable for dishwashing. Also, do not

overload basket.

• The machine door should not be opened while the

machine is in operation, to avoid the risk of hot water

spraying out. A safety device ensures that the machine

stops if the door is opened.

WARNING

Do not leave your dishwasher’s door open, this may lead

to accidents and injury.

WARNING

Place knives and other sharp ended objects in the cutlery

basket in the point down position.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

SAFETY INFORMATION AND RECOMMENDATIONS

SAFETY

For your children’s safety

• After removing the machine’s packaging, make sure

that the packaging material is out of reach of children.

• Do not allow children to play with or start the

machine.

• Keep your children away from detergents and

rinse aids.

• Keep children away from the machine while it is

open because there may still be residues of cleaning

substances inside the machine.

• Be sure that your old machine does not pose any

threat to children. Remove the dishwasher door lock

and power supply cord.

In case of malfunctioning

• Any malfunction in the machine should be repaired

by qualified persons. Any repair work performed by

anyone other than the authorised service personnel

will cause your machine to be left outside the scope

of warranty.

• Prior to any repair work on the machine, be sure to

unplug the dishwasher from the power supply. Do not

pull by the cable when unplugging. Make sure to turn

off the water tap.

Recommendations

• For energy and water saving, remove coarse residues

on your dishes before placing the dishes into the

machine. Start your machine after having fully

loaded it.

• Use the pre-wash program only whenever necessary.

• Place items such as bowls, glasses and pots into the

machine face down.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint,

chemical substances, iron-alloy materials;

• Forks, spoons and knives with wooden or bone, ivory

or nacre-coated handles; glued items, items soiled

with abrasive, acidic or base chemicals;

• Plastic items that are not heat-resistant, copper or

tin coated containers;

• Aluminium and silver objects (they may discolour,

become dull);

• Certain delicate glass types, porcelains with

ornamental printed patterns (may fade even after

the first wash); certain crystal items (may lose their

transparency over time), laminated cutlery that is not

heat-resistant, lead crystal glasses, cutting boards,

items manufactured with synthetic fibre;

• Absorbent items such as sponges or kitchen rags are

not suitable for dishwashing.

WARNING

Some dishwasher detergents are strongly alkaline. They

can be extremely dangerous if swallowed. Avoid contact

with the skin and eyes and keep children away from the

dishwasher when the door is open. Check that the detergent

compartment is empty after completion of wash cycle.

5DESCRIPTION

DESCRIPTION OF YOUR APPLIANCE

TECHNICAL SPECIFICATIONS

Capacity ......................................... 15 place settings

Height ........................................................845 mm

Height (without worktop) ...............................820* mm

Width .........................................................596 mm

Depth..........................................................598 mm

Net Weight..................................................... 54 kg

Electricity input............................... 220-240 V, 50 Hz

Total Power .................................................2200 W

Heating Power.............................................2000 W

Pump Power ...................................................100W

Drain Pump Power............................................30 W

Water supply pressure....0.03 MPa (0,3 bar) - 1 MPa (10 bar)

Water supply Temperature .....................................5 - 60°C

Current............................................................ 10 A

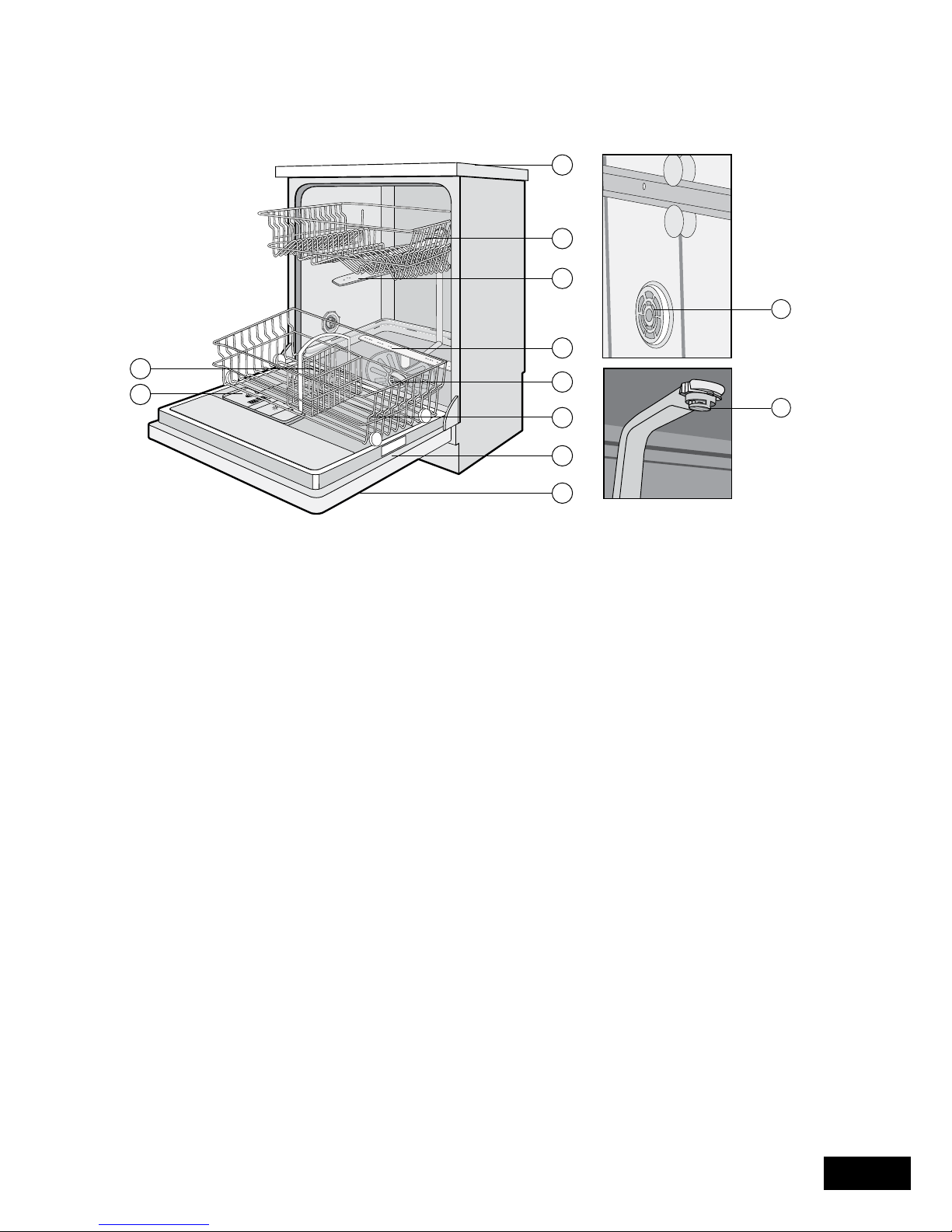

1. Worktop

2. Upper basket with racks

3. Upper spray arm

4. Lower spray arm

5. Filters

6. Lower basket

7. Rating plate

8. Control panel

9. Detergent and rinse-aid dispenser

10. Cutlery basket

11. Active drying unit

12. Ceiling spray rose

• Electrolux reserves the right to amend design and

technical specifications.

*with counterweight and insulation removed

45 6 7

1 2 3

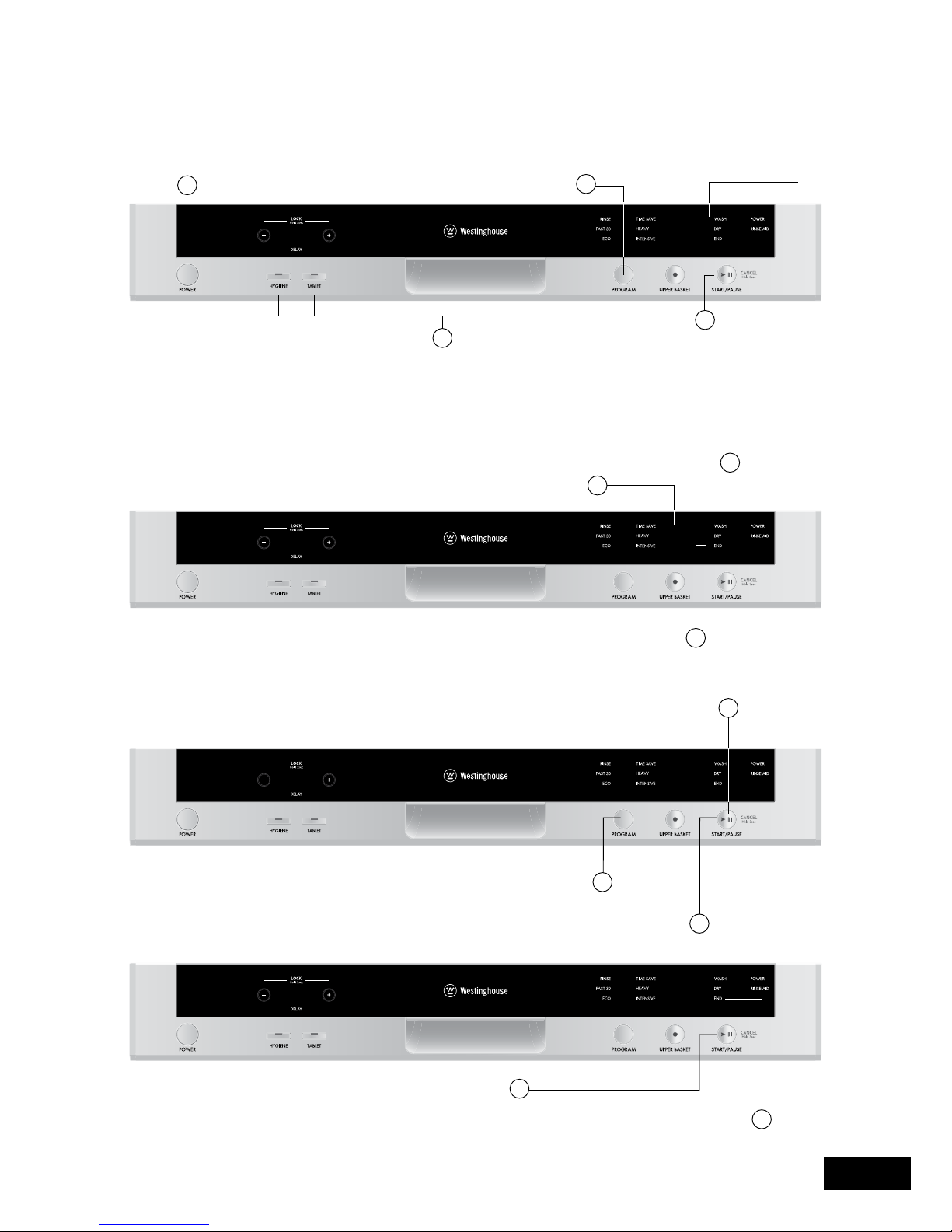

1. Power button

When pressed on, the machine is energized and the

power light illuminates.

2. Hygiene button

By using this option, washing temperature and time during

respective programs may be changed, this ensures more

hygienic washing.

3. Tablet button

Use this option when using combined detergent that

contains rinse aid and extra functions.

4. Door handle

Use door handle to open-close the door of the machine.

5. Program button

With the program button, you can select a suitable

program for your dishes.

6. Upper basket button

By using the ‘Upper Basket Wash ‘ feature, you can wash

the dishes only on upper basket, reducing the duration of

your selected programs, and decreasing your power and

water consumption.

7. Start/Pause button

The Start/Pause button will start the selected program.

In the Pause condition while wash indicator light is on,

Start/Pause led will blink.

8. Rinse aid power indicator

When the rinse aid light illuminates, fill the rinse aid

chamber. The power light indicates power is available to

the appliance.

NOTE: If you have used an extra option on the last

washing program, this feature will remain active also

on the next washing program. To deselect an option on

the newly selected washing program, press the selected

option button again, and check that the indicator light on

the option button goes off.

9. Progress indicator Lights

Program status can be monitored via the progress indicator

lights on control panel.

• Wash

• Dry

• End

10. Time Indicator and delay display

The time indicator displays the program time and time

remaining for the program.

In addition you can delay the start of the program by

pressing the “+” and “-” buttons before the program is

commenced. The delay function is indicated by the letter

“H” followed by the number of hours selected.

If you want to change the delay time, you can reset it by

pressing START/PAUSE and then using the “+” and “–”

buttons to select the new delay time, then press START/

PAUSE to activate.

Child Lock operation

In order to activate child lock, press “+” and “–” buttons

simultaneously for 3 seconds. At this time, “CL” appears for

2 seconds on remaining time indicator. To deactivate child

lock, press “+” and “–” buttons again simultaneously for 3

seconds. “CL” will blink once.

8910

DESCRIPTION

DESCRIPTION OF YOUR APPLIANCE

DESCRIPTION

QUICK START GUIDE

QUICKSTART

Switching on the machine

Progress indicator

Changing a program

Cancelling a program

You can follow the program flow using the progress

indicator up lights located on the control panel.

If you would like to change programs while a washing

program is on.

If you want to cancel current program for any reason.

Press the POWER button

Additonal functions Start the program pressing

the START/PAUSE button

Once the POWER button is pressed,

the START/PAUSE symbol illuminates.

During the washing cycle

the WASH light is on

Press the PAUSE/START button

Hold the PAUSE/START button for 3 seconds

The END light starts flashing and water inside the

machine will drain for 30 seconds. The program

is cancelled when the END light stops flashing

After the dishwasher stops, select the desired

program by pressing the PROGRAM button

Press the PAUSE/START button

to commence new program

Once the program is completed the END light comes on.

Do not open the dishwasher until this light comes on.

The START/PAUSE button turns

off once the program starts

and the WASH light is on

Once completed the

DRY light will illuminate

and the machine will run

silently whilst drying.

Select the program via the

PROGRAM selector button

INSTALLATION

INSTALLING THE MACHINE

Positioning the machine

When considering the location for the dishwasher, ensure

that there is adequate space to enable loading and

unloading of the dishes.

• Do not put your machine in any location where the

ambient temperature can fall below 5°C.

• Before positioning, take the machine out of its

packaging by following the warnings located on

the package.

• Position the machine close to a water tap and drain.

You need to postion your machine, taking into

consideration that its connections will not be altered

once they are made.

• Do not grip the machine by its door or panel in

order to move it.

• Take care to leave a certain clearance from all sides

of the machine so that you can comfortably move it

back and forth during cleaning.

• Make sure that the water inlet and outlet hoses do not

get squeezed while positioning the machine. Also,

make sure that the machine does not stand on the

electrical cable. Adjust the machine’s feet so that it is

level and stable. Proper positioning of the machine

ensures problem-free opening and closing of its door.

• If the door of your machine does not close properly,

check if the machine is stable on the floor; if not,

adjust the feet and ensure it is level and stable.

Water connection

Ensure that the indoor plumbing is suitable for installing a

dishwasher. Also, we recommend that you fit a filter at the

entrance of your place or apartment so as to avoid any

damage to your machine because of any contamination

(sand, clay, rust etc) that might be occasionally carried in

through the main’s water supply or the indoor plumbing,

and to avoid problems of staining and formation of

deposits after washing.

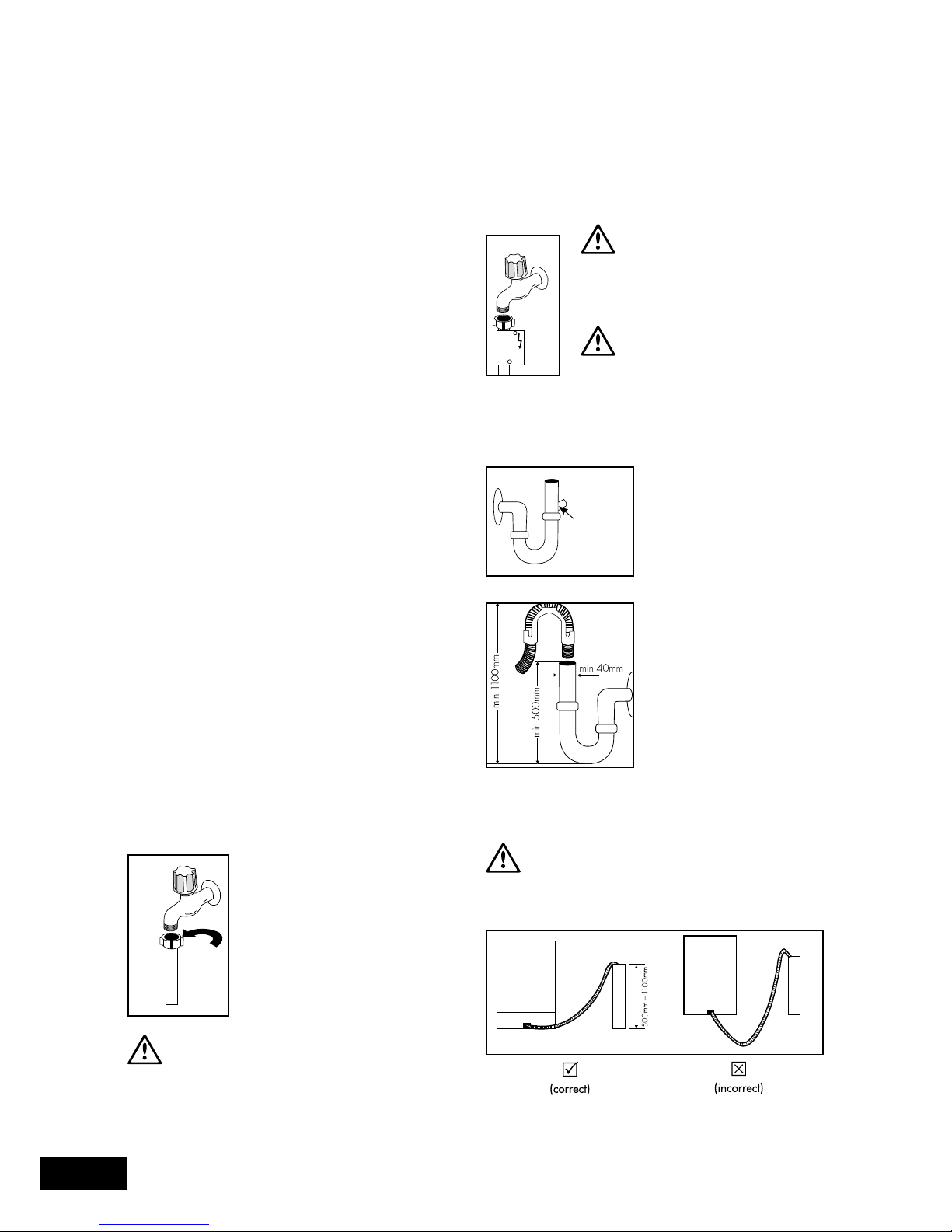

Water inlet hose

Do not use the water inlet hose of your old machine, you

must use the new water inlet hose supplied with your

machine. Before connecting the

water inlet hose to the water tap,

ensure clean water is flowing from the

tap before making the connection.

Connect the water inlet hose directly

to the water inlet tap. The pressure

supplied by the tap should be at

a minimum of 0.03 MPa and at a

maximum of 1 MPa. If the water

pressure is above 1 MPa, a pressure-

relief valve should be installed.

WARNING

WARNING:only turn the locking nut to secure hose

- do not turn the hose.

After the connections are made, the tap should be turned

on fully and checked for water tightness. For the safety of

your machine, make sure to always turn off the water inlet

tap after each wash program is finished.

WARNING

NOTE: Aquastop inlet hose has

components using 240V. Do not cut

Aquastop inlet hose. Do not let it get

folded, twisted, kinked or crushed.

WARNING

NOTE: A water tempering valve is

required if the water temperature is

over 60°C.

Water drain hose

If you connect the water drain hose to a trap spigot under

the sink, remove the plastic

membrane. If you do not

remove the entire membrane,

remaining food can cause

blockage in the drain hose

spigot. Ensure a hose clamp

is used to secure the hose to

the spigot.

The water drain hose can

be connected either directly

to the water drain hole or to

the sink outlet spigot. Using a

hose hook (if available), the

water can be drained directly

into the sink by positioning

the hose hook over the edge

of the sink.

This connection should be at a minimum of 50 cm and at

a maximum of 110 cm above the base of the dishwasher.

WARNING

WARNING:Maximum drain hose length

is 4m. Longer hose length will prevent correct draining,

and result in poor wash performance.

Remove

entire

internal

membrane

9INSTALLATION

INSTALLING THE MACHINE

WARNING

Electrical Connection

The plug of your machine should be connected to an earthed

outlet that supplies suitable voltage and current. If there is no

earthing installation, have a competent electrician carry out

an earthing installation. In case of usage without earthing

installed, our company will not be responsible for any loss of

usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is designed for 220-240 V. The machine should

not be plugged in during installation.

• Always use the molded plug supplied with your machine.

• Running in low voltage will cause a decline in

washing quality.

• The machine’s electrical cable should be replaced by

an authorised service or an authorised electrician only.

Failure to do so may lead to accidents.

• For safety purposes, always make sure to disconnect the

plug when a wash program is finished.

• In order not to cause an electric shock, do not unplug

when your hands are wet.

• When disconnecting your machine from the mains supply,

always pull from the plug. Never pull the cord itself.

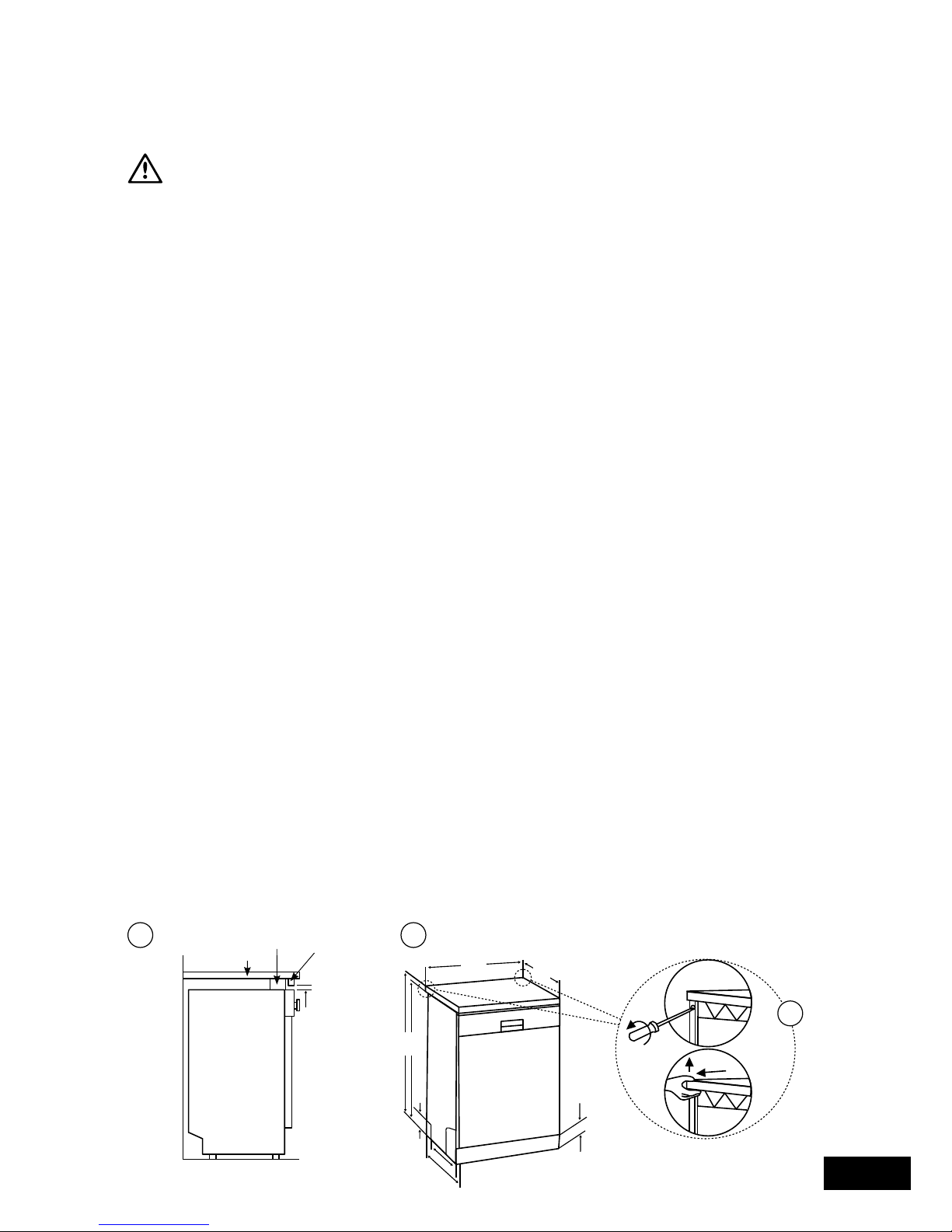

Fitting the machine undercounter

If you wish to fit your machine undercounter, check whether

you have sufficient space under your countertop and whether

the wiring-plumbing is suitable to do so.

1. To ensure the stability of the dishwasher for an

underbench installation, if the underbench dimension is

greater than 820mm, any gap between the dishwasher

and the underside of the benchtop should be bridged

with a packing piece. This may be achieved by wedging

a piece of timber between the dishwasher and the

benchtop as shown

2. If required, remove the worktop as shown in the

illustration.

3. To remove the worktop, remove the screws that hold the

worktop which are located at the rear of the machine;

then push the front panel 1 cm from the front towards the

rear and lift it.

570

465

598

596

845

820

1Timber wedging piece

Bench top

3mm gap

Filler piece cut to

suit installation

INSTALLATION

INSTALLING THE MACHINE

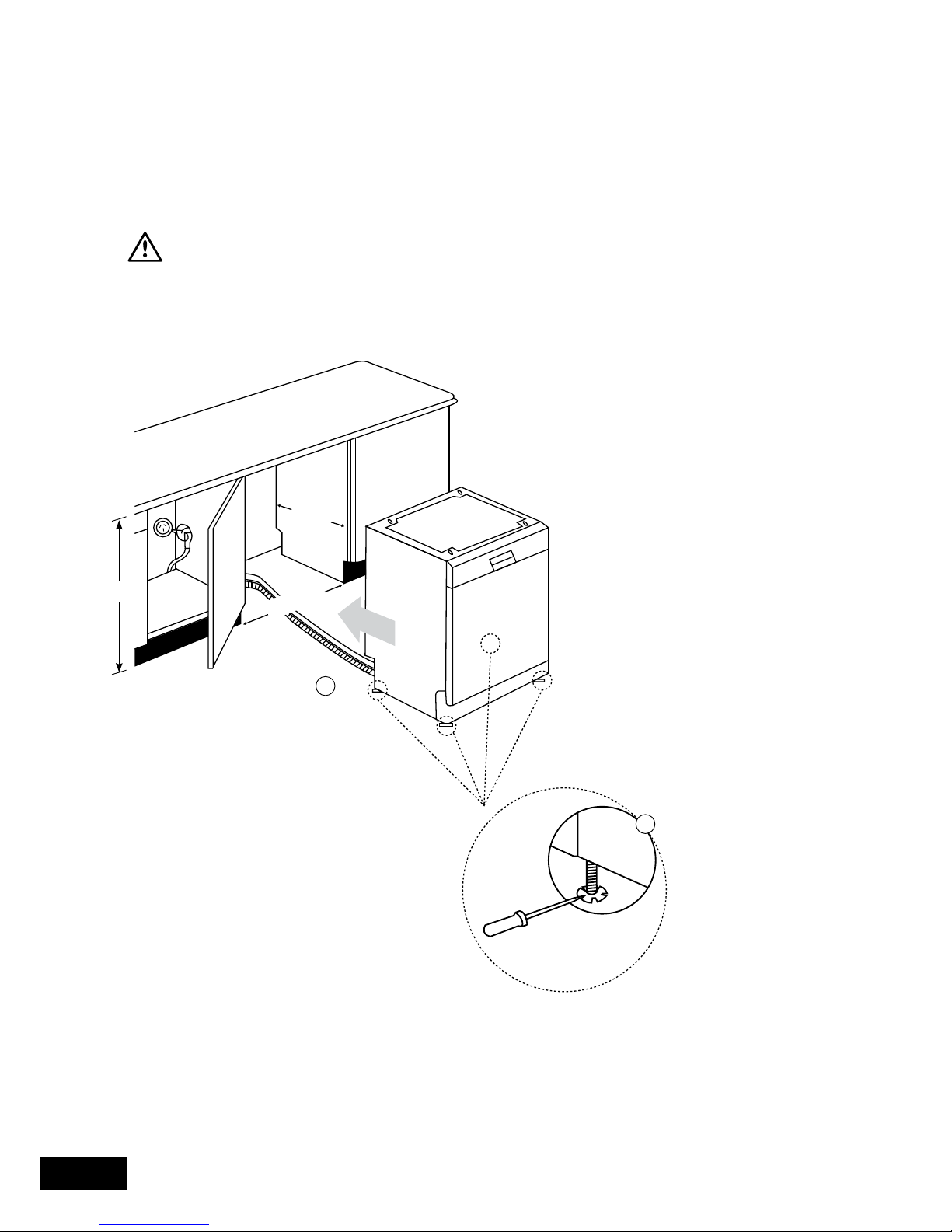

3. Adjust the machine feet according to the slope of

the floor.

4. Fit your machine by pushing it undercounter without

letting the hoses get crushed or bent.

WARNING

After removal of worktop, ensure the opening for the

dishwasher is according to the following dimensions.

min. 600mm

820mm

570mm

Andere Handbücher für WSF6606

Inhaltsverzeichnis

Andere Westinghouse Spülmaschine Handbücher

Westinghouse

Westinghouse WSF6608 Bedienungsanleitung

Westinghouse

Westinghouse SB908 Bedienungsanleitung

Westinghouse

Westinghouse WSU6603 Bedienungsanleitung

Westinghouse

Westinghouse WDF902 Bedienungsanleitung

Westinghouse

Westinghouse WSU67381 Bedienungsanleitung

Westinghouse

Westinghouse WSF6604WA Bedienungsanleitung

Westinghouse

Westinghouse WSF6608KXA Bedienungsanleitung

Westinghouse

Westinghouse SC400L Stücklistenhandbuch

Westinghouse

Westinghouse WDF901 Bedienungsanleitung

Westinghouse

Westinghouse 930 Fully Integrated Leitfaden

Westinghouse

Westinghouse WSF6602WA Bedienungsanleitung

Westinghouse

Westinghouse SI 910 SA Leitfaden

Westinghouse

Westinghouse WSF6606X Bedienungsanleitung

Westinghouse

Westinghouse WSF6606 Bedienungsanleitung

Westinghouse

Westinghouse SB916 Bedienungsanleitung

Westinghouse

Westinghouse WSF6606XA Bedienungsanleitung

Westinghouse

Westinghouse SB926 Bedienungsanleitung

Westinghouse

Westinghouse WSF6608XA Bedienungsanleitung

Westinghouse

Westinghouse 907 series Leitfaden

Westinghouse

Westinghouse WSF6608 Bedienungsanleitung

Westinghouse

Westinghouse WDF901SA Bedienungsanleitung

Westinghouse

Westinghouse WSF6725I Bedienungsanleitung

Westinghouse

Westinghouse WSF6604WA Bedienungsanleitung

Westinghouse

Westinghouse WSF67251 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
