Westinghouse VR-3215 Bedienungsanleitung

-1-

Contents

Safety and warnings.......................................................................................2-3

Introduction..................................................................................................4

Stand installation guide..................................................................................5

Installation....................................................................................................6-9

Remote Control............................................................................................10

Operation..................................................................................................... 11-14

-2-

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK).NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN!

CAUTION

The symbol indicates that dangerous

voltages constituting a risk of electric shock

are present within this unit.

The symbol indicates that there are

important operating and maintenance

instructions in the literaturaccompanying this

unit.

To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture.

WARNING:

This symbol indicates that this product

incorporates double insulation between

hazardous mains voltage and user accessible

parts. When servicing use only

identical replacement parts.

The batteries shall not be exposed to

excessive heat such as sunshine, fire or the

like.

WARNING:

The excessive sound pressure from earphones

and headphones can cause hearing loss.

WARNING:

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install

in accordance with the instructions.

8) Do not install near any heat sources such as

radiations, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

9) Do not defeat the safety purpose of the

polarized plug. If the provided plug does not fit

into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protected the power cord from being walked

on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11) Only use attachments/accessories specified

by the manufacturer.

12) Unplug this apparatus during lighting

storms or when unused for long periods of time.

13) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

14) Mains plug is used as the disconnect device,

the disconnect device shall remain readily

operable.

15) The ventilation should not be impeded by

covering the ventilation openings with items,

such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted

candles, should be placed on the apparatus.

17) Attention should be drawn to the

environmental aspects of battery disposal.

18) The use of apparatus in moderate climate.

19) The apparatus shall not be exposed to

dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on

the apparatus.

-3-

High voltages are used in the operation of this television

receiver. Do not the cabinet.

Refer servicing to qualified service personnel.

open

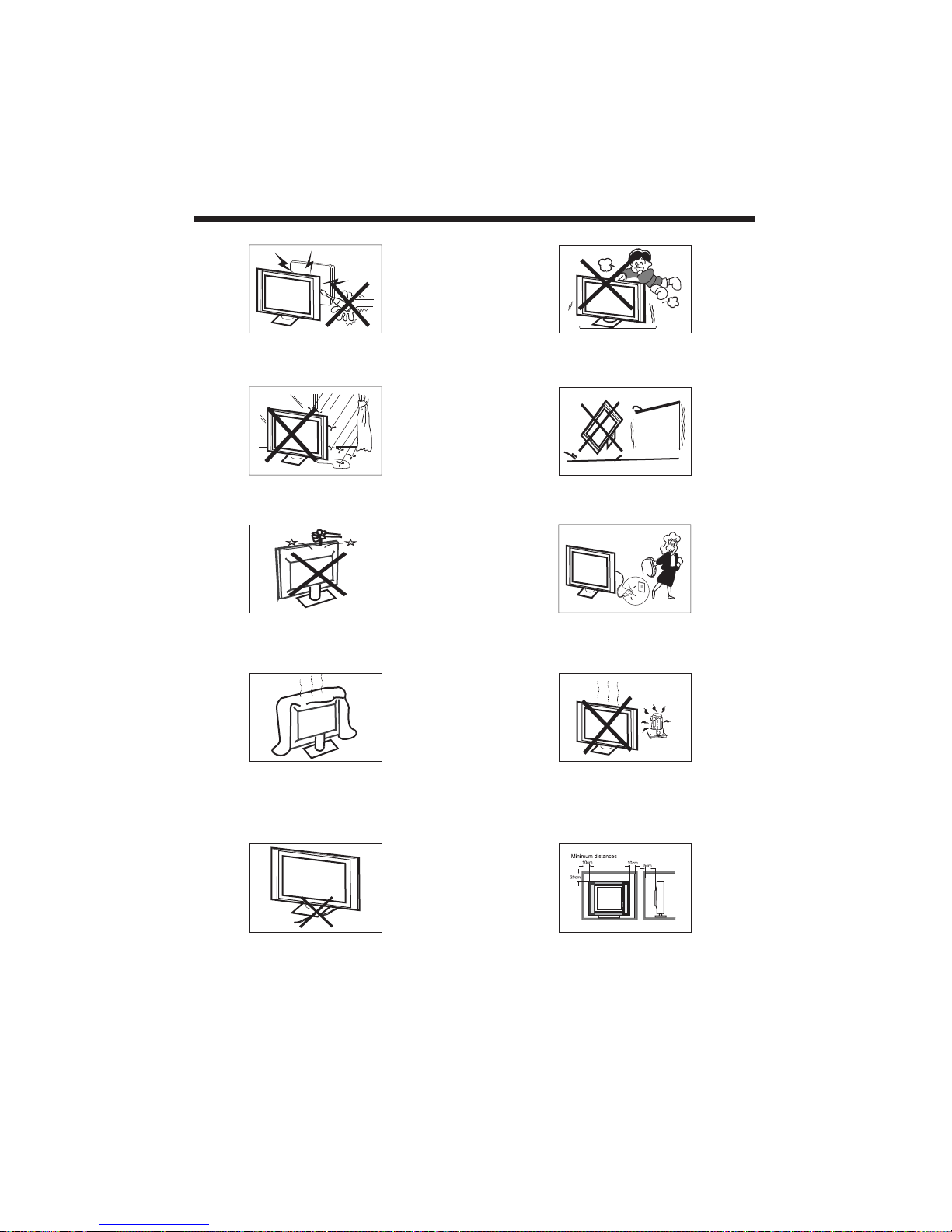

SAFETY AND WARNINGS

To prevent fire or electrical shock hazard, do not expose

the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet

slots or openings. Never spill any kind of liquid on the

television receiver.

Do not block the ventilation holes on the back cover .

Adequate ventilation is essential to prevent failure of

electrical components.

of the TV

Do not trap the power supply cord under the television

receiver .s' stand

Never stand on, lean on, or suddenly push the television or

its stand. You should pay special attention to children.

Serious injury may result if it falls.

Do not place your television on an unstable cart, stand,

shelf or table. Serious injury to an individual and damage

to the television may result if it falls.

/or

When the television receiver is not used for an

extended period of time, it is advisable to disconnect

the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight

and other sources of heat. Do not stand the television

receiver directly on other products which give off heat,

e.g. video cassette players and audio amplifiers. Do not

place naked flame sources, such as lighted candles on

the television.or near

Dim:515*320mm(）

If the television is to be built into a compartment or similar

enclosure, the minimum distances must be maintained. Heat

build-up can reduce the life of your television, and can also

be dangerous.

Resolution:

TV System:

Video Signal System:

Receiving Channel:

Horizontal definition (TV line)

16:9

NTSC

Cable :1-135/ Air: 2-69 (ATV&DTV)

High-Definition Multimedia Interface (HDMI) Input

Audio Input x 3

Composite Video Input >=350

YCb(Pb)Cr(Pr) >=400

Video Input >=400

Input Power Voltage: AC 100V-240V 50/60Hz

ATSC Digital system and NTSC Analog system

Headphone Output x1

Coaxial Output

USB Input

Aspect Ratio:

Viewing Picture Size (diagonal)

Power consumption:

Audio Output Power (THD 7%):

YCb(Pb)Cr(Pr) Input

Composite Video Input

Analog RGB (VGA) Input

1366x768

32 inches

120W

2x8W

-4-

INTRODUCTION

Main features Accessories

Infrared Remote Control.................... 1

User s Manual .................................’1

Battery(AAA)................................... 2

Accessories

Main parameter

Power Cable..................................... 1

Integrated ATSC TV tuner for HDTV broadcast reception

High brightness provides a vivid and brilliant picture

Deeper blacks and brighter whites with high contrast

Wide Screen aspect ratio (16:9) for a complete home

theater experience

HDMI input for true digital connection

VGA port for connection to PC

Built-in stereo speaker system

Full-function Remote Control

■

-5-

This STAND INSTALLATION GUIDE is provided to help you easily install the stand. Please carefully follow

Step 1 through Step 3.

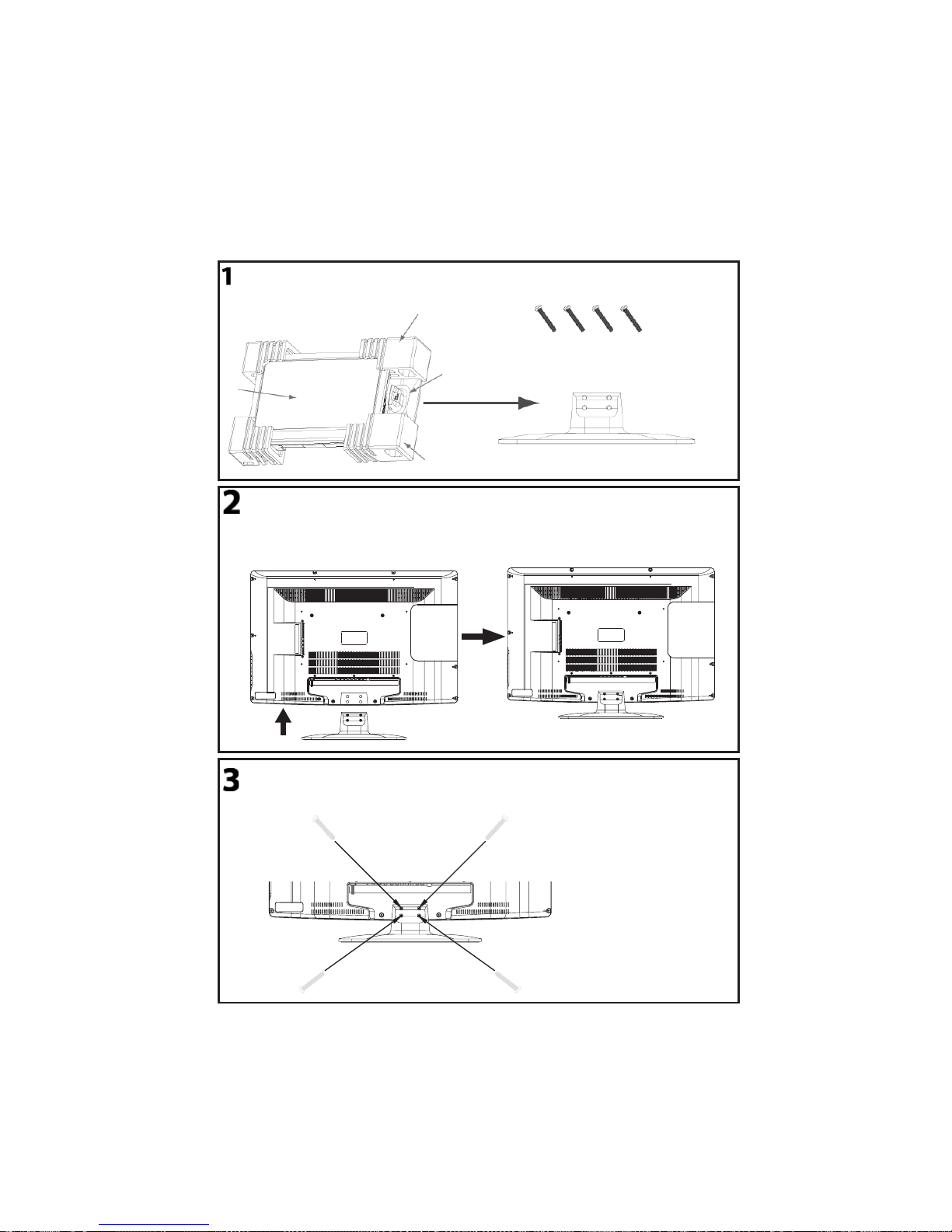

STAND INSTALLATION GUIDE

Open the box and find the parts

Open the box and find the following parts.

- Stand x1 pc

- Screws x 4 pcs

Packing

Stand

Packing

Screws

Stand

Place the Stand on the TV

1. Place the TV with the display side down

on a table or desk (flat, totally clean surface).

2. Place the Stand on the TV as shown below.

Stand

Secure the Stand to the TV

Secure the Stand to the TV by using the 4 supplied screws.

-6-

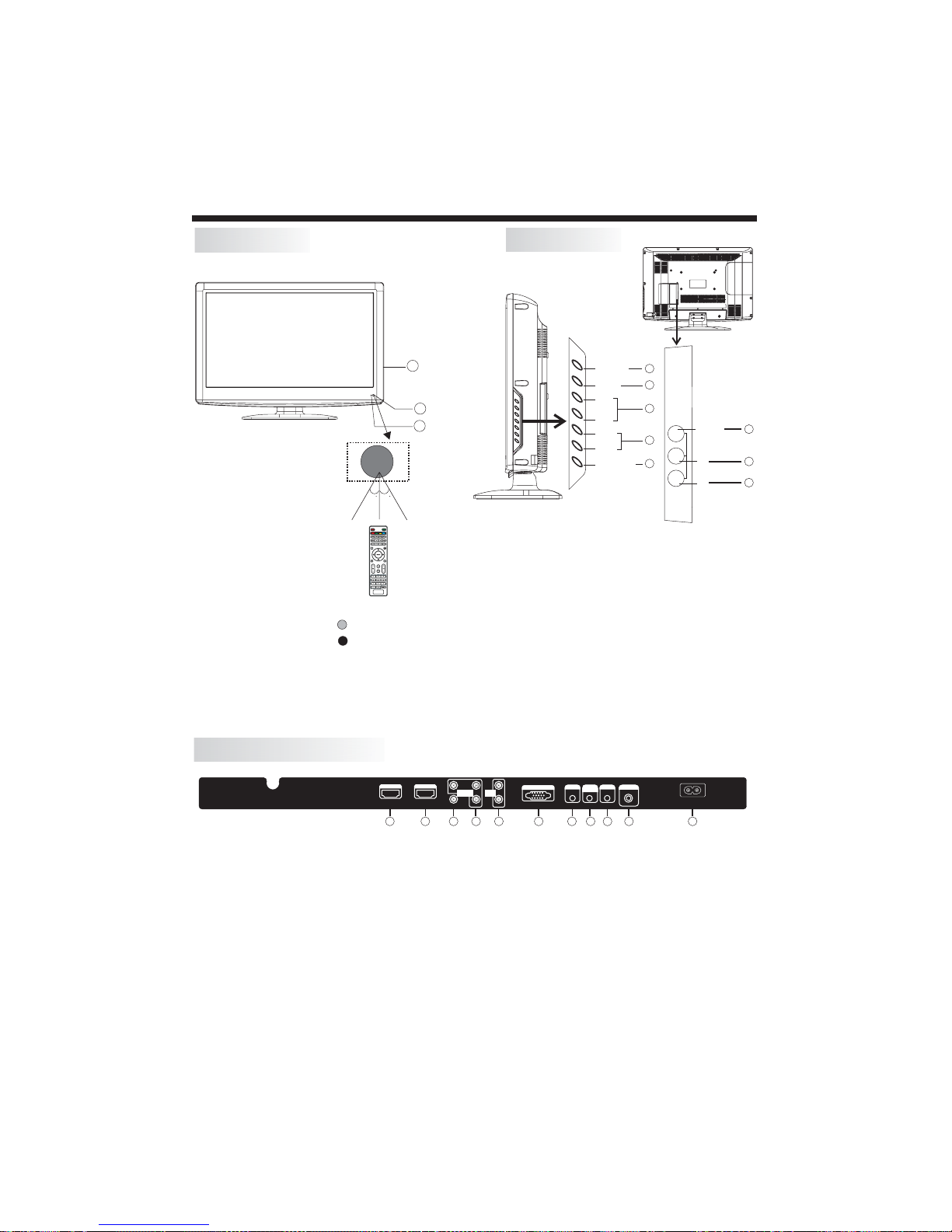

INSTALLATION

Front panel

REAR AV INPUT/OUTPUT

1: Remote control sensor.

2: Indicator LED: GREEN POWER ON.

RED STANDBY.

3: Side panel keys

1. SOURCE:

2. MENU:

3. CH+/CH-:

4. VOL+/VOL-:

5. STANDBY:

Display the input source menu.

Display main MENU.

In TV mode, press "CH+" or "CH-" to

change the channel up and down. In MENU mode, press

"CH+" or "CH-" to select items in standby mode, press

"CH+" or "CH-" to turn on the TV.

Adjust sound level. In MENU mode,

press "VOL+ " or "VOL- " to adjust the item that you

selected.

Press this button to turn the unit ON

from STANDBY mode. Press it again to turn the set

back to STANDBY.

6. VIDEO INPUT

7. AUDIO INPUT-L

8. AUDIO INPUT-R

Side panel

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

30 30

VIDEO

AV2

VIDEO

Note: 1. Composite video input and component video input share the audio input.

2. When HDMI1 has an input signal coming from a DVI source then the audio input signal must be

connected to the PC audio input.

3. When HDMI2 has an input signal coming from a DVI source then the audio input signal must be

connected to the YPbPr/AV audio input.

7. Headphone Output

8. PC Audio Input

9. Coaxial

10. Antenna Socket

11. AC Power Socket

1. HDMI1 Input

2. HDMI2 Input

3. Composite Video Input

4. Component Video (YPbPr) Input

5. Audio Input

6. VGA Port (PC Input)

1 2 34 5 678910 11

HDMI 1

AC INPUT

100-240V~50/60Hz

AV1

HEADPHONE

PC AUDIO

INPUT

COAXIAL RF IN PU T

COMPONENT

INPUT

AUDIO

INPUT

VGA INPUT

HDMI 2

-7-

INSTALLATION

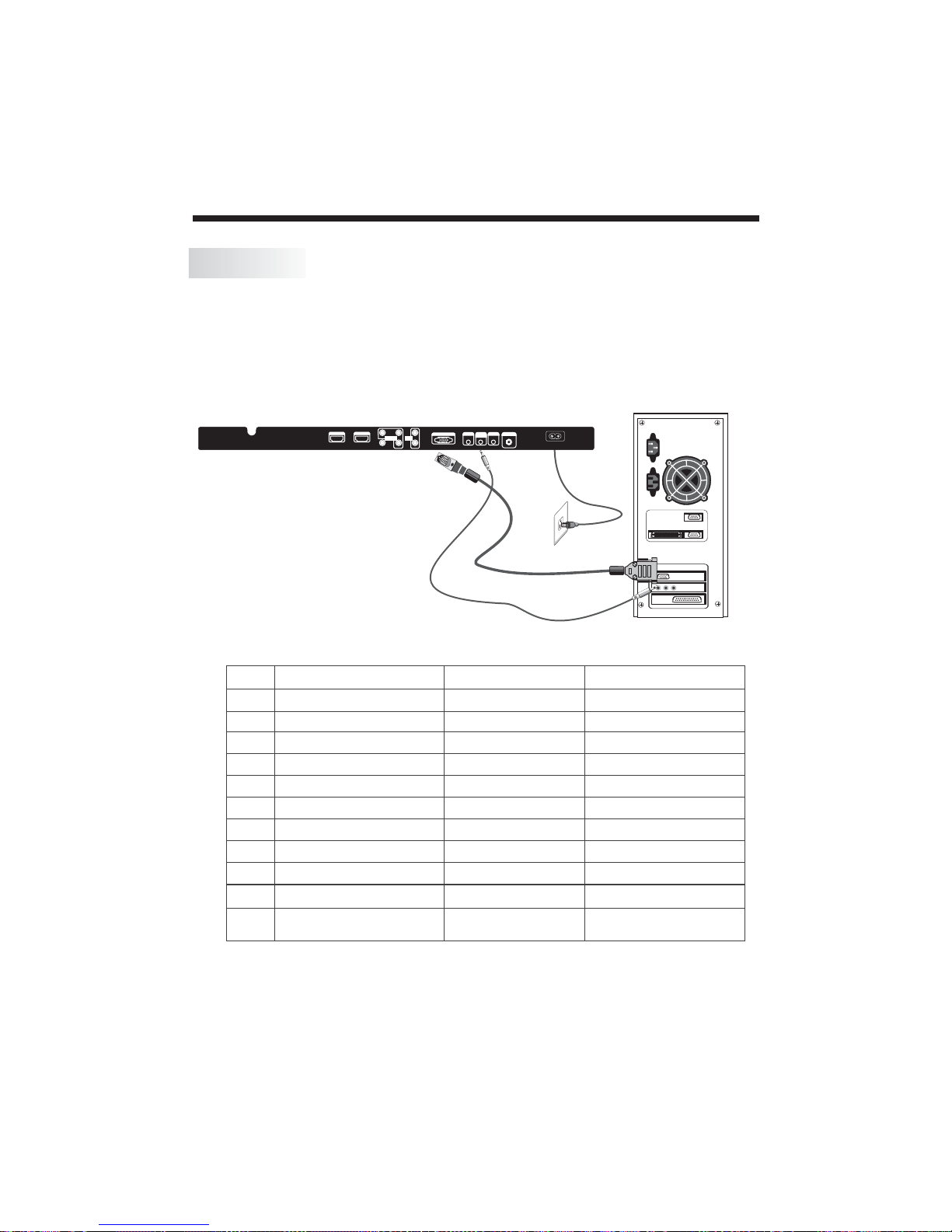

STEPS:

Be sure both the TV and computer are powered off.

1. Connect a VGA and audio cable.

2. Connect the power cord.

3. switch to VGA mode.

Turn on the TV and

Turn on the PC.

PRESET MODE

720*400

640*480

800*600

1024*768

1280*1024

31.47

37.50

37.88

46.88

48.36

56.48

60.02

63.98

80.00

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

HDMI 1

AC INPUT

100-240V~50/60Hz

AV1

HEADPHONE

PCAUDIO

INPUT

COAXIAL RF INP UT

COMPONENT

INPUT

AUDIO

INPUT

VGAINPUT

HDMI 2

1366*768 75 80.00

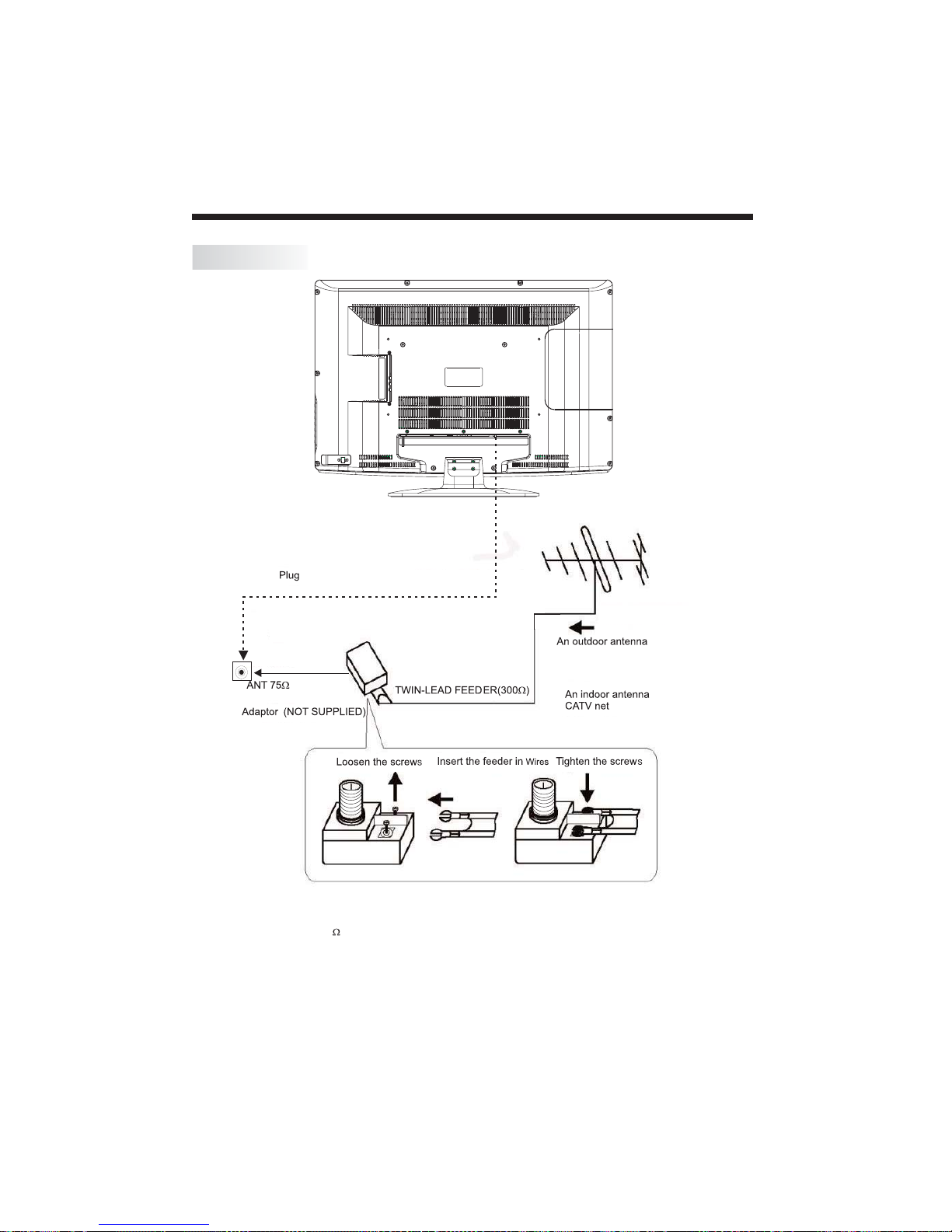

ANTENNA

Note:

Aerial connections:IEC(female).

Input impendance:75 unbalanced.

INSTALLATION

-8-

-9-

INSTALLATION

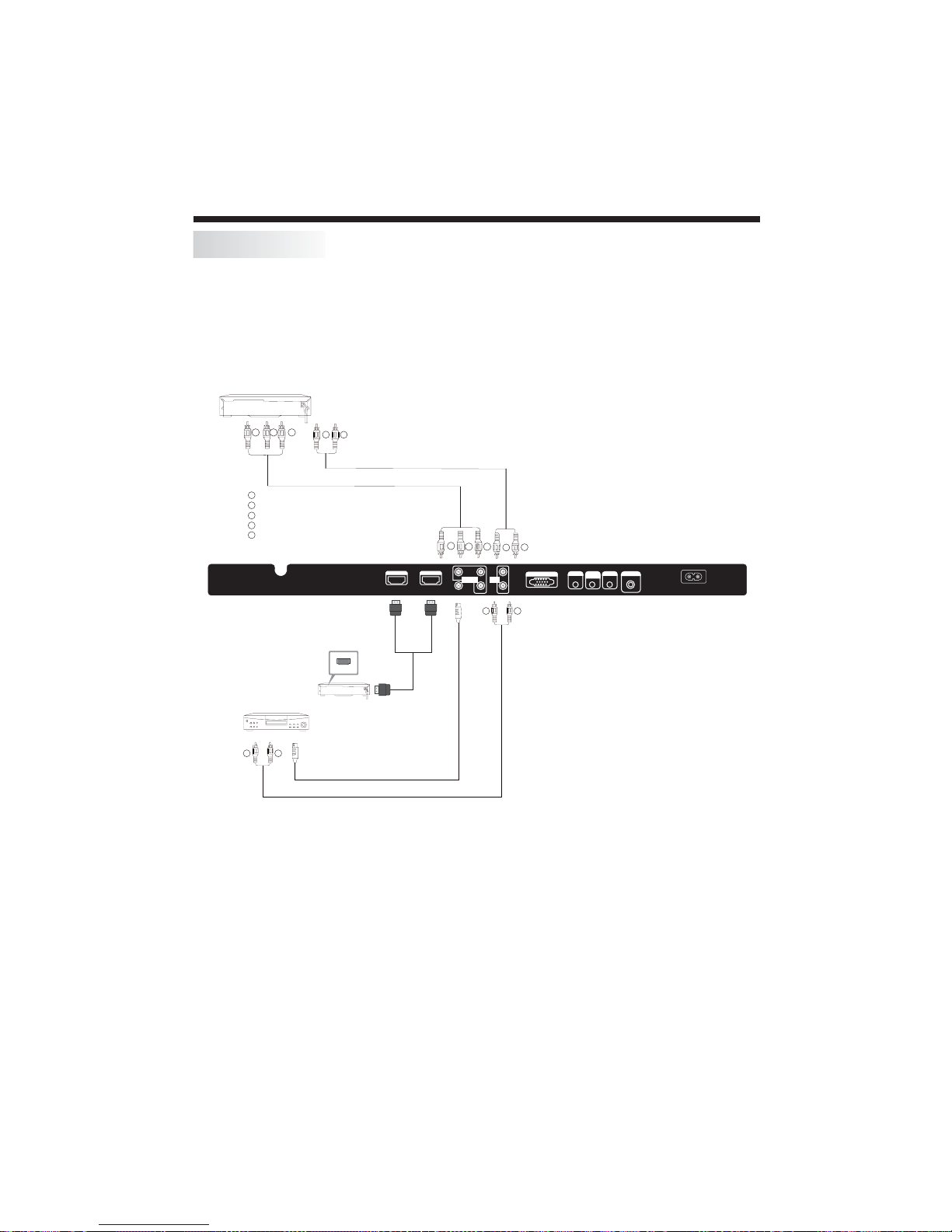

AV EQUIPMENT

There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video

equipment through these ports.

There is one component (Y, Pb, Pr) and two composite (AV) video input located on the back of your TV. You can connect

a VCR, cable box, or other video equipment to these jacks.

Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect.

To audio outputs

VIDEO EQUIPMENT

TO VIDEO

output

Yellow (video)

White(audio L)

Red(audio R or Pr)

W R

GBR

Blue(Pb)

Green(Y)

VIDEO EQUIPMENT with YPbPr

HDMI

HDMI 1

AC INPUT

100-240V~50/60Hz

AV1

HEADPHONE

PC AUDIO

INPUT

COAXIAL

RF IN PU T

COMPONENT

INPUT

AUDIO

INPUT

VGA INPUT

HDMI 2

The television's inputs can be connected to the following types of equipment: VCR, multi disc player, DVD, camcorder,

video game or stereo system, etc.....

There is a composite (AV) video input . You can use this AV input to

conveniently connect devices that you may frequently connect and disconnect, such as a camcorder.

Inhaltsverzeichnis

Andere Westinghouse Fernseher Handbücher

Westinghouse

Westinghouse DW46F1Y1 Bedienungsanleitung

Westinghouse

Westinghouse VR-3725 Bedienungsanleitung

Westinghouse

Westinghouse WE55UT4200 Bedienungsanleitung

Westinghouse

Westinghouse WD32HBB101 Bedienungsanleitung

Westinghouse

Westinghouse DWM55F1A1 Bedienungsanleitung

Westinghouse

Westinghouse WD70UB4580 Bedienungsanleitung

Westinghouse

Westinghouse DWM48F1Y1 Bedienungsanleitung

Westinghouse

Westinghouse CW40T2RW Bedienungsanleitung

Westinghouse

Westinghouse EW24T3LW Bedienungsanleitung

Westinghouse

Westinghouse DWM40F1A1 Bedienungsanleitung

Westinghouse

Westinghouse VR-4625 Bedienungsanleitung

Westinghouse

Westinghouse UW46T7HW Bedienungsanleitung

Westinghouse

Westinghouse WR65UX4019 Bedienungsanleitung

Westinghouse

Westinghouse WD48FW2490 Bedienungsanleitung

Westinghouse

Westinghouse VR-2215 Bedienungsanleitung

Westinghouse

Westinghouse VR-3225 Bedienungsanleitung

Westinghouse

Westinghouse EW37S5KW Bedienungsanleitung

Westinghouse

Westinghouse W3213 Montageanleitung

Westinghouse

Westinghouse WD28HC1160 Bedienungsanleitung

Westinghouse

Westinghouse WD50UC4300 Bedienungsanleitung

Westinghouse

Westinghouse DW46F1Y1 Bedienungsanleitung

Westinghouse

Westinghouse DWN40F1Y1 Bedienungsanleitung

Westinghouse

Westinghouse EW39T4LZ Bedienungsanleitung

Westinghouse

Westinghouse VR-2215 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
