Wharfedale Pro Titan 12 ACTIVE Bedienungsanleitung

PROFESSIONAL ACTIVE SPEAKER SYSTEM

TABLE OF CONTENTS

Page

1………………………………………………

2………………………………………………

3………………………………………………

4………………………………………………

5……………………………………………...

6……………………………………………...

7……………………………………………...

8……………………………………………...

9……………………………………………...

10………………………………………….…..

11……………………………………….……..

12……………………………………….……..

13……………………………………………...

14……………………………………….……..

15……………………………………….……..

16……………………………………….……..

Unpacking - Warnings and Safety

Introduction

Warranty

Feature Set

Description

Description (continued)

Optional Accessories

Enclosure Features

Front Panel Features

Rear Panel Layout

Rear Panel Features

Operating Instructions

Connection diagram #1

Connection diagram #2

Block Diagram

Specifications

Specifications (continued)

Dimensions

WARNING AND SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS carefully before operating this product.

2. RETAIN these instructions for future reference.

3. COMPLY WITH WARNINGS – All warnings and instructions for this product

should be adhered to.

4. SETUP PROCEDURES – In order to avoid speaker damage, it is advisable to

establish and follow a pattern for powering on and off any sound system. Make sure

that all input and output level controls are at their minimum settings on all components

of the system. With all system parts connected, power on source equipment (playback

units, instruments, mixers, signal processors, etc.), BEFORE powering on the active

speakers. Power on the active speakers LAST. Wait until all system components have

stabilized, then bring up volume controls to operating level. Similarly, when shutting a

system down, always turn down the active speaker input controls and then turn off the

active speakers BEFORE shutting down other system components.

5. CABLES – Be sure to use proper shielded signal cables for all line level and

microphone level connections to and from the active speakers.

6. RIGGING – SUSPENDING – MOUNTING The rigging, suspension or mounting

of this speaker system can expose members of the public to serious health risks and

even death. UNDER NO CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR

OTHERWISE MOUNT THIS SYSTEM UNLESS YOU ARE FULLY QUALIFIED AND

CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL

AUTHORITIES. ALL RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF

YOU ARE NOT PROPERLY QUALIFIED OR DO NOT KNOW OF PERTINENT

REGULATIONS, CONSULT QUALIFIED PERSONNEL FOR ADVICE AND

ASSISTANCE.

7. CAUTION – These professional loudspeaker systems are capable of

generating very high sound pressure levels. Use care with placement and operation to

avoid exposure to excessive sound levels that could cause permanent hearing

damage.

8. SERVICING – The user should not attempt to service this product. Please

contact your local Wharfedale Pro Service Center.

UNPACKING

All Wharfedale Pro products are fully checked before leaving the factory. After

unpacking, inspect the contents for any physical damage. Retain the shipping carton

and internal packing material. Check as soon as possible that the unit is functioning

properly. In the event of any shipping damage, please contact your dealer and the

shipper immediately to make a claim.

INTRODUCTION:

TITAN™ 12 ACTIVE 2-WAY POWERED LOUDSPEAKER

Congratulations! You’ve made the smart move of choosing the new Wharfedale Pro

Titan™ 12 ACTIVE, a lightweight and powerful active two-way loudspeaker designed

to produce high quality audio in any performance application.

A preeminent force in audio, with a long and distinguished history of innovation,

Wharfedale Loudspeakers was founded in 1932 by Gilbert Briggs, who built his first

loudspeakers in a small village in the county of Yorkshire, England. This quiet market

town was located in the valley of the river “Wharfe” – an area known to this day as

“Wharfedale”.

A visionary in the field of loudspeaker technology, Briggs developed the first two-way

loudspeaker – essentially the prototype of the modern loudspeaker. Today, as part of

International Audio Group, Wharfedale continues to grow as an international standard

for professional loudspeakers.

In keeping with Gilbert Brigg’s original vision, all of our transducer components are

engineered, tooled, and manufactured in our 1,500,000 square foot facility. In fact

Wharfedale is one of only a handful of manufacturers who still build all of their own

transducers.

All of which helps to explain how the new Titan™ 12 ACTIVE combines the newest

technologies, materials and design topology to ensure absolute accuracy, high output

and the smooth, wide dispersion of the critical mid and high frequency ranges.

Because of its functional cabinet design, the Titan™ 12 ACTIVE is versatile and easily

mounted in a variety of configurations. At home indoors or outdoors, on stage, in

studios, in clubs, at rehearsals, in theaters and houses of worship, the Titan™ 12

ACTIVE will provide the high standards of audio reproduction that you require.

WHARFEDALE PRO LIMITED WARRANTY

Wharfedale Pro Titan™ 12 ACTIVE loudspeakers systems are warranted to be clear

of manufacturing or material defects for a period of one year from the original date of

purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer

or distributor for information.

*Be aware that warranty details may differ from country to country. Contact your dealer or distributor for

information. These terms do not infringe your statutory rights.

Wharfedale Pro website: www.wharfedalepro.com

Wharfedale Pro is a member of the International Audio Group (IAG)

IAG reserves the right to alter or improve specifications without notice.

-2-way, active bi-amplified speaker system

-State-of-the-art, high efficiency switch mode power supply with a class D low

frequency power amplifier and a class A/B high frequency amplifier

-Low frequency power (Class D) 250W RMS, 500W PEAK

-High frequency power (Class A/B) 50W RMS, 100W PEAK

-Active signal limiting system with LED indicator on rear panel

-Power ‘ON’ LED indicators inside of the high frequency horn throat and on the

back panel

-Built in 2 channel mixer with microphone and line level inputs

-Balanced XLR line output for for connections to subwoofers or daisy-chaining

units together

-Switchable Bass Response Optimizer (BRO™) circuit

-Lightweight enclosure with rubberized transport handles for easy portability

-High density mineral loaded injection moulded polypropylene enclosure

-Ten M8 threaded insert rigging points

-Low distortion, high power handling, water resistant 12 inch woofer

-Professional high frequency compression driver with 2" titanium diaphragm

-Standard 35mm integral speaker stand socket and bottom mounted bracket

inserts

-XLR and TRS line inputs via convenient ‘combo’ jacks

-Two band master EQ controls

-Full Protection system: DC, overload, short circuit, thermal, On / Off mute and

LF / HF Limiters

Titan™ 12 Active Feature Set

Titan™ 12 ACTIVE DESCRIPTION

TRANSDUCERS

The Titan™ 12 ACTIVE features a custom designed, heavy-duty 12” low frequency

driver precisely matched to a high frequency 2” Titanium compression driver with

integral bi-amplification. Both drivers are designed for maximum output, wide

dispersion and precise audio signal reproduction.

AMPLIFIER

The Titan™ 12 ACTIVE features a state-of-the-art Class D low frequency amplifier

design. Class D amplifiers are known for their extended efficiency, low heat dissipation

and light weight compared to other amplifier classifications. Class D technology

allows for unparalleled audio quality in a lightweight, powered speaker system. High

frequency power is provided by a high quality, low distortion and highly efficient Class

A/B amplifier.

MIXER and CONTROLS

The Titan™ 12 ACTIVE provides basic mixing functions with a variety of input options.

Two inputs with separate level controls and a common equalization section allow for

overall balance and tonal characteristic control. Easy interfacing to external mixers

and processors provide for easy expansion to larger, more sophisticated systems.

ELLIPTICAL WAVE GUIDE™

Our unique EWG™ design is the result of intensive computer modeling of natural

acoustic wave propagation. To provide more acoustically transparent high-frequency

pattern control, hard edges, corners, and parallel surfaces were eliminated from the

design while still enabling 90 x 60 degree high frequency coverage. The smoother,

more “organic” shape of the EWG™ design reduces high frequency distortion and

diffraction eliminating acoustic artifacts found in other horn design technologies. The

result is smoother frequency response, greater driver efficiency, and improved

vocal and instrument reproduction.

PRACTICAL FEATURES

Designed for flexibility and ease of use, the Titan™ 12 ACTIVE also features a unique

BASS RESPONSE OPTIMIZER, or “BRO™ circuit” that works like the “loudness”

controls on vintage stereo systems. With the “BRO”™ circuit engaged, low frequency

response increases as the overall volume is decreased providing for outstanding low

frequency response at lower volume levels.

A top stacking feature is provided for multi-loudspeaker applications and the Titan™

12 ACTIVE also can be used on its side as a stage monitor. The speaker stand

receptacle features a locking screw to ensure stability and rubber-padded carry

handles make the job of transporting the enclosure easier than ever.

Cord wrap and cable anchor features are also moulded into the enclosure. Ten M8

threaded rigging points are provided for a variety of safe flying configurations with four

of these inserts available, bottom-mounted, in an OmniMount® 60.0 bracket footprint.

OPTIONAL ACCESSORIES

WALL MOUNT BRACKET – Enables surface mounting of the Titan™ 12 ACTIVE for

fixed installations with pan and tilt positioning.

TITAN™ TOUR BAG – Ballistic nylon zippered carry bag protects your Titan™ 12

ACTIVE and features a storage pocket for cables.

ENCLOSURE FEATURES

-Proprietary 90° x 60° Elliptical Wave Guide™ horn design

-Custom 12” Low Frequency driver and Titanium High Frequency compression driver

provide exceptional clarity, high power handling capability and maximum efficiency

-Protective metal grille

-Rugged Polypropylene injection moulded cabinets with rubberized over-molded

handles and multiple M8 rigging points including wall mount bracket inserts

-Trapezoidal shape allows for vertical arrays as well as horizontal stage monitor

applications

-Integral tripod stand adapter

-Power on indicator in horn throat and on rear panel

Titan™ 12 ACTIVE DESCRIPTION (cont.)

1. High frequency driver and power on indicator

The high frequency driver is a custom designed 2" titanium compression driver.

A circular blue power ‘ON’ indicator is embedded in the throat of the horn. (There is

an additional power ‘ON’ LED indicator on the rear panel).

2. Elliptical Wave Guide™

The EWG™ design is designed to provide acoustically transparent high frequency

pattern control. This EWG™ waveguide (horn) enables a 90 x 60 degree high frequency

coverage.

3. Ports

There are two ports on front of the Titan™ 12 ACTIVE that are reflex tuned to provide

enhanced low frequency response from the enclosure.

4. Low frequency driver

The low frequency driver is a custom designed, high quality 12" loudspeaker.

5. Pole mount socket and bracket attachment

The bottom of the Titan™ 12 ACTIVE provides a convenient built in pole mount

socket for easy mounting on a standard 35mm diameter speaker stand pole.

Four threaded inserts for a wall mount bracket are also provided on the bottom of

the enclosure.

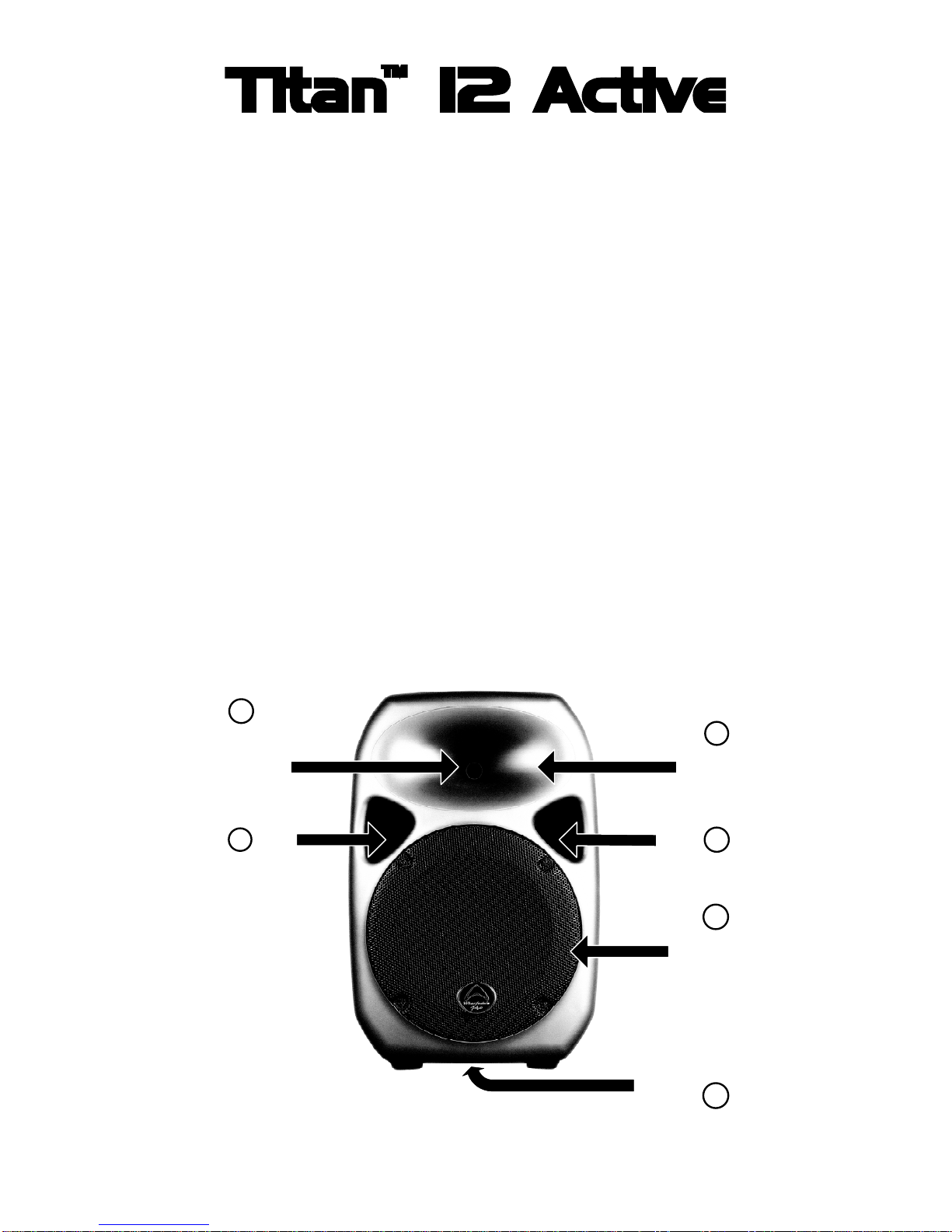

Titan™ 12 ACTIVE - Front Panel Features

PORT

ELLIPTICAL WAVE GUIDE™

LOW FREQUENCY

DRIVER

HIGH FREQUENCY DRIVER

AND POWER ON INDICATOR

3PORT

POLE MOUNT SOCKET

AND WALL BRACKET

INSERTS

(BALANCED) (BALANCED)

LOOP MIX

POWER

connector

“BRO™”

circuit switch

POWER ON /

OFF switch

Heat Sink

XLR

OUTPUT

connector

XLR /¼” combo

jacks for INPUT

A & B

RCA INPUT L & R

(Left and Right)

VOLUME

controls A & B

HI / LOW EQ

(equalization)

controls

MIC / LINE switch

POWER ON

LED indicator

and LIMIT LED

indicator

OUTPUT source

LOOP / MIX

switch

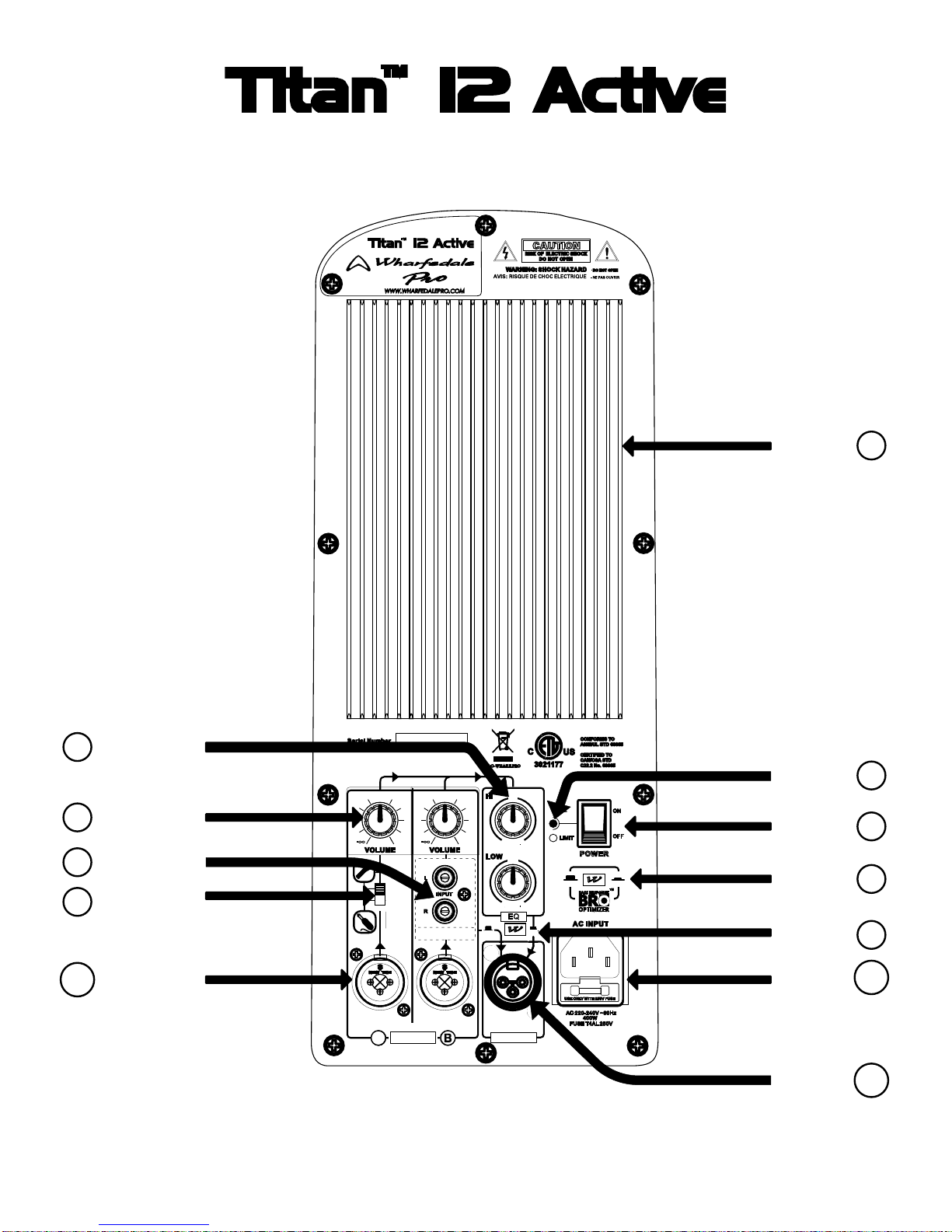

Titan™ 12 ACTIVE REAR PANEL LAYOUT

INPUT OUTPUT

OFF ON

MAX -10dB +10dB

-10dB +10dB

HIGH

LOW

GAIN

MAX

l l

CD/TAPE

Andere Handbücher für Titan 12 ACTIVE

Inhaltsverzeichnis

Andere Wharfedale Pro Lautsprechersystem Handbücher

Wharfedale Pro

Wharfedale Pro Titan 8 Passive Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro KH series Bedienerhandbuch

Wharfedale Pro

Wharfedale Pro Opus 1 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro LX-E Series Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro WLA Series Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro MS-100 HCP and Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro WLA Series Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Achromatic WA-T4 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro VS series Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Vardus Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro VECTOR-12 Leitfaden

Wharfedale Pro

Wharfedale Pro LX Seroes Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Link-800 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Achromatic WA-T4 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Versadrive SC-26 Leitfaden

Wharfedale Pro

Wharfedale Pro Diamond 10 HCP Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Achromatic series Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro Twin 8X Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro RS10 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro WLA25SF Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro D9.0 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro LA-15 Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro DX-1HCP Bedienungsanleitung

Wharfedale Pro

Wharfedale Pro RS-10 Bedienungsanleitung

Beliebte Lautsprechersystem Handbücher anderer Marken

JVC

JVC CA-MXK5R Bedienungsanleitung

LG NB4532B Bedienungsanleitung

JVC

JVC CA-FSH100 Bedienungsanleitung

5Core

5Core Pro Series Bedienungsanleitung

EAW

EAW MQV1394e Bedienungsanleitung

Lynx

Lynx GXR-LA10A Bedienungsanleitung

iLive

iLive ITB066B Bedienungsanleitung

RDX

RDX QuickStation 4 Bedienungsanleitung

Electro-Voice

Electro-Voice S-122 Bedienungsanleitung

Sven

Sven SPS-619 GOLD Bedienungsanleitung

Pioneer

Pioneer CS-7070 Bedienungsanleitung

EAW

EAW UB82e Bedienungsanleitung

Sondpex

Sondpex Active Speaker System and Digital Music... Bedienungsanleitung

JVC

JVC NX-PN7 Bedienungsanleitung

Marshall Amplification

Marshall Amplification AR-DM61-BT Bedienungsanleitung

Yamaha

Yamaha NX-A01 - Speaker Sys Bedienungsanleitung

SE Audiotechnik

SE Audiotechnik I-LINE Bedienungsanleitung

Gemini

Gemini WRX-843 Series Bedienungsanleitung
