Wharfedale Pro Diamond Studio BT Series Bedienungsanleitung

Congratulations on the purchase of your Diamond Studio -BT studio monitor. We take great pride in engineering and building

every Wharfedale Pro product and wish to thank you for entrusting us with your audio.

From the time Gilbert Briggs built his ﬁrst loudspeaker in 1932, to the present day, we have maintained the same standard of

quality in components, workmanship and performance.

Please take the time to read this guide completely in order to get the most from your new monitors.

Your full user manual can also be downloaded from www.wharfedalepro.com

REAR INPUT CONTROLS

Bluetooth

with TWS pairing

RCA inputs

Rear panel

volume control

High frequency

control

Low frequency

control

Balanced XLR input

and

balanced 6.3 mm input

HF LEVEL (dB)

0+1

-2 +2

VOLUME

+10 dB

Diamond Studio 5-BT

AC INPUT

POWER

OFF

L R

TWS

ON/OFF (2 s)

AC 100 V-240 V ~50/60 Hz

140 W

FUSE T 2.5 AL 250 V

LF LEVEL (dB)

0+1

-2 +2

BLUETOOTH OPERATION - SINGLE SPEAKER USE ONLY.

(Always turn volume down on rear to a safe level when making connections)

1 - Turn the Diamond Studio -BT on, press and hold the Bluetooth button until the LED turns a ﬂashing Blue.

2 - On your mobile device, select Diamond Studio -BT

3 - The LED on the rear of the Diamond Studio will stop ﬂashing and will turn solid Blue. Its paired!

4 - Play audio from the mobile device ensuring the output volume is appropriately set.

BLUETOOTH OPERATION - TWS Link mode.

(Always turn volume down on rear to a safe level when making connections. Important : Turn oﬀ Bluetooth on your mobile

device until TWS linking has been established)

1 - Turn the Diamond Studio -BT on. Press and hold the Bluetooth button until the LED turns a ﬂashing Blue.

2 - Double tap the Bluetooth button (0.7 sec). The LED will ﬂash between RED and BLUE. (It is looking for another Diamond Studio -BT)

3 - On the second Diamond Studio -BT monitor, repeat steps 1 and 2 above.

4 - When the monitors have paired between themselves, the LEDs will change from ﬂashing RED and BLUE, to be Blue. One

monitor will be ﬂashing blue. It’s waiting for you to connect….

5 - On your mobile device, select Diamond Studio -BT. If pairing is unsuccessful, select the other Diamond Studio -BT in your list

of Bluetooth devices.

6 - Play audio from the mobile device ensuring the output volume is appropriately set.

Pair with 1 loudspeaker or pair and make a

wireless stereo system

Diamond Studio -BT Diamond Studio -BT

15 m

8 m

15 m

Diamond Studio -BT

15 m

Diamond Studio BT series

QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

Before installing or using this product read all these instructions!

Keep these instructions. Heed any warnings. Follow all instructions.

Before making any connections, switch all the devices in your system oﬀ at the mains.

Set the volume control at minimum when you switch on your system or change sources and turn the level up gradually.

Ensure that all devices in the system are correctly wired.

DO NOT use this product at full volume.

DO NOT subject your loudspeakers to excessive cold, heat, humidity, or sunlight.

DO NOT place heavy objects on top of loudspeakers.

DO NOT dismantle the loudspeaker. There are no user serviceable parts inside, and you will void the warranty by

doing so.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in

any way, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Caution: Changes or modiﬁcations not expressly approved by the manufacturer could void the user's authority to

operate this device.

WHARFEDALE PRO LIMITED WARRANTY

Wharfedale Pro products are warranted of manufacturing or material defects for a period

of one year from the original date of purchase. In the event of malfunction, contact your

authorized Wharfedale Pro dealer or distributor for information.

*Be aware that warranty details may diﬀer from country to country. Contact your dealer or distributor for information.

These terms do not infringe your statutory rights.

FEATURE OVERVIEW

• Bluetooth, 6.3 mm, XLR and RCA inputs

• TWS linking

• 5.0” Custom ﬁbreglass cone Wharfedale Pro LF driver

• Bi-ampliﬁed with two reﬁned ampliﬁers

• Independent High and Low frequency level controls

• Honest, uncoloured sound

• 140 Watts Continuous

• 280 Watts Peak

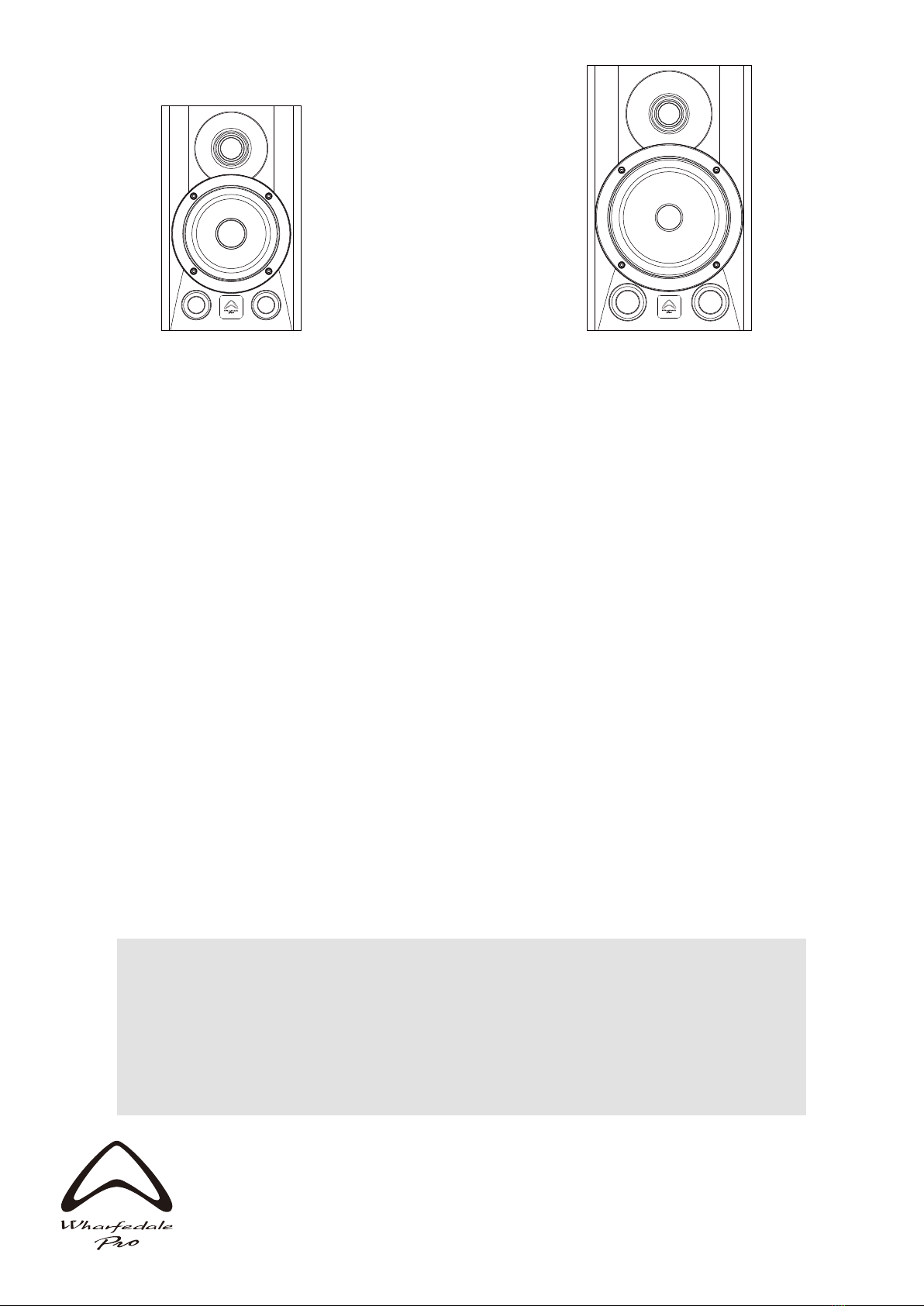

Diamond Studio 5-BT

• Bluetooth, 6.3 mm, XLR and RCA inputs

• TWS linking

• 6.5” Custom ﬁbreglass cone Wharfedale Pro LF driver

• Bi-ampliﬁed with two reﬁned ampliﬁers

• Independent High and Low frequency level controls

• Honest, uncoloured sound

• 150 Watts Continuous

• 300 Watts Peak

Diamond Studio 7-BT

WHARFEDALE PROFESSIONAL

IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE27 7DL, UK

www.wharfedalepro.com

Wharfedale Professional reserves the right to alter or improve speciﬁcations without notice.

September 2021
