Description

The Wheelock Series E Low Proﬁle Speakers and Speaker Strobes

are designed for high efﬁciency sound output, with dual voltage

(25/70 VRMS) capability and ﬁeld selectable taps from 1/8 to 2

watts. The low proﬁle design incorporates a speaker mounting plate

for faster and easier installation. Each model has a built-in level

adjustment feature and an aesthetic two (2) screw grille cover.

The Series E Speaker Strobe models incorporate the Low Current

draw Series RSS Strobes.

Strobe options for wall mount models include 1575 or Wheelock

patented MCW multi-candela strobe with ﬁeld selectable candela

settings of 15/30/75/110cd or the high intensity MCWH strobe with

ﬁeld selectable 135/185cd.

Ceiling mount models are available in Wheelock patented MCC

multi-candela ceiling strobe with ﬁeld selectable intensities of

15/30/75/95cd or the high intensity MCCH strobe with field

selectable 115/177cd.

Series E Speakers and Speaker Strobes provide high audio

output with clear audibility and are designed to meet the critical

needs of the life safety industry for effective emergency voice

communications, tone signaling and visible signaling to alert the

hearing impaired.

The strobe portion of all Series E Speaker Strobes may be

synchronized when used in conjunction with the Wheelock SM,

DSM Sync Modules or Wheelock PS-24-8MC power supply with

Patented Sync Protocol. Wheelock synchronized strobes offer

an easy way to comply with ADA recommendations concerning

photosensitive epilepsy.

Series E Speaker Strobes are UL Listed for indoor use under

Standard 1971 (Signaling Devices for the Hearing-Impaired) and

Standard 1480 (Speaker Appliances), and use a Xenon ﬂashtube

with solid state circuitry enclosed in a rugged Lexan® lens to

provide maximum reliability for effective visual signaling. All

inputs are supervised and employ IN/OUT wiring terminals for fast

installation using #12 to #18 AWG wiring.

Color options for the Series E Speakers and Speaker Strobes are

red, white and nickel plated.

Features

• Approvals include: UL Standard 1971, UL Standard 1480,

New York City (MEA), California State Fire Marshal (CSFM),

Factory Mutual (FM) and Chicago (BFP) See approvals by

model in Speciﬁcations and Ordering Information

• ADA/NFPA/ANSI compliant

• Complies with OSHA 29 Part 1910.165

• Wall mount models are available with Field Selectable

Candela Settings of 15/30/75/110cd or 135/185cd (Multi-

Candela models), or 1575cd (Single Candela model)

• Ceiling mount models are available with ﬁeld selectable

candela settings of 15/30/75/95cd or 115/177cd (Multi-

candela models)

• Strobes produce 1 ﬂash per second over the regulated

voltage range

• 24 VDC with wide UL “Regulated Voltage”

using ﬁltered DC or unﬁltered VRMS input voltage

• Synchronize with Wheelock SM, DSM or Wheelock PS-24-

8MC Power Supply with built-in sync protocol

• Field selectable taps for 25 or 70 VRMS operation from 1/8

watt up to 2 watts

• High efﬁciency design for maximum output at minimum

wattage across a frequency range of 400 to 4000 HZ

• Fast installation with IN/OUT screw terminals using #12 to

#18 AWG wires

SERIES E70

STROBE SERIES E90

SPEAKER

Series E70 Speakers and Speaker Strobes

151-92-E

S5391 7125-0785:152

7320-0785:134 (Speaker)

SERIES E90

STROBE

SERIES E70

SPEAKER

Table 1: UL Max Current*

E70/E90

Speaker

Strobes

E70 Strobe Current - Wall Mount E90 Strobe Current - Ceiling Mount

241575W 24MCW 24MCWH 24MCC 24MCCH

1575cd 15cd 30cd 75cd 110cd 135cd 185cd 15cd 30cd 75cd 95cd 115cd 177cd

16-33 VDC 0.090 0.060 0.092 0.165 0.220 0.300 .0420 0.065 0.105 0.189 0.249 0.300 0.420

Table 2: E70/E90 UL Reverberant dBA @ 10 Feet**

watts 1/8 1/4 1/2 1 2

E Speaker 77 81 83 86 89

E Speaker Strobe 76 80 82 85 88

**dBA ratings are based on testing under UL Standard 1480.

* UL max current rating is the maximum RMS current

within the listed voltage range (16-33v for 24v

units). For strobes the UL max current is usually at

the minimum listed voltage (16v for 24v units). For

audibles the max current is usually at the maximum

listed voltage (33v for 24v units). For unﬁltered FWR

ratings, see installation instructions.

NOTE: All CAUTIONS and WARNINGS are identiﬁed by the symbol . All warnings are printed in bold capital letters.

WARNING: PLEASE READ THESE SPECIFICATIONS AND ASSOCIATED INSTALLATION INSTRUCTIONS CAREFULLY BEFORE USING, SPECIFYING OR

APPLYING THIS PRODUCT. VISIT WWW.COOPERWHEELOCK.COM OR CONTACT COOPER WHEELOCK FOR THE CURRENT INSTALLATION INSTRUCTIONS.

FAILURE TO COMPLY WITH ANY OF THESE INSTRUCTIONS, CAUTIONS OR WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR

OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE, AND SERIOUS INJURY OR DEATH TO YOU

AND/OR OTHERS.

General Notes:

• Strobes are designed to ﬂash at 1 ﬂash per second minimum over their “Regulated Voltage Range”. Note that NFPA-72 speciﬁes a ﬂash rate of 1

to 2 ﬂashes per second and ADA Guidelines specify a ﬂash rate of 1 to 3 ﬂashes per second.

• All candela ratings represent minimum effective Strobe intensity based on UL Standard 1971.

• Series NS Strobe products are listed under UL Standard 1971 for indoor use with a temperature range of 32°F to 120°F (0°C to 49°C) and

maximum humidity of 93% (± 2%).

• Series NH horns are listed under UL Standard 464 for audible signal appliances (Indoor use only).

• “Regulated Voltage Range” is the newest terminology used by UL to identify the voltage range. Prior to this change UL used the

terminology “Listed Voltage Range”.

Series PS-12/24-8MP

EOLR

F�

A�

C�

P�

OUTPUTS

1-4

4-CLASS

"B"

2-CLASS

"A"

ERSS

RSS

DSM

+ OUT 2

+OUT 1

+ IN 1

+ IN 2

MINUS 1

MINUS 2

SYNC

AUDIBLE

STROBE

NAC

CIRCUIT

OUT

STROBE

NAC

CIRCUIT

RETURN

FACP

EEE

DSM #3

Audible NAC Cir.

Strobe NAC Cir.

DSM #2

DSM #1

Strobe NAC Cir.

Audible NAC Cir.

E E

Sync

DSM Interconnecting wiring shown. Maximum of

twenty (20)

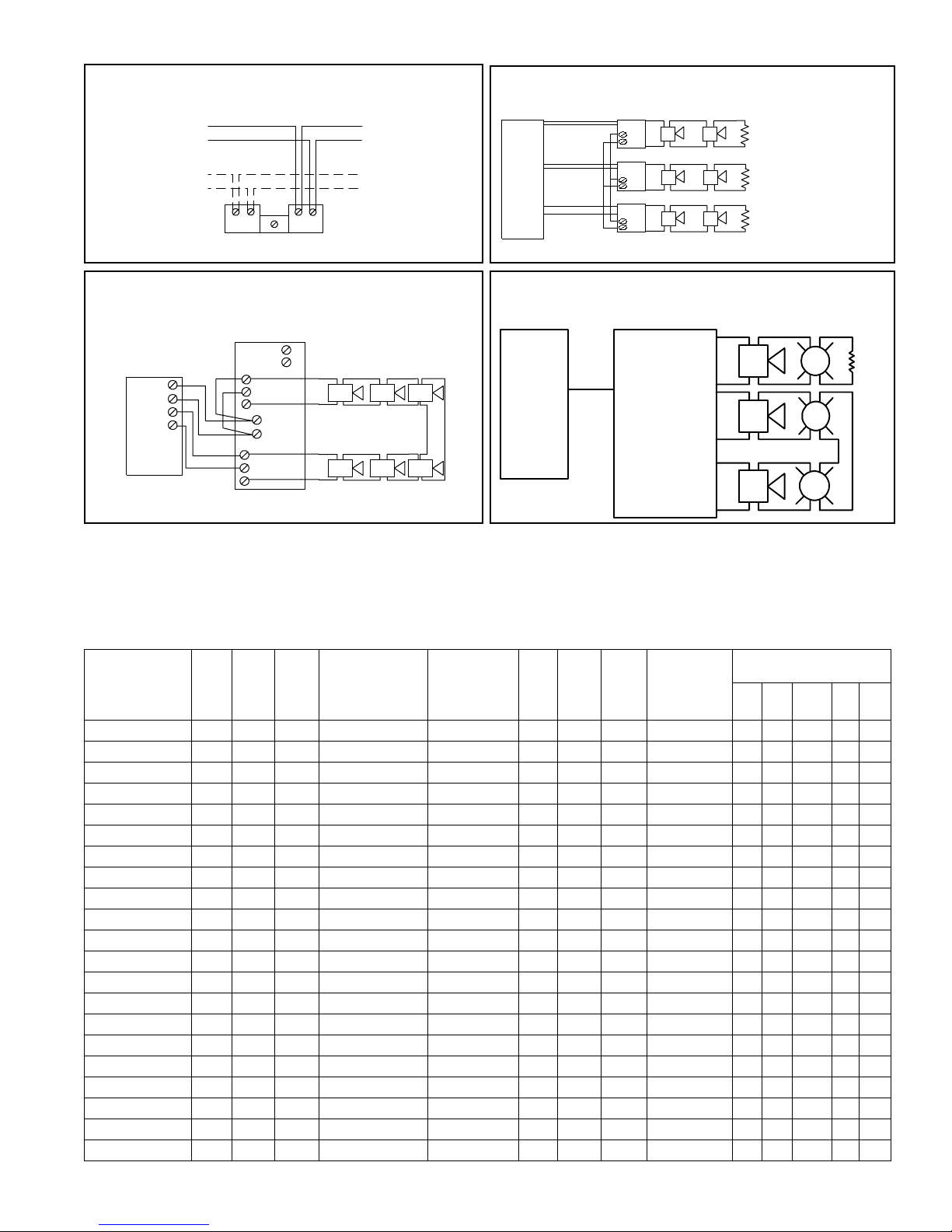

Wiring Diagrams#

For wiring information on the PS-24-8MC power supply, please refer to Data Sheet #S8900.

SERIES E SPEAKER & STROBE OPERATE

INDEPENDENTLY (NON-SYNC OR SYNC)

SERIES E SPEAKER STROBES SYNCHRONIZED

WITH MULTIPLE DSM MODULES

SERIES E SPEAKER STROBE APPLIANCES

SYNCHRONIZED WITH DSM MODULE SINGLE

CLASS “A”

SERIES E SPEAKER STROBE APPLIANCES & RSS

STROBES SYNCHRONIZED WITH PS-12/24-8CP and

PS-12/24-8MP

Note: Figure

shows intercon-

nection to strobe

through sync

module. Speaker

portion requires 2

separate conduc-

tors to FACP.

# For detail using SM or DSM Sync Module refer to Data Sheet S3000 or Installation Instructions P83123 for SM and P83177 for

DSM. For wiring information on the power supplies refer to Installation Instructions P84662.

TO NEXT

APPLIANCE

OR EOLR

FROM

PRECEDING

APPLIANCE

OR VOICE

EVACUATION

PANEL TO NEXT

STROBE

EOLR

FROM

PRECEDING

STROBE, SYNC

MODULE,

POWER SUPPLY

FACP

SPEAKER

STROBE

+-+

+ +

Model Order

Code

Wall

Mount

Ceiling

Mount

Strobe Sync w/

SM, DSM or

PS-24-8MC

Strobe

Candela

Model

Color

RED

Model

Color

White

Model

Color

Nickel

Mounting Op-

tions

Agency Approvals

UL MEA CSFM FM BFP

E70-24MCW-FR 9022 X - X 15/30/75/110 X - - L,O,P,Q,R,U,Y X X X X X

E70-24MCW-FW 9023 X - X 15/30/75/110 - X - L,O,P,Q,R,U,Y X X X X X

E70-24MCW-FN 3099 X - X 15/30/75/110 - - X Q,U X X X X X

E70-241575W-FR 7871 X - X 15 (75 on Axis) X - - L,O,P,Q,R,U,Y X X X X X

E70-241575W-FW 7876 X - X 15 (75 on Axis) - X - L,O,P,Q,R,U,Y X X X X X

E70-241575W-FN 3100 X - X 15 (75 on Axis) - - X L,O,P,Q,R,U,Y X X X X X

E70-R 7866 X X - - X - - Q,U X X X X X

E70-W 7868 X X - - - X - Q,U X X X X X

E70-N 3108 X X - - - - X Q,U X X X X X

E70-24MCWH-FR 3470 X - X 135/185 X - - L,O,P,Q,R,U,Y X X X X *

E70-24MCWH-FW 3474 X - X 135/185 - X - L,O,P,Q,R,U,Y X X X X *

E70-24MCWH-FN 0059 X - X 135/185 - - X Q,U X X X X *

E90-24MCC-FW 3166 - X X 15/30/75/95 - X - Q,U,V X X X X *

E90-24MCC-FR 3165 - X X 15/30/75/95 X - - Q,U,V X X X X *

E90-24MCC-FN 3185 - X X 15/30/75/95 - - X Q,U,V X X X X *

E90-W 7869 X X - - - X - Q,U,V X X X X X

E90-R 7867 X X - - X - - Q,U,V X X X X X

E90-N 3109 X X - - - - X Q,U,V X X X X X

E90-24MCCH-FW 3471 - X X 115/177 - X - Q,U,V X X X X *

E90-24MCCH-FR 3481 - X X 115/177 X - - Q,U,V X X X X *

E90-24MCCH-FN 0062 - X X 115/177 - - X Q,U,V X X X X *

Speciﬁcations and Ordering Information

*PENDING

Architects and Engineers Speciﬁcations

S1610 E70/E90 03/07

The speaker appliances shall be Wheelock Series E Speakers and the speaker strobe appliances shall be Wheelock Series E Speaker

Strobes or approved equals. The speakers shall be UL Listed under Standard 1480 for Fire Protective Service and speakers equipped

with strobes shall be listed under UL Standard 1971 for Emergency Devices for the Hearing-Impaired. In addition, the strobes shall be

certiﬁed to meet the requirements of FCC Part 15, Class B.

All speakers shall be designed for a ﬁeld selectable input of either 25 or 70 VRMS, with selectable power taps from 1/8 watt to 2 watts.

All models shall have listed sound output of up to 87 dB at 10 feet and a listed frequency response of 400 to 4000 Hz. The speaker

shall also incorporate a sealed back construction. All inputs shall employ terminals that accept #12 to #18 AWG wire sizes. The strobe

portion of the appliance shall produce a ﬂash rate of one (1) ﬂash per second over the Regulated Voltage Range and shall incorporate

a Xenon ﬂashtube enclosed in a rugged Lexan® lens. The strobe shall be of low current design. Where Multi-Candela Speaker Strobes

are speciﬁed, the strobe intensity shall have ﬁeld selectable settings and shall be rated per UL Standard 1971 at 15/30/75/110cd or

135/185cd for wall mount and 15/30/75/95cd or 115/177cd for ceiling mount. The selector switch for selecting the candela shall be

tamper resistant. The 1575 candela strobe shall be speciﬁed when 15 candela UL Standard 1971 Listing with 75 candela on-axis is

required (e.g. ADA compliance).

When synchronization is required, the strobe portion of the appliance shall be compatible with Wheelock SM, DSM sync modules or

Wheelock PS-24-8MC power supply with built-in Patented Sync Protocol. The strobes shall not drift out of synchronization at any time

during operation. If the sync module or Power Supply fails to operate, (i.e., contacts remain closed), the strobe shall revert to a non-

synchronized ﬂash rate.

The speaker and speaker strobe appliances shall be designed for indoor surface or ﬂush mounting. The speaker and speaker strobe

shall incorporate a speaker mounting plate with a grille cover which is secured with two screws for a level, aesthetic ﬁnish and shall

mount to standard electrical hardware requiring no additional trimplate or adapter.

The ﬁnish of the Series E speakers and strobe speakers shall be white, red, or nickel plate.

All speaker and speaker strobe appliances shall be backward compatible.

WE ENCOURAGE AND SUPPORT NICET CERTIFICATION

3 YEAR WARRANTY

Made in USA

273 Branchport Avenue

Long Branch, NJ 07740

Phone: (800) 631-2148

Fax: (732) 222-2588

www.cooperwheelock.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wheelock Sprecher Handbücher

Wheelock

Wheelock ET90-24MCC Series Bedienungsanleitung

Wheelock

Wheelock Cooper ET70 Bedienungsanleitung

Wheelock

Wheelock STH-15S-ULC Bedienungsanleitung

Wheelock

Wheelock ST-H15-B Bedienungsanleitung

Wheelock

Wheelock ET90-24MCCH Bedienungsanleitung

Wheelock

Wheelock Cooper ET70 Bedienungsanleitung

Wheelock

Wheelock Cooper ET70 Bedienungsanleitung

Wheelock

Wheelock E70-2415W Bedienungsanleitung

Wheelock

Wheelock SSB-4 Bedienungsanleitung

Wheelock

Wheelock STH-4M30WC Bedienungsanleitung

Wheelock

Wheelock Cooper E60-R Bedienungsanleitung

Wheelock

Wheelock E50 Bedienungsanleitung

Wheelock

Wheelock E50 Bedienungsanleitung

Wheelock

Wheelock SA-S90-24MCC-FR Bedienungsanleitung

Wheelock

Wheelock STH-2 MSR Bedienungsanleitung

Wheelock

Wheelock SA-S70-R Bedienungsanleitung

Wheelock

Wheelock E60 Bedienungsanleitung

Wheelock

Wheelock Cooper ET70 Bedienungsanleitung

Wheelock

Wheelock SA-S70-24MCW-FR Bedienungsanleitung

Wheelock

Wheelock RSSA-24MCC-NW Note 5 Bedienungsanleitung

Wheelock

Wheelock Cooper ET-1010-R Bedienungsanleitung

Wheelock

Wheelock NS4-24MCW Bedienungsanleitung

Wheelock

Wheelock SA-70S-LS-24 Bedienungsanleitung

Wheelock

Wheelock STH-4R24MCCH110R-NR Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
