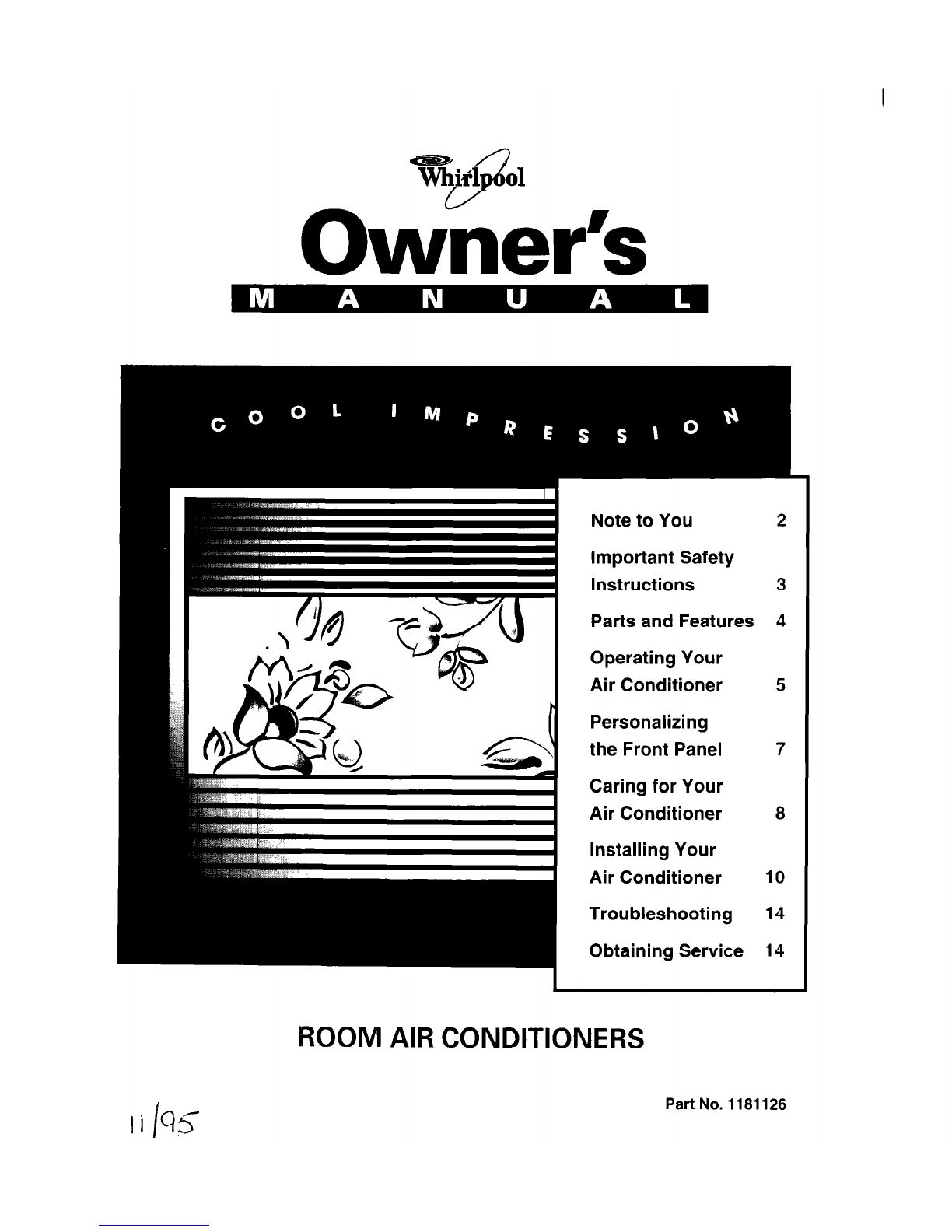

Whirlpool 3QACM07XD2 Bedienungsanleitung

Owher’s

Note to You

Important Safety

Instructions

Parts and Features

Operating Your

Air Conditioner

Personalizing

the Front Panel

Caring for Your

Air Conditioner

Installing Your

Air Conditioner

Troubleshooting

Obtaining Service

ROOM AIR CONDITIONERS

Part No. 1161126

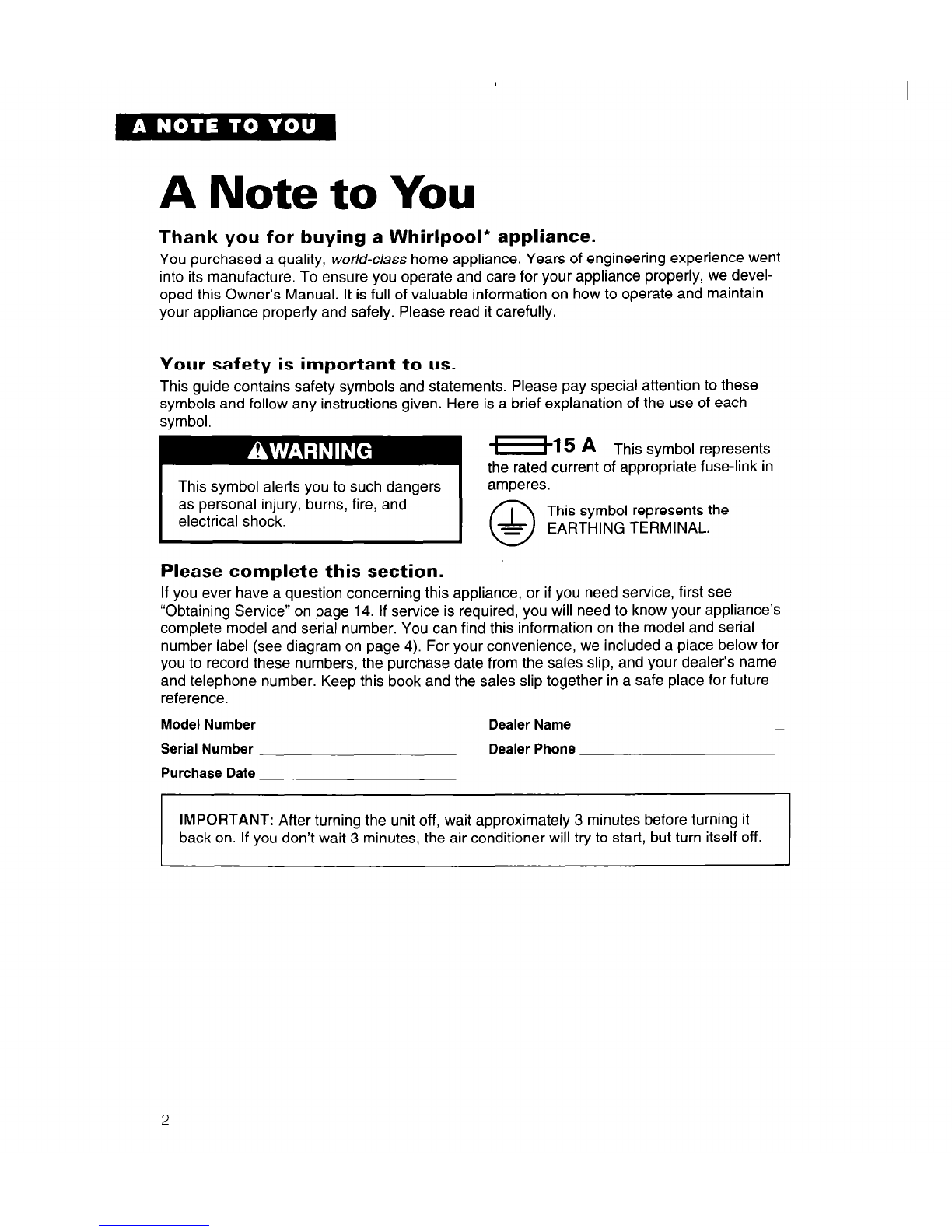

A Note to You

Thank you for buying a Whirlpool* appliance.

You purchased a quality, world-class home appliance. Years of engineering experience went

into its manufacture. To ensure you operate and care for your appliance properly, we devel-

oped this Owner’s Manual. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

Please complete this section.

If you ever have a question concerning this appliance, or if you need service, first see

“Obtaining Service” on page 14. If service is required, you will need to know your appliance’s

complete model and serial number. You can find this information on the model and serial

number label (see diagram on page 4). For your convenience, we included a place below for

you to record these numbers, the purchase date from the sales slip, and your dealer’s name

and telephone number. Keep this book and the sales slip together in a safe place for future

reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

IMPORTANT: After turning the unit off, wait approximately 3 minutes before turning it

back on. If you don’t wait 3 minutes, the air conditioner will try to start, but turn itself off.

I 1

Important Safety Instructions

l Read all instructions before using your

air conditioner.

l Complete the installation requirements

as described in “Installing Your Air

Conditioner” on pages 1O-l 3.

l Do not allow children to operate or play

with the air conditioner.

l Do not use an extension cord with this

or any other appliance.

l Plug the air conditioner into a grounded

electrical outlet only.

l Do not operate the air conditioner with

the front panel removed.

. Never clean air conditioner parts with

flammable fluids. The fumes can create

a fire hazard or explosion.

. FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPOURS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Consumer responsibilities

Please:

l The steps on pages 1O-l 3 must

be performed by a qualified installer.

l Be sure the air conditioner is the correct

voltage and size for the area you want

to cool.

l Be sure the air conditioner is installed in

accordance with all national electrical

codes and wiring regulations.

l Use the air conditioner only for the uses

described in this manual.

l Be sure the air conditioner is not used by

anyone unable to operate it properly.

l Maintain the air conditioner properly.

l If power cord is damaged, be sure it is

replaced or repaired by an authorized

service technician.

Also, please DO NOT use sharp instru-

ments, flammable fluids, or abrasive

cleaners. These can damage the surface

of the air conditioner.

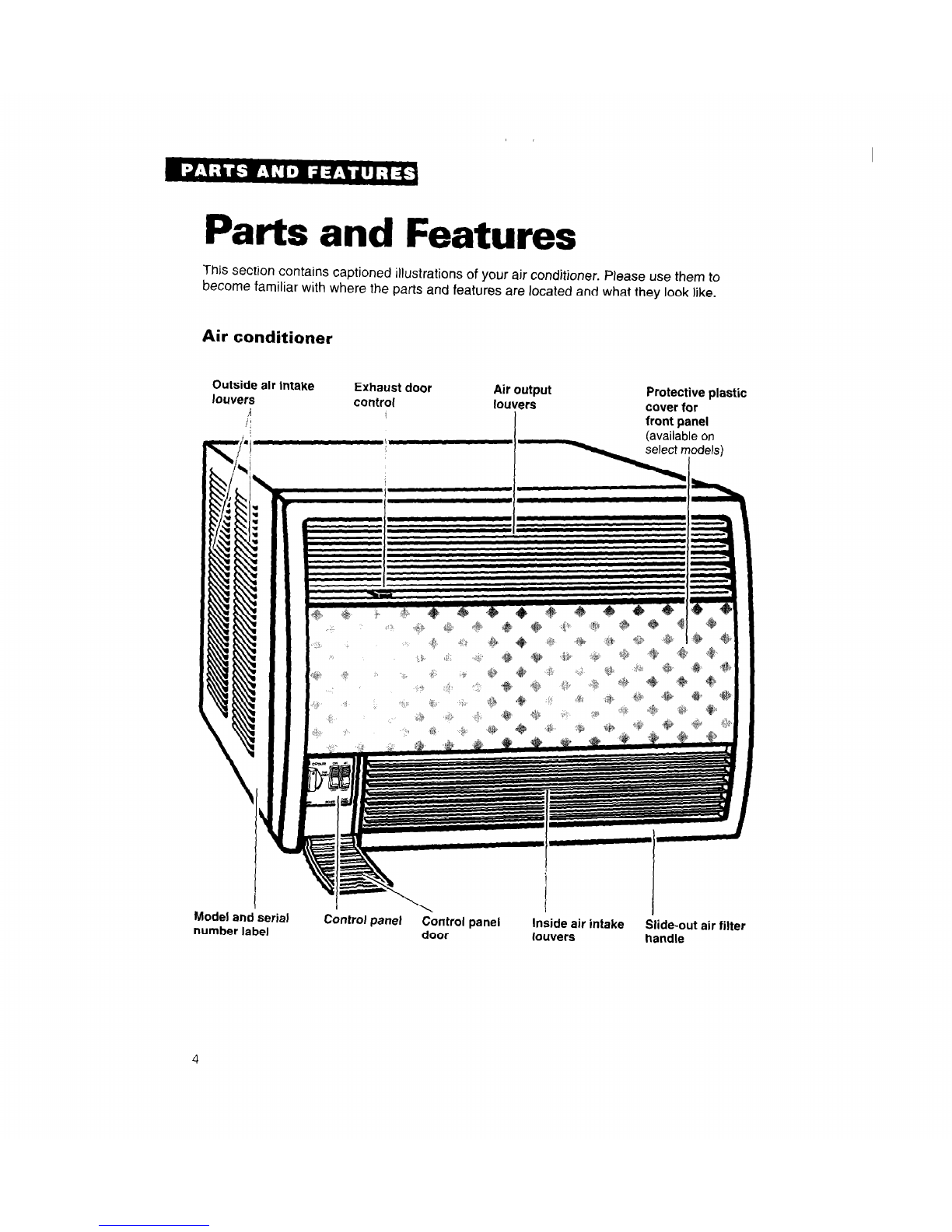

Parts and Features

This section contains captioned illustrations of your air conditioner. Please use them to

become familiar with where the parts and features are located and what they look like.

Air conditioner

Outside air intake Exhaust door

louvers control Air output

louvers Protective plastic

cover for

Model and serw

number label Control

panel

Control panel Inside air intake Slide-out air filter

door louvers handle

Operating Your

Air Conditioner

In This Section

Page

Turning the air conditioner on/off .... . ... ,j

Modifying the fan speed . .. . ..._............ 5

Modifying the temperature .. . . ....._...... 6

Page

Using the FAN ONLY Cycle .................6

Modifying the air direction ....................6

Using the exhaust door ........................6

Operating your air conditioner properly is essential to obtain the best possible results. This

section tells you about each cycle and how to operate it.

Turning the air conditioner on/off

To turn the air conditioner on:

@Set the POWER Switch to ON.

To turn the air conditioner off:

* Set the POWER Switch to OFF.

1 --

IMPORTANT: After

wait approximately 3 minutes before

1 turning it back on. If you don’t wait 3

OFF

/ minutes, the air conditioner will try to

start, but turn itself off.

POWER

Modifying the fan speed

Use the FAN SPEED Switch to select a

desired fan speed. Use the speeds as

follows:

HI Speed -

Use for maximum cooling.

LOW Speed -

Use for sleeping comfort.

liil

LOW

FAN

SPEED

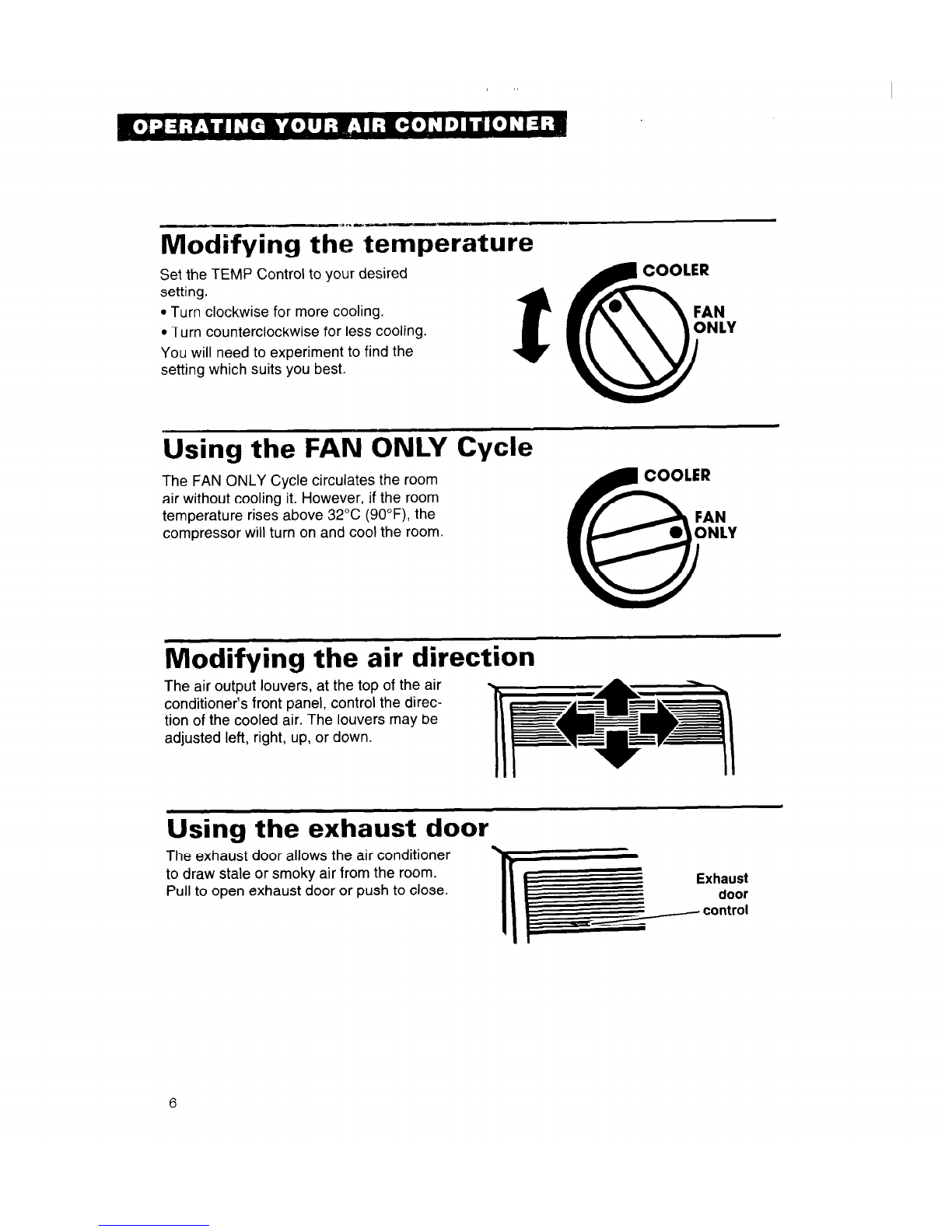

Modifying the temperature

Set the TEMP Control to your desired

setting.

l Turn clockwise for more cooling.

l Turn counterclockwise for less cooling.

You will need to experiment to find the

setting which suits you best.

Using the FAN ONLY Cycle

The FAN ONLY Cycle circulates the room

air without cooling it. However, if the room

temperature rises above 32°C (9O”F), the

compressor will turn on and cool the room.

Modifying the air direction

The air output louvers, at the top of the air

conditioner’s front panel, control the direc-

tion of the cooled air. The louvers may be

adjusted left, right, up, or down.

Using the exhaust door

The exhaust door allows the air conditioner

to draw stale or smoky air from the room.

Pull to open exhaust door or push to close.

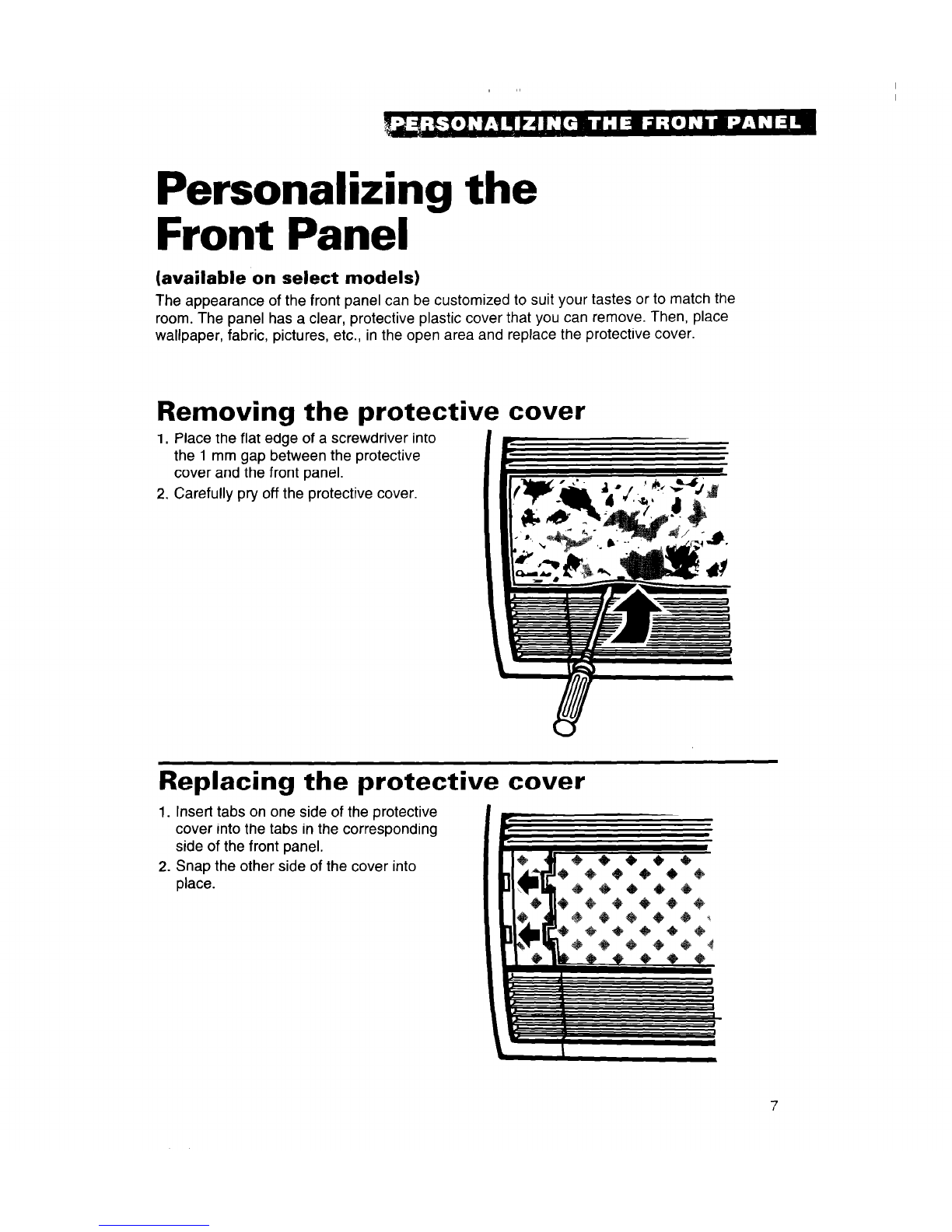

Personalizing the

Front Panel

(available on select models)

The appearance of the front panel can be customized to suit your tastes or to match the

room. The panel has a clear, protective plastic cover that you can remove. Then, place

wallpaper, fabric, pictures, etc., in the open area and replace the protective cover.

Removing the protective cover

1. Place the flat edge of a screwdriver into

the 1 mm gap between the protective

cover and the front panel.

2. Carefully pry off the protective cover.

Replacing the protective cover

1. Insert tabs on one side of the protective

cover into the tabs in the corresponding

side of the front panel.

2. Snap the other side of the cover into

place.

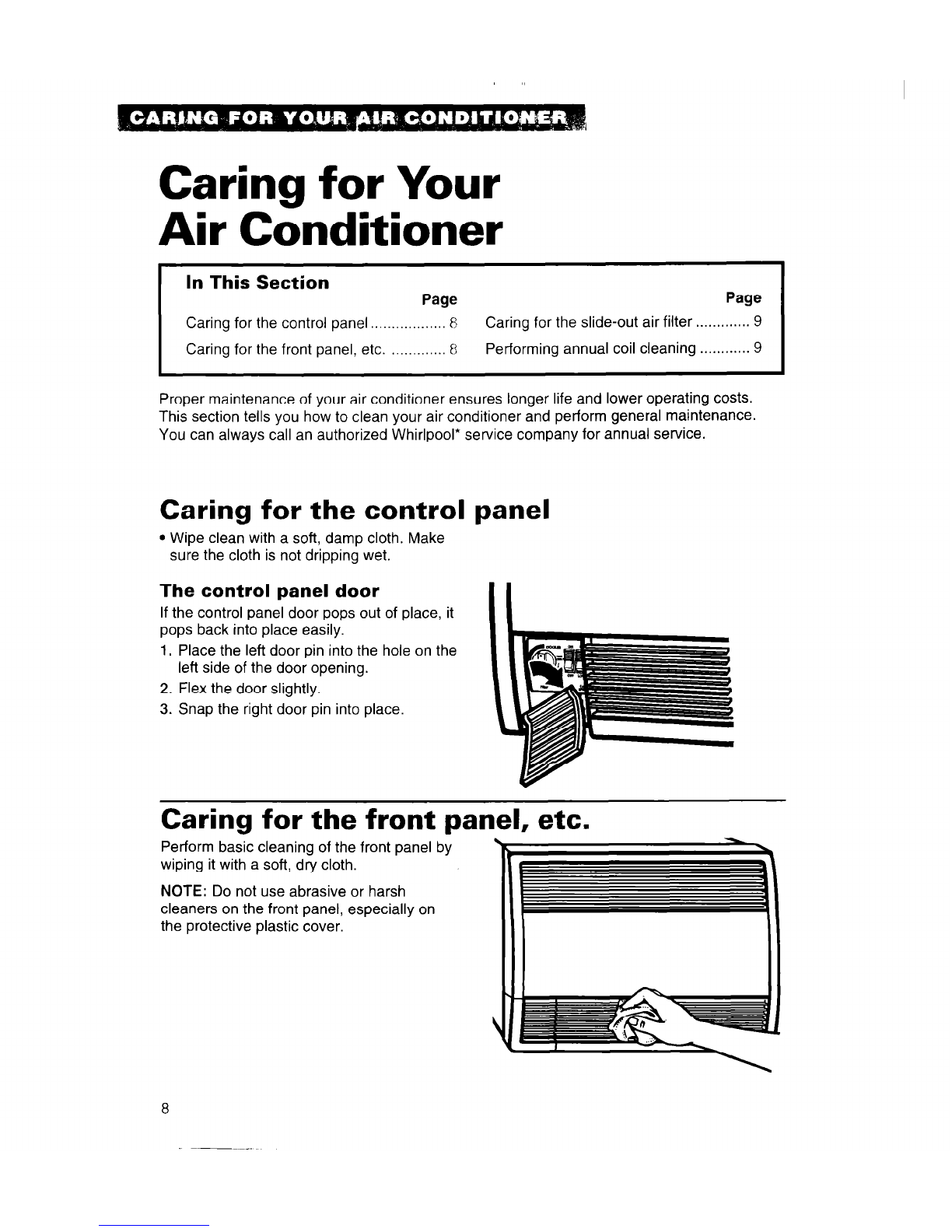

Caring for Your

Air Conditioner

In This Section

Page

Caring for the control panel ..__..,.,.,...... 8

Caring for the front panel, etc. ._,..,.,..... 8

Page

Caring for the slide-out air filter ............. 9

Performing annual coil cleaning ............ 9

Proper maintenance of your air conditioner ensures longer life and lower operating

costs.

This section tells you how to clean your air conditioner and perform general maintenance.

You can always call an authorized Whirlpool* service company for annual service.

Caring for the control panel

l Wipe clean with a soft, damp cloth. Make

sure the cloth is not dripping wet.

The control panel door

If the control panel door pops out of place, it

pops back into place easily.

1. Place the left door pin into the hole on the

left side of the door opening.

2. Flex the door slightly.

3. Snap the right door pin into place.

Caring for the front panel, etc.

Perform basic cleaning of the front panel by

wiping it with a soft, dry cloth.

NOTE: Do not use abrasive or harsh

cleaners on the front panel, especially on

the protective plastic cover.

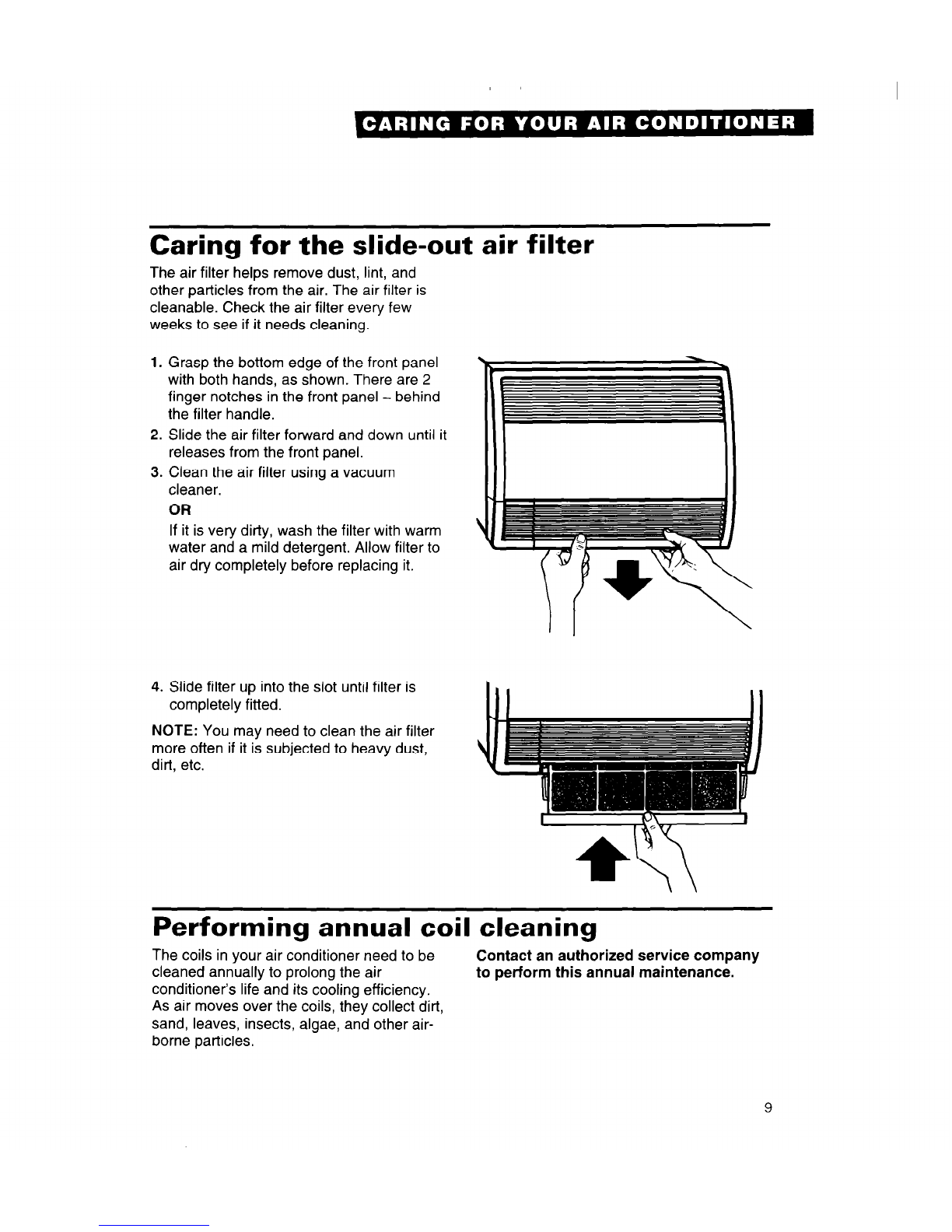

Caring for the slide-out air filter

The air filter helps remove dust, lint, and

other particles from the air. The air filter is

cleanable. Check the air filter every few

weeks to see if it needs cleaning.

1. Grasp the bottom edge of the front panel

with both hands, as shown. There are 2

finger notches in the front panel - behind

the filter handle.

2. Slide the air filter forward and down until it

releases from the front panel.

3. Clean the air filter using a vacuum

cleaner.

If it is very dirty, wash the filter with warm

water and a mild detergent. Allow filter to

air dry completely before replacing it.

4. Slide filter up into the slot until filter is

completely fitted.

NOTE: You may need to clean the air filter

more often if it is subjected to heavy dust,

dirt, etc.

Performing annual coil cleaning

The coils in your air conditioner need to be Contact an authorized service company

cleaned annually to prolong the air to pet-form this annual maintenance.

conditioner’s life and its cooling efficiency.

As air moves over the coils, they collect dirt,

sand, leaves, insects, algae, and other air-

borne particles.

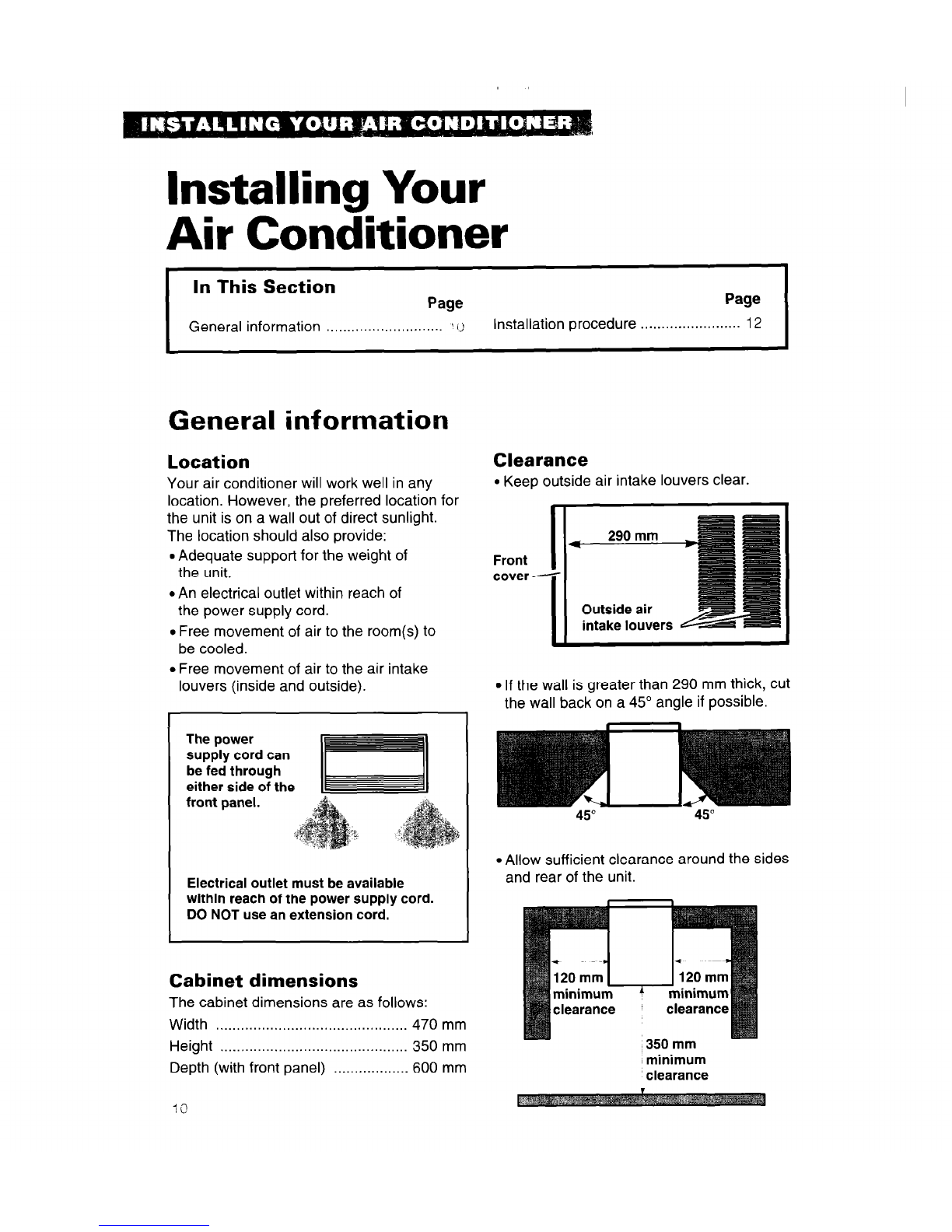

Installing Your

Air Conditioner

In This Section

Page Page

General information ..,...,....._._,,.,........_ IIJ Installation procedure ........................ 12

General information

Location

Your air conditioner will work well in any

location. However, the preferred location for

the unit is on a wall out of direct sunlight.

The location should also provide:

9Adequate support for the weight of

the unit.

l An electrical outlet within reach of

the power supply cord.

l Free movement of air to the room(s) to

be cooled.

l Free movement of air to the air intake

louvers (inside and outside).

The power

supply cord can

be fed through

either side of the

front panel.

Electrical outlet must be available

within reach of the power supply cord.

DO NOT use an extension cord.

Cabinet dimensions

The cabinet dimensions are as follows:

Width .............................................. 470 mm

Height ............................................. 350 mm

Depth (with front panel) .................. 600 mm

Clearance

l Keep outside air intake louvers clear.

I I

Front I

cover-i Outside air

intake louvers

l If the wall is greater than 290 mm thick, cut

the wall back on a 45” angle if possible.

l Allow sufficient clearance around the sides

and rear of the unit.

1120 mm 1 I120 mm

clearance clearance

,350 mm

minimum

clearance

Inhaltsverzeichnis

Andere Whirlpool Klimaanlage Handbücher

Whirlpool

Whirlpool R-94 Bedienungsanleitung

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Original Betriebsanleitung

Whirlpool

Whirlpool FM07IDUWA2 Bedienungsanleitung

Whirlpool

Whirlpool COOL IMPRESSION SERIES Bedienungsanleitung

Whirlpool

Whirlpool 1163505 Bedienungsanleitung

Whirlpool

Whirlpool ACXO82XZO Bedienungsanleitung

Whirlpool

Whirlpool SPOW 407 Bedienungsanleitung

Whirlpool

Whirlpool ACM062 Bedienungsanleitung

Whirlpool

Whirlpool ACQL128XS0 Bedienungsanleitung

Whirlpool

Whirlpool AC1888 Bedienungsanleitung

Whirlpool

Whirlpool ACV09000R Installationsanleitung

Whirlpool

Whirlpool 66161279 Bedienungsanleitung

Whirlpool

Whirlpool AMAP050BW Bedienungsanleitung

Whirlpool

Whirlpool ACE244PT1 Bedienungsanleitung

Whirlpool

Whirlpool AMD034 Bedienungsanleitung

Whirlpool

Whirlpool 1188176-W Stücklistenhandbuch

Whirlpool

Whirlpool ACE082XP1 Bedienungsanleitung

Whirlpool

Whirlpool WHAW061BW Bedienungsanleitung

Whirlpool

Whirlpool CA15WYR0 Bedienungsanleitung

Whirlpool

Whirlpool AMD 313 Bedienungsanleitung

Whirlpool

Whirlpool WHAW050BW Bedienungsanleitung

Whirlpool

Whirlpool ACM062 Bedienungsanleitung

Whirlpool

Whirlpool MAGICOOL Bedienungsanleitung

Whirlpool

Whirlpool AMAP151BW Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
