Owner’s

A Note to You 2

Important Safety

Instructions 3

Parts and Features 4

Operating Your

Air Conditioner 6

Personalizing

the Front Panel 12

Caring for Your

Air Conditioner 13

installing Your

Air Conditioner 16

Troubleshooting 20

Obtaining Service 20

ROOM AIR CONDITIONERS

L((

Part No. 1181125

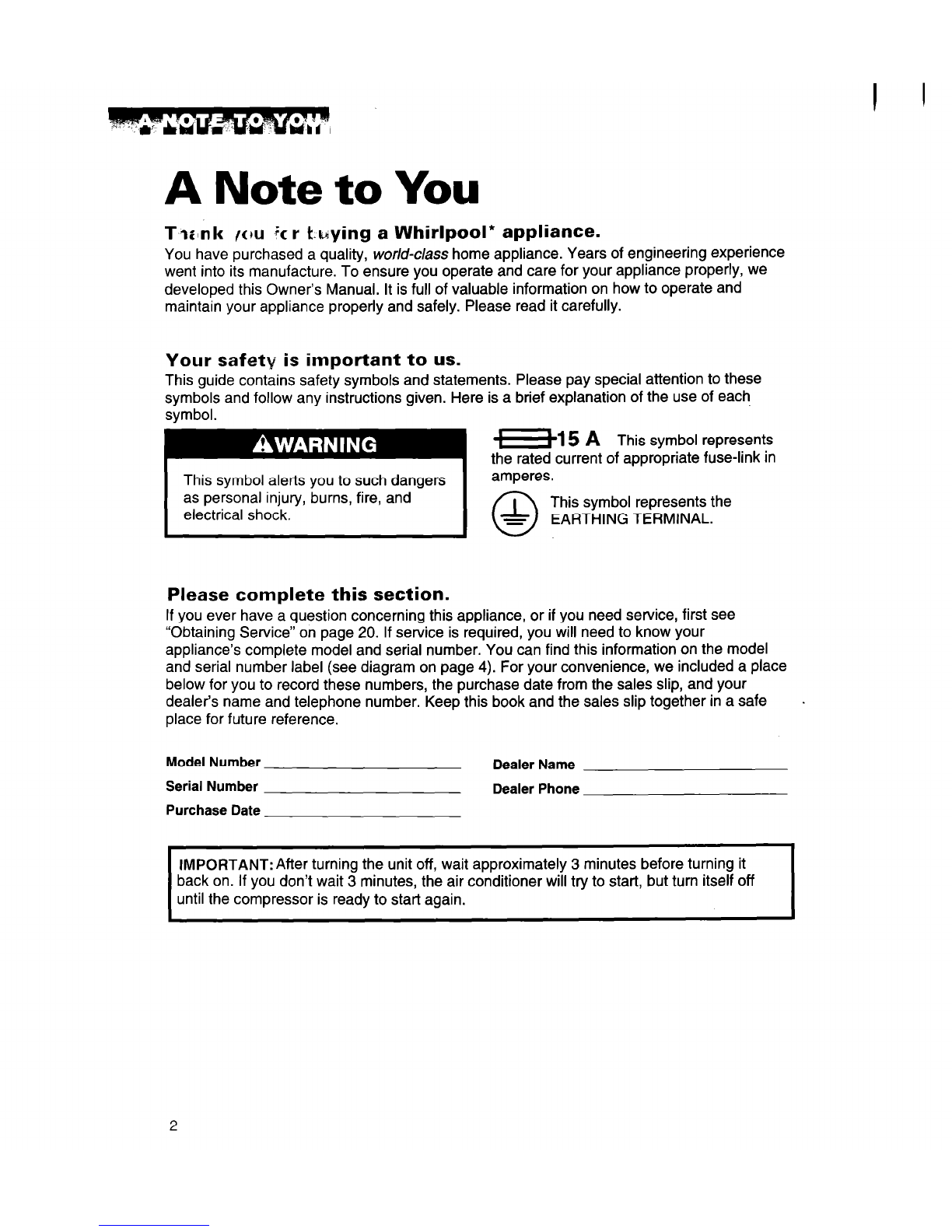

A Note to You

Tank /<N Ic r t.uying a Whirlpool* appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience

went into its manufacture. To ensure you operate and care for your appliance property, we

developed this Owner’s Manual. It is full of valuable information on how to operate and

maintain your appliance properly and safely. Please read it carefully.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

s-15 A

This symbol represents

the rated current of appropriate fuse-link in

This symbol alerts you to such dangers

1 electrical shock. ’ ’ ’ 1 ~‘~$~~~~~l$~~~the

as personal injury burns fire and

Please complete this section.

If you ever have a question concerning this appliance, or if you need service, first see

“Obtaining Service” on page 20. If service is required, you will need to know your

appliance’s complete model and serial number. You can find this information on the model

and serial number label (see diagram on page 4). For your convenience, we included a place

below for you to record these numbers, the purchase date from the sales slip, and your

dealer’s name and telephone number. Keep this book and the sales slip together in a safe .

place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

IMPORTANT: After turning the unit off, wait approximately 3 minutes before turning it

back on. If you don’t wait 3 minutes, the air conditioner will try to start, but turn itself off

until the compressor is ready to start again.

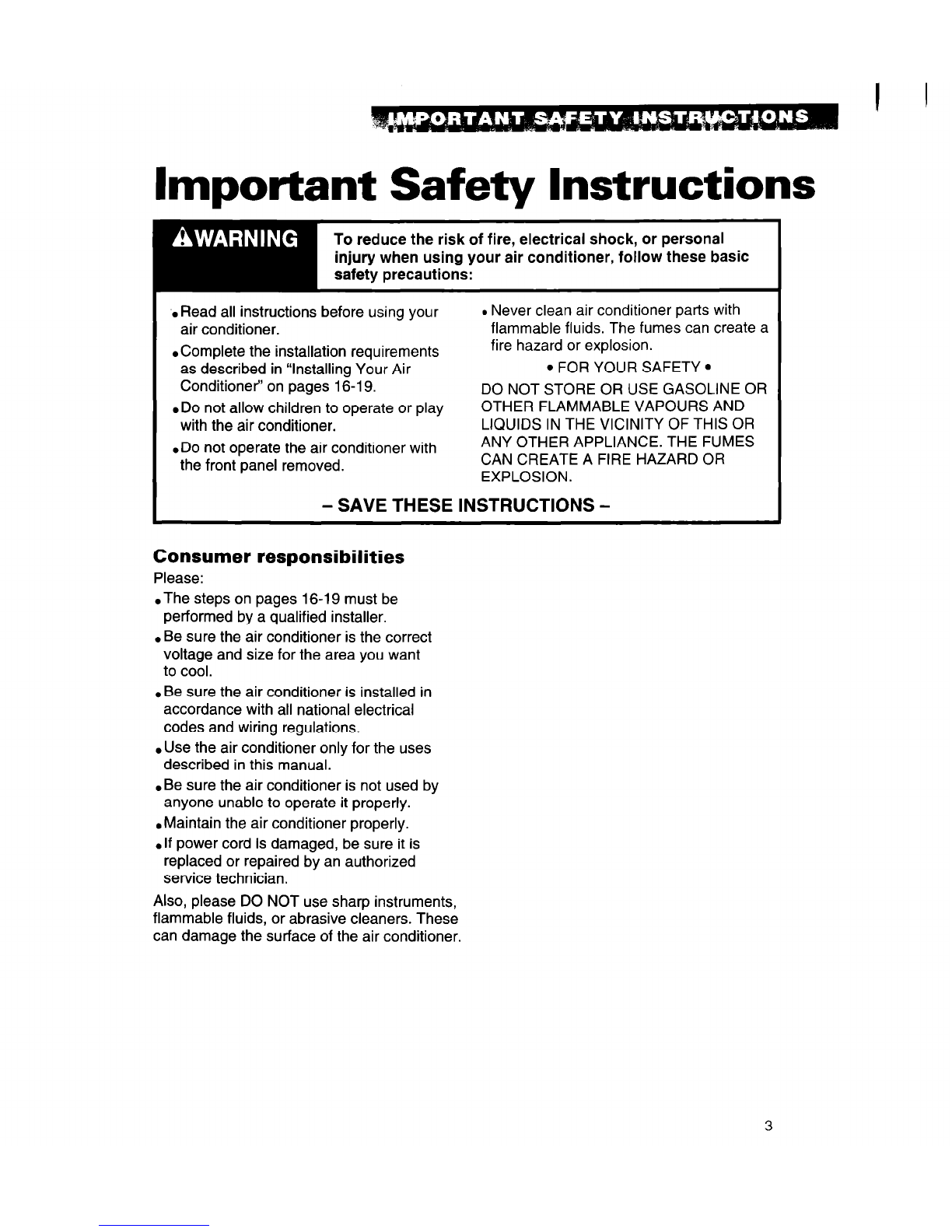

To reduce the risk of fire, electrical shock, or personal

injury when using your air conditioner, follow these basic

safety precautions:

. Read all instructions before using your

air conditioner.

.Complete the installation requirements

as described in “Installing Your Air

Conditioner” on pages 16-l 9.

. Do not allow children to operate or play

with the air conditioner.

.Do not operate the air conditioner with

the front panel removed.

. Never clean air conditioner parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

. FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPOURS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

Important Safety Instructions

- SAVE THESE INSTRUCTIONS -

Consumer responsibilities

Please:

*The steps on pages 16-19 must be

performed by a qualified installer.

. Be sure the air conditioner is the correct

voltage and size for the area you want

to cool.

. Be sure the air conditioner is installed in

accordance with all national electrical

codes and wiring regulations.

. Use the air conditioner only for the uses

described in this manual.

.Be sure the air conditioner is not used by

anyone unable to operate it properly.

. Maintain the air conditioner properly.

. If power cord is damaged, be sure it is

replaced or repaired by an authorized

service technician.

Also, please DO NOT use sharp instruments,

flammable fluids, or abrasive cleaners. These

can damage the surface of the air conditioner.

I I

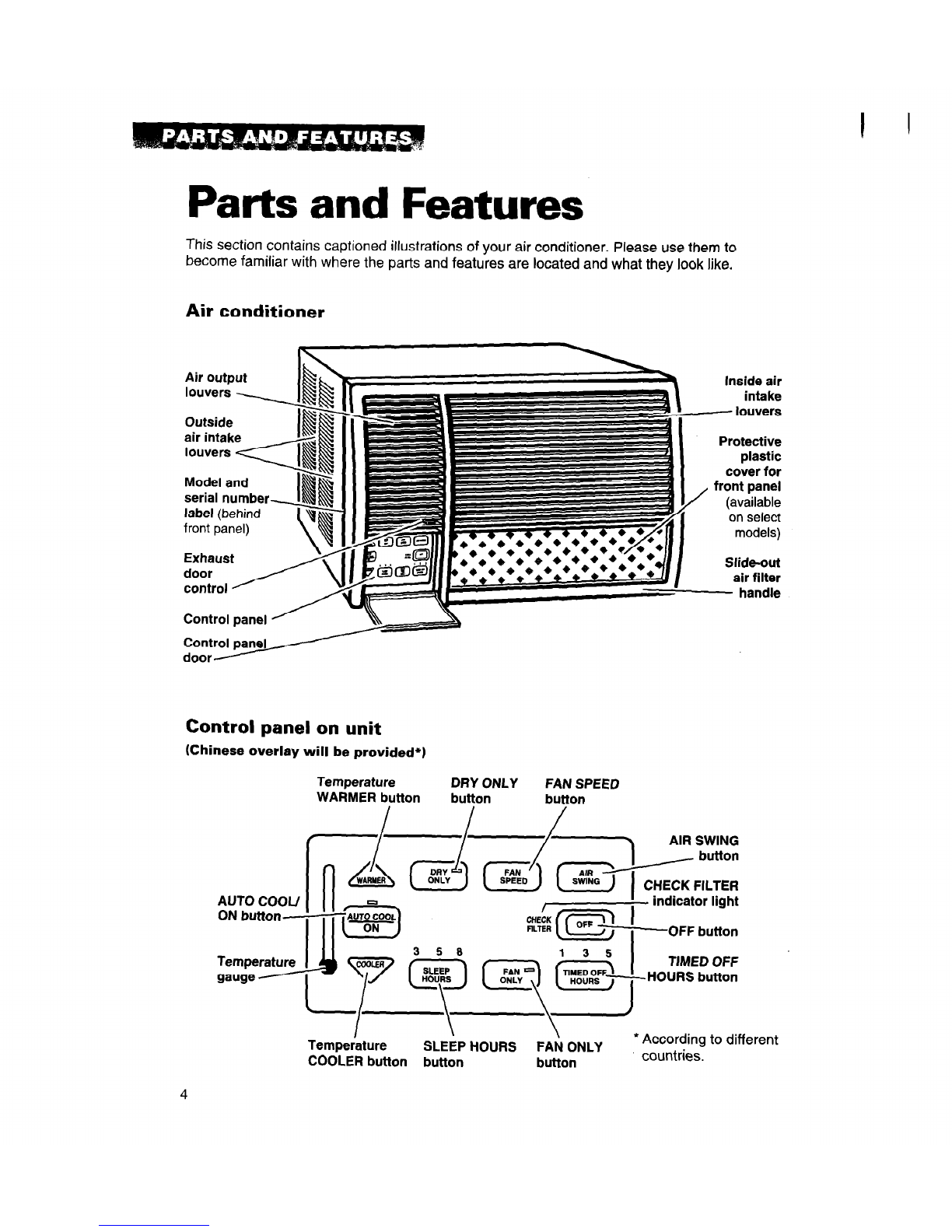

Parts and Features

This section contains captioned illustrations of your air conditioner. Please use them to

become familiar with where the parts and features are located and what they look like.

Air conditioner

Model and

serial number-

label

(behind

front panel)

Inside air

intake

- louvers

Protective

plastic

cover for

front panel

’ (

available

on select

models)

Slideout

air filter

- handle

Control panel on unit

(Chinese overlay will be provided*)

Temperature DRY ONLY FAN SPEED

WARMER button button button

OFF button

Temperature SLEEP HOURS FAN ONLY *According to different

COOLER button button button countries.

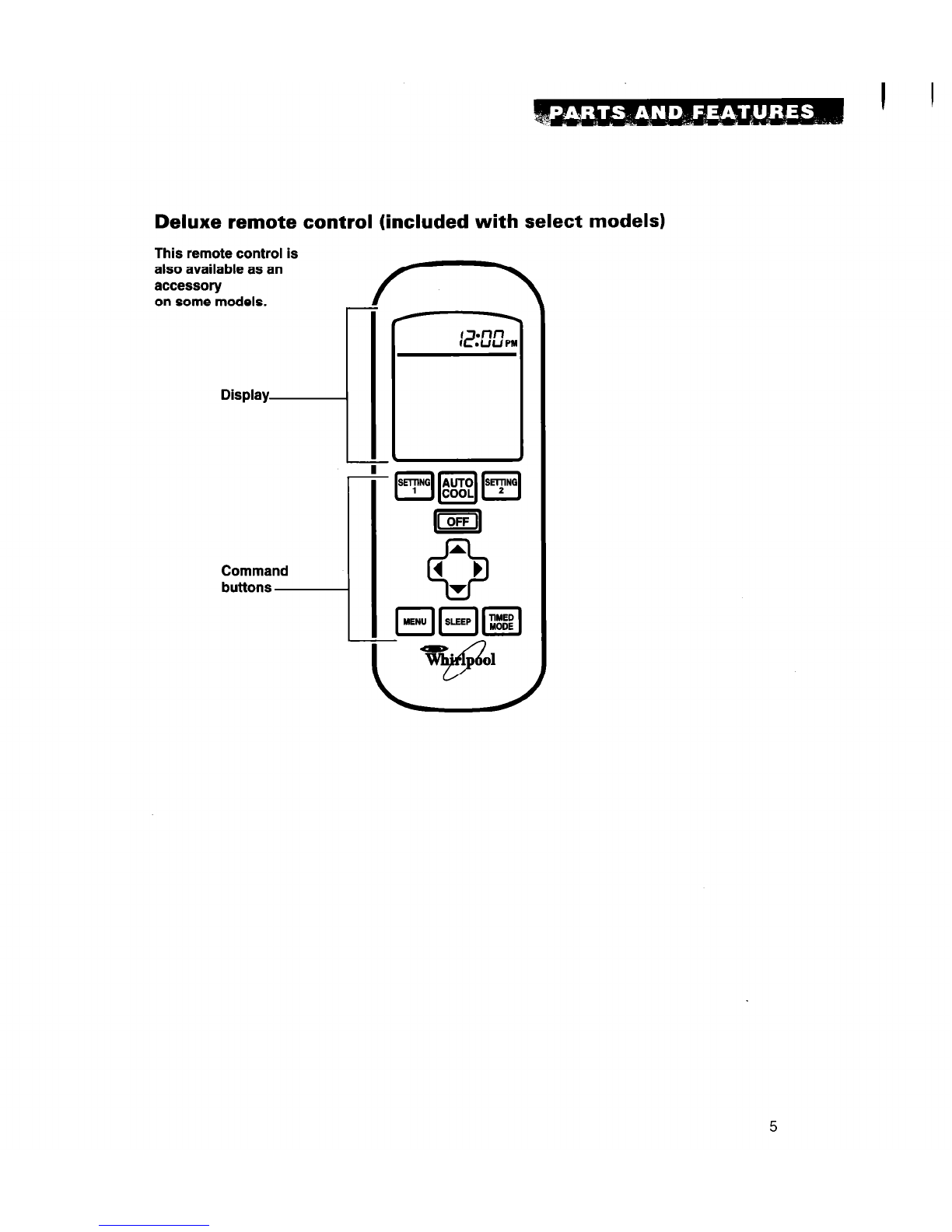

Deluxe remote control (included with select models)

This remote control is

also available as an

accessory

on some models. I

Display

Command

buttons

Operating Your Air

Conditioner

In This Section

Page

Using the AUTO COOL Cycle ............... 6

Modifying the temperature 7....................

Modifying the fan speed _,........._............ 7

Using the AIR SWING feature ............... 7

Turning the unit off ................... ............ 8

Using the DRY ONLY Cycle .................. 3

Using the SLEEP HOURS Cycle .......... g

Page

Using the FAN ONLY Cycle ................ 10

Using the TIMED OFF

HOURS Cycle ‘0

.....................................

Using the CHECK FILTER light .......... ‘0

Modifying the air direction 11

...................

Using the exhaust door 11

.......................

Using the remote control 11

.....................

Operating your air conditioner properly is

essential to obtain the best possible results.

This section tells you about each cycle and

how to operate it.

lMPCRTANT:After turning the unit off,

wait approximately 3 minutes before

turning it back on. If you don’t wait

approximately 3 minutes, the air

conditioner will try to start, but turn itself

off until the compressor is ready to start

again.

DO NOT disconnect the air conditioner

from its electrical supply. DO NOT use

an electrical outlet that can be turned

off with a switch. When the air condi-

tioner is disconnected from its electrical

supply (including power outages) all

programming reverts back to the

factory-preset information. However,

the air conditioner wili “relearn” your

preferences.

Using the AUTO COOL Cycle

(Single-Button Cooling) AUTO COOL BURST

The AUTO COOL Cycle is designed to AUTO COOL BURST cools the room for

provide you with the comfort you desire by 15 minutes before allowing the room to rise

continually “learning” your preferences. to your prelearned temperature. This cycle is

Once the Cycle “learns” what temperature(s) especially useful if you are hot from exercise

you desire, it automatically chooses a fan or it is very hot in the room.

speed when turned on and cools the room

as quickly as possible.

NOTE: You can modify the fan speed and

temperature when using the AUTO COOL

Cycle, if desired. See “Modifying the fan

speed” or “Modifying the temperature” on

page 7.

To activate the AUTO COOL Cycle:

*Press the AUTO COOUON Button.

NOTE: When the cycle is active, the

indicator light on the AUTO COOL/ON

Button will be lit.

To activate AUTO COOL BURST:

*Press the AUTO COOL/ON Button twice.

\I/

-m-

/I\

AUTO COOL

---“--.-m.-I.O--- -m--“----1.-~---~

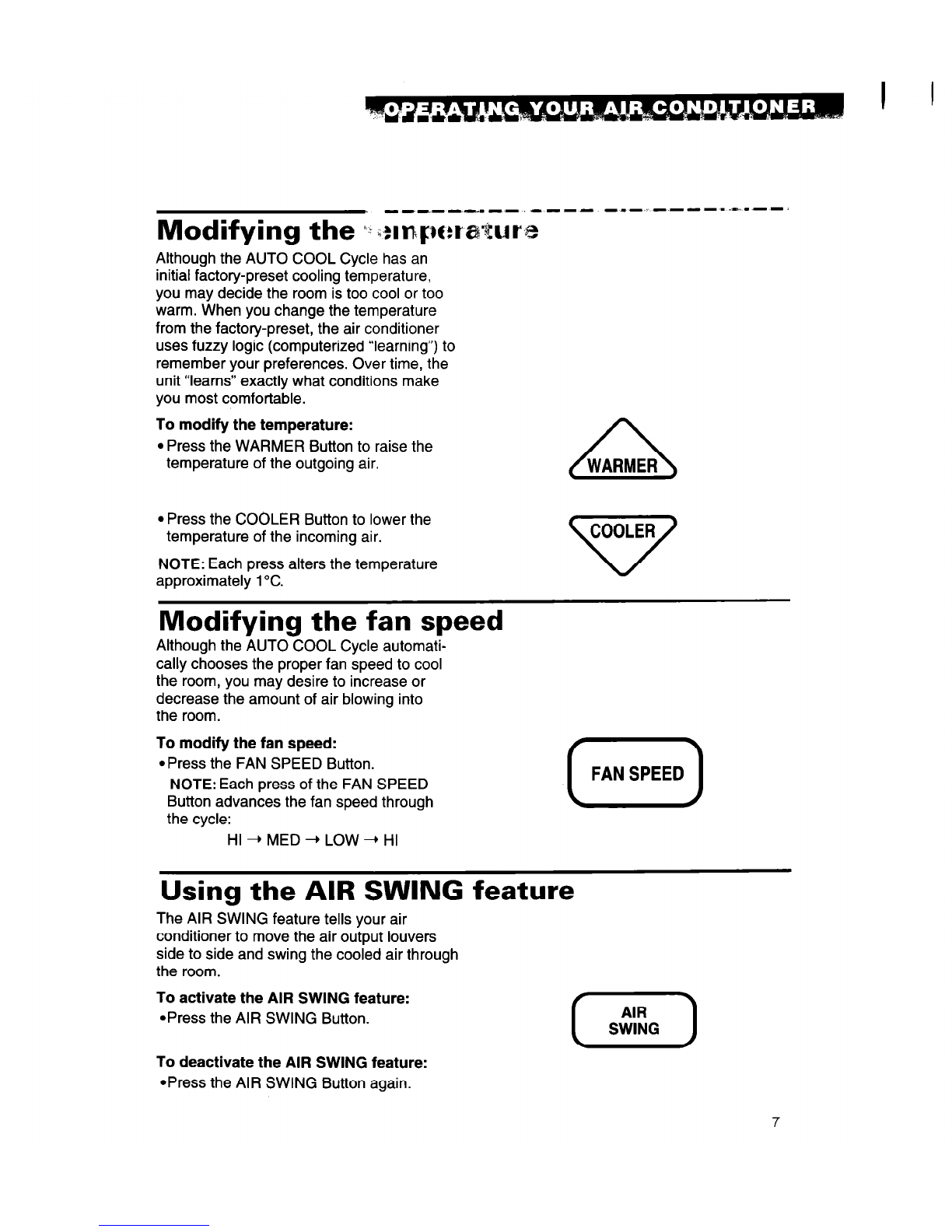

Modifying the 8:~~~~~pr~raturs

Although the AUTO COOL Cycle has an

initial factory-preset cooling temperature,

you may decide the room is too cool or too

warm. When you change the temperature

from the factory-preset, the air conditioner

uses fuzzy logic (computerized “learning”) to

remember your preferences. Over time, the

unit “learns” exactly what conditions make

you most comfortable.

To modify the temperature:

l Press the WARMER Button to raise the

temperature of the outgoing air.

l Press the COOLER Button to lower the

temperature of the incoming air.

NOTE: Each press alters the temperature

approximately 1°C.

Modifying the fan speed

Although the AUTO COOL Cycle automati-

cally chooses the proper fan speed to cool

the room, you may desire to increase or

decrease the amount of air blowing into

the room.

To modify the fan speed:

*Press the FAN SPEED Button.

NOTE: Each press of the FAN SPEED

Button advances the fan speed through

the cycle:

FANSPEED

HI+MED+LOW’HI

Using the AIR SWING feature

The AIR SWING feature tells your air

conditioner to move the air output louvers

side to side and swing the cooled air through

the room.

To activate the AIR SWING feature:

aPress the AIR SWING Button. (yiir-)

To deactivate the AIR SWING feature:

Press the AIR SWING Button again.

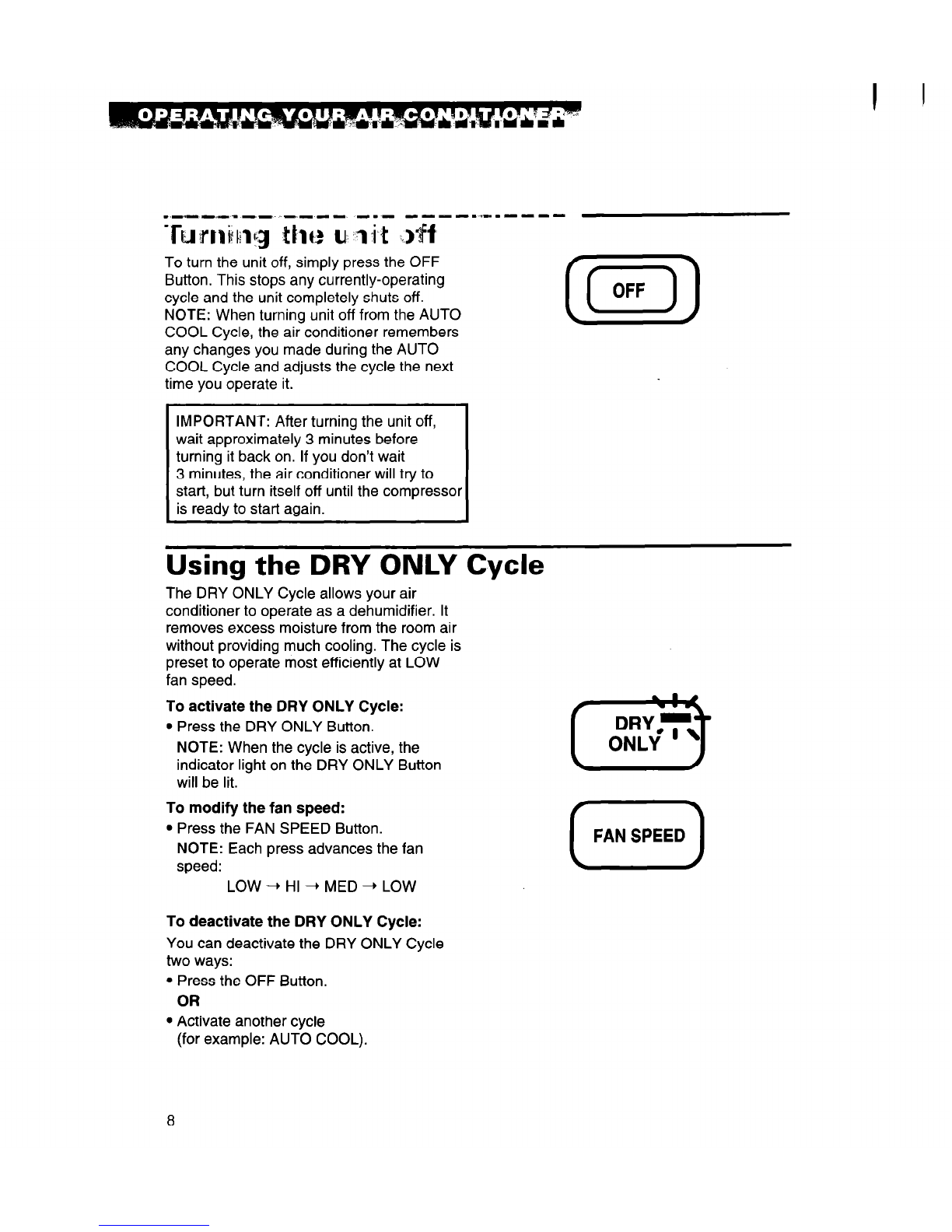

To turn the unit off, simply press the OFF

Button. This stops any currently-operating

cycle and the unit completely shuts off.

NOTE: When turning unit off from the AUTO

COOL Cycle, the air conditioner remembers

any changes you made during the AUTO

COOL Cycle and adjusts the cycle the next

time you operate it.

IMP0RTAN.T: After turning the unit off,

wait approximately 3 minutes before

1turning it back on. If you don’t wait

3 minutes, the air conditioner will try to

start, but turn itself off until the compressor

1is ready to start again.

OFF

Using the DRY ONLY Cycle

The DRY ONLY Cycle allows your air

conditioner to operate as a dehumidifier. It

removes excess moisture from the room air

without providing much cooling. The cycle is

preset to operate most efficiently at LOW

fan speed.

To activate the DRY ONLY Cycle:

l Press the DRY ONLY Button.

NOTE: When the cycle is active, the

indicator light on the DRY ONLY Button

will be lit.

To modify the fan speed:

l Press the FAN SPEED Button.

NOTE: Each press advances the fan

speed: LOW -+ HI + MED + LOW

To deactivate the DRY ONLY Cycle:

You can deactivate the DRY ONLY Cycle

two ways:

l Press the OFF Button.

l Activate another cycle

(for example: AUTO COOL).

FANSPEED

I - -----” --.- --mm- -m- -------.I-,

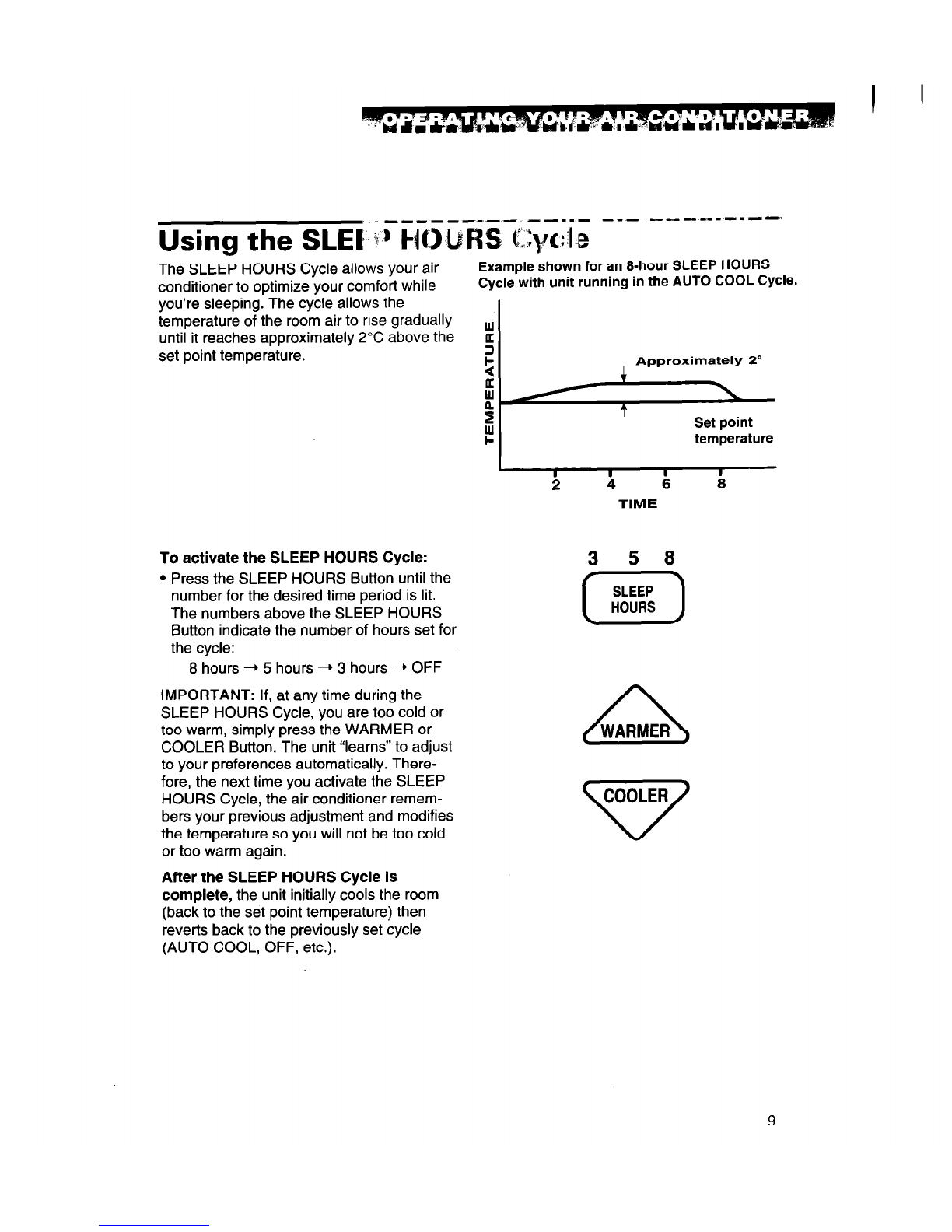

Using the SLEW MO s g::y c::I-&

The SLEEP HOURS Cycle allows your air Example shown for an 8-hour SLEEP HOURS

conditioner to optimize your comfort while Cycle with unit running in the AUTO COOL Cycle.

you’re sleeping. The cycle allows the

temperature of the room air to rise gradually

until it reaches approximately 2°C above the w

set point temperature. 5

Approximately 2’

Set point

temperature

To activate the SLEEP HOURS Cycle:

l Press the SLEEP HOURS Button until the

number for the desired time period is lit.

The numbers above the SLEEP HOURS

Button indicate the number of hours set for

the cycle:

8 hours --) 5 hours + 3 hours + OFF

IMPORTANT: If, at any time during the

SLEEP HOURS Cycle, you are too cold or

too warm, simply press the WARMER or

COOLER Button. The unit “learns” to adjust

to your preferences automatically. There-

fore, the next time you activate the SLEEP

HOURS Cycle, the air conditioner remem-

bers your previous adjustment and modifies

the temperature so you will not be too cold

or too warm again.

After the SLEEP HOURS Cycle is

complete, the unit initially cools the room

(back to the set point temperature) then

reverts back to the previously set cycle

(AUTO COOL, OFF, etc.).

3 5 8

SLEEP

HOURS

WARMER

COOLER

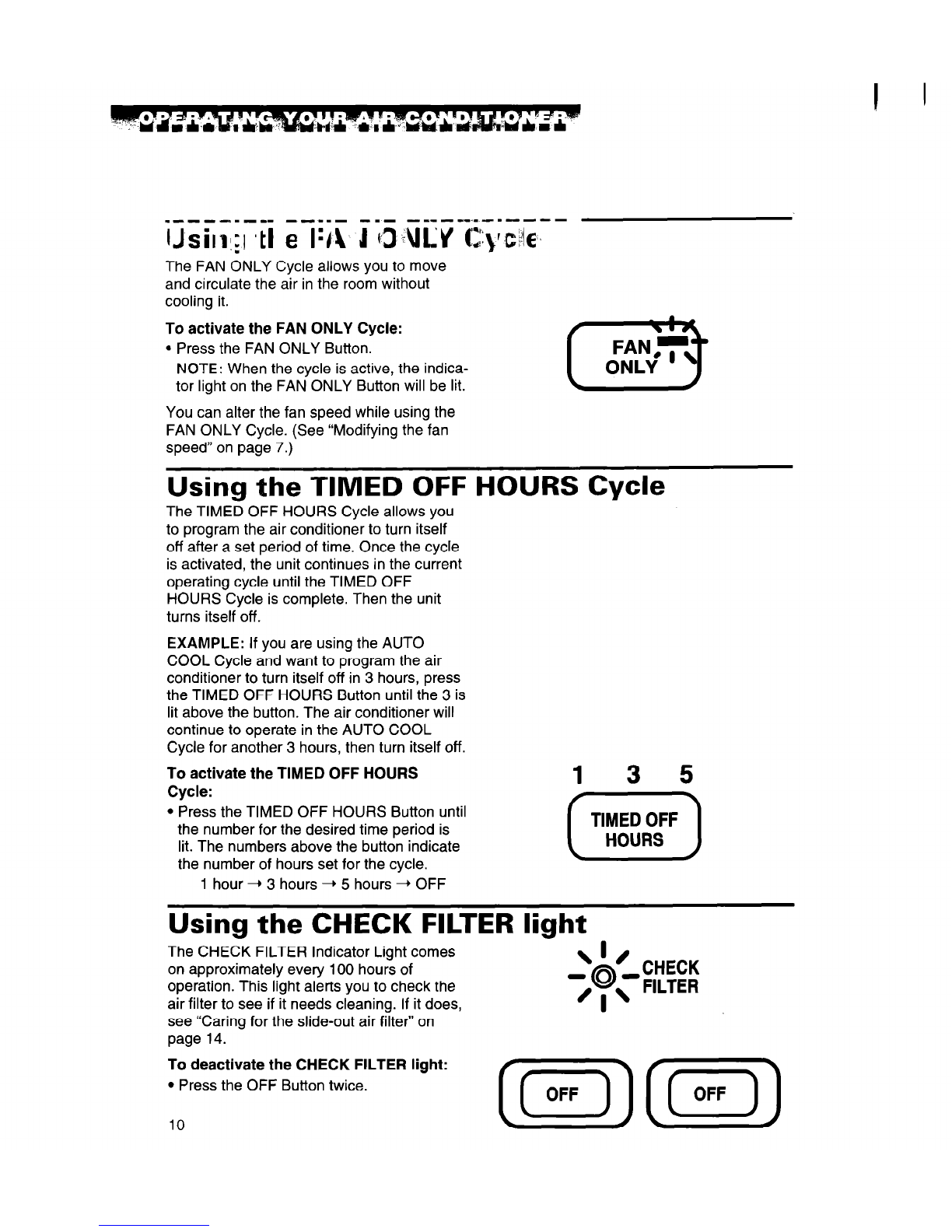

The FAN ONLY Cycle allows you to move

and circulate the air in the room without

cooling it.

To activate the FAN ONLY Cycle:

l Press the FAN ONLY Button.

NOTE: When the cycle is active, the indica-

tor light on the FAN ONLY Button will be lit.

You can alter the fan speed while using the

FAN ONLY Cycle. (See “Modifying the fan

speed” on page 7.)

Using the TIMED OFF HOURS Cycle

The TIMED OFF HOURS Cycle allows you

to program the air conditioner to turn itself

off after a set period of time. Once the cycle

is activated, the unit continues in the current

operating cycle until the TIMED OFF

HOURS Cycle is complete. Then the unit

turns itself off.

EXAMPLE: If you are using the AUTO

COOL Cycle and want to program the air

conditioner to turn itself off in 3 hours, press

the TIMED OFF HOURS Button until the 3 is

lit above the button. The air conditioner will

continue to operate in the AUTO COOL

Cycle for another 3 hours, then turn itself off.

To activate the TIMED OFF HOURS

1 3 5

Cycle:

l Press the TIMED OFF HOURS Button until

the number for the desired time period is

lit. The numbers above the button indicate

the number of hours set for the cycle.

1 hour --) 3 hours --) 5 hours + OFF

TIMEDOFF

HOURS

Using the CHECK FILTER light

The CHECK FILTER Indicator Light comes

on approximately every 100 hours of

operation. This light alerts you to check the

air filter to see if it needs cleaning. If it does,

see “Caring for the slide-out air filter” on

page 14.

2 ‘-CHECK

’ I ’ F’LTER

To deactivate the CHECK FILTER light:

l Press the OFF Button twice.

(OFF)((OFF))

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Klimaanlage Handbücher

Whirlpool

Whirlpool 1159801 Bedienungsanleitung

Whirlpool

Whirlpool ACP102PS2 Bedienungsanleitung

Whirlpool

Whirlpool BHAC0600BS0 Bedienungsanleitung

Whirlpool

Whirlpool 63851338 Montageanleitung

Whirlpool

Whirlpool WHHW182AW Bedienungsanleitung

Whirlpool

Whirlpool ACE184XM0 Bedienungsanleitung

Whirlpool

Whirlpool ACQ189XR1 Bedienungsanleitung

Whirlpool

Whirlpool 1187361 Bedienungsanleitung

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Bedienungsanleitung

Whirlpool

Whirlpool ACQ088PV Bedienungsanleitung

Whirlpool

Whirlpool ACE184XR0 Bedienungsanleitung

Whirlpool

Whirlpool R-WHAW050BW Bedienungsanleitung

Whirlpool

Whirlpool ACM052 Bedienungsanleitung

Whirlpool

Whirlpool ACE184XD0 Montageanleitung

Whirlpool

Whirlpool AMAP101AB Bedienungsanleitung

Whirlpool

Whirlpool PACHW2900CO Bedienungsanleitung

Whirlpool

Whirlpool AI2209 Bedienungsanleitung

Whirlpool

Whirlpool ACQ088MS Bedienungsanleitung

Whirlpool

Whirlpool BHAC1000XS0 Bedienungsanleitung

Whirlpool

Whirlpool ACM062 Bedienungsanleitung

Whirlpool

Whirlpool ACC108PS Montageanleitung

Whirlpool

Whirlpool ACU124XD0 Bedienungsanleitung

Whirlpool

Whirlpool ROOM AIR CONDITIONER Bedienungsanleitung

Whirlpool

Whirlpool ACS088PR0 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
