SPLIT TYPE WALL MOUNTED

ON/OFF AIR CONDITIONER

USER MANUAL AND

INSTALLATION MANUAL

MODELS:

SC009

SC012

SC018

SC022

BEFORE USING THE APPLIANCE

To make the most out of your new appliance, please read the user instructions carefully and keep them

handy for future consultation.

SAFETY PRECAUTIONS

• The Installation and service/repair must be

performed by a qualified technician, in

compliance with the producer's instructions and

following local safety norms. Do not repair or

replace any parts of the appliance unless it is

specifically written in the user instructions.

• Do not pull the power supply cord to remove it

from the socket. Do not twist or press the

power supply cord, and make sure it is not

broken.

• Do not touch the power plug, circuit breaker

and emergency button when your hands are

wet.

• Do not insert your fingers or foreign substances

into the air inlet/outlet of indoor&outdoor unit.

• Never block the air inlet or outlet of indoor and

outdoor unit.

• Physically or mentally disabled people, children

and people without any experience with the

product are only allowed to use the appliance if

they have had specific training on how to

operate the appliance by a person responsible

for their security and well-being. The appliance

is not intended for use by disabled people and

very young children without supervision.

• Children should be supervised to ensure that

they do not play with the appliance (including

remote control).

AIR CONDITIONER PRECAUTIONS

Please strictly follow the below instructions:

• Long and direct exposure to cool air might be

harmful to health. It is advisable to set the

louvers in order to avoid direct cool air and

deflect it within the room.

• Upon malfunctioning first turn the appliance off

by pressing the ON/OFF button on the remote

control, then disconnect it from power supply.

• Do not switch the appliance on and off too often

as this can damage the appliance.

• Do not place any objects on the outdoor unit.

• Disconnect the air conditioner from the power

supply if it is to be left unused for a long period

of time or during a thunder/lightning storm.

• This product contains Fluorinated Greenhouse

Gases covered by the Kyoto Protocol, the

refrigerant gas being in a hermetically sealed

system. Refrigerant gas: R410a has a Global

Warming Potential (GWP) 1975.

• This appliance has been made of recyclable or

re-usable material. Scrapping must be carried

out in compliance with local waste disposal

regulations. Before scrapping it, make sure to

cut off the mains cord so that the appliance

cannot be re-used.

• For more detailed information on handling and

recycling of this product, contact your local

authorities who deal with the separate collection

of rubbish or the shop where you bought the

appliance.

SCRAPPING OF PACKAGING

• The packaging can be 100% recycled as

confirmed by the recycling symbol . The

various parts of the packaging must not be

dispersed in the environment, but must be

scrapped in line with local authority regulations.

SCRAPPING OF APPLIANCE

• By ensuring that this product is disposed of

correctly, you will help to prevent potentially

negative consequences for the environment and

for human health.

• The symbol on the product or on the

documents accompanying the product indicates

that this appliance should not be treated as

household waste, but must be given to the

appropriate local gathering place where electric

and electronic appliances are stored and

recycled.

SAFEGUARDING THE ENVIRONMENT

PRODUCT DESCRIPTION

Indoor unit

1. Air Intake

2. Front Panel

3. Display panel

4. Air Outlet

5. Electrical box

6. On/off switch

7. Vertical Adjustment Louver

8. Horizontal Adjustment Louver

9. Air Filter

10. Remote Control

Outdoor unit

11. Air Intake

12. Pipes and Power Connection Cord

13.

14. Air Outlet

Images in the user instructions are based on external views of standard models, shape and design vary

according to the model.

Drain Hose (Note: Condensate water drains at

Cooling or DRY operation.)

CONTROL PANEL DISPLAY INDICATORS

DESCRIPTION

Temperature indicator (1)

Displays set and room temperature.

Running indicator (2)

It lights up in red when connecting to power supply.

It lights up in white or green during operation.

Heating indicator (3)

It lights up during heating mode.(For heating model only.)

Cooling indicator (4)

It lights up during cooling mode.

Dehumidifying indicator (5)

It lights up during Dehumidifying mode

9K/12K/18K

22K

Signal Receptor (6)

312 54 6

REMOTE CONTROL FUNCTIONS

AND INDICATORS

1. ON/OFF BUTTON

Starts and/or Stops the appliance by pressing

this button.

2-3. TEMPERATURE SETTING BUTTONS

Used to set temperature.

Used to set time for clock.

Used to set time in timer mode.

4. MODE BUTTON

Used to select the operation mode.

5. BUTTON

Used to set or cancel 6th sense operation.

6. BUTTON

Used to set or cancel around U operation.

7. FAN BUTTON

Used to select fan speed in sequence auto,

high, medium or low.

8. SWING BUTTON

Used to stop or start horizontal adjustment

louver swinging and sets the desired up/down

airflow direction.

9. POWER SAVE BUTTON

Used to set or cancel power save operation

10-11. TIMER ON and TIMER OFF BUTTON

Used to set or cancel the timer operation.

12. DISPLAY ON/OFF BUTTON

Used to turn on/off display light on indoor unit.

13. INFO °C BUTTON

Used to display room temperature or set

temperature on indoor unit control panel.

14. AUTO CLEAN BUTTON

Used to set or cancel auto clean operation.

15. CLOCK BUTTON

Used to set the current time.

16. SLEEP BUTTON

Used to set or cancel Sleep operation.

17. JET BUTTON

Used to start or stop the fast cooling operation.

INDICATOR SYMBOLS ON RC DISPLAY

Cooling indicator

Dehumidifying indicator

Fan only indicator

Heating indicator(For heating model only.)

Auto fan speed

High fan speed

Medium fan speed

Low fan speed

Auto clean indicator

Swing indicator

Lock indicator

indicator

Sleep indicator

Around U indicator

Jet indicator

Signal transmission

Display set timer

Display current time

Temperature display

Set temperature dispaly indicator

Room temperature display indicator

Front panel display light on indicator

FAN

°F

FAN

STORAGE AND TIPS FOR USING THE

REMOTE CONTROL

How to insert the batteries

1. Unscrew the screw on the battery cover.

Gently press down on the battery cover and

push in the direction of the arrow to remove, as

shown.

2. Insert 2 AAA batteries (1.5V) into the

compartment.

Ensure that "+" and "-" polarity is correctly

positioned.

3. Close the battery cover on the remote control.

Put back the screw on the remote control and

fasten it tightly.

How to remove the batteries

Unscrew the screw and remove the battery cover

in the direction of the arrow.

Press the positive pole of the battery softly with

your fingers, then draw the batteries out of the

compartment.

children are forbidden to remove the batteries

from the remote control in order to avoid danger

of swallow.

Disposal of the batteries

Please discard the batteries as sorted municipal

waste at the accessible collection point.

Precautions

• When replacing the batteries, do not use new

batteries with old batteries, or different types of

batteries as this may cause the remote control

to malfunction.

• If you do not expect to use the remote control

for some time, take the batteries out to prevent

leakage of battery acid in the remote control.

• Operate the remote control within effective

range. Keep the remote control at least 1 meter

from any TV set or HI-FI equipment.

• If the remote control does not work normally,

take the batteries out and reinstall after 30

seconds. If it still does not work install new

batteries.

• To operate the appliance by remote control,

point the remote control at the receiving device

on the indoor unit, to ensure receiving

sensibility.

• To send a message from remote control, the

symbol will flash for 1 second. On receipt

of the message, the appliance will emit a beep.

• The remote control will operate the air

conditioner at a distance of up to 7m.

• Each time the batteries are replaced in the

remote control, the remote control is pre-set at

6th Sense mode.

Appearance may vary

depending on the model you select

Caution: All this should be done by adults,

Signal receptor

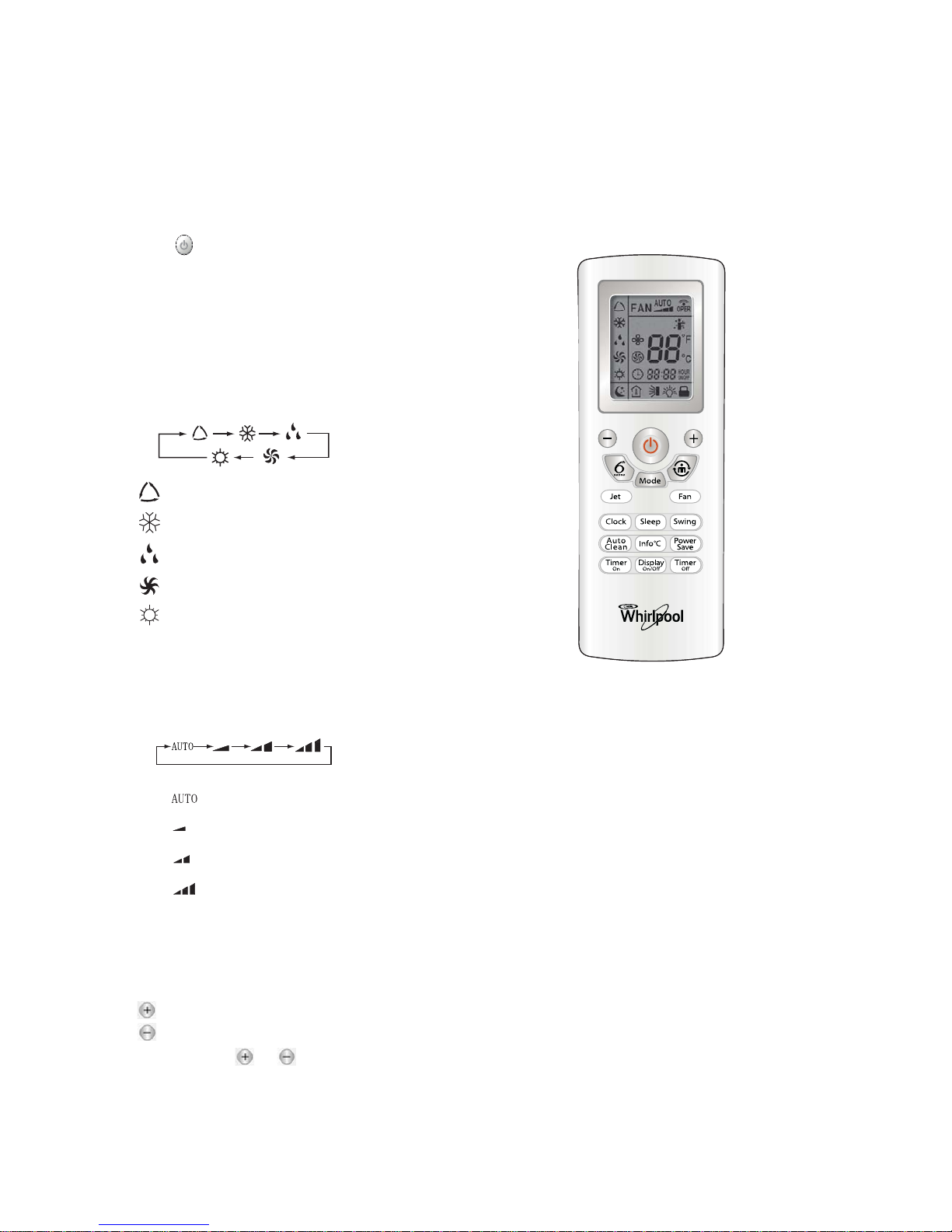

OPERATING MODE DESCRIPTION

General Operation:

1. Turning on

Press button, when the appliance receives the

signal, the RUNNING indicator on indoor unit

dispaly lights up. During mode changes wait a few

seconds and repeat the operation if the appliance

does not respond at once.

2. Selecting mode

Each time the Mode button is pressed, the

operation mode is changed in sequence:

6th SENSE mode

COOLING mode

DEHUMIDIFYING mode

FAN only mode

HEATING mode(For heating model only.)

3. Setting FAN speed

Each time the Fan button is pressed, the fan speed

is changed in sequence:

Auto fan speed

Low fan speed

Medium fan speed

High fan speed

Only low fan speed is available under

Dehumidifying mode.

4. Setting temperature

Press once to raise temperature setting by 1 °C

When pressing or button and hold it down,

the number will change rapidly.

Range of available set temperature: 16°C~30°C

*Note: In 6th SENSE mode the temperature

cannot be set.

FAN

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Klimaanlage Handbücher

Whirlpool

Whirlpool SPOW 407 Bedienungsanleitung

Whirlpool

Whirlpool ACE244PT2 Bedienungsanleitung

Whirlpool

Whirlpool WHAW050CW Bedienungsanleitung

Whirlpool

Whirlpool R1011 Produktinformationsblatt

Whirlpool

Whirlpool ACP102PR Bedienungsanleitung

Whirlpool

Whirlpool W5WCE065XW0 Bedienungsanleitung

Whirlpool

Whirlpool BHAC1000XS0 Bedienungsanleitung

Whirlpool

Whirlpool ACU109PR0 Bedienungsanleitung

Whirlpool

Whirlpool R-WHAW050BW Bedienungsanleitung

Whirlpool

Whirlpool 1188177 Bedienungsanleitung

Whirlpool

Whirlpool ACV09000R Installationsanleitung

Whirlpool

Whirlpool ACE094XM0 Bedienungsanleitung

Whirlpool

Whirlpool ACM052PS0 Bedienungsanleitung

Whirlpool

Whirlpool ACC082XR0 Bedienungsanleitung

Whirlpool

Whirlpool ACS102PP0 Bedienungsanleitung

Whirlpool

Whirlpool ACE244PT1 Bedienungsanleitung

Whirlpool

Whirlpool AWA07510N Installationsanleitung

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Bedienungsanleitung

Whirlpool

Whirlpool ACM102 Bedienungsanleitung

Whirlpool

Whirlpool ACQ142XA0 Bedienungsanleitung

Whirlpool

Whirlpool SPIW409A2WF Bedienungsanleitung

Whirlpool

Whirlpool ACE082XS0 Bedienungsanleitung

Whirlpool

Whirlpool SPIW309A3WF.1 Bedienungsanleitung

Whirlpool

Whirlpool 1187680 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
