COOKTOP PARTS

For Models: GJC3634RP02, GJC3634RB02, GJC3634RC02, GJC3634RS02

(Pure White) (Black) (Pure Biscuit) (Stainless)

02−07 Litho in U.S.A. (AMD) Part No. W10121626 Rev. A

36" ELECTRIC

BUILT−IN COOKTOP

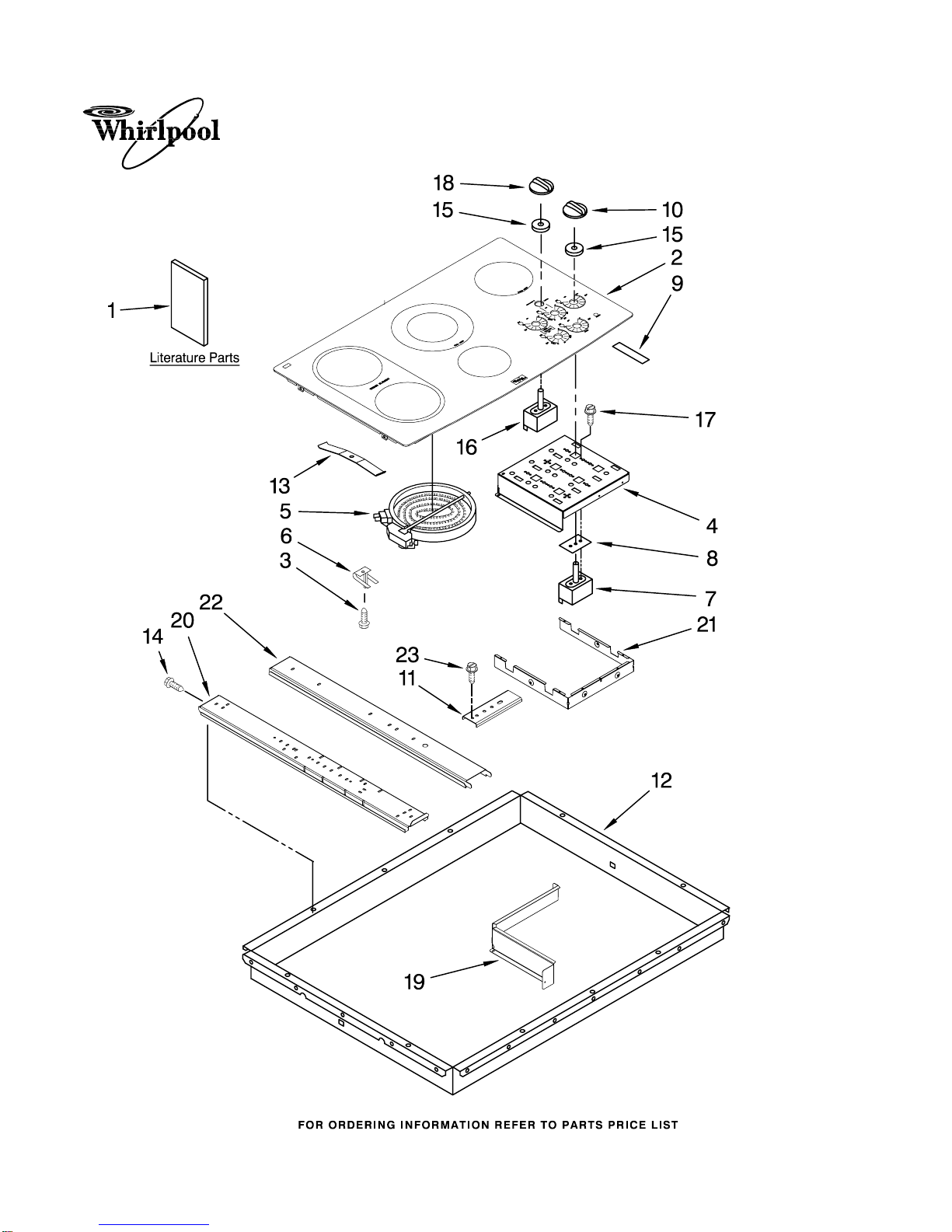

COOKTOP PARTS

For Models: GJC3634RP02, GJC3634RB02, GJC3634RC02, GJC3634RS02

(Pure White) (Black) (Pure Biscuit) (Stainless)

W10121626

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8286066 Installation,

Instructions

8304571 Installation,

Undercounter

8286614 Use & Care Guide

8286342 Wiring Diagram

Safer Cooking Tips

3191638 English

9759133 French

2 Cooktop & Bracket

Assembly

W10048620

White

W10048600

Black

W10048610

Biscuit

3 246119 Screw (8)

4 8285929 Bracket, Switch

Mounting

5 Element, Surface

8523698 1200W − RR

8285848 4300W − LF & LR

4453909 1200/2500W − CR

8523700 100W (Warm Elem)

6 9759094 Spring,Locator (8)

7 Switch, Infinite

3191050 RR Burner

9759474 LF Burner

3191049 RF & LR

Burners

8286517 Warm Zone

8 3183956 Seal, Switch

Cover (6)

9 3192439 Seal, Limiter (5)

10 Knob, Control (5)

8286043WH

White

8286043BL

Black

8286043BT

Biscuit

11 4455917 Bracket, Mounting

12 8286556 Box, Burner

13 8286582 Spring Clip,

Bridge

14 3196537 Screw

15 8285469 Seal, Switch

Shaft (6)

16 9762441 Switch, Rotary

Accusimer

17 311865 Screw

18 Knob, Accusimer

8286044WH

White

8286044BL

Black

8286044BT

Biscuit

19 8285950 Shield, Heat

Control

3191839 Seal, Heat

20 9763517 Rail, Element

21 8285817 Shield, Heat

3196537 Screw

22 8286345 Rail, Element

23 3400093 Screw

Following Parts Not Illustrated

3172515 Mtg. Hardware Kit

4455364 Bracket,

Support (6)

8286642 Tape, Foam

OPTIONAL PARTS

For Models: GJC3634RP02, GJC3634RB02, GJC3634RC02, GJC3634RS02

(Pure White) (Black) (Pure Biscuit) (Stainless)

W10121626

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner

WIRING HARNESS PARTS

9760881 Wiring Hanress

Surface Unit

8286348 Harness, Light

8286414 Harness, Conduit

3196160 Screw

3400015 Screw
