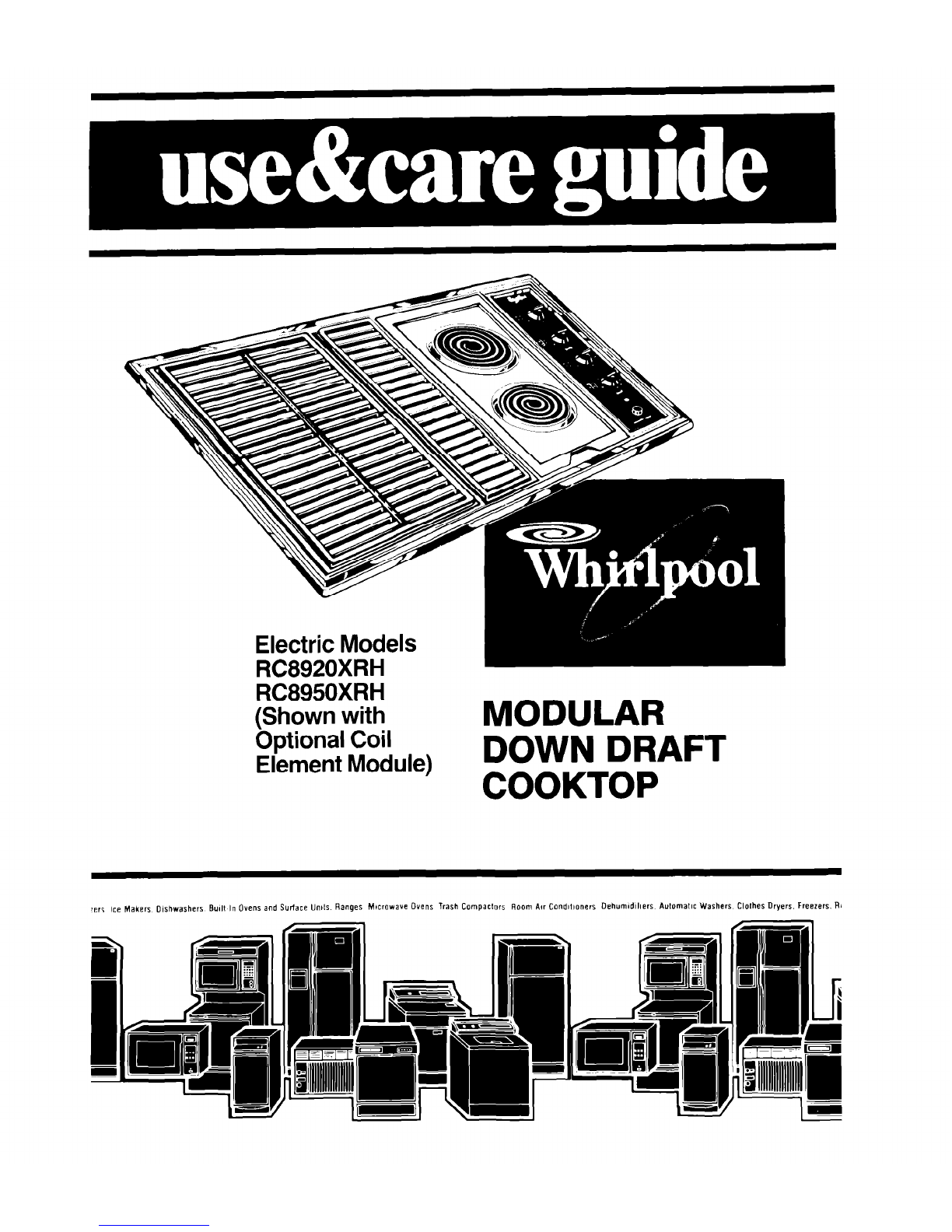

Whirlpool RC8920XRH Bedienungsanleitung

Electric Models

RC8920XRH

RC8950XRH

(Shown with

bptional Coil

MODULAR

Element Module)

DOWN DRAFT

COOKTOP

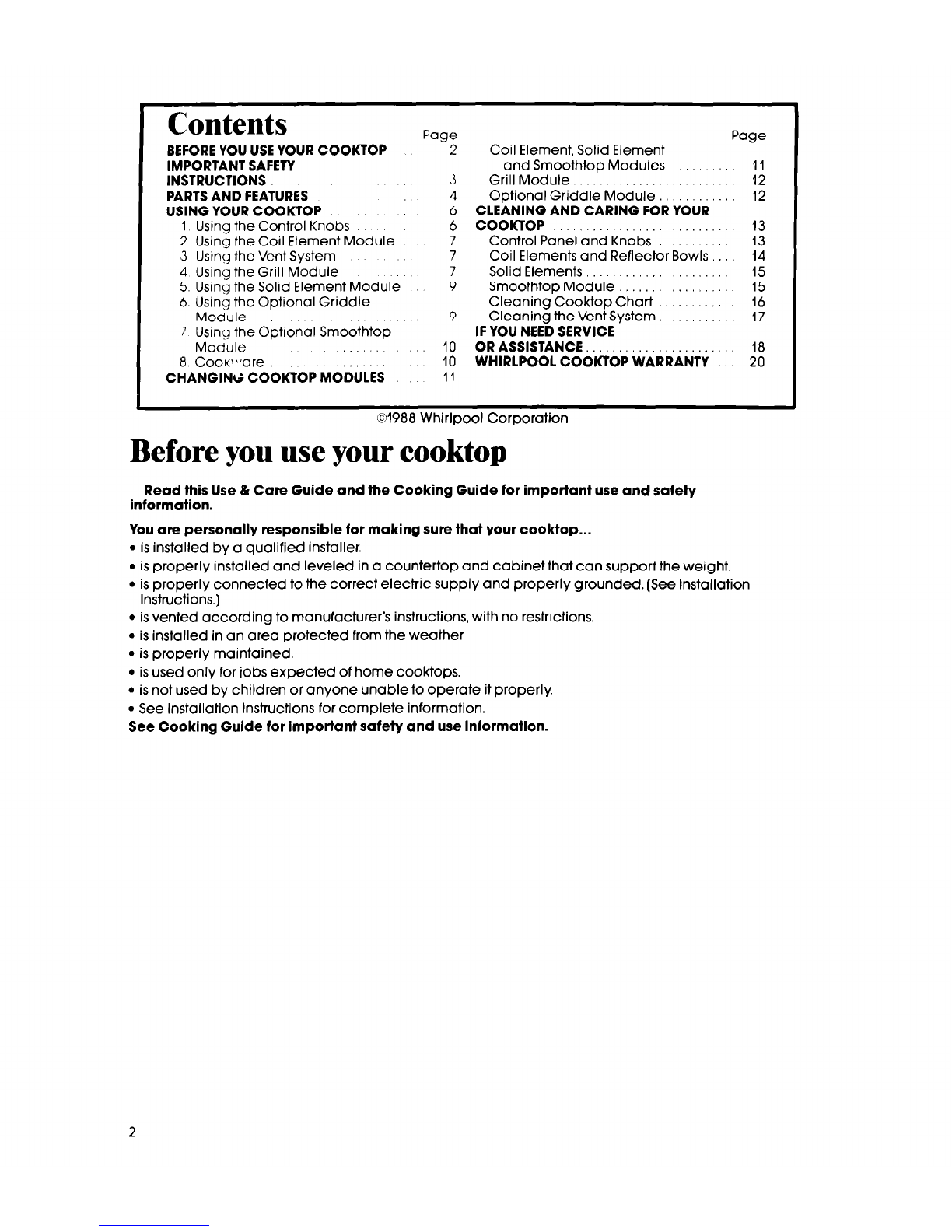

Contents

BEFORE YOU USE YOUR COOKTOP

IMPORTANT SAFETY

INSTRUCTIONS

PARTS AND FEATURES

USING YOUR COOKTOP

1 Using the Control Knobs

2 Using the Coil Element Module

3 Using the Vent System

4 Using the Grill Module

5. Using the Solid Element Module

6. Using the Optional Griddle

Module

7 Using the Optronal Smoothtop

Module

8 Cook\-are

CHANGING COOKTOP’MODUL;S

Page

Coil Element, Solid Element

and Smoothtop Modules

Grill Module.

Optional Griddle Module

CLEANING AND CARING FOR YOUR

COOKTOP

Control Panel and Knobs

Coil Elements and Reflector Bowls

Solid Elements,

SmoothtopModule

Cleaning Cooktop Chart

Cleaning the Vent System.

IF YOU NEED SERVICE

OR ASSISTANCE.

WHIRLPOOL COOKTOP WARRANTY

Page

01988 Whirlpool Corporation

Before you use your cooktop

Read this Use & Care Guide and the Cooking Guide for important use and safety

information.

You are personally responsible for making sure that your cooktop...

is installed by a qualified installer.

is properly installed and leveled in a countertop and cabinet that can support the weight.

is properly connected to the correct electric supply and properly grounded. (See Installation

Instructions.)

is vented according to manufacturer’s instructions, with no restrictions.

is installed in an area protected from the weather.

is properly maintained.

is used only for jobs expected of home cooktops.

is not used by children or anyone unable to operate it properly.

0 See Installation Instructions for complete information.

See Cooking Guide for important safety and use information.

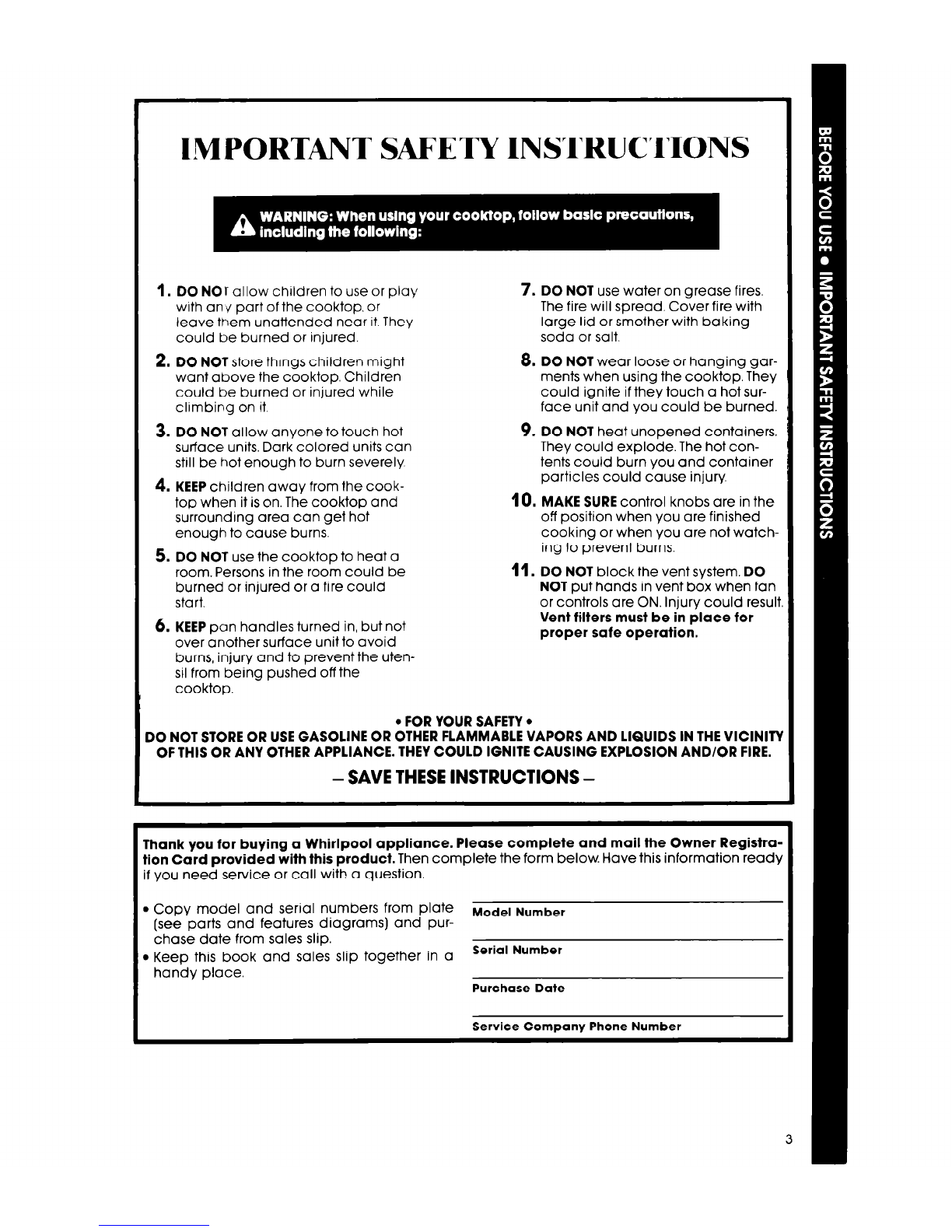

WIPORTANT SAFETY INSTRUCTIONS

DO NOI- allow children to use or play

with any part of the cooktop. or

leave them unattended near it They

could be burned or injured.

2. DO

NOT

store things children might

want above the cooktop. Children

could be burned or injured while

climbing on it.

DO NOT

allow anyone to touch hot

surface units. Dark colored units can

still be hot enough to burn severely.

4. KEEP

children away from the cook-

top when it is on. The cooktop and

surrounding area can get hot

enough to cause burns.

DO NOT

use the cooktop to heat a

room. Persons in the room could be

burned or injured or a fire could

start.

KEEP pan handles turned in, but not

over another surface unit to avoid

burns, injury and to prevent the uten-

sil from being pushed off the

cooktop.

DO NOT

use water on grease fires.

The fire will spread. Cover fire with

large lid or smother with baking

soda or salt.

DO NOT

wear loose or hanging gar-

ments when using the cooktop. They

could ignite if they touch a hot sur-

face unit and you could be burned.

9. DO NOT heat unopened containers.

They could explode. The hot con-

tents could burn you and container

particles could cause injury.

10.

MAKE SURE control knobs are in the

off position when you are finished

cooking or when you are not watch-

ing to prevent burns.

11.

DO NOT block the vent system. DO

NOT put hands in vent box when fan

or controls are ON. Injury could result

Vent filters must be in place for

proper safe operation.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITI

OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE CAUSING EXPLOSION AND/OR FIRE.

- SAVE THESE INSTRUCTIONS -

Thank you for buying a Whirlpool appliance. Please complete and mail the Owner Registra-

tion Card provided with this product. Then complete the form below. Have this information ready

if you need service or call with a question.

Copy model and serial numbers from plate

Model Number

[see parts and features diagrams) and pur-

chase date from sales slip.

Keep this book and sales slip together in a

Serial Number

handy place.

Purchase Date

Service Company Phone Number

Parts and features

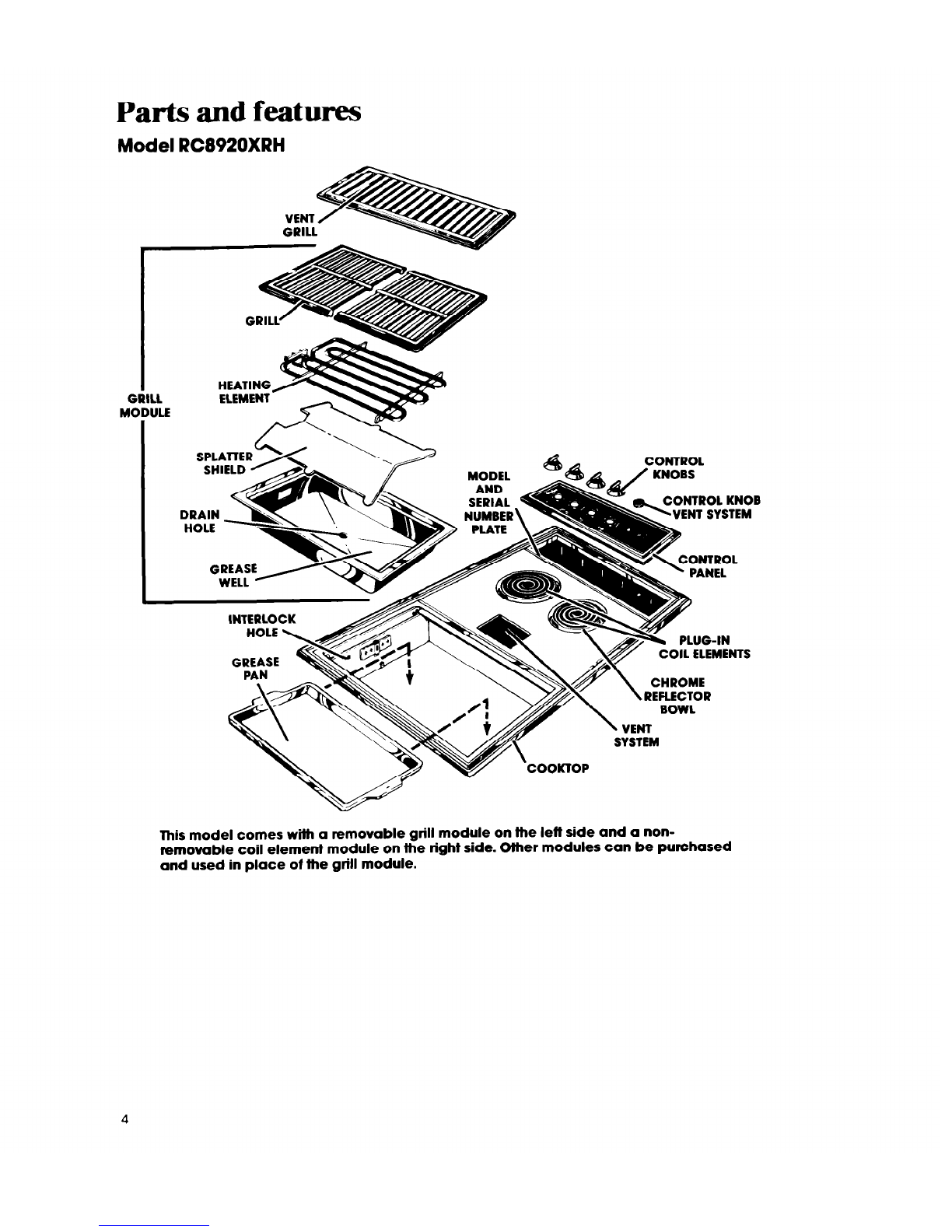

Model RC8920XRH

GRILL

MODULE ELtmtn I

COIL Eltmtn IJ

’ vtI11

SYSTEM

\ REFLECTOk

This model comes with a removable grill module on the lett side and a non-

removable coil element module on the right side. Other modules can be purchased

and used in place of the grill module.

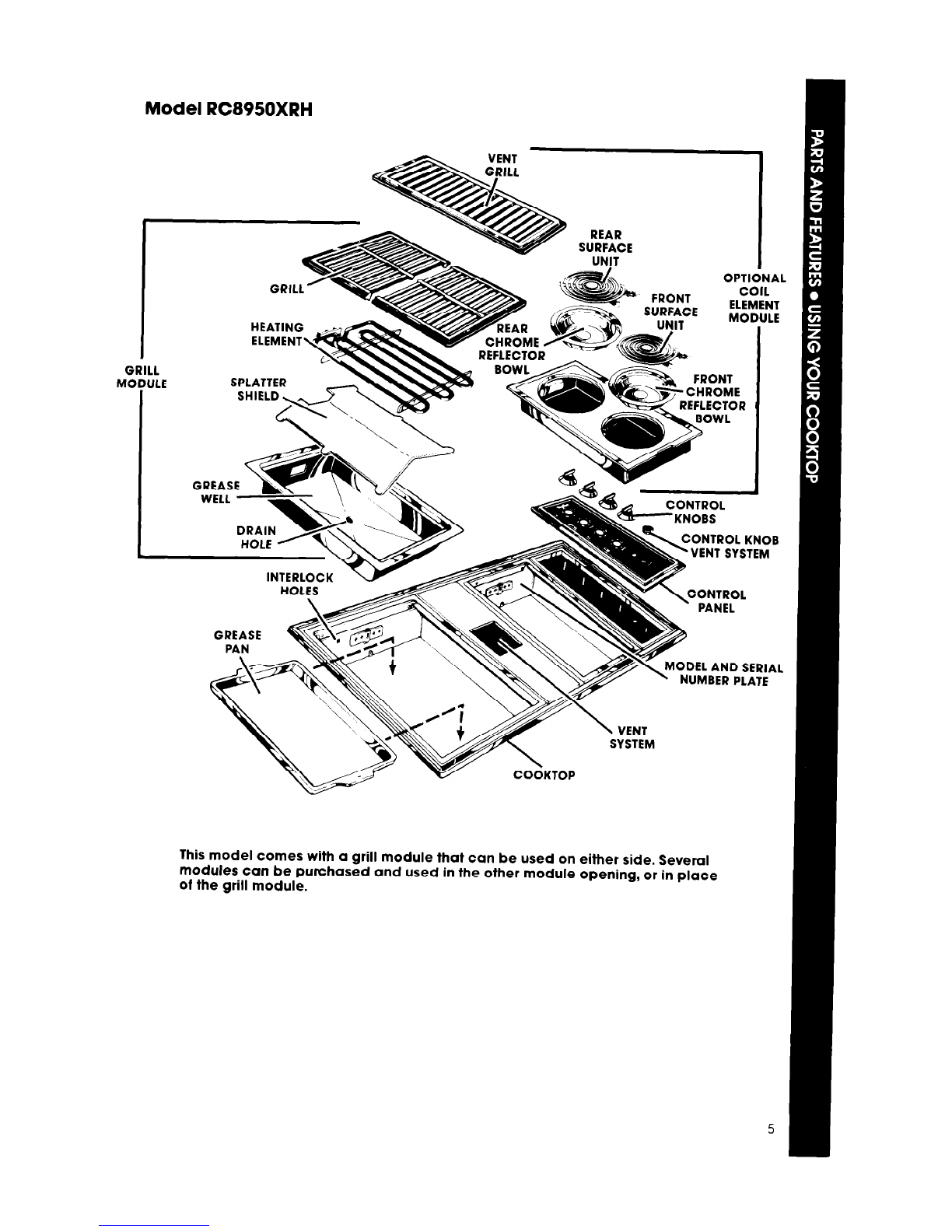

Model RC8950XRH

REAR

SURFACE

UNIT I

OPTIONAI

FRONT ?!?’

tLtmENT

MODULE

GREASE 1-v

WELL 7

INTERLOCK - A ?\ CONTROL

GREASE @g&T&

\ VENT

SYSTEM

Y- TV

COdKTOP

This model comes with a grill module that can be used on either side. Several

modules can be purchased and used in the other module opening, or in place

of the grill module.

Using your cooktop

SURFACE

UNIT

INDICATORS

LEFT

REAR

SURFACE

UNIT

CONTROL

GRILL

CONTROL OR

LEFl FRONT

SURFACE

UNIT

CONTROL

RIGHT

REAR

SURFACE

UNIT

CONTROL

RIGHT

REAR

SURFACE

UNIT

CONTROL

(OR GRILL

CONTROL ON

RC8920XRH)

SIGNAL

LIGHT

VENT

SYSTEM

CONTROL

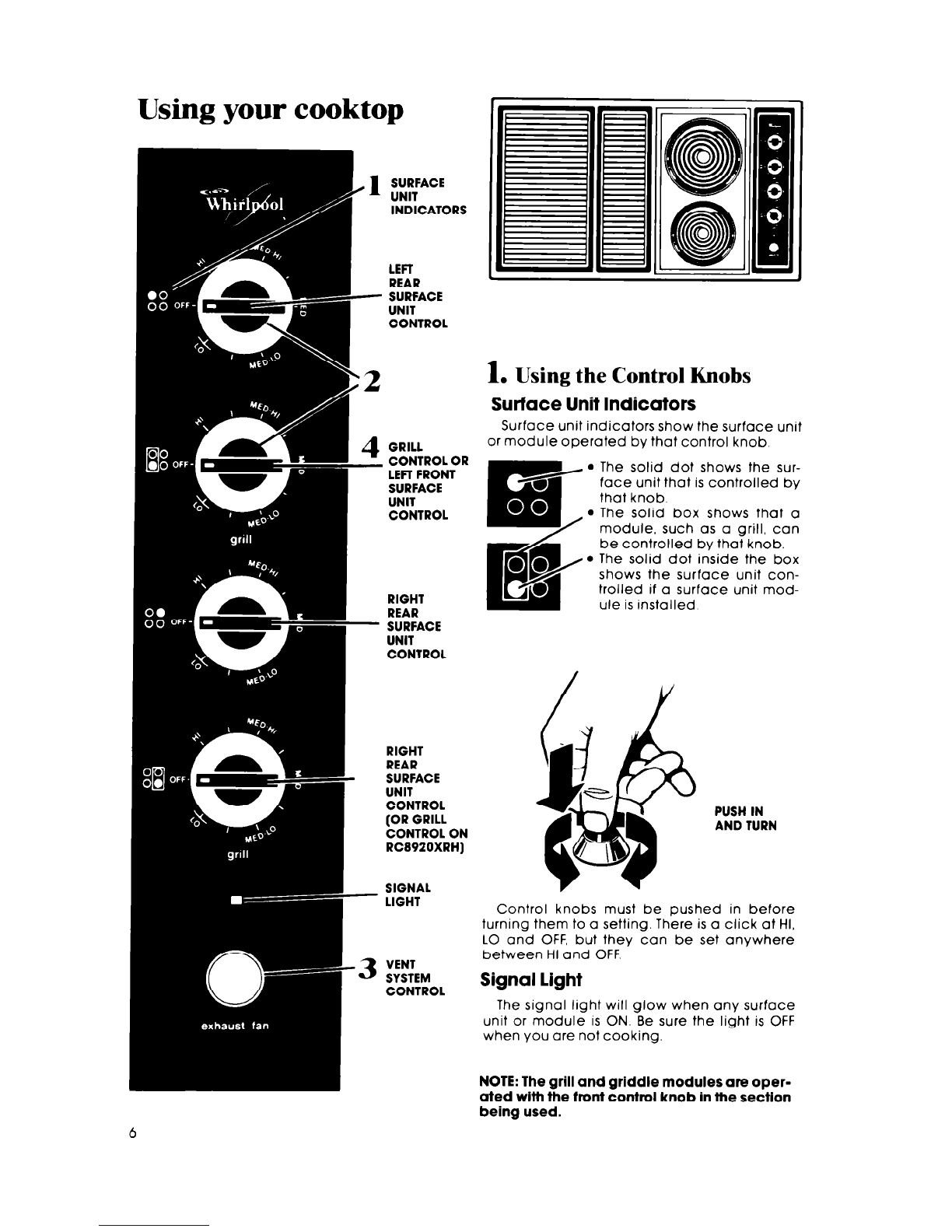

Using the Control Knobs

Surface Unit Indicators

Surface unit indicators show the surface unit

or module operated by that control knob.

-- l

The solid dot shows the sur-

face unit that is controlled by

that knob.

The solid box shows that a

-/ module, such as a grill, can

be controlled by that knob.

The solid dot inside the box

shows the surface unit con-

trolled if a surface unit mod-

ule is installed

PUSH IN

AND TURN

Control knobs must be pushed in before

turning them to a setting. There is a click at HI,

LO and OFF, but they can be set anywhere

between HI and OFF.

Signal light

The signal light will glow when any surface

unit or module is ON. Be sure the light is OFF

when you are not cooking.

NOTE: The grill and griddle modules are oper-

ated with the tront control knob in the section

being used.

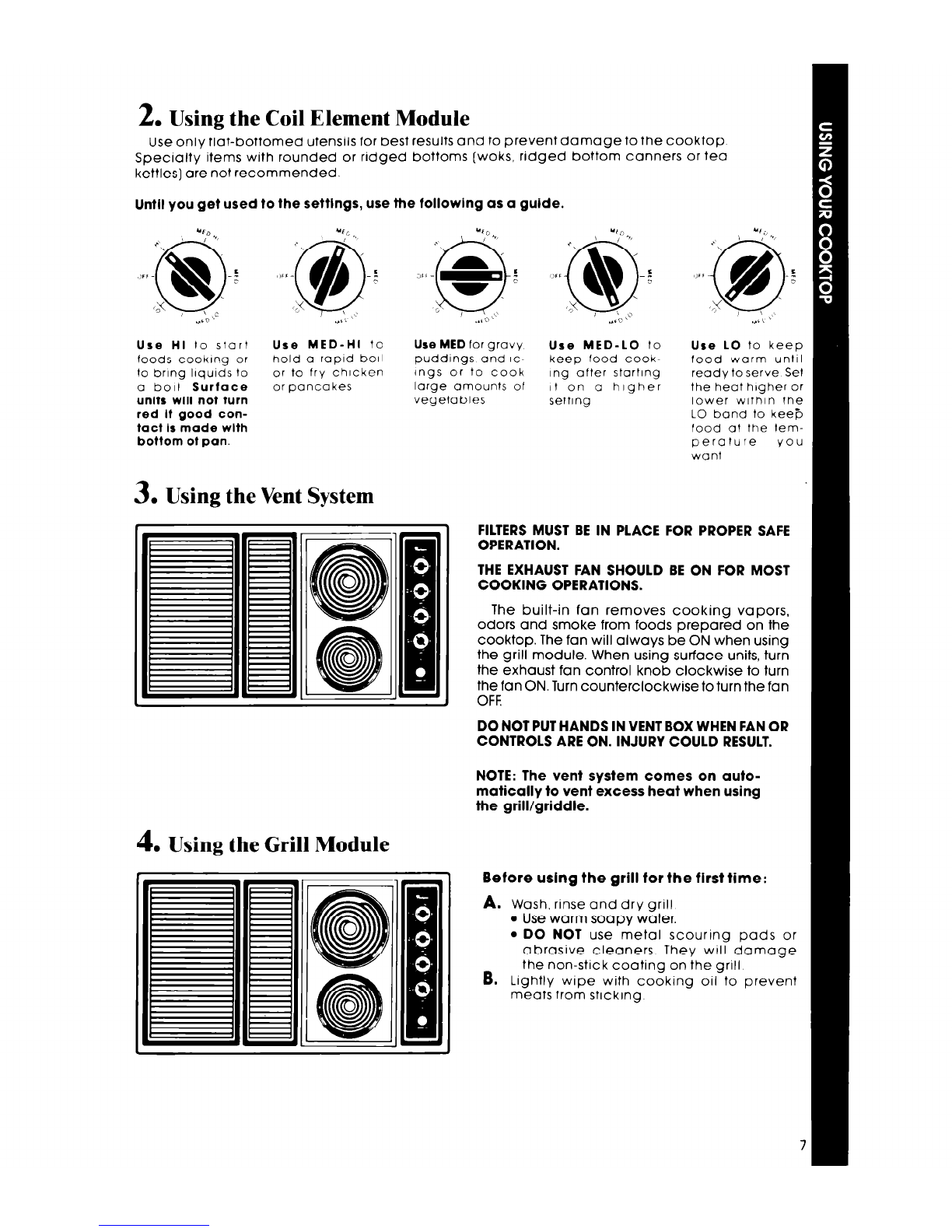

2. Using the Coil Element Module

Use only flat-bottomed utensils for best results and to prevent damage to the cooktop

Specialty items with rounded or ridged bottoms [woks, ridged bottom canners or tea

kettles] are not recommended.

Until you get used to the settlngs, use the following as a guide.

,@: ,q@ .i@ ,q@$

“E” Pat< *<I’\L “60

Use

HI lo start

Use MED-HI

Use MED

for gravy

Use MED-LO

foods cooklng or hold a ropld boll puddings and IC- keep food cook-

lo bring liquids to or to fry chlcken lngs or to cook ing after starting

a boil

Surface

or pancakes large amounts of it on a higher

units will not turn

vegetables setting

red It good con-

tact Is made with

bottom ot pan.

3. Using the Vent System

Use LO

to keep

food warm until

ready to serve Set

the heat higher or

lower within the

LO band to kee’j

food at the tem-

perature YOU

want

FILTERS MUST BE IN PLACE FOR PROPER SAFE

OPERATION.

THE EXHAUST FAN SHOULD BE ON FOR MOST

COOKING OPERATIONS.

The built-in fan removes cooking vapors,

odors and smoke from foods prepared on the

cooktop. The fan will always be ON when using

the grill module. When using surface units, turn

the exhaust fan control knob clockwise to turn

the fan ON. Turn counterclockwise to turn the fan

OFF

DO NOT PUT HANDS IN VENT BOX WHEN FAN OR

CONTROLS ARE ON. INJURY COULD RESULT.

NOTE: The vent system comes on auto-

matically to vent excess heat when using

the grill/griddle.

4. Using the Grill Module

Before using the grill for the first time:

Wash. rinse and dry grill

0 Use warm soapy water.

DO NOT use metal scouring pads or

abrasive cleaners They WIII damage

the non-stick coating on the grill

Lightly wipe with cooklng 011 to prevent

meats from sticking

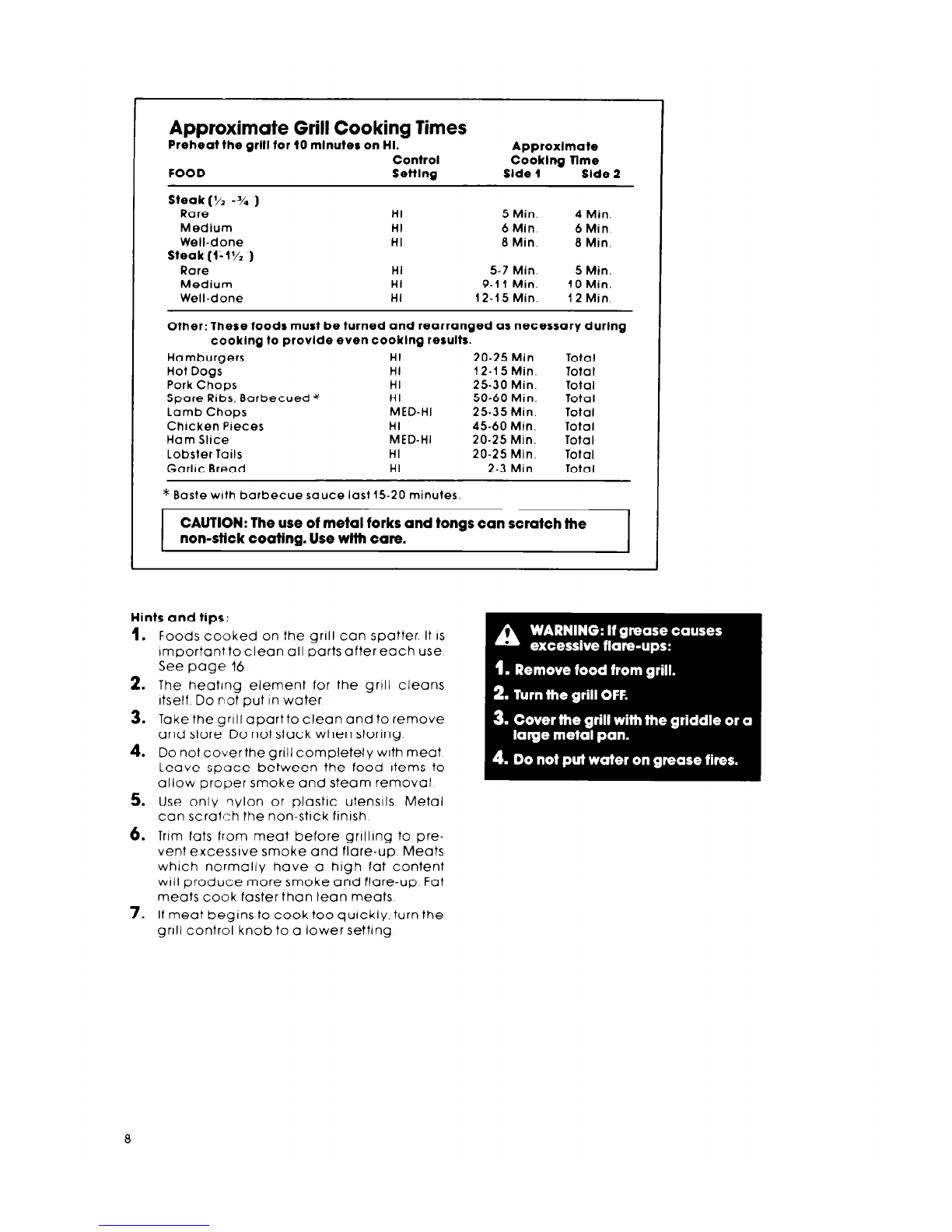

Approximate Grill Cooking Times

Preheat the grill for 10 minutes on HI.

Control

FOOD Setting

Steak(‘/, -% )

Rare HI

Medium HI

Well-done HI

Steak (l-l% )

Rare HI

Medium HI

Well-done HI

Approxlmate

Cooklng Time

Slde 1 Slde 2

5 Min. 4 Min.

6 Min. 6 Min

8 Min. 8 Min.

5-7 Min. 5 Min.

9-l 1 Min. 10 Min.

12-15 Min. 12 Min.

Other: These foods must be turned and rearranged as necessary during

cooklng to provlde even cooklng results.

Hamburgers HI 20-25 Min. Total

Hot Dogs HI 12-I 5 Min. Total

Pork Chops HI 25-30 Min. Total

Spore Ribs, Barbecued * HI 50-60 Min. Total

Lamb Chops MED-HI 25-35 Min. Total

Chicken Pieces HI 45-60 Min. Tot01

Ham Slice MED-HI 20-25 Min. Total

Lobster Tails HI 20-25 Min. Total

Garlic Bread HI 2-3 Min. Total

* Baste with barbecue sauce last 15-20 minutes.

CAUTION: The use of metal forks and tongs can scratch the

non-stick coating. Use wlth care.

Hi!

?ts and tips:

Foods cooked on the grill can spatter. It IS

Important to clean all parts after each use

See page 16

The heating element for the grill cleans

itself Do not put in water

lake the grill apartto clean and to remove

and store Do not stack when storing

Do not cover the grill completely with meat

Leave space between the food items to

allow proper smoke and steam removal

5. Use only nylon or plastic utensils Metal

can scratch the non-stick finish

Trim fats from meat before grllllng to pre-

vent excessive smoke and flare-up Meats

which normally have a high fat content

will produce more smoke and flare-up Fat

meats cook faster than lean meats

7. If meat begins to cook too quickly, turn the

grill control knob to a lower setting

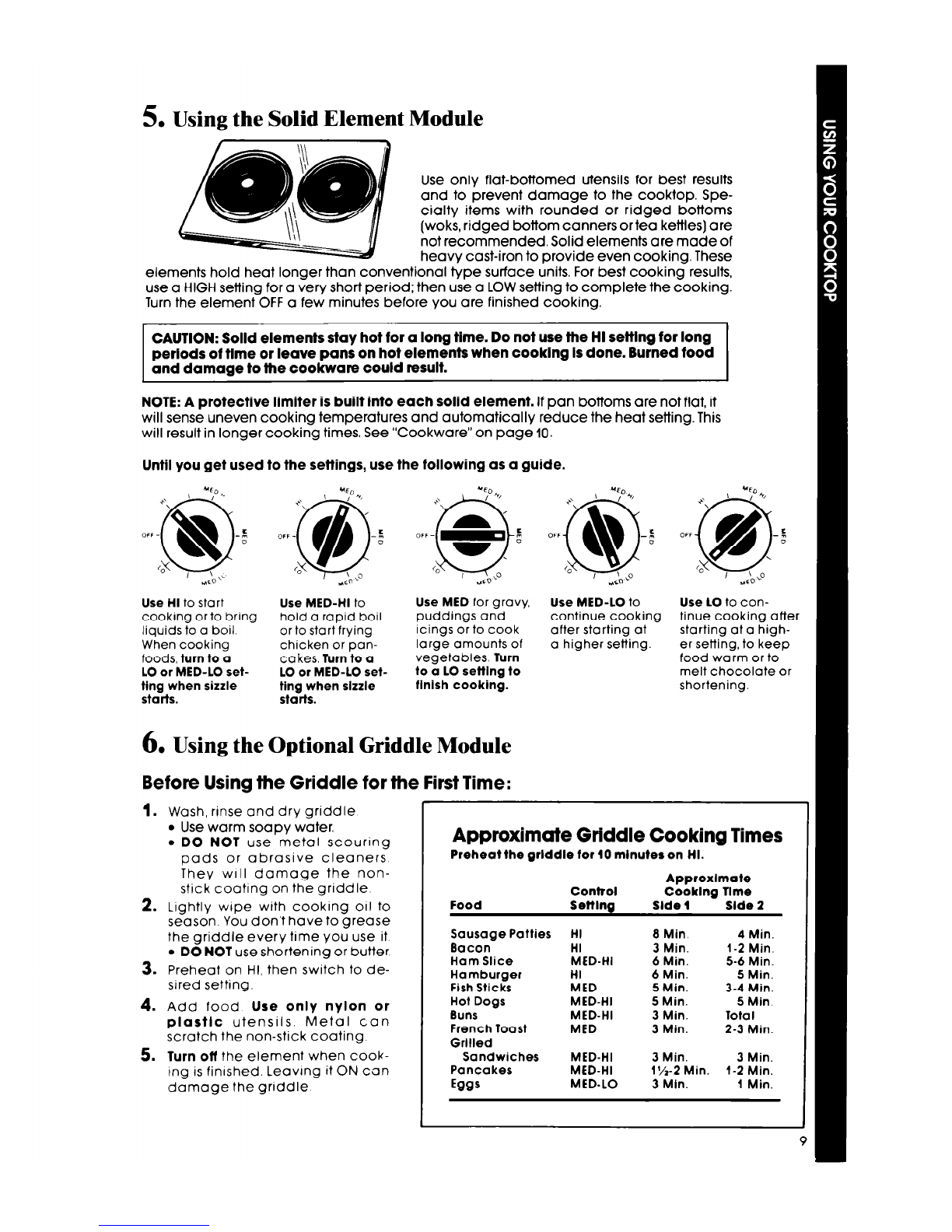

5. Using the Solid Element Module

Use only flat-bottomed utensils for best results

and to prevent damage to the cooktop. Spe-

cialty items with rounded or ridged bottoms

(woks, ridged bottom canners ortea kettles) are

not recommended. Solid elements are made of

heavy cast-iron to provide even cooking. These

elements hold heat longer than conventional type surface units. For best cooking results,

use a HIGH setting for a very short period; then use a LOW setting to complete the cooking.

Turn the element OFF a few minutes before you are finished cooking.

CAUTION: Solld elements stay hot for a long time. Do not use the HI sefflng for long

perlods of tlme or leave pans on hot elements when cooklng Is done. Burned food

and damage to the cookware could result.

NOTE: A protective limiter is built into each solid element. If pan bottoms are not flat, it

will sense uneven cooking temperatures and automatically reduce the heat setting. This

will result in longer cooking times. See “Cookware” on page 10.

Until you get used to the settings, use the following as a guide.

Use HI to start

cooking or to bring

liquids to a boil.

When cooking

foods, turn

to a

or MED-LO

ret-

ting when sizzle

starts.

Use MED-HI to Use MED for gravy,

Use MED-LO

Use LO

to con-

hold a rapid boil puddings and continue cooking tinue cooking after

or to start frying icings or to cook after starting at starting at a high-

chicken or pan- large amounts of a higher setting. er setting, to keep

cakes. Turn to a vegetables. Turn food warm or to

LO or MED-LO set- to a LO seitlng to melt chocolate or

ting when sizzle finish cooking. shortening.

starts.

Using the Optional Griddle Module

Before Using the Griddle for the First Time:

Wash, rinse and dry griddle

0 Use warm soapy water.

DO NOT

use metal scouring

pads or abrasive cleaners

They WIII damage the non-

stick coating on the griddle

2. Lightly wipe with cooking 011 to

season You don’t have to grease

the griddle every time you use it

DO NOT

use shortening or butter

3. Preheat on HI, then switch to de-

sired setting.

4. Add food

Use

Only nylon

plastic

utensils. Metal can

scratch the non-stick coating.

5. Turn

off the element when cook-

ing is finlshed. Leaving it ON can

damage the gnddle

Approximate Griddle Cooking Times

Preheat the grlddle for 10 minutes on HI.

Food Control

Seiilna

Approxlmote

Cooklng Time

Side 1

Slde 2

Sausage Patties

Bacon

Ham Slice

Hamburger

Fish Sticks

Hot Dogs

Buns

French Toast

Grllled

Sandwiches

Pancakes

Eggs

HI 8 Min

HI 3 Min.

MED-HI 6 Min.

HI 6 Min.

MED 5 Min.

MED-HI 5 Min.

MED-HI 3 Min.

MED 3 Min.

MED-HI

MED-LO

3 Min.

I%-2 Min.

3 Min.

Min.

l-2 Min.

5-6 Min.

5 Min.

3-4 Min.

5 Min

Total

2-3 Min.

3 Min.

l-2 Min.

I Min.

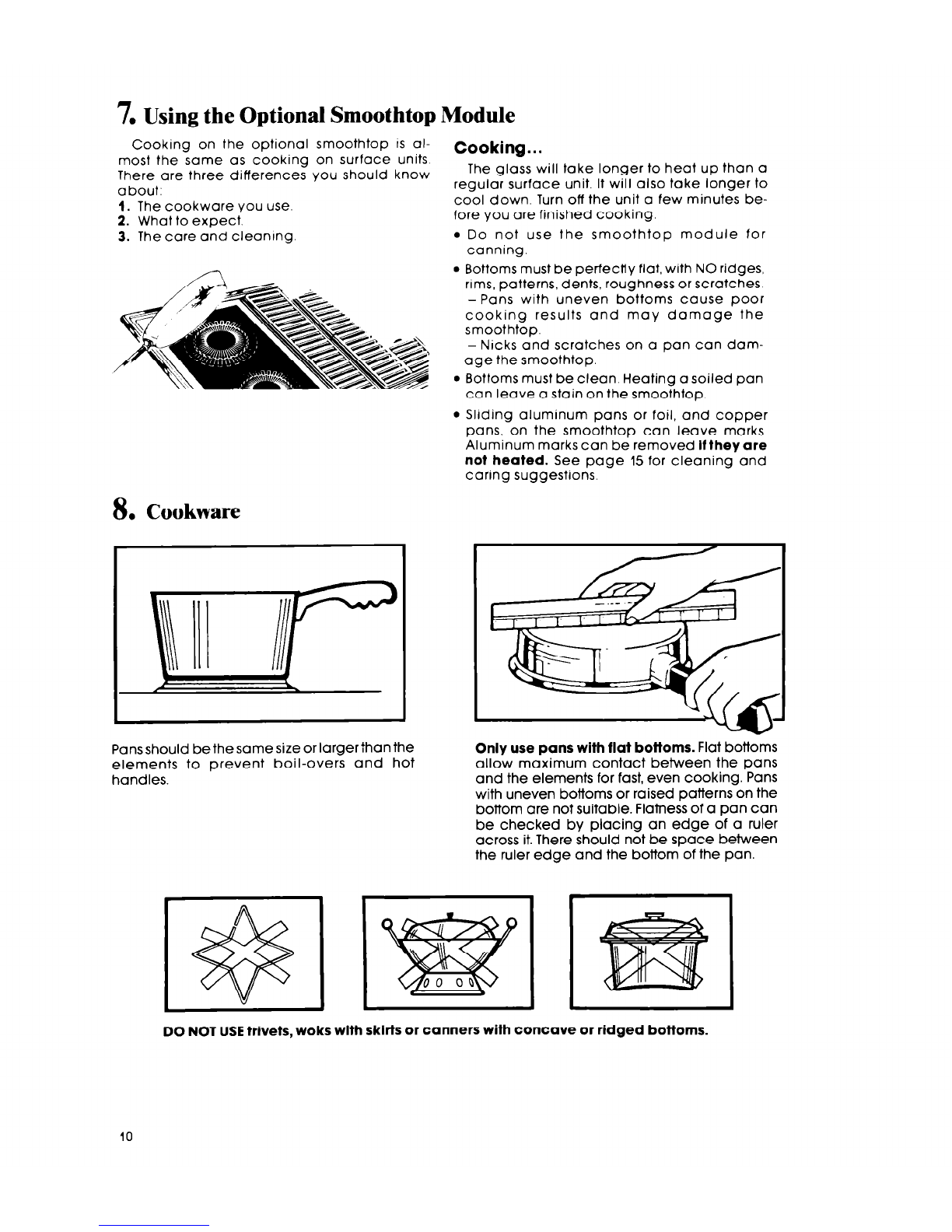

7. Using the Optional Smoothtop Module

Cooking on the optional smoothtop IS al-

most the same as cooking on surface units.

There are three differences you should know

about:

1. The cookware you use.

2. What to expect.

3. The care and cleaning.

Cooking...

The glass will take longer to heat up than a

regular surface unit. It will also take longer to

cool down. Turn off the unit a few minutes be-

fore you are finished cooking.

Do not use the smoothtop module for

canning.

Bottoms must be perfectly flat, with NO ridges,

rims, patterns, dents, roughness or scratches.

-Pans with uneven bottoms cause poor

cooking results and may damage the

smoothtop.

- Nicks and scratches on a pan can dam-

age the smoothtop.

Bottoms must be clean. Heating a soiled pan

can leave a stain on the smoothtop.

Sliding aluminum pans or foil, and copper

pans, on the smoothtop can leave marks.

Aluminum marks can be removed if they are

not heated. See page 15 for cleaning and

caring suggestions.

8. Cookware

I 1

Pans should be the same size or larger than the

elements to prevent boil-overs and hot

handles.

Only use pans with flat bottoms. Flat bottoms

allow maximum contact between the pans

and the elements for fast, even cooking. Pans

with uneven bottoms or raised patterns on the

bottom are not suitable. Flatness of a pan can

be checked by placing an edge of a ruler

across it. There should not be space between

the ruler edge and the bottom of the pan.

DO NOT USE trivets, woks with skirts or canners with concave or ridged bottoms.

Andere Handbücher für RC8920XRH

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kochfeld Handbücher

Whirlpool

Whirlpool GJD3044RB03 Bedienungsanleitung

Whirlpool

Whirlpool GLT3057RB00 Bedienungsanleitung

Whirlpool

Whirlpool RS610PXGV10 Bedienungsanleitung

Whirlpool

Whirlpool W5CG3024XW01 Bedienungsanleitung

Whirlpool

Whirlpool SF362LXTB Bedienungsanleitung

Whirlpool

Whirlpool RC8200XK Bedienungsanleitung

Whirlpool

Whirlpool GJC3034RB00 Bedienungsanleitung

Whirlpool

Whirlpool GOA 9523/NB1 Bedienungsanleitung

Whirlpool

Whirlpool SC6536W Bedienungsanleitung

Whirlpool

Whirlpool Gold GLT3057R Stücklistenhandbuch

Whirlpool

Whirlpool GJC3034LT02 Bedienungsanleitung

Whirlpool

Whirlpool W10032070 Bedienungsanleitung

Whirlpool

Whirlpool Desiger Style RM996PXV Bedienungsanleitung

Whirlpool

Whirlpool G7CG3064 Bedienungsanleitung

Whirlpool

Whirlpool GJC3034GQ0 Bedienungsanleitung

Whirlpool

Whirlpool WFG540H0A Stücklistenhandbuch

Whirlpool

Whirlpool SF110AXS Bedienungsanleitung

Whirlpool

Whirlpool GLS3064RS01 Bedienungsanleitung

Whirlpool

Whirlpool SCS3017RB04 Bedienungsanleitung

Whirlpool

Whirlpool GLT3657RB02 Bedienungsanleitung

Whirlpool

Whirlpool KCGG536PBL Bedienungsanleitung

Whirlpool

Whirlpool RCS2012R Bedienungsanleitung

Whirlpool

Whirlpool RC8400XA Bedienungsanleitung

Whirlpool

Whirlpool RCC3024RB03 Bedienungsanleitung

Beliebte Kochfeld Handbücher anderer Marken

Bonnet

Bonnet OPTIMUM 700 Betriebsanleitung

Jenn-Air

Jenn-Air JGCP430 Bedienungsanleitung

Frigidaire

Frigidaire FES367FCC Kurzanleitung

Ztove

Ztove EZ2 DUO Bedienungsanleitung

Kleenmaid

Kleenmaid cooking GCTK9011 Installationsanleitung

Casselin

Casselin CSASRE24 Bedienungsanleitung

Jenn-Air

Jenn-Air JGC2536EB00 Bedienungsanleitung

Waldorf

Waldorf RN8603E-B Bedienungsanleitung

Wolf

Wolf CI243C/B Bedienungsanleitung

Fulgor Milano

Fulgor Milano F5PGK305S1 Bedienungsanleitung

GE JP389 Bedienungsanleitung

Wells

Wells WV-2HFG Bedienungsanleitung

IKEA

IKEA Lagan HGA4K Bedienungsanleitung

Samsung

Samsung NA36N9755 Bedienungsanleitung

Miele

Miele KM 404 Bedienungsanleitung

Lacor

Lacor 69562 Technisches Datenblatt

Keating Of Chicago

Keating Of Chicago MG-2 Bedienungsanleitung

Jenn-Air

Jenn-Air CCE1400 Bedienungsanleitung
