A Note to You

Thank you for buying a Whirlpool0 appliance.

Because your life is getting busier and more complicated, Whirlpool dishwashers are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trotifree operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. Thii card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for Model Number

your appliance, you need to know your

complete model number and serial number. Serial Number

You can find this information on the model Purchaee Date

and serial number label (see diagram on

page 4 for bcation a4 label).

Please atso record the purchase date of

Dealer Name

DealerAddrew

your appliance and your fiealefs name,

addrws, and telephone number. Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

Help us help you

Please:

Have your dishwasher installed by a

Remove all shipping plugs from hoses and

qualifii installer. connectors (such as the cap on the drain

Install where dishwasher is protected from outlet) before installing.*

the elements.

Remove all hang tags and temporary labels.

Install and level dishwasher on a floor that

Make sure dishwasher is not used by

will hokf the weight, and in an area suitable anyone unable to operate it properly.

for its size and use.

Properly maintain dishwasher. See page 18.

Properly connect dishwasher to electrioii,

water, and drain.’

See Installation Instructions for complete

Information.

Dishwasher Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special atten-

tion to these symbols and follow any

instructions given. Here is a brief explana-

tion of the us8 of the warning symbol.

This symbol alerts you to such dangers

as fire, electrical shock, burns, and

personal injury.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the

dishwasher.

Use your dishwasher only for the

uses described in this manual.

.DISHWASHER MUST BE ELECTRI-

CALLY GROUNDED. Read the

Installation Instructions for details.

When discarding an old dishwasher,

always remove the door to prevent

accidental entrapment or suffo&ion.

@Use ONLY detergents and rinse

agents recommended for use in a

dishwasher.

Store dishwasher detergent in a cool,

dry place WHERE CHILDREN CAN’T

REACH IT.

*When loading items to be washed:

- Load sharp items and knives with

the handles up to reduce risk of

cut-type injuries.

- Locate sharp items and knives so

that they are not likely to damage

the door or tub.

DO NOT let children play in or on the

dishwasher.

.DO NOT reach into the area below

the bottom rack until the heating

element has cooled for at least

20 minutes.

DO NOT wash plastic items unless

marked “Dishwasher Safe” or the equiva-

lent. If not marked, check manufacturer’s

recommendations.

DO NOT use your dishwasher unless ail

enclosure panels are properly in place.

DO NOT sit on, stand on, or abuse the

dishwasher door or dishracks.

@DO NOT tamper with controls.

If hot water has not been used recently

(usually two weeks or longer), hydrogen

gases may build up in the water heater

and the hot water pipes. HYDROGEN

GAS IS EXPLOSIVE. To prevent injury

or damage, before using your dish-

washer, turn on ail hot water faucets and

allow water to run for several minutes.

This will allow gases to escape. Do not

smoke or use any open flame near the

faucet while it is open.

@DO NOT store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

The fumes can create a fire hazard or

explosion.

Disconnect electrical power to the

dishwasher before attempting to service.

- SAVE THESE INSTRUCTIONS -

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level wash

Water inlet opening

(P- 9)

;;;+I$

Heating element

Door i&h’

Sorav tower

-r I

and protector

(P- 9)

Model and

serial number label

(on right side)

Silverware

Overfill protector

(P. 19)

Detergent

dispensers

(P. 10)

Door color panel’ / *See Installation instructions

for more information.

Series 400 models

Option selector

switch Cycle control knob

Series 800 models

I I

Option selector Cycle control knob

switch

Series 8 10 models

Series 830 models

I I

Option relector Cycle control knob

rwitch

V I

Selector button8 Cycle control knob

Series 840 models

v v

Cycle 8elector Optlon 8dector

button8 button8

Cycle control knob 5

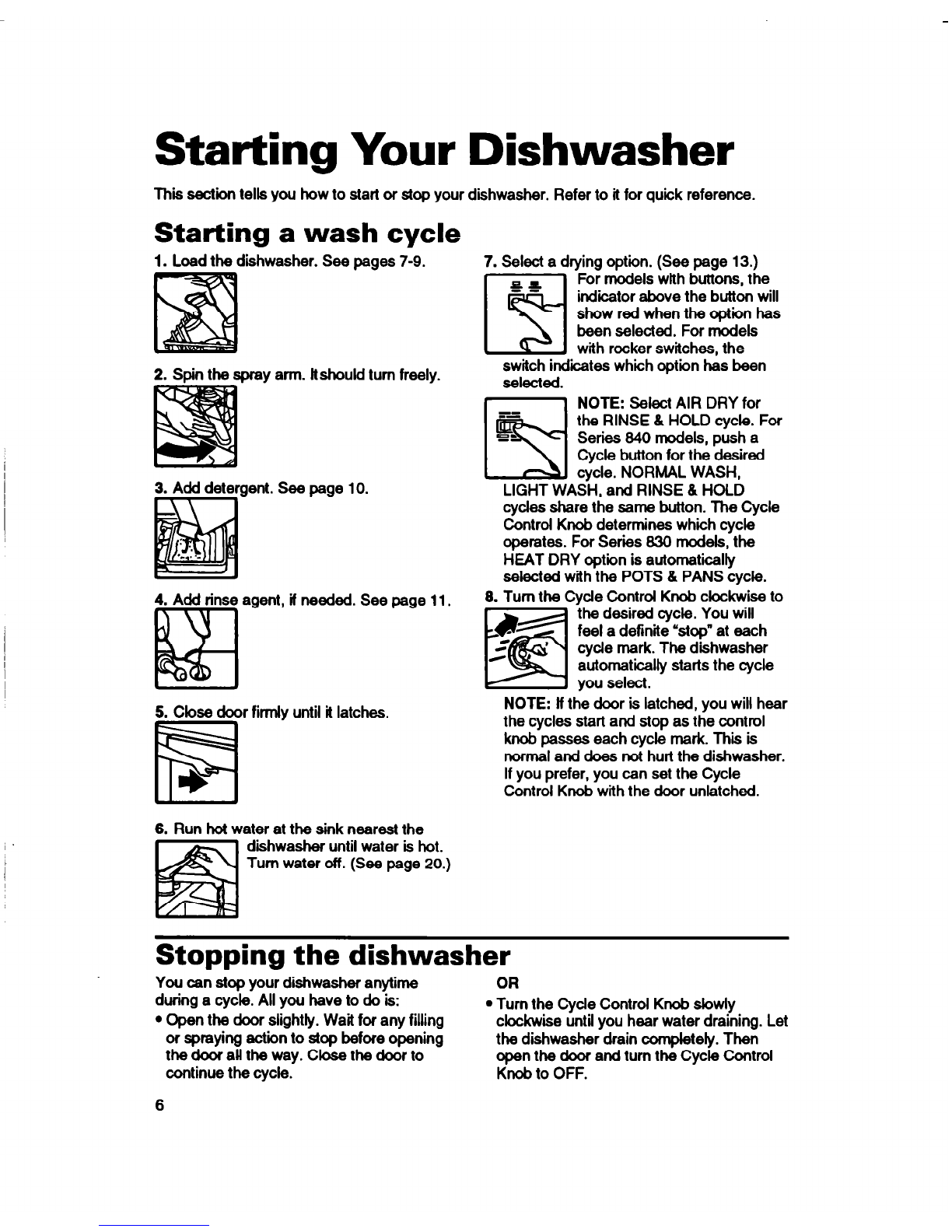

Starting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Starting a wash cycle

1. Load the dishwasher. See pages 7-9.

. -

y amt. ftshould turn freely.

gent. See page 10.

agent, if needed. See page 11.

5. Close door firmly until il latches.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. (See page 20.)

7. Select a drying option. (See page 13.)

For models with buttons, the

indicator above the button will

show red when the option has

been selected. For models

with rocker switches, the

switch indites which option has been

selected.

l5l

NOTE: Select AIR DRY for

F’ the RINSE 8 HOLD cycle. For

E’ Series 640 models, push a

Cycle button for the desired

cycle. NORMAL WASH,

LIGHT WASH, and RINSE 8 HOLD

cychs share the same button. The Cycle

Control Knob determines which cycle

operates. For Serifs 630 models, the

HEAT DRY option is automatically

s&dad with the POTS & PANS cycle.

6. Turn the Cycle Control Knob clockwise to

the desired cycle. You will

feel a definite “stop” at each

cycle mark. The dishwasher

automatically starts the cycle

you select.

NOTE: lf the door is latched, you will hear

the cycles start and stop as the control

knob passes each cycle mark. Thii is

normal and does not hurl the dishwasher.

If you prefer, you can set the Cycle

Control Knob with the door unlatched.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

Open the door slightfy. Wait for any filling

or spraying action to stop before opening

the door all the way. Close the door to

continue the cycle.

Turn the Cycle Control Knob slowly

cfockwiie until you hear water draining. Let

the dishwasher drain completely. Then

open the door and turn the Cycle Control

Knob to OFF.

Loading Your Dishwasher

This section tells how to proper& load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

To save water and energy, do not rinse

diis before putting them into the

dishwasher.

Remove large pieces of food, bones, and

other hard items.

Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a RINSE 8

HOLD cyde to keep dishes moist if you do

not plan to wash them scwx.

Load dishes so soiled surfaces face the

rotating spray arm.

Load dishes so they are not stacked or

overlapping. lt is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

Secure lightweight load items in the racks.

Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior

walls, interfere with the spray arm’s

rotation, or cover the spray tower.

Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the silverware basket

Personal Injury Hazard

Load sharp items (knives, forks,

skewers, etc.) with the point down.

Failure to do so could cause personal

injury.

Load the silverware basket while it is in the

bottom rack or take the basket out for

loading on a counter or table.

NOTE: The loaded basket must be placed

in the center front (over the spray tower) of

the bottom rack for proper washing.

Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. However, always load sharp items

(knives, skewers, forks, etc.) pointing

down.

Put small items (baby bottle caps, jar lids,

etc.) in any section.

You can also remove the basket for easy

unloading. Always unfoad or remove the

basket before unloading the racks to avoid

spilling water on the silverware. 7

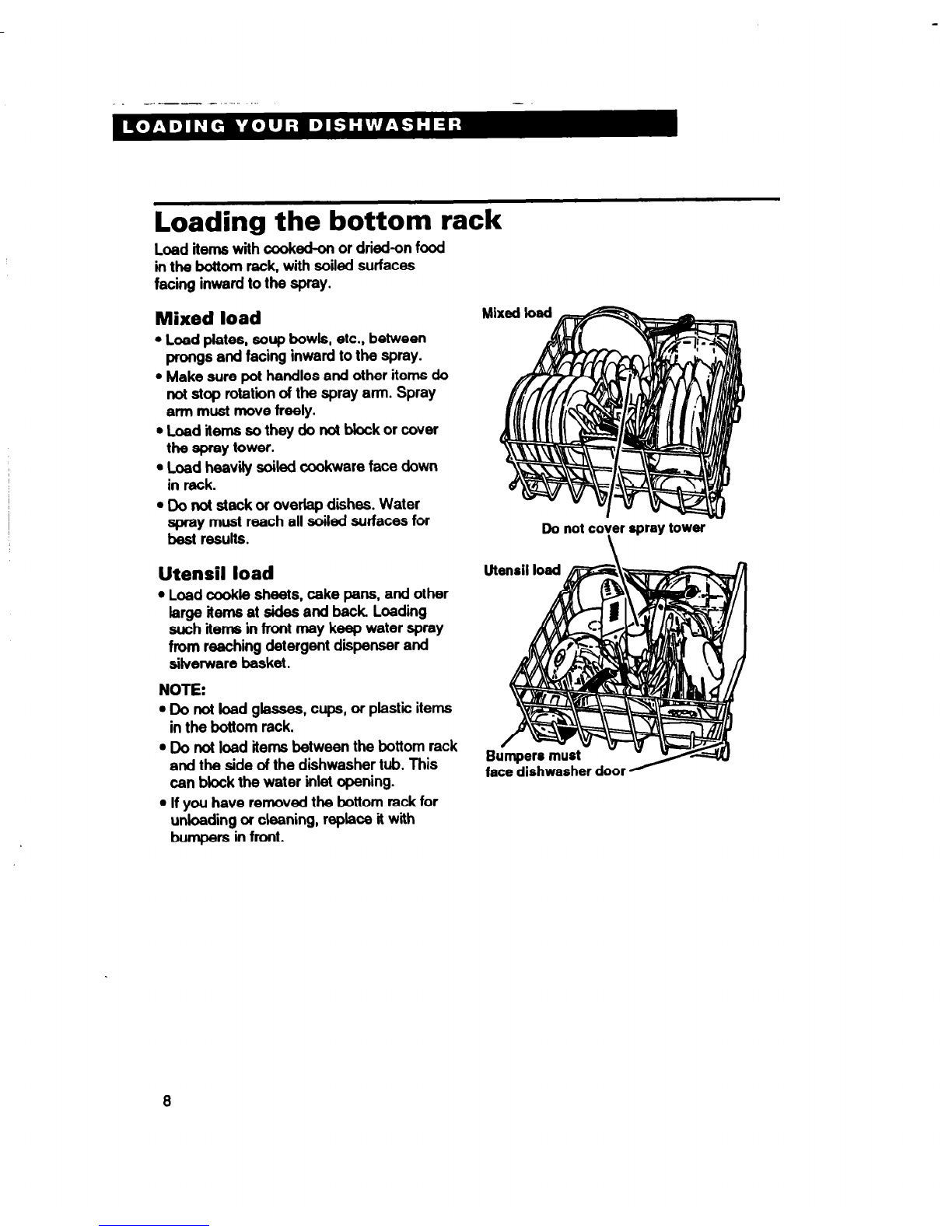

Loading the bottom

rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

Make sure pot handles and other items do

not stop rotation of the spray arm. Spray

arm must move freely.

Load items so they do not block or cover

the spray tower.

Load heavily soiled cookware face down

in rack.

Do not stack or overlap dishes. Water

z;lzreach all soiled surfaces for

Utensil load

Load cookii sheets, cake pans, and other

large ilems at skies and back Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

Do not load glasses, cups, or plastic items

in the bottom rack.

Do not load items between the bottom rack

and the side of the dishwasher tub. This

can block the water inlet opening.

If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Do not cov\er 8prey tower

face bi8hwasher door Y

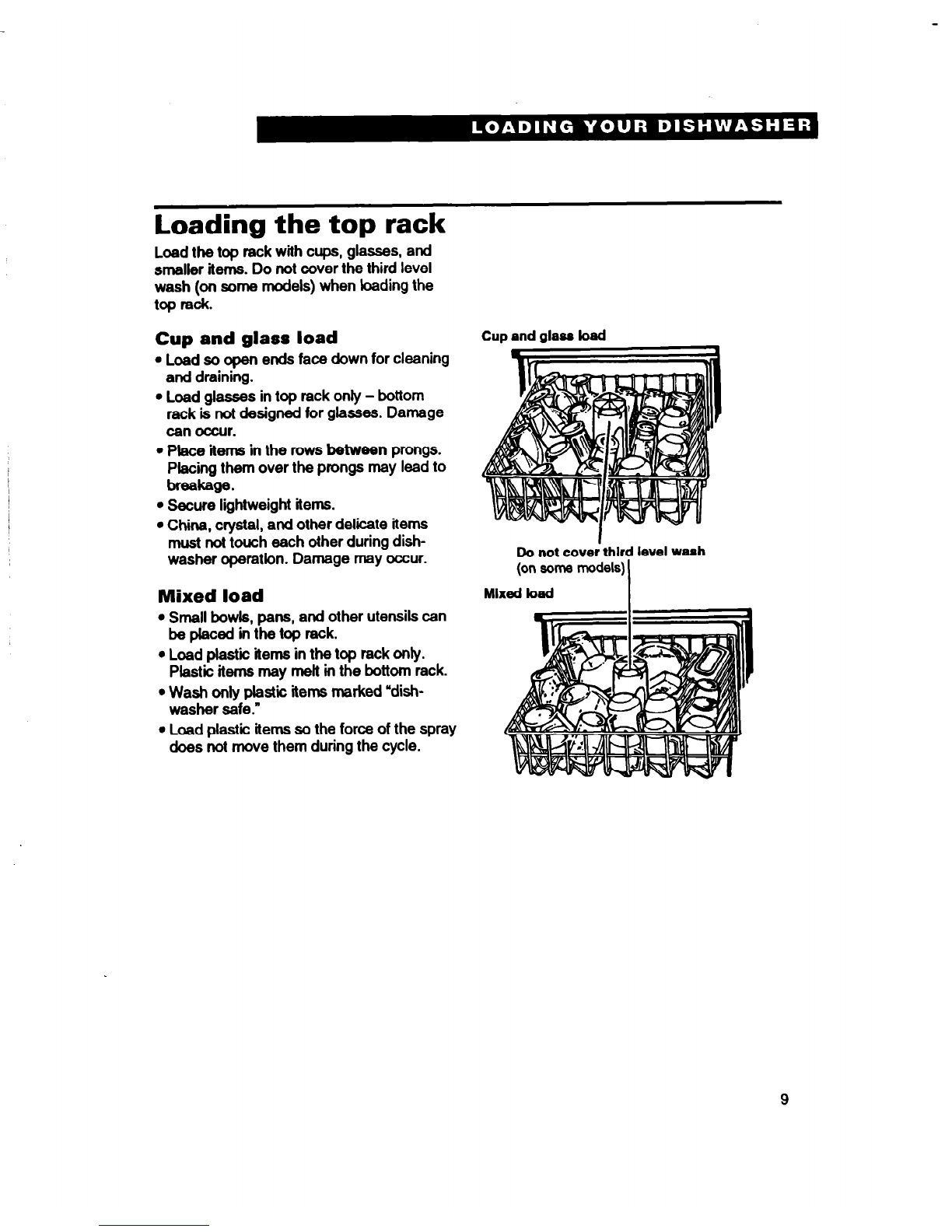

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash (on some models) when loading the

top rack.

Cup and glass load

Load so open ends face down for cleaning

and draining.

. Load glasses in top rack onty - bottom

rack is not designed for glasses. Damage

can occur.

Ptace items in the rows between prongs.

Placing them over the prongs may lead to

breakage.

Secure lightweight items.

China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Mixed load

Small bowls, pans, and other utensils can

beplacedinthetoprack.

Load plastic items in the top rack onty.

Plastic items may melt in the bottom rack.

Wash only plastic items marked “dish-

washer safe.”

Load plastic items so the force of the spray

does not move them during the cycle.

Cup and glass load

Do not cove;thlrd level wa8h

(on some models)

Mixed toed I

Using the Dispensers

For best washing results, review the information below. It is important to use detergents and

rinse agents properly.

Using the detergent dispenser

Uss automatic dishwashing detergent

only.

Other detergents are too mild and

much too sudsy.

Add detergent just before starting cycle.

Store detergent tightlycbsed in a cool, dry

place.

Fresh automatic dishwasher

detergent results in better cleaning.

Filling the detergent dispenser

The detergent

dispenser has one section

with a cover and one without. Push cover

down fim until it latches. Detergent in the

open section falls into the dishwasher when

closing the door. The covered section opens

automatically for the main wash.

NOTE: It is normal for the cover to open

partially when dispensing detergent.

Cqver Cover L&h

Use

only covered Use both sections for:

section for: - NORMAL WASH

- UGHT WASH* - POTS 8 PANS

Cycb on soma models only.

How much detergent to use

The amount of detergent to use depends

on the hardness of your water and the type

of detergent. If you use too little, dishes

won’t be clean. If you use too much in soft

water, glassware will etch.

Different brands of dishwasher detergent

have different amounts of phosphorus for

softening water. lf you have hard water

and use bw phosphorus content detergent

(6.0% or less), you may need to use more

detergent or use a detergent with a higher

phosphorus content (8.7%).

Find out your water’s hardness by asking

your local water department, water soft-

ener company, or county extension agent.

WATER TYPE WHERE TO FILL

Hard

9+ grains per gallon

136+ parts per million

Top of

M-P

(3 tw

Medium Top of

5-7

grain8 per

gallon 2nd step

85-l 1g parts per million

(2 tbs)

Soft

O-4 grains per gallon

O-68 park per million

Top of

1st step

(1 w

Fill amounts shown are for standard

powdered detergent. Amounts may vary if

you use liquid or concentrated powdered

detergent. Follow manufacturer’s directions

when using liquid dishwasher detergent or

concentrated powdered detergent.

Andere Handbücher für 400 series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool WDF550SAAB0 Bedienungsanleitung

Whirlpool

Whirlpool ADP 5656/1 WHM Bedienungsanleitung

Whirlpool

Whirlpool ADP 252 Bedienungsanleitung

Whirlpool

Whirlpool WDF310PAAW Bedienungsanleitung

Whirlpool

Whirlpool W10329310A Bedienungsanleitung

Whirlpool

Whirlpool 8900 Series Bedienungsanleitung

Whirlpool

Whirlpool ADG 7560/1 WP Bedienungsanleitung

Whirlpool

Whirlpool DU1300XTV Benutzerhandbuch

Whirlpool

Whirlpool DU920PWKQ0 Bedienungsanleitung

Whirlpool

Whirlpool W7F HS51 AX UK Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADP 553 WH Bedienungsanleitung

Whirlpool

Whirlpool W10435040B Bedienungsanleitung

Whirlpool

Whirlpool ADP 5740 Bedienungsanleitung

Whirlpool

Whirlpool WFC 3B19 Installations- und Betriebshandbuch

Whirlpool

Whirlpool WIC 3C26 F Installations- und Betriebshandbuch

Whirlpool

Whirlpool DU850SWPB0 Bedienungsanleitung

Whirlpool

Whirlpool ADP 963 WHM Bedienungsanleitung

Whirlpool

Whirlpool DP920QWDB3 Bedienungsanleitung

Whirlpool

Whirlpool Inglis 586 Series Bedienungsanleitung

Whirlpool

Whirlpool WDF730PAYB Montageanleitung

Whirlpool

Whirlpool WFC 3C34 P Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADG 6600 Bedienungsanleitung

Whirlpool

Whirlpool DU1100XTPB8 Bedienungsanleitung

Whirlpool

Whirlpool ADP 2540 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
