A Note to You

Thank you for buying a WHIRLPOOL*appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (See the “Parts and

Features” section).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Help us help you

Please:

•Have your dishwasher installed by a

qualified installer.

•Install where dishwasher is protected from

the elements.

•Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

•Properly connect dishwasher to electricity,

water, and drain.†

†See Installation Instructions for complete

information.

•Remove all shipping plugs from hoses and

connectors (such as the cap on the drain

outlet) before installing.†

•Remove all hang tags and temporary

labels.

•Make sure dishwasher is not used by

anyone unable to operate it properly.

•Properly maintain dishwasher. See the

“Caring for Your Dishwasher” section.

Model Number __________________________

Serial Number __________________________

Purchase Date __________________________

Dealer Name ___________________________

Dealer Address _________________________

Dealer Phone ___________________________

You will be killed or seriously injured

if you don’t follow instructions.

You can be killed or seriously injured

if you don’t follow instructions.

IMPORTANT SAFETY INSTRUCTIONS

•Do not operate the dishwasher unless

all enclosure panels are properly in

place.

•Do not tamper with controls.

•Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

•To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

•Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

•Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

WARNING –When using the

dishwasher, follow basic precautions,

including the following:

•Read all instructions before using the

dishwasher.

•Use the dishwasher only for its

intended function.

•Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

•When loading items to be washed:

1) Locate sharp items so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

•Do not wash plastic items unless they

are marked “dishwasher safe” or the

equivalent. For plastic items not so

marked, check the manufacturer’s

recommendations.

•Do not touch the heating element

during or immediately after use.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word “DANGER” or “WARNING.” These words mean:

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

– SAVE THESE INSTRUCTIONS –

Dishwasher Safety

NORMAL HEAVY POTS

-N-

PANS

HIGH

TEMP

WASH AIR DRYAIR DRY

OPTIONS

RINSING CLEAN

CYCLES

LOCK OUTLOCK OUT

4 HOUR4HOUR

DELAY

START

CANCEL

DRAIN

STATUS

WASHING DRYING

WASH

LATER

RINSE

Press 5 Seconds toPress 5Seconds to

Lock OutLock Out

or release Controlsor release Controls

WATER HEATINGWATER HEATING

LOW

ENERGY

CHINA

Status

indicators

†See Installation Instructions

for more information.

Door latch

Door color panel†

Third level wash

(p. 10)

Adjustable top rack

(p. 10)

Water inlet opening

(p. 9)

Rack bumper

(p. 9)

Bottom rack

(p. 9)

Heating element

Silverware

basket

(p. 8)

Cutlery

basket

(p. 7)

Parts and Features

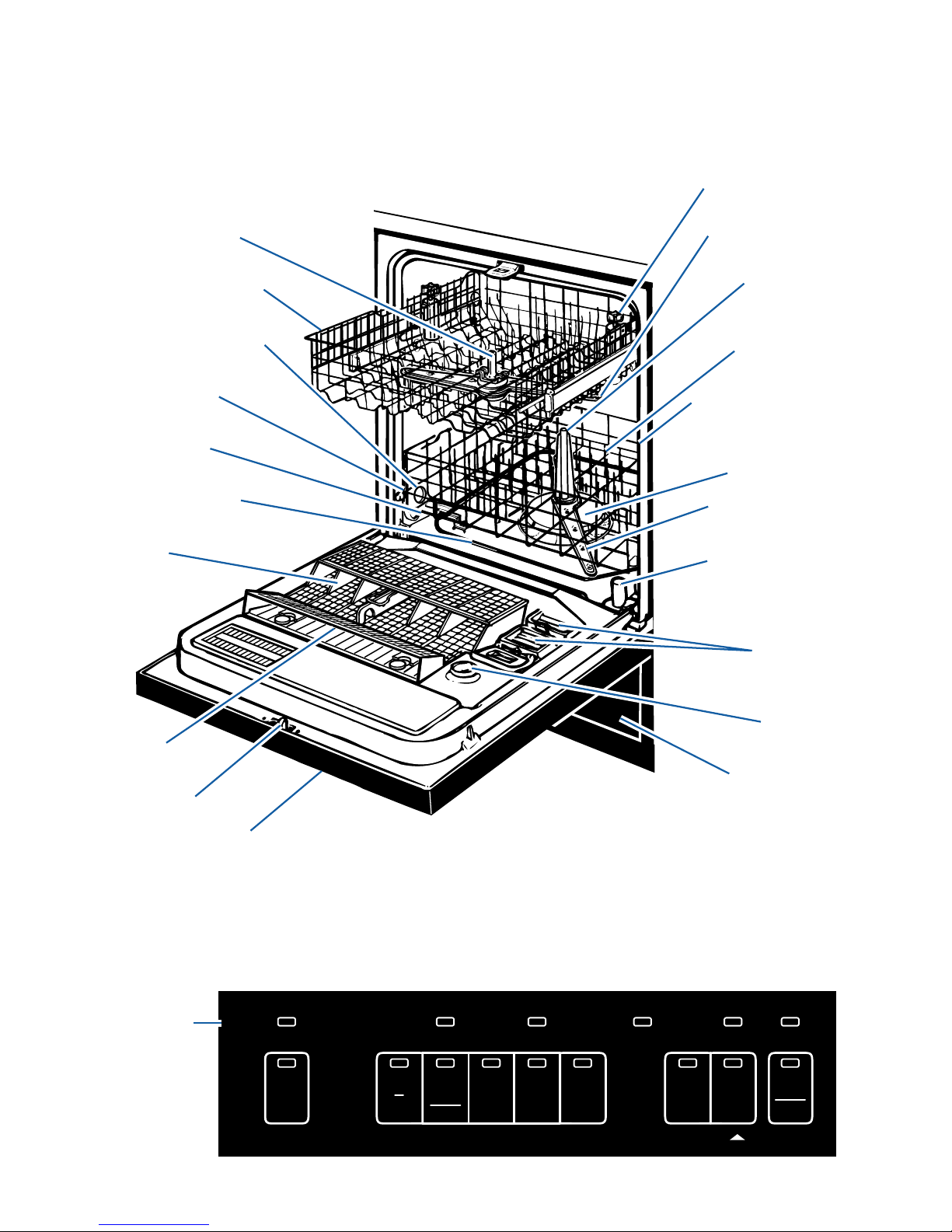

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Control panel

Your dishwasher has a row of push pads to select cycles and options. You must select a

cycle to start your dishwasher. You may select one or more options.

Top rack adjuster

(p. 10)

Upper spray arm

(p. 9)

Spray tower

(p. 9)

Fold-down

divider (p. 9)

Model and

serial number label

(on right side)

POWER CLEAN*

module (p. 31)

Lower spray arm

(p. 9)

Overfill protector

(p. 19)

Detergent

dispenser

(p. 11)

Rinse agent

dispenser

(p. 12)

Access panel†

SAFETY FIRST

Star

ting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

GROUNDING INSTRUCTIONS

•For a grounded, cord connected

dishwasher:

The dishwasher must be grounded. In

the event of a malfunction or breakdown,

grounding

will reduce the risk of

electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING –Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock.

wWARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green

ground connector in terminal box.

Do not use an extension cord.

Failure to do so can result in death,

fire, or electrical shock.

wWARNING

Tip Over Hazard

Do not use dishwasher until

completely installed.

Do not push down on open door.

Doing so can result in serious injury

or cuts.

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

•For a permanently connected

dishwasher:

The dishwasher must be connected to a

grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

– SAVE THESE INSTRUCTIONS –

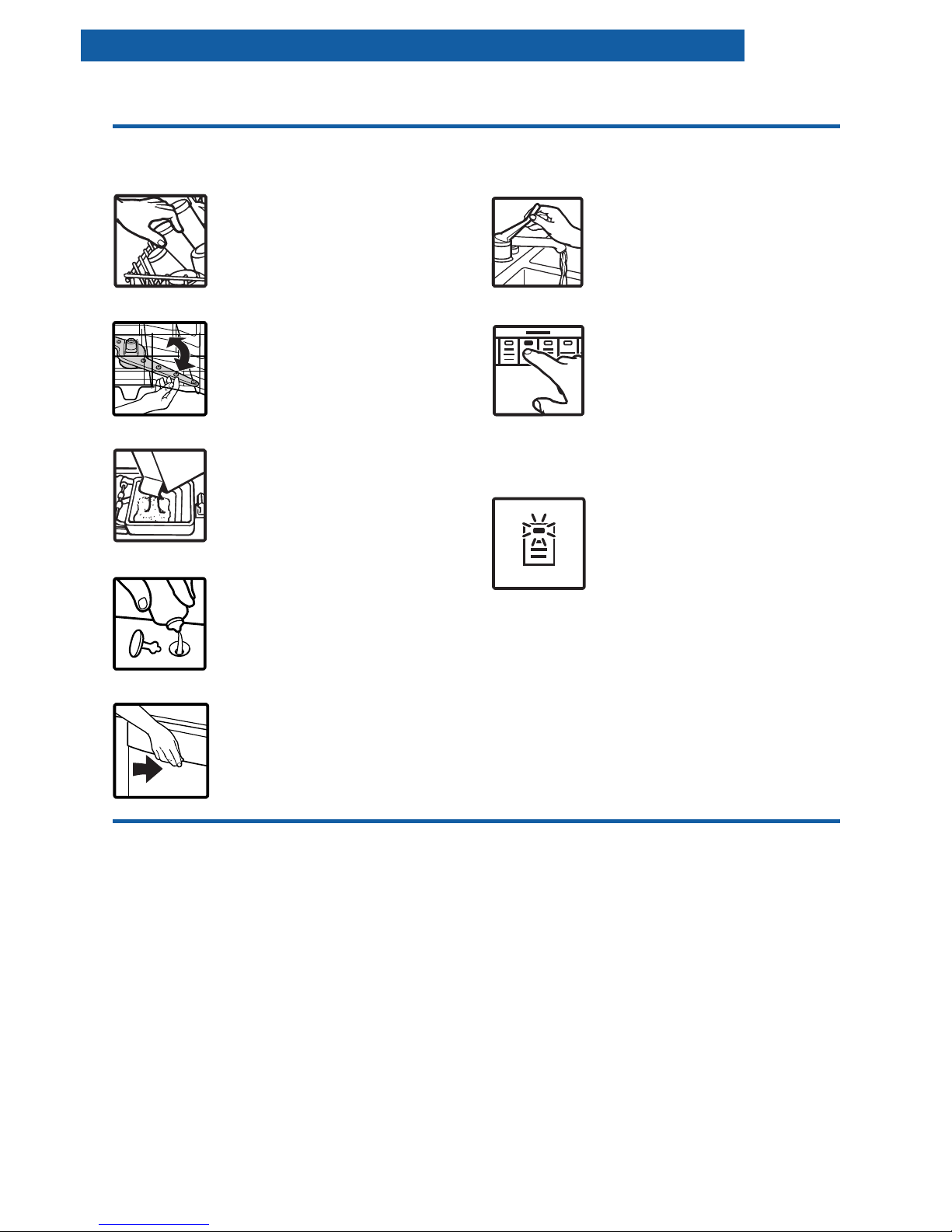

Starting a wash cycle

1. Load the dishwasher. See the “Loading

Your Dishwasher” section.

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See the “Using the

Dispensers” section.

4. Add rinse agent, if needed.

See the “Using the

Dispensers” section.

5. Close door firmly until it latches.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

•Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close door to con-

tinue cycle.

•Press Cancel/Drain. Once pressed, a

2-minute drain starts. (See the “Setting the

Controls” section.)

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. See the “Saving

Energy” section.

7. Press a Cycle pad. If desired, press one

or more Option pads. See the

“Setting the Controls” section.

The dishwasher starts filling

once you press a cycle pad

unless you select the delay

wash cycle. You may press Option pads

as the machine is filling.

The pad indicator glows red when a cycle

or option is selected.

STARTING YOUR DISHWASHER

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

•To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

•Remove large pieces of food, bones, and

other hard items. The POWER CLEAN*

module removes food particles from the

water. The module contains a chopping

device which reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do not let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

•Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a Rinse/Wash

Later cycle to keep dishes moist if you do

not plan to wash them soon.

Loading the cutlery basket

Use the cutlery basket to hold long items.

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery.

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the holding buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

•Load dishes so soiled surfaces face the

rotating spray arm.

•Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

•Secure lightweight load items in the racks.

•Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior

walls, interfere with the spray arm’s

rotation, or cover the spray tower.

•Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

LOADING YOUR DISHWASHER

Loading the silverware basket

•Load the silverware basket while it is in the

door or take the basket out for loading on a

counter or table.

•Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items.

IMPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

•Put small items (baby bottle caps, jar lids,

etc.) in any section.

•You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide it

toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

•Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

LOADING YOUR DISHWASHER

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

•Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

•Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

•Load items so they do not block or cover

the spray tower.

•Load heavily soiled cookware face down

in rack.

•Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

•Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTES:

•Do not load glasses, cups, or plastic items

in the bottom rack.

•Do not load items between the bottom rack

and the dishwasher tub. This can block the

water inlet opening.

•If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Fold-down divider

Use the fold-down divider at the back of

the rack to make room for deep bowls,

roasters, etc.

Bumpers must

face dishwasher door

Do not cover spray tower

Mixed load

Utensil load

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash when loading the top rack.

Cup and glass load

•Load so open ends face down for cleaning

and draining.

•Load glasses in top rack only – bottom rack is

not designed for glasses. Damage can occur.

•Place items in the rows between prongs.

Placing them over the prongs may lead to

breakage.

•Secure lightweight items.

•China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Mixed load

•Small bowls, pans, and other utensils can

be placed in the top rack.

•Load plastic items in the top rack only.

Plastic items may melt in the bottom rack.

•Wash only plastic items marked “dish-

washer safe.”

•Load plastic items so the force of the spray

does not move them during the cycle.

Infinite adjustable top rack

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to be level.

•Turn the knob clockwise to raise a side of

the rack.

•Turn the knob counterclockwise to lower a

side of the rack.

Cup and

glass load

Do not cover third level wash

Mixed load

Raise

Lower

LOADING YOUR DISHWASHER

Andere Handbücher für 940 series

Inhaltsverzeichnis

Sprachen:

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool Ikea IUD4000R Bedienungsanleitung

Whirlpool

Whirlpool GU3600XTVY - 24" Wide Dishwashe Montageanleitung

Whirlpool

Whirlpool ADP 536 WT Bedienungsanleitung

Whirlpool

Whirlpool DU1099XT1 Bedienungsanleitung

Whirlpool

Whirlpool WSIC 3M27 C Installations- und Betriebshandbuch

Whirlpool

Whirlpool DP1040XTXQ Montageanleitung

Whirlpool

Whirlpool DU900PCDB0 Bedienungsanleitung

Whirlpool

Whirlpool AGB 650/WP Bedienungsanleitung

Whirlpool

Whirlpool ADP 950/3 WH Bedienungsanleitung

Whirlpool

Whirlpool ADP 931/1 WH Bedienungsanleitung

Whirlpool

Whirlpool DP6881XL Bedienungsanleitung

Whirlpool

Whirlpool ADP5000MT Bedienungsanleitung

Whirlpool

Whirlpool DU850SWPU0 Bedienungsanleitung

Whirlpool

Whirlpool DU7200XS Bedienungsanleitung

Whirlpool

Whirlpool ADG 4966 Bedienungsanleitung

Whirlpool

Whirlpool ADP 5450 Bedienungsanleitung

Whirlpool

Whirlpool GU2200XTSB1 Bedienungsanleitung

Whirlpool

Whirlpool 8051229 Bedienungsanleitung

Whirlpool

Whirlpool DU4500XM Bedienungsanleitung

Whirlpool

Whirlpool ADG 6966 IXM Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C24 PF X Installations- und Betriebshandbuch

Whirlpool

Whirlpool 940 series Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C33 PF Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADP 2442 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
