ADG 4966 Quick Reference Guide

Before using the dishwasher, read the user instructions!

WH/I/FD/GB

(We reserve the right to make technical modifications)

Add rinse aid

Add regeneration salt

Only add regeneration salt immediately

before starting a wash programme.

Time and failure display 3)

Indicates in hours the time

remaining until the start of the wash

cycle. Switches off when the

programme has started. Toward the

end of the programme, during the

drying cycle, the display will indicate

the time remaining in minutes.

“F...” Identification of faults for

service technician

“Delayed start” buttons

The wash cycle can be programmed

to start after 1 - 24 hours. With each

successive touch of the button, the

delayed start indicator increases by

1 hour, and after 24 returns to 00.

Then press the Start button. The

dishwasher will start at the set time.

“Half load” button

This function can be used with any

programme. The indicator lamp

switches on. The wash cycle is

activated for theupper or lower rack

only.

1) Reference programme for energy label in compliance with

EN 50242 regulations;

2) Refer to “User instructions“;

3) Values may vary in relation to usage, e.g.: different loads,

water temperatures - above or below 15°C - as well as water

hardness and power supply voltage, etc.

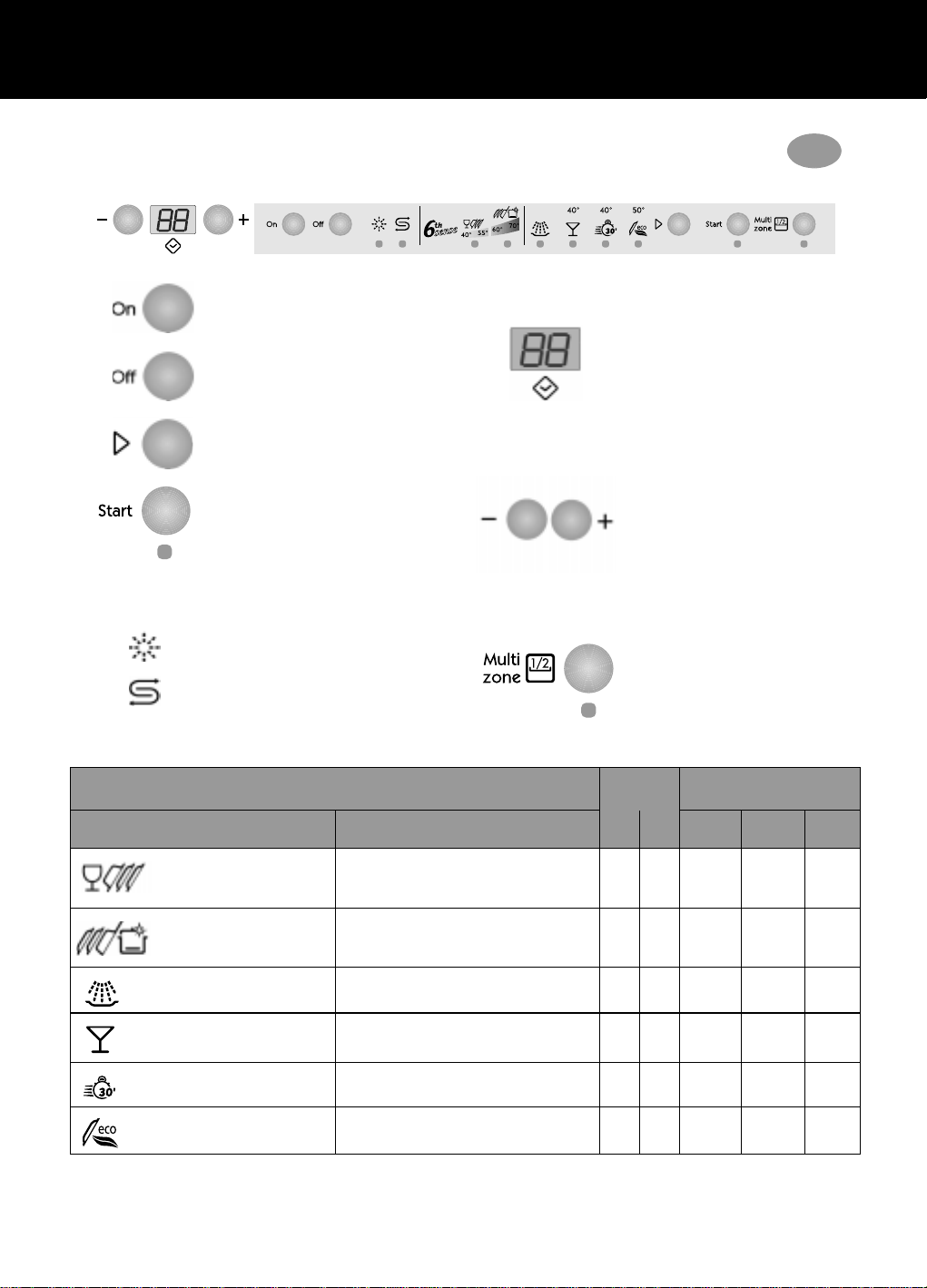

On button

Off button

Programme selection button

Start button

Switches “on” when the dishwasher is

operating. Flashes when a fault occurs.

Switches off at the end of the programme.

Indicators

Options

Programme chart Detergent 2) Consumption 3)

Programmes Loading instructions A B Litres kWh Minutes

Sensor Normal 40-55°C Automatic programme recommended for

routine washes, with no dried-on or burnt

food (not for EN 50242). X X 10.0-13.0 0.80-1.05 50-110

Sensor Intensive 60-70°C Automatic programme recommended for

heavily soiled crockery with dried-on or burnt

food, for example pans and saucepans. X X 13.0-20.0 1.10-2.00 90-140

Pre-Rinse cold Crockery to be washed later. - - 4.0 0.03 14

Glass 40°C Light soiling, for example glasses and cups. X - 10.0 0.80 55

Quickwash 40°C Lightly soiled crockery, with no dried-on

food. X - 10.0 0.65 30

Eco-Normal 1) 50°C Normally soiled crockery. X X 13.0 1.05 120

WH/II/FD/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Press the ON button.

Large compartment A:

With each wash cycle.

Small compartment B:

For programmes with pre-wash only.

Mechanical indicator lamp C.

Electric indicator on control panel (if provided).

On models with water softener system only.

Mechanical indicator lamp D. Electric

indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up.

Press the button until the desired programme lights up.

If necessary (and if provided)

the corresponding indicator lamp lights up.

Theselected programmeis then

memorised (even in the event

of power failure).

- Only open the dishwasher if necessary

(Warning: beware of hot steam).

- If the appliance is switched off during a

wash cycle, when switched on again it

will resume the cycle from where it was

interrupted.

At the end of the programme an acoustic signal will sound.

Only after the START button has switched off: press the OFF button.

All the indicator lamps switch off.

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

Open the door,

switch on the appliance

How to fill the

detergent dispenser AB C

Check the rinse aid level

Check the regeneration

salt level

Load the racks

Select a programme

Select options

Press the Start button

“Change programme”

Press the START button for 2 sec. until

the Start indicator lamp switches off;

Select another programme and

press the START button again.

Turn on the water tap

close the dishwasher door

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks

WH/III/GB

Dishwasher loading instructions and racks provided

Upper rack: depending on the model

Multi-purpose support (A): 1)

Depending on the position, for

long-handles utensils, cups and

glasses. May be used in three

different positions.

Crockery holders (B):

Depending on the position,

for example plates, cups and

long-stemmed glasses.

Revolving glass support (C): 2)

Depending on the position, for

example small or long-stemmed

glasses.

Half Load:

Load the upper rack only.

Place the cutlery basket (D) in the

upper rack.

Rack height adjustment

(also when loaded):

•Lower adjustment: pull out the

two rack handles outwards (E)

and lower the rack.

•Upper adjustment: pull the two

handles(E)upwardsuntil the rack

clicks into place (Factory setting).

The rack must be level on both

sides.

Lower rack:

Depending on the model with fixed

or tilting plate holders (F).

Half Load:

Load the lower rack only.

Greater washing power,

particularly for plates and

saucepans.

Cutlery basket (G) or (H):

Some models are provided with a

grid (I) that can be fitted onto the

cutlery basket to keep items

separated. Cutlery basket (D) for

appliances with half load only.

Sharp knives and forks that might

cause injury must be placed in the

cutlery basket with the handles

positioned upwards.

Do not use the appliance for items not suitable for washing in a dishwasher, for example wooden items, aluminium,

plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.

Spare parts which are sold separately:

1) Multi-purpose support (A) - N. AMH 369 series.

2) Revolving glass support (C) - N. WGH 1000 series.

WH/IV/GB

What to do if...

If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem

(* see also the corresponding chapter in the user instructions).

Problem Cause Remedy

The appliance is not

working • No water supply. • Open the tap.

• The appliance does not load

sufficient water. • Clean the water supply tap filter.

• Ensure there are no kinks in the water hose.

• There is a power failure. • Insert the plug into the mains socket.

• Press the Start button.

• Close the door.

• Check the domestic circuit fuse.

• Starting the selected programme. • The programme can be set to “0” to start.

If crockery is not

perfectly dry • Insufficient rinse aid. • Increase dosage *.

• Residual water in cavities. • Load crockery at an angle.

If crockery is not

perfectly clean • The water jet does not reach

the crockery. • Arrange crockery so that items do not touch each

other.

Load crockery upside down.

• Insufficient detergent. • Follow recommended detergent dosage.

• Unsuitable programme. • Select a more intense wash cycle.

• Spray arms blocked. • The spray arms must be able to turn freely.

• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.

• Incorrect detergent/detergent too old. • Use a good quality detergent.

Sandy or grainy residues • Clogged filters. • Check filters regularly/if necessary clean *.

• Filters incorrectly assembled. • Insert the filter correctly *.

Colour of plastic parts

faded • Tomato/carrot juice,... • Depending on the material, if necessary use a

detergent with a greater whitening power.

Deposits on crockery

• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.

• Streaks on glasses. • Reduce the rinse aid dosage *.

• Layer of salt on crockery/glasses. • Close the salt container lid properly *.

• not removable • Insufficient water softening,

calcium deposits. • Change water hardness setting, if necessary add

salt *.

Opaque glasses/ glasses

not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.

Rust on cutlery • Not made of stainless steel. • Use suitable cutlery.

Identifying appliance

faults • The START indicator lamp flashes. • Ensure that the filter assembly is not clogged and

if necessary clean it *.

Start the programme again. Press the Start button for

2 seconds, until the Start indicator lamp switches

off. Select a new programme and press the Start

button again.

• Indicator F... (if provided). • Call the After-Sales Service.

If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the

water supply tap, then call our After-Sales Service (see guarantee).

Before contacting our After-Sales Service, take note of the following:

• The nature of the fault.

• The appliance type and model.

• The service code (the number indicated on the adhesive rating

plate) inside the door on the right-hand side.
