DISHWASHERS

Undercounter Models

DU3003XL and DU3016XL

Portable Model

DP3801XL

rs Freezers. Relrlgeralor-Freezers. Ice Makers DIshrashers Bu~ll-In Ovens and Surface Un~ls. Ranges, Microwave Ovens Trash Compactors Room Air Condllloners. Oehumic

Contf-+-

G111;, Page Chanaina a Settina

SeleciingUa Cycle-Y.. A

BEFORE YOU USE YOUR DISHWASHER 2 HEAT DRYor AIR DRY? 9

IMPORTANT SAFETY INSTRUCTIONS 2 To Add a Dish After Starting 9

PARTS AND FEATURES 3 ENERGY SAVING TIPS 10

FOR BEST RESULTS 4 SPECIAL TIPS 11

The Filtering System 4 COMMON DISHWASHING PROBLEMS 12

PROPER LOADING 5 CONNECTING YOUR PORTABLE

lop Rack Loading 5 DISHWASHER 14

Bottom Rack Loading 6

Silverware Basket Loading : : IF YOU NEED SERVICE OR ASSISTANCE 15

6 1. Before Calling for Assistance 15

ADDING DETERGENT 7 2. If You Need Assistance 15

BEFORE STARTING YOUR DISHWASHER 8 3. If You Need Service 15

STARTING YOUR DISHWASHER 8 4. If You Have a Problem 15

01984 Whirlpool Corporation

Before you use your dishwasher

It Is your personal responslblllty and obllgatlon to be sure your dlshwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight,

Has been properly connected to electricity, water and drain.”

Has been properly electrically grounded.-

. Is not used by children or anyone unable to operate it properly.

Is properly maintained.

‘See installation instructions for complete information.

Parts and features

Models DU3003X1, DU3Ol6XL

and DP38OlXL (not shown)

UPPER SPRAY ARM -

TOP RACK --

RACK BUMPER

BOTTOM RACK

DETERGENT

DISPENSERS 1

USER GUIDE

lkrmanent Label1 A -

HEATING ELEMENT \-I/

LOWER SPRAY ARM

\ SILVERWARE

BASKET

MODEL AND SERIAL

NUMBER PLATE

\ (not shown)

1 THE OVERFLOW

PROTECTOR is

designed to prevent

too much water

A-

? PAliEL - 6 COLOR

from entering the

dishwasher It Is not

I --~

OPl l”ryJ IlJ”.J”“.JAL

and DU3CMXL)

FILTERSYSTEM

(Screen and Remova

Copy your Model and Serial Numbers here.. .

When you need service or call with a question,

have this information ready:

Model

Number

1. Complete Model and Serial Numbers [from the

plate located as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. Keep this

book,

your warranty and Saks slip together irl a Purchase Dote

handy place. There is no warranty registration to

return. Proof-of-purchase is all that is required for

in-warranty service.

Service Company and Telephone Number

For Best Results

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent

agCIinSt

soiled surfaces of dishes. When a cycle is started, the dishwasher fills with water

to about the level of the heating element. This water is pumped through the rotating

spray arms, drained through the filtersystem which removes food and soil, and pumped

back through the rotating spray arms, Soiled water is pumped out and replaced with

clean water during a cycle - the number of times depends on the cycle being used.

Load dishes so solled surfaces face pow-

erful spray from rotating arms.

The filtering system

It is not necessary to rinse dlshes before

puttlng them Into the dlrhwarher. Just remove

large pieces and quantities of food and bones.

The filtering system helps keep food particles

out of the wash water. Small particles are flushed

away as water is pumped out. Larger particles

are trapped in the pump guard.

To remove the pump guard for cleaning...

I. Walt at least 20 minutes atter a cycle for

the heating element to cool down.

2. Unload and remove the bottom rack.

3. Press the outside wall of the pump guard at

the center to release the latch.

4. Lift out and rinse clean.

To replace the pump guard...

1. Insert pump guard legs (on inside wall) into

matching openings in filter screen.

2. Press down on outside wall until latch snaps

into place.

3. Replace bottom rack with rack bumpers in

front.

Water must

be hot

The self-cleaning filtering system and

removable pump guard help eliminate pre-

rlnslng by removing food particles from the

water.

Removable Pump Gu

lard

140” F

---O Cl For best cleaning and drying results, water should be al least

b 140°F (60°C).

I. Turn on hot water faucet nearest the dishwasher. Let water run

cWater Temperature

until it is as hot as possible.

2. Hold a candy or meat thermometer in the stream of hot Water

. to measure the temperature.

3. If the temperature is too low, have a qualified person raise

the water heater thermostat setting.

4 Check

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms.

Water must be able to drain off completely for best drying results. Be careful to separate

items so spray can reach all surfaces.

Top rack loading

CUP AND GLASS LOAD

The top rack is designed for cups, glasses

and smaller items.

Place so open ends face down for clean-

ing and draining.

load glasses In top rack only. Bottom

rack is not designed for glasses. Damage

may occur.

MIXED LOAD

Load plastic items only In the top rack.

Only plastic items marked “dishwasher

safe” are recommended.

Plastic items can be melted in the bottom

rack.

Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

Be sure lightweight items are held firmly

in place.

China, crystal and other delicate items

must not touch another item during dish-

washer operation. Damage may occur.

I UTENSIL LOAD I

Small bowls, pans and other utensils can

be placed in the top rack.

Items with cooked-on or dried-on foods should be loaded in the bottom rack with

soiled surfaces facing the spray.

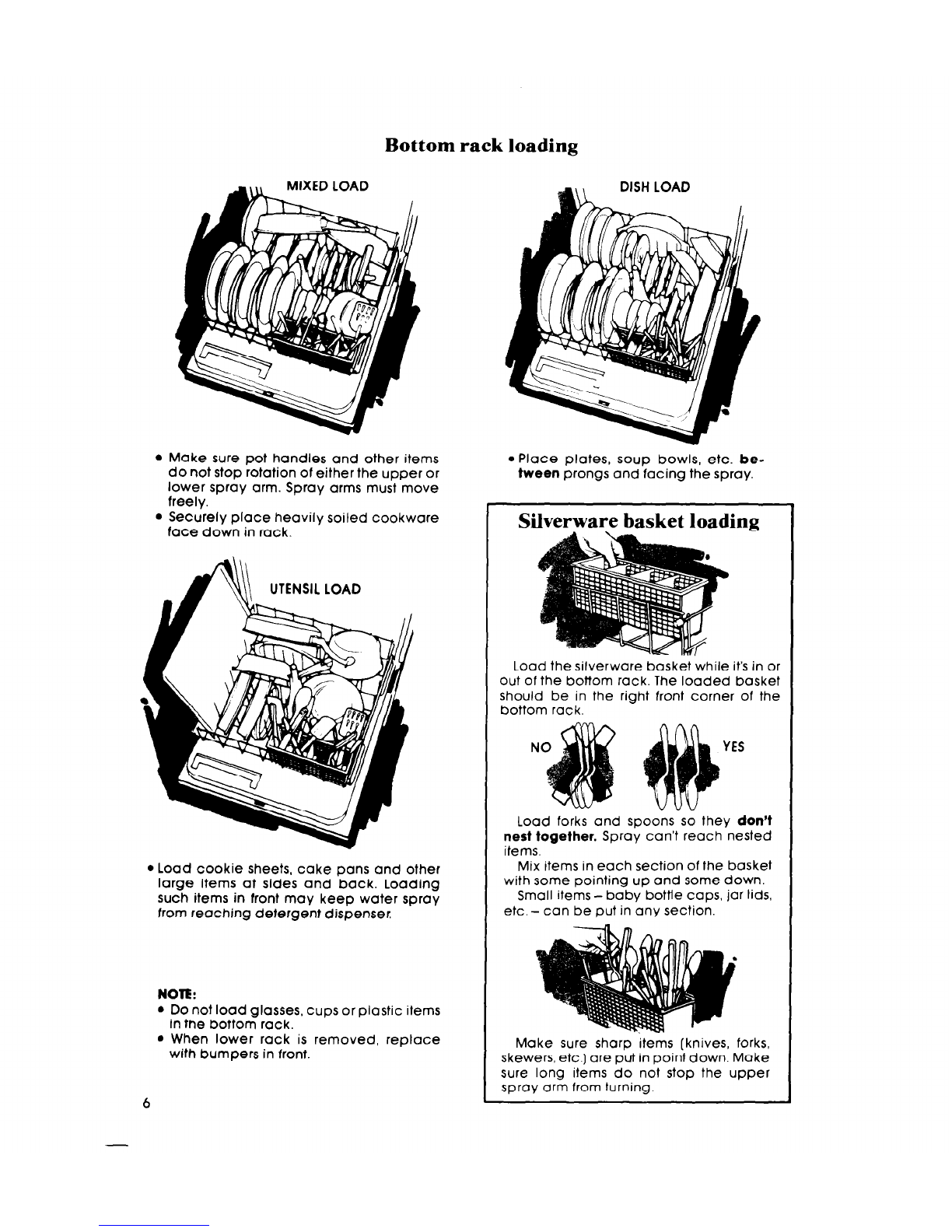

Bottom rack loading

saw\\

DISH LOAD

Make sure pot handles and other items

do not stop rotation of either the upper or

lower spray arm. Spray arms must move

freely.

Securely place heavily soiled cookware

face down in rack.

Load cookie sheets, cake pans and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser

NOTE:

. Do not load glasses, cups or plastic items

in the bottom rack.

When lower rack is removed, replace

with bumpers in front.

Place plates, soup bowls, etc. be-

tween

prongs and facing the spray.

Silverware basket loading

Load the silverware basket while it’s in or

out of the bottom rack. The loaded basket

should be in the right front corner of the

bottom rack.

YES

Load forks and spoons so they don’t

nest together. Spray can’t reach nested

items.

Mix items in each section of the basket

with some pointing up and some down.

Small items - baby bottle caps, jar lids,

etc. - can be put in any section.

Make sure sharp items [knives, forks,

skewers, etc.] are put in point down. Make

sure long items do not stop the upper

spray arm from turning.

Adding detergent

The kind and amount of dishwasher detergent you use is an important part of

getting your dishes clean. Read this section carefully.

Use automatlo dlsh-

washer detergent only.

Other detergents are

too mild and much too

sudsy to work in the

dishwasher.

Different brands of

dishwasher detergent

have different amounts

of phosphorus. Phospho-

rus softens water and

helps prevent water

spots on dishes.

If water is hard and

phosphorus content is

low (8.7% or less), you

may need to use more

detergent or use a

brand with a higher

phosphorus content

(12% or higher).

Do not add detergent

until you are ready to

wash. Fresh, dry deter-

gent Is necessary for

best washing results.

Store detergent tightly in

a cool, dry place.

The detergent dispenser

The detergent dispenser has one section with

a cover and one without.

Put detergent in both sections for cycles with

two washes.

Put detergent in the covered section only for

cycles with one wash.

Push the cover down

until it is latched.

The cover opens auto-

matically when the main

wash starts. Detergent in

the open section falls

into the dishwasher

when the door is closed.

Use covered section for...

NORMAL LIGHT Cycle v Use both

sections for.. .

NORMAL HEAVY

Cycle

How much detergent to use

The amount of detergent to use

depends on the hardness of your

HARD-Fill 1 or both sections to top

line if water is 8 or more grains of

water. Iftoo little is used, dishes won’t

be clean. However, if too much is

used in soft water, glassware wilt

begin to etch.

hardness.

Find out your water’s hardness by

asking your local water depart-

ment. water softener company or

county extension agent.

MEDIUM - Fill 1 or both sections to

middle line if water is 5 to 7 grains of

hardness.

SOFT - Fill one or both sections to

bottom line if water is 0 to 4 grains of

hardness.

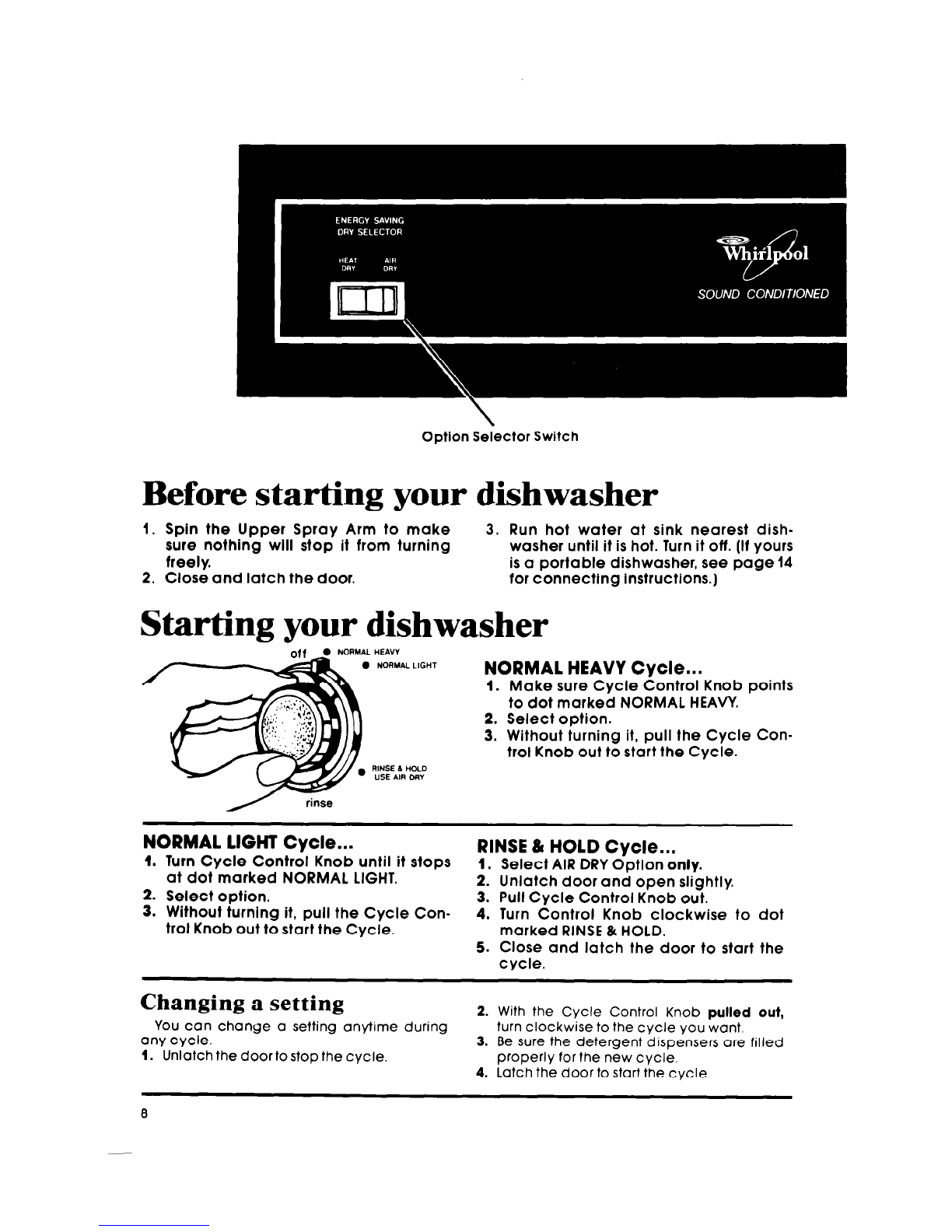

Optton Selector

Switch

Before starting your dishwasher

1. Spin the Upper Spray Arm to make 3. Run hot water at sink nearest dish-

sure nothing will stop it from turning washer until it is hot. Turn it off. (If yours

freely is a portable dishwasher, see page 14

2. Close and latch the door. for connecting instructions.)

Starting your dishwasher

NORMALHEA””

l NORMAL LIGHT

RIUSE* HOLD

“SEAIRow

NORMAL HEAVY Cycle...

1. Make sure Cycle Control Knob points

to dot marked NORMAL HEAVY.

2. Select option.

3. Without turning it, pull the Cycle Con-

trol Knob out to start the Cycle.

NORMAL LIGHT Cycle.. .

1. Turn Cycle Control Knob until it stops

RINSE & HOLD Cycle...

at dot marked NORMAL LIGHT. 1. Select AIR DRY Option only.

2. Select option. 2. Unlatch door and open slightly.

3. Without turning it, pull the Cycle Con- 3. Pull Cycle Control Knob out.

4. Turn Control Knob clockwise to dot

trol Knob out to start the Cycle. marked RINSE & HOLD.

5. Close and latch the door to start the

cycle.

Changing a setting

2. With the Cycle Control Knob

pulled out,

You can change a setting anytime during turn clockwise to the cycle you want.

any cycle.

3. Be sure the detergent dispensers are filled

Unlatch the door to stop the cycle. properly for the new cycle.

4. Latch the door to start the cycle.

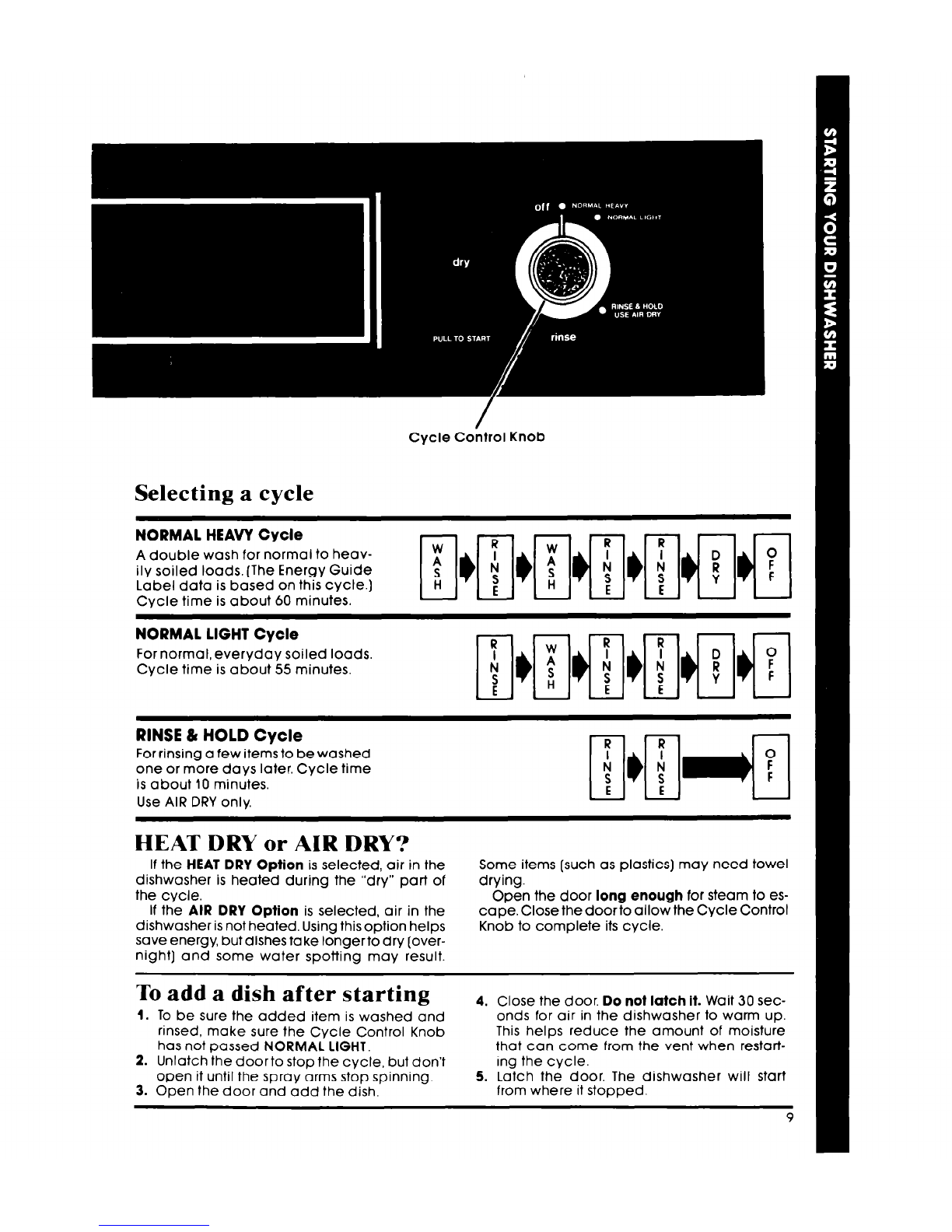

Cycle Control Knob

Selecting a cycle

NORMAL HEAVY Cycle

A double wash for normal to heav-

ily soiled loads. (The Energy Guide

Label data is based on this cycle.]

Cycle time is about 60 minutes.

NORMAL LIGHT Cycle

For normal, everyday soiled loads.

Cycle time is about 55 minutes.

RINSE & HOLD Cycle

For rinsing a few items to be washed

one or more days later. Cycle time

is about 10 minutes.

Use AIR DRY only.

HEAT DRY or AIR DRY?

If the HEAT DRY Option is selected, air in the

dishwasher is heated during the “dry” part of

the cycle.

If the AIR DRY Option is selected, air in the

dishwasher is not heated, Using this option helps

save energy but dishes take longer to dry [over-

night] and some water spotting may result.

Some items (such as plastics) may need towel

drying.

Open the door long enough for steam to es-

cape. Close the door to allow the Cycle Control

Knob to complete its cycle.

To add a dish after starting

4. Close the door. Do not latch it. Wait 30 sec-

1. To be sure the added item is washed and onds for air in the dishwasher to warm up.

rinsed, make sure the Cycle Control Knob This helps reduce the amount of moisture

has not passed NORMAL LIGHT. that can come from the vent when restart-

2. Unlatch the doorto stop the cycle, but don’t rng the cycle.

open it until the spray arms stop spinning. 5. Latch the door, The dishwasher will Start

3. Open the door and add the dish. from where it stopped.

Energy saving tips

You can help save energy it you:

PULL TO !START

1. Wash full loads. Running a half-filled dish- 2. Use the NORMAL LIGHT Cycle for normally

washer uses the same amount of electricity soiled loads. It uses less hot water and

and hot water as a fully loaded machine. energy than NORMAL HEAVY.

3. Air dry dishes when you don’t need a rapid 4. load ,correctly for best washing results. In-

drying cycle. Allow longer drying times correct loading may cause poor washing

(overnight). and the need to rewash all or part of the

load.

5. Don’t pre-rinse normally soiled dishes. Se- 6. Use your dlshwasher during off-peak hours.

lect the correct cycle for the load and use Local utilities recommend this to avoid

the recommended qmount of detergent for heavy usage of energy at certain times of

good washing results without hand rinsing. day.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool TUD6710P Bedienungsanleitung

Whirlpool

Whirlpool DU7400XS series Bedienungsanleitung

Whirlpool

Whirlpool ADG450 Bedienungsanleitung

Whirlpool

Whirlpool DWH B80 W Bedienungs- und Montageanleitung

Whirlpool

Whirlpool 910 Series Montageanleitung

Whirlpool

Whirlpool DU1100XTPB9 Bedienungsanleitung

Whirlpool

Whirlpool WFW5620HW Bedienungsanleitung

Whirlpool

Whirlpool DU920PGQ1 Bedienungsanleitung

Whirlpool

Whirlpool 000 270 52 Bedienungsanleitung

Whirlpool

Whirlpool 900 SERIES Bedienungsanleitung

Whirlpool

Whirlpool WBC 3C26 X Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADG 7540 Bedienungsanleitung

Whirlpool

Whirlpool GUI500XTKQ0 Bedienungsanleitung

Whirlpool

Whirlpool DU1099XT Series Bedienungsanleitung

Whirlpool

Whirlpool WDF750SAYB Montageanleitung

Whirlpool

Whirlpool GDP8500 Bedienungsanleitung

Whirlpool

Whirlpool WFO 3T142 X Installations- und Betriebshandbuch

Whirlpool

Whirlpool DU4000XR Series Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C34 P Installations- und Betriebshandbuch

Whirlpool

Whirlpool 6ADP 962 Bedienungsanleitung

Whirlpool

Whirlpool ADG 6556 IXM Bedienungsanleitung

Whirlpool

Whirlpool 3369088 Bedienungsanleitung

Whirlpool

Whirlpool W10282479 Bedienungsanleitung

Whirlpool

Whirlpool GU2200XTSB3 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
