Whirlpool DP8700XTN0 Bedienungsanleitung

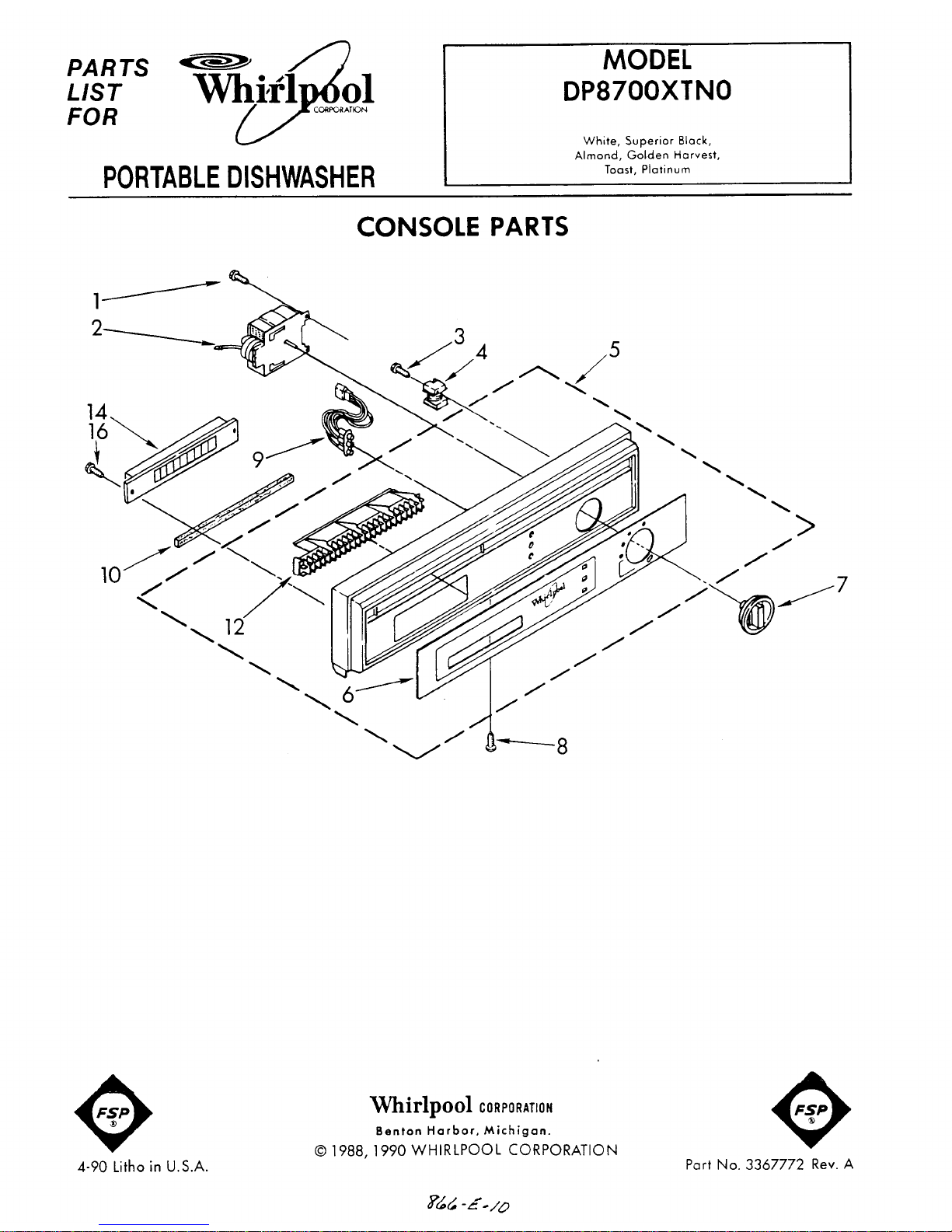

1 304231 Screw,8-16 x 1/2 Slot Hex Wash Hd (3)

2 3367796 Timer

3 304232 Screw, 7-18 x 1-3/8 Slot Hex Wash Hd

4 304409 Relay, Start

5 3367886 Console

6 3367841 Insert, Decorative

7 3367282 Knob, Timer

8 304234 Screw, 8-18 x 1/2 Hi-Lo (2)

9 304422 Light, Indicator (For Electrical Connector Only, See Wiring

Harness Page).

10 719860 Baffle

12 304602 Grill, Vent

13 301074 Motor, Timer

14 3367741 Switch Pushbutton

16 304231 Screw, 8-16 x 1/2 Slot Hex Wash Hd (2)

1 302898 Shell Assembly (Almond)

303090 Screw, 8-18 x 5/8

2 302902 Coupler Assembly

3 285170 Collar Kit, Faucet Coupler

4 285171 Valve, Pressure Relief

5 596490 Clip, Strap

6 719953 Clamp, Hose

7 711696 Seal

11 16123 Washer

12 302891 Housing, Hose

14 339493 Screw, 8-18 x 1/2 (1)

15 716234 Housing, Cord

16 339493 Screw (2)

21 303651 Cord, Power

22 596553 Clamp, Strain Relief

23 717337 Nut, J-Type

24 9418000 Screw, 8-18 x 1/2

26 339493 Screw, 8-18 x 1/2 (2)

28 300890 Screw, Tapping (4)

29 3368426 Toeplate Assembly (Includes Illus. 43)

30 719091 Plate, Cover

31 719093 Bar, Torsion R.H.

719094 Bar, Torsion L.H.

32 719235 Bumper, Rubber

33 302868 Screw, Tapping (4)

34 304598 Panel, Top

35 302250 Trim, Front

36 304428 Screw (2)

37 9418000 Screw, 8-18 x 1/2 (3)

42 3367438 Leg Assembly, L.H.

3367436 Leg Assembly, R.H.

43 Socket, Caster

300450 Alternate

717588 Alternate

44 Caster

718534 Alternate

300424 Alternate

46 90767 Screw, 8A x 3/8 Hex Head Ground (3)

47 3367953 Screw, 8-18 x 5/8 (2)

48 713750 Adapter, Faucet

49 713747 Washer

50 713748 Bushing

51 301543 Barrier, Hose

52 3368410 Sound Shield, Quiet Pack

53 3368411 Retainer

1 3367388 Door, Inner

2 3367201 Support, Door (R.H.)

3367202 Support, Door (L.H.)

3 717921 Gasket, Door

4 719860 Baffle

5 300115 Pin, Lid Hinge

6 3367736 Retainer (2)

7 LIT303498 Label, User Guide

8 300234 Pin, Pivot (2)

9 356592 Grommet

10 300246 Screen, Vent

11 303978 Barrier

12 3367058 Latch Assembly

13 3367172 Clip Trim Guard (2)

14 660951 Switch, Interlock

300232 Alternate

303075 Alternate

303885 Alternate

15 3367669 Edge Protector

18 304233 Screw, 8 x 1-7/8 (2)

19 304442 Dispenser, Wetting Agent

20 713080 Washer

21 718575 Nut

22 718577 Indicator, Level

23 300239 Button, Retainer (3)

24 300250 Screw, 8-18 x 3/8 (3)

25 304231 Screw, 8 x 1/2 Hi-Lo Blunt Point (2)

26 300155 Lid, Detergent Dispenser Assembly

27 300106 Spring, Lid

32 300119 Lever, Catch

33 300105 Seal, Lever

34 304231 Screw, 8-18 x .62

35 300104 Retainer

38 300109 Actuator

39 304231 Screw, 8 x 1/2 Hi-Lo Blunt Point (1)

42 303906 Barrier, Door

43 304047 Edging, Panel

44 688983 Screw, 8-18 x 5/8 (2)

45 303908 Barrier, Console

46 90767 Screw, 8 x 3/8 Hex Washer Head Tapping Ground (1)

48 Panel, Front

49 3367487 Trim, Door L.H.

3367488 Trim, Door R.H.

60 3367658 Spring, Door

61 716401 Retainer, Spring

62 | Panel, Access

63 3367527 Cap, End (R.H.)

3367531 Cap, End (L.H.)

64 719581 Foot (2)

65 719266 Screw, 8-18 x 5/8

66 Overlay, Access Panel

303445 Black

302595 Brushed Aluminum (Optional)

67 718576 Cap, Drip

74 300128 Screw, 8-18 x 1/2 (4)

77 300237 Washer (2)

78 90767 Screw, 8 x 3/8 Hex Washer Head Tapping (2)

82 304392 Screw, 8-18 x 1/2

84 304444 Screw, 4-20 x 3/8 (2)

85 304443 Actuator

86 304391 Rail, Support

89 304408 Lever, Release

91 301582 Screw, 6-32 x 1

92 3367288 Screw, 8 - 18 (4)

93 715779 Bumper

94 301857 Clip, Wire

95 3367720 Retainer, Clip

96 303362 Shield, Harness

97 90767 Screw, 8A x 3/8 Hex Head Tapping

98 301774 Pad

|Refer To Dishwasher

Replacement Panel Parts List No. 675345.

1 90767 Screw, 8A x 3/8 (2)

2 3367464 Tub Assembly

4 300974 Inlet, Water

5 304669 Hose, Inlet

6 301958 Clamp

15 713799 Nut, 7/18-16

16 713878 Gasket

17 717488 Nut, .125

18 719342 Bracket, Overflow Switch

19 718250 Screw, 8 x 1/2 (3)

20 3367679 Gasket

302090 Alternate

302091 Alternate

21 302093 Retainer, R.S.

302094 Retainer, L.S.

22 660741 Switch, Pressure

301671 Alternate

301672 Alternate

304589 Alternate

26 661511 Valve, Water Inlet

30 303080 Nut, Twin Spring

34 718829 Locknut (8)

35 717624 Washer (8)

37 717236 Screw, 8-18 x .50

38 718035 Float

39 719967 Standpipe, Overflow

40 719966 Gasket, Overflow

41 302203 Screw, 4-40 x 9/16

44 712302 Shim

45 300233 Strike

46 9416643 Screw, 10-16 x 1/2 (2)

47 718750 Washer (8)

48 718817 Washer, Cup (8)

49 300844 Wheel Tub (8)

50 712499 Screw, Shoulder (8)

51 300846 Track (2)

52 300845 End Cap, Track (4)

53 719266 Screw, 8-18 x 5/8 (10)

54 301662 Gasket, Standpipe (2)

55 301663 Clip, Gasket (2)

56 302340 Pad, Sound (2)

T3367225 In tructions, Installation

LIT304296 Guide, Use & Care

LIT3367804 Tag, Energy Fact

LIT3367993 Label, Wiring Diagram

LIT3367772 List, Repair Parts

OPTIONAL PARTS NOT INCLUDED

DISHRACK REPAIR

675476 Vinyl Touch-Up (Blue)

675506 Tine Tip Repair Kit (Blue_ Enough For Two Complete Dishracks)

OPTIONAL PARTS NOT INCLUDED

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

285006 Superior Black

285365 Toast

285366 Platinum

206922 Primer (White)

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

TUB LINER REPAIR

799640 Kit, Epoxy Patch (White)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS
