UseAndCare

DISHWASHER MODEL SERIES 920

PART NO. 3373752 Rev. A

A Note to You ........................ 2

Dishwasher Safety ................ 3

Parts and Features ................ 4

Starting Your Dishwasher ..... 5

Loading Your Dishwasher ..... 6

Using the Dispensers .......... 10

Setting the Controls ............. 12

Selecting a wash cycle ..... 12

Using CANCEL/DRAIN ..... 13

Selecting cycle options .... 13

Changing a cycle or

option setting ................... 14

Adding a dish during a

cycle ................................. 14

Understanding the status

indicators ......................... 15

Washing Special Items ........ 16

Connecting a Portable

Dishwasher ........................... 17

Caring for Your

Dishwasher ........................... 19

Saving Energy ...................... 21

Solving Common

Dishwashlng Problems ........ 22

Troubleshooting ................... 25

Requesting Assistance

or Service .............................. 26

Index ...................................... 30

Warranty ............................... 32

1-800-253-1301

Call our Consumer Assistance Center

with questions or comments.

_/qS

A Note to You

Thank you for buying a Whirlpool eappliance.

Because your life is getting busier and more complicated, Whirlpool dishwashers are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model's information.

Whenever you call to request service for

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (see diagram on

page 4 for location of label).

Please also record the purchase date of

your appliance and your dealer's name,

address, and telephone number.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

IOur Consumer Assistance Centernumber is toll-free 24 hours a day.

Help us help you

Please:

•Have your dishwasher installed by a •

qualified installer.

• Install where dishwasher is protected from

the elements. •

• Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

• Properly connect dishwasher to electricity,

water, and drain.*

* See Installation Instructions for complete

information.

1-800-253-1301

Remove all shipping plugs from hoses

and connectors (such as the cap on the

drain outlet) before installing.*

Remove all hang tags and temporary

labels.

• Make sure dishwasher is not used by

anyone unable to operate it properly.

• Properly maintain dishwasher. See

pages 19-20.

Dishwasher Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, or injury

when using your dishwasher, follow basic precautions

including the following:

•Read all instructions before using

the dishwasher.

• Use your dishwasher only for the

uses described in this manual.

• DISHWASHER MUST BE ELECTRI-

CALLY GROUNDED. Read the

Installation Instructions for details.

*When discarding an old dishwasher,

always remove the door to prevent

accidental entrapment or suffocation.

• Use ONLY detergents and rinse

agents recommended for use in a

dishwasher.

• Store dishwasher detergent in a cool,

dry place WHERE CHILDREN CAN'T

REACH IT.

• When loading items to be washed:

- Load sharp items and knives with

the handles up to reduce risk of cut-

type injuries.

- Locate sharp items and knives so

that they are not likely to damage

the door or tub.

• DO NOT let children play in or on

the dishwasher.

• DO NOT reach into the area below

the bottom rack until the heating

element has cooled for at least

20 minutes.

• DO NOT wash plastic items unless

marked "Dishwasher Safe" or the equiva-

lent. If not marked, check manufacturer's

recommendations.

• DO NOT use your dishwasher unless all

enclosure panels are properly in place.

• DO NOT sit on, stand on, or abuse the

dishwasher door or dishracks.

• DO NOT tamper with controls.

• If hot water has not been used recently

(usually two weeks or longer), hydrogen

gases may build up in the water heater

and the hot water pipes. HYDROGEN

GAS IS EXPLOSIVE. To prevent injury

or damage, before using your dish-

washer, turn on all hot water faucets and

allow water to run for several minutes.

This will allow gases to escape. Do not

smoke or use any open flame near the

faucet while it is open.

• DO NOT store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

The fumes can create a fire hazard

or explosion.

• Disconnect electrical power to the

dishwasher before attempting to service.

- SAVE THESE INSTRUCTIONS -

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level wash

(p. 8)

Adjustable top rack

(p. 9)

rack adjuster

(p. 9)

Upper spray arm

(p.8)

Water inlet opening Spray tower

(p.8) (p.8)

Model and

Rack bumper .serial number label

(p. 8) (on right side)

Bottom rack POWER CLEAN TM

module

(p. 8) (p. 31)

Heating element ILower spray arm

(p.8)

Silverware Overfill protector

basket (p. 20)

(p. 7) Detergent

dispensers

(p.10)

Door latc

Rinse agent

dispenser

(p. 11)

Access paneP

Door color paner *See Installation Instructions

for more information.

Control panel

Your dishwasher has arow of push pads to select cycles and options. You must select a

cycle to start your dishwasher. You may select one or more options.

Status

Indicators

Starting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

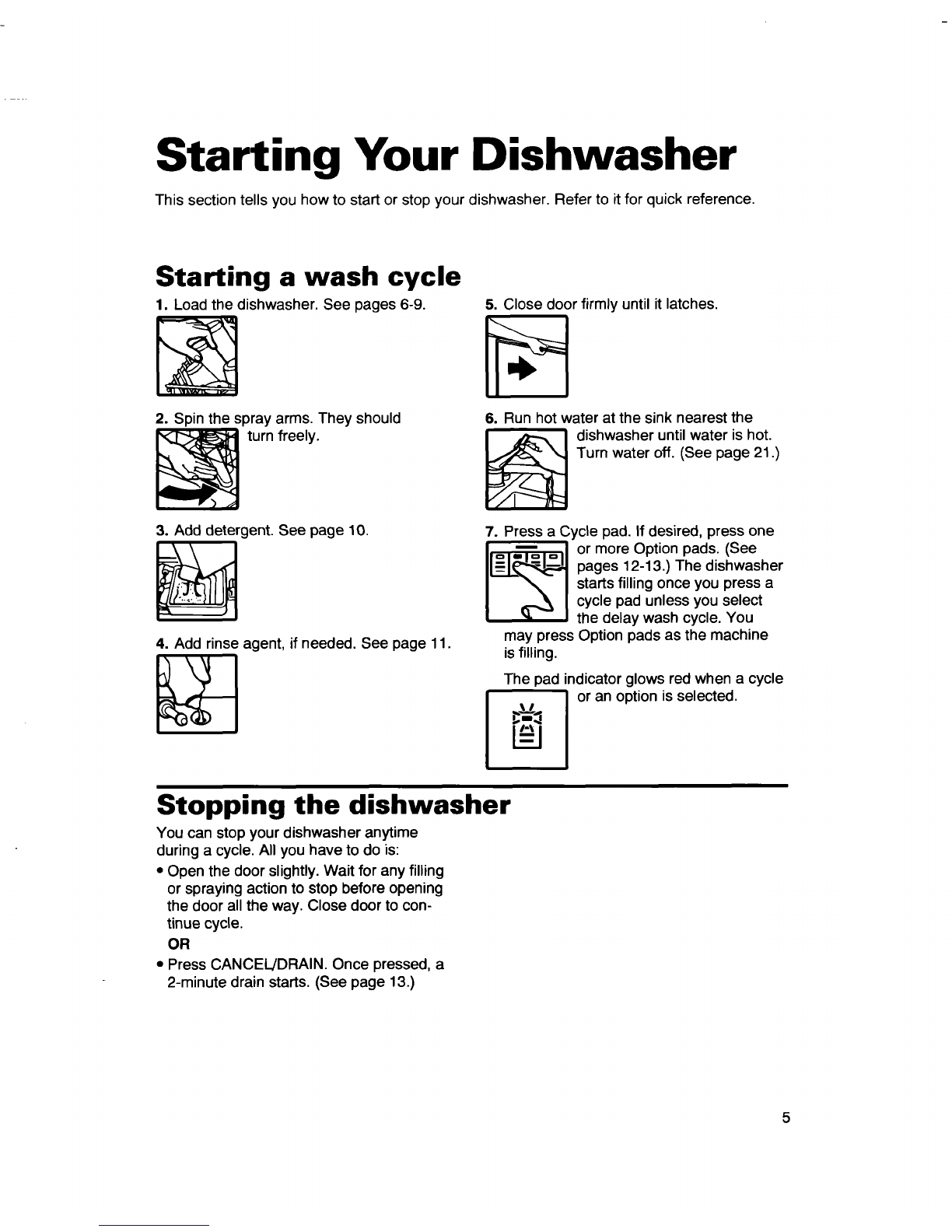

Starting a wash cycle

1. Load the dishwasher. See pages 6-9.

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See page 10.

4. Add rinse agent, if needed. See page 11.

5. Close door firmly until it latches.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. (See page 21 .)

7. Press a Cycle pad. If desired, press one

I_ °r m°re Opti°n pads" (See

pages 12-13.) The dishwasher

starts filling once you press a

cycle pad unless you select

the delay wash cycle. You

may press Option pads as the machine

is filling.

The pad indicator glows red when a cycle

or an option is selected.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

• Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close door to con-

tinue cycle.

• Press CANCEL/DRAIN. Once pressed, a

2-minute drain starts. (See page 13.)

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

•To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

• Remove large pieces of food, bones, and

other hard items. The POWER CLEAN TM

module removes food particles from the

water. The module contains a chopping

device which reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do not let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

• Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a RINSE/WASH

LATER cycle to keep dishes moist if you

do not plan to wash them soon.

• Load dishes so soiled surfaces face the

rotating spray arm.

• Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

• Secure lightweight load items in the racks.

• Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior

walls, interfere with the spray arm's

rotation, or cover the spray tower.

• Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the silverware basket

Personal Injury Hazard

Load sharp items (knives, forks,

skewers, etc.) with the point down.

Failure to do so could cause personal

injury.

•Load the silverware basket while it is in the

door or take the basket out for loading on

a counter or table.

• Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. However, always load sharp items

(knives, skewers, forks, etc.) pointing

down.

•Put small items (baby bottle caps, jar lids,

etc.) in any section.

•You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spillingwater on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide it

toward the top of the door.

2. Liftthe basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

• Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closingthe dishwasher door.

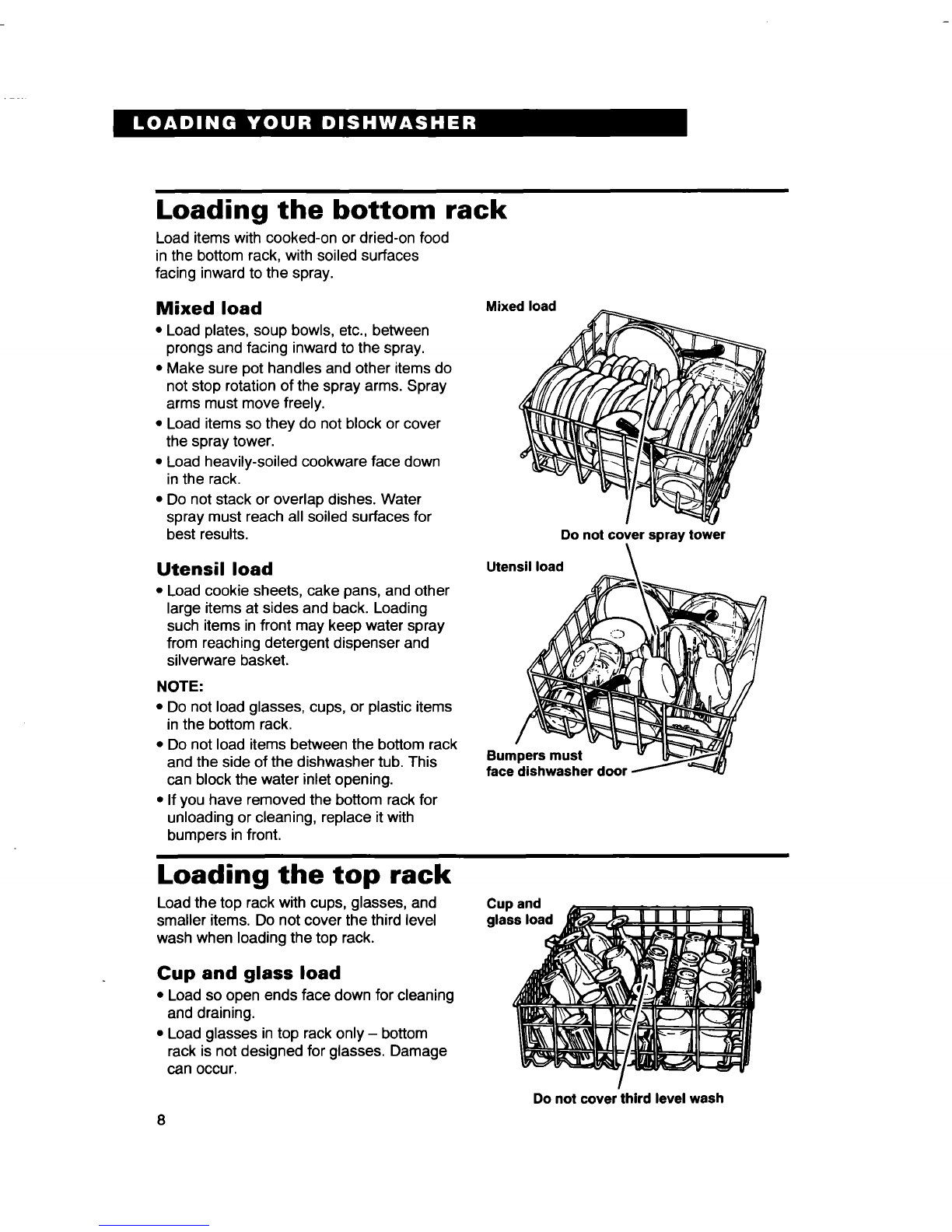

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

• Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

•Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

• Load items so they do not block or cover

the spray tower.

• Load heavily-soiled cookware face down

in the rack.

• Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Mixed load

Do not cover spray tower

Utensil load

•Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

• Do not load glasses, cups, or plastic items

in the bottom rack.

• Do not load items between the bottom rack

and the side of the dishwasher tub. This

can block the water inlet opening.

• If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Utensil load

Bumpers must

face dishwasher door

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash when loading the top rack.

Cup and

glass load

Cup and glass load

•Load so open ends face down for cleaning

and draining.

• Load glasses in top rack only - bottom

rack is not designed for glasses. Damage

can occur.

8Do not cover third level wash

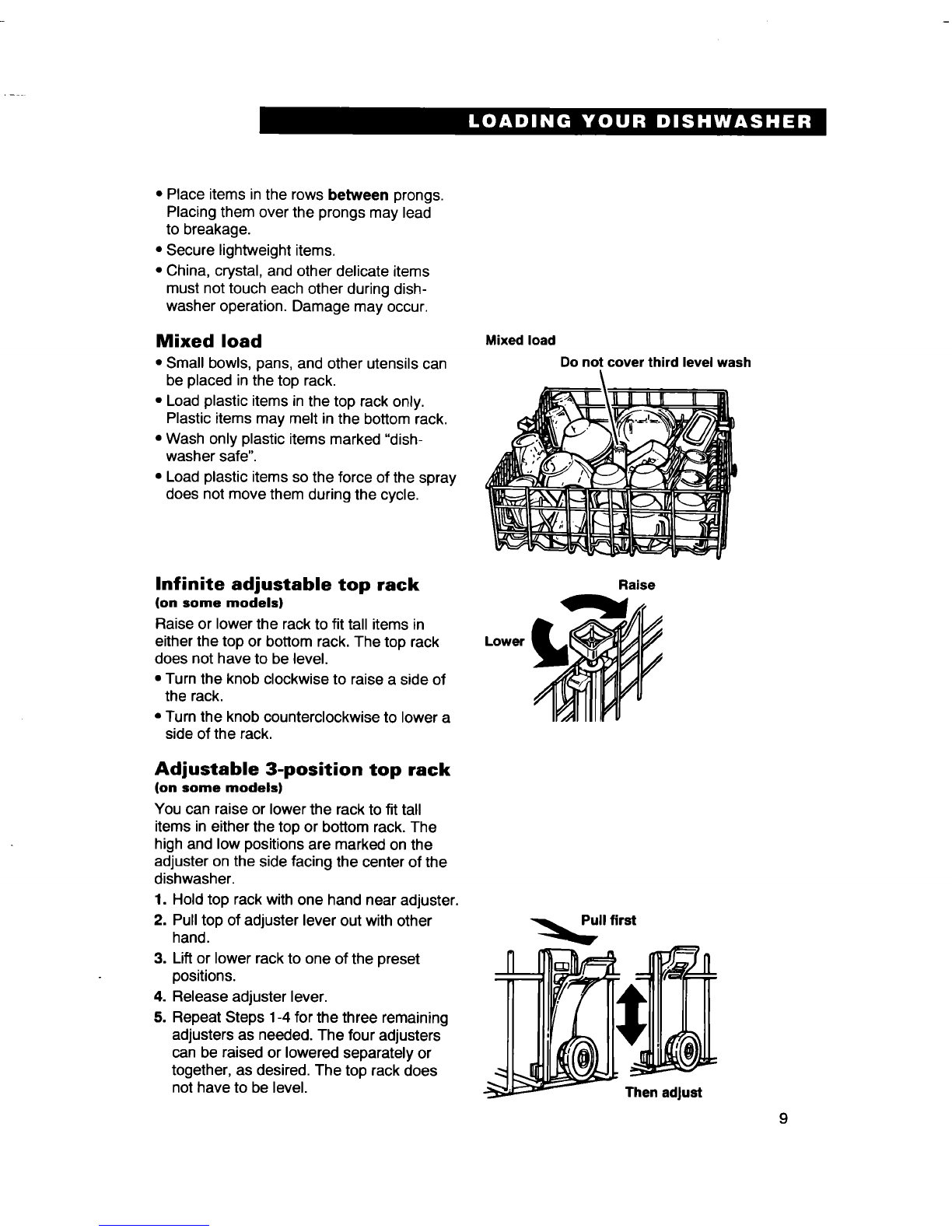

• Place items in the rows between prongs.

Placing them over the prongs may lead

to breakage.

• Secure lightweight items.

• China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Mixed load

• Small bowls, pans, and other utensils can

be placed in the top rack.

• Load plastic items in the top rack only.

Plastic items may melt in the bottom rack.

• Wash only plastic items marked "dish-

washer safe".

• Load plastic items so the force of the spray

does not move them during the cycle.

Mixed load

Do not cover third level wash

Infinite adjustable top rack

(on some models)

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to be level.

• Turn the knob clockwise to raise a side of

the rack.

• Turn the knob counterclockwise to lower a

side of the rack.

Adjustable 3-position top rack

(on some models)

You can raise or lower the rack to fit tall

items in either the top or bottom rack. The

high and low positions are marked on the

adjuster on the side facing the center of the

dishwasher.

1. Hold top rack with one hand near adjuster.

2. Pull top of adjuster lever out with other

hand.

3. Lift or lower rack to one of the preset

positions.

4. Release adjuster lever.

5. Repeat Steps 1-4 for the three remaining

adjusters as needed. The four adjusters

can be raised or lowered separately or

together, as desired. The top rack does

not have to be level.

Lower

Raise

11first

Then adjust

Using the Dispensers

For best washing results, review the information below. It is important to use detergents and

rinse agents properly.

Using the detergent dispenser

• Use automatic dishwashing detergent

only. Other detergents are too mild and

much too sudsy.

• Add detergent just before starting cycle.

• Store tightly-closed detergent in a cool, dry

place. Fresh automatic dishwasher

detergent results in better cleaning.

Filling the detergent dispenser

The detergent dispenser has one section

with a cover and one without. Push cover

down firmly until it latches. Detergent in the

open section falls into the dishwasher when

closing the door. The covered section opens

automatically for the main wash.

NOTE: It is normal for the cover to open

partially when dispensing detergent.

Cover Cover Latch

Usebothse_ionsfor:

-NORMAL

-POTS-N-PANS

Useonlycovered

se_ionfor:

-LOW ENERG_

CHINA

How much detergent to use

• The amount of detergent to use depends

on the hardness of your water and the type

of detergent. If you use too little, dishes

won't be clean. If you use too much in soft

water, glassware will etch.

• Different brands of dishwasher detergent

have different amounts of phosphorus for

softening water. If you have hard water

and use low phosphorus content detergent

(6.0% or less), you may need to use more

detergent or use a detergent with a higher

phosphorus content (8.7%).

• Find out your water's hardness by asking

your local water department, water soft-

ener company, or county extension agent.

WATER TYPE WHERE TO FILL

Hard Top of

8+ grains per gallon 3rd step

136+parts per million (3 tbs)

Medium Top of

5-7 grainspergallon 2nd step

85-119 partspermillion (2 tbs)

Soft Top of

0-4 grains per gallon 1st step

0-68 parts per million (1 tbs)

Fill amounts shown are for standard

powdered detergent. Amounts may vary if

you use liquid or concentrated powdered

detergent. Follow manufacturer's directions

when using liquid dishwasher detergent or

concentrated powdered detergent.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool DISHWASHER Bedienungsanleitung

Whirlpool

Whirlpool DU915 series Bedienungsanleitung

Whirlpool

Whirlpool UDT518SAHP Bedienungsanleitung

Whirlpool

Whirlpool ADG 8210 Bedienungsanleitung

Whirlpool

Whirlpool GU2800XTVB - 24" Wide Dishwasher Montageanleitung

Whirlpool

Whirlpool WFE2B19 FS FULL DW WHT Installations- und Betriebshandbuch

Whirlpool

Whirlpool W10102500A Bedienungsanleitung

Whirlpool

Whirlpool GU3600XTSQ Benutzerhandbuch

Whirlpool

Whirlpool Estate DU4040XP Bedienungsanleitung

Whirlpool

Whirlpool DU915 series Bedienungsanleitung

Whirlpool

Whirlpool DU87OOXT Series Bedienungsanleitung

Whirlpool

Whirlpool ADP9000 Bedienungsanleitung

Whirlpool

Whirlpool 3374369 Bedienungsanleitung

Whirlpool

Whirlpool UDT518SAFP Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C26 P Bedienungsanleitung

Whirlpool

Whirlpool AGB 650/WP Bedienungsanleitung

Whirlpool

Whirlpool W2I HD526 A Installations- und Betriebshandbuch

Whirlpool

Whirlpool Roper RUD8000R Bedienungsanleitung

Whirlpool

Whirlpool GDP8500 Bedienungsanleitung

Whirlpool

Whirlpool series 980 Bedienungsanleitung

Whirlpool

Whirlpool DU930PWSB - on 24 Inch Full Console... Bedienungsanleitung

Whirlpool

Whirlpool DU912 8051563 Bedienungsanleitung

Whirlpool

Whirlpool DU920PFGB4 Bedienungsanleitung

Whirlpool

Whirlpool ADG 955 NBM Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
