UNDERCOUNTER

DISHWASHER

Model DU5504XM

f \

Contents

Page

BEFORE YOU USE YOUR DISHWASHER 2

IMPORTANT SAFETY INSTRUCTIONS 2

PARTS AND FEATURES 3

POWER CLEAN’ WASHING SYSTEM 4

PROPERLOADING ..,,,.............,., 5

Top Rack Loading 5

Bottom Rack Loading 6

SilverwareBasket Loading 6

ADDING DETERGENT 7

RINSE AID DISPENSER 7

BEFORE STARTING YOUR DISHWASHER 8

STARTING YOUR DISHWASHER 8

Changing a Setting 8

Page

To Add a Dish After Starting B

HI-TEMP WASHING Option 8

Selecting a Cycle 9

The AIR DRY Option 9

The RESETOPTIONS Button 9

ENERGY SAVING TIPS ‘.‘,‘..,‘,‘,.,1: ; 10

SPECIAL TIPS 11

COMMON DISHWASHING PROBLEMS 12

IF YOU NEED SERVICE OR ASSISTANCE 14

I, Before Calling for Assistance 14

2. If You Need Assistance 14

3. If You Need Service 14

4. If You Have a Problem 14

Tmk

01985 Whirlpool Corporation

u use your dishwasher

It is Your personal responsiblllty and obligation to be sure your dishwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight.

Has been properly connected to electricity, water and drain. ~

Has been properly electrically grounded..

Is not used by children or anyone unable to operate it properly.

Is properly maintained.

See installation instructions for complete information.

Parts and features

Model DlJ5504XM

UPPER SPRAY ARM

RACK BUMPER

DETERGENT DISPENSERS \&$

MODEL AND SERIAL

‘FWATER COLUMN

LOWER SPRAY ARM_

SILVERWARE BASKET

(Permanent Lab

,/Jffl 2 KT-E;;e”ent

1 too much water

from entering the

dishwasher. It is not

removable.

DOOR AND ACCESS PANEL

- 6 COLOR OPTIONS

THE POWER CLEAN* MODULE is designed to

- keep the wash and rinse water clean. It also

grinds up and removes food particles. During

grinding, some sounds will be heard.

Copy your Model and Serial Numbers here...

When you need service or call with a question,

have this information ready:

Model Number

1. Complete Model and Serial Numbers (from the

plate located as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. Keep this

book, your warranty and sales slip together in a Purchase Date

handy place.There is no warranty registrationto

return. Proof-of-purchase is all that is required for

in-warranty service.

Service Company and Telephone Number

fmk.

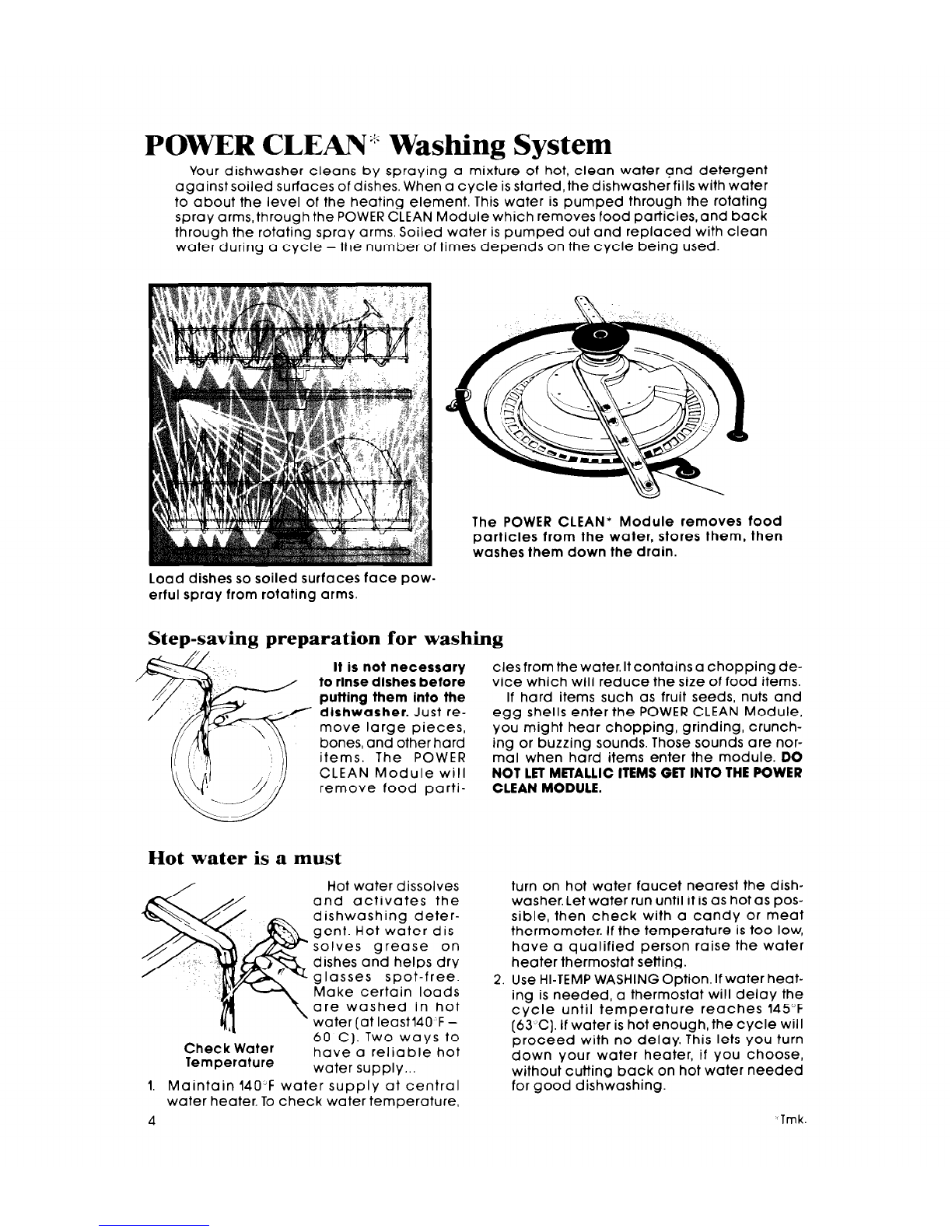

POWER CLEAN”’ Washing System

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent

against soiled surfaces of dishes. When a cycle is started,the dishwasher fills with water

to about the level of the heating element. This water is pumped through the rotating

spray arms, through the POWER CLEAN Module which removes food particle&and back

through the rotating spray arms. Soiled water is pumped out and replaced with clean

water during a cycle - the number of times depends on the cycle being used.

The POWER CLEAN* Module removes food

particles from the water, stores them, then

washes them down the drain.

Load dishes so soiled surfaces face pow-

erful spray from rotating arms.

Step-saving preparation for washing

It is not necessary

to rinse dishes before

putting them into the

dishwasher. Just re-

move large pieces,

bones, and other hard

items. The POWER

CLEAN Module will

remove food parti-

Hot water is a must

Hot water dissolves

and activates the

dishwashing deter-

gent. Hot water dis-

solves grease on

dishes and helps dry

glasses spot-free.

Make certain loads

are washed in hot

water (at leastl40‘F -

Check Water

Temperature

60 C). Two ways to

have a reliable hot

water supply...

1. Maintain 140-F water supply at central

water heater. To check water temperature,

cles from the water. It contains a chopping de-

vice which will reduce the size of food items.

If hard items such as fruit seeds, nuts and

egg shells enter the POWER CLEAN Module,

you might hear chopping, grinding, crunch-

ing or buzzing sounds. Those sounds are nor-

mal when hard items enter the module. DO

NOT LET MITALLIC ITEMS GET INTO THE POWER

CLEAN MODULE.

turn on hot water faucet nearest the dish-

washer. Let water run until it is as hot as pos-

sible, then check with a candy or meat

thermometer. If the temperature is too low,

have a qualified person raise the water

heater thermostat setting.

Use HI-TEMP WASHING Option. If water heat-

ing is needed, a thermostat will delay the

cycle until temperature reaches 145°F

(63°C). If water is hot enough, the cycle will

proceed with no delay. This lets you turn

down your water heater, if you choose,

without cutting back on hot water needed

for good dishwashing.

-1mk.

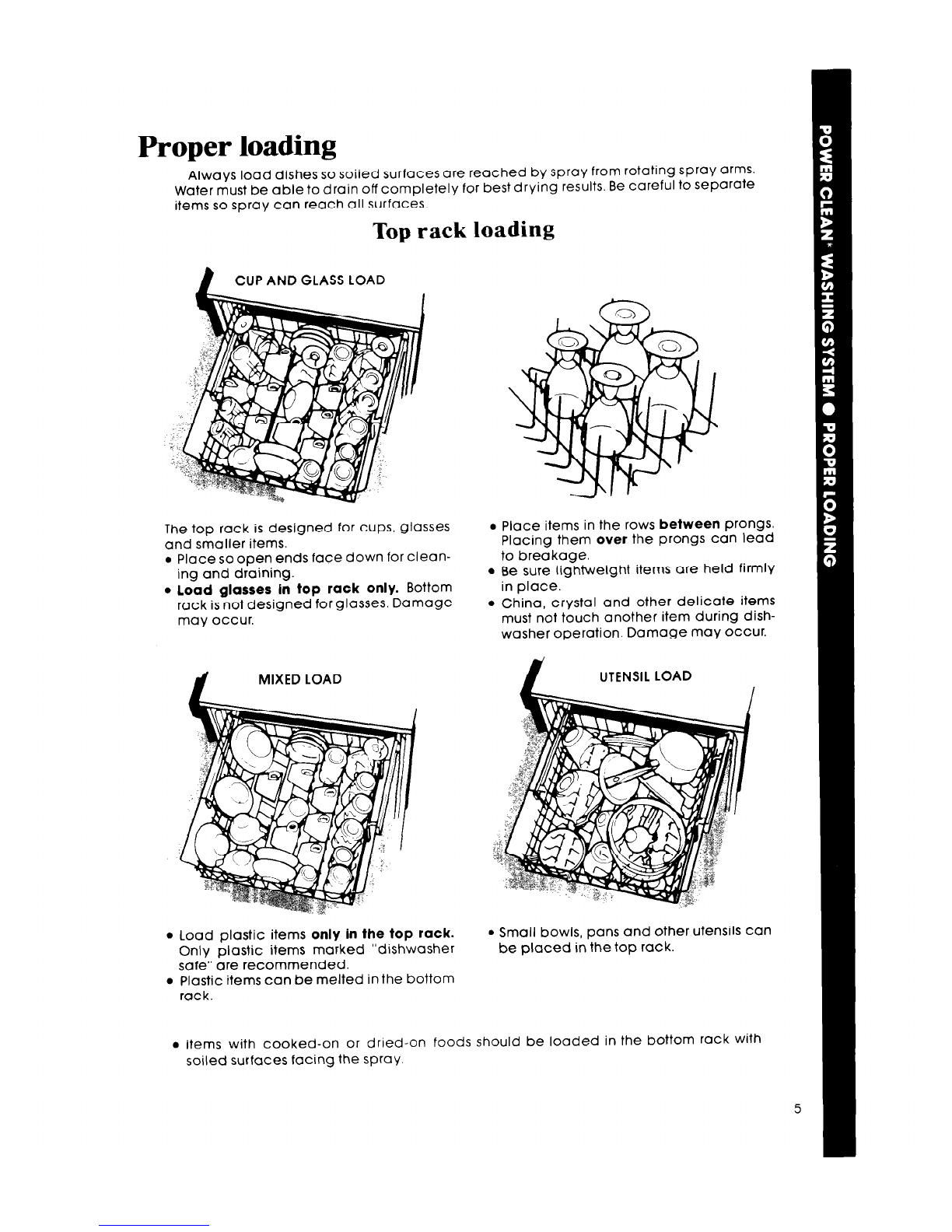

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms.

Water must be able to drain off completely for best drying results. Be careful to separate

items so spray can reach all surfaces.

Top rack loading

CUP AND GLASS LOAD

The top rack is designed for cups, glasses

and smaller items.

Place so open ends face down for clean-

ing and draining.

load glasses in top rack only. Bottom

rack is not designed for glasses. Damage

may occur.

MIXED LOAD

Load plastic items only in the top rack.

Only plastic items marked “dishwasher

safe” are recommended.

Plastic items can be melted in the bottom

rack.

Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

Be sure lightweight items are held firmly

in place.

China, crystal and other delicate items

must not touch another item during dish-

washer operation. Damage may occur.

UTENSIL LOAD

a Small bowls, pans and other utensils can

be placed in the top rack.

Items with cooked-on or dried-on foods should be loaded in the bottom rack with

soiled surfaces facing the spray.

Bottom rack loading

Make sure pot handles and other items

do not stop rotation of either the upper or

lower spray arm. Spray arms must move

freely.

Securely place heavily soiled cookware

face down in rack.

Place plates, soup bowls, etc., between

prongs and facing the spray.

Load cookie sheets, cake pans and other

large items at sides or back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

Do not load glasses, cups or plastic items

in the bottom rack.

When lower rack is removed, EpICICe

with bumpers in front.

Silverware basket loading

Load forks and spoons so they don’t

nest together. Spray can’t reach nested

items. -

NO YES

Mix items in each section of the bas-

ket. Small items-baby bottle caps, jar

lids, etc. -can be put in any section.

Make sure sharp items (knives, forks,!

skewers, etc.) are put in point down.

The silverware basket can be loaded

while it’s in place on the door, or it can

be taken out for loading on the counter

or table.

It can also be removed for easy un-

loading. Always unload or remove the

basket before unloading the racks to

avoid spilling water droplets on the

To remove the basket, slide it toward

the top of the door - by the handle. Lift

it off the holding buttons. Replace it in

reverse order.

To open the basket, unhook the latch

as shown. Be sure the

cover is completely

latched before

pulling out the

bottom rack and

before closing

the dishwasher

door.

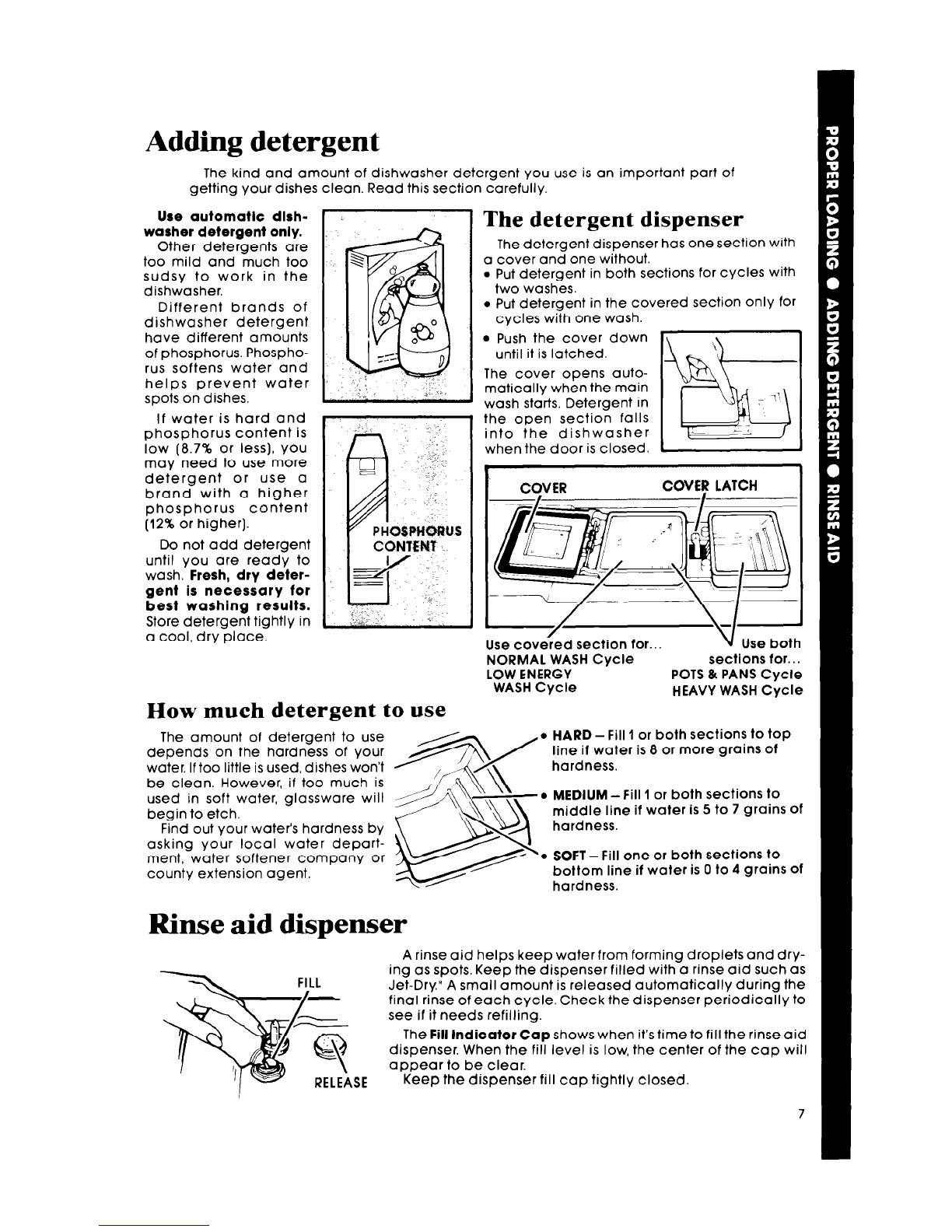

Adding detergent

The kind and amount of dishwasher detergent you use is an important part of

getting your dishes clean. Read this section carefully.

Use automatic dlsh-

washer detergent only.

Other detergents are

too mild and much too

sudsy to work in the

dishwasher.

Different brands of

dishwasher detergent

have different amounts

of phosphorus. Phospho-

rus softens water and

helps prevent water

spots on dishes.

If water is hard and

phosphorus Content iS

low (8.7% or less), you

may need to use more

detergent or use a

brand with a higher

phosphorus Content

(12% or higher).

Do not add detergent

until you are ready to

wash. Fresh, dry deter-

gent is necessary for

best washing results.

Store detergent tightly in

a cool, dry place.

7 PHOSPXORttS

1 The detergent dispenser

The detergent dispenser has one section with

a cover and one without.

Put detergent in both sections for cycles with

two washes.

Put detergent in the covered section only for

cycles with one wash.

Push the cover down

until it is latched.

The cover opens auto-

matically when the main

wash starts. Detergent In

the open section falls

into the dishwasher

when the door is closed.

COVER COVEY LATCH

Use cove;ed section for.. V Use both

NORMAL WASH Cycle sections for.. .

LOW ENERGY POTS&PANS Cycle

WASH Cycle HEAVY WASH Cycle

How much detergent to use

The amount of detergent to use

depends on the hardness of your

water. Iftoo little is used, dishes won’t

be clean. However, if too much is

used in soft water, glassware will

begin to etch.

Find out your water’s hardness by

asking your local water depart-

ment, water softener company or

county extension agent.

HARD - Fill 1 or both sections to top

line if water is 8 or more grains of

1 or both sections to

middle line if water is 5 to 7 grains Of

SOFT - Fill one or both sections to

bottom line if water is 0 to 4 grains of

hardness.

Rinse aid dispenser

A rinse aid helps keep water from forming droplets and dry-

ing as spots. Keep the dispenser filled with a rinse aid such as

Jet-Dry” A small amount is released automatically during the

final rinse of each cycle. Check the dispenser periodically to

see if it needs refilling.

The Fill Indicator Cap shows when it’s time to fill the rinse aid

dispenser. When the fill level is low, the center of the cap will

appear to be clear.

Keep the dispenser fill cap tightly closed.

Clean Selector Buttons

- ijption S

Starting your dishwasher

POTS &PANS Cycle...

1. Make sure Cycle Control Knob points

to dot marked POTS & PANS.

2. Push POTS & PANS Clean Selector

Button.

3. Push button for option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

HEAVY WASH Cycle...

1. Make sure Cycle Control Knob points

to dot marked HEAVY WASH.

2. Push HEAVY WASH button.

3. Push button for option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

NORMAL WASH Cycle...

1. Turn Cycle Control Knob clockwise

until it stops at dot marked NORMAL

WASH.

2. Push NORMAL WASH button.

3. Push button for option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

LOW ENERGY WASH Cycle...

1. Push LOW ENERGY WASH Button.

2. Turn Cycle Control Knob clockwise to

dot marked LOW ENERGY WASH.

3. Select option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

RINSE & HOLD Cycle...

1. Select AIR DRY Option only.

2. Turn Control Knob clockwise to dot

marked RINSE & HOLD.

3. Pull Control Knob out to start cycle.

Changing a setting

2. Turn the Cycle Control Knob clockwise to

the cycle you want.

You can change a setting anytime during 3. Be sure detergent dispensers are filled

any cycle.

1. Push in the Cycle Control Knob to stop the

cycle.

properly for the new cycle.

4. Pull out the Cycle Control Knob to start the

cycle.

To add a dish after starting

To be sure the added item is washed and

rinsed, make sure the Cycle Control Knob

has not passed LOW ENERGY WASH.

Unlatch the door to stop the cycle, but don’t

open it until the spray arms stop spinning.

Open the door and add the dish.

Close the door.

Do not latch it.

Wait 30 sec-

onds for air in the dishwasher to warm up.

This helps reduce the amount of moisture

that can come from the vent when restart-

ing the cycle.

Latch the door. The dishwasher will start

from where it stopped.

HI-TEMP WASHING Option

When this option is selected, water for the

main wash and the final rinse is heated (except

in RINSE & HOLD] to 145°F (63°C). Washing and

rinsing action in those parts of the cycle will

be longer if the water is heated. HI-TEMP wash-

ing is automatic in POTS & PANS.

‘elector Buttons Cycle Co/ntrol Knob

Selecting a cycle

POTS 81PANS Cycle

Maximum cleaning for cooked- or

baked-on foods. Timer delays while

the dishwasher automatically heats

the water to 145°F (63°C) in both

washes and the last rinse (marked ‘1.

Cycle time will be about

Y/2

to 2

hours, depending on time needed

to heat water.

HEAVY WASH Cycle

A double wash for heavily soiled

loads. Cycle time is about 70

minutes.

NORMAL WASH Cycle

For normal, everyday soiled loads.

(The Energy Guide Label data is

based on this cycle.) Cycle time is

about 60 minutes.

LOW ENERGY WASH

Cycle

For pre-rinsed or lightly soiled

loads. Cycle time is about 55

minutes.

RINSE & HOLD

Cycle

For rinsing a few items to be

washed one or more days later.

Use AIR DRY only. Do not use HI-TEMP

WASHING Option.

Cycle time is

about 10 minutes.

The AIR DRY Option

Air in the dishwasher is automatically heated

during the “dry” part of all cycles.

If the AIR DRY Option is selected, air in the

dishwasher is not heated. Using this option helps

save energy, but dishes

take

longer to dry (over-

night] and some water spotting may result.

Some items [such as plastics) may need towel

drying.

The RESET OPTIONS Button

push the RESET OPTIONS Button. Re-select an

If you want to change a selected option, option, if desired.

Energy saving tips

You can help save energy if you:

LOW ENERGY

WASH

NORMAL WASH 0

HEAVY WASH .

POTS8 PANS

1. Wash full loads. Running a half-filled dish- 2. Use the LOW ENERGY WASH Cycle whenever

washer uses the same amount of electricity possible. It uses less hot water and energy

and hot water as a fully loaded machine. than other wash cycles.

3. Air dry dishes when you don’t need a rapid 4. load correctly for best washing results. In-

drying cycle. Allow longer drying times correct loading may cause poor washing

(overnight). and the need to rewash all or part of the

load.

5. Don’t pre-rinse normally soiled dishes. Se- 6. Use your dishwasher during off-peak hours.

lect the correct cycle for the load and use Local utilities recommend this to avoid

the recommended amount of detergent for heavy usage of energy at certain times of

good washing results without hand rinsing. day.

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool 930 Series Bedienungsanleitung

Whirlpool

Whirlpool WDT970SAKZ Bedienungsanleitung

Whirlpool

Whirlpool ADP 750 Bedienungsanleitung

Whirlpool

Whirlpool WFO 3T142 X Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADP 4740 Bedienungsanleitung

Whirlpool

Whirlpool ADP 7652 A+ PC 6S WH Bedienungsanleitung

Whirlpool

Whirlpool Ikea IUD8000R Bedienungsanleitung

Whirlpool

Whirlpool WDT970SAHZ Bedienungsanleitung

Whirlpool

Whirlpool 6ADG 6956 Bedienungsanleitung

Whirlpool

Whirlpool W10102500A Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C34 P Installations- und Betriebshandbuch

Whirlpool

Whirlpool WDT720PADM Bedienungsanleitung

Whirlpool

Whirlpool WIO3033PELAUS Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADG 8400 Bedienungsanleitung

Whirlpool

Whirlpool WFP 5O41 PLG X Bedienungsanleitung

Whirlpool

Whirlpool ADG 9190 Bedienungsanleitung

Whirlpool

Whirlpool DU1010XTXB Montageanleitung

Whirlpool

Whirlpool 925 series Bedienungsanleitung

Whirlpool

Whirlpool DU5000XW Bedienungsanleitung

Whirlpool

Whirlpool DU1014XTXD Bedienungsanleitung

Whirlpool

Whirlpool DU4095XX Bedienungsanleitung

Whirlpool

Whirlpool ADG 6450 Bedienungsanleitung

Whirlpool

Whirlpool WDL785SAAM Montageanleitung

Whirlpool

Whirlpool W7F HS51 AX UK Installations- und Betriebshandbuch

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
