UNDERCOUNTER

DISHWASHER

Model DU8903XL

s, freezers, Refrigerator-freezers, Ice Makers, Dishwashers, Bwlt-In Ovens and Surface Un~ls, Ranges, Microwave Ovens. Trash Compactors, Room Air Condllloners, Oehumldlflc

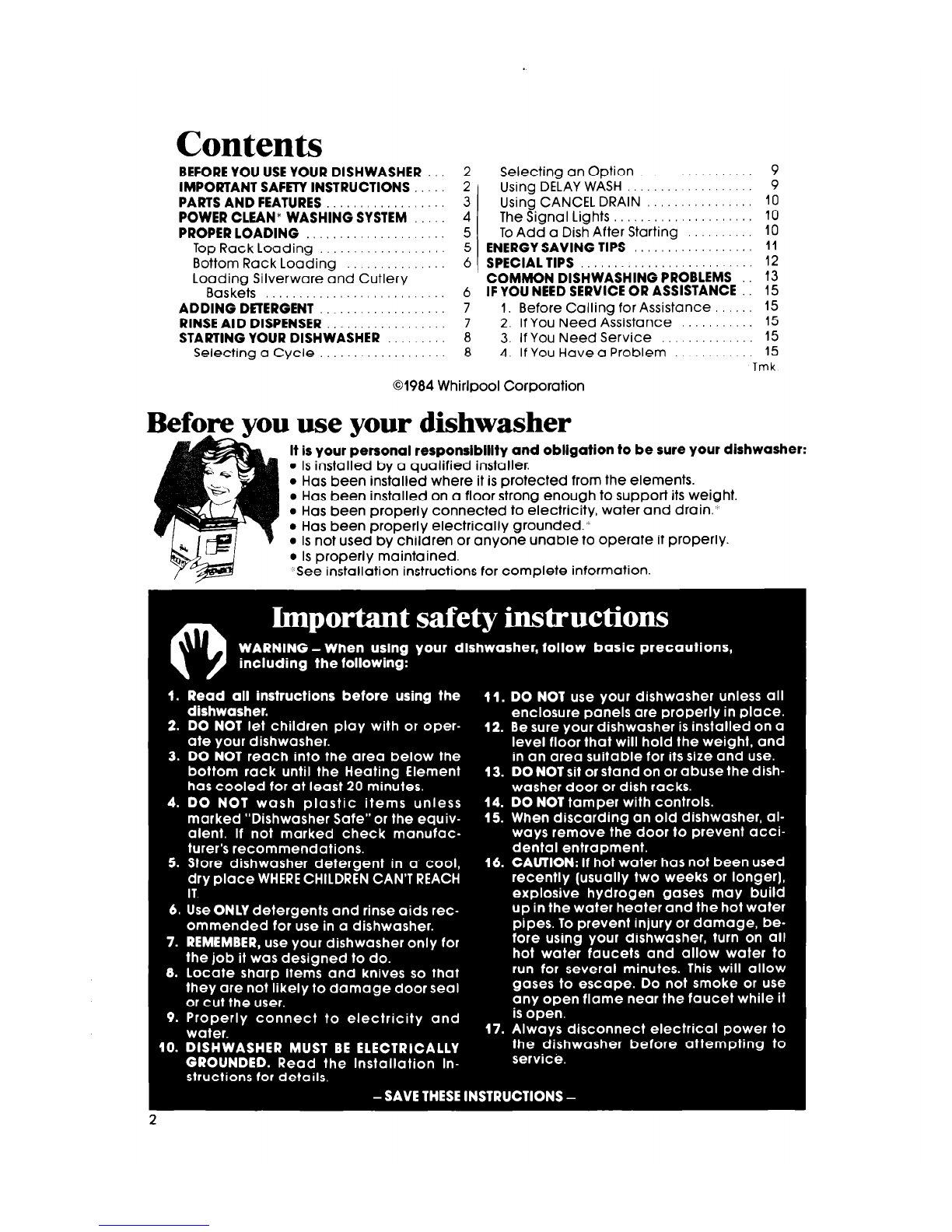

Contents

BEFORE YOU USE YOUR DISHWASHER

IMPORTANT SAFETY INSTRUCTIONS

PARTS AND FEATURES

POWER CLEAN* WASHING SYSTEM

PROPER LOADING

Top Rack Loading

Bottom Rack Loading

Loading Silverware and Cutlery

Baskets

ADDING DETERGENT

RINSE AID DISPENSER

STARTING YOUR DISHWASHER

Selecting a Cycle

2 Selecting an Option

: Using DELAY WASH

Using CANCEL DRAIN

4 The Signal Lights

5 To Add a Dish After Starting

5 ENERGY SAVING TIPS

6 SPECIAL TIPS

COMMON DISHWASHING PROBLEMS

6 IF YOU NEED SERVICE OR ASSISTANCE

7 1. Before Calling for Assistance

7 2. If You Need Assistance

8 3. If You Need Service

8 4. If You Have a Problem

Tmk

01984 Whirlpool Corporation

use your dishwasher

It is your personal responslblllty and obligation to be sure your dishwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight.

Has been properly connected to electricity, water and drain..

Has been properly electrically grounded. ~

Is not used by children or anyone unable to operate it properly.

Is properly maintained.

See installation instructions for complete information.

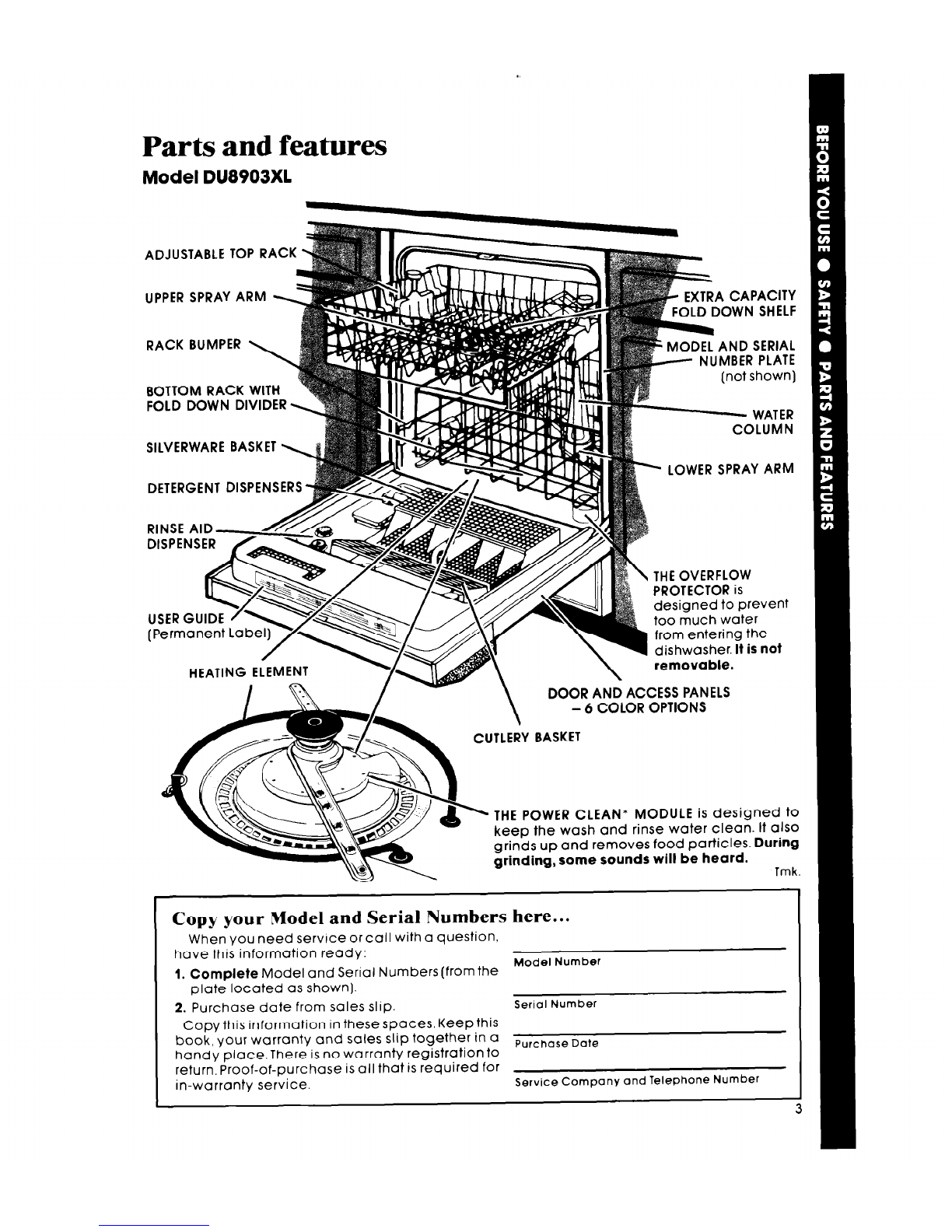

Parts and features

Model DU8903XL

ADJUSTABLE TOP RACK

UPPER SPRAY ARM <

RACK BUMPER

BOTTOM RACK WITH

FOLD DOWN DIVIDER I

SILVERWARE BASKET

DETERGENT DISPENSERS

RINSE AID

DISPENSER

USER GUIDE

(Permanent

HEATING ELEMENT

-6(

JTLERY BASKET

\ THE POWER CLE

keen the wnsh

AN*

and

A CAPACITY

IOWN SHELF

AND SERIAL

IMBER PLATE

mot shown)

- WATER

COiUMN

LOWER SPRAY ARM

THE OVERFLOW

PROTECTOR is

designed to prevent

too much water

from entering the

dishwasher. It is

not

removable.

DOOR AND ACCESS PANELS

MODULE is desi

rinse water clec gned to

An. It also

2R OPTIONS

g:nrds’up aid&moves food particles. During

nrindinn rnmc?raund~willbeheard.

Tmk.

Copy your Model and Serial Numbers here.. .

When you need service or call with a question,

have this information ready:

1. Complete Model and Serial Numbers(from the

Model Number

plate located as shown].

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. Keep this

book, your warranty and sales slip together in a

handy place.There is no warranty registration to Purchase note

return. Proof-of-purchase is all that is required for

in-warranty service.

Service Company and Telephone Number

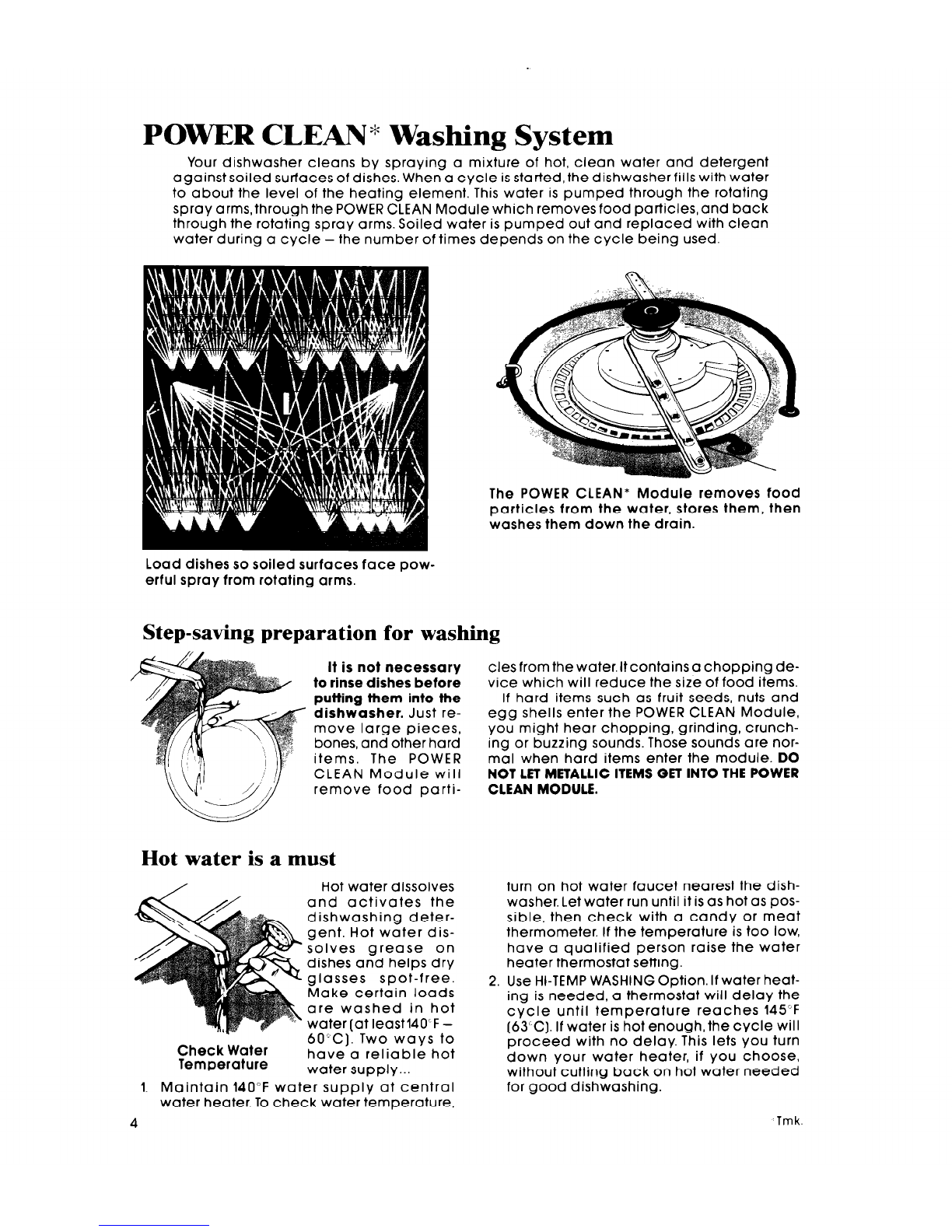

POWER CLEAN* Washing System

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent

against soiled surfaces of dishes, When a cycle is started, the dishwasher fills with water

to about the level of the heating element. This water is pumped through the rotating

spray arm&through the POWER CLEAN Module which removes food particles, and back

through the rotating spray arms. Soiled water is pumped out and replaced with clean

water during a cycle - the number of times depends on the cycle being used.

The POWER CLEAN* Module removes food

particles from the water, stores them, then

washes them down the drain.

Load dishes so soiled surfaces face pow-

erful spray from rotating arms.

Step-saving preparation for washing

It is not necessary

to rinse dishes before

putting them into the

dishwasher. Just re-

move large pieces,

bones, and other hard

items. The POWER

CLEAN Module will

remove food parti-

Hot water is a must

Hot water dissolves

and activates the

dishwashing deter-

gent. Hot water dis-

solves grease on

dishes and helps dry

glasses spot-free.

Make certain loads

are washed in hot

water fat leastl40’F -

Check Water

Temperature

6O’C): Two ways to

have a reliable hot

water supply...

I. Maintain 1AO”F water supply at central

water heater. To check water temperature,

cles from the water. It contains a chopping de-

vice which will reduce the size of food items.

If hard items such as fruit seeds, nuts and

egg shells enter the POWER CLEAN Module,

you might hear chopping, grinding, crunch-

ing or buzzing sounds. Those sounds are nor-

mal when hard items enter the module. DO

NOT LET METALLIC ITEMS GET INTO THE POWER

CLEAN MODULE.

turn on hot water faucet nearest the dish-

washer. Let water run until it is as hot as pos-

sible, then check with a candy or meat

thermometer. If the temperature is too low,

have a qualified person raise the water

heater thermostat setting.

Use HI-TEMP WASHING Option. If water heat-

ing is needed, a thermostat will delay the

cycle until temperature reaches 145°F

(63’C). If water is hot enough,the cycle will

proceed with no delay. This lets you turn

down your water heater, if you choose,

without cutting back on hot water needed

for good dishwashing.

-1mk

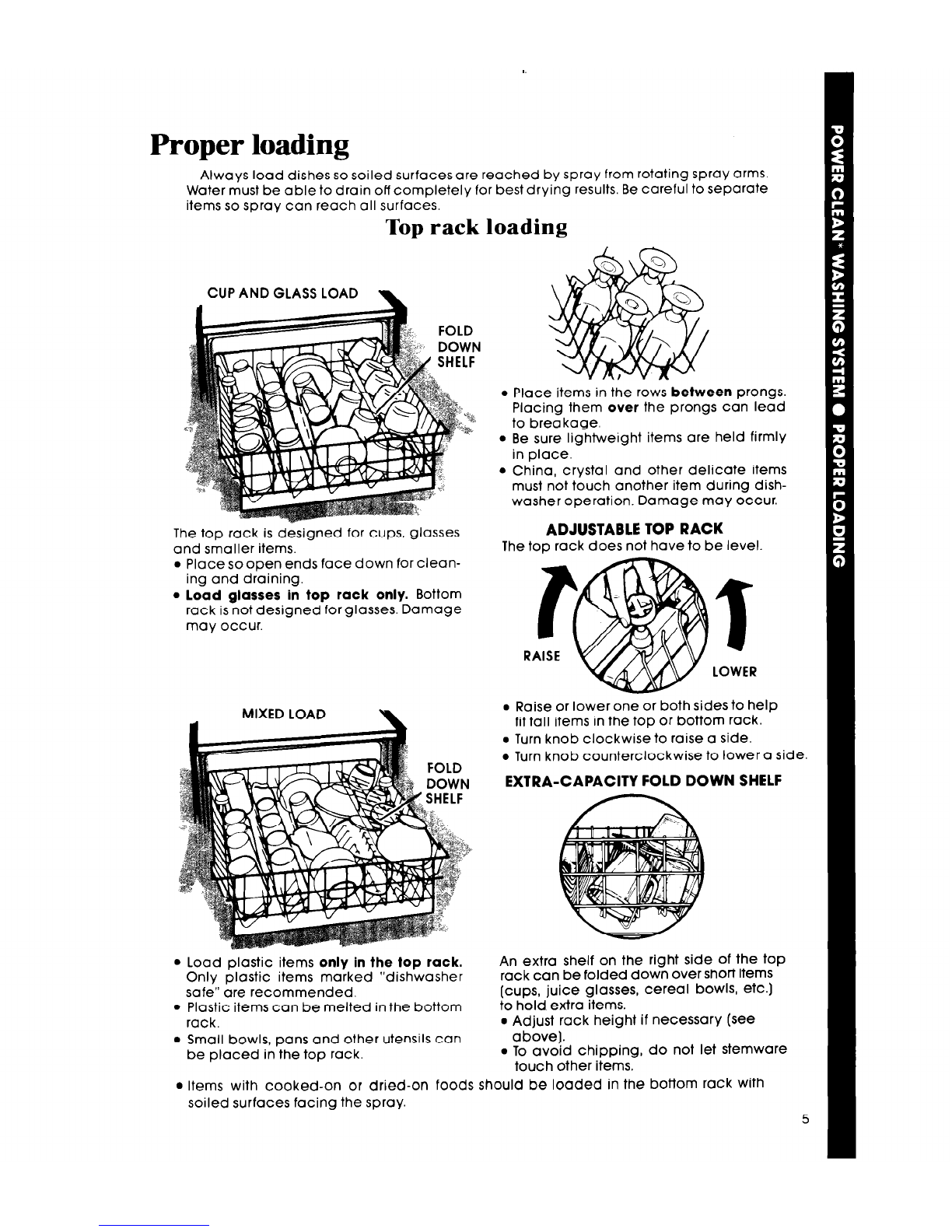

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms.

Water must be able to drain off completely for best drying results. Be careful to separate

items so spray can reach all surfaces.

Top rack loading

CUP AND GLASS LOAD \

The top rack is designed for cups, glasses

and smaller items.

Place so open ends face down for clean-

ing and draining.

load glasses in top rack only. Bottom

rack is not designed for glasses. Damage

may occur.

Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

Be sure lightweight items are held firmly

in place.

China, crystal and other delicate items

must not touch another item during dish-

washer operation. Damage may occur.

ADJUSTABLE TOP RACK

The top rack does not have to be level.

LOWER

MIXED LOAD \

Raise or lower one or both sides to help

fit tall items in the top or bottom rack.

Turn knob clockwise to raise a side.

Turn knob counterclockwise to lower a side.

EXTRA-CAPACITY FOLD DOWN SHELF

Load plastic items only in the top rack.

Only plastic items marked “dishwasher

safe” are recommended.

Plastic items can be melted in the bottom

rack.

Small bowls, pans and other utensils can

be placed in the top rack.

An extra shelf on the right side of the top

rack can be folded down over short items

(cups, juice glasses, cereal bowls, etc.]

to hold extra items.

Adjust rack height if necessary (See

above].

To avoid chipping, do not let stemware

touch other items.

Items with cooked-on or dried-on foods should be loaded in the bottom rack with

soiled surfaces facing the spray. 5

Bottom rack loading

Place plates, soup bowls, etc., between

prongs and facing the spray.

Securely place heavily soiled cookware

face down in rack.

NOTE:

Do not load glasses, cups or plastic items

in the bottom rack.

When lower rack is removed, replace

with bumpers in front.

Load cookie sheets, cake pans and other

items at sides or back. Loading items in

front may keep water spray from reach-

ing detergent dispenser and silverware

basket.

Make sure pot handles and other items

do not stop rotation of either the upper or

lower spray arm. Spray arms must move

freely

A fold-down divider at back of rack can

be lowered to make room for deep bowls,

roasters, etc.

Loading silverware and cutlery baskets

Load forks and i

YES

;ynF;“Sn;;t‘:“o’

gether. Spray can’t

reach nested items

Mix items in each section of the basket.

Small items- baby bottle caps, lar lids,

etc. - can be put in any section.

Make sure sharp items (knives, forks,

skewers, etc.) are put in point down.

The silverware

basket can be

loaded while

it’s in place on

the door, or it

can be taken

out for load-

ing on the

counter or table.

It can also be removed for easy unload-

ing. Always unload or remove the basket

before unloading the racks to avoid spill-

ing water droplets on the silverware.

To remove the

basket, slide it to-

ward the top of

the door-by the

handle. Lift it off

the holding but-

tons Replace it in

reverse order.

To open the basket, unhook the latch as

shown. Be sure the cover is

completely latched be-

fore pulling out the bottom

rack and before closing

the dishwasher door.

Remove and replace the

cutlery basket in the same way as the

silverware basket. Use the cutlery basket

for long items. Remove the basket and tip

contents onto a

cutting boar

to unload.

This can

help avoid

accidents

with sharp

points and

edges.

Adding detergent

The kind and amount of dishwasher detergent you use is an important part of

getting your dishes clean. Read this section carefully.

Use automatic dlsh-

washer detergent only.

Other detergents are

too mild and much too

sudsy to work in the

dishwasher.

Different brands of

dishwasher detergent

have different amounts

of phosphorus. Phospho-

rus softens water and

helps prevent Water

spots on dishes.

If water is hard and

phosphorus content is

low (8.7% or less], you

may need to use more

detergent or use a

brand with a higher

phosphorus content

(12% or higher).

Do not add detergent

until you are ready to

wash. Fresh, dry deter-

gent Is necessary for

best washing results.

Store detergent tightly in

a cool, dry place.

7 The detergent dispenser

The detergent dispenser has one section with

a cover and one without.

Put detergent in both sections for cycles with

two washes.

Put detergent in the covered section Only

for

cycles with one wash.

Push the cover down

until it is latched.

The cover opens auto-

matically when the main

’ wash starts. Detergent in

the open section falls

into the dishwasher

when the door is closed.

CyR

COVEY LATCH

Use covered section for... v use both

NORMAL WASH Cycle sections for.. .

LOW ENERGY POTS & PANS Cycle

WASH Cycle HEAVY WASH Cycle

CHINA CRYSTAL Cycle

How much detergent to use

The amount of detergent to use

HARD-Fill 1 or both

SeCtiOnS to top

depends on the hardness of your e/ hardness.

line if water is 8 or more grains of

water. Iftoo little is used, dishes won’t

llEPlUM - HI1

Doln secuons t0

. PL- -I -__

be clean. However, if too much is

used in soft water, glassware will

begin to etch.

Find out your water’s hardness by

asking your local water depart-

ment, water softener company or

county extension agent.

Rinse aid dispenser

A rinse aid helps keep water from forming droplets and dry-

ing as spots. Keep the dispenser filled with a rinse aid such as

Jet-Dry.” A small amount is released automatically during the

final rinse of each cycle. Check the dispenser periodically to

see if it needs refilling.

The Fill Indicator Cap shows when it’s time to fill the rinse aid

dispenser. When the fill level is low, the center of the cap will

appear to be clear.

Keep the dispenser fill cap tightly closed.

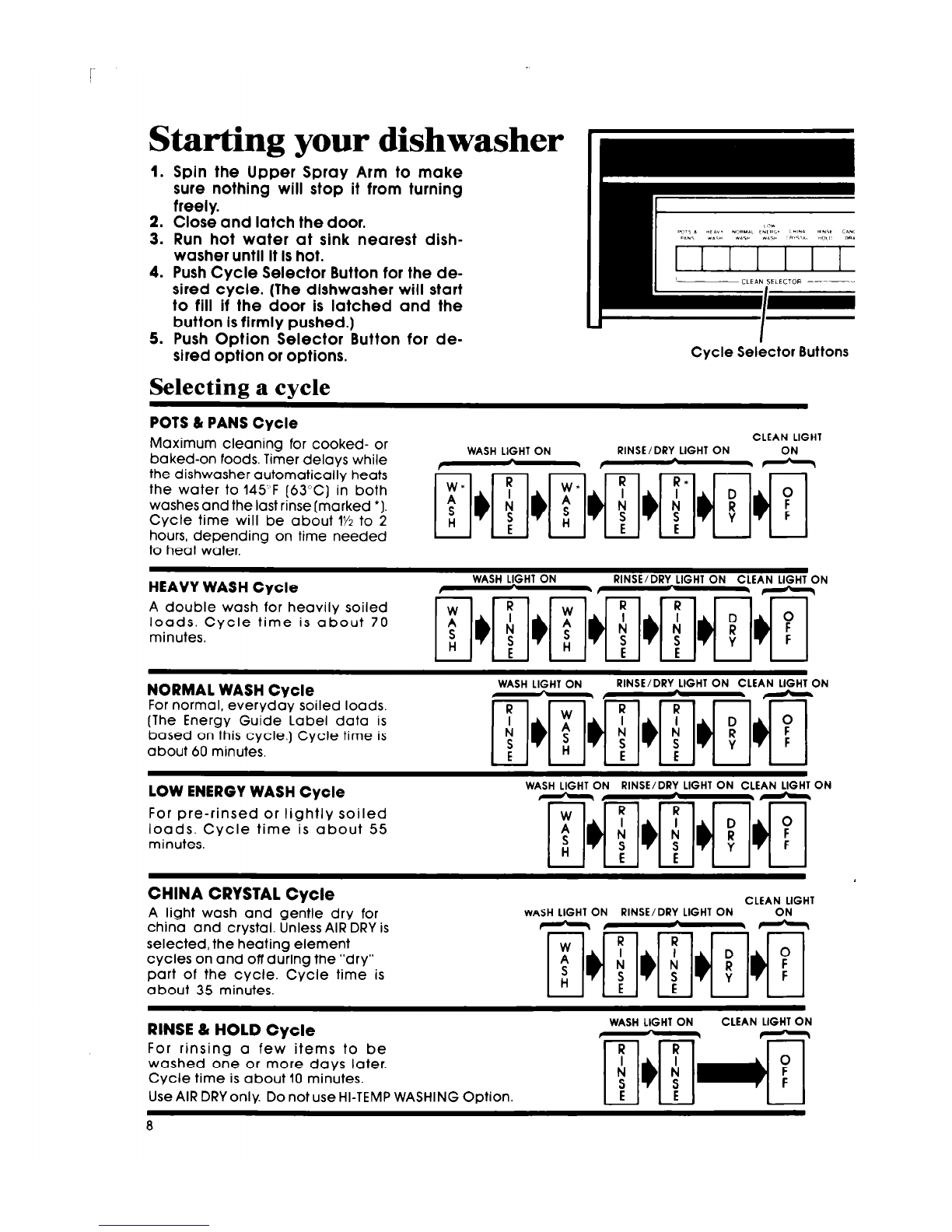

Starting your dishwasher

Spin the Upper Spray Arm to make

sure nothing will stop it from turning

freely.

Close and latch the door.

Run hot water at sink nearest dish-

washer until it is hot.

Push Cycle Selector Button for the de-

sired cycle. (The dlshwasher will start

to fill if the door is latched and the

button is firmly pushed.)

Push Option Selector Button for de-

sired option or options.

Selecting a cycle

POTS6 PANS Cycle

Maximum cleaning for cooked- or

baked-on foods. Timer delays while

the dishwasher automatically heats

the water to 145’F (63°C) in both

washes and the last rinse [marked ‘1.

Cycle time will be about 1% to 2

hours, depending on time needed

to heat water.

CLEAN LIGHT

WASH LIGHT ON RINSE/DRY LIGHT ON

~@p$$j

HEAVY WASH Cycle

A double wash for heavily soiled

loads. Cycle time is about 70

minutes.

WASH LIGHT ON RINSE/DRY LIGHT ON CLEAN LIGHT ON

NORMAL WASH Cycle

For normal, everyday soiled loads.

[The Energy Guide Label data is

based on this cycle.) Cycle time is

about 60 minutes.

WASH LIGHT ON RINSE/DRY LIGHT ON CLEAN LIGHT ON

LOW ENERGYWASH Cycle

For pre-rinsed or lightly soiled

loads. Cycle time is about 55

minutes.

WASH LIGHT ON RINSE/DRY LIGHT ON CLE;N UGH! ON

CHINA CRYSTAL Cycle

CLEAN LlGHl

A light wash and gentle dry for

china and crystal. Unless AIR DRY is

selected, the heating element

cycles on and off during the “dry”

part of the cycle. Cycle time is

about 35 minutes.

WASH

LIGHT ON RINSE/DRY LIGHT ON

RINSE 81HOLD Cycle

For rinsing a few items to be

washed one or more days later.

Cycle time is about 10 minutes.

Use AIR DRY only Do not use HI-TEMP WASHING Option.

WASH LIGHT ON CLEAN LIGHT ON

Option Selector Buttons DELAY WASH Control Signal Lights

Selecting an option

The AIR DRY Option

ENERGY

SAVING

Air in the dishwasher is automatically heated during the “dry” part of

all cycles except RINSE & HOLD.

AIR DRY

If the AIR DRY Option is selected, air in the dishwasher is not heated.

Using the AIR DRY Option helps save energy, but dishes take longer to

dry [overnight) and some water spotting may result. Some items [such

as plastics) may need towel drying.

HI-TEMP WASHING Option

HI-TEMP

When the HI-TEMP WASHING Option is selected, water for the main wash

and the final rinse is heated to 145°F (63°C) -except in CHINA CRYSTAL

and RINSE & HOLD Cycles.

WASHING

Washing and rinsing action in those parts of the cycle will be longer if

the water is heated. The WATER HEATING HOLD Signal Light will be on to

show that the cycle is delayed while water is heating.

RESET

The RESETOPTIONS Button

OPTIONS

If you want to change a selected option, push the RESETOPTIONS

Button. Re-select an option, if desired.

Using DELAY WASH

DELAY

WASH

Use the DELAY WASH 3.

Control when you want

the selected cycle to 4.

start later-from % to 8

hours after loading the 5.

dishwasher. For exam-

ple, use DELAY WASH to

To set less than 1 hour, turn to 1hour and then

back to the desired time.

Push Cycle Selector Button and, if desired,

Option Selector Button or Buttons.

The DELAY Signal Light will be on until the

washer starts. The number in the window

will show about how much time is left be-

fore the cycle starts.run during off-peak

hours of electrical use. You can add items while the DELAY Signal

1. Close and latch the door. Light is on. Be sure you latch the door. The timer

2. Turn the DELAY WASH Control until the num- will not continue unless the door is latched.

ber of hours’ delay you want shows in the You can also change the time while the timer

window. (The control can be moved up or is counting down.

down to change the setting.)

Using CANCEL DRAIN

CANCEL Push the CANCEL

DRAIN DRAIN Button to stop

any cycle at any time

for any reason.

All dishwasher ac-

tion will stop and

water will drain from

the dishwasher.

The draining will take about 2 minutes. The

RINSE/DRY Signal Light will be on during this

time.

When the dishwasher is drained, all signal

lights will go off.

Select a new cycle, if desired.

NOTE: When CANCEL DRAIN is pushed, the timer

automatically moves to a drain position. You

may hear the timer ticking or clicking as it

advances. This is a normal sound.

If CANCEL DRAIN is pushed near the end of a

cycle, the CLEAN Signal Light may come on. To

turn it off. Push CANCEL DRAIN again.

The signal lights

WATER

HEATING RINSE/

DELAY HOLD WASH DRY CLEAN

m m m m m

Signal lights go on and off during a cycle to

Control-is used. Stays on until selected cycle

let you know what your dishwasher is doing.

DELAY Light-Comes on when DELAY WASH

starts.

WATER HEATING HOLD Light - Comes on when

the dishwasher is heating water (to 145”F/63”C)

It will siay on until CANCEL DRAtN Button is

during the wash or rinse portion of the cycle.

WASH Light-Comes on when washing action

pushed.

starts. Stays on until water from the last wash

is drained away.

RINSE/DRY Light-Comes on during final rin-

ses. Stays on during the “dry” part of the

cycle. It goes off after the last rinse if the AIR

DRY Option is used.

CLEAN Light - Comes on when a cycle is over.

To add a dish after starting

1. To be sure the added item is washed,

make sure the WASH Signal Light is still

on and that the covered section of the

detergent dispenser has not opened.

2. Unlatch the door to stop the cycle, but

don’t open it until the spray arms stop

spinning.

3. Open the door and add the dish

4. Close the door. Do not latch It. Wait 30

seconds for air in the dishwasher to warm

up. This helps reduce the amount of

moisture that can come from the vent

when restarting the cycle.

5. Latch the door. The dishwasher will restart

and continue the cycle.

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool DU930 DP940 Bedienungsanleitung

Whirlpool

Whirlpool ADG 4820 Bedienungsanleitung

Whirlpool

Whirlpool WIC 3C34 PFE S Bedienungsanleitung

Whirlpool

Whirlpool DU850SWPU2 Bedienungsanleitung

Whirlpool

Whirlpool WIO 3T123 PEF Installations- und Betriebshandbuch

Whirlpool

Whirlpool DU5000XL Bedienungsanleitung

Whirlpool

Whirlpool ADP 9693 Bedienungsanleitung

Whirlpool

Whirlpool WDF770SAFZ0 Bedienungsanleitung

Whirlpool

Whirlpool ADP 8540 Bedienungsanleitung

Whirlpool

Whirlpool DU1055XTSB2 Bedienungsanleitung

Whirlpool

Whirlpool DISHWASHER Bedienungsanleitung

Whirlpool

Whirlpool ADP 5300 SL Bedienungsanleitung

Whirlpool

Whirlpool WFE2B19XUKN Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADG 7542 Bedienungsanleitung

Whirlpool

Whirlpool WUC 3C24 P X Einrichtungshandbuch

Whirlpool

Whirlpool ADG 271 Bedienungsanleitung

Whirlpool

Whirlpool DU920QWDQ4 Bedienungsanleitung

Whirlpool

Whirlpool ADG 3556 AVM Bedienungsanleitung

Whirlpool

Whirlpool DU900PCDQ2 Bedienungsanleitung

Whirlpool

Whirlpool ADPU 502 Installations- und Betriebshandbuch

Whirlpool

Whirlpool vGU2200 Bedienungsanleitung

Whirlpool

Whirlpool WDP370PAHB Bedienungsanleitung

Whirlpool

Whirlpool DU948 series Bedienungsanleitung

Whirlpool

Whirlpool WDTA50SAKZ Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
