Whirlpool DU900PCDB6 Bedienungsanleitung

FRAME AND CONSOLE PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

10−97 Litho In U.S.A. (rle) Part No. 870651

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Console

(Includes Item 2)

3375273 Black

3375274 White

3375275 Almond

2 Insert, Console

3376024 Black

3376025 White

3376026 Almond

3 Switch

3376027 Black

3376028 White

3376029 Almond

4 3369529 Follower, Cam

5 3373626 Timer

6 3378124 Cam

7 304231 Screw,

8 Door Frame

(Includes Item 24)

3374711 Black

3374712 White

3374713 Almond

9 3380854 Bolt, Latch

10 Lever, Latch

3369457 Black

3372232 White

3375061 Almond

11 3369325 Switch, (2)

12 3368955 Pin, Switch (2)

13 3381221 Harness and

Protector

14 3376405 Elbow, Harness

15 3400803 Screw

16 3373367 Cover Timer

17 Knob, Timer

3375348 Black

3375349 White

3375350 Almond

18 3368979 Spacer,

Corrugated

19 Panel, Front

3369516 (Almond/Black)

3369769 (Black/White)

20 Retainer, Panel

3374010 Black

3374011 White

3374012 Almond

21 98997 Clip, Harness

24 3374716 Channel, Retainer

(Also Order Item

#20)

25 3373234 Bearing,

Spring (2)

Refer To Dishwasher Replacement

Panel Parts List No. 675345.

INNER DOOR PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

Illus. Part

No. No. DESCRIPTION

1 3371481 Inner Door

(Also Order Latch

Door Kit 676413)

2 3376066 Latch, Detergent

Dispenser

3 3369061 Snap, Detergent

Dispenser

4 3369055 Actuator Assembly

5 3368967 Wet Agent,Dispenser

6 3369000 Draw Bar (Upper

Dispenser)

7 3369602 Draw Bar (Lower

Dispenser)

8 3368999 Spring (Draw Bar)

9 3378138 Lid Assembly

10 300106 Spring, Lid

11 3372028 Pin (Lid Hinge)

(Also Order

Item #10)

12 3371710 Screen, Vent

13 3369512 Wet−Agent Cap

Assembly

14 3369155 Seal (Wet−Cap)

15 3400815 Screw (8)

16 3371569 Cover, Drip

TUB ASSEMBLY PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

TUB ASSEMBLY PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3379349 Tub Assembly

2 3380371 Tub, Wheel

Assembly (8)

3 3368933 Runner (2)

4 3376439 Leveler (2)

5 3370389 Screw, Shoulder

6 302819 Wheel (2)

7 343641 Screw,

8 3374719 Plate, Latch

9 3374720 Screw

10 3376927 Gasket

11 Retainer, Access

Panel

3372412 Black

3372413 White

3372414 Almond

12 3369052 Deflector (2)

13 3379487 Heater

(Includes Item 14)

14 717273 Washer, Rubber (2)

15 3378706 Nut (2)

(Heater Terminal)

16 3378779 Water Valve

17 304392 Screw

18 3369777 Thermostat,

Hi−Limit

20 301958 Clamp

22 3378595 Bracket,

Thermostat

23 3370225 Screw

24 3369447 Relay

25 304231 Screw

28 3374343 Spring, Door (2)

29 3369048 Housing, Float

Switch

30 3369067 Switch, Float

31 3369049 Cover, Switch

Housing

32 3376397 Float & Washer

Assembly

33 717488 Nut

34 Toe Panel

3368942 Black

9742861 White

9742862 Almond

35 Panel, Access

3369193 Black

3369614 White

3377698 Almond

36 302868 Screw

37 3369414 Hose, Inlet

39 3379740 Support, Heater (2)

40 3381230 Sound Shield

41 3378131 Terminal Box

42 300068 Cover Assembly,

Terminal Box

43 Access Panel

3369527 (Almond/Black)

3370868 (Black/White)

44 3369526 Spacer, Corrugated

45 3374728 Extension & Clip

Assembly

48 304666 Retainer, Push (2)

49 3370307 Strain Relief

50 3378128 Washer

51 3400014 Screw

52 3369138 Screw

53 3378123 Clip, Grounding

Refer To Dishwasher

Replacement

Panel Parts List No. 675345.

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

Note: The Pump Gasket

Must Be Replaced Anytime

The Pump Assembly Is

Removed And Reinstalled

In The Dishwasher.

PUMP AND MOTOR PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

PUMP AND MOTOR PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9740982 Plate, Perforated

(Includes Item 5)

(Also Order

Item 30)

See Note A.

2 3367173 Base, Inlet

(Includes Items

1 & 5)

(Also Order

Item 30)

See Note A.

3 9741232 Screw

4 302710 Seal, Inlet Base

5 302709 Ball, Check

6 95080 "O" Ring

7 302721 Cover, Valve

8 302738 Valve Stem Kit

(Includes Items

12, 13 & 22)

See Note A.

9 303882 Separator Assembly

(Includes Items

12, 13 & 22)

See Note A.

10 3400001 Screw

11 303510 Impeller, Wash

(Includes Items

12 & 13)

12 3371152 Screw & Seal

13 302711 Seal, Pump Outlet

14 3369478 Outlet, Pump

(Includes Item 13)

15 3369482 Check Valve

(Includes Item 6)

16 717000 Gasket, Pump

17 3376752 Pump & Motor

Assembly

(Includes Item 16)

18 302707 Bushing, Grind

19 302718 Chopper Kit

(Also Order

Item 30)

See Note A.

20 3378139 Sleeve, Drain

Impeller

22 302704 Seal, Drain Cover

23 3378207 Cover, Drain

(Also Order

Item 30)

See Note A.

24 303539 Impeller,

Drain Kit

(Also Order

Item 30)

See Note A.

25 3376157 Base, Pump

(Also Order

Item 30)

See Note A.

26 3367197 Support, Pump

Mounting (4)

27 3368270 Slinger

(See Note A.)

28 3379364 Motor & Fan

Assembly

(Includes Item 27)

(Also Order

Item 30)

See Note A.

29 3369331 Screw

30 675505 Pump Seal Kit

(Includes Items

4, 12, 13 & 22)

31 303918 Tool, Pump

Centering

32 356138 Clamp, Hose

33 3374077 Hose, Drain

34 3371748 Cap, Drain

35 3374757 Shaft, Absorber

36 3378202 Weight, Absorber

37 3378083 Thermostat

38 3376723 Seal, O−Ring

39 3376358 Retainer,

Thermostat

40 9740674 Gasket, Drain

Cover

NOTE A:

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

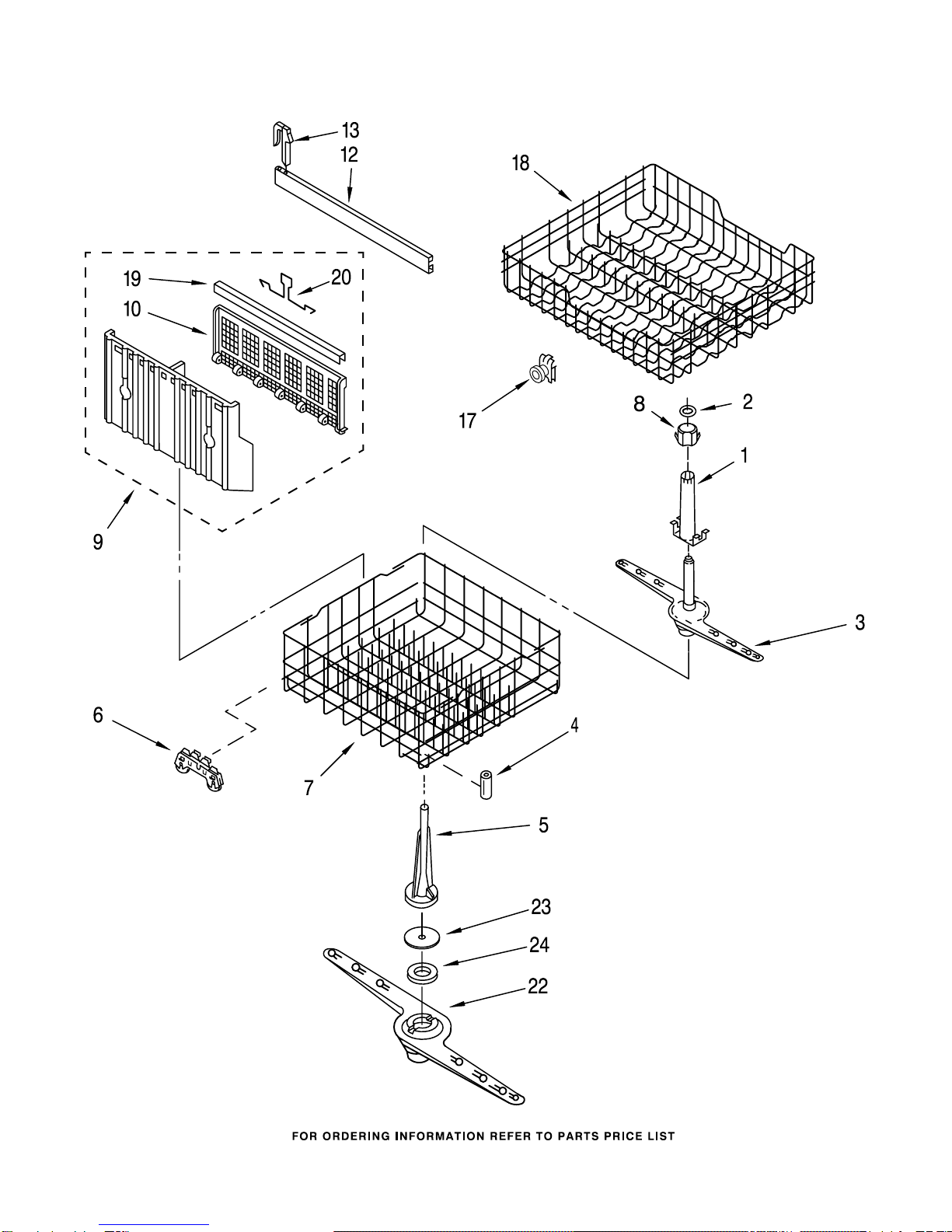

DISHRACK PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

DISHRACK PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

Illus. Part

No. No. DESCRIPTION

1 3368290 Support, Arm

(Also Order

Items 2 & 8)

2 303722 Clip

3 3377274 Spray Arm, Upper

(Also Order Item 8)

4 3368006 Bumper (2)

5 300848 Tower, Pressure

6 3376961 Wheel & Transport

Assembly (4)

7 3370490 Dishrack, Lower

(Includes Items 4 & 6)

8 3374702 Support Lock,

Spray Arm

9 3369488 Silverware

Basket Assembly

10 3369485 Cover, Basket

12 9742998 Track

13 3379941 Stop, Track (4)

17 3380863 Wheel & Axle

Assembly (4)

18 3371663 Dishrack,

Upper

19 717528 Trim, Basket

20 300086 Handle, Basket

22 3369347 Sprayarm, Lower

23 3367910 Cap, Nozzle

24 719576 Bearing, Nozzle

MISCELLANEOUS PARTS

LITERATURE AND OPTIONAL PARTS

For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6

(Black) (Designer White) (Designer Almond)

870651

Illus. Part

No. No. DESCRIPTION

1 3369816 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

4317925 White

4317929 Almond

4318050 Heavy Duty

LITERATURE PARTS

LIT3380268

Instructions,

Installation

LIT3367007

Instructions,

Installation

(Supplement)

(Locating Your

Water Supply)

LIT3381327

Energy Guide

LIT3376832

Guide, Use & Care

LIT3379192

Wiring Diagram

LIT0677967

Do−It Yourself,

Manual

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72032 Black

PAINT, PRESSURIZED SPRAY

(13 oz.)

350956 Almond

285006 Superior Black

350942 Primer (White)

PAINT, TOUCH−UP (1 qt.)

978883 Almond (Uncut)

799340 Black (Uncut)

DISHRACK REPAIR

675576 Vinyl Touch−Up

(Blue)

675677 Tine Tip Repair

Kit (Blue−−

Enough For Two

Complete

Dishracks)

676453 Vinyl Touch−Up

(White)

675679 Tine Tip Repair

Kit (White−−

Enough For Two

Complete

Dishracks)

676455 Vinyl Touch−Up

(Grey)

676458 Tine Tip Repair

Kit (Grey−−

Enough For Two

Complete

Dishracks)
