ANote to You ........................ 2

Dishwasher Safety ................ 3

Parts and Features ................ 4

Starting Your Dishwasher .... 6

Loading Your Dishwasher .... 8

Using the Dispensers ......... 13

Setting the Controls ............ 16

Selecting a wash cycle ..... 16

Canceling a cycle ............. 16

Selecting cycle options ..... 17

Changing a cycle setting .... 17

Changing an option

setting ............................... 17

Adding an item during

a cycle .............................. 18

Using delay wash .............. 18

The clean signal light ......... 18

Washing Special Items ....... 19

Caring for Your

Dishwasher .......................... 20

Saving Energy ..................... 23

Solving Common

Dishwashing Problems ...... 24

Troubleshooting .................. 27

Requesting Assistance

or Service ............................ 28

Index ..................................... 30

Warranty .............................. 34

3376832

DmSHWASHER MODEL SERES 900

A Note to You

Thank you for buying a WHIRLPOOL* appmianC÷o

Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

P_eas÷ tecerd Veur medea's infetmationo

Whenever you call to request service for

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (see diagram on

the "Parts and Features" section for location

of label).

Please also record the purchase date of

your appliance and your dealer's name,

address, and telephone number.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Keep this book and the sales slip together in a safe place for future reference.

He_p us he_p Vou

Please:

Have yourdishwasherinstalledby a

qualifiedinstaller.

Installwhere dishwasherisprotectedfrom

the elements.

Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

Properly connect dishwasher to electricity,

water, and drain?

t See Installation Instructions for complete

information.

Remove all shipping plugs from hoses

and connectors (such as the cap on the

drain outlet) before installing.t

Remove all hang tags and temporary

labels.

Make sure dishwasher is not used by

anyone unable to operate it properly.

Properly maintain dishwasher. See the

"Caring for Your Dishwasher" section.

Dishwasher Safety

Your safetv and the safety of others is very important°

We have provided many important safety messages in this manual and on your

appliance, Always read and obey all safety messages,

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING - When using the * Do not operate the dishwasher unless

dishwasher, follow basic precautions,

including the following:

Read all instructions before using the

dishwasher.

Use the dishwasher only for its

intended function.

Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

When loading items to be washed:

1) Locate sharp items so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

Do not wash plastic items unless they

are marked "dishwasher safe" or the

equivalent. For plastic items not so

marked, check the manufacturer's

recommendations.

Do not touch the heating element

during or immediately after use.

all enclosure panels are properly in

place.

Do not tamper with controls.

Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

-SAVE THESE INSTRUCTIONS -

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level wash

(p. 11)

Top Upper spray arm

(p. 11) tower

(p. 10)

Water inlet Model and

opening number label

(p. 10) (on right side)

Rack bumper POWER CLEAN*

(p. 10) module

(p. 31)

Bottom rack

(p. 10) Lower spray arm

Heating element (p. 10)

Silverware Overfill protector

basket (p. 20)

(p. 9) Detergent

dispensers

(p. 13)

Rinse agent

dispenser

(p. 14)

Door Latch Door color panel t Access panel t

t See Installation Instructions

for information.

Centrel panels

Cycle pads Option pads Cycle control knob

900 Model Series

Cycle pads Option pads Signa lights Cycle control knob

915 Model Series

Starti Your shwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Tip Over Hazard

Do not use dishwasher until

completely installed.

Do not push down on open door.

Doing so can result in serious injury

or cuts.

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground

connector in terminal box.

Do not use an extension cord.

Failure to do so can result in death,

fire, or electrical shock.

GROUNDING

_,For a grounded, cord connected

dishwasher:

The dishwasher must be grounded. In

the event of a malfunction or breakdown,

grounding will reduce the risk of electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING = Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock,

INSTRUCTIONS

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

For a permanently connected

dishwasher:

The dishwasher must be connected to a

grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

-SAVE THESE INSTRUCTIONS -

Starting a wash cycle

1. Load the dishwasher. See the "Loading

Your Dishwasher" section. 6. Run hot water at the sink nearest the dish

washer until water is hot. Turn

_ water off.

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See the "Using the

detergent dispenser" section.

4. Add rinse agent, if needed.

5. Close door firmly until it latches.

7. Press a Cycle pad. If desired, press one

or more Option pads. (See the

"Setting the Controls" section.)

The indicator above each pad

will show red when selected.

NOTE: More than one cycle

shares the same pad. The Cycle Control

Knob determines which cycle operates.

8. Turn the Cycle Control Knob clockwise to

i.._ the desired cycle. You will feel

a definite "stop" at each cycle

mark. The dishwasher auto-

matically starts the cycle

you select.

NOTE: If the door is latched, you will hear

the cycles start and stop as the control

knob passes each cycle mark. This is

normal and does not hurt the dishwasher.

If you prefer, you can set the Cycle

Control Knob with the door unlatched.

Stepping the dishwasher

You can stop your dishwasher anytime during

a cycle. All you have to do is:

Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close the door to

continue the cycle.

Turn the Cycle Control Knob slowly

clockwise until you hear water draining.

Let the dishwasher drain completely.

Then open the door and turn the Cycle

Control Knob to Off.

Load" Your ishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to

To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

Remove large pieces of food, bones, and

other hard items. The POWER CLEAN*

module removes food particles from the

water. The module contains a chopping

device which reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard

items enter the module. Do not let metallic

items (such as pot handle screws) get into

the POWER CLEAN module. Damage

can occur.

Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a Rinse-Wash

Later cycle to keep dishes moist if you do

not plan to wash them soon.

Load dishes so soiled surfaces face the

rotating spray arm.

Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

load Veur dishwasher

Loading for quiet operation

Secure lightweight load items in the racks.

Pot lids and handles, pizza pans, cookie

sheets, etc., should not touch interior walls,

interfere with the spray arm's rotation, or

cover the spray tower.

Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted during

dishwasher operation to prevent noise

transfer through drains.

Loading the silverware basket

Load the silverware basket while it is in the

door or take the basket out for loading on a

counter or table.

Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items.

_MPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

Put small items (baby bottle caps, jar lids,

etc.) in any section.

You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1, Grab the basket by the handle and slide it

toward the top of the door.

2, Lift the basket off the holding buttons.

To replace the basket:

1, Set the basket on the holding buttons.

2, Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

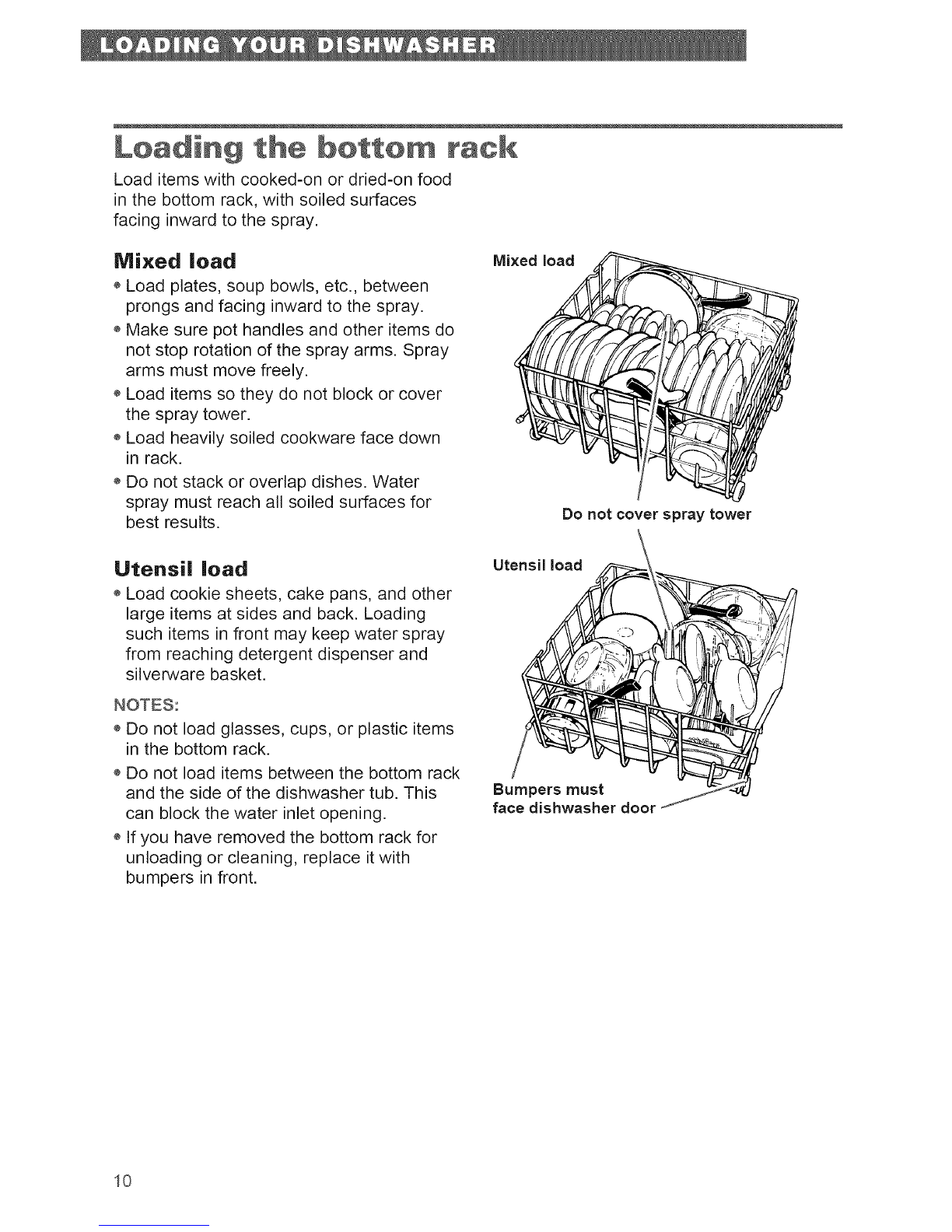

Loading the bettem rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

Load items so they do not block or cover

the spray tower.

Load heavily soiled cookware face down

in rack.

Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Do not cover spray tower

Utensil load

Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTES:

Do not load glasses, cups, or plastic items

in the bottom rack.

Do not load items between the bottom rack

and the side of the dishwasher tub. This

can block the water inlet opening.

If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Utensil load

Bumpers must

face dishwasher door

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool 3LCED9100 Bedienungsanleitung

Whirlpool

Whirlpool ADG 7800/2 Bedienungsanleitung

Whirlpool

Whirlpool DU850SWPB1 Bedienungsanleitung

Whirlpool

Whirlpool WDF590SAJW Bedienungsanleitung

Whirlpool

Whirlpool GU2300XTS Bedienungsanleitung

Whirlpool

Whirlpool WSFC 3M17 X Bedienungsanleitung

Whirlpool

Whirlpool WFO 3T133 P 6.5 X Bedienungsanleitung

Whirlpool

Whirlpool ADG 937 Bedienungsanleitung

Whirlpool

Whirlpool ADP 950/3 WH Bedienungsanleitung

Whirlpool

Whirlpool GDU87OOXT Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C26 F X Installations- und Betriebshandbuch

Whirlpool

Whirlpool WRIC 3C26 Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADP 4730 WH Bedienungsanleitung

Whirlpool

Whirlpool ADG 993 Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C26 PF X Installations- und Betriebshandbuch

Whirlpool

Whirlpool WFC 3B19 Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADG 522 Bedienungsanleitung

Whirlpool

Whirlpool MDB7749AWM Montageanleitung

Whirlpool

Whirlpool ADG 8315 Bedienungsanleitung

Whirlpool

Whirlpool ADP 6941 Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C22 P X Installations- und Betriebshandbuch

Whirlpool

Whirlpool WFW5620HW Bedienungsanleitung

Whirlpool

Whirlpool ADP 2442 Bedienungsanleitung

Whirlpool

Whirlpool WI 7020 P Installations- und Betriebshandbuch

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
