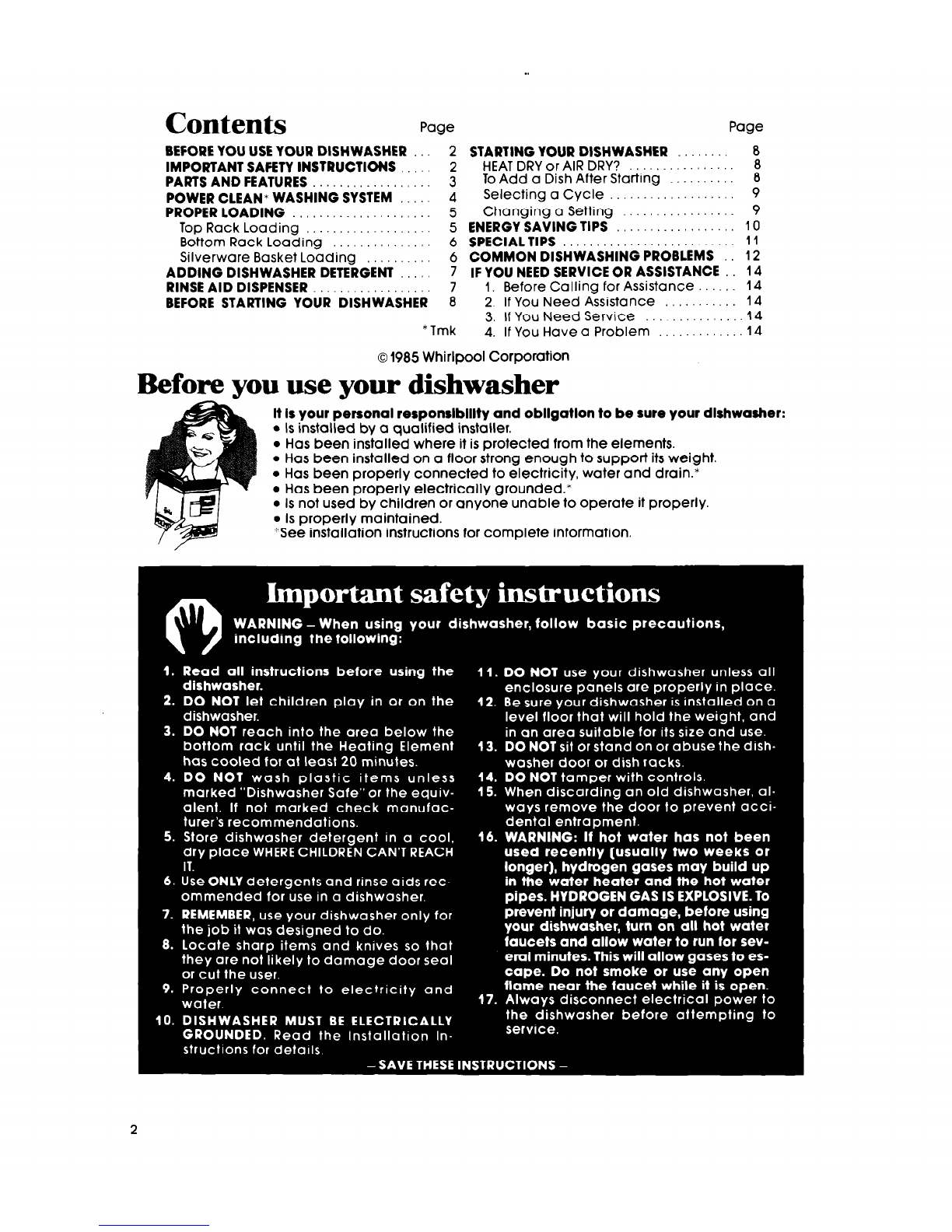

Contents

Page Page

BEFORE YOU USE YOUR DISHWASHER 2 STARTING YOUR DISHWASHER 8

IMPORTANT SAFETY INSTRUCTIONS 2 HEAT DRY or AIR DRY?

PARTS AND FEATURES , 3 To Add a Dish After Starting i

POWER CLEAN* WASHING SYSTEM 4 Selecting a Cycle 9

PROPERLOADING . ..._...,,,..,,,.. 5 Changing a Setting 9

Top Rack Loading 5 ENERGY SAVING TIPS 10

Bottom Rack Loading 6 SPECIALTIPS 11

Silverware Basket Loading 6 COMMON DISHWASHING PROBLEMS 12

ADDING DISHWASHER DETERGENT 7 IF YOU NEED SERVICE OR ASSISTANCE 14

RINSE AID DISPENSER 7 I. Before Calling for Assistance 14

BEFORE STARTING YOUR DISHWASHER 8 2 If You Need Assistance 14

3. If You Need Service _. 14

*Tmk 4. If You Have a Problem 14

0 1985 Whirlpool Corporation

Before you use your dishwasher

It Is your personal responslblllty and obllgatlon to be sure your dlshwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight.

Has been properly connected to electricity, water and drain.*

Has been properly electrically grounded.=

Is not used by children or anyone unable to operate it properly.

Is properly maintained.

-See installation instructions for complete information.

Parts and features

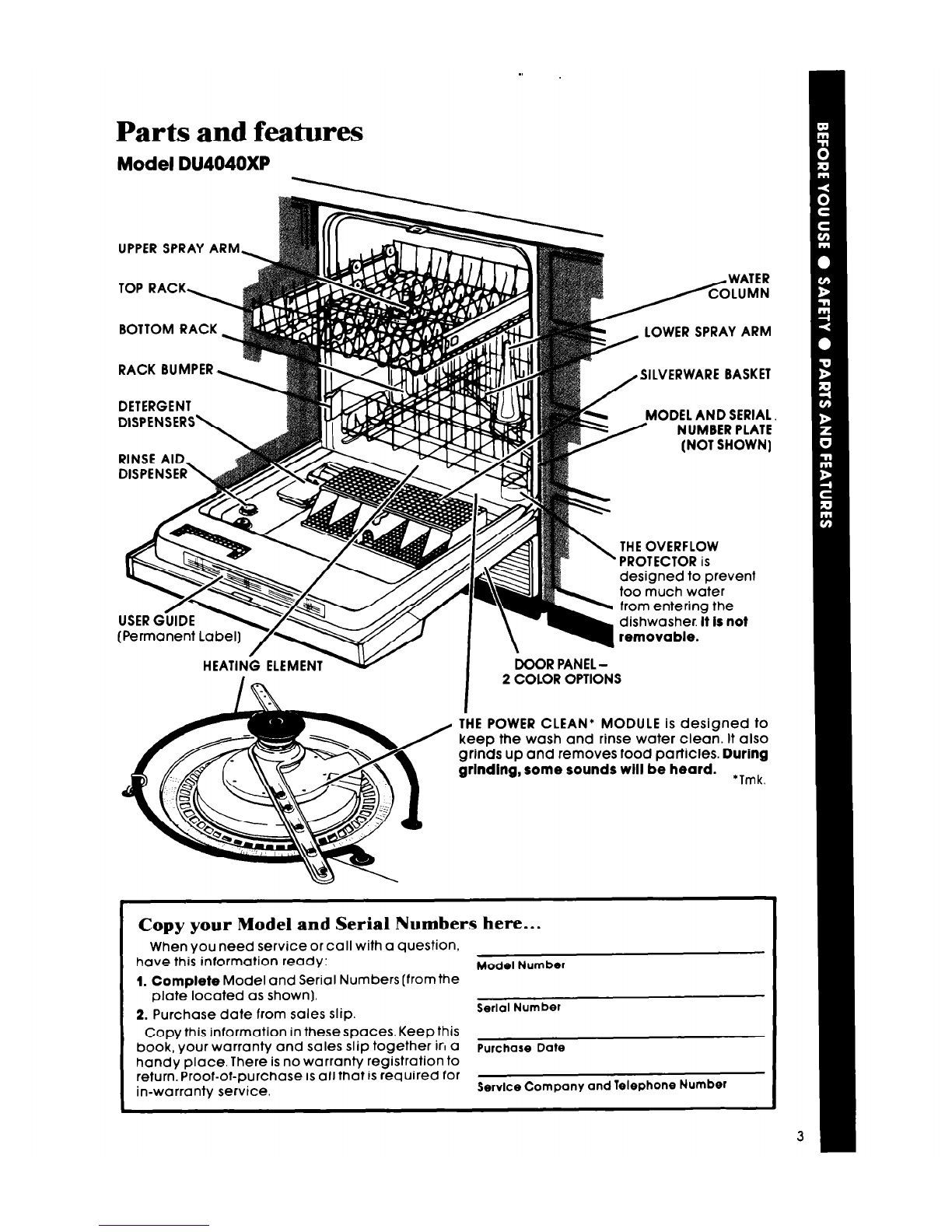

Model DU4040XP

TOP RACK

BOTTOM RACK

RACK BUMPER

DETERGENT

UPPER SPRAY ARM

USER GiIDE

(Permanent

, WATER

COLUMN

LOWER SPRAY ARM

SILVERWARE BASKET

MODEL AND SERIAL.

NUMBER PLATE

[NOT SHOWN)

THE OVERFLOW

PROTECTOR is

designed to prevent

too much water

from entering the

L dishwasher. It Is not

removable.

DOOR PANEL -

2 COLOR OPTIONS

THE POWER CLEAN* MODULE is designed to

keep the wash and rinse water clean. It also

grinds up and removes food particles. During

grlndlng, some sounds will be heard. ‘Tmk,

Copy your Model and Serial Numbers here...

When you need service or call with a question,

have this information ready:

Model Number

1. Complete Model and Serial Numbers [from the

plate located as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. Keep this

book, your warranty and sales slip together in a

Purchase Date

handY place. There is no warrantY registration to

return: Proof-of-purchase is all that is required for

in-warranty service.

Service Company and Telephone

Number

POWER CLEAN* Washing System

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent

against soiled surfaces of dishes. When a cycle is started,the dishwasher fills with water

to about the level of the heating element. This water is pumped through the rotating

spray armsthrough the POWER CLEAN Module which removes food particle&and back

through the rotating spray arms. Soiled water is pumped out and replaced with clean

water during a cycle - the number of times depends on the cycle being used.

The POWER CLEAN* Module removes food

particles from the water, stores them, then

washes them down the drain.

Load dishes so soiled surfaces face pow-

erful spray from rotating arms.

Step-saving preparation for washing

It is not necessary

to rinse dishes before

putting them into the

dishwasher. Just re-

move large pieces,

bones, and other hard

items. The POWER

CLEAN Module will

remove food parti-

cles from the water. It contains a chopping de-

vice which will reduce the size of food items.

If hard items such as fruit seeds, nuts and

egg shells enter the POWER CLEAN Module,

you might hear chopping, grinding, crunch-

ing or buzzing sounds. Those sounds are nor-

mal when hard items enter the module. DO

NOT LET MmALLIC ITEMS GET INTO THE POWER

CLEAN MODULE.

Water must be hot For best cleaning and drying resutts, water should be at least

140°F (60°C).

1. Turn on hot water faucet nearest the dishwasher. Let water run

until it is as hot as possible.

2. Hold a candy or meat thermometer in the stream of hot water

to measure the temperature.

3. If the temperature is too low, have a qualified person raise

the water heater thermostat setting.

*Tmk.

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms.

Water must be able to drain off completely for best drying results. Be careful to

Separate

items so spray can reach all surfaces.

Top rack loading

CUP AND GLASS LOAD

The top rack is designed for cups, glasses

and smaller items.

Place so open ends face down for clean-

ing and draining.

load glasses In top rack only. Bottom

rack is not designed for glasses. Damage

may occur.

MIXED LOAD

Load plastic items only in the top rack.

Only plastic items marked “dishwasher

safe” are recommended.

Plastic items can be melted in the bottom

rack.

Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

Be sure lightweight items are held firmly

in place.

China, crystal and other delicate items

must not touch another item during dish-

washer operation. Damage may occur.

UTENSIL LOAD I

Small bowls, pans and other utensils can

be placed in the top rack.

Items with cooked-on or dried-on foods should be loaded in the bottom rack with

soiled surfaces facing the spray.

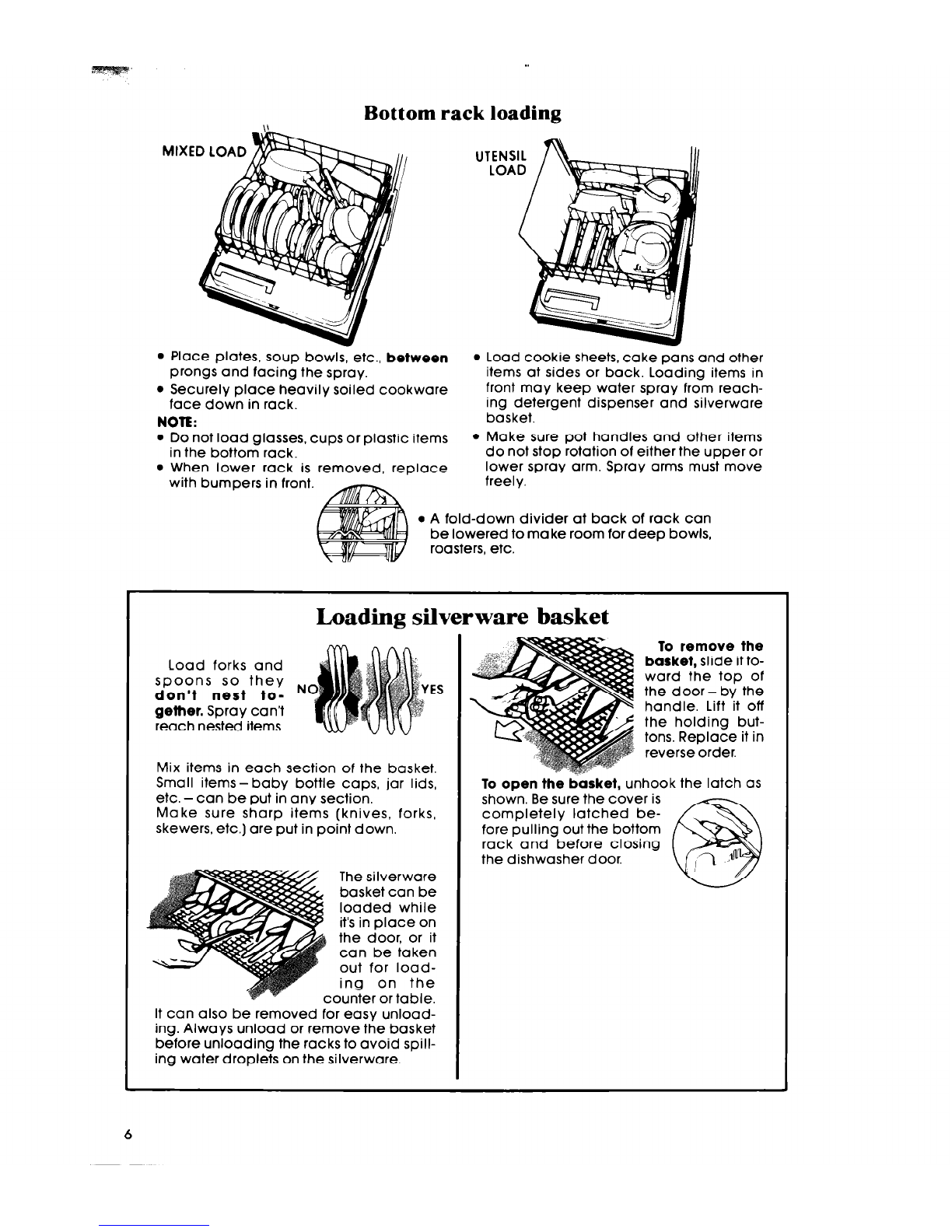

Bottom rack loading

Place plates. soup bowls, etc., between

Load cookie sheets, cake pans and other

prongs and facing the spray. items at sides or back. Loading items in

Securely place heavily soiled cookware front may keep water spray from reach-

face down in rack. ing detergent dispenser and silverware

NOTE: basket.

Do not load glasses, cups or plastic items

Make sure pot handles and other items

in the bottom rack. do not stop rotation of either the upper or

When lower rack is removed, replace lower spray arm. Spray arms must move

with bumpers in front. freely.

A fold-down divider at back of rack can

be lowered to make room for deep bowls,

roasters, etc.

Loading silverware basket

Load forks and

;yn:tnSnrst tht;Y NC

gether. Spray can’t

reach nested items.

Mix items in each section of the basket.

Small items- baby bottle caps, jar lids,

etc.-can be put in any section.

Make sure sharp items (knives, forks,

skewers, etc.) are put in point down.

The silverware

basket can be

loaded while

it’s in place on

the door, or it

can be taken

out for load-

ing on the

ounter or table.

It can also be removed for easy unload-

ing. Always unload or remove the basket

before unloading the racks to avoid spill-

ing water droplets on the silverware.

To remove the

basket, slide it to-

ward the top of

the door- by the

handle. Lift it off

the holding but-

tons. Replace it in

reverse order.

To open the basket, unhook the latch as

shown. Be sure the cover is

completely latched be-

fore pulling out the bottom

rack and before closing

the dishwasher door.

Adding detergent

The kind and amount of dishwasher detergent you use is an important part of

getting Your dishes clean. Read this section carefully.

Use automatlc dlsh-

washer detergent only.

Other detergents are

too mild and much too

sudsy to work in the

dishwasher.

Different brands of

dishwasher detergent

have different amounts

of phosphorus. Phospho-

rus softens water and

helps prevent water

spots on dishes.

If water is hard and

phosphorus content is

low (8.7% or less), You

may need to use more

detergent or use a

brand with a higher

phosphorus content

(12% or higher).

Do not add detergent

until you are ready to

wash. Fresh, dry deter-

gent Is necessary for

best washing results.

Store detergent tightly in

a cool, dry place.

The detergent dispenser

The detergent dispenser has one section with

a cover and one without.

Put detergent in both sections for cycles with

two washes.

Put detergent in the covered section only for

cycles with one wash.

Push the cover down

until it is latched.

The cover opens auto-

matically when the main

wash starts. Detergent in

the open section falls

into the dishwasher

when the door is closed.

NORMAL WASH Cycle sections for.. .

POTS & PANS Cycle

HEAVY WASH Cycle

How much detergent to use

The amount of detergent to use

depends on the hardness of Your

Water. Iftoo little is used, dishes won’t

be clean. However, if too much is

used in soft water, glassware will

begin to etch.

Find out your water’s hardness by

asking Your local water depart-

ment, water softener company or

county extension agent.

HARD-Fill 1 or both sections to top

is 8 or more grains of

MEDIUM - Fill 1 or both sections to

if water is 5 to 7 grains of

SOFT - Fill one or both sections to

bottom line if water is 0 to 4 grains of

hardness.

Rinse aid dispenser

A rinse aid helps keep water from forming droplets and dry-

ing as spots. Keep the dispenser filled with a rinse aid such as

Jet-Dry.” A small amount is released automatically during the

final rinse of each cycle. Check the dispenser periodically to

see if it needs refilling.

Keep the dispenser fill cap tightly closed.

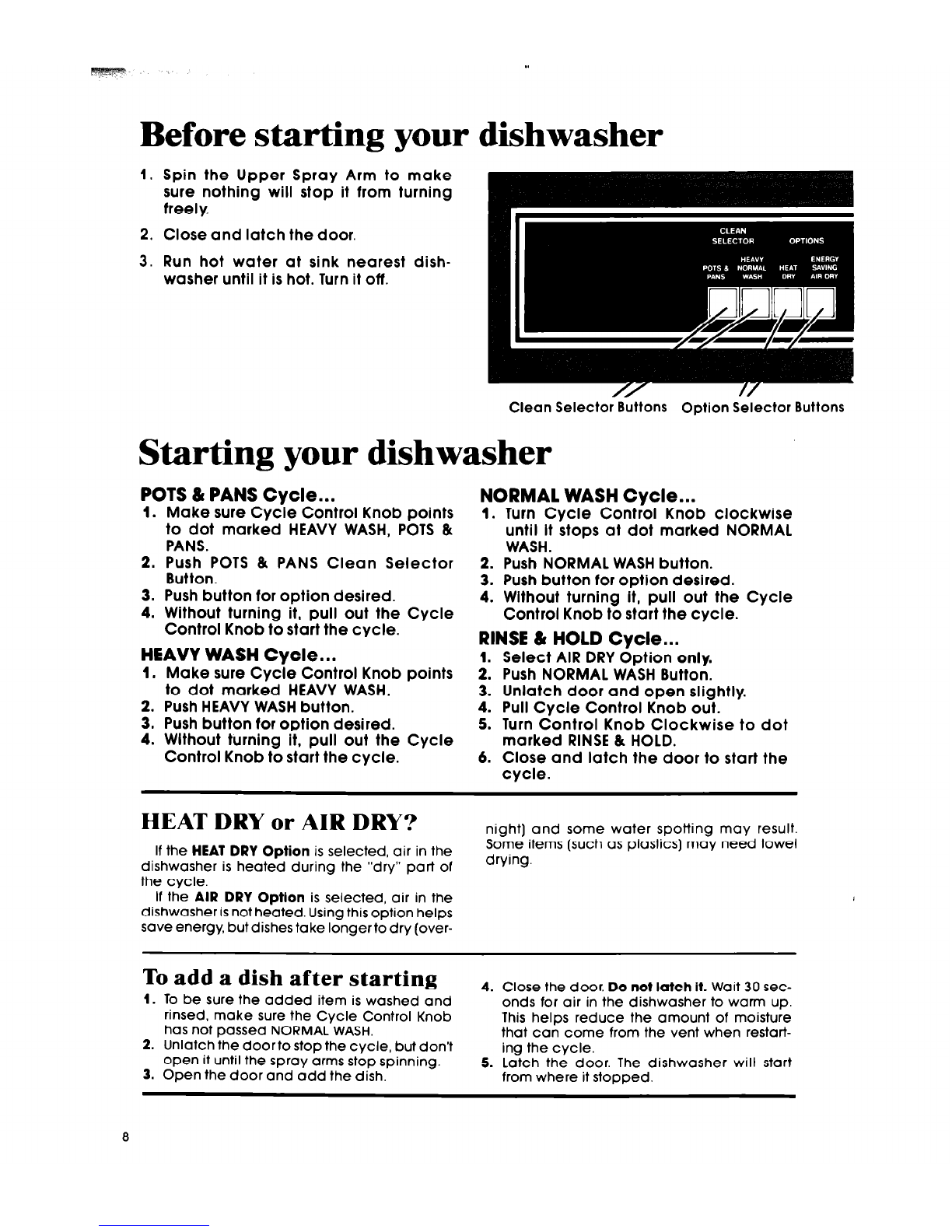

Before starting your dishwasher

Spin the Upper Spray Arm to make

sure nothing will stop it from turning

freely

Close and latch the door.

Run hot water at sink nearest dish-

washer until it is hot. Turn it off.

Clean Selector Buttons

Option Selector Buttons

Starting your dishwasher

POTS & PANS Cycle...

1. Make sure Cycle Control Knob points

to dot marked HEAVY WASH, POTS %

PANS.

2. Push POTS % PANS Clean Selector

Button.

3. Push button for option desired.

4. Without turning it, pull out the Cycle

Control Knob to start the cycle.

HEAVY WASH Cycle.. .

1. Make sure Cycle Control Knob points

to dot marked HEAVY WASH.

2. Push HEAVY WASH button.

3. Push button for option desired.

4. Wlthout turning it, pull out the Cycle

Control Knob to start the cycle.

NORMAL WASH Cycle...

1. Turn Cycle Control Knob clockwise

until It stops at dot marked NORMAL

WASH.

2. Push NORMAL WASH button.

3. Push button for option desired.

4. Wlthout turning It, pull out the Cycle

Control Knob to start the cycle.

RINSE 6 HOLD Cycle...

1. Select AIR DRY Option

only.

2. Push NORMAL WASH Button.

3. Unlatch door and open slightly.

4. Pull Cycle Control Knob out.

5. Turn Control Knob Clockwise to dot

marked RINSE % HOLD.

6. Close and latch the door to start the

cycle.

HEAT DRY or AIR DRY?

night] and some water spotting may result.

If the HEAT DRY Option is selected, air in the Some items (such as plastics] may need towel

dishwasher is heated during the “dry” part of drying.

the cycle.

If the AIR DRY Option is selected, air in the

dishwasher is not heated. Using this option helps

save energy, but dishes take longer to dry (over-

To add a dish after starting

4. Close the door. Do not latch It. Wait 30 sec-

1. To be sure the added item is washed and

rinsed, make sure the Cycle Control Knob onds for air in the dishwasher to warm up.

has not passed NORMAL WASH. This helps reduce the amount of moisture

that can come from the vent when restart-

2. Unlatch the doorto stop the cycle, but don’t

open it until the spray arms stop spinning. ing the cycle.

5. Latch the door. The dishwasher will start

3. Open the door and add the dish. from where it stopped.

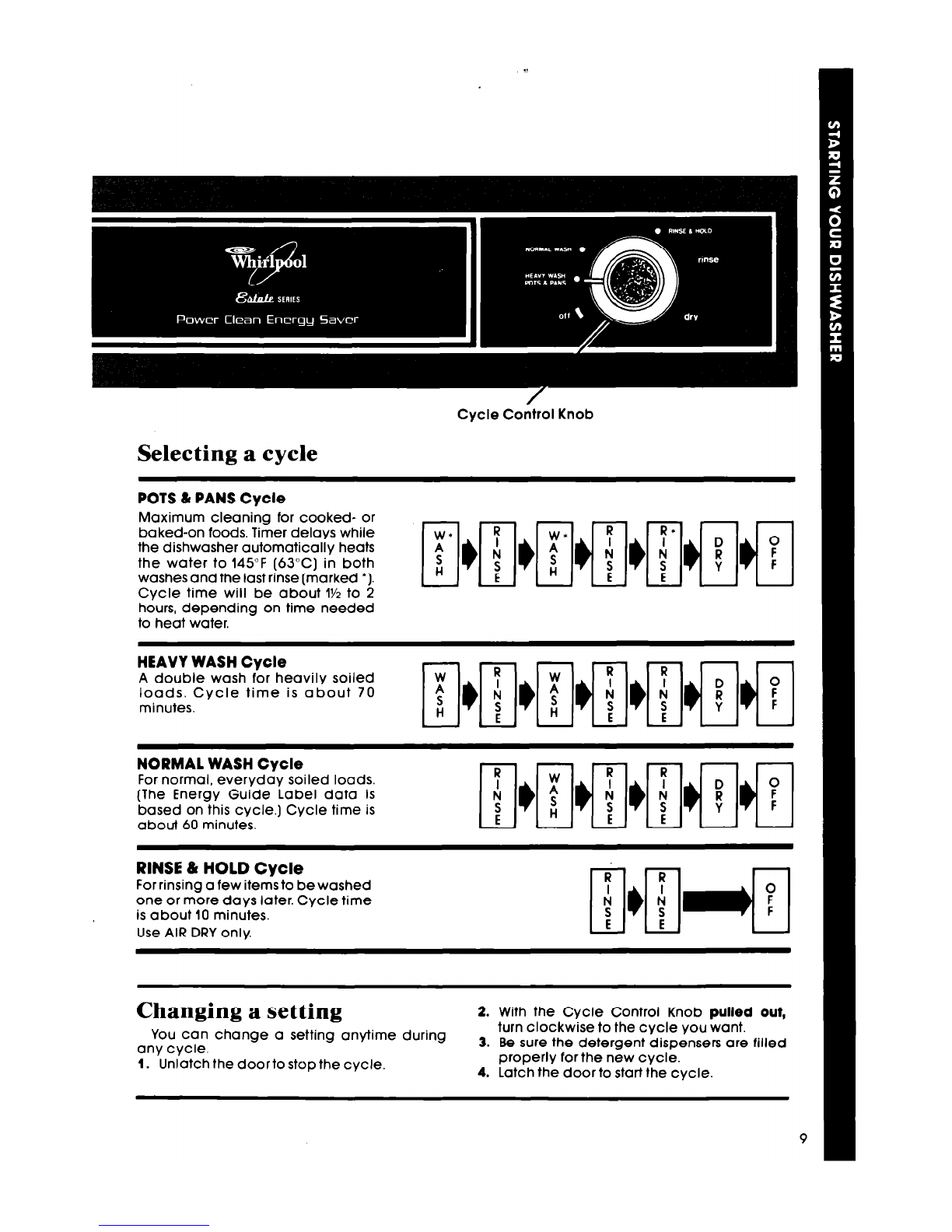

Cycle Control Knob

Selecting a cycle

POTS P PANS Cycle

Maximum cleaning for cooked- or

baked-on foods. Timer delays while

the dishwasher automatically heats

the water to 145°F (63°C) in both

washes and the last rinse (marked ‘).

Cycle time will be about 1% to 2

hours, depending on time needed

to heat water.

HEAVY WASH Cycle

A double wash for heavily soiled

loads. Cycle time is about 70

minutes.

NORMAL WASH Cycle

For normal, everyday soiled loads.

(The Energy Guide Label data is

based on this cycle.) Cycle time is

about 60 minutes.

RINSE & HOLD Cycle

For rinsing a few items to be washed

one or more days later. Cycle time

is about 10 minutes.

Use AIR DRY only.

Changing a setting

You can change a setting anytime during

any cycle.

1. Unlatch the doorto stop the cycle.

2. With the Cycle Control Knob pulled out,

turn clockwise to the cycle you want.

3. Be sure the detergent dispensers are filled

properly for the new cycle.

4. Latch the door to start the cycle.

Energy tips

You can help save energy It you:

1. Wash full loads. Running a half-filled dish- 2. Use the NORMAL WASH Cycle for normally

washer uses the same amount of electricity soiled loads. It uses less hot water and en-

and hot water as a fully loaded machine. ergy than other wash cycles.

3. Air dry dishes when you don’t need a rapid 4.

drying cycle. Allow longer drying times

(overnight).

5. Don’t pre-rlnse normally rolled dlshes. Se- 6. Use your dlshwasher during off-peak hours.

lect the correct cycle for the load and use Local utilities recommend this to avoid

the recommended amount of detergent for heavy usage of energy at certain times of

good washing results without hand rinsing. day.

NORMAL WAS”

load correctly for best washing results. In-

correct loading may cause poor washing

and the need to rewash all or part of the

load.

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool 400 series Montageanleitung

Whirlpool

Whirlpool 6ADP 5966 Bedienungsanleitung

Whirlpool

Whirlpool WDT730PAHZ Bedienungsanleitung

Whirlpool

Whirlpool DU8950XT Bedienungsanleitung

Whirlpool

Whirlpool WSIP 4O33 PFE Bedienungsanleitung

Whirlpool

Whirlpool GU2200XTSB2 Bedienungsanleitung

Whirlpool

Whirlpool DU805DWGB1 Bedienungsanleitung

Whirlpool

Whirlpool w10596244a Bedienungsanleitung

Whirlpool

Whirlpool ADP 4736 Bedienungsanleitung

Whirlpool

Whirlpool 930 Series Bedienungsanleitung

Whirlpool

Whirlpool Gold GU2275XTV Bedienungsanleitung

Whirlpool

Whirlpool DP940PWSQ0 Bedienungsanleitung

Whirlpool

Whirlpool ADG 6550 Bedienungsanleitung

Whirlpool

Whirlpool WDTA75SAHZ Bedienungsanleitung

Whirlpool

Whirlpool DU8lOOXX Bedienungsanleitung

Whirlpool

Whirlpool WDT910SAYM Bedienungsanleitung

Whirlpool

Whirlpool ADG 7560 Bedienungsanleitung

Whirlpool

Whirlpool WDF550SAAB Bedienungsanleitung

Whirlpool

Whirlpool DU1100XTPS Bedienungsanleitung

Whirlpool

Whirlpool 3385181 Bedienungsanleitung

Whirlpool

Whirlpool DU1100XTPB0 Bedienungsanleitung

Whirlpool

Whirlpool WDF518SAAS0 Bedienungsanleitung

Whirlpool

Whirlpool ADG 7560 Bedienungsanleitung

Whirlpool

Whirlpool ADPU 502 Installations- und Betriebshandbuch

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
