Whirlpool 3RLER5437KQ0 Bedienungsanleitung

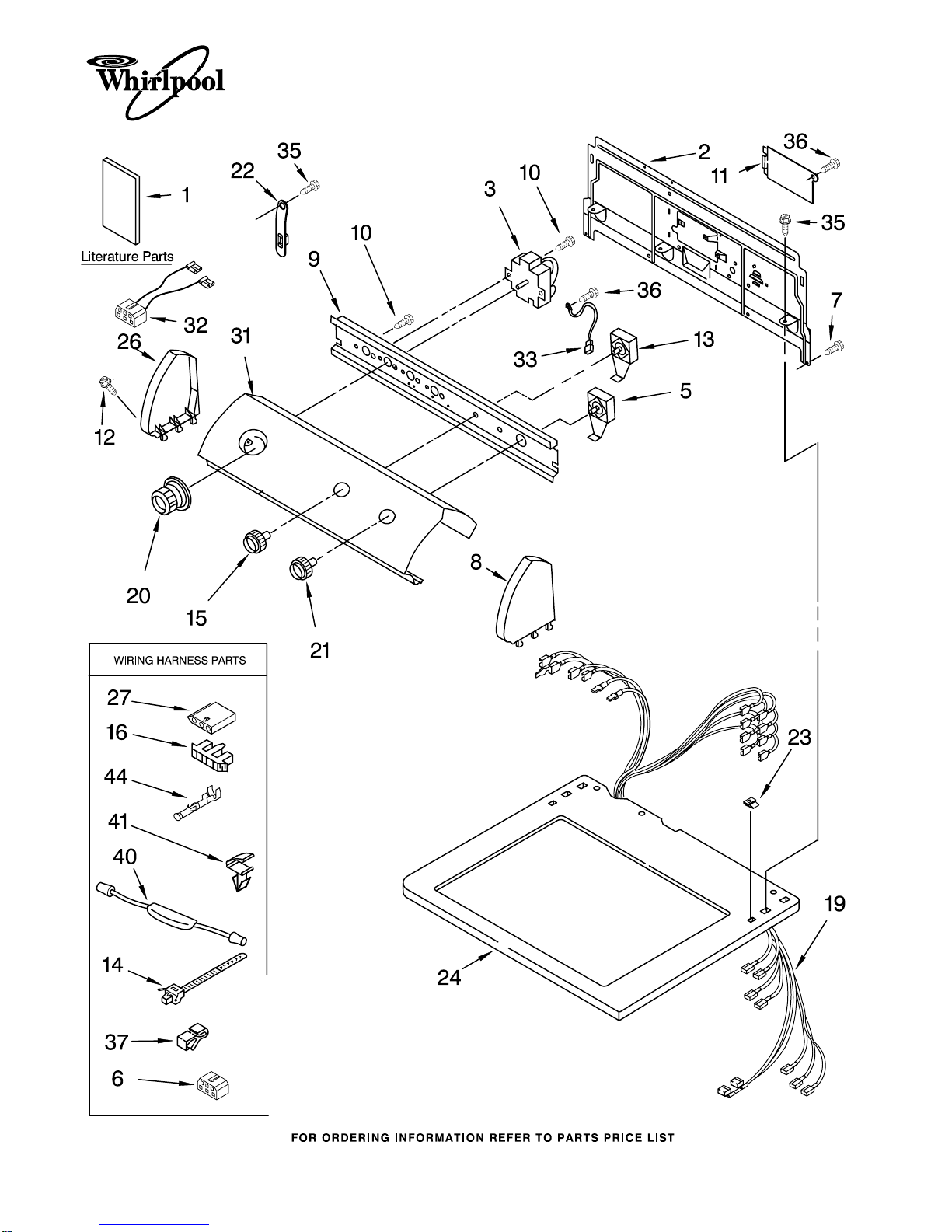

TOP AND CONSOLE PARTS

For Model: 3RLER5437KQ0

(Designer White)

7−02 Litho in U.S.A. (djc) Part No. 4320282 Rev. A

27"ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: 3RLER5437KQ0

(Designer White)

4320282

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8299808

Label, Wiring

Diagram

LIT8318343

Guide, Use & Care

LIT8528094

Instructions,

Installation

LIT8315975

Guide, User &

Installation (UK)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Manual, Do−It−

Yourself Repair

(Dryer)

2 8317305 Panel, Rear

Console

3 8299770 Timer

5 3395382 Switch,

Push−To−Start

6 3347243 Connector,

6−Circuit

7 693995 Screw, 8−18 x 3/8

8 8271363 Cap, End (R.H.)

9 8271316 Bracket, Control

10 3390646 Screw, 8−18 x 5/16

11 8317342 Cover,

Terminal Block

12 388326 Screw, Console

13 3399638 Switch,

Temperature

14 3391018 Tie, Cable

15 8271339 Knob, Control

16 3397269 Connector, Timer

19 8283161 Harness, Wiring

20 8312687 Timer Knob

Assembly

21 8271341 Knob,

Push−To−Start

22 8318255 Strap, Console

23 357213 Nut, Push−In (2)

24 8271399 Top

26 8271369 Cap, End (L.H.)

27 3936144 Connector

31 8318382 Panel, Control

32 8283293 Wire, Jumper

Assembly

33 3398893 Wire, Ground

35 3390647 Screw, 8−18 x 1/2

36 98139 Screw, 8−32 x 5/16

37 357572 Clip, Grounding

40 8283170 Resistor, Assembly

41 3394427 Clip, Harness

44 94614 Terminal

CABINET PARTS

For Model: 3RLER5437KQ0

(Designer White)

4320282

CABINET PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Model: 3RLER5437KQ0

(Designer White)

4320282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 98139 Screw, 8−32 x 5/16

3 694091 Screw, 8−18 x 3/8

4 3394331 Plate, Cover

5 8318457 Switch, Broken

Belt

7 8310656 Cabinet

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 697750 Plug, Multivent

13 3388672 Pulley Assembly

15 3400934 Screw,

6−20 x 1 1/16

16 340025 Wire, Ground

17 3395532 Exhaust Pipe

& Bracket

18 233520 Washer, Thrust

19 3389249 Nut, Inner

Door (4)

20 690997 Tri Ring

21 3389247 Hinge & Pin

Assembly (2)

22 342055 Screw, 8−18 x 1/2

23 3391408 Lever, Snap

Switch

24 3394081 Wire, Belt Switch

25 49026 4" − 90 Elbow

26 3393657 Restrainer, Belt

27 3404470 Motor, Assembly

50 HZ.

28 3395534 Exhaust Pipe

(Short)

29 3402548 Pulley 50 HZ.

30 3387610 Belt, Drive

32 3387118 Bracket, Motor

33 3395535 Exhaust Pipe

(Long)

34 3388600 Clip, Lint Duct

35 697773 Screw, 6−20 x 7/8

36 693995 Screw, 8−18 x 3/8

37 8318396 Seal, Foam

38 3390902 Clip, Door

Hinge (2)

39 3388674 Idler Bracket

40 297092 Clip (2)

41 3406109 Door Switch

Assembly

42 3397659 Block, Terminal

43 279318 Terminal, Brass

& Tinned (3)

Includes Illus. 45

44 3387242 Seal, Front Panel

45 279393 Terminal Block

Screw Kit ( For

Terminal Block)

46 3388229 Retainer

47 3392563 Door, Rear

48 697776 Screw, 10−32 x 5/8

49 3387872 Door, Front

50 3393008 Screw, 10−16 x 1/2

51 8317373 Upper Front Panel

52 696144 Strike, Door

56 8316644 Clip, Strain

Relief

57 3390735 Seal, Door

58 3392538 Catch, Door

Assembly

60 3389522 Handle, Door

61 697215 Toe, Panel

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

62 279818 White

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

4392067 Kit,

Dryer Repair

3406911 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

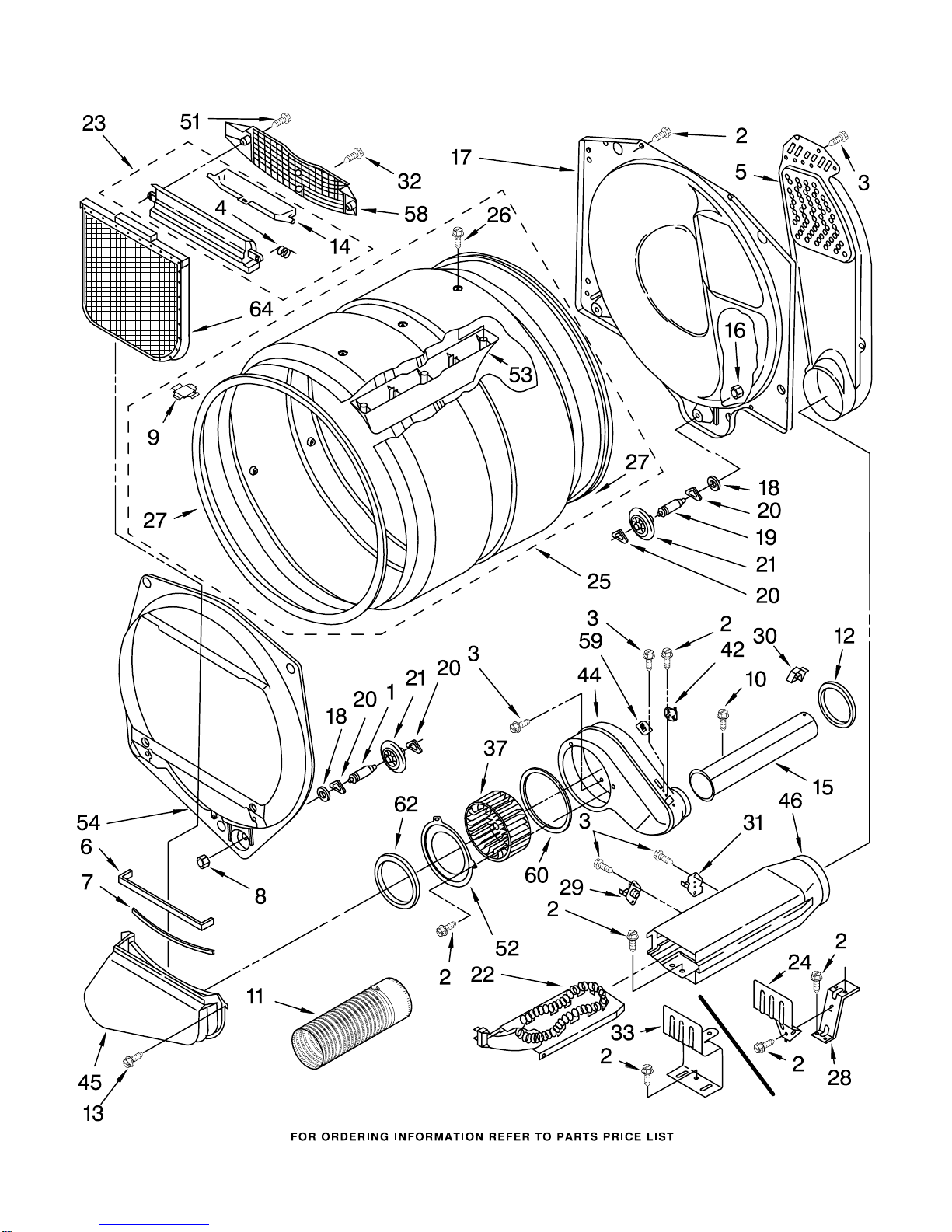

BULKHEAD PARTS

For Model: 3RLER5437KQ0

(Designer White)

4320282

BULKHEAD PARTS

For Model: 3RLER5437KQ0

(Designer White)

4320282

Illus. Part

No. No. DESCRIPTION

1 3399508 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 90767 Screw, 8−18 x 3/8

4 3394986 Spring, Lint

Screen Door

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3359452 Nut,3/8 x 16(R.H.)

9 8066086 Drum Hole Plug

10 3390646 Screw, 8−18 x 5/16

11 8318409 Exhaust Duct

(Corrugated)

12 696302 Shield, Exhaust

13 3387230 Screw, 10−16 x 3/4

14 3394984 Door, Lint Screen

15 8318486 Exhaust Pipe

16 3387709 Nut, 3/8−16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 3399509 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 3387749 Heater Element

23 3394985 Outlet Housing Assembly

24 697699 Shield, Heat

25 8528998 Complete Drum Assembly

26 97787 Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 697700 Bracket, Heater

29 3390291 Thermostat

250 F (121C)

30 3388229 Clip, Exhaust

31 3977394 Thermal Cut−Off

(Includes

Illus. 29)

32 487909 Screw, 8−15 x 1/2

33 8066099 Bracket, Heater

37 697772 Wheel, Blower

42 3387137 Thermostat

Internal Bias

44 8530038 Housing, Blower

45 8530036 Lint Duct Assembly

46 3392537 Heater Box

51 3357011 Screw, 10−16 x 1/2

52 697771 Cover, Blower

(Includes Illus. 62)

53 8528122 Baffle, Drum

54 697557 Bulkhead, Front

58 8299979 Grill, Outlet

59 3390719 Thermal Fuse

60 697770 Seal, Cover Plate

62 697769 Seal, Lint Duct

64 3390721 Lint, Screen
