Whirlpool GLE7900XM Bedienungsanleitung

I----’

AUTOMATIC

a DRYER

Electric Model

GLE7900XM

l-93

fave Ovens, Trash Compactors. Room Air Condllloners, Oehumldlfwrs. Automatic Washers. Clothes Oryers. freezers. RefrlgeratOr-Freeze

Parts and features

CYCLE CONTROL KNOB

TEMPERATURE SELECTOR

LINT SCREEN

‘1 DRYER DRUM

‘1 ‘.-

MODEL

AND SERIAL

NUMBER PLATE

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

See your “Dryer

Guide” for informa-

tion on fabrics, dry-

ing special-care

items, drying tips

and other details.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this InformatIon ready

Complete Model Number

1. Complete Model and Serial Numbers

(from’the plate located as shown)

2. Purchase date from sales slip

Complete Serial

Number

Copy this Information in these spaces.

Keep this book, your warranty, sales

slop Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

Service Company and

console

Telephone Number

There IS no warranty registration to return Proof-of-purchase is all

that

required for In-warranty service.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

SELECTING A CYCLE AND

STARTING YOUR DRYER 4

OPERATING INSTRUCTIONS 6

Dryer Cycles and Settings 6

Cool Down Times 6

DRYING TIPS 7

FLUFFAIR 7

TUMBLE PRESS” Setting 7

Mixed Loads 7

Drvina Times 7

Page

LINT SCREEN 8

LINT REMOVAL 8

CARING FOR YOUR DRYER 9

Vacation Care 9

IF YOU NEED SERVICE OR

ASSISTANCE 10

1. Before Calling for

Assistance 10

2. When You Return 10

tothe U.S. 11

3. If You Need Assistance 11

4. If You Need Service I I

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety Information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified Installer.

. is properly maintained.

is installed in an area protected

from the weather.

IS properly Installed and leveled In

a well ventilated room’ on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45 F (7.2 C).

is connected to the right kind of out-

let, electric supply and grounding.’

is properly connected to exhaust

systems.*

9 is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

*See the “Installation Instructions” for

complete information.

SUGGESTED SUGGESTED

TYPEOF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY - Bedspreads.

mattress pods, quilts. _. EX HEAVY

HEAVYWEIGHT FABRICS - Towels. PERM’T

jeans, corduroys, work clothes HEAVY PRESS

MEDIUMWEIGHT COTTONS - HEAVY

Sheefs, pillowcases, cotton HIGH

underwear. diapers MEDIUM

LIGHTWEIGHT COTTONS - Batistes,

organdies, tingerie LIGHT

PERMANENT

PRESS,

SYNTHETICS PERMIT PRESS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes, PERM’T

jackets, raincoats _. _. 40-50 MINS. PRESS

MEDIUMWEIGHT FABRICS - Shirts, play HEAVY

clothessheetsslacks _. 30-40 MINS. HIGH

LIGHTWEIGHT FABRICS - Lingerie,

blouses,dresses 20-30 MINS.

KNITS PERM’T PRESS

HEAVYWEIGHT - Cottons, rayons, PERMIT PRESS

blends, T-shirts, slocks,shirts _. 40-50 MINS. HEAVY HIGH

LIGHTWEIGHT - Synthetics (polyester, KNITS GENTLE1

acrylic, etc.] and blends, lingerie, LOW

blouses, dresses 30-40 MINS.

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels] PERM’T PRESS KNITS GENTLE

. 20-30 MINS.

Gauze, lace, etc. _. 15-20 MINS. LOW

RUBBER, PLASTIC, HEAT-SENSITIVE PERMIT PRESS

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys

20-30

MINS. FLUFF

PLASTIC - Shower curtains, AIR

tablecloths 20-30 MINS.

RUBBER-BACKED RUGS 40-50 MINS.

OLEFIN, POLYPROPYLENE, SHEERNYLON 15-20 MINS.

Dryingthese and other heat-sensitive

materiats can damage them or be a

FIRE HAZARD. 0

Select a

CYCLE Set TEMPERATURE

SELECTOR

Turn the Control Knob either way to

point to the cycle and settrng you

want. See page 6 for tnformatron on

the cycles.

Push the

3. ST.4RT Button

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

The dryer will start tumbling when

you push the START Button

Changing a setting

The setting can be changed at any

trme by turning the Control Knob to a

new setting.

To stop the dryer. open the door (or

turn the Control Knob to OFF).

To restart the dryer. close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use. 5

Operating instructions

Dryer cycles and settings

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetic fabrics

need...a period of heated drying

followed by a 10 minute cool down.

The chart on page 4 suggests time

and temperature settings for different

kinds of loads

The EX HEAVY, HEAVY, MEDIUM and

LIGHT cycles describe the loads

they are designed to dry The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY, MEDIUM and LIGHT

loads.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example.

The HEAVY Cycle is designed to be

longenoughtodryaloadofheavy

fabrics (towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

4- MO!?EIlME LESS TIME I

If the load is not as dry as you want,

set the dial more to the left the next

time you dry that kind of load

If the load is dryerthan you Want.

set the dral more to the right the next

time you dry that kind of load.

Cool down times

In all cycles, the heat shuts off

before the dryer stops tumbling. This

cool down time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

The PERMANENT PRESSCycle has

10 minutes of cool down time at the

end of the cycle.

All other cycles have 5 minutes of

cool down time.

Drying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, pillows and clothing or to

dust drapes.

It can also be used to damp-dry

heat sensitive items...such as plastic

shower curtains, rubber-backed

rugs, plastic tablecloths,foam rubber

pillows, stuffed toys, sneakers, etc.

1. Set the Temperature Selector to

FLUFF AIR

2. Set the Control Knob to the PERMA-

NENT PRESS Cycle and select the

number of minutes you want.

3. Push the START Button.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Temperature Selector to PERM’T

PRESS/HEAVY HIGH.

2. Set Control Knob to TUMBLE PRESS.

3. Push START Button.

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best resultsTUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and reset the control.

Drying times

Drying times will vary depending on:

amount of moisture in the clothes.

type and werght of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

omount of lint in the lint screen.

dryer temperature selection.

See page 6 in your”Dryer Guide”

for more Information. 7

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drytng time and may be a FIRE HAZARD.

Open the lid and pull the lint screen

straight out.

DO NOT run the dryer with

the lint screen loose,

damaged or missing.

Doing so can cause over-

ROLL the lint off the screen

with your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into

place

heating, can damage fabrics and

can be a FIRE HAZARD.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more ofien, depending on

dryer usage.

ELECTRIC DRYERS

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

’ Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

Remove back panel.

2. Avoid damaging wires or ther-

mostats.

3. Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel: reconnect and re-

level dryer

Caring for your dryer

Remove sharp objects from clothing

before drying - pins, buckles, etc.

Close metal zippers.

Wipe off all spills with a damp, soft Sharp or heavy objects should

cloth.Spills allowed to remain may never be put on or in the dryer.

dull or damage the finish. Check pockets for bolts, nuts, etc

Never leave wet or damp laundry in

your dryer.

Non-colorfast items can stain the

drum. Wipe carefully after drying to

make sure there is no dye to be

transferred to items in the next load.

Vacation care

Some pretreatment products can

damage dials, console and finish. Do

not use these products on or near

your dryer.

Disconnect power

supply cord. Clean lint screen.

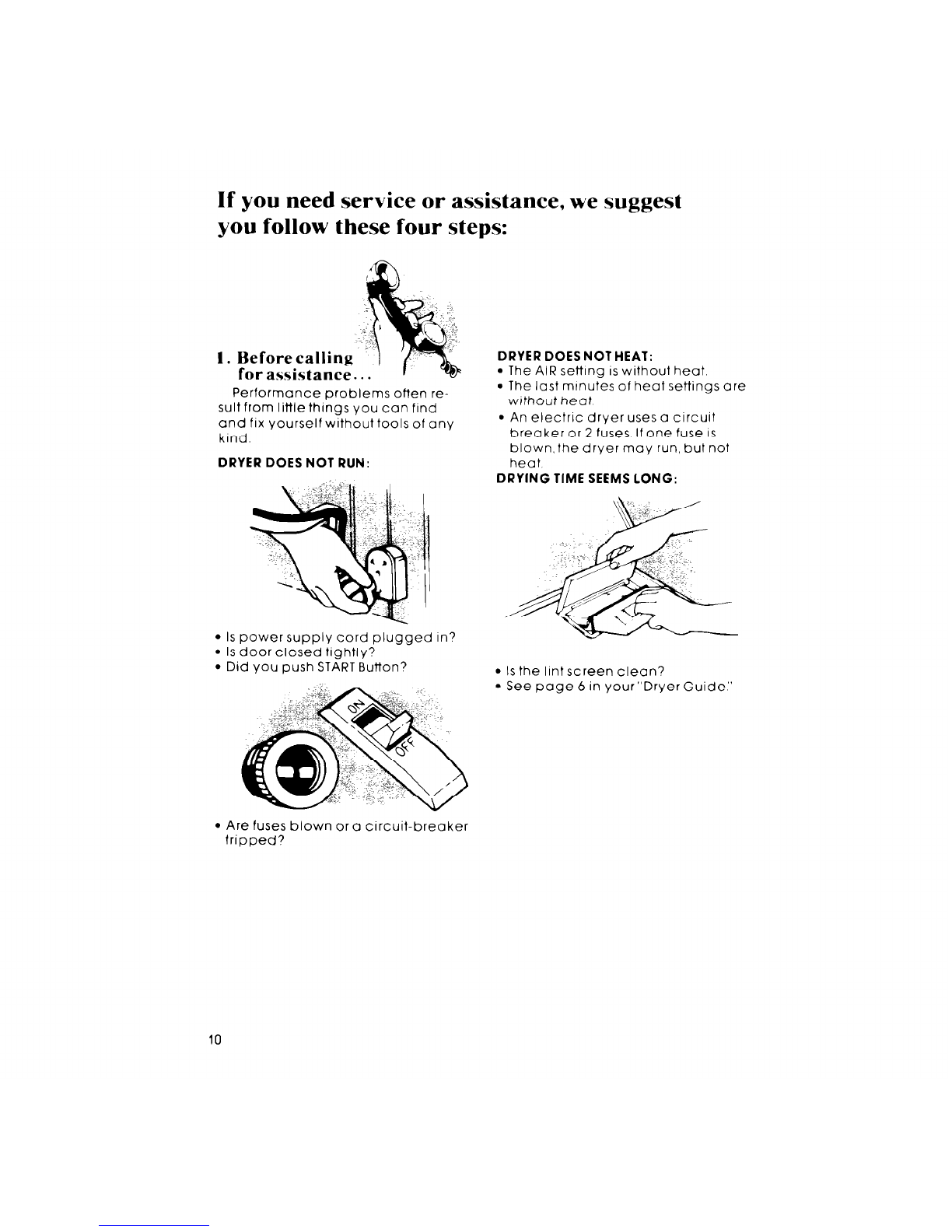

If you need service or assistance, we suggest

you follow these four steps:

1. Before calling

for assistance.. .

Performance problems often re-

sult from little things you can find

and fix yourself without tools of any

krnd.

DRYER DOES NOT RUN:

Is power supply cord plugged In?

Is door closed tightly?

Did you push START Button?

DRYER DOESNOT HEAT:

The AIR settrng ISwithout heat.

The last mrnutes of heat settings are

wrthout heat

9 An electric dryer uses a circuit

breaker or 2 fuses If one fuse is

blown, the dryer may run, but not

heat

DRYING TIME SEEMS LONG:

Is the lint screen clean?

See page 6 in your”Dryer Guide”

Are fuses blown or a circuit-breaker

tripped?

Andere Handbücher für GLE7900XM

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool LG6091XSW0 Bedienungsanleitung

Whirlpool

Whirlpool Top-Load Dryer Bedienungsanleitung

Whirlpool

Whirlpool AWZ-7813 Bedienungsanleitung

Whirlpool

Whirlpool WED9500E SERIES Bedienungsanleitung

Whirlpool

Whirlpool WED4800X Bedienungsanleitung

Whirlpool

Whirlpool LER56000 Bedienungsanleitung

Whirlpool

Whirlpool WED8500DC Bedienungsanleitung

Whirlpool

Whirlpool WGD9500TC - DUET FRONT LOAD STEAM DRYERS Bedienungsanleitung

Whirlpool

Whirlpool LE5650XK Bedienungsanleitung

Whirlpool

Whirlpool WED4910XQ Bedienungsanleitung

Whirlpool

Whirlpool CEM2750TQ - COMMCL E DRYR 3CYC 3TMP WHIRLP Bedienungsanleitung

Whirlpool

Whirlpool WGD5700V - 7.0 Cu Ft Handbuch

Whirlpool

Whirlpool Electric and Gas Dryers Bedienungsanleitung

Whirlpool

Whirlpool WED97HEDW Bedienungsanleitung

Whirlpool

Whirlpool LE5530XK Bedienungsanleitung

Whirlpool

Whirlpool WASHER Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9200S Handbuch

Whirlpool

Whirlpool W10680140D-SP Bedienungsanleitung

Whirlpool

Whirlpool LE6055XS Bedienungsanleitung

Whirlpool

Whirlpool MAYTAG MLG-52 Bedienungsanleitung

Whirlpool

Whirlpool WGD8300S Handbuch

Whirlpool

Whirlpool WED5600VQ Bedienungsanleitung

Whirlpool

Whirlpool LG6091XS Bedienungsanleitung

Whirlpool

Whirlpool LE886UXW Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
