Electric Model

LE6090XS

and

Gas Model

LG609lXS

MIcrowave Ovens, Trash Compactors. Room Air Condbtloners Oehumldllwrs. Automatic Washers. Clothes Dryers. freezers. Refrigerator-f

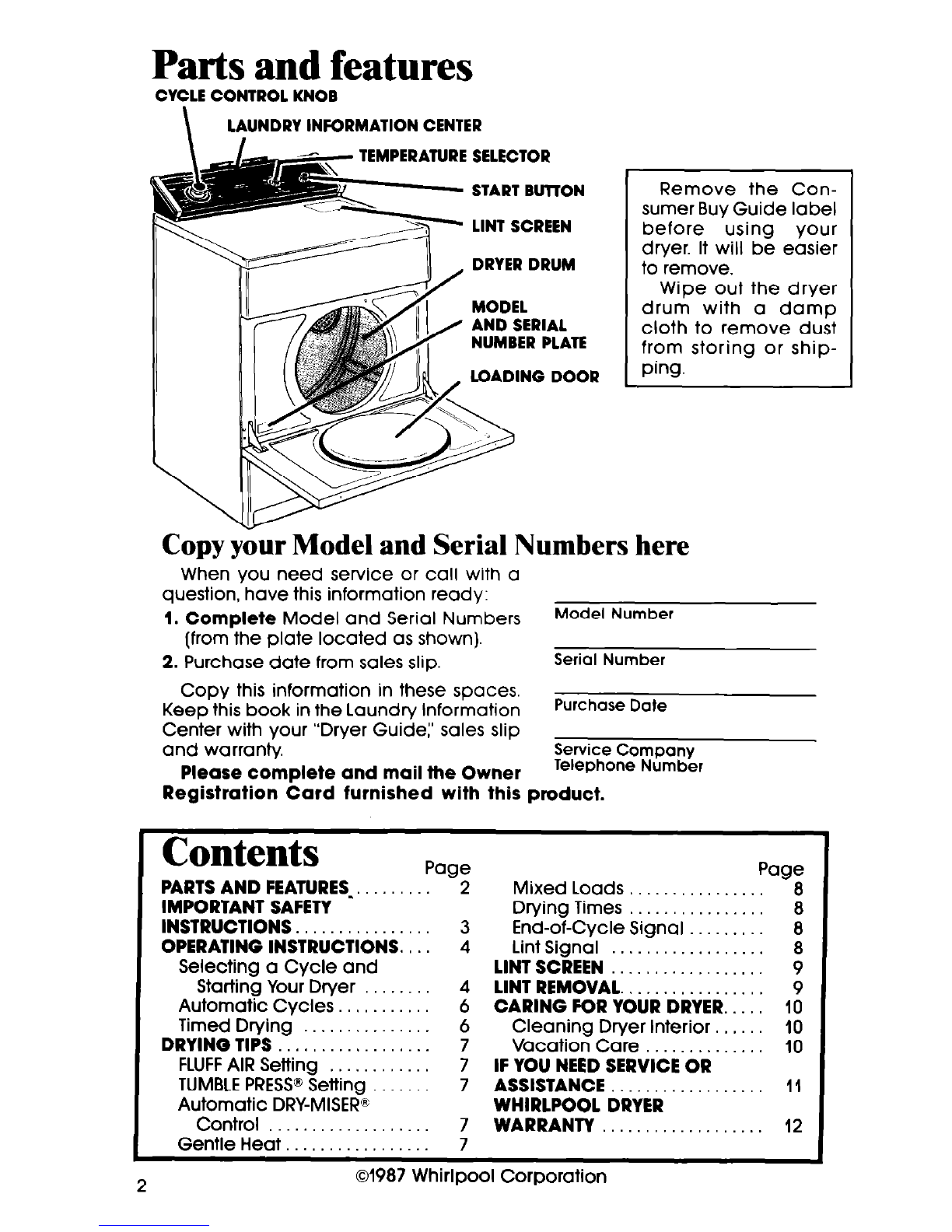

Parts and features

CYCLE CONTROL KNOB

\ LAUNDRY INFORMATION CENTER

TEMPERATURE SELECTOR

START BUHON

LINT SCREEN

DRYER DRUM

AND SERIAL

NUMBER PLATE

LOADING DOOR

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

I. Complete Model and Serial Numbers

Model Number

(from the plate located as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces.

Keep this book in the Laundry Information

Purchase Date

Center with your “Dryer Guide:’ sales slip

and warranty. Service

Company

Please complete and mail the Owner Telephone

Number

Registration Card furnished with this product.

Contents

Page

PARTS AND FEATURES-. 2

IMPORTANT SAFETY

INSTRUCTIONS. . . . . . 3

OPERATING INSTRUCTIONS. 4

Selecting a Cycle and

Starting Your Dryer 4

Automatic Cycles. , 6

Timed Drying . 6

DRYING TIPS . . , 7

FLUFFAIR Setting . . . 7

TUMBLE PRESS@Setting 7

Automatic DRY-MISER@

Control 7

Gentle Heat 7

Mixed Loads

Drying Times .

End-of-Cycle Signal .

LintSignal . . . . . . . . . . . . . . . .

LINT SCREEN . .

LINT REMOVAL. . .

CARING FOR YOUR DRYER.. .

Cleaning Dryer Interior. . .

Vacation Care . . . .

IF YOU NEED SERVICE OR

ASSISTANCE . . . . . . .

WHIRLPOOL DRYER

WARRANTY

Page

. :

. 9

. 10

. 11

. 12

2 01987 Whirlpool Corporation

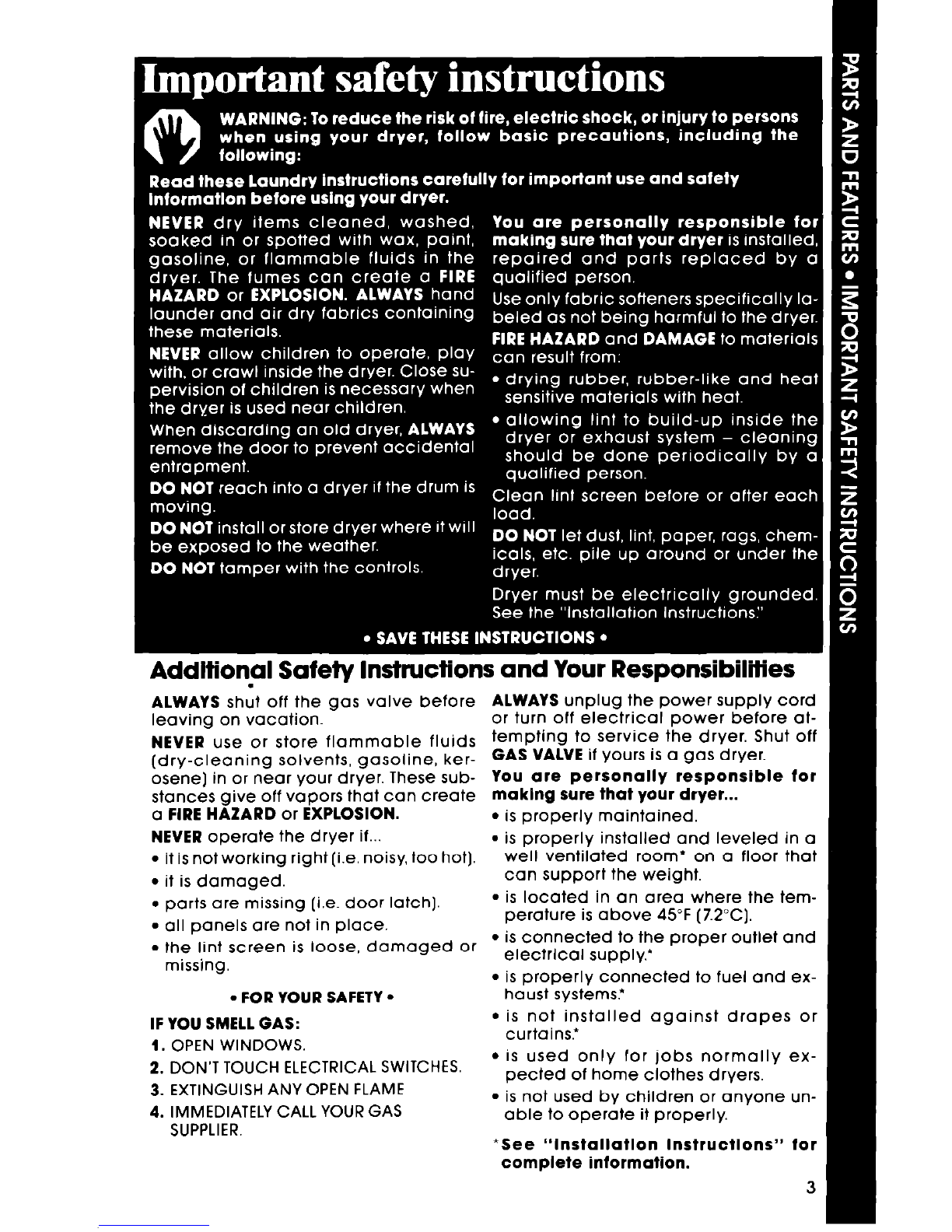

ALWAYS shut off the gas valve before

leaving on vacation.

NEVER use or store flammable fluids

(dry-cleaning solvents, gasoline, ker-

osene] in or near your dryer. These sub-

stances give off vapors that can create

a FIRE HAZARD or EXPLOSION.

NEVER operate the dryer if...

it is not working right [i.e. noisy, too hot).

it is damaged.

parts are missing [i.e. door latch].

all panels are not in place.

the lint screen is loose, damaged or

missing.

FOR YOUR SAFETY

IF YOU SMELL GAS:

1. OPEN WINDOWS.

2. DON’T TOUCH ELECTRICAL SWITCHES,

3. EXTINGUISH ANY OPEN FLAME.

4. IMMEDIATELY CALL YOUR GAS

SUPPLIER.

ALWAYS unplug the power supply cord

or turn off electrical power before at-

tempting to service the dryer. Shut off

GAS VALVE if Yours is a gas dryer.

You are personally responsible tor

maklng sure that your dryer...

is properly maintained.

. is properly installed and leveled in a

well ventilated room* on a floor that

can support the weight.

. is located in an area where the tem-

perature is above 45°F (7.2”C).

is connected to the proper outlet and

electrical supply.’

is properly connected to fuel and ex-

haust systems.’

is not installed against drapes or

curtains.*

is used only for tobs normally ex-

pected of home clothes dryers.

is not used by children or anyone un-

able to operate it properly.

*See “lnstallatlon Instructions” for

complete intormatlon. 3

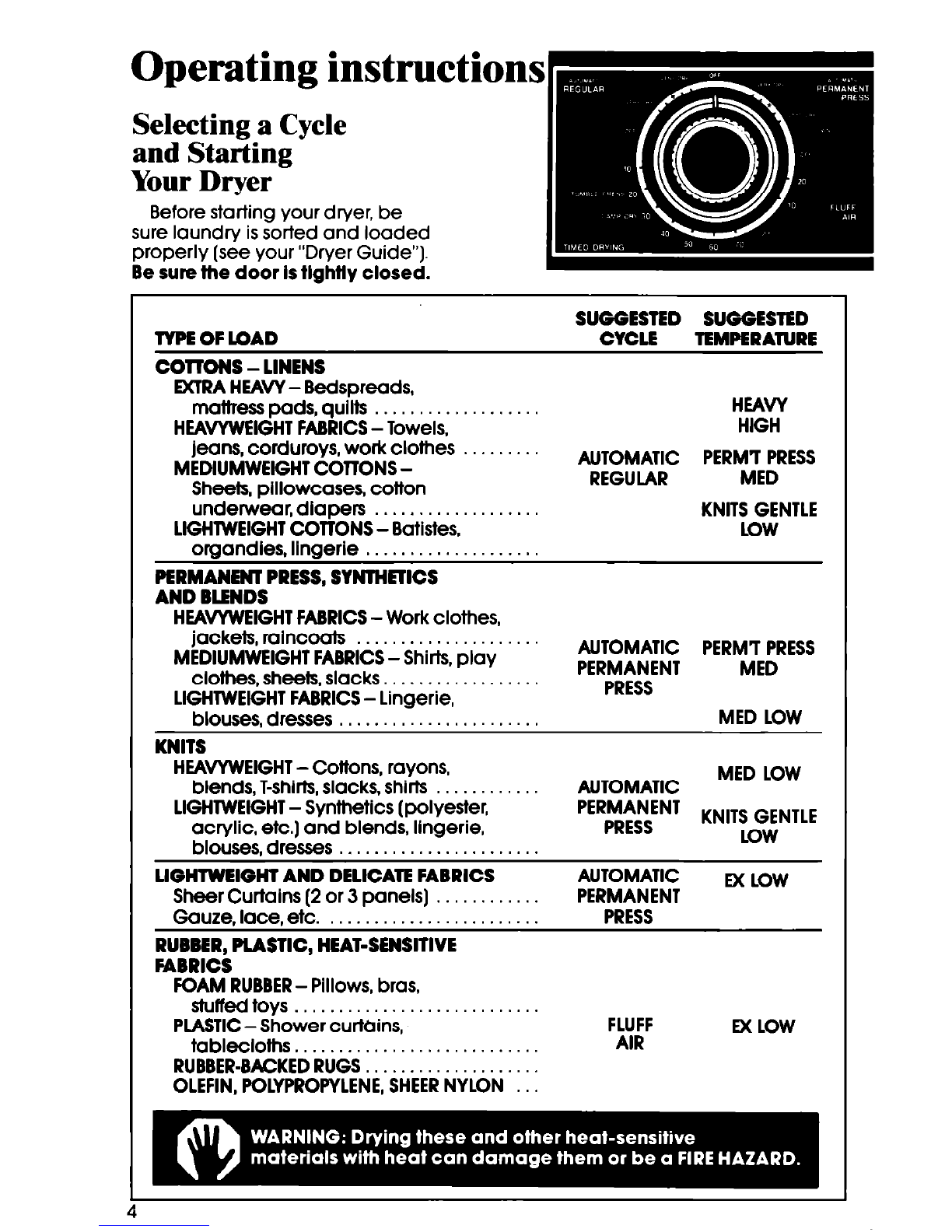

SUGOESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRAHEAVY- Bedspreads,

maltress pads, quilts . . . . . . . . . . . . .

HEAVYWElGHTFABRICS- Towels, HEAW

HIGH

jeans, corduroys, work clothes . . . . . . . . .

MEDlUMWElGHTCOTTONS-

Sheets, pillowcases, cotton AUTOMATIC PERM7 PRESS

REGULAR MED

underwear,diapers . . . . . . . . .

LlGHTWElGHTCOTTONS- Batistes,

organdies, lingerie . . . . . . . . . . . . . . . . .

PERMANENT PRESS, SYNYHEllCS

AND BLENDS

KNITSGENTLE

LOW

HEAVYWElGHTFABRICS- Work clothes,

jackets, mincoats . . . . . . . . . . . . . . . . . .

MEDIUMWEIGHTFABRICS- Shirts, play

clothes, sheets, slacks. . . . . . . . . . . . . . . . .

LiGHTWElGHTFABRICS- lingerie,

blouses, dresses . . . . . . . . . . . . . . .

AUTOMATIC PERM’TPRESS

PERMANENT MED

PRESS MED LOW

KNITS

HEAIWEIGHT - Cottons, rayons,

blends, T-shirts,slacks. shirts . . . . .

LiGHTWElGHT- Synthetics (polyester,

acrylic, etc.] and blends, itngerie,

blouses. dresses .. . . . . . . . . . . . . . . . . .

AUTOMATIC MED LOW

PER;;t;NT KNITSGENTLE

LOW

LIHTWEIOHT AND DELICATE FABRICS

AUTOMATIC

Sheer Curtains (2 or 3 panels) . . . . . . . . . . . . PERMANENT

Gauze, lace, etc. . . . . . . . . . . . . . . . . . . . . . PRESS

Ex LOW

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

stuffed toys . . . . . . . . . . . . . . . . .

PLASTIC- Shower curtains,

tablecloths . . . . . . . . . . . . . . . . . .

RUBBER-BACKEDRUGS. . . . . . . . . . .

OLEFIN,POLYPROPYLENE,SHEERNYLON

. . FLUFF Ex LOW

. AIR

. Select a CYCLE

Set

TEMPERATURE SELECTOR

Iurn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

. Push the START Button

The dryer will start tumbling when you

push the STARTButton.

if the STARTButton is pushed when the

Cycle Control Knob is pointing to an

OFF area, the End-of-Cycle Signal will

sound. Dryer will not start.

The Temperature Selector can be set

on any desired temperature or any-

where between 2 temperatures.

To stop and restart

the drver

To stop the dryer, open the door (or

turn the Control Knob to OFF).

To restarl the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to an OFF area when the dryer is not

In use. If the dryer is stopped before the cycle is finished, turn the Cycle

Control Knob to an OFF area. 5

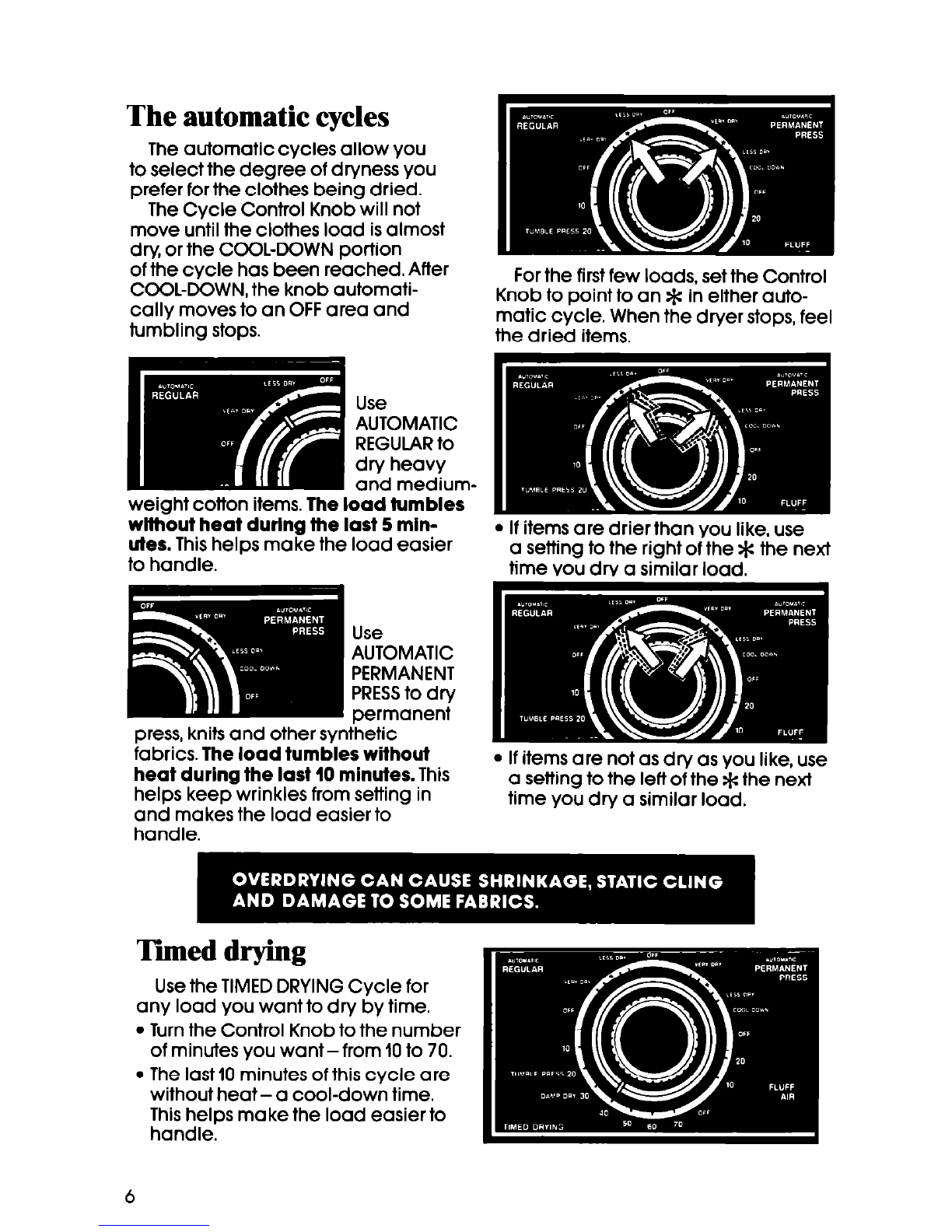

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Cycle Control Knob will not

move until the clothes load is almost

dry, or the CCCL-DOWN portion

of the cycle has been reached. After

CCCL-DOWN, the knob automati-

cally moves to an OFF area and

tumbling stops.

For the first few loads, set the Control

Knob to point to an * in either auto-

matic cycle. When the dryer stops, feel

the dried items.

wlthout heat durlng the last 5 mln-

utes. This helps make the load easier

if items are drier than you like, use

to handle. a setting to the right of the * the next

time YOU drv a similar load.

Use

AUTOMATIC

PERMANENT

PRESSto dry

permanent

thetic

fabrics. The load tumbles without

heat durlng the last 10 minutes. This

helps keep wrinkles from setting in

and makes the load easier to

handle.

if items are not as dry as you like, use

a setting to the left of the * the next

time you dry a similar load.

Timed drying

Use the TIMED DRYING Cycle for

any load you want to dry by time.

Turn the Control Knob to the number

of minutes you want-from 10to 70.

The last 10 minutes of this cycle are

without heat - a cool-down time.

This helps make the load easier to

handle.

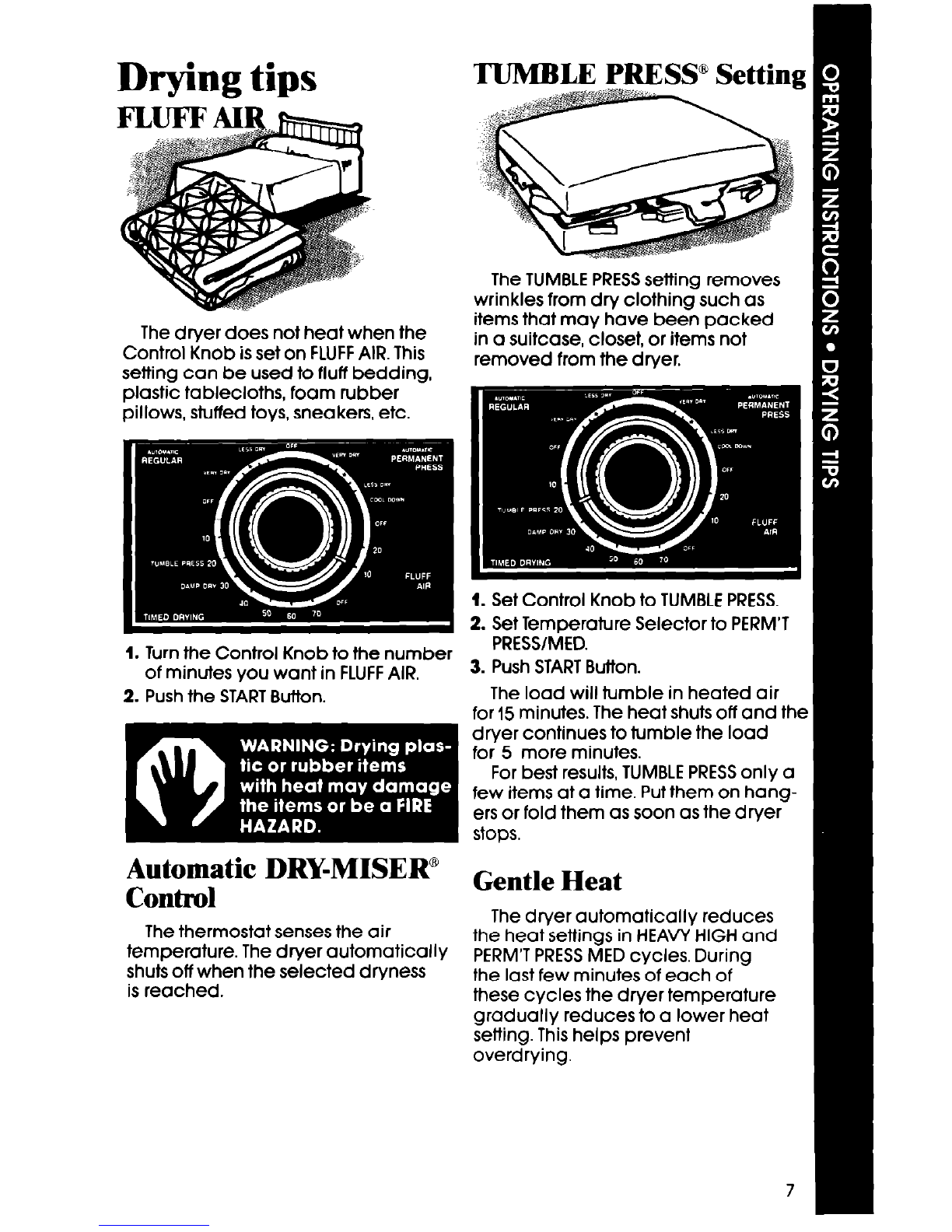

Drying tips

The dryer does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

Automatic DRY-MISER”

Control

The thermostat senses the air

temperature. The dryer automatically

shuts off when the selected dryness

is reached.

TUMBLE PRESS” Setting

,..,w.

)

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERMIT

PRESQMED.

3. Push STARTButton.

The load will tumble in heated air

for 15 minutes. The heat shuts off and the

dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLE PRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops.

Gentle Heat

The dryer automatically reduces

the heat settings in HEAVY HIGH and

PERM’T PRESSMED cycles. During

the last few minutes of each of

these cycles the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent

overdrying.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove dry

items and reset the control.

To reduce wrinkling, take the load

from dryer as soon as tumbling stops.

This is important for permanent press,

knits and synthetic fabrics.

End-of-cycle signal

Drying times

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of load.

room temperature around the dryer.

temperature of the wash rinse water.

amount of lint in the lint screen.

dryer temperature selection.

See your “Dryer Guide” for more

information.

The dryer sounds a signal to let you know when

the cycle is finished. The signal cannot be turned

off and is not adjustable.

The signal is helpful when you are drying per-

manent press, synthetics and other items that

should be taken out as soon as the dryer stops.

Lint signal

Clean lint screen before each load. if you

neglect to clean your lint screen, the signal will

sound. The (whistle tone) signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint screen as

shown on page 9.

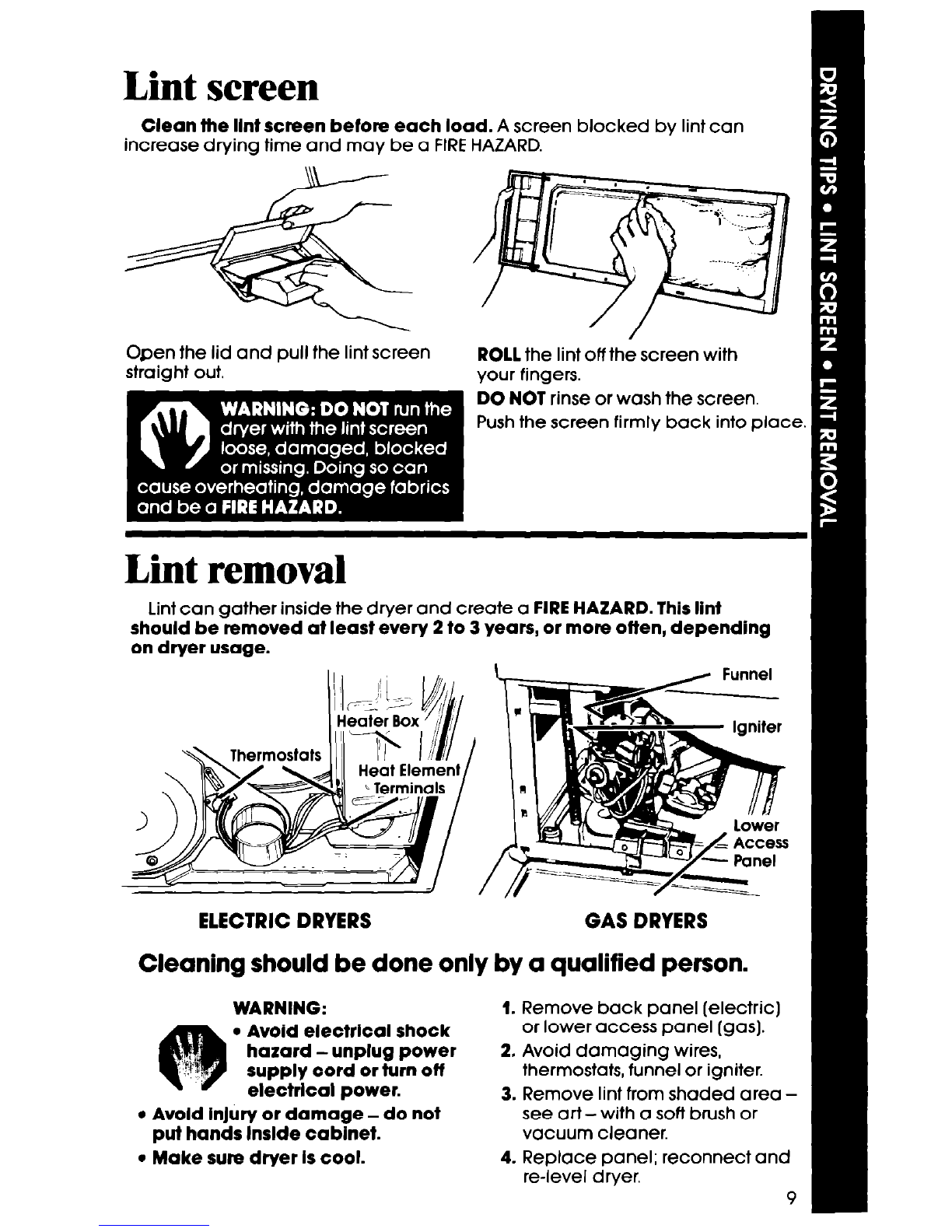

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE

!HAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back info place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more often, dependlng

on dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrlcal power.

Avold Injury or damage - do not

put hands lnslde cabinet.

Make sure dryer Is cool.

1. Remove back panel (electric)

or lower access panel (gas].

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer. 9

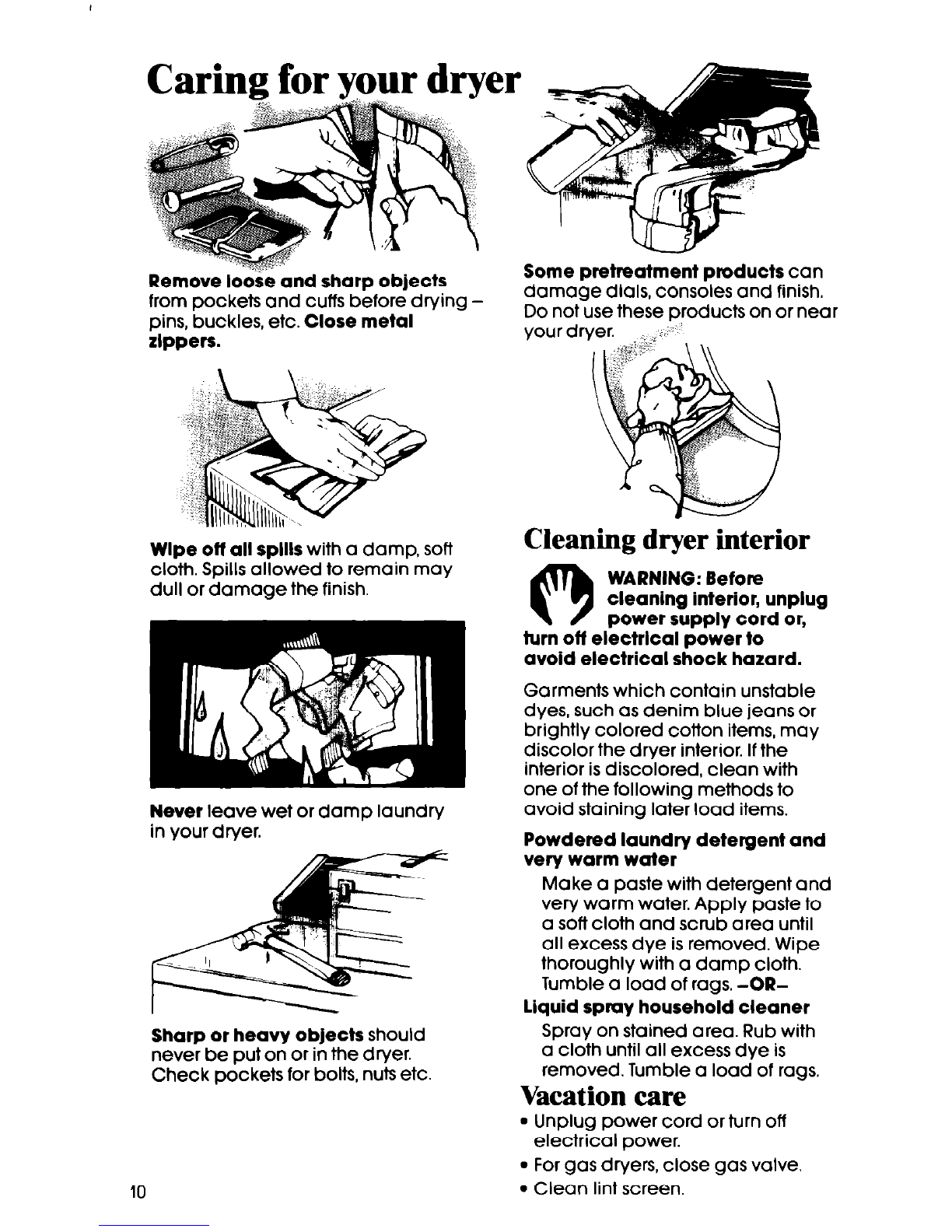

Remove loore and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Wlpe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc.

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

yourdryer. -:--’

Cleaning dryer interior

WARNING: Before

cleaning interior, unplug

power supply cord or,

turn off electrlcal power to

avoid electrical shock hazard.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. If the

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

. Unplug power cord or turn off

electrical power.

For gas dryers, close gas valve.

Clean lint screen.

Andere Handbücher für LE6090XS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool Duet Steam WED94HEX Bedienungsanleitung

Whirlpool

Whirlpool W10177459A Bedienungsanleitung

Whirlpool

Whirlpool duet 8578185 Bedienungsanleitung

Whirlpool

Whirlpool 29 IN. (73.7 CM) ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool LE6400XK Bedienungsanleitung

Whirlpool

Whirlpool WGD9500TC1 Bedienungsanleitung

Whirlpool

Whirlpool WED4890X Stücklistenhandbuch

Whirlpool

Whirlpool Cabrio,- WED5500X Gebrauchsanweisung

Whirlpool

Whirlpool LDR3822 Bedienungsanleitung

Whirlpool

Whirlpool W10858726A Bedienungsanleitung

Whirlpool

Whirlpool LE5750XK Bedienungsanleitung

Whirlpool

Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE Bedienungsanleitung

Whirlpool

Whirlpool CEM2750TQ2 Bedienungsanleitung

Whirlpool

Whirlpool GCEM2990TQ Bedienungsanleitung

Whirlpool

Whirlpool YWED9500TU0 Bedienungsanleitung

Whirlpool

Whirlpool LI._7681XM Bedienungsanleitung

Whirlpool

Whirlpool 7MWGD1750EQ Bedienungsanleitung

Whirlpool

Whirlpool 3HLER5437JQ0 Bedienungsanleitung

Whirlpool

Whirlpool LER3422AW0 Bedienungsanleitung

Whirlpool

Whirlpool LE4440XW Bedienungsanleitung

Whirlpool

Whirlpool 27' Bedienungsanleitung

Whirlpool

Whirlpool 8527902 Bedienungsanleitung

Whirlpool

Whirlpool FFT M22 8X2BS BE Bedienungsanleitung

Whirlpool

Whirlpool L0412123 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
