Whirlpool LE7010XS Bedienungsanleitung

AUTOMATIC

DRYERS

Electric Model

LE701OXS

and

Gas Model

LG7OllXS

asherr. Clothes Dryers. Freezen. Relriperalor-Freezer. Ice Makers, Oishwarhen. Buill-In Ovens and Surlace Units. Ranpes. Microwave ovens, Tnrh Compacta

Parts and features

CYCLE CONTROL KNOB

DRY INFORMATION CENTER

TEMPERATURE SELECTOR

BUTTON

LINT SCREEN

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

DRYER DRUM

Wipe out the dryer

drum with a damp

cloth to remove dust

NUMBER PLATE

from storing or ship-

ADING DOOR

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

Model Number

(from plate located as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces.

Keep this book in the Laundry Information Purchase bate

Center with your “Dryer Guide” and sales

slip.

Thank you for purchasing a Whirlpool Service C9mp9nY Ph9ne Nurnber

product. Please complete and mail the Owner Registration Card fur-

nished with this product.

Contents

Page

PARTS AND FEATURES 2

IMPORTANT SAFETY

fNSTRUCTlONS 3

OPERATING INSTRUCTIONS. 4

Selecting a Cycle and

Starting Your Dryer 4

Automatic Cycles, 6

Timed Drying 6

DRYING TIPS 7

FLUFFAIR Setting 7

TUMBLE PRESS” Setting 7

Automatic DRY-MISERn

Control 7

Page

Gentle Heat.. 7

Drying Times B

Mixed Loads 8

End-of-Cycle Signal 8

LINT SCREEN 9

LINT REMOVAL. 9

CARING FOR YOUR DRYER.. 10

Cleaning Dryer Interior.. 10

Vacation Care 10

IF YOU NEED SERVICE OR

ASSISTANCE 11

WHIRLPOOL DRYER

WARRANTY 12

01987 Whirlpool Corporation

Additional Safety Instructions and Your Responsibilities

NEVER operate the dryer if... ALWAYS shut off the gas valve before leav-

it is not working right [i,e. noisy, too hot] ing on vacation.

it is damaged. ALWAYS unplug the power supply cord or

parts are missing [i.e. door latch). turn off electrical power before attempting

. all panels are not in place. to service the dryer. Shut off GAS VALVE if

. the lint screen is loose, damaged or yours is a gas dryer.

missing.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. FMfieguish any open

4. Immediately call your

gas supplier.

K)R YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

You are personally responsible for making

sure that your dryer...

is properly maintained

is properly installed and leveled in a well

ventilated room* on a floor that can sup-

port the weight.

is located in an area where the tempera-

ture is above 45 F (7.2 C].

is connected to the proper outlet and

electrical supply.’

is properly connected to fuel and ex-

haust systems.’

is not installed against drapes or

curtains.’

is used only for jobs normally expected

of home clothes dryers.

is not used by children or anyone unable

to operate it properly

*See “Installation Instructions” for com-

plete information.

I I

Operating instructions

Selecting a Cycle

and Starting

Your Dryer

Before starting your dryer, be

sure laundry is sorted and loaded

properly (see your “Dryer Guide”).

Be sure the door is tightly closed.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COTTONS - LINENS HEAVY

EXTRA HEAW - Bedspreads, HIGH

mattress pads, quilts

HEAVYWEIGHT FABRICS - Towels,

jeans, corduroys, work clothes

MEDIUMWEIGHT COTTONS -

Sheets, pillowcases, cotton

underwear, diapers

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie

AUTOMATIC PERM’I PRESS

REGULAR MED

KNITS GENTLE

LOW

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS - Work clothes,

jackets, raincoats ._............., .

MEDIUMWEIGHT FABRICS - Shirts, play

clothes,sheets,slacks.

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses .

PERMIT PRESS

AUTOMATIC MED

PERMANENT

PRESS MED LOW

KNITS

HEAVYWEIGHT - Cottons, rayons,

blend&T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels]

Gauze, lace, etc.

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

slufted toys

PLASTIC - Shower curtains,

tablecloths............................

RUBBER-BACKED RUGS

MED LOW

AUTOMATIC

PERMANENT

PRESS KNITS GENTLE

LOW

AUTOMATIC

PERMANENT Ex LOW

PRESS

FLUFF Ex LOW

AIR

I’

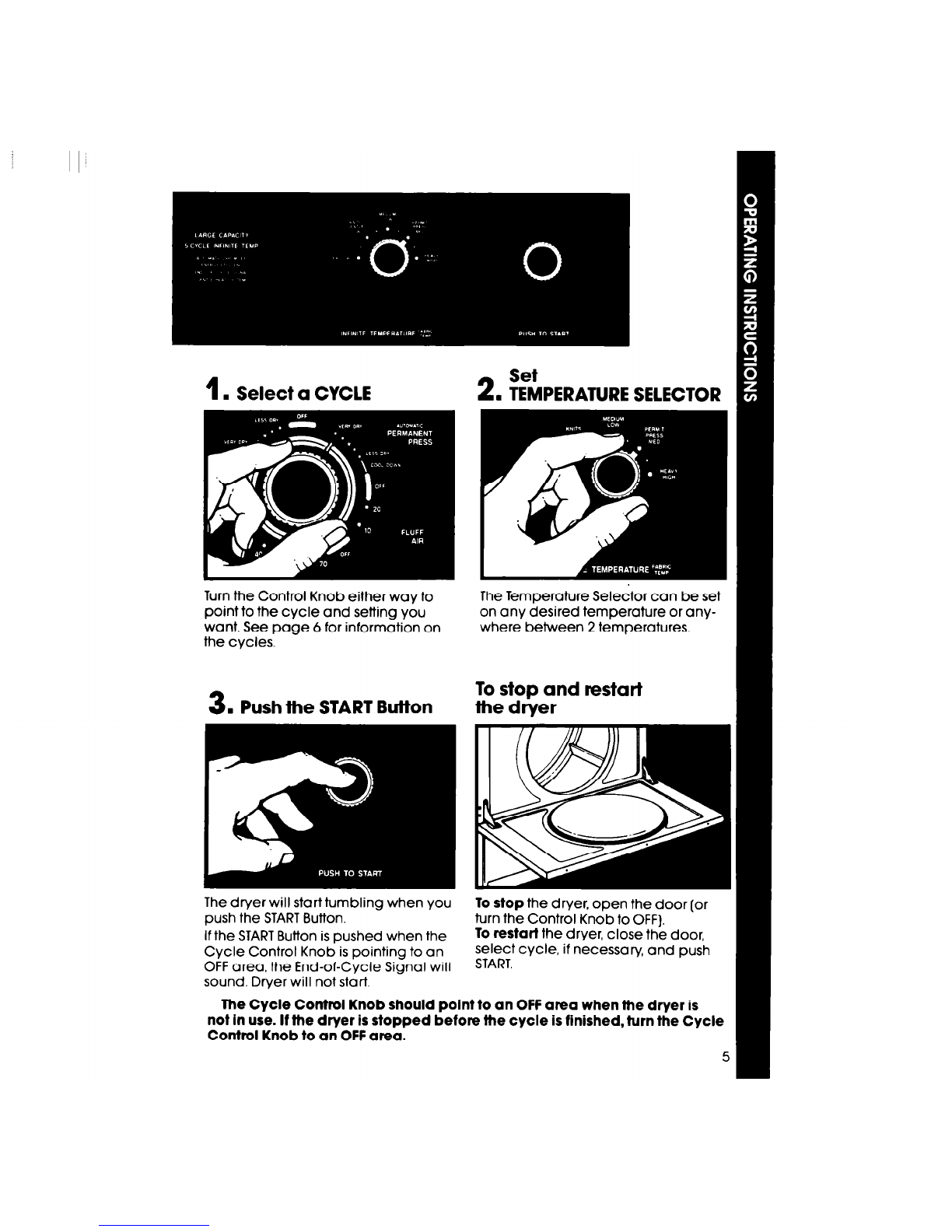

. Select a CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

. Push the STARTButton

The dryer will start tumbling when you

push the STARTButton.

Ifthe STARTButton is pushed when the

Cycle Control Knob is pointing to an

OFF area, the End-of-Cycle Signal will

sound. Dryer will not start

Set

. TEMPERATURESELECTOR

The Temperature Selector can be set

on any desired temperature or any-

where between 2 temperatures.

To stop and restart

the dryer

To stop the dryer, open the door (or

turn the Control Knob to OFF),

To restart the dryer, close the door,

select

CyCle,

if necessary, and push

START.

The Cycle Control Knob should point to an OFF area when the dryer is

not in use. If the dryer is stopped before the cycle is finished, turn the Cycle

Control Knob to an OFF area.

The automatic cycles

The automatic cycles allow you to se-

lect the degree of dryness you prefer

for the clothes being dried.

The Control Knob will not move until

the clothes load is almost dry, or the

COOL-DOWN portion of the cycle has

been reached. After COOL-DOWN, the

knob automatically moves to an OFF

area and tumbling stops.

weight cotton items. The load tumbles

wlthout heat during the last 5 min-

utes. This helps make the load easier

to handle.

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last IO minutes. This helps

keep wrinkles from setting in, and

makes the load easier to handle.

For the first few loads, set the Control

Knob to point to an * in either auto-

matic cycle. When the dryer stops, feel

the dried items.

If items are drier than you like, use

a setting to the right of the * the next

time vou drv a similar load.

If items are not as dry as you like, use

a setting to the lefl of the * the next

time you dry a similar load.

Tiied drying

Use the TIMED DRYING Cycle for

any load you want to dry by time.

Turn the Control Knob to the number

of minutes you want - from 10 to 70.

The last 5 minutes of this cycle are

without heat - a cool-down time.

This helps make the load easier to

handle.

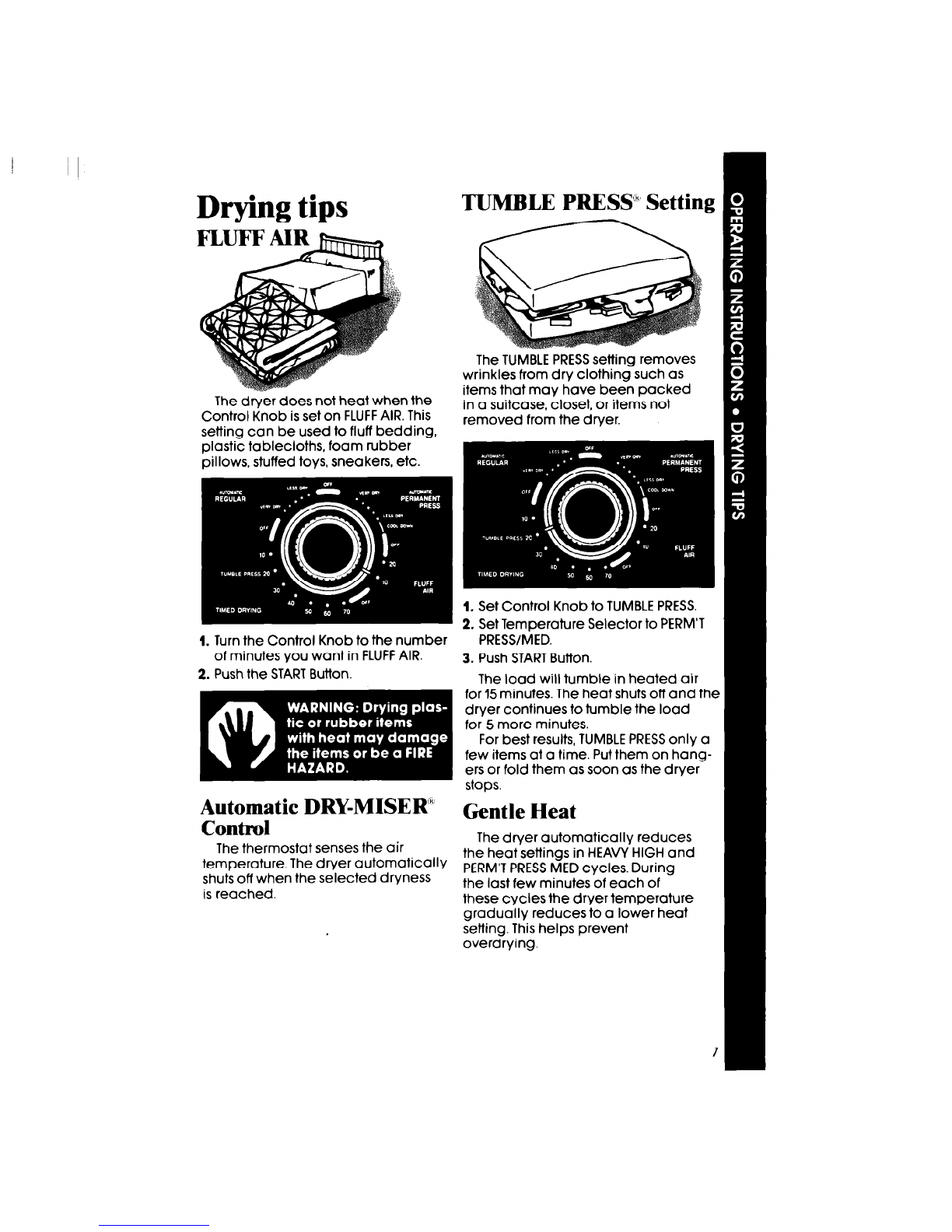

Drying tips

The dryer does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

Automatic DRY-MISER

Control

The thermostat senses the air

temperature. The dryer automatically

shuts off when the selected dryness

is reached.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESS/MED.

3. Push STARTButton.

The load will tumble in heated air

for 15minutes. The heat shuts off and the

dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLE PRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops.

Gentle Heat

The dryer automatically reduces

the heat settings in HEAVY HIGH and

PERM’T PRESSMED cycles. During

the last few minutes of each of

these cycles the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent

overdrying.

Drying times Mixed loads

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the dryer.

temperature of the wash rinse water.

amount of lint in the lint screen.

dryer temperature selection.

See your “Dryer Guide” for

more information.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics When the dryer stops, remove dry

items and reset the control.

End-of-cycle signal

The dryer sounds a signal to let you know when

the cycle is finished. The signal cannot be turned

off and is not adjustable.

The signal is helpful when you are drying per-

manent press, synthetics and other items that

should be taken out as soon as the dryer stops.

II’

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and inay be a FIREHAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more otlen, depending

on dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Cleaning dryer interior

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. If the

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

Unplug power cord or turn off

electrical power.

For gas dryers, close gas valve.

0 Clean lint screen

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool WFC7500VW Bedienungsanleitung

Whirlpool

Whirlpool Duet W10151592A Bedienungsanleitung

Whirlpool

Whirlpool WED9400SB1 Bedienungsanleitung

Whirlpool

Whirlpool LE3005XP Bedienungsanleitung

Whirlpool

Whirlpool Duet WGD9400SB0 Bedienungsanleitung

Whirlpool

Whirlpool Electric and Gas Dryers Bedienungsanleitung

Whirlpool

Whirlpool LE7665XP Bedienungsanleitung

Whirlpool

Whirlpool WGD9500TC1 Bedienungsanleitung

Whirlpool

Whirlpool WED6600VU - 29-in Electric Dryer Bedienungsanleitung

Whirlpool

Whirlpool Exhausting Dryers Bedienungsanleitung

Whirlpool

Whirlpool 3LER5436EQ0 Bedienungsanleitung

Whirlpool

Whirlpool AWZ 865 Bedienungsanleitung

Whirlpool

Whirlpool BYCD3722W0 Bedienungsanleitung

Whirlpool

Whirlpool Maytag W11416805 Bedienungsanleitung

Whirlpool

Whirlpool HybridCare WED9290F Bedienungsanleitung

Whirlpool

Whirlpool Duet WGD9400SB0 Bedienungsanleitung

Whirlpool

Whirlpool WGD4950HW Bedienungsanleitung

Whirlpool

Whirlpool YLEQ5000KQ1 Bedienungsanleitung

Whirlpool

Whirlpool WED4800BQ Bedienungsanleitung

Whirlpool

Whirlpool W10224610A Bedienungsanleitung

Whirlpool

Whirlpool WED97HEXL0 Bedienungsanleitung

Whirlpool

Whirlpool LE5535XP Bedienungsanleitung

Whirlpool

Whirlpool Gold GGQ8811PL2 Bedienungsanleitung

Whirlpool

Whirlpool LE6090XS Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
