Whirlpool LER2614EW1 Bedienungsanleitung

TOP AND CONSOLE PARTS

For Model: LER2614EW1

(White)

6−97 Litho in U.S.A. (djc) Part No. 4377788

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Model: LER2614EW1

(White)

4377788

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

3 3390646 Screw,

8−18 x 5/16

4 3358528 Cap, End (L.H.)

5 353425 Connector

(Door Switch)

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 3358513 Cap, End (R.H.)

9 688805 Clip

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

16 Top

3396022 White

17 3394427 Clip−Harness

18 3395683 Connector

(Motor)

19 3401076 Resistor, Assembly

20 357572 Clip, Grounding

21 3406700 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3406602 Harness, Wiring

39 3395382 Switch,

Push−To−Start

48 3396145 Timer Knob

Assembly

53 3396293 Bracket, Control

54 3399043 Panel, Control

72 690853 Wire, Ground

81 3406135 Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3406071

Guide, Use & Care

LIT3397618

Instructions,

Installation

LIT3405722

Instructions,

Door Reversing

LIT3406688

Label, Wiring

Diagram

LIT3397286

Label, Warning

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

CABINET PARTS

For Model: LER2614EW1

(White)

4377788

CABINET PARTS

For Model: LER2614EW1

(White)

4377788

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

3 3403630 Plug, Strike

Hole

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

7 3396807 Panel, Rear

8 342055 Screw, 8−18 x 1/2

9 238614 Bumper

10 3406104 Door Switch

Assembly

11 697773 Screw,

6−20 x 7/8 (2)

13 3404413 Plug, Hinge

Hole (4)

16 3392100 Foot Dryer

279810 Foot − Optional

(Extended Length

Package of 2)

(Not Included)

18 Cabinet

3399580 White

(Includes Illus.

Nos. 5,7,16,29

41 And 57.)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel Assembly

3403571 White

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 3405514 Hinge and Pin

Assembly (2)

29 3394083 Clip, Front

Panel (2)

33 3403431 Strike, Door

35 3403371 Door, Rear

36 Door Front

3403361 White

37 Handle, Door

3405184 White

38 349464 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 3397659 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3405245 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

88 693995 Screw, Hex Head

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

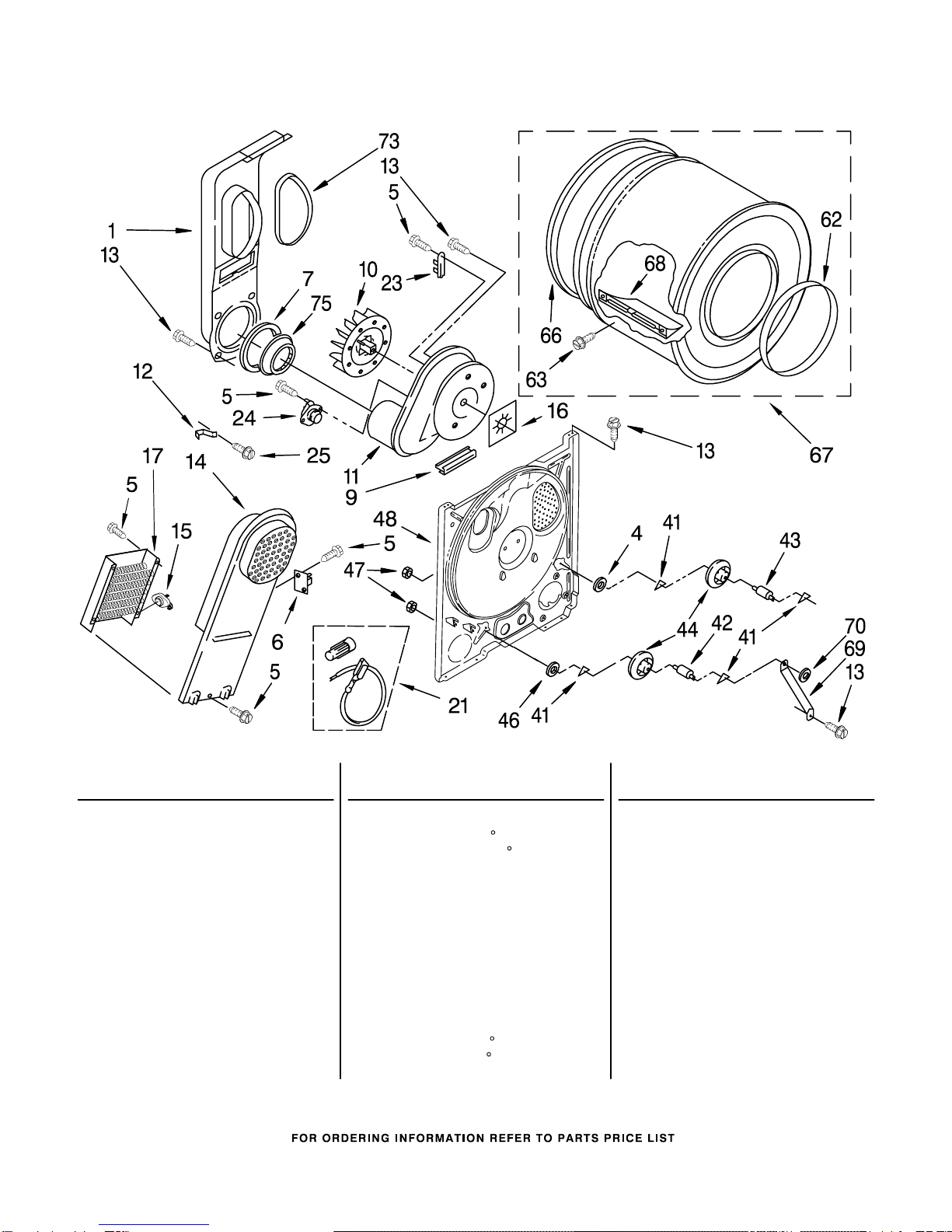

BULKHEAD PARTS

For Model: LER2614EW1

(White)

4377788

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3399848 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3399693 Thermostat,

250 F

(121.1 C) (60 Hz.)

16 3394196 Seal, Blower

Shaft

17 3403585 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 660039 Thermostat,

150 F

(66 C)

25 3400800 Screw, 8−18 x 3/4

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
