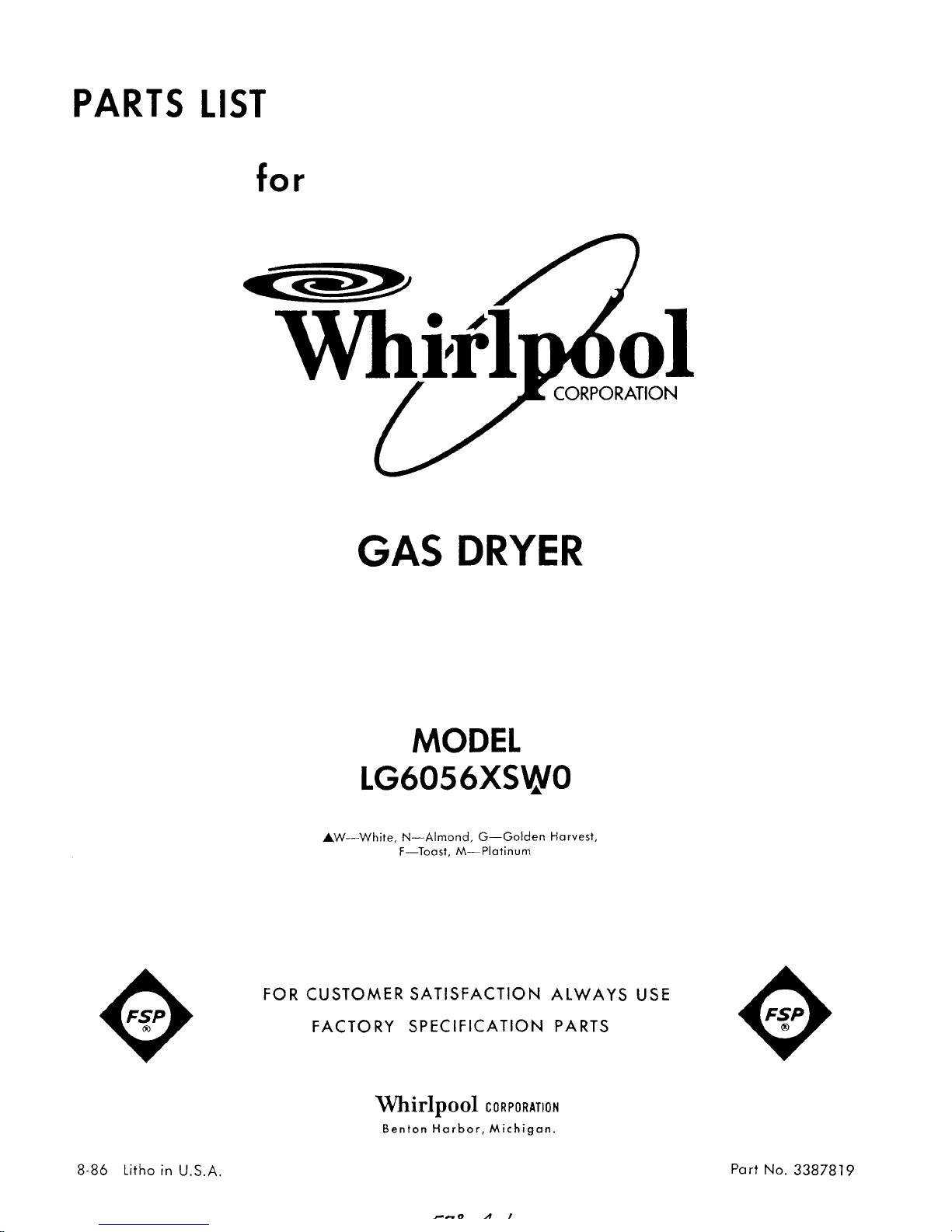

Whirlpool LG6056XSW0 Bedienungsanleitung

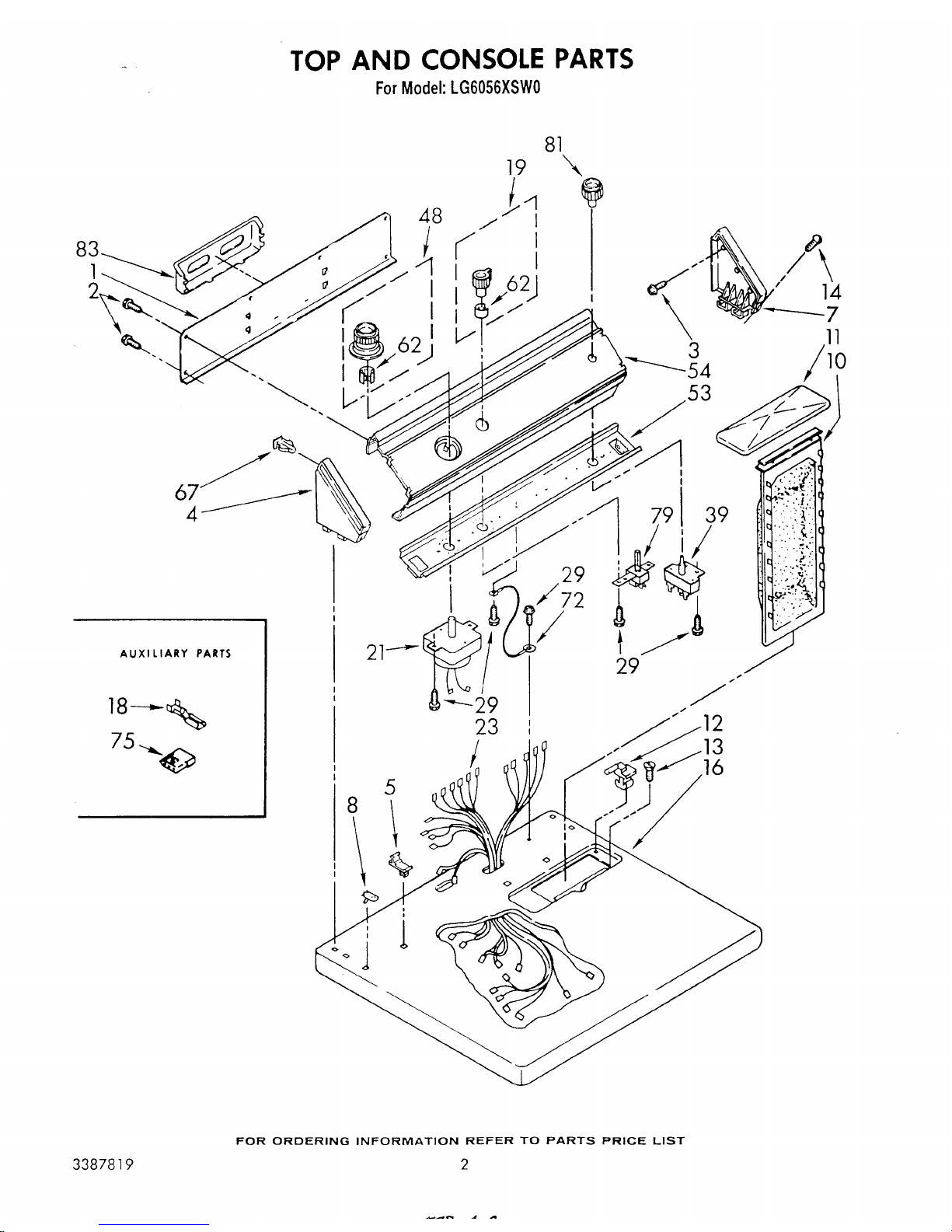

1 386367 Panel, Rear Console

2 693994 Screw, Hex Washer Head

3 355326 Screw, 13/16 x 5/8 (4)

4 63789 Cap, End (L.H.)

5 358472 Stop, Push-In (2)

7 63795 Cap, End (R.H.)

8 358473 Nut, Push-In (2)

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

689313 Golden Harvest

695022 Toast

695023 Platinum

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

14 64211 Screw, End Cap To Top

16 Top

695507 White

695508 Almond

695509 Golden Harvest

695510 Toast

695511 Platinum

18 94614 Terminal, Female

19 386635 Control Knob, Temperature

21 687950 Timer Assembly, 60 Hz.

23 694750 Harness, Wiring

29 339554 Screw

39 660936 Switch, Push-To-Start

346364 (Alt.)

692021 (Alt.)

48 3387902 Timer Knob Assembly

53 386627 Bracket, Control

54 3387991 Panel, Control

62 688805 Clip

67 689559 Clip, Push-On (4)

72 690853 Wire, Ground

75 691707 Receptacle, Latching (3-Way) (Uses Terminal 94614)

79 694720 Switch, Temperature

81 3387894 Knob, Push-To-Start

83 63020 Rack, Literature

LIT693849 Guide, Dryer

LIT3387076 Use & Care Guide

LIT696233 Instructions, Installation

LIT3387819 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

285365 Toast

285366 Platinum

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS

LITERATURE PARTS

LIT677813 Automatic Washer (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

LIT677971 Ice Maker (Ice Maker)

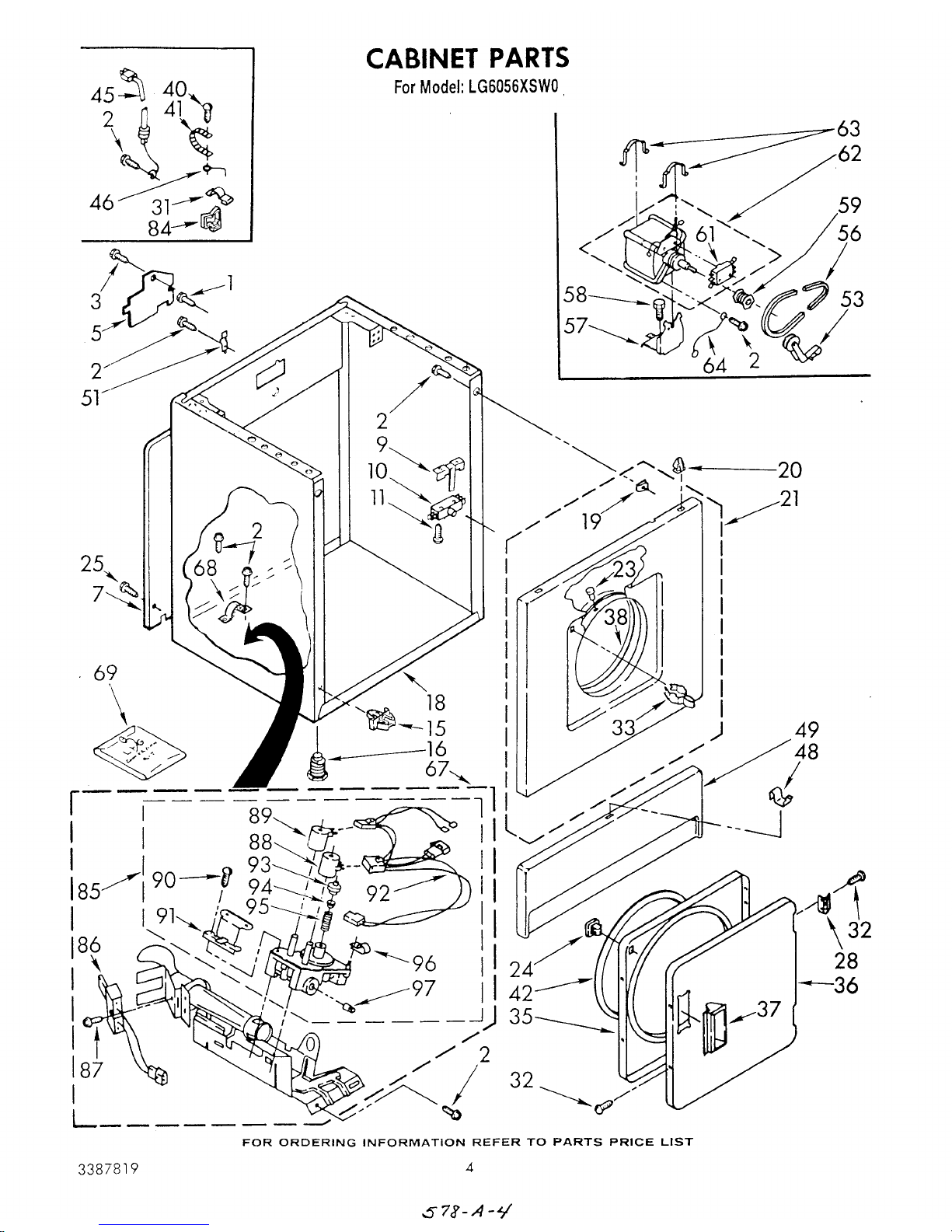

1 690989 Screw, 10-16 x 1/2 (Ground)

2 343641 Screw, 10-16 x 1/2

3 693995 Screw, Hex Washer Head

5 690893 Cover, Block

7 347736 Panel, Rear

9 295998 Clip, Door Switch

10 347207 Switch, Door

11 98129 Screw, 6-20 x 1-3/8 (2)

15 696232 Clip, Toe Panel (2)

16 688222 Foot, Dryer (Plastic) (4)

18 Cabinet

690847 White

690848 Almond

690851 Golden Harvest

694874 Toast

694875 Platinum

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Upper Front Panel

693202 White

693203 Almond

693206 Golden Harvest

695261 Toast

695262 Platinum

23 685203 Clip, Felt Pad

24 690081 Catch, Door Assembly

25 693994 Screw, Hex Washer Head (7)

28 348023 Hinge & Pin Assembly (2)

31 98997 Clip, Harness

32 694091 Screw

33 696144 Strike, Door

35 695656 Door, Rear

36 Door, Front

348205 White

689314 Almond

689319 Golden Harvest

695214 Toast

695215 Platinum

37 Handle, Door

686715 White

689306 Almond

689584 Golden Harvest

695285 Toast

695286 Platinum

38 349462 Seal & Bearing Assembly

40 132848 Screw, 10-24 x 1

41 22965 Strap, Ground

42 685763 Seal, Door

45 344020 Cord, Power

46 364089 Wire, Ground (60 Hz.)

48 297092 Clip, Hinge (2)

49 Panel, Toe

237035 White

689537 Almond

689539 Golden Harvest

694999 Toast

695000 Platinum

51 238088 Hinge, Top

53 691366 Idler Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 694871 Pulley, 60 Hz.

61 337351 Switch (Use W/695075 Motor)

62 695075 Motor Assembly 60 Hz.

63 660658 Clamp, Motor (2)

343481 (Alt.)

685441 (Alt.)

64 690236 Wire, Ground (Motor)

67 694670 Burner Assembly 60 Hz. (Alternate) (Refer To Pages 6 and 7 For

Further Burner Breakdown)

68 341029 Clamp, Pipe

69 694572 Kit, Conversion (Type 1, 2 & 3 To Type 4)

279243 Kit, Conversion (Type 1 To Type 3)

84 688412 Clip, Retainer

85 694054 Valve, Gas 60 Hz. (Complete)

86 660991 Ignitor

686590 (Alt.)

87 686953 Screw & Washer

88 694539 Coil, 60 Hz. (Split) (3 Terminal) (Pilot Position)

89 694540 Coil, 60 Hz. (2 Terminal) (Main)

90 694421 Screw, Bracket Mounting (8-32 X 1/2) 2

91 694538 Bracket, Coil

92 694426 Harness, Wiring (Complete)

93 694424 Leak Limiter

94 694423 Screw, Regulator Adjustment

95 694422 Spring, Regulator

96 694510 Clip, Harness

97 239822 Plug, Pipe

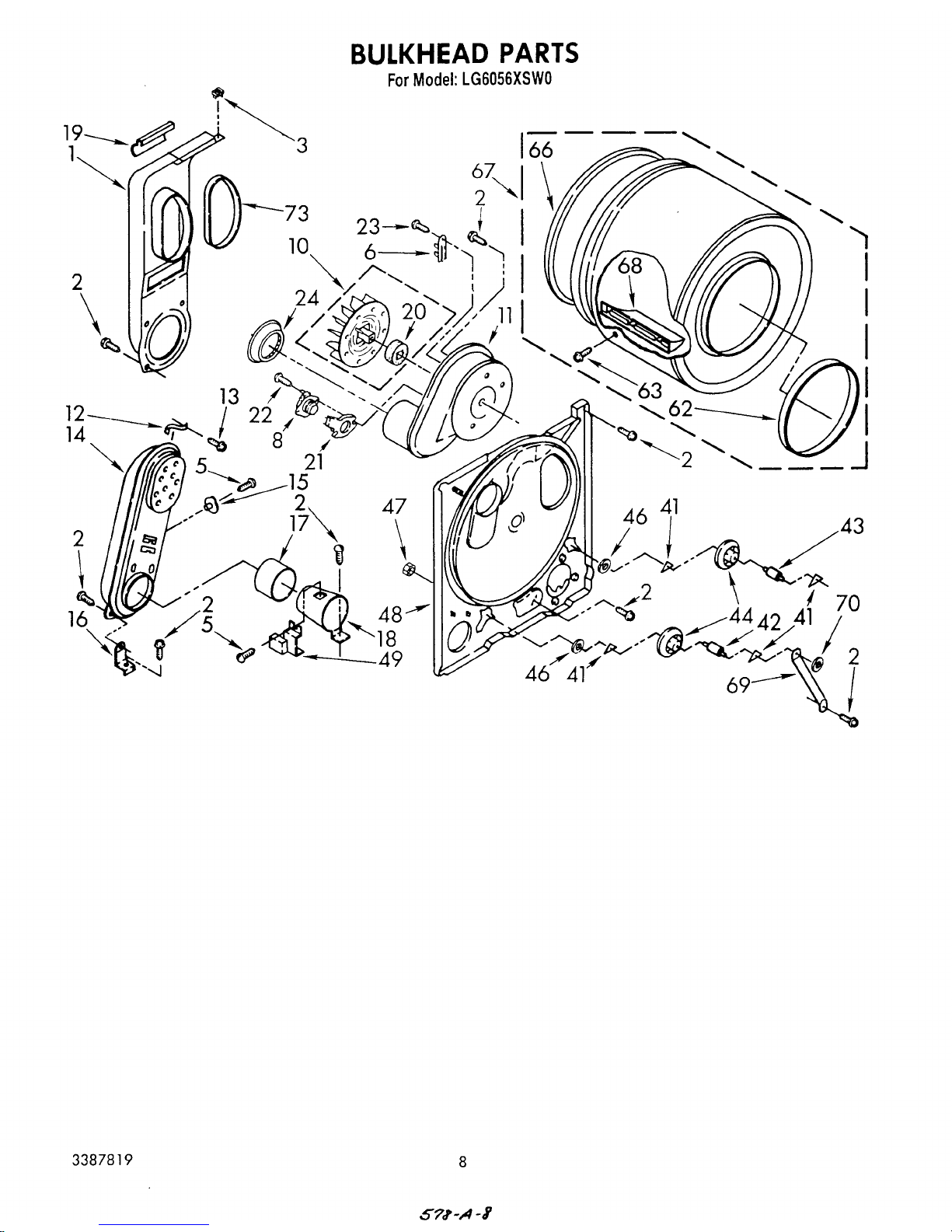

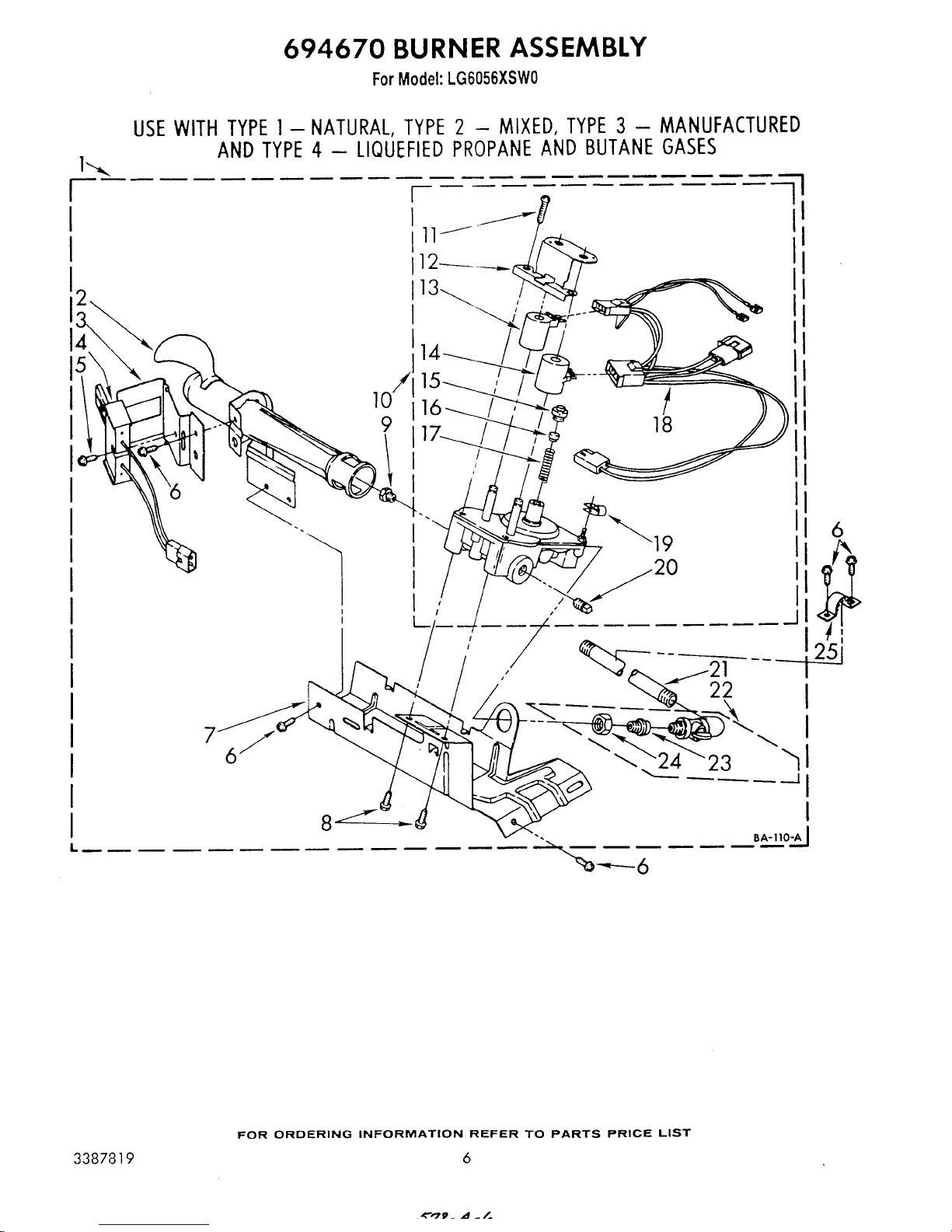

1 694670 Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 660991 Ignitor 686590 (Alt.)

5 686953 Screw & Washer (8-32 x 5/8)

6 343641 Screw, 10-16 x 1/2

7 693986 Base, Burner

8 339527 Screw, 8-32 x 3/8 (2)

9 Orifice, Burner

234826 Type 1

15775 Type 2

15419 Type 3

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 694054 Valve, 60 Hz.

11 694421 Screw, 8-32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz. (2 Terminal) (Main)

14 694539 Coil, 60 Hz. (Split) (3 Terminal) (Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator Adjustment

17 694422 Spring, Regulator

18 694426 Harness, Wiring (Complete)

19 694510 Clip, Harness

20 239822 Plug, Pipe

21 233273 Pipe, Gas Supply

22 345062 Valve & Union, Shut-Off

23 233077 Pipe, Tail

24 233076 Nut, Compression

25 341029 Clamp, Pipe

Following Parts Not Illustrated

279243 Conversion Kit Type (1) Natural to Type (3) Manufactured

694572 Conversion Kit (Type 1, 2 & 3) to Type (4) L.P.G.
