Whirlpool LGC6848AQ2 Bedienungsanleitung

TOP AND CONSOLE PARTS

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

9−94 Litho in U.S.A. (MB) Part No. 4377282

GAS DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 693994 Screw, 10−16 x 1/2

3 694419 Buzzer, Mini

4 Cap, End (L.H.)

3358531 White

3358532 Almond

5 353424 Plug, 3−Way

Terminal

6 688805 Clip

7 Switch,

Clean Touch

3396239 White

3396237 Almond

8 Cap, End (R.H.)

3358516 White

3358517 Almond

9 693995 Screw, Hex

Washer Head

10 349639 Handle & Lint

Screen Assembly

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3397537 Screw, 8−18 x 7/8

15 3395683 Housing, Connector

(Motor)

16 Top

3396022 White

3396023 Almond

20 3353145 Screw, Console

21 3397273 Timer Assembly

(60 Hz.)

29 3390646 Screw, 8−18 x 5/16

30 357213 Nut, Push−In (2)

31 3399674 Harness, Wiring

32 3390537 Control,

Electronic

33 3391885 Connector, Edge

39 3395395 Switch,

Push−To−Start

40 343641 Screw, 10−16 x 1/2

41 3396033 Wire, Jumper

(Signal Bypass)

48 Timer Knob

Assembly

3396146 White

3396149 Almond

49 Button, Push

To Start

3396176 White

3396177 Almond

50 691707 Receptacle,

Terminal

51 94613 Terminal, Male

52 94614 Terminal, Female

53 3396295 Bracket, Control

54 Panel, Control

3398509 White

3398510 Almond

68 Wire, Jumper

3393811 Violet

3393812 Blue

70 689180 Clip, Retainer

72 690853 Wire, Ground

73 3394427 Clip, Harness

74 3397269 Connector, Timer

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3395332 Instructions,

Installation

LIT3396303 Use & Care Guide

LIT3399692 Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818 Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

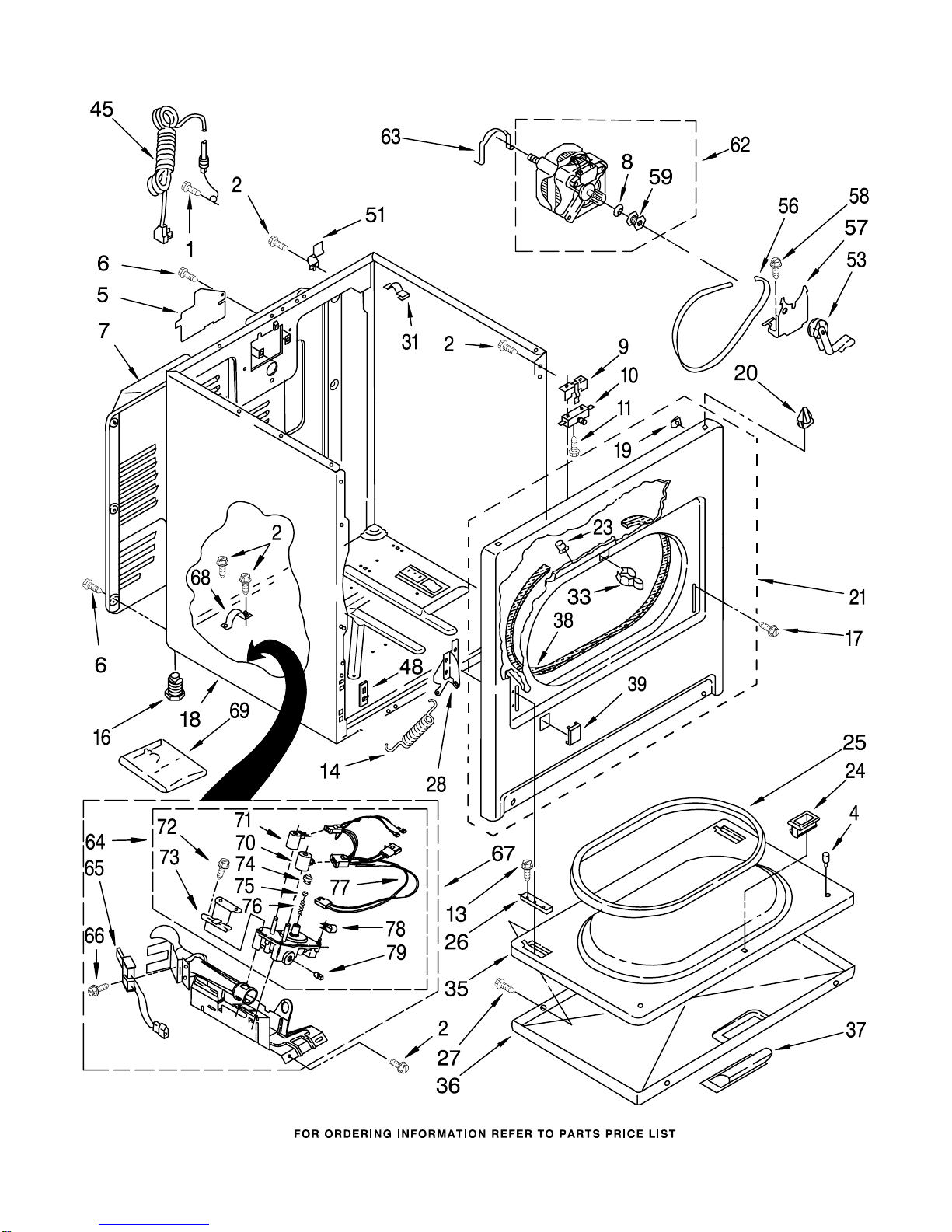

CABINET PARTS

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282

CABINET PARTS

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 1/2

(External Ground)

2 343641 Screw, 10−16 x 1/2

4 238614 Bumper

5 3396795 Cover, Block

6 693994 Screw, Hex

Washer Head

7 3396805 Panel, Rear

8 3393657 Restrainer, Belt

9 691581 Lever, Door Switch

10 347207 Switch, Door

11 98129 Screw, 6−20 x 1−3/8

13 3357011 Screw, 10−16 x 1/2

14 692495 Spring, Door (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package of 2)

(Not Included)

17 342043 Screw

18 Cabinet

(Includes Illus.

Nos. 5,7,16,48,

& 57)

3399585 White

3399586 Almond

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Panel Front

3395197 White

3395198 Almond

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

Assembly

25 3390731 Seal, Door

26 337189 Clip, Hinge (2)

27 694091 Screw

28 692498 Hinge, R.H.

692501 Hinge, L.H.

31 98997 Clip, Harness

33 696144 Strike, Panel

35 695737 Door, Rear

36 Door, Front

3393549 White

3393550 Almond

37 Handle, Door

690270 White

690271 Almond

38 692493 Seal & Bearing

Assembly

39 Plug, Front Panel

3394975 White

3394976 Almond

45 344020 Cord, Power

48 3394083 Clip, Front Panel

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16−18 x 3/4

59 3389627 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor (2)

343481 (Alt.)

685441 (Alt.)

64 694054 Valve, Gas 60 Hz.

(Complete)

65 660991 Ignitor

(686590) (Alt.)

66 3393909 Lock Screw &

Washer

(8−32 x 5/8)

67 694670 Burner Assembly,

60 Hz.

(See Pages 7 &

8 For Further

Burner Breakdown)

68 341029 Clamp, Pipe

69 694572 Kit, Conversion

Type 1, 2 & 3

To Type 4 (LPG)

279243 Kit, Conversion

Type 1 To Type 3

(MFD)

70 694539 Coil, 60 HZ.

Split

(3 Terminal)

(Pilot Position)

71 694540 Coil, 60 HZ.

(2 Terminal)

(Main)

72 694421 Screw, Bracket

Mounting

(8−32 X 1/2) 2

73 694538 Bracket, Coil

74 694424 Leak Limiter

75 694423 Screw, Regulator

Adjustment

76 694422 Spring, Regulator

77 694426 Harness, Wiring

(Complete)

78 694510 Clip, Harness

79 239822 Plug, Pipe

BULKHEAD PARTS

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282

BULKHEAD PARTS

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 3400800 Screw, 8−18 x 3/4

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8 x 3/8

6 686889 Pad, Cabinet

7 3392519 Fuse, Thermal

8 339554 Screw

9 3387134 Thermostat,

Internal−Bias

10 694089 Wheel, Blower

(Includes Illus.

No. 21)

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 685458 Box, Heater

15 660036 Thermostat, 205 F

(96 C)

341196 (Alt.)

16 348484 Support,

Heater Box

17 348516 Collar, Funnel

18 347389 Funnel, Burner

21 3392123 Seal, Blower

22 695239 Screw,

8−18 x 3/8

28 342267 Clip, Sensor

29 298877 Washer, Insulated

30 348861 Pad, Sensor

31 348859 Electrode, Inside

32 348860 Electrode, Outside

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3396793 Bulkhead

49 338906 Sensor, Radiant

62 692526 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 347885 Seal, Rear Drum

67 695587 Drum Assembly

68 692490 Baffle, Drum (2)

69 348944 Bracket, Support

70 90296 Clip

71 692491 Baffle, Drum (1)

73 339956 Seal

74 98460 Nut, Push−In (2)

75 696302 Shield, Exhaust

BA−110−E

694670 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282

Illus. Part

No. No. DESCRIPTION

694670 BURNER ASSEMBLY

1 694670 Burner Assembly

60 Hz.

(Type 1, 2 & 3)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 660991 Ignitor

686590 (Alt.)

5 686953 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 339527 Screw,

8−32 x 3/8 (2)

9 Orifice, Burner

234826 Type 1

15775 Type 2

15419 Type 3

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 694054 Valve, 60 Hz.

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 694426 Harness, Wiring

(Complete)

19 694510 Clip, Harness

20 239822 Plug, Pipe

21 233273 Pipe, Gas Supply

22 345062 Valve & Union,

Shut−Off

23 3393767 Pipe, Tail

24 233076 Nut, Compression

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1, 2 & 3)

to Type (4) L.P.G.

Following Parts Not Illustrated

BA−110−E

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

For Models: LGC6848AQ2, LGC6848AZ2

(Designer White) (Designer Almond)

4377282
