Whirlpool WED5800SG0 Bedienungsanleitung

CABINET PARTS

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

01−07 Litho in U.S.A. (LT) Part No. 8181282

29"ELECTRIC DRYER

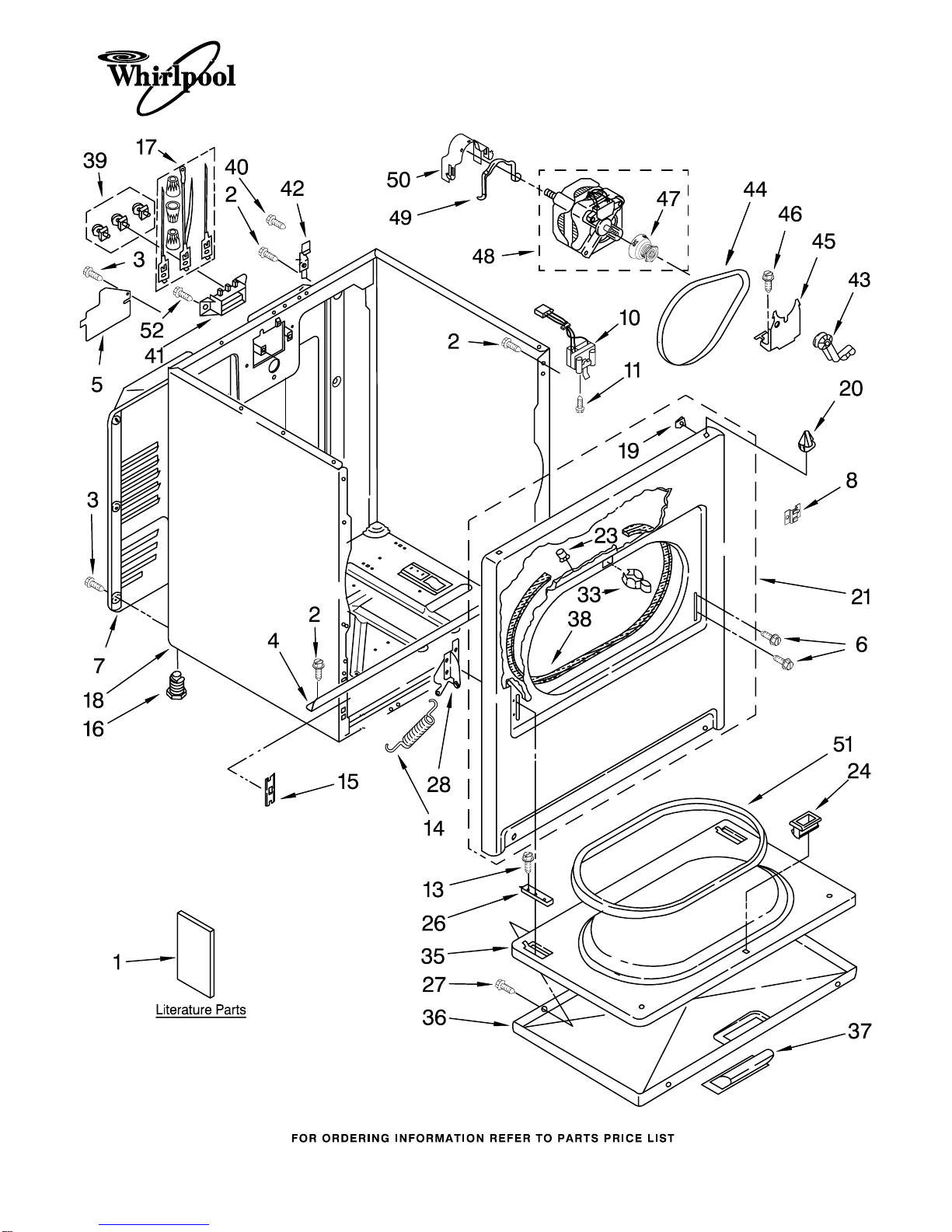

CABINET PARTS

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

8181282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8577188 Instructions,

Installation

W10042950

Sheet,

Cycle Feature

8578183 Use & Care Guide

3406661 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8−18 x 3/8

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 342043 Screw, 10−32 x 3/8

7 3396805 Panel, Rear

8 8546676 Clip,

Door Spring

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 3357011 Screw, 10−16 x 1/2

14 8541401 Spring, Door (2)

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 Cabinet

(Includes

Illus. 4)

8530603 White

8530606 Biscuit

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 Panel, Front

695620 White

3977244 Biscuit

23 685203 Clip, Felt Pad (3)

24 3389441 Catch, Door

Assembly

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

33 696144 Strike, Door

35 695737 Door, Rear

36 Door, Front

3393549 White

3977241 Biscuit

37 Handle, Door

W10095180

White

W10095190

Biscuit

38 3406129 Seal & Bearing

Assembly

39 279393 Terminal Block

Kit (For

Terminal Block)

40 697776 Screw, 10−32 x 5/8

41 3397659 Block, Terminal

42 8066217 Hinge, Top (2)

43 691366 Idler & Pulley

Assembly

44 8066065 Belt, Drive

45 348780 Base, Motor

46 3400500 Bolt,

5/16−18 x 3/4

47 8066184 Pulley, 60 Hz.

48 8066206 Motor Assembly

60 Hz.

49 660658 Clamp, Motor

50 3404162 Clamp, Motor

(W/Shield)

51 3390731 Seal, Door

52 3393008 Screw, 10−16 x 1/2

TOP AND CONSOLE PARTS

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

8181282

TOP AND CONSOLE PARTS

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

8181282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

2 3401695 Wire, Jumper

(Buzzer On/Off)

3 693995 Screw, Hex Head

4 Cap, End (L.H.)

8566035 White

8566036 Biscuit

5 3405154 Switch,

Wrinkle Shield

7 694419 Buzzer, Mini

8 Cap, End (R.H.)

8566032 White

8566033 Biscuit

9 8578352 Switch,

Temperature

10 Screen, Lint

8557857 White

8557858 Biscuit

11 8536939 Clip, Spring

12 8312709 Clip−Console

13 688983 Screw, 8−18 x 5/8

14 8533951 Screw, Grounding

15 3395683 Connector

(Motor)

16 Top

8559800 White

8563660 Biscuit

17 Knob, Control (3)

W10034380

Grey

W10034390

Biscuit

18 3394427 Clip−Harness

20 3401144 Connector,

(PTS Relay)

21 3406725 Timer, 60 Hz.

22 3405152 Switch,

End Of Cycle

23 Knob,

Push−To−Start

W10034770

Grey

W10034780

Biscuit

29 8533971 Screw, Mounting

(8−18 x 5/16)

W10071290

Harness, Wiring

33 3397269 Connector

(Timer)

34 3347243 Connector

6−Circuit

35 94614 Terminal

39 3398094 Switch,

Push−To−Start

40 Timer Knob

Assembly

W10034750

Grey

W10034760

Biscuit

41 3936144 Connector

42 8558178 Control,

Electronic

43 3391885 Connector, Edge

44 8566052 Bracket, Control

45 Panel, Control

(Includes

Illus. 24)

8578860 Grey

8578861 Gold

46 343641 Screw, 10−16 x 1/2

BULKHEAD PARTS

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

8181282

BULKHEAD PARTS

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

8181282

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

8 8318268 Thermostat,

Internal−Bias

9 3977393 Thermal Cut−Off

(Includes

Illus. 15)

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

16 3977373 Bracket, Drum

Light

17 8565582 Element, Heater

18 8066086 Drum Hole

Plug

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

24 3390647 Screw, 8−18 x 1/2

30 3976479 Pad, Sensor

33 3406124 Bulb

34 3402841 Lens, Drum Light

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397590 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3403414 Bulkhead

49 3403634 Socket Assembly

50 692526 Ring, Bearing (2)

51 97787 Screw, 11−16 x 3/4

52 3406130 Seal, Rear Drum

53 695587 Drum Assembly

54 692490 Baffle, Drum (2)

55 3976434 Bracket, Support

56 90296 Clip

57 3403636 Baffle, Drum (1)

58 339956 Seal

OPTIONAL PARTS (NOT INCLUDED)

For Models: WED5800SW0, WED5800SG0

(White/Grey) (Biscuit/Gold)

8181282

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3406839 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)
