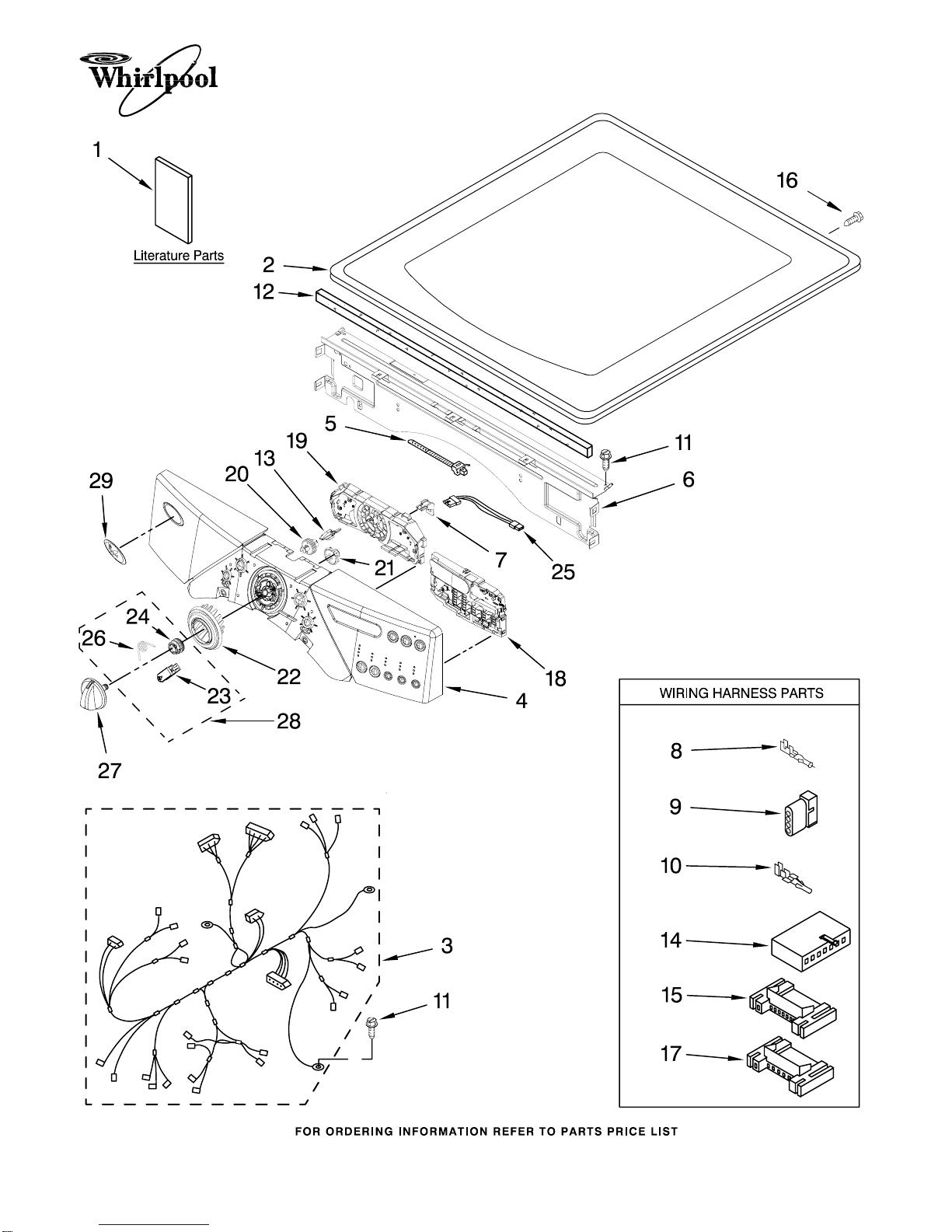

TOP AND CONSOLE PARTS

For Models: WED9500TU0

(Ultimate Silver)

2−08 Litho in U.S.A.(LT) Part No. W10134729 Rev.A.

ELECTRIC DRYER

TOP AND CONSOLE PARTS

(Ultimate Silver)

For Models: WED9500TU0

W10134729

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10122319

Use & Care Guide

W10050531

Tech Sheet

W10122321

Guide,

Quick Start

W10114785

Top

W10110984

Harness, Main

W10133748

Panel, Console

(Includes Items:

20,21,22,27,28

& 29)

5 3391018 Tie, Cable

W10006840

Bracket, Console

(Includes No.12)

W10112268

Clip, Harness (4)

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

W10112267

Foam−Seal

W10030070

Array, Power

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

16 8281225 Screw, 8−18 x 1/2

17 2203186 Connector,

5−Circuit

W10110649

User Interface

(Right)

W10121375

User Interface

(Center)

(Includes:

Illus. 13 )

W10012430

Encoder−Wheel

W10012440

Retainer−Snap

W10012410

Knob, Light Ring

(Includes:

Illus. 21 )

W10012810

Rast, Wheel Holder

(Service Only

With Illus. 28 )

W10012460

Detent Wheel

(Service Only

With Illus. 28 )

W10095960

Harness,

Communication

W10012820

Knob, Spring (2)

(Service Only

With Illus. 28 )

W10116704

Knob, Control

(Includes:

Illus. 21 )

28 280230 Encoder, Wheel

Kit.

(Includes Item:

23, 24, & 26 )

W10117943

Badge

CABINET PARTS

For Models: WED9500TU0

(Ultimate Silver)

W10134729

CABINET PARTS

For Models: WED9500TU0

(Ultimate Silver)

W10134729

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8576583 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 697776 Screw, 10−32 x 5/8

(Ground)

4 3397659 Block, Terminal

5 3394881 Switch, Broken

Belt

6 3357011 Screw, 10−16 x 1/2

W10095440

Panel, Side (L.H.)

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 8579117 Plug, Multivent

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

W10128772

Sound Panel

18 233520 Washer, Thrust

19 8574875 Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

W10118614

Seal,

Door Switch

W10095480

Panel, Side (R.H.)

W10118470

Cover,

Bracket Control

26 343641 Screw, 10−16 x 1/2

27 8538263 Motor, Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

W10116451

Panel, Rear

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

W10116277

Toe, Panel

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

W10110641

Control Board

41 8563727 Bracket, Control

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 8579738 Harness,

Digital Interface

48 90767 Screw, 8−18 x 3/8

49 696144 Strike, Door (2)

50 8519207 Base, Cabinet

51 8578940 Front Panel

52 3407228 Power Cube

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

54 279818 White

279820 Black

279925 Biscuit

280171 Ultimate Silver

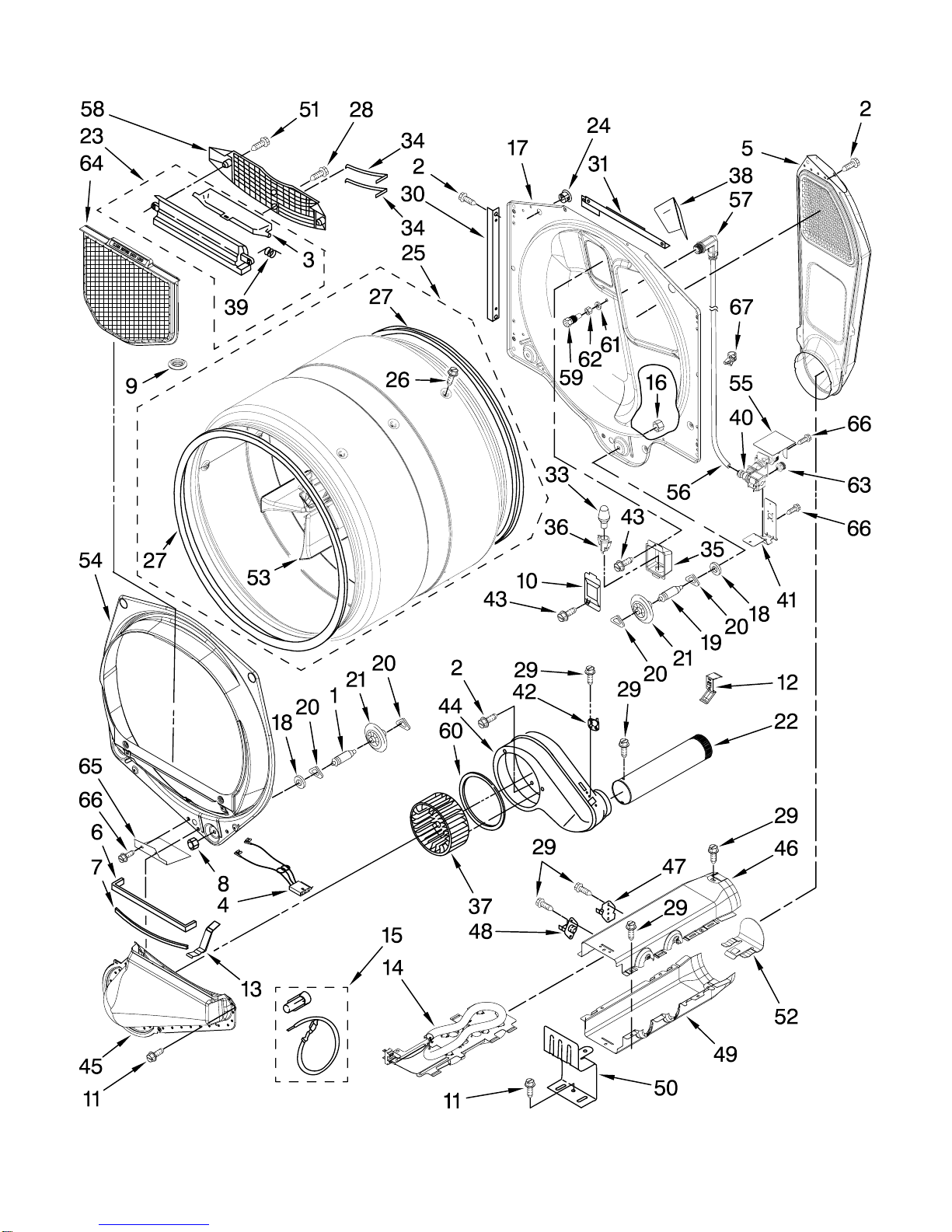

BULKHEAD PARTS

For Models: WED9500TU0

(Ultimate Silver)

W10134729

BULKHEAD PARTS

For Models: WED9500TU0

(Ultimate Silver)

W10134729

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10128544

Cap−Plug

10 3402841 Lens,

Drum Light

11 489463 Screw, 8−18 x 3/8

12 8572105 Clip, Exhaust

Pipe

13 8066208 Clip−Spring

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

W10124071

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563745 Exhaust Pipe

23 3394985 Housing, Outlet

24 8529007 Plug,

Rear Bulkhead

W10113138

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 8533971 Screw, 8−18 x 3/8

30 8519221 Channel Bracket,

Rear Bulkhead (2)

31 8571651 Bracket, Upper

Rear Bulkhead

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 3977373 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

W10044616

Cover, Drum Light

39 3394986 Spring, Lint

Screen Door

W10044596

Valve, Water Inlet

(Includes Illus.

41 & 55 )

W10044597

Bracket−Valve

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544769 Housing−Slot

Heater Box

47 280148 Thermal Cut−Off

(Includes

Illus. 48)

48 8557403 Thermostat 295 F

(146 C) (Hi−Limit)

49 8544770 Housing−Tab

Heater Box

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

52 8544776 Flange−Heater Box

W10113136

Baffle, Drum

54 8519245 Bulkhead, Front

(Includes Illus.

65 & 66 )

W10044617

Cover, Inlet Valve

W10044598

Hose,

(Not Servicable

Included With

Illus. 57 )

W10044606

Nozzle & Hose

Assembly

(Includes Illus.

59,61,62,66 & 67)

58 8299979 Grill, Outlet

W10044578

Nozzle

60 697770 Seal, Cover Plate

W10044579

Washer, Nozzle

W10044580

Nut, Brass

9/16−24 x 1/32

W10044605

Coupling, Hose

W10049370

Lint, Screen

W10128629

Shield,

Blower Housing

(Includes Illus.

2. )

66 90767 Screw, 8−18 x 3/8

67 3391018 Cable−Tie

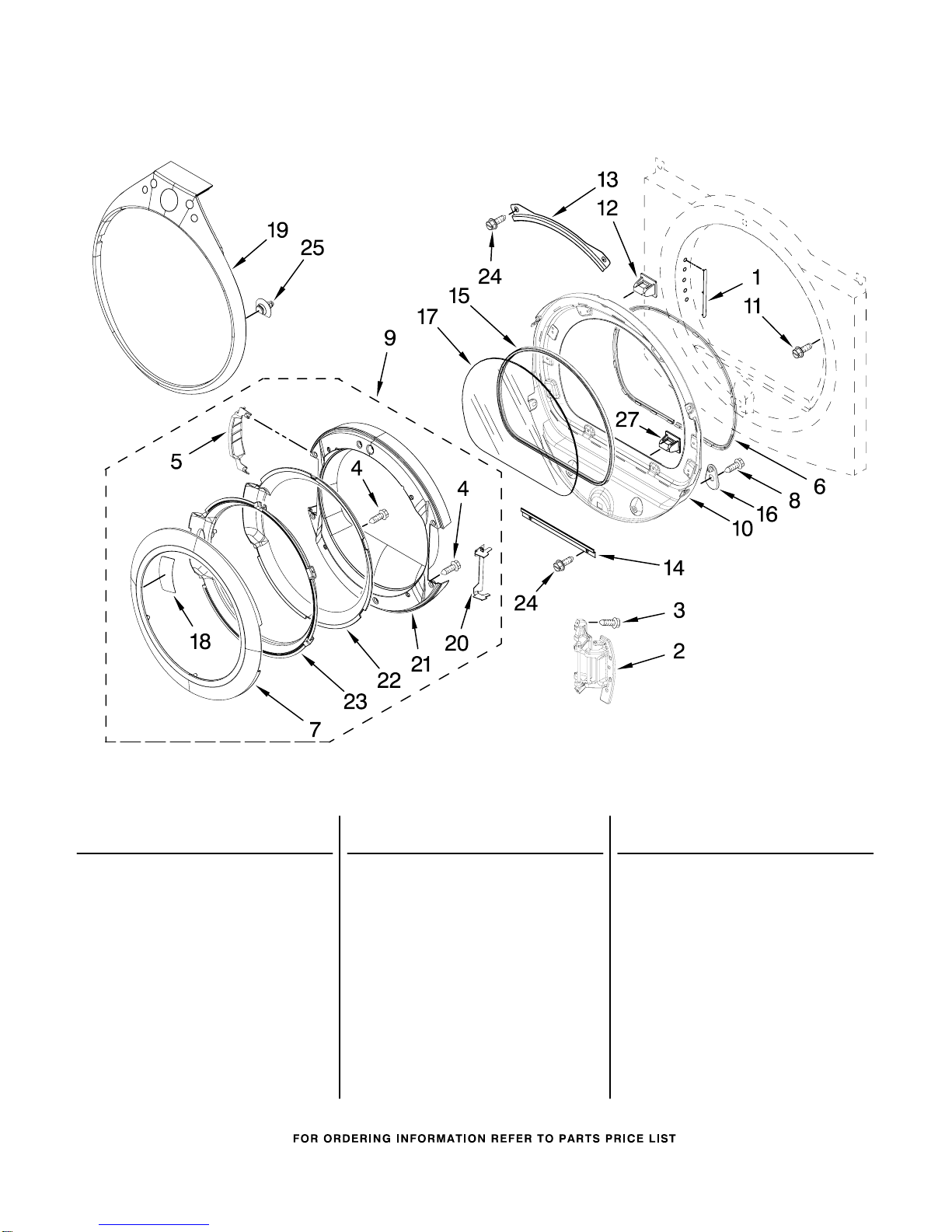

DOOR PARTS

For Models: WED9500TU0

(Ultimate Silver)

W10134729

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10085230

Label−Hinge

Hole Cover

2 8577250 Door Hinge

Assembly

W10017850

Screw,

10−24 x 3/64

4 9742177 Screw, 8−18 x 5/8

5 8578153 Cover−Hinge (L.H.)

(Following Parts

Not Included)

8578152 Cover−Hinge (R.H.)

6 8577821 Seal−Door

W10048070

Handle−Ring

& Pad Assembly

8 3393008 Screw, 10−16 x 1/2

9 8579520 Door Assembly

(Outer)

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 12 & 27)

11 355515 Screw,

8−18 x 11/16

12 3398175 Door Catch

Assembly (Upper)

13 8519356 Retainer−Window

(Upper)

14 8519354 Retainer−Window

(Lower)

15 8579662 Gasket, Window

W10048910

Screw−Plug

17 8566254 Window

18 8580116 Pad−Handle

W10118558

Tear−Drop Trim

& Clip Assembly

W10074630

Door−Shield

21 8578157 Door Intermediate

22 8578156 Door Mask

23 8578155 Door Screen

24 3393258 Screw, 10−16 x 1/2

W10129065

Clip−Trim (8)

27 690081 Door Catch

Assembly (Lower)

OPTIONAL PARTS (NOT INCLUDED)

For Models: WED9500TU0

(Ultimate Silver)

W10134729

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72302 Black

4392899 Biscuit

8212605 Ultimate Silver

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

786302 Black (Uncut)

ACCESSORY PARTS

8529894 Kit, Hold Down

8541503 Kit,

Stack Assembly

8579666A Kit,

Door Reversing

80047 Kit,

Dryer Repair

8521957 Dry Rack

FOLLOWING PARTS

NOT ILLUSTRATED

76314 (Hose Inlet)

6’Hose With Elbow

W10044603

(Hose Inlet)

1’ Hose

3976300 Washer

W10044604

Connector Hose
