Whirlpool WED9600TA0 Bedienungsanleitung

TOP AND CONSOLE PARTS

9−07 Litho in U.S.A.(LT) Part No. W10145263 Rev. A

27" ELECTRIC DRYER

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

TOP AND CONSOLE PARTS

2W10145263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

1 Literature Parts

W10136968

Use & Care Guide

W10143265

Tech Sheet

W10139791

Guide,

Quick Start

W10134980

Installation,

Diagnostic Guide

W10139322

Sheet, Tip

Steam Dry

2 Top

8519251 White

W10114785

Ultimate Silver

W10140290

Aspen

8579997 Black/Chrome

W10110988

Harness, Main

4 Panel, Console

(Includes Items:

20,21,22,27,28

& 29)

W10153650

White

W10153654

Ultimate Silver

W10153655

Aspen

W10153653

White/Blue

W10153652

Black/Chrome

5 3391018 Tie, Cable

W10006840

Bracket, Console

(Includes No.12)

W10112268

Clip, Harness (4)

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

W10112267

Foam−Seal

W10030070

Array, Power

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

16 8281225 Screw, 8−18 x 1/2

17 2203186 Connector,

5−Circuit

W10110659

User Interface

(Right)

W10110658

User Interface

(Center)

(Includes:

Illus. 13 )

W10012430

Encoder−Wheel

W10012440

Retainer−Snap

W10012410

Knob, Light Ring

(Includes:

Illus. 21 )

W10012810

Rast, Wheel Holder

(Service Only

With Illus. 28 )

W10012460

Detent Wheel

(Service Only

With Illus. 28 )

W10095960

Harness,

Communication

W10012820

Knob, Spring (2)

(Service Only

With Illus. 28 )

27 Knob, Control

(Includes:

Illus. 21 )

W10116702

White

W10116704

Ultimate Silver

W10153663

Aspen

W10116706

White/Blue

W10116705

Black/Chrome

28 280230 Encoder, Wheel

Kit.

(Includes Item:

23, 24, & 26 )

W10117943

Badge

W10110976

Cube Cable

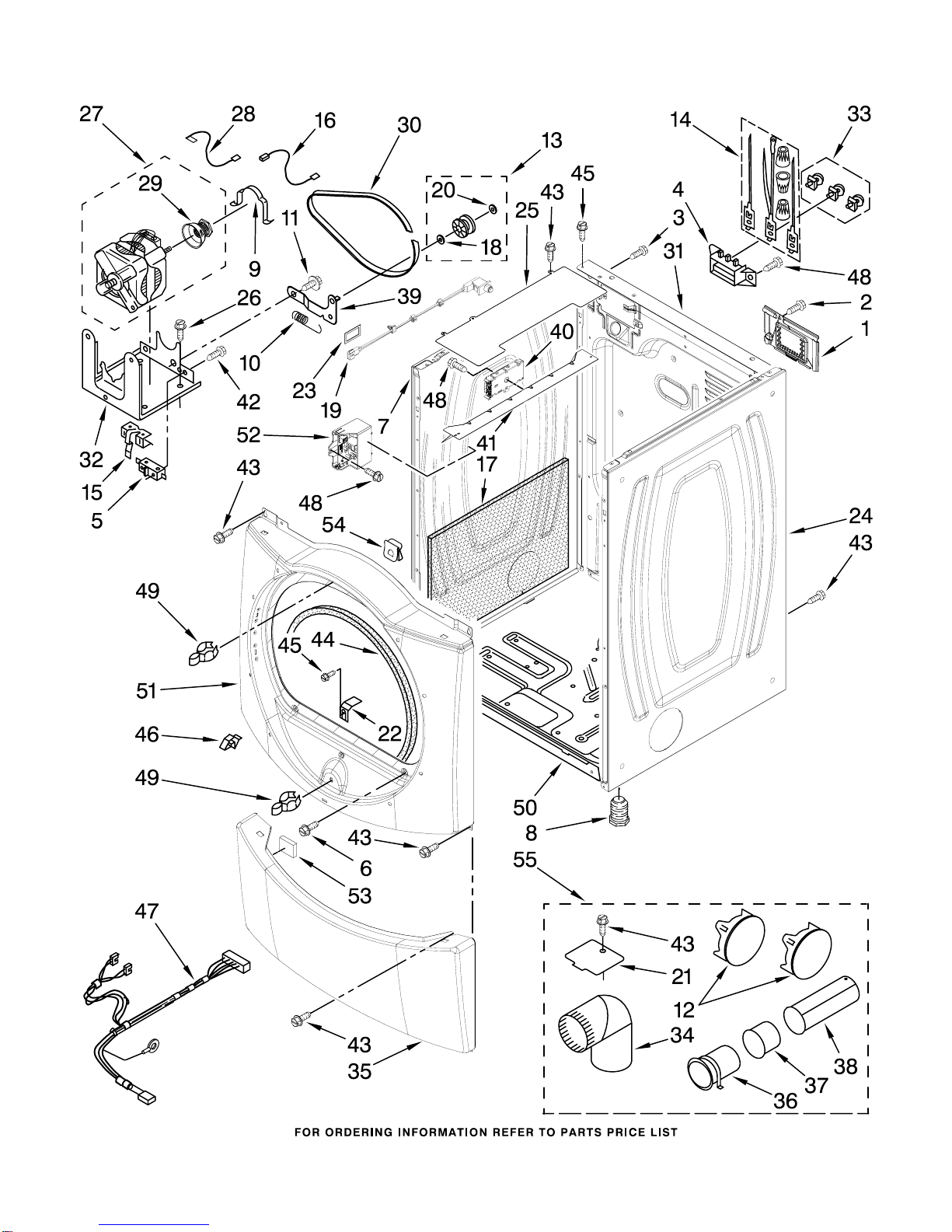

CABINET PARTS

W10145263

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

CABINET PARTS

4W10145263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

1 8576583 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw Ground

4 3397659 Block, Terminal

5 3394881 Switch, Broken

Belt

6 3357011 Screw, 10−16 x 1/2

7 Panel, Side (L.H.)

W10138989

White

W10138995

Ultimate Silver

W10138999

Aspen

W10138996

Black/Chrome

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

8579117 Ultimate Silver

W10136987

Aspen

3388309 Black/Chrome

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

W10128772

Sound Panel

18 233520 Washer, Thrust

W10128087

Assembly,

Door Switch

W10121334

Washer

21 8066115 Cover−Plate

22 8529053 Ramp, Door

W10118614

Seal,

Door Switch

24 Panel, Side (R.H.)

W10139003

White

W10139009

Ultimate Silver

W10139013

Aspen

W10139010

Black/Chrome

W10118470

Cover,

Bracket Control

26 343641 Screw, 10−16 x 1/2

27 8538263 Motor, Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

W10053558

Panel, Rear

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 Toe, Panel

W10116271

White

W10116277

Ultimate Silver

W10140572

Aspen

W10116273

Black/Chrome

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

W10141671

Control Board

41 8563727 Bracket, Control

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

W10110990

Harness,

Digital Interface

48 90767 Screw, 8−18 x 3/8

49 696144 Strike, Door (2)

50 8519207 Base, Cabinet

51 Front Panel

8578388 White

8578940 Ultimate Silver

W10140574

Aspen

8578936 Black/Chrome

52 3407228 Power Cube

53 3389682 Space−Toe Panel

54 62825 Clip−S Type

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

55 279818 White

279820 Black

280171 Ultimate Silver

W10152954

Aspen

BULKHEAD PARTS

W10145263

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

BULKHEAD PARTS

6W10145263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10128544

Cap−Plug

10 3402841 Lens,

Drum Light

11 489463 Screw, 8−18 x 3/8

12 8572105 Clip, Exhaust

Pipe

13 8066208 Clip−Spring

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

W10124071

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8066224 Exhaust Pipe

23 3394985 Housing, Outlet

24 8529007 Plug,

Rear Bulkhead

W10138031

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 8533971 Screw, 8−18 x 3/8

30 3391018 Cable−Tie

31 90767 Screw, 8−18 x 3/8

32 3392519 Thermal−Fuse

(91 C)

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 3977373 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

W10044616

Cover, Drum Light

39 3394986 Spring, Lint

Screen Door

W10044596

Valve, Water Inlet

(Includes Illus.

31,41,55 & 63)

W10044597

Bracket−Valve

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544769 Housing−Slot

Heater Box

47 8318314 Thermal Cut−Off

(Includes

Illus. 48)

48 8557403 Thermostat 295 F

(146 C) (Hi−Limit)

49 8544770 Housing−Tab

Heater Box

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

52 8544776 Flange−Heater Box

W10113136

Baffle, Drum

54 8519245 Bulkhead, Front

(Includes Illus.

65 & 66 )

W10044617

Cover, Inlet Valve

W10044598

Hose,

(Not Servicable

Included With

Illus. 57 )

W10044606

Nozzle & Hose

Assembly

(Includes Illus.

30,56,59,61 & 62)

58 8299979 Grill, Outlet

W10044629

Nozzle & Screen

Assembly

60 697770 Seal, Cover Plate

W10044579

Washer, Nozzle

W10044580

Nut, Brass

9/16−24 x 1/32

W10044605

Coupling, Hose

W10049370

Lint, Screen

W10128629

Shield,

Blower Housing

(Includes Illus.

2. )

DOOR PARTS

W10145263

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10085210

Label−Hinge

Hole Cover

W10139920

Door Hinge

Assembly

W10017850

Screw,

10−24 x 3/64

4 9742177 Screw, 8−18 x 5/8

5 8578153 Cover−Hinge (L.H.)

(Following Parts

Not Included)

8578152 Cover−Hinge (R.H.)

W10139457

Seal−Door

7 Handle, Ring

& Pad Assembly

W10048070

Silver

W10048010

Gold

8 3393008 Screw, 10−16 x 1/2

9 8579520 Door Assembly

(Outer)

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 12 & 27)

11 355515 Screw,

8−18 x 11/16

12 3398175 Door Catch

Assembly (Upper)

13 8519356 Retainer−Window

(Upper)

14 8519354 Retainer−Window

(Lower)

15 8579662 Gasket, Window

W10048910

Screw−Plug

17 8566254 Window

18 8580116 Pad−Handle

19 Tear−Drop Trim

& Clip Assembly

W10133736

White

W10133739

Ultimate Silver

W10133740

Aspen

W10133741

White/Blue

W10133737

Black/Chrome

W10074630

Door−Shield

21 8578157 Door Intermediate

22 8578156 Door Mask

23 8578155 Door Screen

24 3393258 Screw, 10−16 x 1/2

W10129065

Clip−Trim (8)

27 690081 Door Catch

Assembly (Lower)

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

OPTIONAL PARTS (NOT INCLUDED)

8W10145263

Illus. Part

No. No. DESCRIPTION

For Models: WED9600TW0, WED9600TU0, WED9600TA0, WED9600TZ0, WED9600TB0

(White) (Ultimate Silver) (Aspen) (White/Blue) (Black/Chrome)

PAINT, TOUCH−UP (1/2oz.)

72017 White

72302 Black

8212605 Ultimate Silver

W10157756

New Aspen

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

786302 Black (Uncut)

ACCESSORY PARTS

8529894 Kit, Hold Down

8541503 Kit,

Stack Assembly

8579666A Kit,

Door Reversing

80047 Kit,

Dryer Repair

8521957 Dry Rack

FOLLOWING PARTS

NOT ILLUSTRATED

76314 (Hose Inlet)

6’Hose With Elbow

W10044603

(Hose Inlet)

1’ Hose

3976300 Washer

W10044604

Connector Hose

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool AWZ 650 Bedienungsanleitung

Whirlpool

Whirlpool WED5800BC Bedienungsanleitung

Whirlpool

Whirlpool WED6600VW0 Bedienungsanleitung

Whirlpool

Whirlpool AWZ 3303 Bedienungsanleitung

Whirlpool

Whirlpool LER5644EQ0 Bedienungsanleitung

Whirlpool

Whirlpool 8578370 Bedienungsanleitung

Whirlpool

Whirlpool Maytag NED7500VM0 Bedienungsanleitung

Whirlpool

Whirlpool 3978906 Bedienungsanleitung

Whirlpool

Whirlpool LE6400XP Bedienungsanleitung

Whirlpool

Whirlpool WSI24ABBPH00 Bedienungsanleitung

Whirlpool

Whirlpool WASHER Bedienungsanleitung

Whirlpool

Whirlpool AWZ 7303 Bedienungsanleitung

Whirlpool

Whirlpool GLE7900XK Bedienungsanleitung

Whirlpool

Whirlpool W10150630A Bedienungsanleitung

Whirlpool

Whirlpool LE9800XPW1 Bedienungsanleitung

Whirlpool

Whirlpool DryAire LMA1053L Bedienungsanleitung

Whirlpool

Whirlpool W10054080A Bedienungsanleitung

Whirlpool

Whirlpool HYBRIDCARE YWHD560CHW0 Bedienungsanleitung

Whirlpool

Whirlpool W11440958 Bedienungsanleitung

Whirlpool

Whirlpool Maytag W11416805 Bedienungsanleitung

Whirlpool

Whirlpool Roper RES7646JQ0 Bedienungsanleitung

Whirlpool

Whirlpool LGR4634PQ Bedienungsanleitung

Whirlpool

Whirlpool W10562337C-SP Bedienungsanleitung

Whirlpool

Whirlpool W10061470 Stücklistenhandbuch

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
