Whirlpool WGD4700Y Handbuch

29" and 27" Dryers

Gas (U.S.A. and Canada)

PRODUCT MODEL NUMBERS

W10115228C

02/2012

WGD4700Y, WGD4750X, WGD4800X, WGD4850X, WGD4890X, WGD4900X,

WGD4910X,WGD5100V, WGD5200V, WGD5300V, WGD5500X, WGD5510V,

WGD5550X, WGD5600X, WGD5610X, WGD5700A, WGD5700V, WGD5700X

Installation clearances:

The location must be large enough to allow the dryer door to open fully.

Most installations require a minimum 5½" (140 mm) clearance behind the dryer for the exhaust vent with elbow.

ABC

18"*

(457 mm)

(25 mm)

29"

(737 mm)

(25 mm)

1"*

(25 mm)

14" max.*

(356 mm)

27¾"

(705 mm)

48 in.

(310 cm )

2*2

3"*

(76 mm)

3"*

(76 mm)

24 in.

(155 cm )

2 *

43"

(1092 mm)

*291/2"

(749 mm)

27"

(687 mm)

23¾"

(603 mm)

43"

(1092 mm)

27"

(687 mm)

*291/2"

(749 mm)

13¾"

(349 mm)

ABC

18"*

(457 mm)

(25 mm)

27"

(686 mm)

(25 mm)

1"*

(25 mm)

14" max.*

(356 mm)

¼"

(743 mm)

½"*

(140 mm)

48 in.

(310 cm )

24 in.

(155 cm )

2 *

3"*

(76 mm)

3"*

(76 mm)

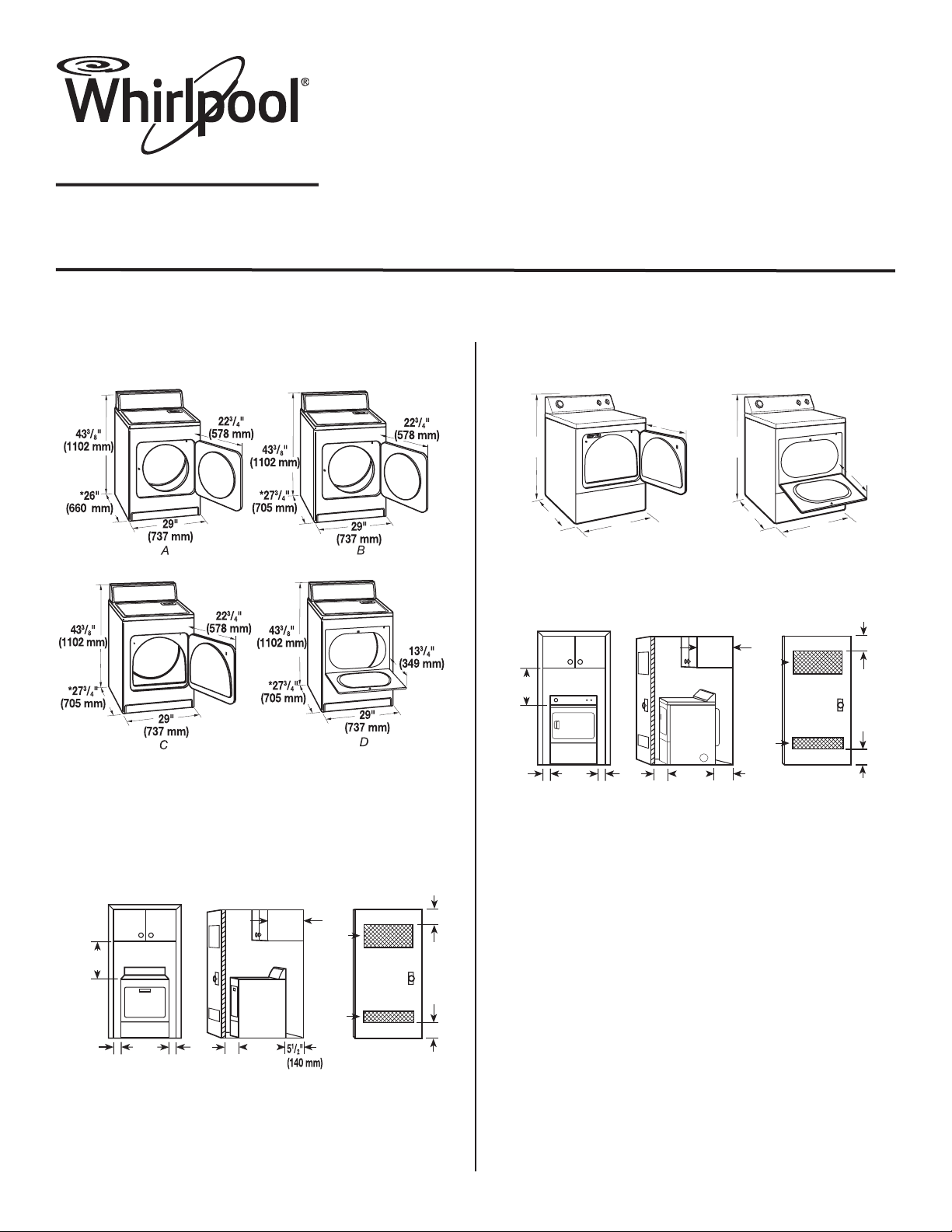

29" Wide Models

Dryer Dimensions

Installation Spacing

27" Wide Models

Dryer Dimensions

A. Large opening side-swing door

B. Large opening side-swing door

C. Wide opening side-swing door

D. Wide opening hamper door

A. Recessed area

B. Side view – closet or conned area

C. Closet door with vents

*Required spacing

Installation Spacing

Installation spacing for recessed area or closet

The dimensions shown are for the minimum spacing allowed.

■Additional spacing should be considered for ease of

installation and servicing.

■Additional clearances might be required for wall, door, and

oor moldings.

■Additional spacing of 1" (25 mm) on all sides of the dryer

is recommended to reduce noise transfer.

■For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

■Companion appliance spacing should also be considered.

A. Large opening side-swing door

B. Large opening side-swing door

A. Recessed area

B. Side view – closet or conned area

C. Closet door with vents

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation

our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.

ELECTRICAL REQUIREMENTS

VENTING REQUIREMENTS

Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)

diameter vent is required. Rigid or exible metal exhaust vent

must be used. Do not use plastic or metal foil vet. Exhaust hood

must be at least 12" (305 mm) from the ground or any object that

may be in the path of the exhaust.

Determine vent length and elbows needed for best

drying performance:

■Use following Vent System Chart to determine type of vent

material and hood combinations acceptable to use.

NOTE: Do not use vent runs longer than those specied

in Vent System Chart. Exhaust systems longer than those

specied will:

■Shorten life of dryer.

■Reduce performance, resulting in longer drying times

and increased energy usage.

Louvered Hood

Angled Hood

Box Hood

Exhaust hoods:

Recommended Styles:

Acceptable Style:

A 120-volt, 60 Hz, AC-only, 15 or 20 amp fused electrical supply is required. A time-delay fuse or circuit breaker and a separate circuit

are recommended.

GAS SUPPLY REQUIREMENTS

Gas supply: This dryer is equipped for use with Natural gas. Dryer can be converted to L.P. gas. When rigid pipe is used it should be 1/2" IPS. When

acceptable to the gas supplier and local codes, 3/8" approved tubing may be used for lengths under 20 ft (6.1 m). For lengths over 20 ft (6.1 m), larger

tubing should be used. Pipe-joint compounds resistant to the action of L.P. gas must be used. An individual manual shutoff valve must be installed

within 6 ft (1.8 m) of the dryer in accordance with the National Fuel Gas Code ANSI Z223.1.

Determine vent path:

■Select route that will provide straightest and most direct

path outdoors.

■Plan installation to use fewest number of elbows and turns.

■When using elbows or making turns, allow as much room

as possible.

■Bend vent gradually to avoid kinking.

■Use as few 90° turns as possible.

INSTALLATION REQUIREMENTS

Vent System Chart

Number of

90° turns or

elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0Rigid metal

Rigid metal

64 ft. (20 m)

54 ft. (16.5 m)

44 ft. (13.4 m)

35 ft. (10.7 m)

27 ft. (8.2 m)

58 ft. (17.7 m)

48 ft. (14.6 m)

38 ft. (11.6 m)

29 ft. (8.8 m)

21 ft. (6.4 m)

The “Vent System Chart” provides venting requirements that

will help achieve best drying performance.

NOTE: Side and bottom exhaust installations for 27" wide

models have a 90º turn inside the dryer. To determine

maximum exhaust length, add one 90º turn to the chart.

Vent System Chart

(29" Wide Long Vent Models Only)

Number of

90° turns

or elbows

Type

of vent

Box/louvered, or

Angled hoods

0 Rigid metal 120 ft. (36.6 m)

110 ft. (33.5 m)

100 ft. (30.5 m)

90 ft. (27.4 m)

80 ft. (24.4 m)

Rigid metal

570 ft. (21.3 m)Rigid metal
